POWER 2.5 DC
INSTALLATION
guide

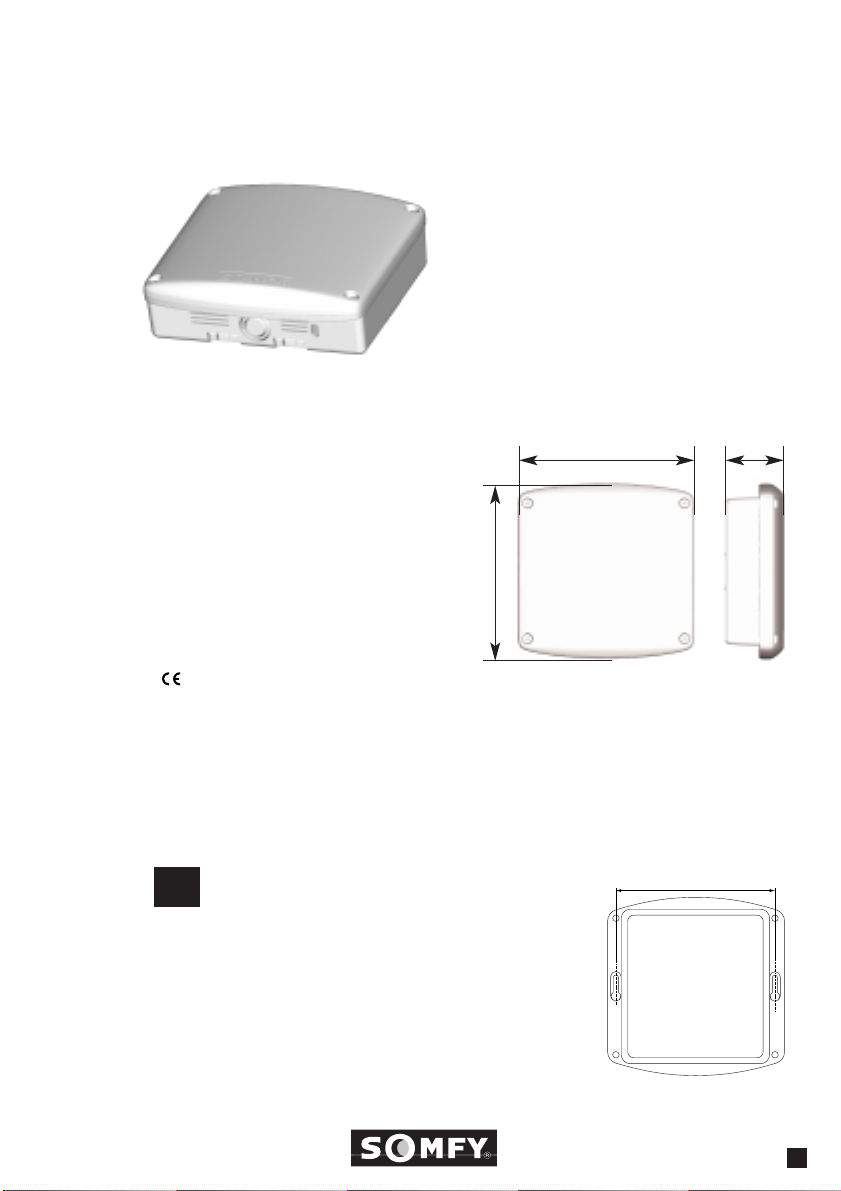

The Power 2.5 DC is a power supply
designed for Somfy 24V DC motors.
Ref. 5005049A
■Nominal supply voltage : 230 V AC
■Output voltage : 24 V DC SELV
■Maximum output load : 2.5 A
■Dimensions : 150 x 150 x 50 mm
■Protection indice : IP 20
■For internal use only
■For intermittent use only
■
150 mm 50 mm
150 mm
1
Characteristics
133 mm
Fig.1
2
Installation
Mounting
Remove the cover of the Power 2.5 DC.
Drill two holes into the wall according
to the mounting diagram (Fig 1).
Fix two screws into the wall and fit
the base of the Power 2.5 DC by sliding it
on the screw heads.
Screw up the two screws.
2.1 133 mm
2
MOT
12
MAINS
+-
Phase
Neutral
24V SOMFY DC MOTORS
Fig.2
SOMFY SAS, capital 20.000.000 Euros, RCS Bonneville 303.970.230 - Somfy reserves the right to update , change or modify these instructions without prior notice.

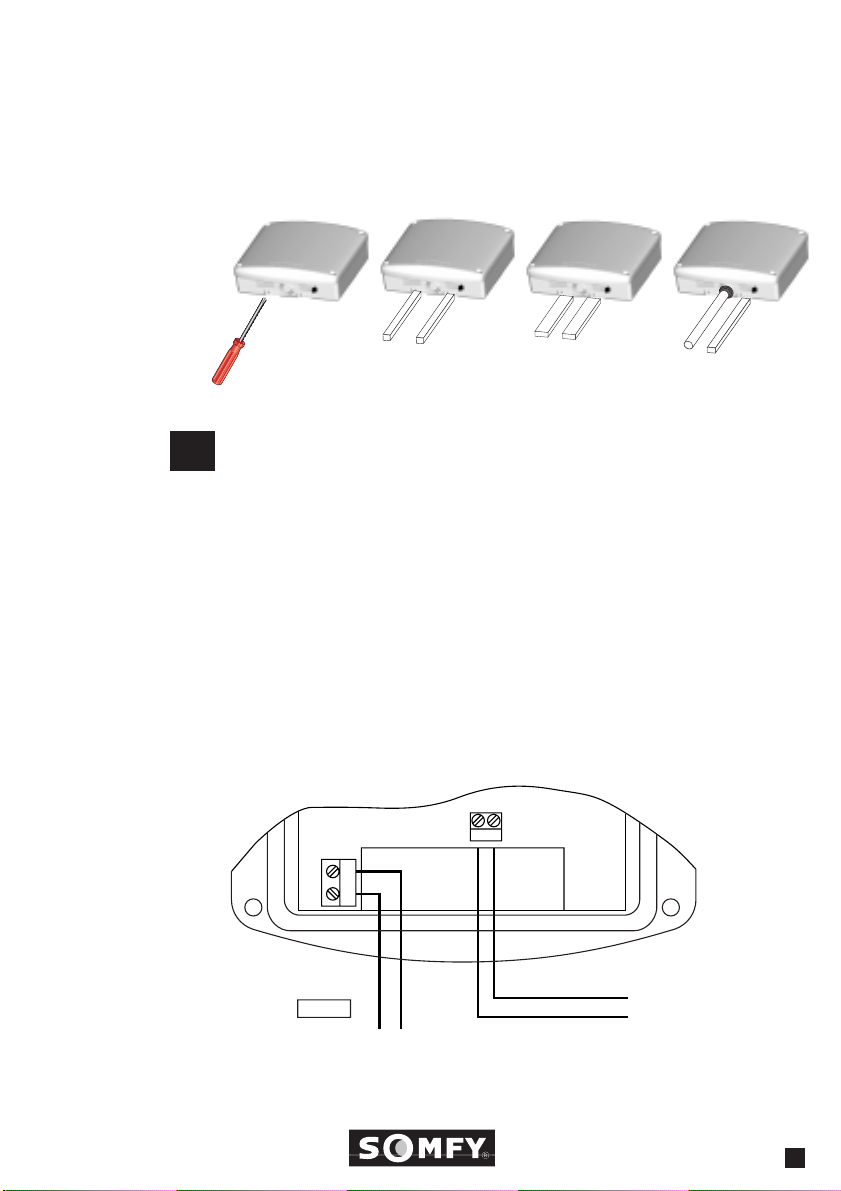

Wiring
The Power 2.5 DC is compatible with all Somfy 24V DC actuators.
Cabling arrangements are shown in the below diagram (Fig.2).
Take care to respect the electrical standards as well as the following points :
Disconnect the mains before carrying out any work.
Be careful to avoid static electricity which could damage
some electronic components.
Use flexible cables.
Ensure that no forces act on the screw terminals after installation.
Replace and screw back again the Power 2.5 DC cover before switching
on the power.
(If one motor turns in wrong direction, please invert its two supply wires).
2.2
24 DC
230 V AC
24 DC
230 V AC
24 DC
230 V AC
10 mm 20 mm
OR OR
The mains and the 24 V DC output must be placed in two separated
cable trunking (see diagram below).
Use the pre-cut access located in front of the Power 2.5 DC.
