SOMFY Inteo CENTRALIS RTS Bedienungsanleitung

The CENTRALIS RTS is a wireless control compatible with all the RTS receivers.

Commands are transmitted by radio (frequency 433.42 MHz) over a range of 300

meters in free space, and at least 20 meters even if it has to pass through two rein-

forced concrete walls.

❏Power: 3V lithium battery, CR 2430 type

❏Protection index: IP 30

❏Operating temperature: +5°C to +40°C

❏Class III product

❏Normally polluted environment

inteo CENTRALIS RTS

INSTALLATION

guide

Ref.9 182212C

MOUNTING THE CENTRALIS RTS

Characteristics:

Installation:

280 mm

80 mm

17 mm

2. Clip the Centralis RTS to the plate.

UP button

Intermediate position / STOP

button

DOWN button

LED

1. Screw the plate on the wall.

Recommendations :

❏Do not install the CENTRALIS RTS near or

against a metallic part.

❏minimum distance between the CENTRALIS

RTS and the RTS receiver :30 cm.

0165

Hereby, SOMFY, declares that this equipment is in

compliance with the essential requirements and

other relevant provisions of Directive 1999/5/EC.

A Declaration of Conformity is available at the web

address

www.somfy.com

Heading

SINGLE CONTROL

• Set the RTS receiver in its programming mode (refer to the installation guide of the concerned RTS receiver).

• Press shortly the programming button on the backside of the CENTRALIS RTS

➭ The RTS receiver emits a signal (LED or Buzzer depending on the type of receiver) indi-

cating that the address of the CENTRALIS RTS has been memorized in the RTS receiver

which automatically quit its programming mode.

MULTIPLE CONTROL

• Assign several CENTRALIS RTS to a RTS receiver following the same procedu-

re as described above.

You can assign up to 16 CENTRALIS RTS to one receiver. If you try to enter a 17th, your ins-

truction will be ignored,the led of the receiver will go out.

GENERAL OR GROUP CONTROL

• Set all the RTS receivers you wish to control by one CENTRALIS RTS in their programming mode.

• Press shortly the programming button on the backside of the CENTRALIS RTS

➭ The RTS receivers emits a signal (LED or Buzzer depending on the type of receiver) indicating that the address of the

CENTRALIS RTS is memorized in all these RTS receivers.

•Pressmorethan twoseconds onthe programmingbutton ona CENTRALISRTSwhichis alreadymemorized inthe RTSrecei-

ver in order to “wake up” the receiver.

➭the LED of the CENTRALIS RTS lights on, indicating that all the RTS receivers which have the adress of this CEN-

TRALIS RTS are in their programming mode for one minute.

• Press shortly the programming button of the new CENTRALIS RTS you wish to assign.

➭The address of the CENTRALIS RTS is memorized in all the RTS receivers which automatically quit their program-

ming mode.

To remove a CENTRALIS RTS from the memory of a RTS receiver, set the RTS receiver in its programming mode, then

press shortly the prog button of the Centralis RTS you wish to remove.

It is also possible to “wake up” the receiver with another CENTRALIS RTS (see § B/2), then press shortly the prog

button of the CENTRALIS RTS you wish to remove.

Non-binding document. Products and references in this document are subject to change without prior notice. Please consult SOMFY before using such references. © SOMFY 01/99

LITHIUM

CR2430

BATTERY

The CENTRALIS RTS is equiped with a 3V battery (type 2430) which provides during about 3 years (4 operations per day).

When the battery becomes discharged, the control LED does not light anymore when a command is sent, and the command is not carried

out.

F D K

LITHIUM BATTERY

CR 2430

LITHIUM

CR2430

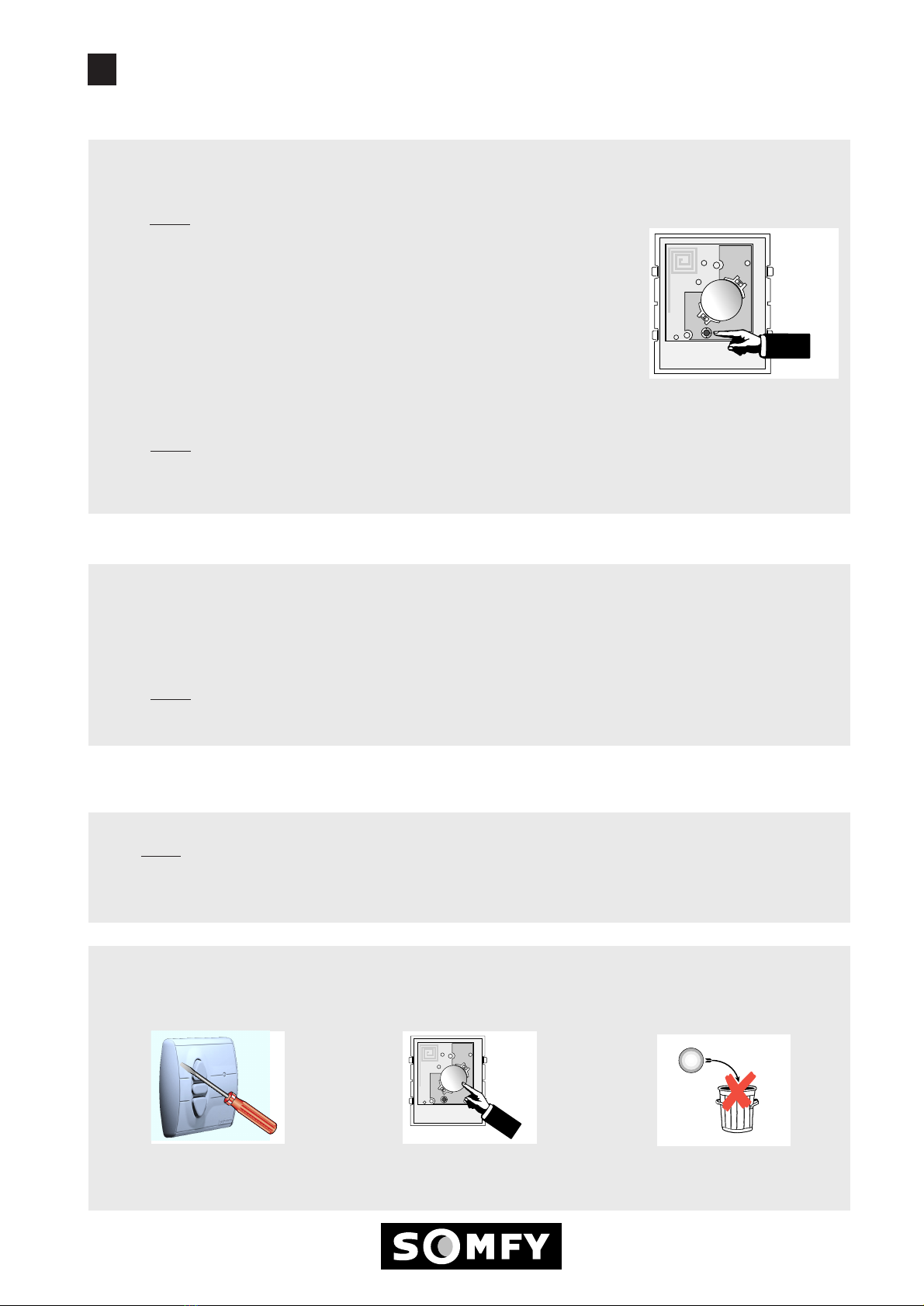

1Programming

REMOVE ONE CENTRALIS RTS FROM THE MEMORY OF THE RECEIVER

(ON AN EXISTING INSTALLATION)

Programming

button

2. Replace the battery located at

the backside of the CENTRALIS RTS 3. Do not throw the empty

battery anywhere, put it in a

dedicated container.

1. Remove delicately the

plate of the CENTRALIS RTS

Caution :When replacing the battery, be careful to avoid static electricity which could damage some electronic components.

INITIAL INSTALLATION

ADD A CENTRALIS RTS IN THE MEMORY OF A RECEIVER
