Sonoff S-MATE2 Bedienungsanleitung

(

)

S-MATE2 is a battery-powered switch that can be used to connect ordinary rocker or pulse

switches without the need for a neutral line. It can be used as an eWeLink-Remote sub-device

and added to the eWeLink-Remote gateway for local control. In addition, it can achieve smart

device linkage by setting up smart scenes.

Introduction

eWeLink-Remote Switch Mate

User Manual V1.0

The factory default mode of this device is Rocker switch mode

（

Figure

①

）

. If the device is

connected to a momentary switch, please turn the dip switch to the left

（

Figure

②

）

, the LED

indicator will flash 3 times quickly after the switch mode is successfully switched.

DIP Switch

①

DIP Switch

②

LED Indicator

Flash once quickly

：

External switch

status changes

Flash 3 times quickly

：

External switch

type is successfully switched

Flash 3 times quickly

：

External switch

status changes and the device is in a

low battery state

③

Wiring ports

●

Figure

①

Rocker switch mode

Figure

②

Momentary switch mode

1. Take out the battery insulation sheet.

Specification

Installation

Model S-MATE2

MCU AK803

Input 3.0V

⎓

Wireless Connectivity 2.4G

Battery Model CR2477

Net Weight 26.8g

Dimension 40.3x37.4x18.3mm

Color White

Casing Material ABS

Applicable Place Indoor

Working Temperature -10

℃

~40

℃

Working Humidity 5%~95% RH, non-condensing

Certified Compliance CE/FCC/ISED/RoHS

2. Power off

*Please install and maintain the device by a professional electrician. To avoid electric shock

hazard, do not operate any connection or contact the terminal connector while the device is

powered on!

3. Wiring instruction

* S-MATE2 needs to work with eWelink remote gateway. (Here MINIR4 acts as the eWelink

remote gateway.)

Add device

Click "..." on the homepage of the

supporting gateway

Click "eWeLink-Remote-devices" in the

Device Settings

Click "Add" button, and eWeLink-Remote

gateway will enter the learning mode

Click the sub-device button within 10

seconds

The eWeLink-Remote sub-device can only be used as a triggering device, rather than an

executing device.

Smart Scenes

Click the button on the sub-device to add

the device

Select "+" on the scene page to add a new

scene

Select "Add" triggers

Compatible eWeLink-Remote gateway

Select "Smart Device"

Select "S-MATE2" and follow the steps to

configure the conditions

Add the linked device

Complete the scene setup

https://sonoff.tech/product-review/product-insight/what-is-ewelink-remote-control/

This device is connected to a regular switch and used together with a product that

provides eWeLink-Remote gateway function. Click on the image or enter the website

address to view compatible products.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that may cause

undesired operation.

2.Changes or modifications not expressly approved by the party responsible for compliance

could void the user's authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

FCC Warning

the instructions, may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one or more of

the following measures:

—

Reorient or relocate the receiving antenna.

—

Increase the separation between the equipment and receiver.

—

Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

—

Consult the dealer or an experienced radio/TV technician for help.

FCC Radiation Exposure statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated with minimum distance of 20 cm

between the radiator and your body. This transmitter must not be co-located or operating in

conjunction with any other antenna or transmitter.

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation,

Science and Economic Development Canada

’

s licence-exempt RSS(s).

Operation is subject to the following two conditions:

(1)This device may not cause interference.

(2)This device must accept any interference, including interference that may cause undesired

operation of the device.

This Class B digital apparatus complies with Canadian ICES-003.

This device complies with RSS-247 of Industry Canada.

Operation is subject to the condition that this device does not cause harmful interference.

’

émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR

’

Innovation, Sciences et Développement économique Canada applicables aux appareils radio

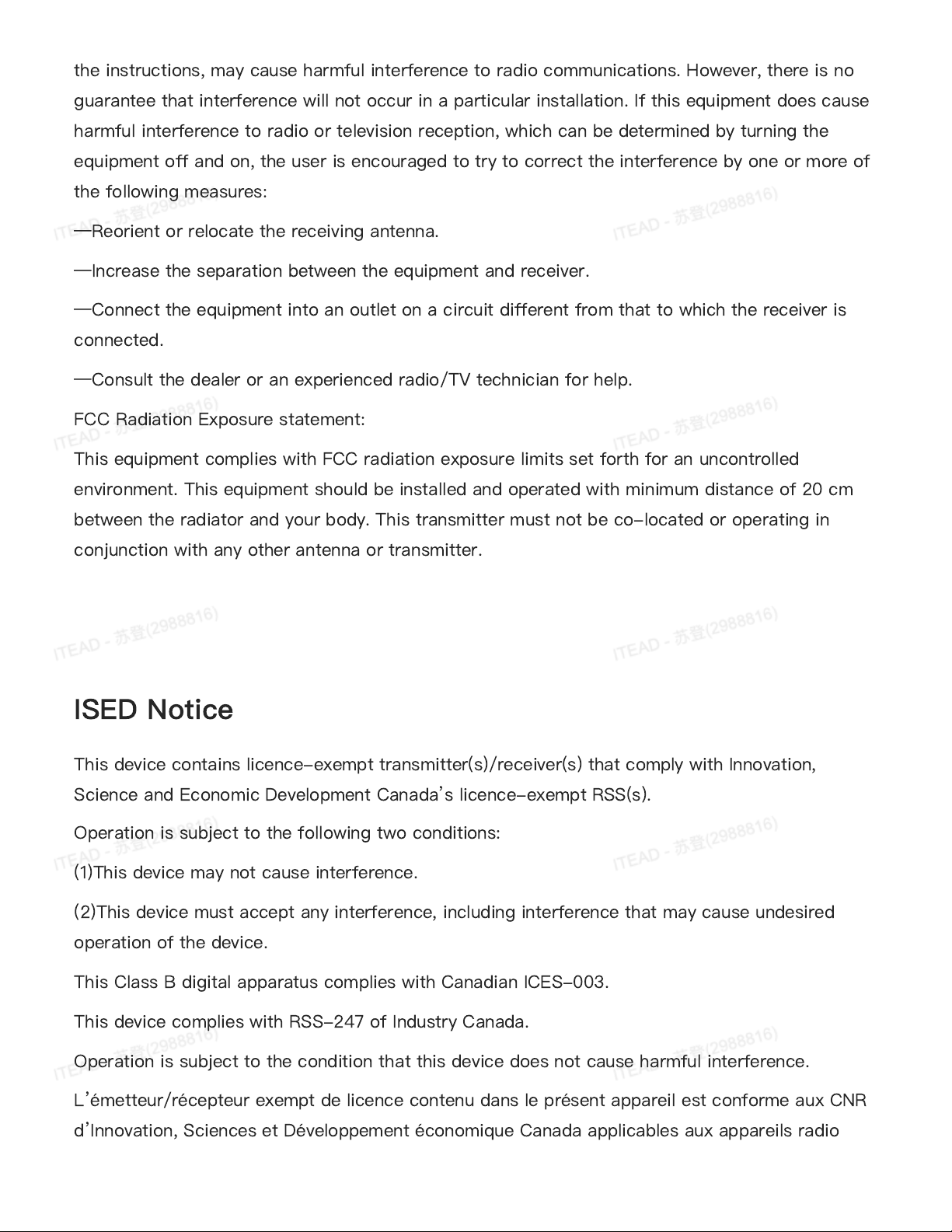

ISED Notice
