TA-VE910

2EN

WARNING

To prevent fire or shock

hazard, do not expose

the unit to rain or

moisture.

To avoid electrical shock,

do not open the cabinet.

Refer servicing to

qualified personnel only.

Do not install the

appliance in a confined

space, such as a bookcase

or built-in cabinet.

Precautions

On safety

• Should any solid object or liquid fall

into the cabinet, unplug the amplifier

and have it checked by qualified

personnel before operating it any

further.

On power sources

• Before operating the amplifier, check

that the operating voltage is identical

with your local power supply. The

operating voltage is indicated on the

nameplate at the rear of the amplifier.

• The amplifier is not disconnected

from the AC power source as long as

it is connected to the wall outlet, even

if the amplifier itself has been turned

off.

• If you are not going to use the

amplifier for a long time, be sure to

disconnect the amplifier from the

wall outlet. To disconnect the AC

power cord, grasp the plug itself;

never pull the cord.

• One blade of the plug is wider than

the other for the purpose of safety

and will fit into the wall outlet only

one way. If you are unable to insert

the plug fully into the outlet, contact

your dealer.

• AC power cord must be changed only

at the qualified service shop.

On placement

• Place the amplifier in a location with

adequate ventilation to prevent heat

buildup and prolong the life of the

amplifier.

• Do not place the amplifier near heat

sources, or in a place subject to direct

sunlight, excessive dust or

mechanical shock.

• Do not place anything on top of the

cabinet that might block the

ventilation holes and cause

malfunctions.

On operation

• Before connecting other components,

be sure to turn off and unplug the

amplifier.

On cleaning

• Clean the cabinet, panel and controls

with a soft cloth slightly moistened

with a mild detergent solution. Do

not use any type of abrasive pad,

scouring powder or solvent such as

alcohol or benzine.

If you have any question or problem

concerning your amplifier, please

consult your nearest Sony dealer.

3EN

TABLE OF CONTENTS

Getting Started

Unpacking 4

Hookup Overview 4

Audio Component Hookups 5

Speaker System Hookups 6

TV/VCR Hookups 8

Digital Component Hookups 9

AC Hookups 10

Before You Use Your Amplifier 10

Basic Operations

Selecting a Component 11

Indexing Program Sources 14

Recording 14

Using the Sleep Timer 15

Dolby Surround Setup

Dolby Digital 16

Sound Adjustment

Using Pre-programmed Sound Fields 18

Customizing the Sound Fields 20

Advanced Remote Operations

Operating One Component While Using Another (background operation)

Changing the Factory Setting of a FUNCTION Button 24

Programming the Remote 25

Additional Information

Troubleshooting 26

Specifications 27

Glossary 28

Table of Functions of the SET UP Button 29

Rear Panel Descriptions 30

Remote Button Descriptions 31

Index 33

Quick Reference Guide 34

About This Manual

The instructions in this manual are for

model TA-VE910.

Conventions

• The instructions in this manual

describe the controls on the amplifier.

You can also use the controls on the

remote if they have the same or

similar names as those on the

amplifier.

• A “Quick Reference Guide” is

supplied on page 34.

• The “Remote Button Descriptions”

section on page 31 provides an

overview of the remote buttons.

• The following icons are used in this

manual:

ZIndicates that you can use only

the remote to do the task.

zIndicates hints and tips for

making the task easier.

This amplifier incorporates the Dolby*

Pro Logic Surround system.

* Manufactured under license from

Dolby Laboratories Licensing

Corporation.

DOLBY, the double-D symbol a,

“AC-3,” and “PRO LOGIC” are

trademarks of Dolby Laboratories

Licensing Corporation.

4EN

Getting Started

Front

speaker

(L)

Front

speaker

(R)

Rear

speaker

(L)

Rear

speaker

(R)

CD player

Tuner

Tape deck

DAT/MD deck

Turntable

Center

speaker

Unpacking

Check that you received the following items with the

amplifier:

• Remote commander (remote) RM-P501 (1)

• Size AA (R6) batteries (2)

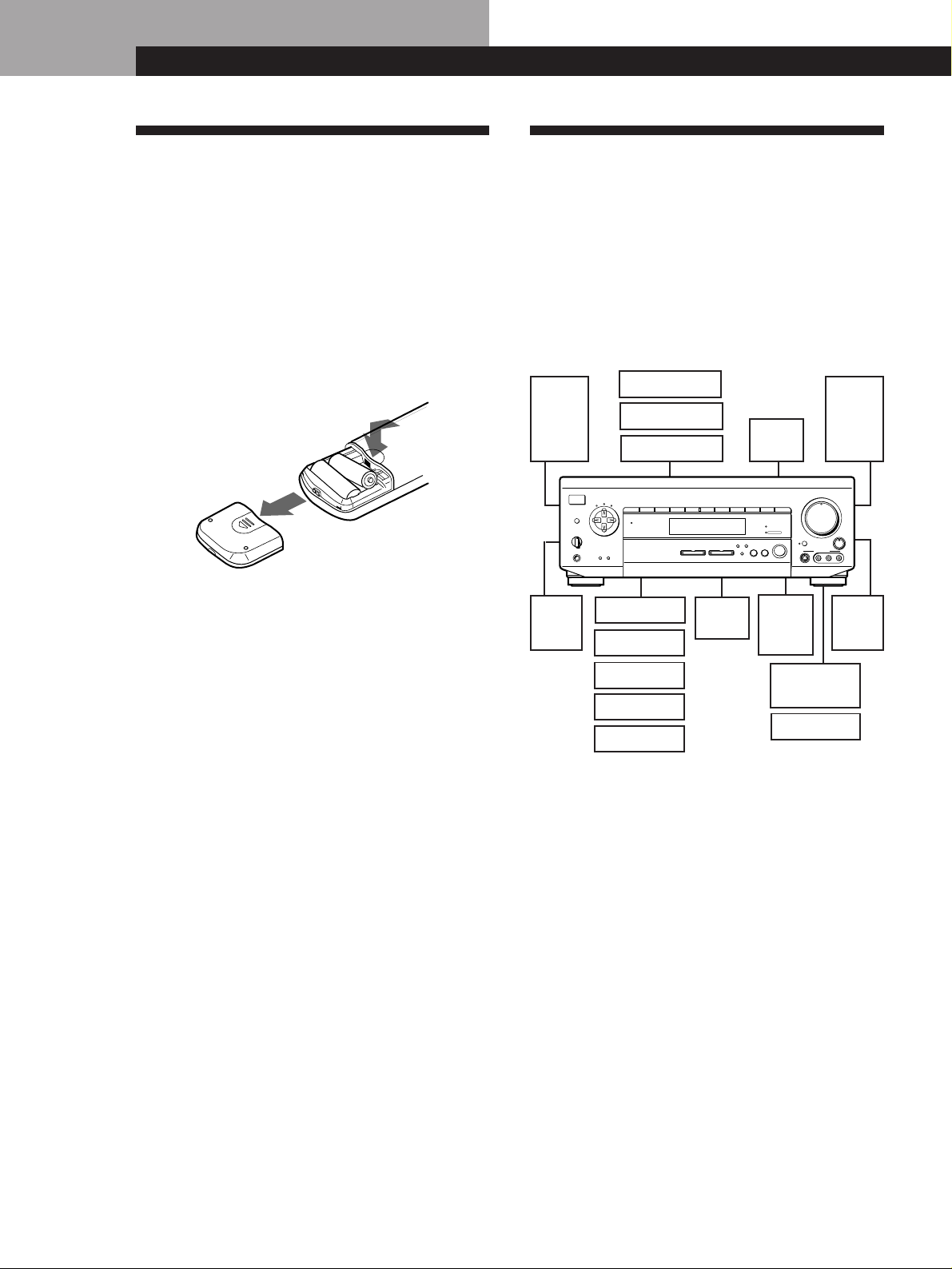

Inserting batteries into the remote

Insert two size AA (R6) batteries with the + and – on

the battery compartment. When using the remote,

point it at the remote sensor gon the amplifier.

}

]]

zWhen to replace batteries

Under normal use, the batteries should last for about 6

months. When the remote no longer operates the

amplifier, replace both batteries with new ones.

Notes

• Do not leave the remote in an extremely hot or humid

place.

• Do not use a new battery with an old one.

• Do not expose the remote sensor to direct sunlight or

lighting apparatuses. Doing so may cause a malfunction.

• If you don’t use the remote for an extended period of time,

remove the batteries to avoid possible damage from

battery leakage and corrosion.

VCR

LD player

Speaker

System

Hookups

(6)

TV/VCR Hookups (8)

Digital Component

Hookups (9)

Hookup Overview

The amplifier allows you to connect and control the

following audio/video components. Follow the

hookup procedures for the components that you want

to connect to the amplifier on the pages specified. To

learn the locations and names of each jacks, see “Rear

Panel Descriptions” on page 30.

Before you get started

• Turn off the power to all components before making

any connections.

• Do not connect the AC power cords until all of the

connections are completed.

• Be sure to make connections firmly to avoid hum

and noise.

• When connecting an audio/video cable, be sure to

match the color-coded pins to the appropriate jacks

on the components: Yellow (video) to Yellow; White

(left, audio) to White; and Red (right, audio) to Red.

Getting Started

Wireless

rear

speaker

INPUT

MODE

VIDEO FUNCTION AUDIO FUNCTION

GENRE

TONE

SUR INDEX

SET UP

DIRECT

PASS

MODE

DIRECT PASS

SOUND FIELD

ON / OFF

BASS

BOOST

BALANCE

STANDBY

DISCRETE

•

PHONES

POWER

SPEAKERS

DPC

MODE

OFF

MASTER VOLUME

VIDEO 2VIDEO 1 VIDEO 3 LD TV TAPE DAT /MD CD TUNER PHONO

DISPLAYDIMMER

S VIDEO RLVIDEO AUDIO

VIDEO 3 INPUT

Video camera

recorder

Video game

Audio Component

Hookups (5)

Active

woofer

5EN

Getting Started

Audio Component Hookups

Overview

This section describes how to connect your audio

components to the amplifier. For digital connections,

see “Digital Component Hookups” on page 9.

WIRELESS

REAR

SPEAKER

FRONT SPEAKERS

SURROUND SPEAKERS

IMPEDANCE USE 4–16 Ω

REAR

IMPEDANCE USE 4–16 Ω

–

––

–

WOOFER

AUDIO

OUT

VIDEO

OUT

ININ OUT

VIDEO

OUT

VIDEO

OUT

VIDEO

RECOUTINININ

AUDIO

OUT

AUDIO

OUT

AUDIO

PHONO

DAT / MD

MONITORVIDEO 1VIDEO 2LD

CENTER

VIDEO

AUDIO

AC OUTLET

SWITCHED 100W MAX

TUNER

INRECOUT

TAPE

SIGNAL

GND

LD IN

AC-3 RF

OPTICAL

CD IN

OPTICAL

DAT / MD IN

OPTICAL

DAT / MD OUT

OPTICAL

COAXIAL

DIGITAL

PHONO CD TAPE

TUNER DAT/MD

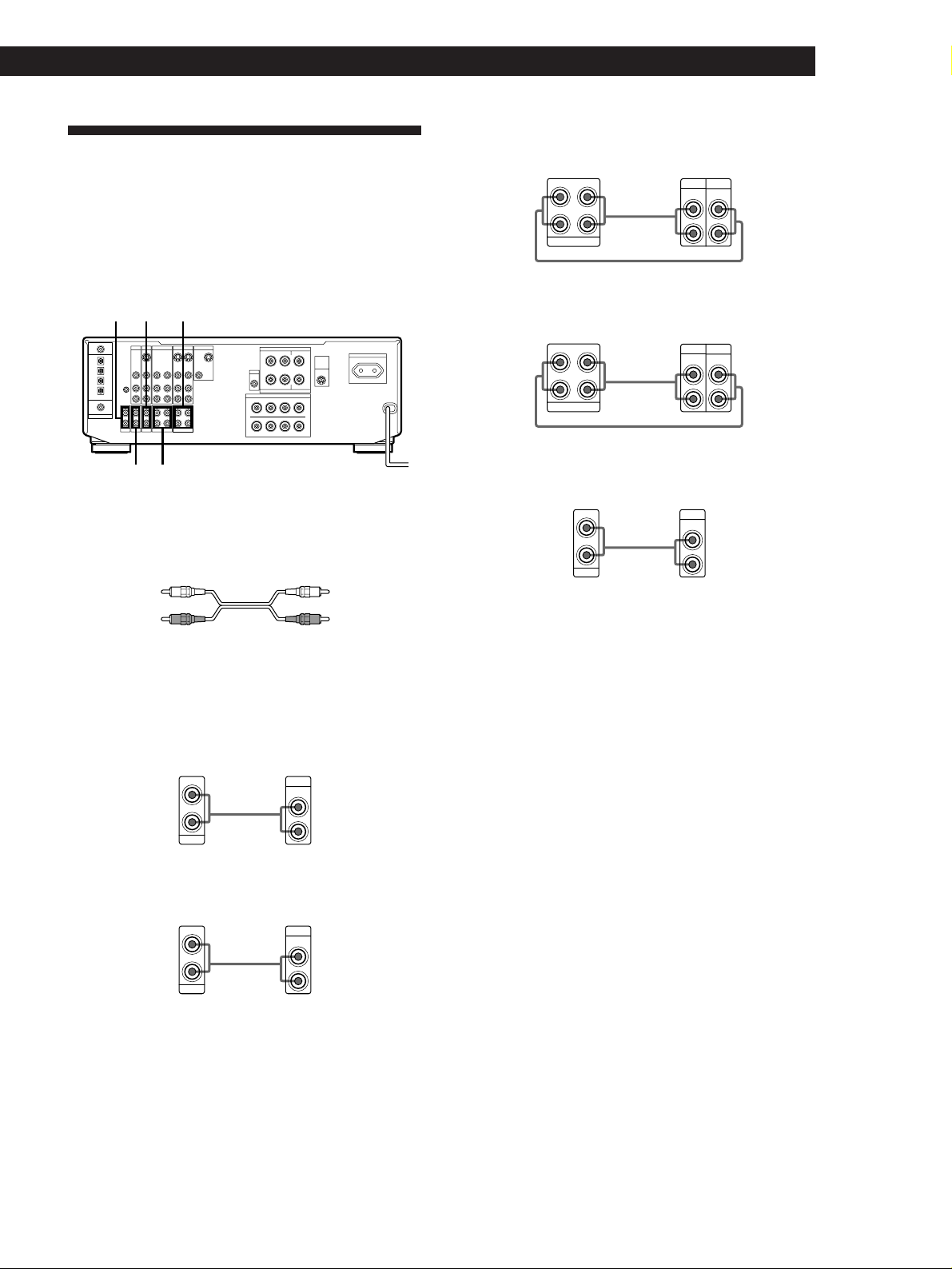

What cords will I need?

Audio cords (not supplied) (1 for each CD player, tuner, and

turntable; 2 for each tape deck, DAT deck, or MD deck)

White (L) White (L)

Red (R) Red (R)

Hookups

The arrow çindicates signal flow.

CD player

Amplifier CD player

LINE

OUTPUT

Tuner

Amplifier Tuner

TUNER

LINE

OUTPUT

Tape deck

Amplifier Tape deck

LINE

OUTPUT

LINE

INPUT

INRECOUT

TAPE

DAT deck or MD deck

Amplifier DAT deck or MD deck

LINE

OUTPUT

LINE

INPUT

INRECOUT

DAT/MD

Turntable

Amplifier Turntable

PHONO

LINE

OUTPUT

If your turntable has an earth lead

To prevent hum, connect the earth lead to the ySIGNAL

GND terminal on the amplifier.

6EN

Getting Started

Speaker System Hookups

Overview

This section describes how to connect your speakers to

the amplifier. Although front (left and right) speakers

are required, center and rear speakers are optional.

Adding center and rear speakers will enhance the

surround effects. Connecting an active woofer will

increase bass response.

WIRELESS

REAR

SPEAKER

FRONT SPEAKERS

SURROUND SPEAKERS

IMPEDANCE USE 4–16 Ω

REAR

IMPEDANCE USE 4–16 Ω

–

––

–

WOOFER

AUDIO

OUT

VIDEO

OUT

ININ OUT

VIDEO

OUT

VIDEO

OUT

VIDEO

RECOUTINININ

AUDIO

OUT

AUDIO

OUT

AUDIO

PHONO

DAT / MD

MONITORVIDEO 1VIDEO 2LD

CENTER

VIDEO

AUDIO

AC OUTLET

SWITCHED 100W MAX

TUNER

INRECOUT

TAPE

SIGNAL

GND

LD IN

AC-3 RF

OPTICAL

CD IN

OPTICAL

DAT / MD IN

OPTICAL

DAT / MD OUT

OPTICAL

COAXIAL

DIGITAL

WOOFER

FRONT SPEAKERS A WIRELESS

REAR SPEAKER

SURROUND

SPEAKERS REAR SURROUND

SPEAKERS CENTER

What cords will I need?

• Speaker cord (not supplied) (1 for each speaker)

(+) (+)

(–) (–)

Twist the stripped ends of the cord about 2/3 inch (15

mm). Be sure to match the speaker cord to the appropriate

terminal on the components: + to + and – to –. If the cords

are reversed, the sound will be distorted and will lack

bass.

• Monaural audio cord (not supplied) (1 for an active

woofer)

Black Black

Hookups

Front speakers

]]}}

FRONT SPEAKERS

IMPEDANCE USE 4–16 Ω

++––

To connect the speaker cords

]}

√

Rear and center speakers

SURROUND SPEAKERS

IMPEDANCE USE 4–16 Ω

REAR

–

CENTER

]]

}]}

}

Active woofer

Amplifier Active woofer

WOOFER

AUDIO

OUT

INPUT

Wireless rear speaker

When using an optional Sony wireless rear speaker system,

connect the transmitter to the WIRELESS REAR SPEAKER

jack.

Note

Do not connect any other component to the WIRELESS

REAR SPEAKER jack.

zIf you have an additional front speaker system

Connect them to the FRONT SPEAKERS B terminals.

Note

If you use front speakers with low maximum power input,

adjust the volume carefully to avoid excessive output on the

speakers.

Rear speaker

(R) Rear speaker

(L)Center speaker

Amplifier

Front speaker

(R) Front speaker

(L)

Amplifier

7EN

Getting Started

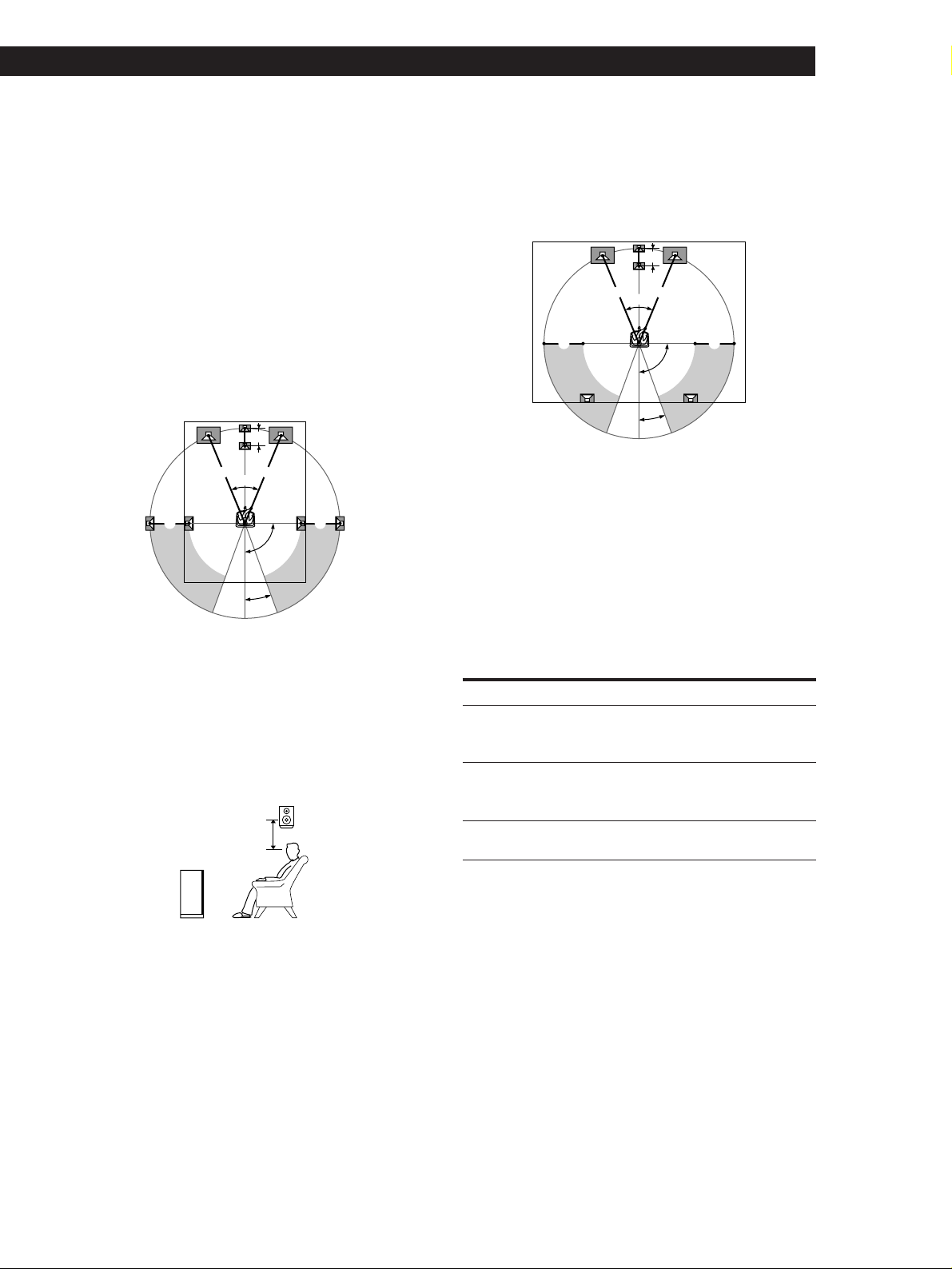

Speaker placement

For the best possible surround sound, we recommend:

• The best quality speakers possible

• Front, center, and rear speakers of equivalent size

and quality

• Positioning of speakers at the same distance from the

listening position (A).

The center speaker, however, may be moved closer,

but not beyond the straight line connecting the two

front speakers (B). The rear speakers may also be

closer to listening position than the front speakers (C),

to suit the configuration of your room. If the surround

effect is still inadequate, adjust the CENTER DELAY

and REAR DELAY parameters (see page 16).

C C

45°

90°

20°

Notes

• Do not place the center or rear speakers farther away from

the listening position than the front speakers.

• When mounting the rear speakers on side walls

perpendicular to the listening position they should be

placed 60 - 90 cm above the listening position as shown

below.

Set SPEAKERS selector to

A+B

To drive

Speaker system A (connected

to the FRONT SPEAKERS A

terminals)

Speaker system B (connected

to the FRONT SPEAKERS B

terminals)

Both speaker systems A and B

(parallel connection)

Depending on the shape of your room (etc.), you may

wish to place the rear speakers behind you instead of

on the side walls. One advantage of this placement is

that you can use a pair of large floor standing speakers

matching your front speakers.

C C

45°

90°

20°

Note

If you place the rear speakers behind you, be sure to check

the speaker location setting in the SPEAKER SETUP menu

when using VIRTUAL MULTI REAR and VIRTUAL REAR

SHIFT sound fields (see pages 16 and 19 for details).

Selecting the speaker system

If you connect only one set of front speakers, set the

SPEAKERS selector on the front panel to A. If you

connect two sets of front speakers, see the following:

Rear speaker

60 - 90 cm

Front speaker

8EN

Getting Started

TV/VCR Hookups

Overview

This section describes how to connect video

components to the amplifier. For digital connections,

see “Digital Component Hookups” on page 9.

WIRELESS

REAR

SPEAKER

FRONT SPEAKERS

SURROUND SPEAKERS

IMPEDANCE USE 4–16 Ω

REAR

IMPEDANCE USE 4–16 Ω

–

––

–

WOOFER

AUDIO

OUT

VIDEO

OUT

ININ OUT

VIDEO

OUT

VIDEO

OUT

VIDEO

RECOUTINININ

AUDIO

OUT

AUDIO

OUT

AUDIO

PHONO

DAT / MD

MONITORVIDEO 1VIDEO 2LD L

CENTER

VIDEO

AUDIO

AC OUTLET

SWITCHED 100W MAX

TUNER

INRECOUT

TAPE

SIGNAL

GND

LD IN

AC-3 RF

OPTICAL

CD IN

OPTICAL

DAT / MD IN

OPTICAL

DAT / MD OUT

OPTICAL

COAXIAL

DIGITAL

VIDEO 2 MONITORTV

LD VIDEO 1

What cables will I need?

• Audio/video cable (not supplied

) (1 for each TV or LD

player; 2 for each VCR)

Yellow Yellow

White (L) White (L)

Red (R) Red (R)

• Video cable (not supplied) (1 for a TV monitor)

Yellow Yellow

zIf you want to watch higher quality video images

You can connect an S-VIDEO cable (not supplied) to the

LD, VIDEO 1, VIDEO 3, or MONITOR jack.

Hookups

The arrow çindicates signal flow.

Amplifier TV

OUTPUT

VIDEO

AUDIO

VIDEO

AUDIO

TV monitor

If you use a TV monitor, do not connect anything to the TV

VIDEO IN jack.

Amplifier TV monitor

VIDEO

INPUT

VIDEO

OUT

MONITOR

VCR (via the VIDEO 1/2 jacks)

If you have two VCRs, connect the second one to the VIDEO

2 jacks. Amplifier

OUTPUT INPUT

VIDEOVIDEO

AUDIO

INOUT

VIDEO

OUT

AUDIO

OUT

VIDEO 1

Video camera recorder or video game

Use the VIDEO 3 INPUT jacks on the front panel.

OUTPUT

VIDEO

AUDIO

S VIDEO RLVIDEO AUDIO

VIDEO 3 INPUT

LD player

If you have an additional LD player, connect it to the VIDEO

2 jacks.

Amplifier LD player

OUTPUT

VIDEO

AUDIO

VIDEO

AUDIO

Amplifier

Video camera recorder or

video game

VCR

9EN

Getting Started

Digital Component Hookups

Overview

This section describes how to connect an LD player,

DAT/MD deck, and CD player equipped with digital

jack(s) to the amplifier. If you use a digital component,

select the appropriate input mode for the component

(see page 11).

WIRELESS

REAR

SPEAKER

FRONT SPEAKERS

SURROUND SPEAKERS

IMPEDANCE USE 4–16 Ω

REAR

IMPEDANCE USE 4–16 Ω

–

––

–

WOOFER

AUDIO

OUT

VIDEO

OUT

ININ OUT

VIDEO

OUT

VIDEO

OUT

VIDEO

RECOUTINININ

AUDIO

OUT

AUDIO

OUT

AUDIO

PHONO

DAT / MD

MONITORVIDEO 1VIDEO 2LD

CENTER

VIDEO

AUDIO

AC OUTLET

SWITCHED 100W MAX

TUNER

INRECOUT

TAPE

SIGNAL

GND

LD IN

AC-3 RF

OPTICAL

CD IN

OPTICAL

DAT / MD IN

OPTICAL

DAT / MD OUT

OPTICAL

COAXIAL

DIGITAL

LD IN AC-3 RF/

OPTICAL

LD IN

COAXIAL DAT/MD IN/OUT

OPTICAL

CD IN OPTICAL

What cords will I need?

• Optical digital connecting cord (not supplied) (1 for an LD

or CD player; 2 for a DAT or MD deck)

• Coaxial digital connecting cord (not supplied) (1 for an LD

player)

Hookups

The arrow çindicates signal flow.

LD player

Connect the LD player either to the LD IN COAXIAL or

OPTICAL jack.

LD player Amplifier LD player

DIGITAL

OUT

LD IN

OPTICAL

CD IN

OPTICAL

DAT / MD IN

OPTICAL

DAT / MD OUT

OPTICAL

COAXIAL

DIGITAL

OPTICALCOAXIAL

OUT

AC-3 RF

LD IN

If your LD player has an RF output jack, connect it to the LD

IN AC-3 RF jack of the amplifier as shown below.

Amplifier LD player

AC-3

OUT

LD IN

OPTICAL

CD IN

OPTICAL

DAT / MD IN

OPTICAL

DAT / MD OUT

OPTICAL

COAXIAL

DIGITAL

AC-3 RF

LD IN

CD player

Amplifier CD player

DIGITAL

OUT

LD IN

OPTICAL

CD IN

OPTICAL

DAT / MD IN

OPTICAL

DAT / MD OUT

OPTICAL

COAXIAL

DIGITAL

AC-3 RF

LD IN

DAT or MD deck

Amplifier DAT or MD deck

Xç

DIGITAL

OUT IN

LD IN

OPTICAL

CD IN

OPTICAL

DAT / MD IN

OPTICAL

DAT / MD OUT

OPTICAL

COAXIAL

DIGITAL

AC-3 RF

Warning regarding the playback of DAT/MD sources

When playing DAT/MD sources through the amplifier,

do not play a DAT/MD that contains digital recordings

made from a DVD player whose digital output was set

to “DOLBY DIGITAL.” High volume noise will be

output which may damage the amplifier and your

speakers.

Notes

• This amplifier is compatible only with digital components

using 32, 44.1, or 48-kHz sampling frequencies and not

compatible with 96 kHz.

• Be sure to connect digital components (CD player, DAT/

MD deck, etc.) to the analog jacks as well as the digital

jacks in order to do analog recording.

10EN

Getting Started

AC Hookups

Connecting the AC power cord

Connect the AC power cord from this amplifier and

from your audio/video components to a wall outlet.

If you connect another audio component to AC

OUTLET on the amplifier, the amplifier can supply

power to the connected component so you can turn

on/off whole system when you turn on/off the

amplifier.

WIRELESS

REAR

SPEAKER

FRONT SPEAKERS

SURROUND SPEAKERS

IMPEDANCE USE 4–16 Ω

REAR

IMPEDANCE USE 4–16 Ω

–

++––

–

WOOFER

AUDIO

OUT

VIDEO

OUT

ININ OUT

VIDEO

OUT

VIDEO

OUT

VIDEO

RECOUTINININ

AUDIO

OUT

AUDIO

OUT

AUDIO

PHONO

DAT / MD

MONITORVIDEO 1VIDEO 2LD L

CENTER

VIDEO

AUDIO

AC OUTLET

SWITCHED 100W MAX

TUNER

INRECOUT

TAPE

SIGNAL

GND

LD IN

AC-3 RF

OPTICAL

CD IN

OPTICAL

DAT / MD IN

OPTICAL

DAT / MD OUT

OPTICAL

COAXIAL

DIGITAL

AC OUTLET

to a wall

outlet

Caution

Make sure that the power consumption of the component

connected to amplifier’s AC OUTLET does not exceed the

wattage stated on the rear panel. Do not connect high-

wattage electrical home appliances such as electric irons,

fans, or TVs to this outlet.

Before You Use Your Amplifier

Before you start using your amplifier, make sure that

you have:

• Turned MASTER VOLUME to the leftmost position

(0).

• Selected the appropriate speaker system. (For

details, see “Selecting the speaker system” on

page 7.)

• Set BALANCE to the center position.

Turn on the amplifier and check the following

indicator.

• Press MUTING on the remote if “MUTING” appears

in the display.

Clearing the amplifier’s memory

Before you use your amplifier for the first time or

when you want to clear the amplifier’s memory,

do the procedure below.

INPUT

MODE

VIDEO FUNCTION AUDIO FUNCTION

GENRE

TONE

SUR INDEX

SET UP

DIRECT

PASS

MODE

DIRECT PASS

SOUND FIELD

ON / OFF

BASS

BOOST

BALANCE

STANDBY

DISCRETE

•

PHONES

POWER

SPEAKERS

DPC

MODE

OFF

MASTER VOLUME

VIDEO 2VIDEO 1 VIDEO 3 LD TV TAPE DAT /MD CD TUNER PHONO

DISPLAYDIMMER

S VIDEO RLVIDEO AUDIO

VIDEO 3 INPUT

POWER

MODE

AUDIO FUNCTION

VIDEO FUNCTION

1Turn off the amplifier.

2Press down VIDEO FUNCTION , AUDIO

FUNCTION , MODE, and POWER

simultaneously.

The contents of the memory (e. g., parameter

settings) are erased.

Inhaltsverzeichnis

Sprachen:

Andere Sony Verstärker Handbücher

Sony

Sony XM-C6000 Bedienungsanleitung

Sony

Sony XM-SD14X Bedienungsanleitung

Sony

Sony XM-S400D Bedienungsanleitung

Sony

Sony TA-FB720R Bedienungsanleitung

Sony

Sony XM-D400P5 Product Guide Bedienungsanleitung

Sony

Sony XM-D6000GTX - Car Monaural Power Amplifier Bedienungsanleitung

Sony

Sony XM-504Z - Stereo Power Amplifier Bedienungsanleitung

Sony

Sony XM-ZR602 Bedienungsanleitung

Sony

Sony TA-FB730R Bedienungsanleitung

Sony

Sony XM-222 Bedienungsanleitung

Sony

Sony XM-GTX6021 Installationsanleitung

Sony

Sony TA-F448EB Bedienungsanleitung

Sony

Sony TA-FE310R Bedienungsanleitung

Sony

Sony xm-423sl Bedienungsanleitung

Sony

Sony XM-1600GSD Marketing Specifications,... Bedienungsanleitung

Sony

Sony UDA-1 Bedienungsanleitung

Sony

Sony XM-3001SXD - Stereo Power Amplifier Bedienungsanleitung

Sony

Sony XM-3001SXD - Stereo Power Amplifier Bedienungsanleitung

Sony

Sony UDA-1 Referenzhandbuch

Sony

Sony XM-222MK2 Bedienungsanleitung

Sony

Sony XM4S - XM 4S Amplifier Bedienungsanleitung

Sony

Sony PHA-3 Leitfaden

Sony

Sony PHA-2 Bedienungsanleitung

Sony

Sony XM-S400D Bedienungsanleitung

Beliebte Verstärker Handbücher anderer Marken

ASTRO

ASTRO HVO V40 P Bedienungsanleitung

Marantz

Marantz SUPERSCOPE BLA-545 Montageanleitung

NAD

NAD CI980 Bedienungsanleitung

Technics

Technics SE-CH770 Bedienungsanleitung

Harman Kardon

Harman Kardon HK6300 Bedienungsanleitung

NAD

NAD T975 Bedienungsanleitung

McIntosh

McIntosh MA6850 Bedienungsanleitung

Electro-Harmonix

Electro-Harmonix ENGLISH MUFF’N Bedienungsanleitung

Viatron

Viatron Autrix Bedienungsanleitung

GME

GME GA9800 Bedienungsanleitung

Atlas

Atlas CP700 Bedienungsanleitung

Roland

Roland KC-1000 Bedienungsanleitung

Pyle

Pyle PFMRA350BW Bedienungsanleitung

Advantage

Advantage S-250 Bedienungsanleitung

IRT Electronics

IRT Electronics DVA-3007 Bedienungsanleitung

Dimavery

Dimavery BA-100 Series Bedienungsanleitung

Schertler

Schertler ROY X Bedienungsanleitung

Phonic

Phonic XP 3000 Bedienungsanleitung
