Operating Instructions

3-861-727-31 (1)

1998 by Sony Corporation

FM/AM

Compact Disc

Player

CDX-2180

For installation and connections, see the supplied installation/connections

manual.

Owner’s Record

The model and serial numbers are located on the bottom of the unit.

Record the serial number in the space provided below.

Refer to these numbers whenever you call upon your Sony dealer regarding this

product.

Model No. CDX-2180␣ ␣ Serial No.

Welcome !

Thank you for purchasing the Sony Compact

Disc Player. This unit lets you enjoy a variety

of features.

Warning

This equipment has been tested and found to

comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide

reasonable protection against harmful

interference in a residential installation. This

equipment generates, uses, and can radiate

radio frequency energy and, if not installed

and used in accordance with the instructions,

may cause harmful interference to radio

communications. However, there is no

guarantee that interference will not occur in a

particular installation. If this equipment does

cause harmful interference to radio or

television reception, which can be determined

by turning the equipment off and on, the user

is encouraged to try to correct the interference

by one or more of the following measures:

— Reorient or relocate the receiving antenna.

— Increase the separation between the

equipment and receiver.

— Connect the equipment into an outlet on a

circuit different from that to which the

receiver is connected.

— Consult the dealer or an experienced radio/

TV technician for help.

You are cautioned that any changes or

modifications not expressly approved in this

manual could void your authority to operate

this equipment.

CAUTION

The use of optical instruments with this

product will increase eye hazard.

Table of Contents

Location of controls ................................................. 4

Getting Started

Resetting the unit ................................................ 5

Setting the clock .................................................. 5

CD Player

Listening to a CD ................................................ 6

Playing a CD in various modes ........................ 6

Radio

Memorizing stations automatically

— Best Tuning Memory (BTM) ................... 7

Memorizing only the desired stations ............. 7

Receiving the memorized stations.................... 7

Other Functions

Adjusting the sound characteristics ................. 8

Changing the sound and beep tone ................. 8

Turning on the clock display

— POWER SELECT function ....................... 9

Additional Information

Precautions ........................................................... 9

Maintenance ....................................................... 10

Dismounting the unit ....................................... 11

Specifications ..................................................... 12

Troubleshooting guide ..................................... 13

Location of controls

Refer to the pages for details.

1SEEK/AMS (seek/Automatic Music

Sensor/manual search) control 6, 7, 8

2MODE (band select) button 7

3SOURCE (source select) button 6, 7

4Dial (volume/bass/treble/left-right/

front-rear control) 5, 8

5SOUND button 5, 8, 9

6Display window

7DSPL (display mode change/time set)

button 5, 6, 8

86(eject) button 6

9BTM/SENS (Best Tuning Memory/

sensitivity adjust) button 7, 8

!º Reset button (located on the front side

of the unit hidden by the front panel) 5

!¡ OFF button 5, 6, 9

!™ During radio reception:

Number buttons 7

During CD playback:

(1) REPEAT button 6

(2) SHUF button 6

!£ D-BASS dial 9

REPEAT

SEEK/AMS

SOUND

OFF

DSPL SENS

123456

D - BASS

OFF

123

MODE

SHUF

BTM

SOURCE

Getting Started

Resetting the unit

Before operating the unit for the first time or

after replacing the car battery, you must reset

the unit.

Press the reset button with a pointed object,

such as a ball-point pen.

Notes

•Pressing the reset button will erase all the

memorized program and memory functions.

•When you connect the power supply cord to the

unit or reset the unit, wait for about 10 seconds

before you insert a disc. Do not insert a disc

within these 10 seconds, otherwise, the unit will

not be reset, and you will have to press the reset

button again.

Reset button

Setting the clock

The clock has a 12-hour digital indication.

Example: Set the clock to 10:08

1Press (OFF) or (DSPL) during operation.

If the POWER SELECT function is set to

“ON”, press (OFF). If it is set to “OFF”,

press (DSPL).

2Press (DSPL) for two seconds.

The hour digit flashes.

1Set the hour digits.

2Press (SOUND) momentarily.

The minute digits flash.

3Set the minute digits.

3Press (DSPL) momentarily.

The clock is activated.

Note

If the car has no accessory position on the ignition

key switch, the clock cannot be set unless the

power is turn on. Set the clock after you have

turned on the radio, or started CD playback.

To go forward

To go back

SOURCE

To go forward

To go back

SOURCE

100

1000

1008

Getting Started

1008

SEEK/AMS

To search forward

To search backward

Labelled side up

Elapsed playing time

To locate succeeding

tracks

To locate preceding

tracks

SEEK/AMS

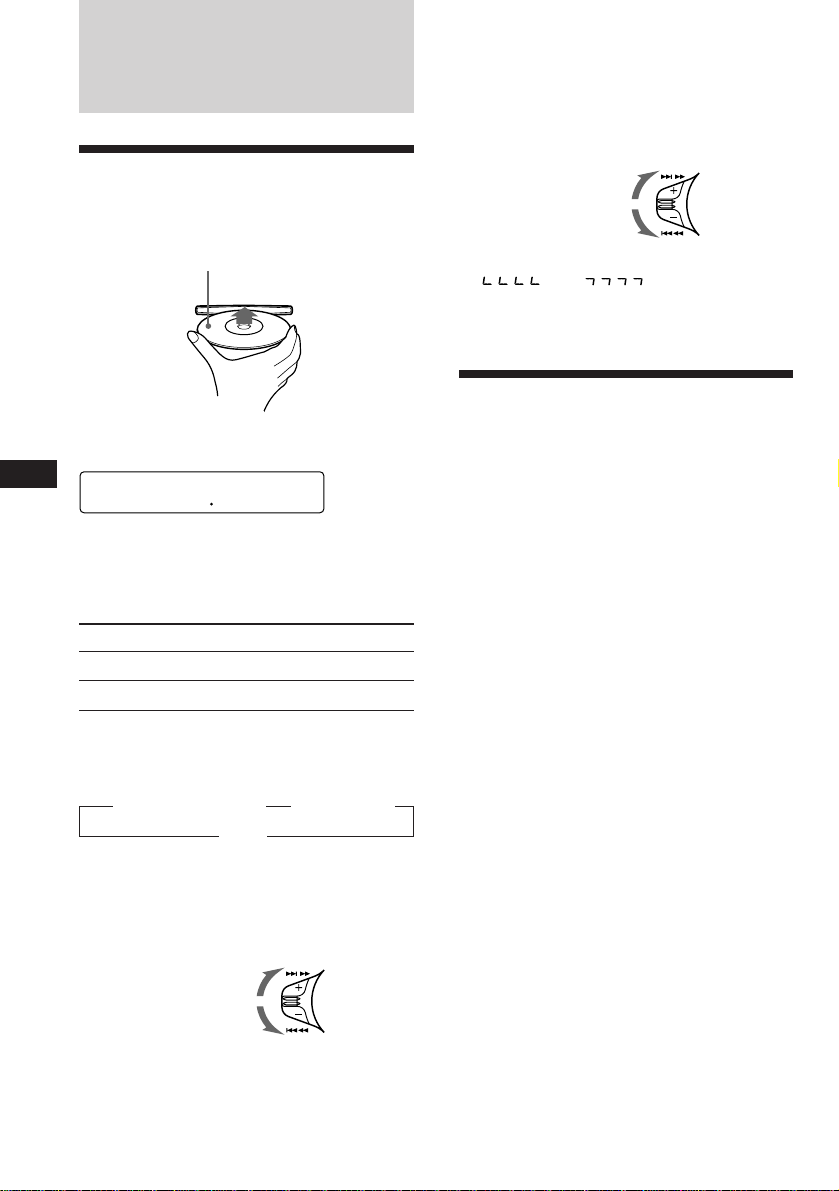

CD Player

Listening to a CD

Simply insert the CD.

Playback starts automatically.

If a CD is already inserted, press (SOURCE)

repeatedly until “CD” appears.

Note

To play back an 8 cm (3 in.) CD, use the optional

Sony compact disc single adapter (CSA-8).

To Press

Stop playback 6or (OFF)

Eject the CD 6

Changing the displayed items

Each time you press (DSPL), the item changes

as follows:

zElapsed playing time zTrack number

Time Z

Locating a specific track

— Automatic Music Sensor (AMS)

During playback, push the SEEK/AMS

control up or down momentarily.

Locating a specific point in a track

— Manual Search

During playback, push the SEEK/AMS

control up or down for about two

seconds. Release when you have found

the desired point.

Note

If “ ” or “ ” appears in the

display, you have reached the beginning or the

end of the disc and you cannot go any further.

Playing a CD in various

modes

Playing tracks repeatedly

— Repeat Play

Press (1) during playback.

“REP” appears in the display.

When the currently played track is over, it will

be played again from the beginning.

To cancel this mode, press again.

Playing tracks in random order

— Shuffle Play

Press (2) during playback.

“SHUF” appears in the display.

All tracks on the CD are played in random

order.

To cancel this mode, press again.

0215

MIN SEC

Radio

Memorizing stations

automatically

— Best Tuning Memory (BTM)

This function selects from the currently

received band the stations with the strongest

signals and memorizes them in order of their

frequency.

PREVENTING ACCIDENTS!

When tuning in while driving, use the

automatic tuning instead of manual tuning.

1Press (SOURCE) repeatedly to select the

tuner.

Each time you press (SOURCE), the mode

changes as follows:

CD ˜TUNER

2Press (MODE) repeatedly to select the

band.

Each time you press (MODE), the mode

changes as follows:

3Press (BTM/SENS) for two seconds.

The unit stores stations in the order of their

frequencies on the number buttons.

Notes

• The unit does not store stations with weak

signals. If only a few stations are received, some

number buttons remain empty.

• When a number is indicated in the display, the

unit starts storing stations from the one currently

displayed.

• If a CD is not in the unit, only the tuner band

appears even if you press (SOURCE).

Memorizing only the

desired stations

You can store up to 6 stations on each band (18

for FM I, FM II and FM III, 6 for AM) in the

order of your choice.

1Press (SOURCE) repeatedly to select the

tuner.

2Press (MODE) repeatedly to select the

band.

3Push the SEEK/AMS control up or down

to tune in the station that you want to

store on the number button.

4Press the desired number button ((1) to

(6)) for two seconds until “MEM”

appears.

The number button indication appears in

the display.

Note

If you try to store another station on the same

number button, the previously stored station will

be erased.

Receiving the memorized

stations

1Press (SOURCE) repeatedly to select the

tuner.

2Press (MODE) repeatedly to select the

band (FM I, FM II, FM III or AM).

3Press the number button ((1) to (6))

momentarily where the desired station is

stored.

”FM I ” FM II ” FM III ” AM

CD Player/Radio

Other Functions

Adjusting the sound

characteristics

You can adjust bass, treble, balance and fader.

Each source can store the bass and treble level

independently.

1Select the item you want to adjust by

pressing (SOUND) repeatedly.

VOL (volume) nBAS (bass) nTRE (treble)

nBAL (left-right) nFAD (front-rear)

2Adjust the selected item by rotating the

dial.

Adjust within three seconds after selecting

the item. (After three seconds, the dial

functions as volume control.)

Changing the sound and

beep tone

Boosting the bass sound — D.bass

You can enjoy clear and powerful bass sound.

The D-bass function boosts the low frequency

signal with a sharper curve than conventional

bass boost.

You can hear the bass line more clearly even if

the vocal sound is the same volume. You can

emphasize and adjust the bass sound easily

with the D-bass control. This effect is similar to

the one you get when you use an optional

subwoofer system.

Moreover, the Digital D-bass*function creates

even sharper and more powerful bass sound

than Analog D-bass.

*Digital D-bass is available during CD playback.

If you cannot tune in a preset

station

Push the SEEK/AMS control up or down

momentarily to search for the station

(automatic tuning).

Scanning stops when the unit receives a

station. Push the SEEK/AMS control up or

down repeatedly until the desired station is

received.

Note

If the automatic tuning stops too frequently, press

(BTM/SENS) momentarily until “LCL” appears in

the display (local seek mode). Only the stations

with relatively strong signals will be tuned in.

Tip

If you know the frequency of the station you want

to listen to, push the SEEK/AMS control up or

down for two seconds until the desired frequency

appears (manual tuning).

If FM stereo reception is poor

— Monaural Mode

Press (BTM/SENS) momentarily until

“MONO” appears.

The sound improves, but becomes

monaural (“ST” disappears).

To go back to the normal mode, press again

until “MONO” disappears.

Changing the displayed items

Each time you press (DSPL), the items

alternate between the frequency and time.

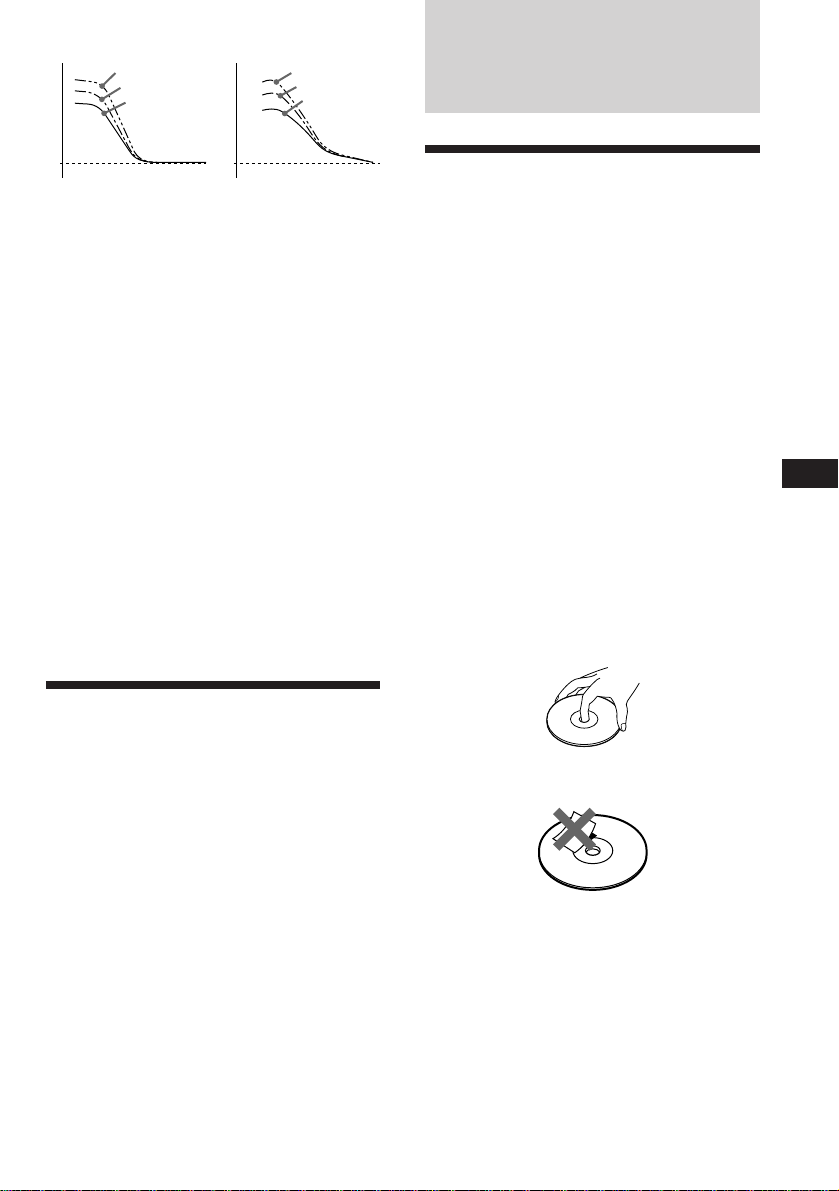

Digital D-BASS Analog D-BASS

Level

0dB

D-BASS 3

D-BASS 2

D-BASS 1

0dB

D-BASS 3

D-BASS 2

D-BASS 1

Frequency (Hz)Frequency (Hz)

Radio/Other Functions/Additional Information

Adjusting the bass curve

Turn the D-BASS dial to adjust the bass

level (1, 2 or 3).

“D-BASS” appears in the display.

During CD playback, “DIGITAL D-BASS”

appears in the display.

To cancel, turn the dial to the OFF position.

Note

If the bass sound becomes distorted, adjust the D-

bass dial or volume control.

Attenuating the beep tone

Press (6) while pressing (SOUND).

To obtain the beep tone again, press these

buttons again.

Note

If you connect an optional power amplifier and do

not use the built-in amplifier, the beep tone will

be disabled.

Turning on the clock

display — POWER SELECT function

Only for cars with an accessory position on the

ignition key switch

To turn the Power Select function ON

Press (OFF) while pressing (SOUND).

The Power Select function ties the clock

display power to the accessory position on

the ignition key switch.

To avoid battery wear, the clock is not

displayed while the unit is initializing.

Additional

Information

Precautions

• If your car was parked in direct sunlight

resulting in a considerable rise in

temperature inside the car, allow the unit to

cool off before operating it.

• If no power is being supplied to the unit,

check the connections first. If everything is in

order, check the fuse.

• If no sound comes from the speakers of a

two-speaker system, set the fader control to

the center position.

•If your car is equipped with a power

antenna, note that it will extend

automatically while the unit is operating.

If you have any questions or problems

concerning your unit that are not covered in

this manual, please consult your nearest Sony

dealer.

Notes on handling CDs

A dirty or defective disc may cause sound

dropouts while playing. To enjoy optimum

sound, handle the disc as follows.

Handle the disc by its edge. To keep the disc

clean, do not touch the surface.

Do not stick paper or tape on the labeled

surface.

continue to next page n

Maintenance

Fuse replacement

When replacing the fuse, be sure to use one

that matches the amperage described on the

fuse. If the fuse blows, check the power

connection and replace the fuse. If the fuse

blows again after replacement, there may be an

internal malfunction. In such a case, consult

your nearest Sony dealer.

Warning

Never use a fuse with an amperage rating

exceeding the one supplied with the unit as

this could damage the unit.

Fuse (10 A)

Do not expose the discs to direct sunlight or

heat sources such as hot air-ducts, or leave

them in a car parked in direct sunlight where

there can be a considerable rise in the

temperature inside the car.

Before playing, clean the discs with an optional

cleaning cloth. Wipe each disc from the center

out.

Do not use solvents such as benzine, thinner,

commercially available cleaners or antistatic

spray intended for analog discs.

Note on moisture condensation

On a rainy day or in a very damp area,

moisture may condense on the lenses inside

the CD player. Should this occur, the unit will

not operate properly. In this case, remove the

disc and wait for about an hour until the

moisture evaporates.

When you play 8 cm (3 in.) CDs

Use the optional Sony compact disc single

adapter (CSA-8) to protect the CD player from

being damaged.

Andere Handbücher für CDX-2180

Inhaltsverzeichnis

Andere Sony Autoempfänger Handbücher

Sony

Sony DSX-S300BTX Bedienungsanleitung

Sony

Sony XR-7150 Bedienungsanleitung

Sony

Sony MDX-C6400R Bedienungsanleitung

Sony

Sony CDX-F5500X Bedienungsanleitung

Sony

Sony XR-F5100EE Bedienungsanleitung

Sony

Sony CDX-555RF Operating Instructions... Bedienungsanleitung

Sony

Sony DSX-M50BT Bedienungsanleitung

Sony

Sony XR-4950X Bedienungsanleitung

Sony

Sony XR-CA300 - Fm-am Cassette Car Stereo Bedienungsanleitung

Sony

Sony MEX-GS600BT Bedienungsanleitung

Sony

Sony CDX-F5000C Bedienungsanleitung

Sony

Sony CDXGT430U - CD Receiver Head Unit Bedienungsanleitung

Sony

Sony XDP-PK1000 Produkthandbuch

Sony

Sony HCD-EC709iP - Cd Deck Receiver Component Bedienungsanleitung

Sony

Sony CDX-FW700 - Fm/am Compact Disc Player Bedienungsanleitung

Sony

Sony CDX-GT560S Bedienungsanleitung

Sony

Sony WX-C770 Bedienungsanleitung

Sony

Sony Sony Car Stereo System XR-M510 Produkthandbuch

Sony

Sony XR-L240 Bedienungsanleitung

Sony

Sony CDX-GT40U Bedienungsanleitung

Sony

Sony CDX-4500 Bedienungsanleitung

Sony

Sony CDX-GT212 Bedienungsanleitung

Sony

Sony CDX-3250 Bedienungsanleitung

Sony

Sony CDX-GT35UW - Fm/am Compact Disc Player Produkthandbuch

Beliebte Autoempfänger Handbücher anderer Marken

Motorola

Motorola VWA63 Bedienungsanleitung

Nextar

Nextar D3201 Bedienungsanleitung

Alpine

Alpine CDE-163BT Bedienungsanleitung

Pioneer

Pioneer DEH-P645R Bedienungsanleitung

Axxera

Axxera XDMA7600 Betriebsanleitung

XM OnyX Bedienungsanleitung

Sound Storm

Sound Storm STM93R Bedienungsanleitung

Soundstream

Soundstream VIR-5000 Bedienungsanleitung

Avson

Avson MKT Platform Bedienungsanleitung

Pioneer

Pioneer DVH-P500UB Bedienungsanleitung

JVC

JVC KD-AHD69 Bedienungsanleitung

Blaupunkt

Blaupunkt SANTIAGO CR 87 Bedienungsanleitung

XFIRE AUDIO

XFIRE AUDIO BMW42S Bedienungsanleitung

VDO

VDO CD 2253 Bedienungsanleitung

Volvo

Volvo 13 84 580 Bedienungsanleitung

ZENEC

ZENEC ZE-160DVD Bedienungsanleitung

Medion

Medion Car Audio Bedienungsanleitung

Philips

Philips CEM5000 Bedienungsanleitung
