Sony XA-V7W Produkthandbuch

3-243-056-12(1)

XAV-7W

Media Center/

Receiver

Installation/Connections

Installation/Connexions

Instalación/Conexiones ES

Notice to dealers and installers

Please return this manual to the customer after the installation is completed.

Avis aux revendeurs et installateurs

Veuillez rendre ce manuel au client une fois l’installation achevée.

Aviso para los proveedores e instaladores

Una vez finalizada la instalación, devuelvan este manual al cliente.

Unit is designed for negative ground

12 V DC systems only

The unit cannot be used in trucks or other cars

with 24 V systems. Otherwise, there is a risk of fire

and damage.

Do not disassemble or remodel the

unit

This can cause electric shock, personal injury or

fire. Do not connect any other system’s power

supply cord to this unit’s power supply cord

directly. If you are in any doubt about the safe

installation of this unit, please consult your nearest

Sony dealer.

Do not install in locations which

interfere with airbag operation

Otherwise there is a risk of accidents and injury.

Use only the specified fuse

When replacing the fuse, be sure to use only a fuse

of the same rating (ampere rating). Otherwise

there is a risk of fire.

Do not block ventilation

If the unit is placed under the floor carpet, floor

mat, or otherwise covered, the ventilation

openings and heat sink cannot provide sufficient

cooling, leading to overheating and the risk of fire

or serious accidents.

Cautions

•Do not get the wires under a screw, or caught in

moving parts (e.g. seat railing).

•Before making connections, turn the car ignition

off to avoid short circuits.

•Connect the yellow and red power input leads

only after all other leads have been connected.

•Run all ground wires to a common ground

point.

•Be sure to insulate any loose unconnected wires

with electrical tape for safety.

Notes on the power supply cord (yellow)

•When connecting this unit in combination with

other stereo components, the connected car

circuit’s rating must be higher than the sum of

each component’s fuse.

•When no car circuits are rated high enough,

connect the unit directly to the battery.

Precautions On safety

Comply with your local traffic rules and

regulations.

Table of Contents

Precautions .................................................................................................................... 2

Parts List ........................................................................................................................ 4

1Installing the Main Unit .......................................................................................... 5

Before installation................................................................................................................. 5

Installation procedure..........................................................................................................7

Installing the connection box XA-114................................................................................ 9

Hooking up the connection box ......................................................................................... 9

2Main Unit Connections.......................................................................................... 10

Connection Example ................................................................................................... 11

Connecting Information ............................................................................................. 13

Using the tap ....................................................................................................................... 13

Connecting the parking cord ............................................................................................ 13

3Car Systems Connections ...................................................................................... 14

4After Installation and Connections ...................................................................... 16

Removing the Front Panel Plate ................................................................................ 17

12 3

4*56

78 9

q; qa

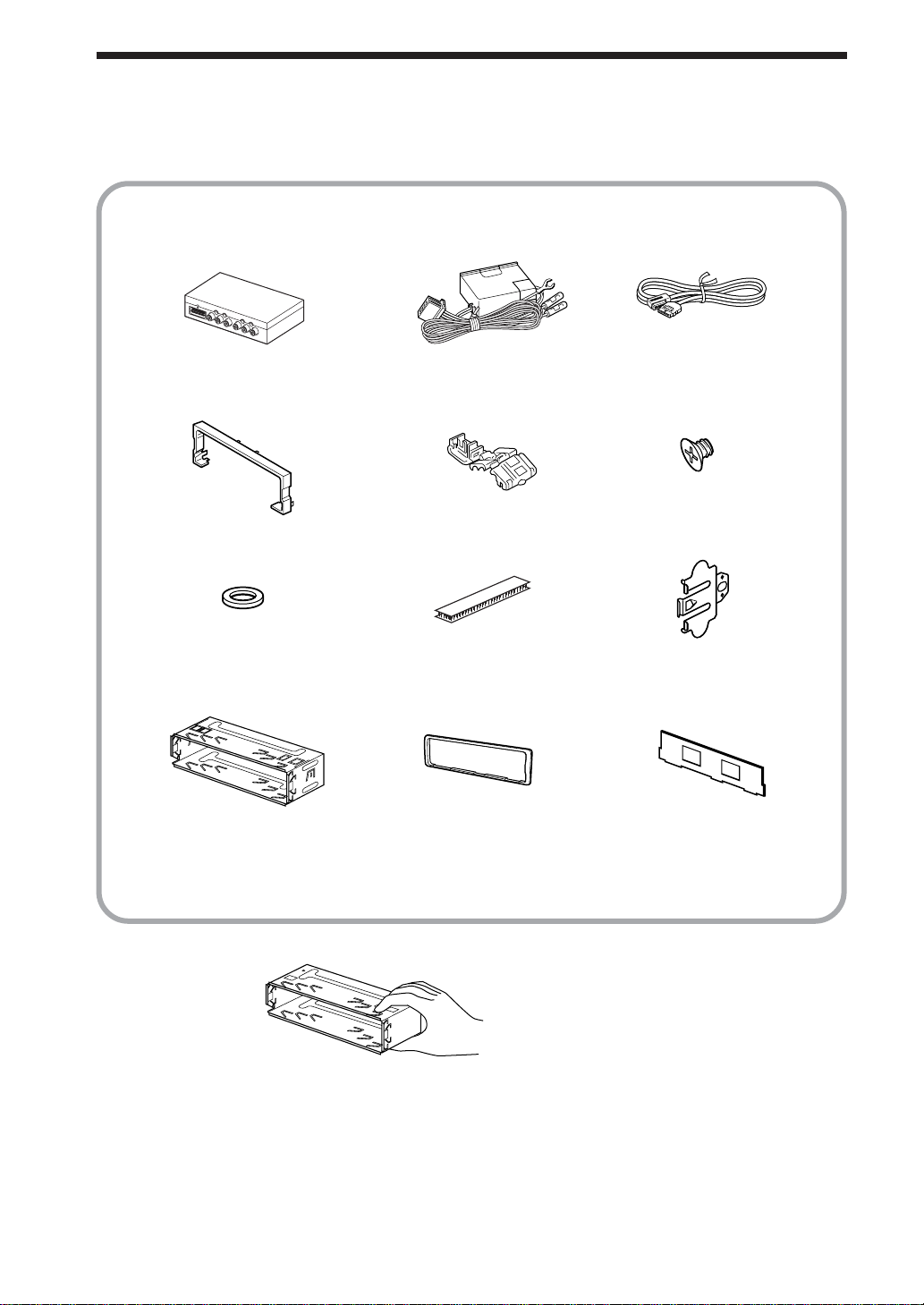

Parts List

The numbers in the list are keyed to those in the instructions.

×2

*Packed while being fixed to the main unit.

CAUTION

Handle the bracket

q; carefully to avoid

injuring your fingers.

×2

2.5 m

×4

Installation angle

The unit should be installed within an

angle of 25 degrees from horizontal. If

this angle is exceeded, the monitor may

not open up or retract properly.

Note

Keep the units and connection cables

apart.

The Media Center main unit and the

connection box 1should not be in close

proximity.

1Installing the Main Unit

Before installation

This unit is designed to be completely safe, but if not installed

correctly, it can cause accidents. Be sure to verify the following

points before installation.

Install the main unit to the in-dash location, and the connection

box under the navigator’s seat, etc.

• If the monitor in the opened position is close to a air-

conditioning outlet, the outlet should be closed.

•Install the unit so that the monitor when opened up will not

block access to the hazard switch or other important controls.

• Do not install the unit (monitor) in locations which may be

subject to excessively low or high temperatures. (Otherwise the

unit may be deformed and the LCD may be damaged.)

Exposure to direct sunlight can also lead to high temperatures

and should be avoided.

Selecting the installation location

1Set the ignition key to OFF or remove it.

2Place the units in their intended mounting

locations to check the cable length and monitor

installation conditions.

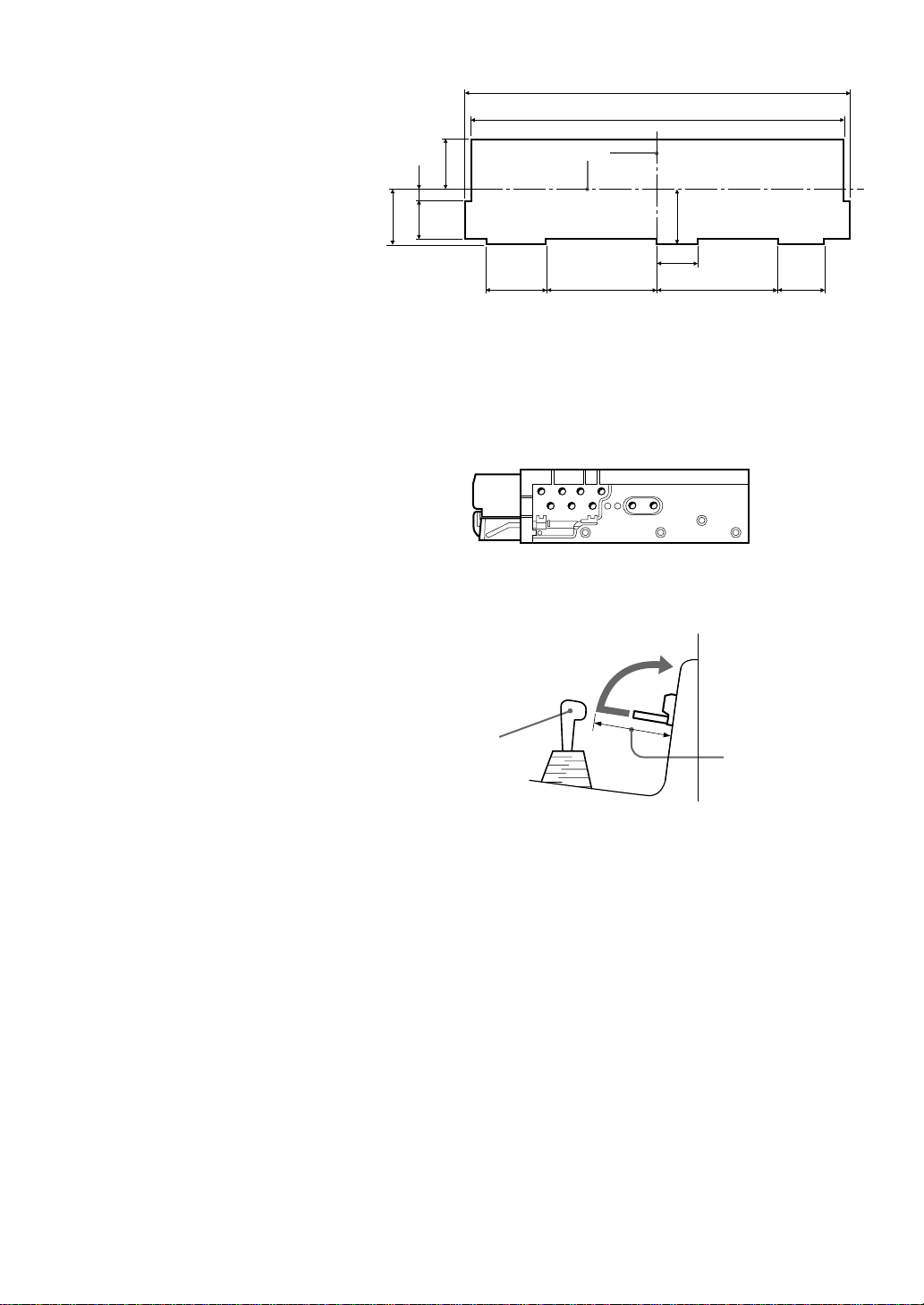

Cluster panel dimensions

25.5

17.3 6.2

22.5

33.6 44.7 55.7 20.6

171

175.4

Installation procedure precautions

•Perform the installation carefully. Dropping the unit or

otherwise subjecting it to strong impact or force may deform

the chassis, resulting in failure of the monitor loading

mechanism or other defects.

T/N

T/N T/N

TT T

•To allow for proper opening and closing of the monitor, there

must be a clearance of at least 147 mm between the closest

position of the shift lever and the mounting surface for the unit.

•In some cases, the shift lever may touch the monitor when

moved to a certain position. Make sure that there is no

obstruction to driving operations.

•When installing this unit together with other car audio

equipment (single DIN slot size) in a stacked configuration,

install the Media Center main unit on top.

Shift lever At least 147 mm

(5 7/8in.) from

mounting surface

Note

If the installation dimensions shown at

right are not observed, the monitor may

not open up smoothly. If this happens,

check the installation once more and

modify the cluster panel where the

dimension requirements are not met. For

some car models, a separately available

mounting kit may be required.

(For details, please consult your dealer.)

Center line

)

(

)

(

)(

)

(7)

(6 3/4)

(1 3/8)(1 13/16)

(22/32)

(1)

(2 1/4)(13/16)

Unit: mm (inch)

Installation procedure

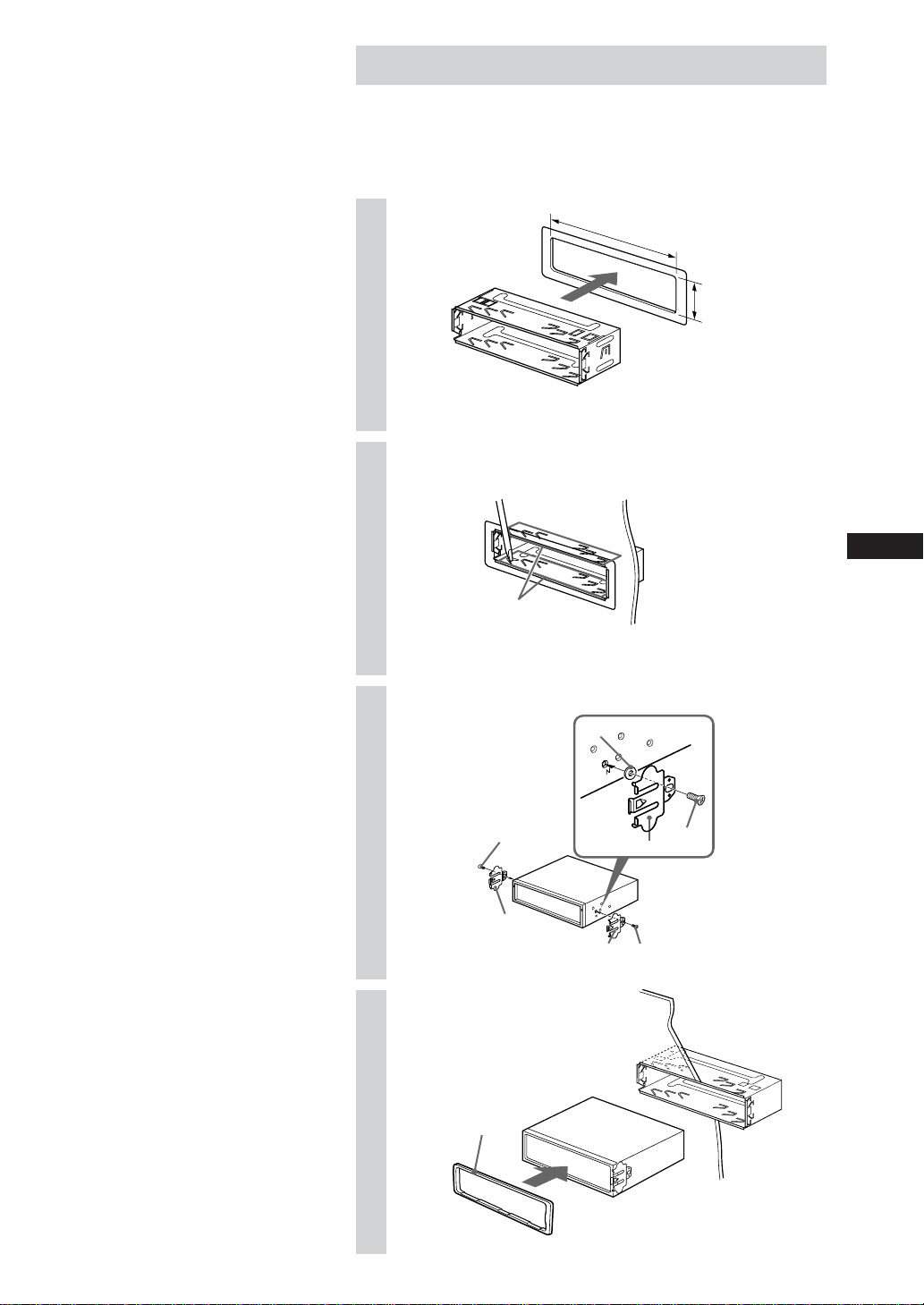

Mounting example

When installing this unit, be sure to close the monitor of the unit.

If the monitor is opened while installing and given too much

force, it may cause a malfunction.

Bend these claws outward

for a tight fit, if necessary.

Dashboard

182 mm (7 1/4inch)

53 mm (2 1/8inch)

Nissan cars

Align the brackets of the factory-installed car stereo with the

mounting holes marked “N” on the side of the Media Center

main unit, and use the supplied pan-head screws 6to fasten the

brackets.

*Be sure to use only the supplied pan-head screws 6for

installation. If any other screws are used, make sure they

conform to the requirements shown below.

Using longer screws can cause internal damage to the unit.

5 mm

6 mm

Damage can also occur if the screws are used directly on the

unit without the brackets of the factory-installed car stereo.

Screws of factory-

installed car stereo

bracket

Bracket of

factory-installed

car stereo

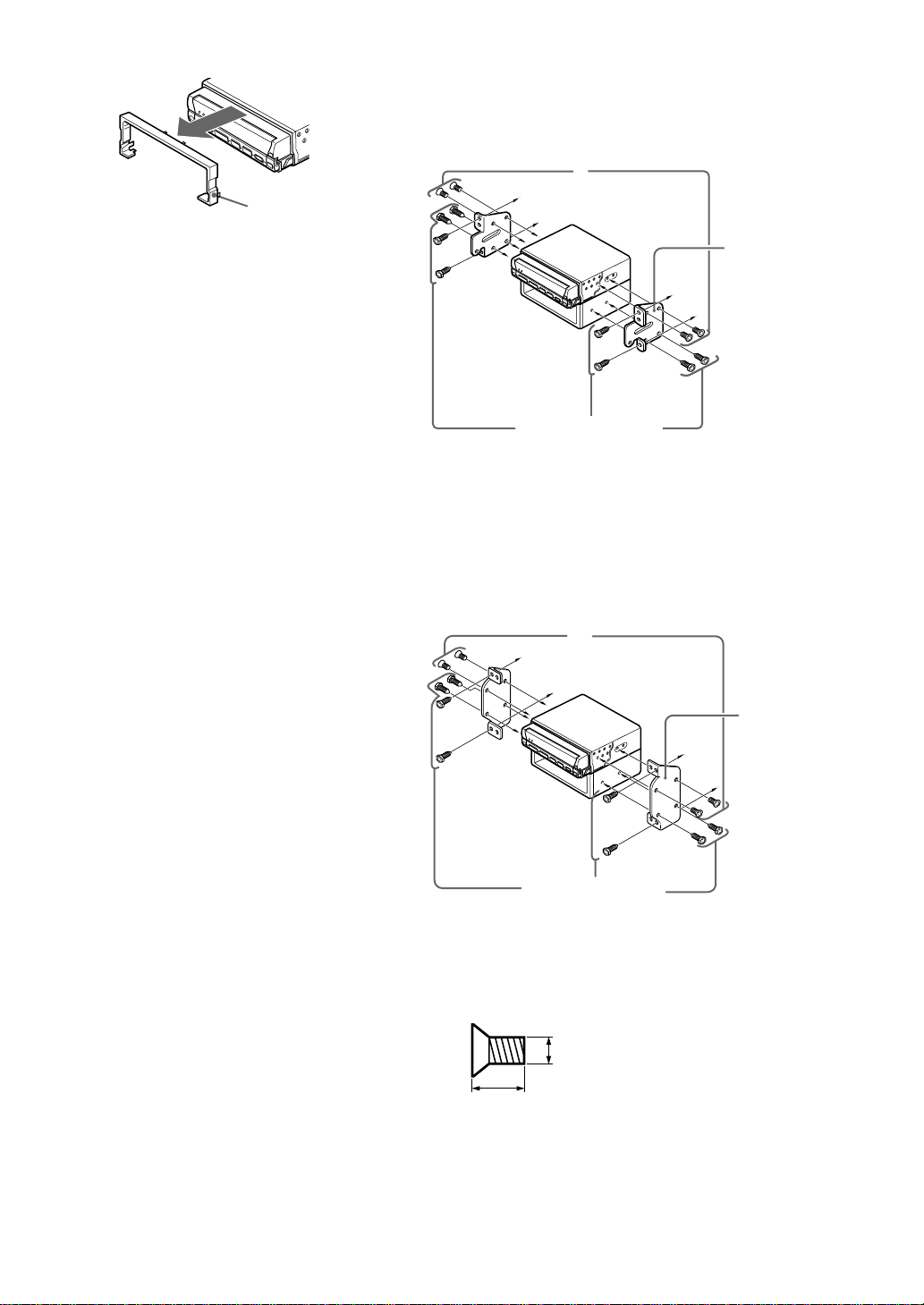

Toyota cars (illustration shows an example for a Toyota car)

Align the brackets of the factory-installed car stereo with the

mounting holes marked “T” on the side of the Media Center main

unit, and use the supplied screws to fasten the brackets. For

Toyota cars, the supplied screws 6 should be used.

Note

•Do not press the front panel buttons of

the unit during installation and do not

apply strong force.

•Do not place any objects on top of the

unit.

When removing front panel plate

Front panel

plate 4

Do not throw away the front panel plate,

since it will be needed when you change

the car you install the unit.

For details, see “Removing the Front

Panel Plate”. (page 17).

Screws of factory-

installed car stereo

bracket

Bracket of

factory-installed

car stereo

Note

•Ensure that the mounting surface is

clean.

•Do not install the connection box

- in locations subject to high

temperatures

-in locations subject to direct sunlight,

warm air from heater outlets, or

other locations that can get hot.

•When attaching the hook-and-loop

fastener to the bottom of the connection

box, do not cover the model name plate

in the center.

Hook-and-loop

fastener 8Hook-and-loop

fastener 8

On installation surface

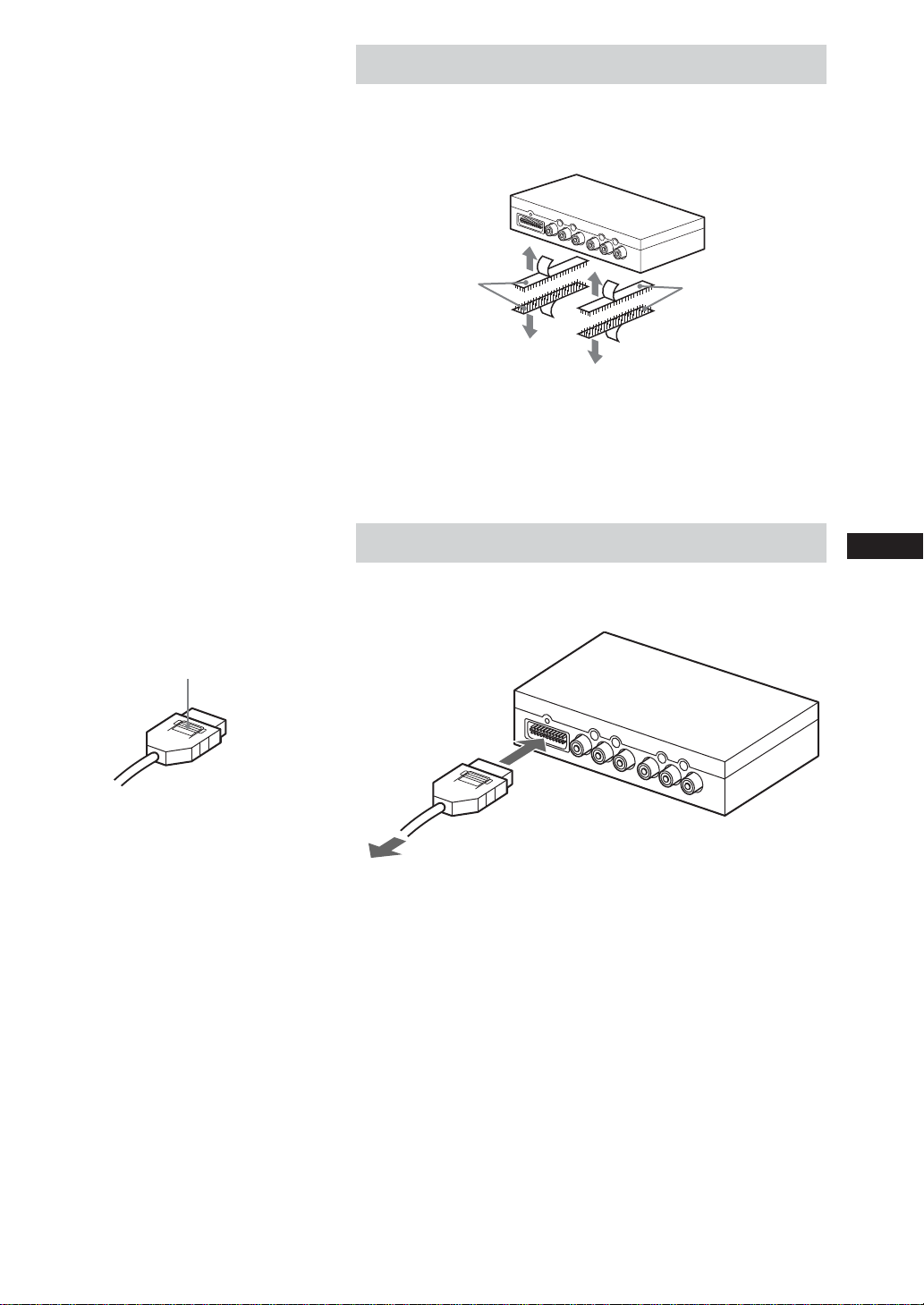

Installing the connection box XA-114

Cut off the required length of hook-and-loop fastener 8and fix

the connection box 1on the carpet or similar.

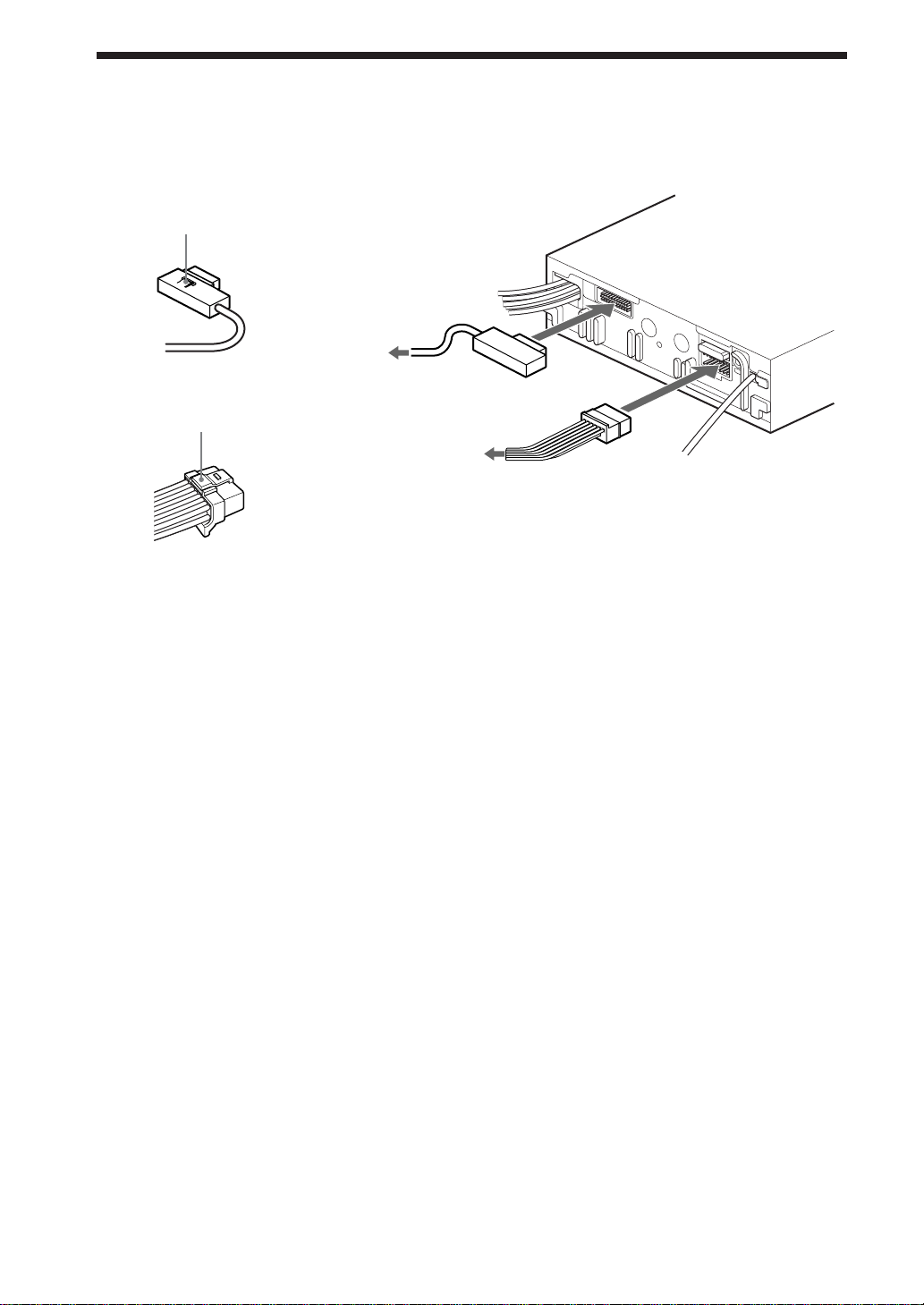

Use of connectors

Insert until the connector clicks into

place. To remove, press here and pull out.

Main unit/connection

box interconnect 3

To Media Center main unit

Hooking up the connection box

Refer also to the section “3Car Systems Connections” (page 14 -

15).

Insert 3until a click is heard.

Refer also to the section “3Car Systems Connections”

(page 14 - 15).

Insert 2and 3until a click is heard.

2Main Unit Connections

Use of connectors

Insert until the connector clicks into

place. To remove, press here and pull

out.

To connection

box

Main unit/

connection box

interconnect 3

Power supply leads 2

(for main unit)

Insert until the connector clicks into

place. To remove, press here and pull

out.
