Sony VGC-RB10M - Vaio Desktop Computer Leitfaden

P/N 994630200 Rev. C1/2

VGC-RBxx Series Optical Disk Drive

Lower Replacement Instructions

IMPORTANT!

PLEASE READ BEFORE YOU START

These easy instructions are intended to guide you through the replacement process.

üTo avoid electric shock please make sure product is turned off and disconnected from the power source.

Remove jewelry before you begin work to avoid scratching the surface of your desktop computer.*

Place your desktop computer on a clean, stable and covered surface to avoid damage to the computer's

case.*

üFollow the ESD (Electrostatic Discharge) damage prevention instructions:

oHold parts by the edges, away from exposed circuitry when possible.

oDo not walk around excessively as this promotes static build-up.

The appearance of the electronic components shown in the illustrations may be different from the

components shipped. This slight difference does not affect the accuracy of these instructions.

* Sony is not responsible for any loss of data associated with your computer or any damage caused by incorrect handling of the computer

under these procedures. The terms of your Sony Limited Warranty continue to apply.

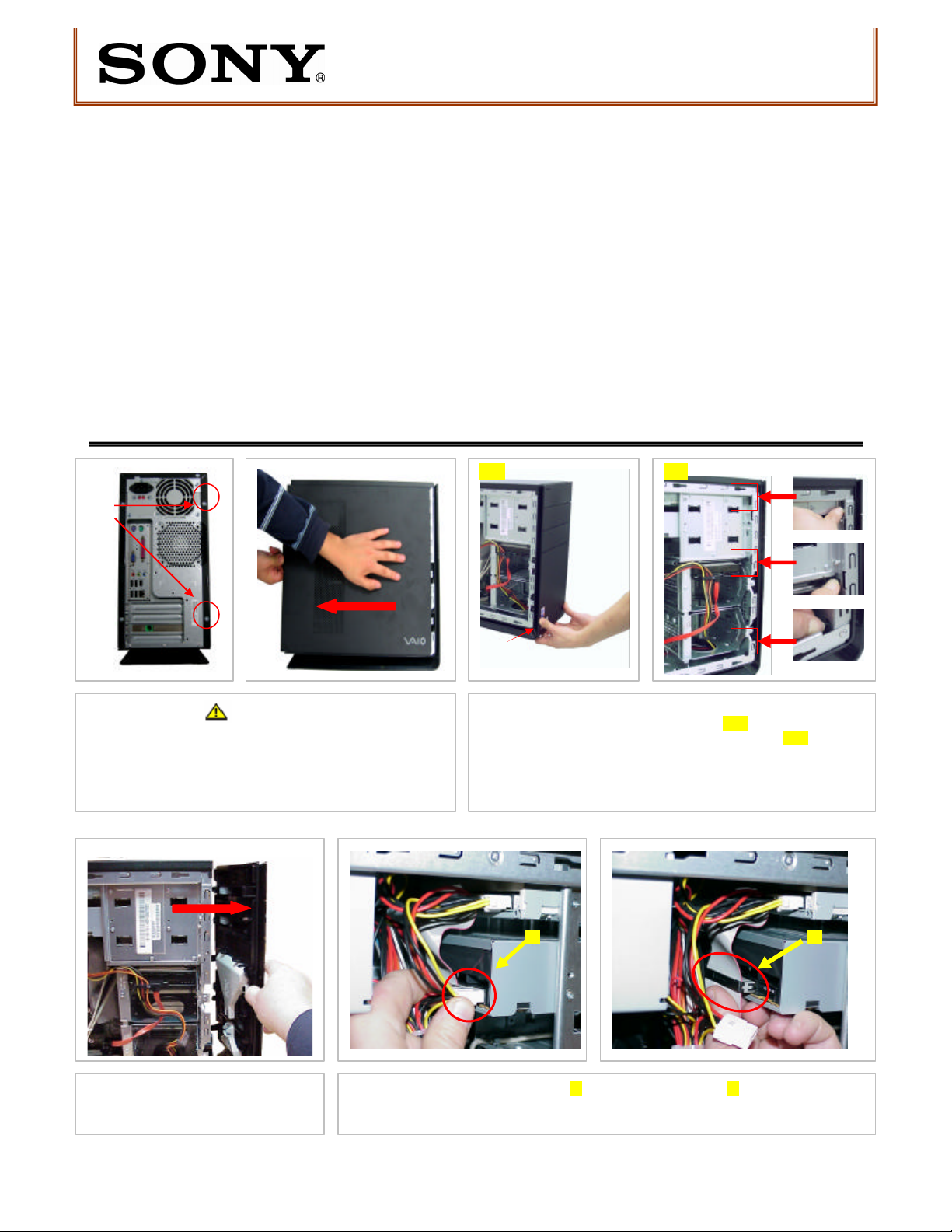

Step 1.CAUTION!

Disconnect the power cord. Failure to

do so can result in damage to the PC or personal injury.

Using the enclosed magnetic screwdriver, remove the two(2)

indicated screws, loosening thechassis panel cover. Rotate

the unit so the panel with the vents is facing you. Remove the

panel and set it aside.

Step 2.

Loosen the front panel

cover

pulling down

the

two

(

)

blackclips on the bottom of the unit: Step [2A], and thethree(3)

black clips on the inside ofthe front of the unit: Step [2B], as

indicated above.

Step 3.

Carefully r

emove the front

panel in the direction of arrow and s et

aside.

Step 4

Remove the power connector

]

and the IDE data cable

]

from the optical

disk

drive you are replacing. (In this example:the lower optical drive.) NOTE

! Your PC may be

equippedwith more than one optical disk drive.

Screws

Inside View

[1]

[

]

Pull two (2) clips at the

bottom of unit.

[2A][2B]

P/N 994630200 Rev. C2/2

VGC-RBxx Series Optical Disk Drive

Lower Replacement Instructions

Step

Using the enclosed

magnetic

screwdriver,removethe two(2)

screw sfrom the optical drive you are

replacing. (In thisexample:the lower

optical drive.)

Step

Pull out the

original optical drive

from thechassis in the direction of the

arrow.

Step

Carefully slide the new optical

drive into the newly vacant space in the

chassis

, making sure the screw holes are

aligned.

Step

Using the enclosed

magnetic

screwdriver,reinstall the previously

removed screwsfollowing the above

sequence.(In this example: the lower

optical drive.) IMPORTANT! Do not

over tighten the screws!

Step 9.

Reconnect the IDE data

cable

]

and the power cable

[2]

to the new optical disk

drive you have replaced. (In this example: the lower optical drive.)

Step

Reinstall

the front panel to

its

originalposition,as shown.

Step

Reinstall

the

left chassis cover panel in the direction of arrow.

The

sing the

enclosed magnetic screwdriver, reinstall thetwo(2)previously removed screws.

IMPORTANT! Do not over tighten the screw s! Return the original optical disk drive to

Sony following the included shipping instructions

Screws

[1]

[

]
