Digital Surround

Headphone

System

Operating Instructions

Mode d’emploi

Bedienungsanleitung

Manual de instrucciones

3-865-048-14(1)

MDR-DS5000

2GB

WARNING

To prevent fire or shock

hazard, do not expose the unit

to rain or moisture.

To avoid electrical shock, do

not open the cabinet. Refer

servicing to qualified

personnel only.

WARNING

You are cautioned that any changes or

modifications not expressly approved in

this manual could void your authority to

operate this equipment.

For the customers in the USA

Owner’s Record

The model number is located on the back

of the processor and on the headphone

housing.

The serial number is located at the

bottom of the processor and the inner

side of the battery compartment.

Record these numbers in the spaces

provided below. Refer to them whenever

you call upon your Sony dealer

regarding this product.

Model No. MDR-DS5000

Processor DP-IF5000

Headphones MDR-IF5000

Serial No.

Processor

Headphones

NOTICE FOR THE CUSTOMERS IN THE

U.S.A.

NOTE

This equipment has been tested and found to

comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide

reasonable protection against harmful

interference in a residential installation. This

equipment generates, uses, and can radiate

radio frequency energy and, if not installed

and used in accordance with the instructions,

may cause harmful interference to radio

communications. However, there is no

guarantee that interference will not occur in a

particular installation. If this equipment does

cause harmful interference to radio or

television reception, which can be determined

by turning the equipment off and on, the user

is encouraged to try to correct the interference

by one or more of the following measures:

– Reorient or relocate the receiving antenna.

– Increase the separation between the

equipment and receiver.

– Connect the equipment into an outlet on a

circuit different from that to which the

receiver is connected.

– Consult the dealer or an experienced radio/

TV technician for help.

You are cautioned that any changes or

modifications not expressly approved in this

manual could void your authority to operate

this equipment.

3GB

Table of Contents

Headphone System ..................... 5

Checking the Product and

Accessories ................................ 8

Connecting the Headphone

System ....................................... 9

General ................................................. 9

Connecting with audio and video

components ...................................... 9

Plugging into the wall outlet........... 14

Charging the batteries ...................... 14

Inserting the batteries in the

headphones .................................... 17

Connecting the digital surround

processor with corded

headphones (sold separately)...... 19

Listening to the Sound of

a Connected Component ....... 20

Troubleshooting......................... 26

Precautions................................. 28

Specifications ............................. 29

For the customers in the USA and

Canada

RECYCLING NICKEL-CADMIUM BATTERIES

Nickel Cadmium batteries

are recyclable. You can help

preserve our environment

by returning your unwanted

batteries to your nearest

point for collection,

recycling or proper disposal.

Note: In some areas the disposal of nickel

cadmium batteries in household or

business trash may be prohibited.

RBRC (Rechargeable Battery Recycling

Corporation) advises you about spent battery

collection by the following phone number.

Call toll free number: 1-800-822-8837

(United States and Canada only)

Caution: Do not handle damaged or leaking

nickel-cadmium batteries.

4GB

Main features

The MDR-DS5000 is a digital surround headphone system using infrared

transmission. You can enjoy the multichannel surround sound with headphones by

simply connecting the digital surround processor to a DVD player with the supplied

optical digital connecting cable.

• Compatible with Dolby*Digital (AC-3) and Dolby Surround (Pro Logic).

• Signal processing by DSP (digital signal processors) creates surround sound for the

headphones that simulates a movie theater.

• Cordless headphones using infrared transmission system resistant to external noise

and interference.

• Wide infrared reception range of up to 10 m.

• Self adjusting mechanism eliminating the need for headband adjustment.

• Auto Power On/Off Function to automatically turn on the headphones when they

are put on and to turn them off when they are taken off.

• VOL control for adjusting both the right and left volume of the headphones.

The left and right audio output level is adjustable using the BALANCE control.

• Equipped with a headphone jack to connect corded open-air headphones (such as

MDR-F1 or MDR-605LP, sold separately).

• Rechargeable Ni-Cd batteries (supplied and sold separately) or R6 (size AA) dry-

cell batteries (sold separately) can be used to power the headphones.

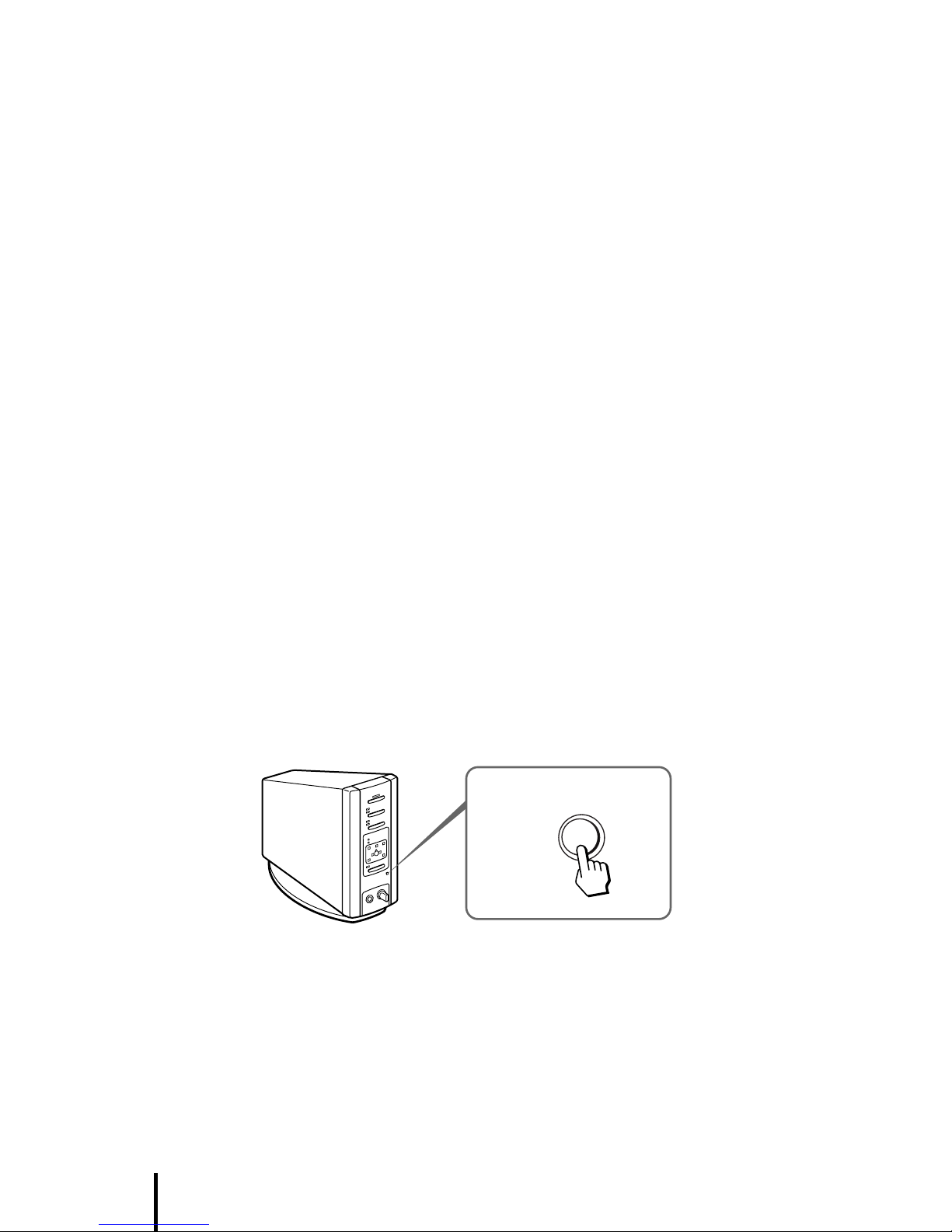

Setting to DEMO mode

Turn on the digital surround processor, and then press DEMO.

A test tone can be heard from the headphones, and the indicators for the

corresponding virtual speakers light one at a time. This allows you to experience

5.1ch virtual surround sound even if a DVD player is not connected. Press DEMO

again to cancel DEMO mode.

*The digital surround processor for this system incorporates the Dolby Digital (AC-3)

decoder.

Manufactured under license from Dolby Laboratories Licensing Corporation.

DOLBY, the double-D symbol a, “PRO LOGIC”, “Dolby Digital (AC-3)”, and “VIRTUAL

DOLBY DIGITAL” are trademarks of Dolby Laboratories Licensing Corporation.

CE mark

The CE mark is valid for products marketed in the European Union only.

DEMO

5GB

Preparation

¡Preparation

Headphone System

The MDR-DS5000 digital surround headphone system is a headphone system

incorporating a visual sound perspective. This system represents the future of audio

and video technology. With this system, you can enjoy sound virtually identical to the

playback from a 5.1ch surround speaker system. You can now enjoy the sound of a

movie theater right in your own home.

MDR-DS5000 digital surround headphone system

This is a new type of cordless headphone system which reproduces Dolby Digital and

Dolby Pro Logic multichannel sound images outside of the listener’s head using

“Virtualphones Technology”*developed exclusively by Sony. By simply connecting

the DVD player to the system, you can enjoy virtual surround sound just like a movie

theater.

The system uses a high-speed DSP for real-time digital conversion and processing of

all signals to produce a clear sound with virtually no distortion.

*“Virtualphones Technology” is a trademark of Sony Corporation.

System features

Compatible with Dolby Digital and Dolby Pro Logic

The system incorporates a surround decoder and Logic 3D processor to reproduce the

sound field for a room having a 5.1ch speaker system using headphones. Since the

signals are processed by the digital surround processor according to the input signals,

you can enjoy the surround sound field with not only DVD but also digital satellite

tuners, video cassettes and other analog and digital audio and video sources.

(Continued)

6GB Preparation

MDR-DS5000

playback sound

field Playback sound field of

conventional headphones

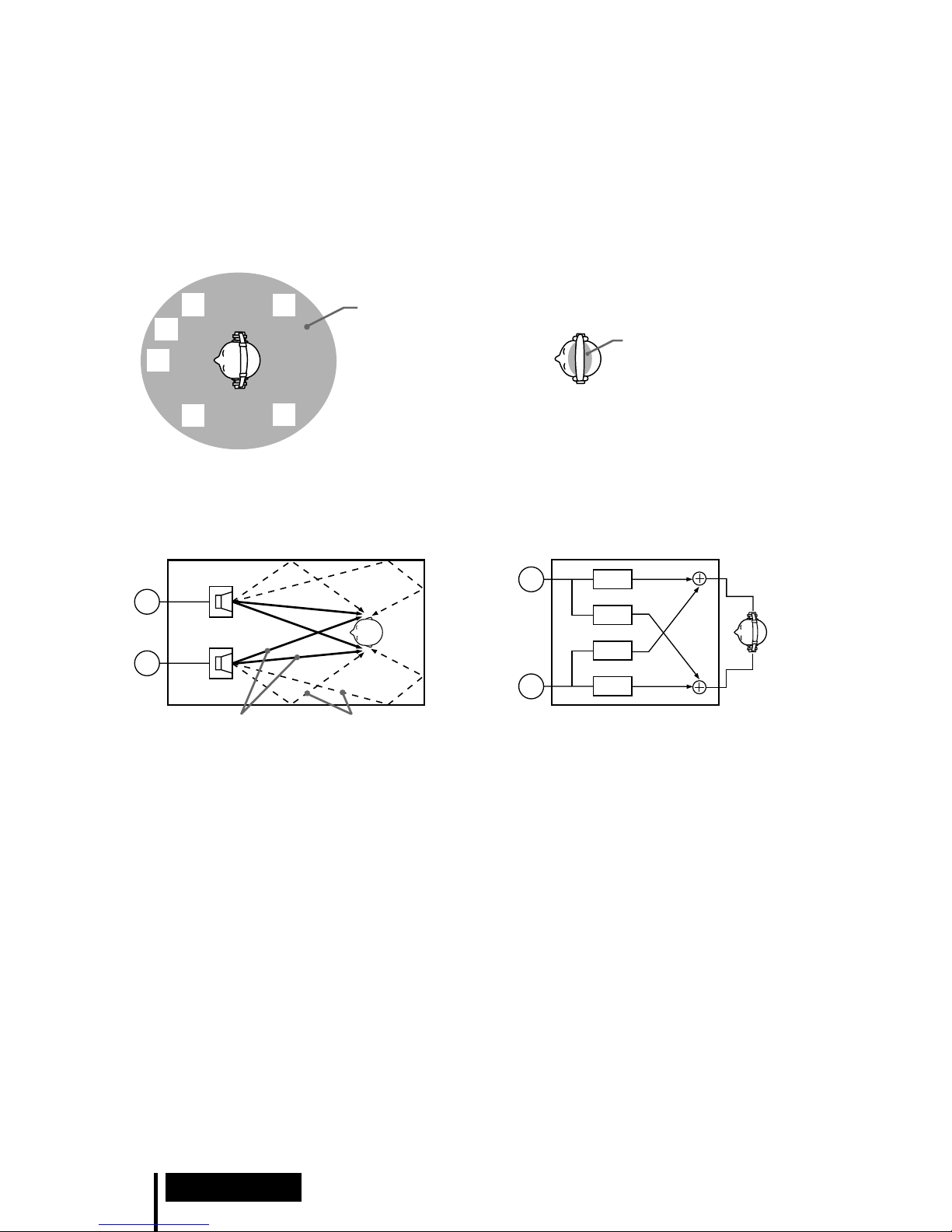

Sound reproduction outside the listener’s head

With the Logic 3D processor, headphone playback does not confine the sound to a

fixed position in the listener’s head, but creates the sensation of 360-degree natural

sound field with spatial orientation. This allows simulation of the surround sound

field from speaker playback when using not only DVD, but all audio and video

sources.

Sound field when listening to the MDR-DS5000

(2 channels)

Logic 3D processor

Typical sound field when listening to speakers

(2 channels)

Inside the room

Speaker

Direct

sound Reflected

sound

Open-air headphones with ring supports

Newly developed headphones provide comfortable listening and a natural sound

field. They do not cover the ears, and allow listening without pressure or discomfort.

Moreover, additional MDR-IF5000 headphones (sold separately) can be purchased,

allowing more than one person to enjoy surround sound at the same time within the

infrared transmission area (page 13).

DSP

3-D sound field using “Virtualphones Technology” 3-D sound field of conventional headphones

L : Left LS : Left Surround

C: Center SW : Subwoofer

R: Right RS : Right Surround

7GB

Preparation

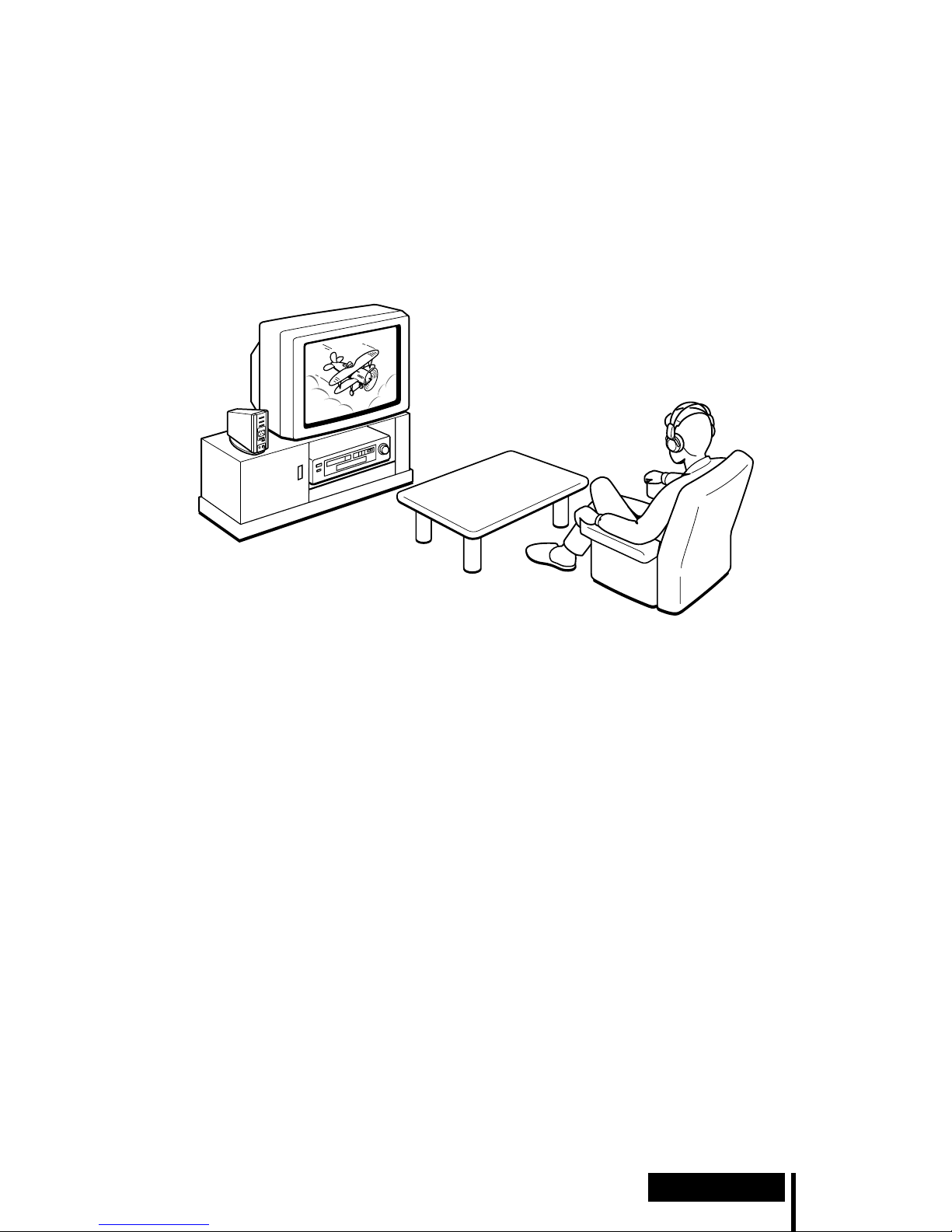

Headphone system configuration

This headphone system consists of a digital surround processor which decodes and

converts the multichannel input signals and infrared cordless headphones. By simply

connecting the digital surround processor to a DVD player, VCR, or other audio and

video component, you can enjoy Dolby Digital or Dolby Pro Logic surround sound.

This system can be used with any audio and video component having an optical

digital output jack, line (audio) output jack, or headphone jack. (See pages 11 and 29

for the connecting cables (sold separately).)

Notes

• Install the digital surround processor in a location where there are no obstructions between the

processor and headphones when used.

• Do not install the digital surround processor in unstable locations, such as on top of the TV. If

the processor falls down, it could cause an injury or be damaged.

8GB Preparation

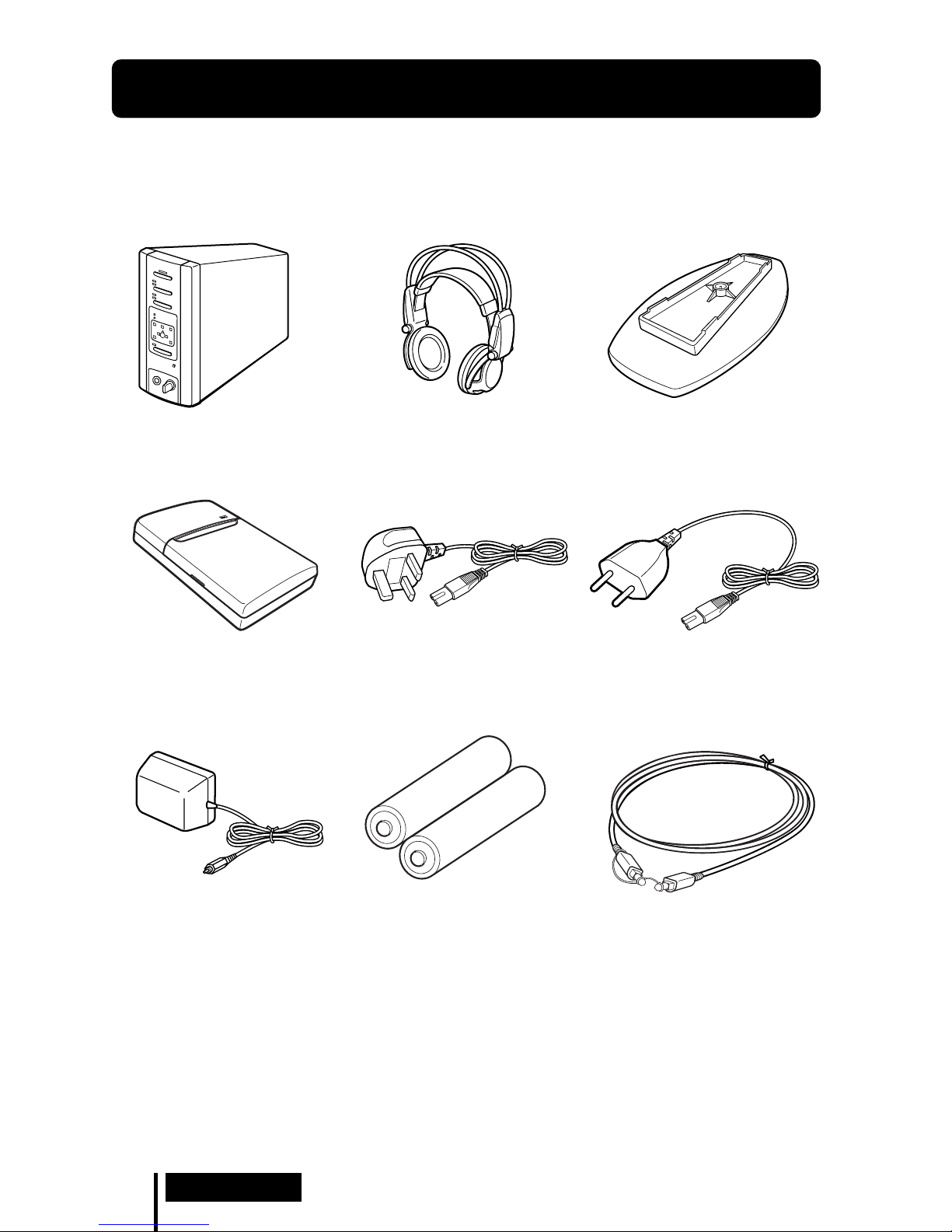

Checking the Product and Accessories

Before setting up the system, check that all of the components are included.

Battery charger (1) Charging plug (for battery

charger, 1)

(CEK and HK4 Versions*only)

Rechargeable Ni-Cd batteries

NC-AA (2)

Cordless stereo headphones (1)

AC power adapter (1)

Digital surround processor (1) Stand (for digital surround

processor, 1)

Optical digital connecting cable

(rectangular type, 1)

Charging plug (for battery

charger, 1)

(CED and E13 Versions*only)

Note

Use the charging plug that matches the outlet in your home.

*The charging plug supplied with this system varies depending on the system version. To check

the version, refer to the version code printed on the box.

9GB

Preparation

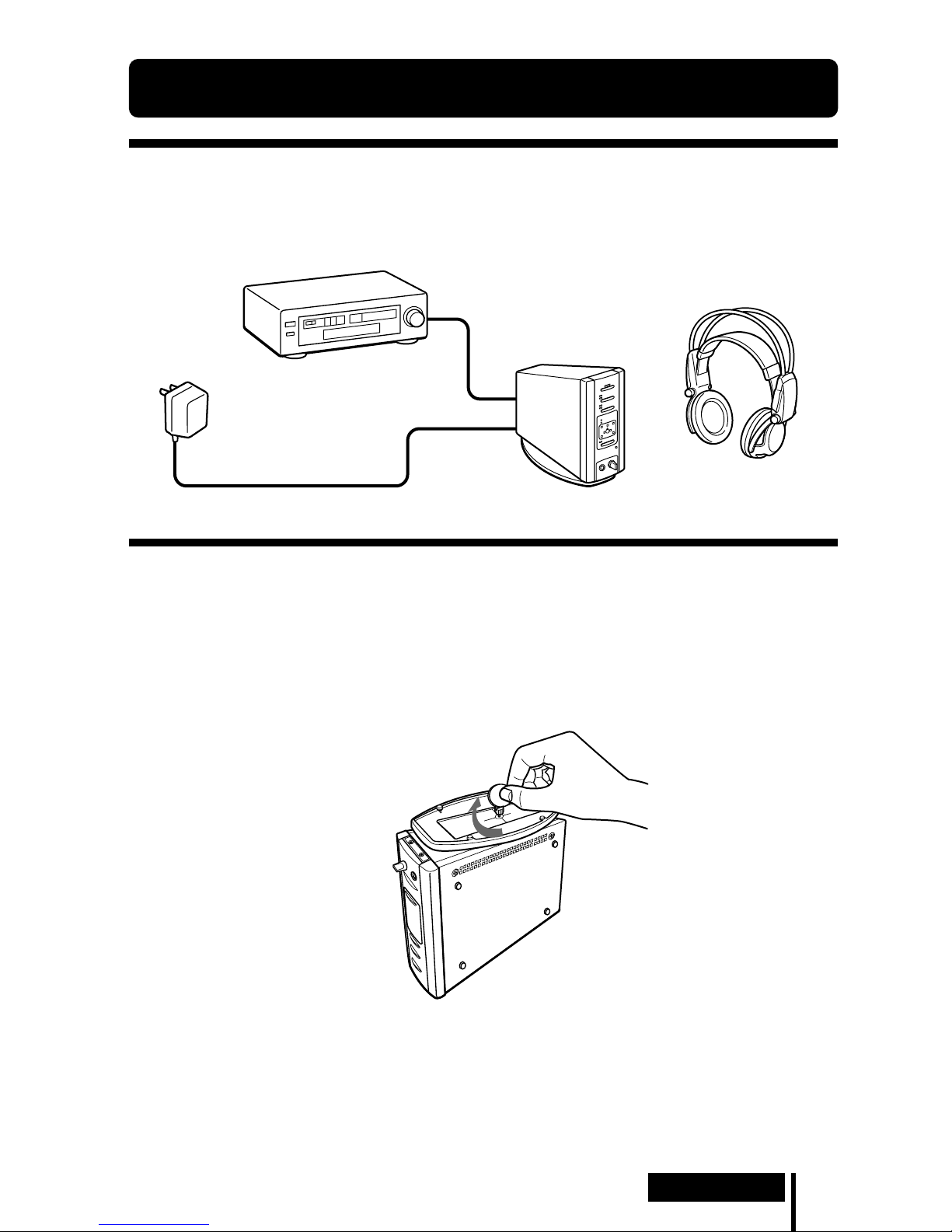

Connecting with audio and video components

Setting up the digital surround processor

To use in an upright position:

Use a coin to attach the supplied stand to the bottom of the digital surround

processor.

Connecting the Headphone System

General

Connect the headphone system as shown in the illustration below.

Cordless stereo

headphones

Digital surround

processor

DVD player, VCR, or

other component

AC power

adapter

(Continued)

10GB Preparation

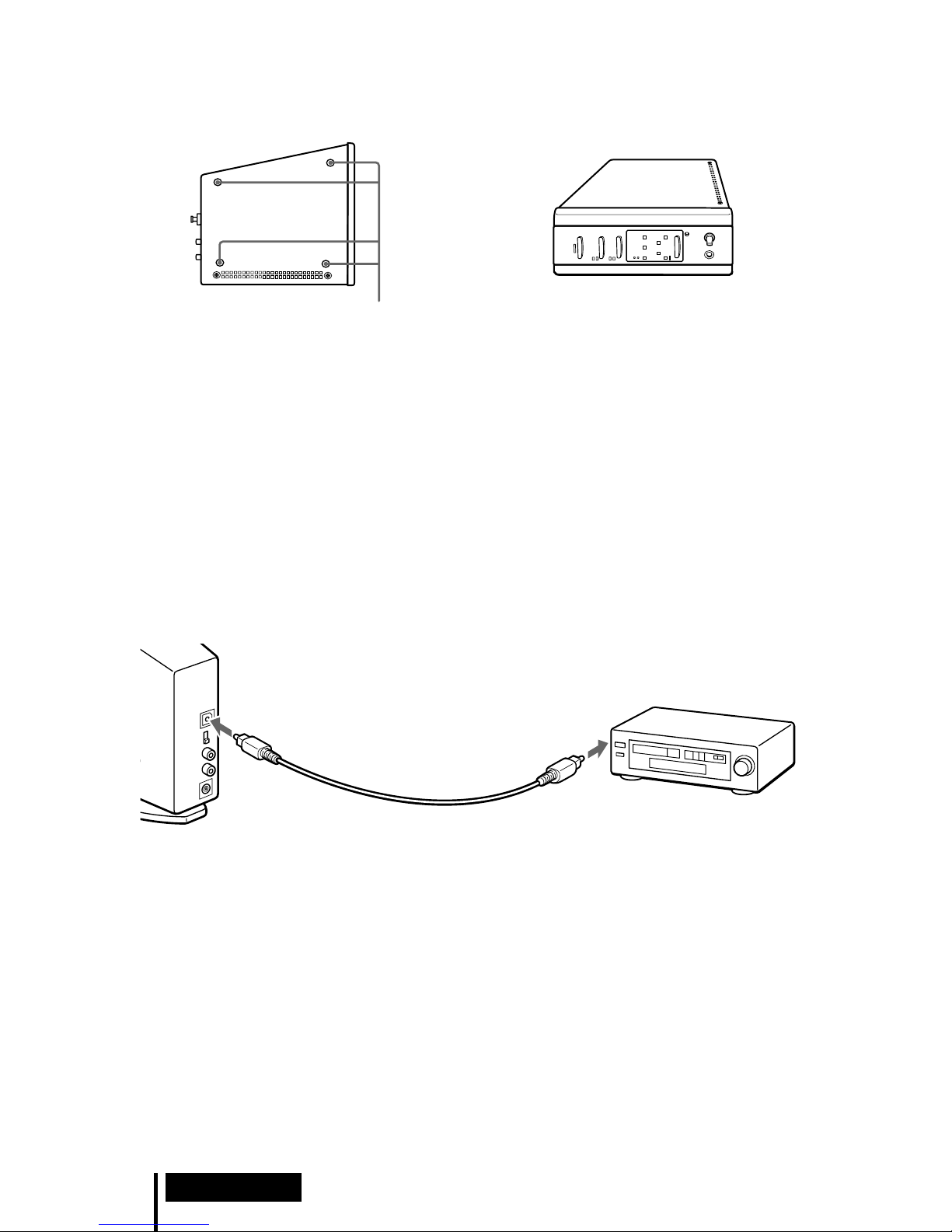

Rubber supports

To use on its side:

Place the digital surround processor so that the four rubber supports are on the

bottom.

Notes

• If the digital surround processor is placed on its side, the full infrared transmission range may

not be obtained for some installation conditions.

• Place the digital surround processor as shown in the illustration. Do not place the digital

surround processor on the side not having the rubber supports.

Connecting the digital surround processor with digital

components

Use the supplied optical digital connecting cable to connect the optical digital output

jack on a DVD player (or LD player), digital satellite tuner, or other digital component

to the DIGITAL IN jack of the digital surround processor.

To DIGITAL IN jack

Digital surround

processor DVD player, LD player, digital

satellite tuner, or other digital

component having an optical

digital output jack

To optical digital

output jack

Optical digital connecting cable (supplied)

Take off the cap on the jack, match the orientation of the plug

with the jack, and then insert until the plug fits into place.

Notes

• The optical digital connecting cable is an extremely high-precision device and is sensitive to

jolts and external pressure. Therefore, be careful when inserting and removing the cable plug.

• This system is not compatible with the AC-3 RF jacks on LD players.

• The digital input for the digital surround processor does not support sampling frequencies of

96 kHz. Set the digital output setting for the DVD player at 48 kHz when using this system.

Noise may be heard when a 96-kHz digital signal is input.

• The digital input for the digital surround processor is not compatible with the DTS*format.

Noise may be heard when DTS-format signals are input.

*DTS is a trademark of Digital Theater Systems (USA).

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Sony Kopfhörer Handbücher

Sony

Sony MDR-1ABP Bedienungsanleitung

Sony

Sony MDR-XB600 Bedienungsanleitung

Sony

Sony MDR-1ADAC Leitfaden

Sony

Sony PLM-A55 - Glasstron - 0.7" TFT Active Matrix Head Mounted... Datenblatt

Sony

Sony MDR-NC8 Bedienungsanleitung

Sony

Sony MDR-NE2 Operating Instructions, Manual de instrucciones, Mode d´emploi, Manual de... Bedienungsanleitung

Sony

Sony WF-1000XM3 Installationsanleitung

Sony

Sony Walkman NWZ-S764BT Bedienungsanleitung

Sony

Sony MDR-NC13 Bedienungsanleitung

Sony

Sony MDR-10RNC Bedienungsanleitung

Sony

Sony MDR-IF8000 Bedienungsanleitung

Sony

Sony MDR-EX58V/WHI Bedienungsanleitung

Sony

Sony MDR-IF230RK Bedienungsanleitung

Sony

Sony MDR-EX38IP/BLK Bedienungsanleitung

Sony

Sony MDR-EX76LP Bedienungsanleitung

Sony

Sony WH-1000XM2 Bedienungsanleitung

Sony

Sony MDR-1RBT Bedienungsanleitung

Sony

Sony MDR-ZX310AP Bedienungsanleitung

Sony

Sony MDR-1122 Bedienungsanleitung

Sony

Sony MDR-G64SL Bedienungsanleitung

Sony

Sony WH-CH510 Bedienungsanleitung

Sony

Sony WALKMAN SRF-HM33 Bedienungsanleitung

Sony

Sony DR-BT101IK Bedienungsanleitung

Sony

Sony MDR-AS30G Bedienungsanleitung

Beliebte Kopfhörer Handbücher anderer Marken

AUSounds

AUSounds AU-Stream Bedienungsanleitung

ENERGY SISTEM

ENERGY SISTEM Style 7 Bedienungsanleitung

Philips

Philips SHE3622 Bedienungsanleitung

Insignia

Insignia NS-CAHBTSPORT Bedienungsanleitung

Movie Vision

Movie Vision HP-400 Bedienungsanleitung

MobiFren

MobiFren SM Pro Bedienungsanleitung

Motorola solutions

Motorola solutions PMLN8120 Bedienungsanleitung

Jaybird

Jaybird freedom Installationsanleitung

HiFuture

HiFuture Tidy Buds Pro Bedienungsanleitung

Creative

Creative CB2530 Bedienungsanleitung

Renkforce

Renkforce RF FTVK-100 Bedienungsanleitung

Philips

Philips SHQ3000 Bedienungsanleitung

Sennheiser

Sennheiser 500371 Bedienungsanleitung

Califone

Califone 2924AV Bedienungsanleitung

Philips

Philips EARGEAR HE205 Series Bedienungsanleitung

Technics

Technics EAH-AZ80 Bedienungsanleitung

Bose

Bose On-Ear Headphone Gebrauchs- und Wartungshandbuch

Aluratek

Aluratek ABH02F Bedienungsanleitung
