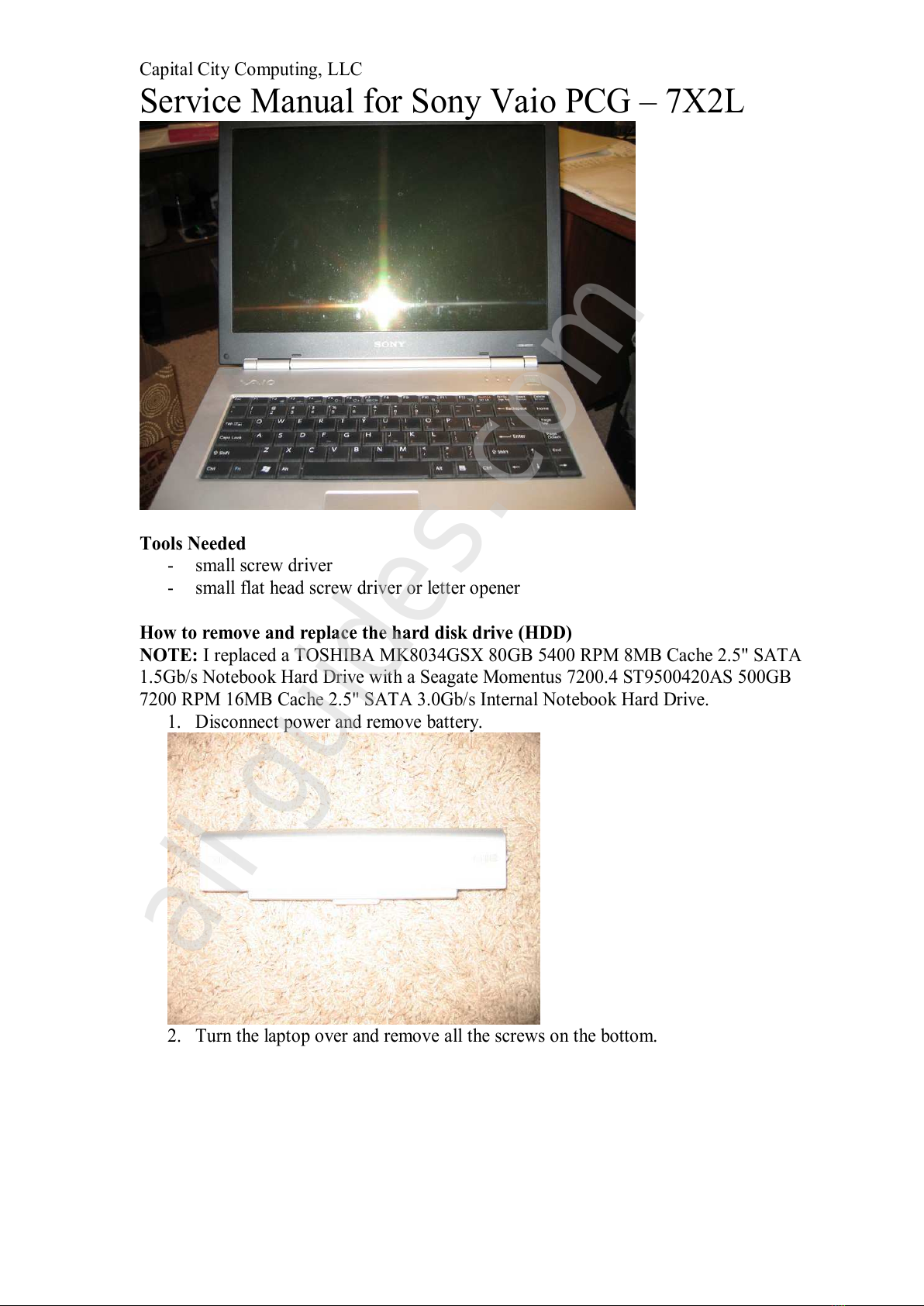

Service Manual for Sony Vaio PCG – 7X2L

Tools Needed

- small scre driver

- small flat head scre driver or letter opener

How to remove and replace the hard disk drive (HDD)

NOTE: I replaced a TOSHIBA MK8034GSX 80GB 5400 RPM 8MB Cache 2.5" SATA

1.5Gb/s Notebook Hard Drive ith a Seagate Momentus 7200.4 ST9500420AS 500GB

7200 RPM 16MB Cache 2.5" SATA 3.0Gb/s Internal Notebook Hard Drive.

1. Disconnect po er and remove battery.

2. Turn the laptop over and remove all the scre s on the bottom.

All manuals and user guides at all-guides.com

all-guides.com

Capital City Computing, LLC

3. Remove the memory cover.

All manuals and user guides at all-guides.com

Capital City Computing, LLC

4. Remove the scre underneath the memory cover.

5. Remove the DVD drive.

6. Remove the 3 black scre s underneath the DVD drive. Note the size of the

scre s.

7. Remove the 3 scre s underneath the battery cover. Note the size of the scre s.

8. Remove keyboard by using letter opener to press in 5 plastic tabs at bottom of

keys. Work your ay from right to left.

All manuals and user guides at all-guides.com

Capital City Computing, LLC

9. When you press in plastic tabs, carefully lift up on front black edge of keyboard.

10. Repeat step 9 for each plastic tab.

11. Remove keyboard ribbon cable by carefully sliding and lifting up on the black

part of the black and hite connector. The black ribbon cable ill easily slide

free from the connector

All manuals and user guides at all-guides.com

Capital City Computing, LLC

12. Remove the scre underneath the keyboard. Note the size of the scre . This

scre is longer than the other scre s.

13. Remove the mouse touchpad ribbon cable by lifting up on the black part of the

black and hite connector. Pull the blue tab on the ribbon cable.

14. Use blade of letter opener to carefully pry adjoined plastic cover open. I found

that if you start by the DVD player, it is easier to pry open and make your ay

around the edge of laptop.

All manuals and user guides at all-guides.com

Capital City Computing, LLC

15. Remove the t o black scre s that are holding the HDD case to the motherboard.

16. Carefully slide the enclosed HDD lose from the SATA motherboard connector.

NOTE: The HDD is located in the silver case located underneath the left palm

rest or on the left front side of the laptop.

17. Remove the four scre s from the side of the HDD.

18. Perform imaging of the existing old HDD to the ne HDD. I used a SATA to

USB connector and Acronis True Image to copy the data.

All manuals and user guides at all-guides.com

all-guides.com

Capital City Computing, LLC

19. Insert the four scre s into the side of the HDD.

20. Repeat the steps in reverse order.

All manuals and user guides at all-guides.com
