Color Rear Projection TV

KP-ES61/53/48/43

Using Your New Projection TV

Table of Contents

WARNING

Using Your New Projection TV

Getting Started ............................................................................................. 5

Step 1: Connect the antenna .................................................................. 5

Step 2: Insert the batteries into the remote.......................................... 6

Step 3: Preset the channels automatically ........................................... 6

Step 4: Adjusting the convergence automatically .............................. 7

Connecting optional components ............................................................. 8

Installing the projection TV ...................................................................... 12

Watching the TV ........................................................................................ 13

Advanced Operations

Selecting the picture and sound

modes ..................................................17

Viewing higher quality pictures ......18

Viewing your favorite channels....... 19

Watching two programs at the same

time ......................................................20

Displaying multiple programs ........22

Enjoying stereo or bilingual

programs .............................................24

Viewing Teletext................................. 26

Operating optional components ...... 28

Adjusting Your Setup (MENU)

Introducing the menu system .......... 30

Changing the “A/V CONTROL”

setting ............................................33

Changing the “MULTI PICTURE”

setting .............................................36

Changing the “FEATURE”

setting ............................................38

Changing the “SET UP” setting ...

Changing the “CH PRESET”

setting ............................................43

Additional Information

Troubleshooting .................................46

Self-diagnosis function......................49

Identifying parts and controls .........50

Specifications ...................... Back cover

The features you will enjoy include:

• “DRC-MF” for viewing higher quality

pictures (page 18)

• “FAVORITE CH” for quick and easy

program selection (page 19)

• “PIP” & “TWIN” for viewing two

programs (page 20)

• “PROGRAM INDEX“ for displaying

multiple programs (page 22)

• “PICTURE MODE”/“SOUND MODE”

for customizing your projection TV (page

17)

• “WIDE MODE” to view 16:9 pictures

(page 39)

Your projection TV also offers the following

features:

• Digital Quick Focus function for automatic

convergence adjustment (page 7)

• Menu language options

— English/Chinese/Arabic (page 15)

• “CHILD LOCK” for locking out specific

channels (page 41)

• “INTELLIGENT VOL” for automatic

volume adjustment (page 40)

• “FINE” tuning feature (page 45)

• Button Joystick on the remote control

for easier operation (page 15)

•

“ECO MODE” to save energy (page 39)

•

“GAME MODE” for video games (page 39)

WARNING

To prevent fire or shock hazard, do not expose the projection TV to rain or moisture.

Dangerously high voltages are present inside the projection TV. Do not open the

cabinet. Refer servicing to qualified personnel only.

For general safety:

• Do not expose the projection TV to rain or moisture.

• Do not open the rear cover.

For safe installation:

• Do not block the ventilation openings.

• Do not install the projection TV in hot, humid or excessively dusty places.

• Do not install the projection TV where it may be exposed to mechanical vibrations.

• Avoid operating the projection TV at temperatures below 5°C (41°F).

• If the projection TV is transported directly from a cold to a warm location, or if the

room temperature has changed suddenly, the picture may be blurred or show poor

color. This is because moisture has condensed on the mirror or lenses inside. If this

happens, let the moisture evaporate before using the projection TV.

• To obtain the best picture, do not expose the screen to direct illumination or direct

sunlight. It is recommended to use spot lighting directed down from the ceiling or

to cover the windows that face the screen with opaque drapery. It is desirable to

install the projection TV in a room where the floor and walls are not of reflecting

material. If necessary, cover them with dark carpeting or wall paper.

• Do not install the appliance in a confined space, such as a bookcase or built-in

cabinet.

For safe operations:

• Do not operate the projection TV on anything but 110–240/220-240 V AC, 50/60

Hz.

• Do not operate the projection TV if any liquid or solid object falls in it—have it

checked immediately.

• Do not keep the projection TV plugged in if you are not going to use it for several

days.

• Do not pull the power cord to disconnect the projection TV. Pull it out by the plug.

Caution

• When using TV games, computers, and similar products with your projection TV,

keep the brightness and contrast functions at low settings. If a fixed (non-moving)

pattern is left on the screen for long periods of time at a high brightness or contrast

setting, the image can be permanently imprinted onto the screen. These types of

imprints are not covered by your warranty because they are the result of misuse.

Cleaning the Screen

• To clean the screen with a cloth, please use a soft cloth lightly moistened with a

mild detergent solution or water. Do not use any type of abrasive pad, alkaline

cleaner, scouring powder or solvent, such as alcohol or benzine. As a safety

precaution, unplug the TV before cleaning it.

• Do not rub, touch, or tap the surface of the screen with sharp or abrasive items, like

a ball point pen or a screw driver. Otherwise, this type or contact may result in a

scratched screen.

Using Your New Projection TV

B-Y

R-Y

30W MAX 16

12 3

3



C –

VIDEO

VIDEO IN

VIDEO OUT

AUDIO

R L

Using Your New Projection TV

: Signal flow

IEC connector

(not supplied)

Antenna cable (not supplied)

Rear of

projection TV

To video and

audio outputs

To S video

output

Audio/Video cable

(not supplied)

S video cable

(not supplied)

: Signal flow

(S video input)

VCR

Antenna cable (not supplied)

To antenna

output

To 8(antenna)

Rear of

projection TV

To t1, 2 or 3 (video input)

(yellow)

-L (MONO) (white)

-R (red) continued

Getting Started

Step 1

Connect the antenna

If you wish to connect a VCR, see the “Connecting a VCR” diagram below.

CAUTION

Do not connect the power cord until all other connections are

complete; otherwise, a minimal current leakage through the antenna

and/or other terminals to the ground could occur.

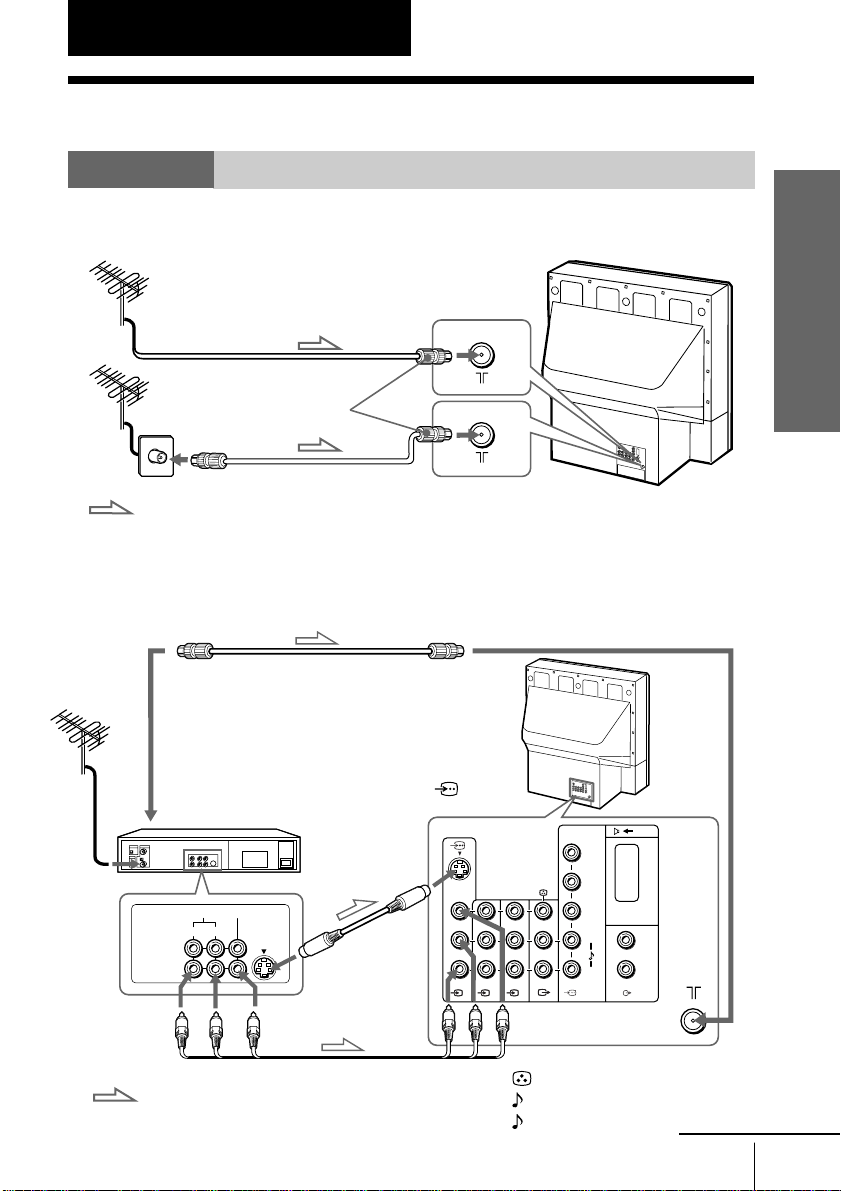

Connecting a VCR

To play a video tape, press t(see page 14).

6Using Your New Projection TV

ENTER

(MONO)

AUTO PROGRAM

TV SYS :AUTO

VHF LOW

PR:

Getting Started (continued)

Inside the lower

right side panel

KP-ES61/53/48

1Inside the

lower panel

KP-ES43

Notes

• If you connect a monaural VCR, connect the yellow plug to (the yellow

jack) and the black plug to -L (MONO) (the white jack).

• If you connect a VCR to the 8(antenna) terminal, preset the signal

output from the VCR to the program number 0 on the projection TV.

• When both the (S video input) and t1 (video input) are connected,

the ␣ (S video input) is automatically selected. To view the video input

to t1 (video input), disconnect the S video cable.

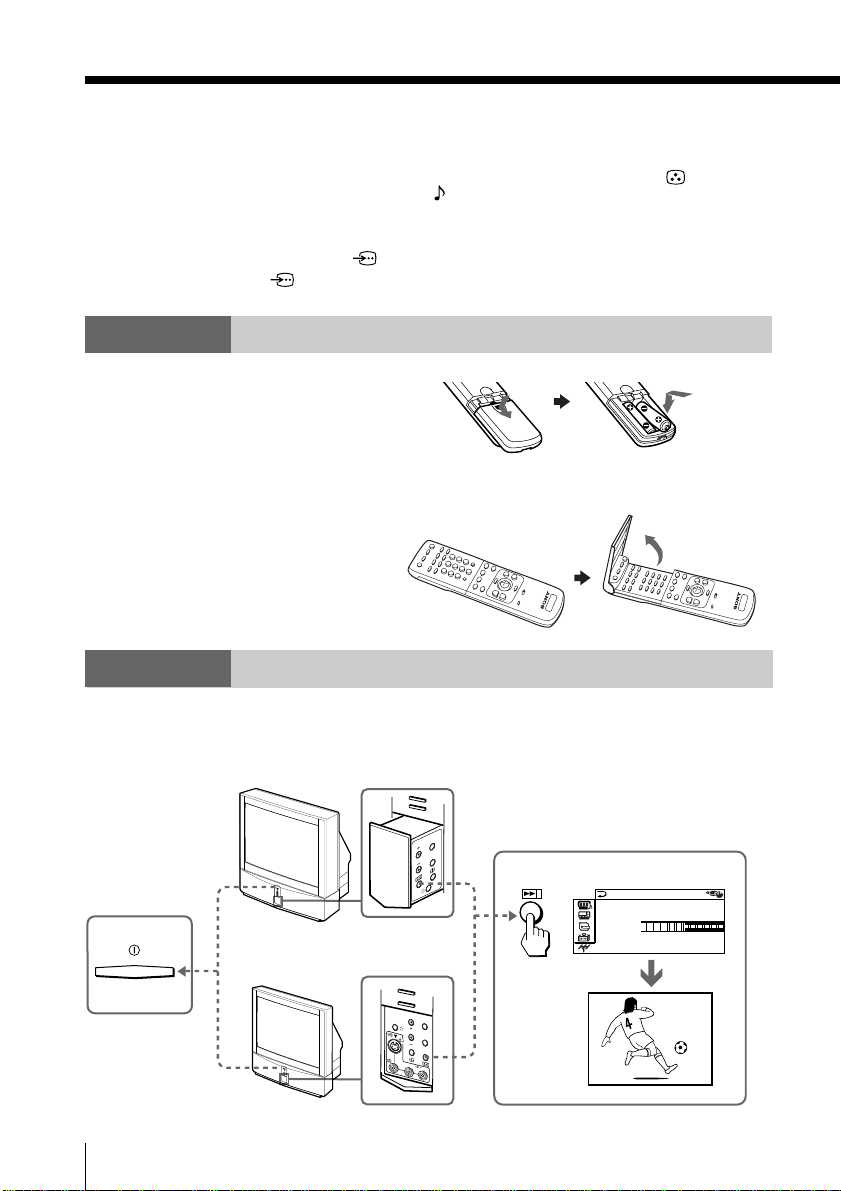

Step 2

Insert the batteries into

the remote

Notes

• Do not use old batteries or different types of batteries together.

• To operate some of the functions of your projection TV, you may have to

open the remote control cover.

Step 3

Preset the channels automatically

Using Your New Projection TV

ENTER

(MONO)

Notes

• To stop the automatic channel presetting, press MENU twice.

• If your projection TV has preset an unwanted channel or cannot preset a

particular channel, then preset your projection TV manually (see page 44).

• To open the lower panel of your projection TV, push on it, then it will

open.

Step 4

Adjusting the convergence automatically

Note

• Adjust convergence about 20 – 30 minutes after the projection TV is first

turned on.

The Digital Quick Focus feature allows you to adjust the convergence

automatically.

Inside the lower

right side panel

Inside the

lower panel

KP-ES61/53/48

KP-ES43

ENTER

(MONO)

KP-ES61/53/48 KP-ES43

8Using Your New Projection TV

(MONO)

Connecting optional components

You can connect optional audio/video components, such as a VCR, multi disc player,

camcorder, video game, or stereo system. To watch and operate the connected

equipment, see pages 14 and 28.

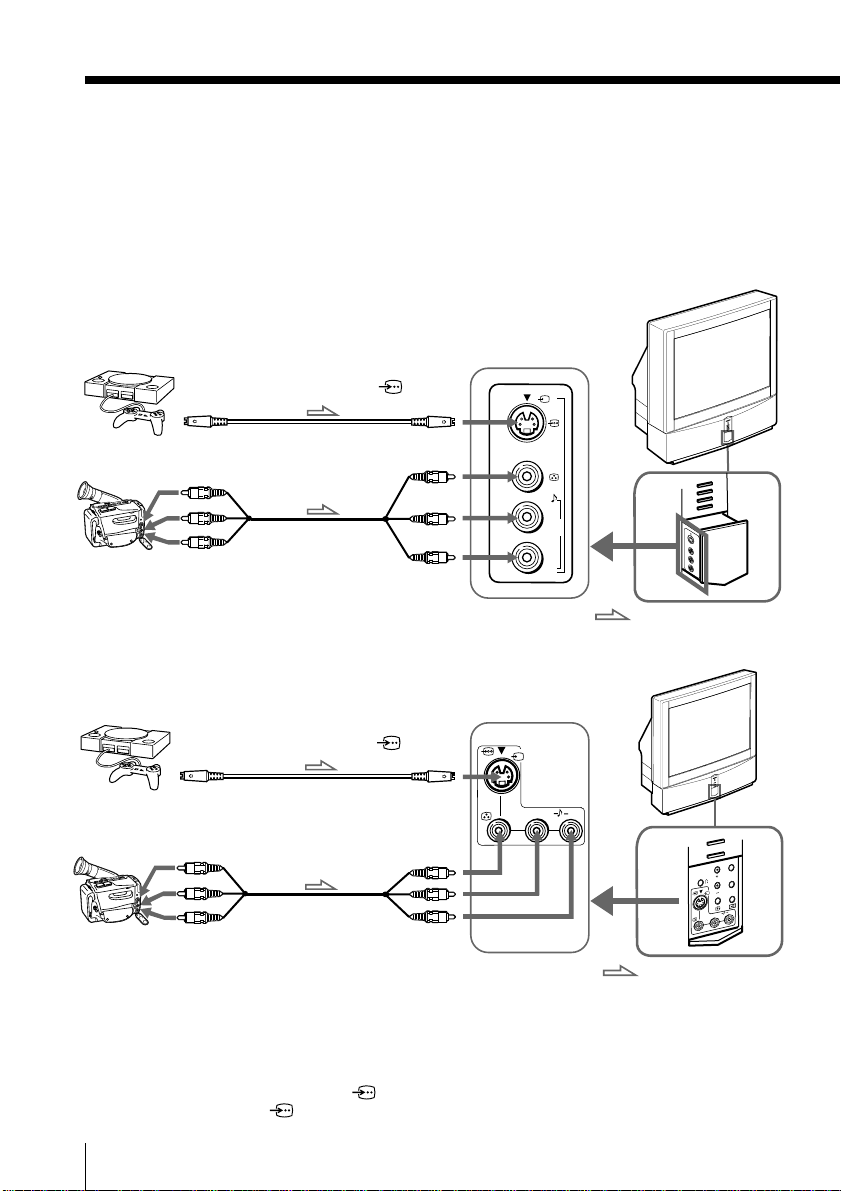

Connecting a camcorder/video game equipment

using the t(video input) jacks

Notes

• When connecting video game equipment, display the “FEATURE” menu

and select “ON” for “GAME MODE” to adjust the picture setting that is

suitable for video games (see page 39).

• You can also connect video equipment to the t1, 2, or 3 (video input)

jacks at the rear of your projection TV.

• When both the (S video input) and t4 (video input) are connected,

the ␣ (S video input) is automatically selected. To view the video input

to t4 (video input), disconnect the S video cable.

: Signal flow

To S video output

Inside the lower

left side panel

Camcorder

Video game equipment

To video and

audio outputs

(S video input)

To t4

(video input)

Audio/Video cable

(not supplied)

S video cable

(not supplied)

(MONO)

ENTER

(MONO)

: Signal flow

Camcorder

Video game equipment

To video and

audio outputs

(S video input)

To t4

(video input)

Audio/Video cable

(not supplied)

S video cable

(not supplied)

Rear of

projection TV

Inside the

lower panel

Rear of

projection TV

To S video output

KP-ES43

KP-ES61/53/48

Using Your New Projection TV

Connecting audio/video equipment using the T

(monitor output) jacks

Notes

• If you select “DVD” on your TV screen, no signal will be output at the T

(monitor output) jacks (see page 14).

• When connecting the audio cable to the , you can adjust the volume

with 2+/–.

B-Y

R-Y

30W MAX 16

12 3

3



C –

(yellow)

-L (MONO)

(white)

-R (red)

Rear of projection TV

antenna

output

To video

and audio

inputs

or Audio system

audio

inputs

VCR

: Signal flow

To T

(monitor

output)

Antenna cable (not supplied)

Audio cable

(not supplied)

Audio/Video cable (not supplied)

continued

10 Using Your New Projection TV

VIDEO

COAXIAL

OPTICAL

R-AUDIO-L

LINE OUT

COMPONENT VIDEO OUT

S VIDEO OUT

DIGITAL OUT

B-Y

R-Y

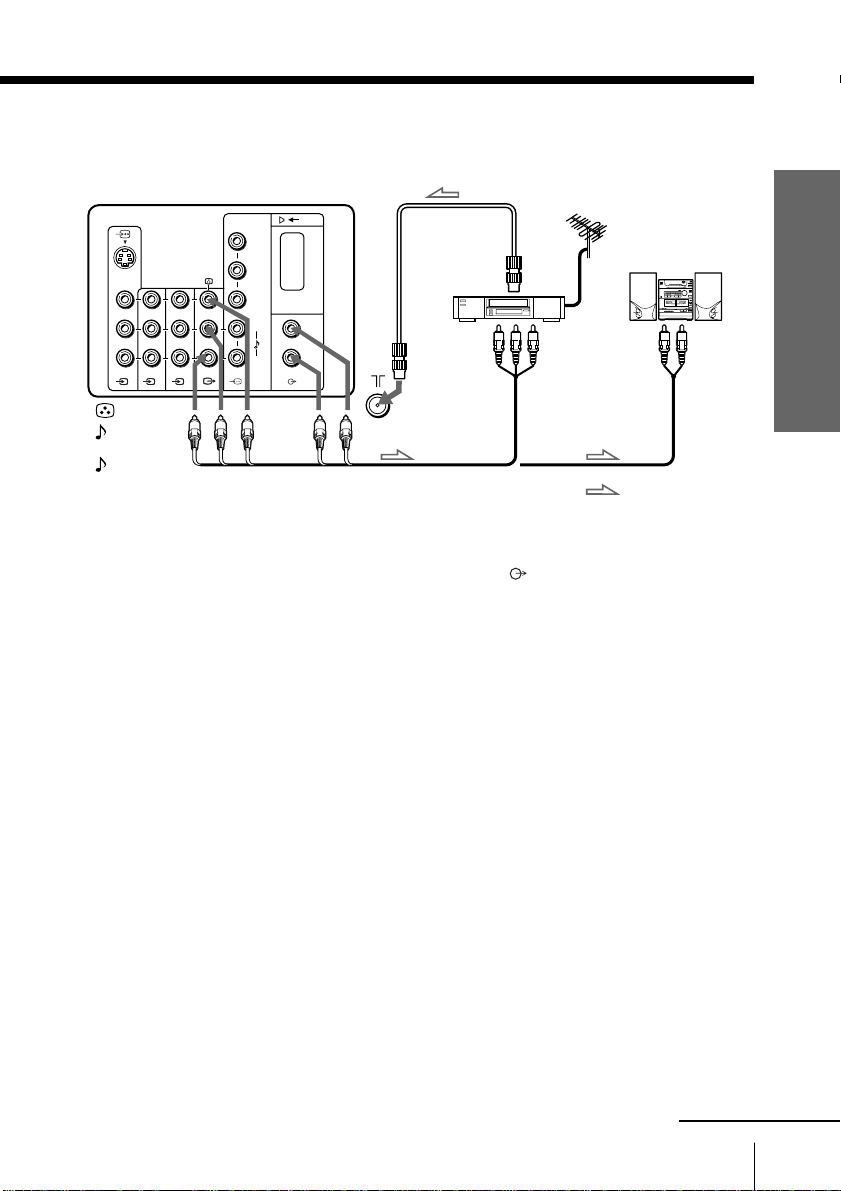

Connecting a DVD player to (component video input)

1 Using an audio cable, connect R and L under (component video input) on your

projection TV to the LINE OUT, AUDIO R and L output connectors on your DVD

player.

2 Using a component video cable, connect Y, CB/B-Y, and CR/R-Y under

(component video input) on your projection TV to the COMPONENT VIDEO OUT

Y, CB, and CRoutput connectors on your DVD player.

3 Press ton the remote or the projection TV until “DVD” appears on the screen.

To component

video output

Component video cable

(not supplied)

DVD

player

To -L (white)

-R (red)

To audio

output

Audio cable

(not supplied)

: Signal flow

(component video input)

Rear of

projection TV

Notes

• Some DVD player terminals may be labeled differently:

• When connecting to (component video input) on your projection TV,

you must connect Y, CB, and CR to receive the video signals, and at least

connect L and R to receive analog audio signals.

Connect To (on the DVD player)

Y (green) Y

CB/B-Y (blue) Cb, B-Y or PB

CR/R-Y (red) Cr, R-Y or PR

Connecting optional components (continued)

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Sony Projektionsfernsehen Handbücher

Sony

Sony KP-44PS2 Bedienungsanleitung

Sony

Sony KP 51HW40 Benutzerhandbuch

Sony

Sony Hi-Scan KP-51WS520 Bedienungsanleitung

Sony

Sony KDS-55A2000 - 55" Grand Wega Sxrd Rear Projection... Bedienungsanleitung

Sony

Sony KDF-42E2000 - 42" Lcd Projection Hd-tv Grand... Bedienungsanleitung

Sony

Sony KDP-57XBR2 - Digital High Definition Projection... Installationsanleitung

Sony

Sony Bravia KDS-70R2000 Bedienungsanleitung

Sony

Sony KDF-46E3000 - Bravia 3lcd Micro Display High Definition... Bedienungsanleitung

Sony

Sony GRAND WEGA KF 60DX100 Bedienungsanleitung

Sony

Sony KP-41T35 - 41" Projection Tv Bedienungsanleitung

Sony

Sony KDP-51WS655 - 51" High Definition Crt Projection... Bedienungsanleitung

Sony

Sony KP-41T35 - 41" Projection Tv Bedienungsanleitung

Sony

Sony KDS-50A2020 - 50" Rear Projection TV Bedienungsanleitung

Sony

Sony KL-40WA1 Bedienungsanleitung

Sony

Sony KP-FS57 Bedienungsanleitung

Sony

Sony KP-57WS500 - 57" Hi-scan 1080i™ 16:9 Projection... Benutzerhandbuch

Sony

Sony KDF-37H1000 - 37" Bravia 3lcd Microdisplay Projection... Bedienungsanleitung

Sony

Sony Bravia KDS-60R2000 Bedienungsanleitung

Sony

Sony WEGA KDS-60A2000 Bedienungsanleitung

Sony

Sony KP-FX43M31 Bedienungsanleitung

Sony

Sony KP-HR53KR Bedienungsanleitung

Sony

Sony KP-51WS510 Bedienungsanleitung

Sony

Sony KL-40WA1K Bedienungsanleitung

Sony

Sony KDP-57XBR2 - Digital High Definition Projection... Bedienungsanleitung

Beliebte Projektionsfernsehen Handbücher anderer Marken

Samsung

Samsung ST-43T6P Bedienungsanleitung

Toshiba

Toshiba ColorStream TP50G60 Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric WD-65734 Bedienungsanleitung

Optoma

Optoma EP652A Bedienungsanleitung

Samsung

Samsung SP43T8HPX/XEC Bedienungsanleitung

Philips

Philips 28PW6006 - annexe 1 Bedienungsanleitung

Philips

Philips 43PP8421 Bedienungsanleitung

Hitachi

Hitachi 51F510 Bedienungsanleitung

RCA

RCA P52950 Bedienungsanleitung

Magnavox

Magnavox 51MP392H - 51" Widescreen Hd Ready Tv Bedienungsanleitung

Hitachi

Hitachi 46F510 Bedienungsanleitung

Pioneer

Pioneer Elite PRO 510HD Bedienungsanleitung

Philips

Philips 43PP8421 Handbuch

JVC

JVC I'Art Pro AV-48P776 Bedienungsanleitung

Toshiba

Toshiba 42HM66 - 42" Rear Projection TV Bedienungsanleitung

Philips

Philips 50PL9200D Bedienungsanleitung

Hitachi

Hitachi 51S715 Bedienungsanleitung

Samsung

Samsung HC-P5256W Bedienungsanleitung
