Sony FD Trinitron WEGA KV-DR34 Bedienungsanleitung

KV-DR34

KV-DR29

4-088-512-12 (1)

M69

M61

Operating Instructions

•Before operating the unit, please read this manual thoroughly and retain

it for future reference.

使用說明書

•使用本電視機之前請先詳細閱讀此手冊﹐並妥善保存以備日後用作參考。

Panduan Pengendalian

•Sebelum mengendalikan unit, sila baca buku panduan ini dengan teliti

dan simpan untuk rujukan masa depan.

Trinitron Color TV

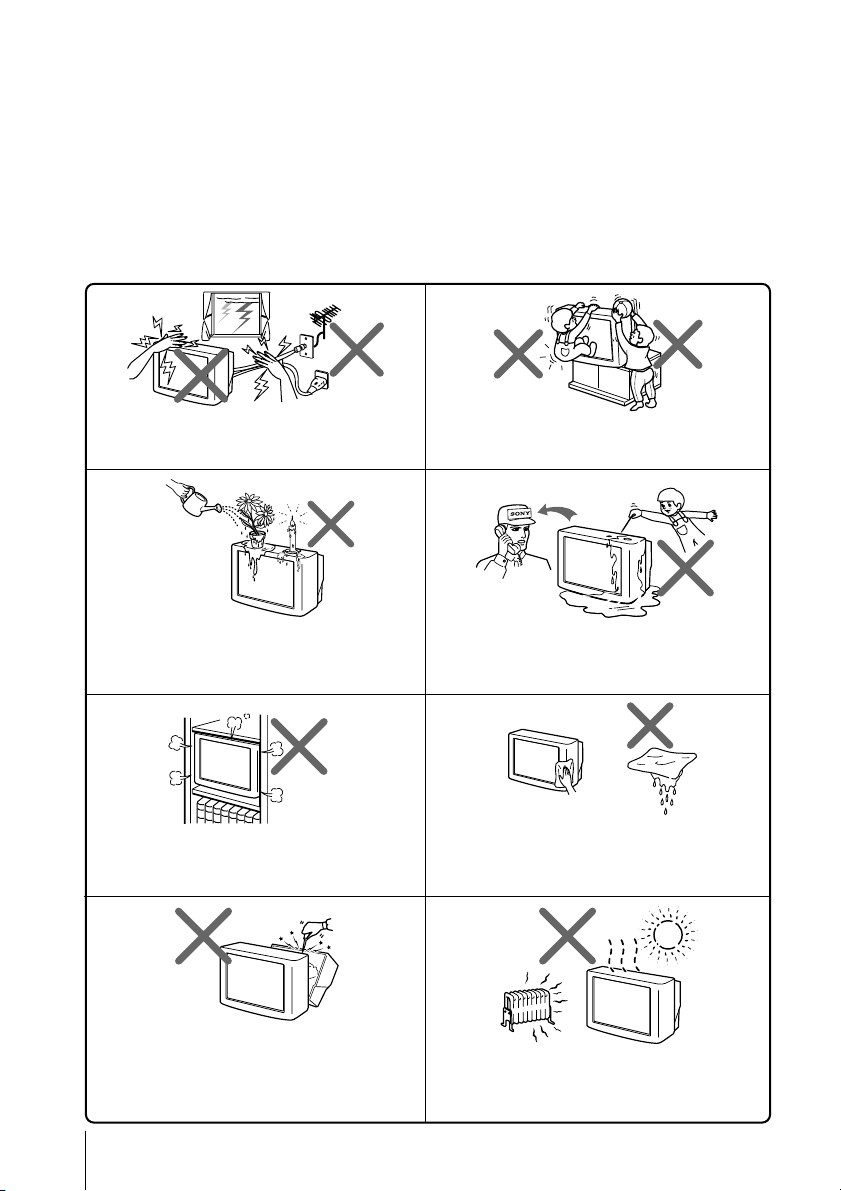

Do not place any objects on the TV. The apparatus

shall not be exposed to dripping or splashing and

that no objects filled with liquids, such as vases,

shall be placed on the apparatus.

WARNING

• Dangerously high voltages are present inside the TV.

• TV operating voltage: 110 – 240 V AC.

•Do not plug in the power cord until you have completed making all other

connections; otherwise a minimum leakage current might flow through the antenna

and other terminals to ground.

•To avoid battery leakage and damage to the remote, remove the batteries from the

remote if you are not going to use it for several days. If any liquid leaks from the

batteries and touches your skin, immediately wash it away with water.

Do not open the cabinet and the rear cover of the

TV as high voltages and other hazards are present

inside the TV. Refer servicing and disposal of the

TV to qualified personnel.

Your TV is recommended for home use only.

Do not use the TV in any vehicle or where it may be

subject to excessive dust, heat, moisture or

vibrations.

Do not operate the TV if any liquid or solid object

falls into it. Have it checked immediately by

qualified personnel only.

Do not block the ventilation openings of the TV.

Do not install the TV in a confined space, such as a

bookcase or built-in cabinet.

For children’s safety, do not leave children alone

with the TV. Do not allow children to climb onto it.

Clean the TV with a dry and soft cloth.

Do not use benzine, thinner, or any other chemicals to

clean the TV. Do not attach anything (e.g., adhesive

tape, cellophane tape, glue) on the painted cabinet of

the TV. Do not scratch the picture tube.

For your own safety, do not touch any part of the

TV, the power cord and the antenna cable during

lightning storms.

Install the TV on a stable TV stand and floor which

can support the TV set weight. Ensure that the TV

stand surface is flat and its area is larger than the

bottom area of the TV.

Do not plug in too many appliances to the same

power socket. Do not damage the power cord.

Pull the power cord out by the plug. Do not pull

the power cord itself. Even if your TV is turned

off, it is still connected to the AC power source

(mains) as long as the power cord is plugged in.

Unplug the TV before moving it or if you are not

going to use it for several days.

To prevent fire or shock hazard, do not expose the

TV to rain or moisture.

Screw the band to the TV stand and to the

provided hole at the rear of your TV.

(1) Put a cord or chain through the clamps.

(2) Screw one clamp to a wall or pillar and

the other clamp to the provided hole at

the rear of your TV.

(1) Attach each end of a cord or chain to

the provided holders at the rear of

your TV.

(2) Securely fix the attached cord or chain

to a wall or pillar using an attachment

which can support the TV set weight.

Note

•Use only the supplied screws. Use of other screws may damage the TV.

xSecuring the TV

To prevent the TV from falling, use the supplied screws, clamps and band to

secure the TV.

20 mm

3.8 mm

screws clamps band

Table of Contents

Installation

Getting Started ..................................... 6

Setting up your TV

(“INITIAL SETUP”)............................. 7

Overview of Controls

TV front and rear panels..................... 8

Remote control ..................................... 9

Advanced Operations

Selecting the picture and sound

modes .................................................. 11

Viewing higher quality pictures

with DRC-MF ..................................... 12

Viewing the picture in wide mode .. 12

Watching Picture-in-Picture (PIP)

(KV-DR34M69/DR29M69 only) ...... 13

Selecting a TV program using PIP

(KV-DR34M69/DR29M69 only) ...... 14

Listening with surround sound....... 14

Setting the timers ............................... 15

Enjoying stereo or bilingual

programs ............................................. 16

Viewing Teletext................................. 17

Menu Adjustment

Introducing the menu system .......... 18

Changing the “PICTURE” setting ... 21

Changing the “SOUND” setting ..... 23

Changing the Picture-in-Picture

(“PIP”) setting (KV-DR34M69/

DR29M69 only) .................................. 25

Changing the “SETUP” setting........ 26

Changing the Channel Preset

(“CH PRESET”) setting..................... 28

Additional Information

Connecting optional components ... 31

Troubleshooting ................................. 33

Specifications...................... Back cover

6Installation

Installation

xGetting Started

INITIAL SET

ENG ILSHLAN UGAGE

Step 1

Insert the batteries (supplied) into the remote.

Note

•Do not use old or different types of batteries together.

Step 2

Step 3

Step 4

Connect the antenna cable (not supplied) to 8

(antenna input) at the rear of the TV.

Tip

•You can also connect your TV to other optional components

(see page 31).

Set up the TV by following the instructions of the

“INITIAL SETUP”menu (see page 7).

Plug in the power cord, then press !on the TV to

turn it on.

Installation

Setting up your TV

(“INITIAL SETUP”)

When you turn on your TV for the first time,

the “INITIAL SETUP” menu will appear.

This menu allows you to change the menu

language, adjust the picture position and

preset the TV channels automatically.

1Press Vor vto select the desired menu

language (e.g.,”ENGLISH”), then press

ENTER.

The selected menu language appears.

2If the “PIC ROTATION” bar is

slanted, press Vor vto adjust it,

then press ENTER.

If no adjustment is necessary,

then press ENTER.

The or icon on the screen

flashes while adjusting.

3Press Vor vto select “YES”, then press

ENTER to preset the channels

automatically (see page 28).

The screen will indicate automatic presetting

is in progress.

To skip automatic channel presetting, select

“NO”, then press ENTER.

4Press Vor vto select “NO”, then press

ENTER. The “INITIAL SETUP” menu will

not appear again the next time you turn

on the TV by pressing !.

To allow this menu to appear again, select

“YES”, then press ENTER.

Tip

•You can immediately go to the end of the ”INITIAL SETUP” menu by pressing MENU.

•You can also set up your TV using the menu system (see page 18).

INITIAL SET

ENG ILSHLAN UGAGE

INITIAL SET

PIC ROTATION

INITIAL SET

START

NOW?

AUTO PROGRAM

INITIAL SET

DISPAL

NEXT T IME?

Y T EN

INITIAL SET

PR: 09

TV AUTOS

LOWV

Rotate anti-

clockwise Rotate

clockwise

Refer to this bar when

adjusting.

PIC

MODE

DRC-MF

SOUND

PIP PROGR

ENTER

V/v/ENTER

8Overview of Controls

Overview of Controls

L(MONO) R

PROGRMENU AUTO

PROGR

ENTER SELECT

PROGRMENU AUTO

PROGR

ENTER SELECT

8756

123

RLY

PB/CBPR/CR

qf qd

L(MONO) R

Button/Terminal Function Page

1!Turn off or turn on the TV. –

21Standby indicator. –

2Wake Up indicator. 15

2Stereo/bilingual indicator. 16

3Remote control sensor. –

4PROGR +/– Select program number. –

52+/– Adjust volume. –

6tSelect TV or video input. –

7AUTO PROGR Preset channels automatically. –

Menu operations

5SELECT V/v Select and adjust items 20

6ENTER Confirm selected items 20

8MENU Display or cancel the menu 20

9t4Video input terminal 4. 31

0iHeadphone jack. –

qa Component video input terminal. 32

qs 8Antenna input terminal. 31

qd TMonitor output terminal. 31

qf t1, t2, t3Video input terminal 1, 2, 3. 31

TV front panel

TV rear panel

xTV front and rear panels

Overview of Controls

xRemote control

231

564

897

JUMP

PROGR

PIC

MODE

DRC-MF

SOUND

MODE WIDE

MODE

SURROUND

RESET

SOUND

PIP PROGR

ENTER

DVD

continue

Button Function Page

1?/1Turn off temporarily or –

turn on the TV.

3aDisplay the TV input. –

40 – 9, -Input numbers. –

5JUMP Jump to previous program –

number.

9SURROUND Select surround mode. 14

0WIDE MODE Select wide-mode (16:9). 12

qa PROGR +/– Select program number. –

Display on-screen information

.–

qg %Mute the sound. –

qh DVD

Select component video input.

qj t

Select TV or video input. 31

wa DRC-MF Select DRC-MF mode. 12

ws SOUND MODE Select sound mode. 11

wd PIC MODE Select picture mode. 11

wf 2+/– Adjust volume. –

Timer operations

qs Set TV to turn off 15

automatically.

qd Set TV to turn on 15

automatically.

PIP operations (yellow label)

(KV-DR34M69/DR29M69 only)

6Display a sub screen. 13

7Swap main and sub 13

screens.

PIP PROGR +/ Display and change 13,14

PIP PROGR – programs in the sub screen.

qk Select a video input in the 13

sub screen.

ql SOUND Swap sound between main 13

and sub screen.

w; ENTER Change sub screen to main 14

screen.

Stereo/bilingual operations

2A/B Select stereo/bilingual 16

mode.

10 Overview of Controls

231

564

897

JUMP

PROGR

PIC

MODE

DRC-MF

SOUND

MODE WIDE

MODE

SURROUND

RESET

SOUND

PIP PROGR

ENTER

DVD

ej e;

continued

Button Function Page

Menu operations

wj MENU Display or cancel the menu. 20

wk ENTER Confirm selected items. 20

eh V,v,B,b Select and adjust items. 20

Teletext operations (green label)

wg Enlarge the Teletext display. 17

wh 0 – 9 Input Teletext page number 17

wl PROGR +/– Display the next or previous 17

page.

e; Show TV screen while 17

waiting for Teletext page.

ea Display Teletext service 17

contents.

Reveal concealed information.

ed Display Teletext broadcast. 17

ef Stop Teletext display from 17

scrolling.

eg (red, green, Access a FASTEXT menu. 17

yellow, blue)

ej RESET Set TV to factory setting. 33

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Sony Fernseher Handbücher

Sony

Sony KV-27FV310 - 27" Fd Trinitron Wega Bedienungsanleitung

Sony

Sony KV-32HQ100B Bedienungsanleitung

Sony

Sony KDF-37H1000 - 37" Bravia 3lcd Microdisplay Projection... Bedienungsanleitung

Sony

Sony BRAVIA XR-85X90K Bedienungsanleitung

Sony

Sony BRAVIA KDL-32W605D Bedienungsanleitung

Sony

Sony BRAVIA XR XR-85X9 L Series Bedienungsanleitung

Sony

Sony BRAVIA XBR-85X900H Bedienungsanleitung

Sony

Sony Bravia KD-65XD85 series Bedienungsanleitung

Sony

Sony KV-27FS17 - 27" Fd Trinitron Wega Bedienungsanleitung

Sony

Sony KV-XA34M60 Bedienungsanleitung

Sony

Sony Bravia KD-55XG7005 Bedienungsanleitung

Sony

Sony TRINITRON KV-27FV15 Bedienungsanleitung

Sony

Sony Trinitron KV-13TR20 Bedienungsanleitung

Sony

Sony TRINITRON KV-G14L2J Bedienungsanleitung

Sony

Sony BRAVIA XBR-75X940E Bedienungsanleitung

Sony

Sony KDL-40V2500 - Bravia V-series Lcd Hdtv Bedienungsanleitung

Sony

Sony Trinitron KV-EF34M80 Bedienungsanleitung

Sony

Sony BRAVIA FW-43XD80Series Bedienungsanleitung

Sony

Sony TRINITRON KV-29C3A Bedienungsanleitung

Sony

Sony BRAVIA KD-75X9007H Bedienungsanleitung

Sony

Sony FD Trinitron KV-28LS35B Bedienungsanleitung

Sony

Sony BRAVIA X95J Bedienungsanleitung

Sony

Sony WEGA KV-BZ216M80 Bedienungsanleitung

Sony

Sony TRINITRON KV-29FV16A Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung

Sylvania

Sylvania 6427FB Bedienungsanleitung
