Sony KD-28DL11U Bedienungsanleitung

Operating Instructions

Before operating the TV, please read the ‘Safety Information’ section of this

manual. Retain this manual for future reference.

Trinitron

Integrated Digital

Television

2-318-615-12

KD-28DL11U

KD-28DX51U

KD-32DC11U

KD-32DX51U

DX51 DL11U.book Page 1 Tuesday, May 24, 2005 9:44 AM

Thank you for choosing this

FD Trinitron Integrated Digital Television

Before operating the TV, please read this instruction manual thoroughly

and retain it for future reference.

All instructions in this manual refer to buttons on the supplied remote

control unless stated otherwise.

The model and serial numbers are located on the back of the TV. Record

the serial number in the space provided below. Refer to these numbers

whenever you call your dealer regarding this product.

Model No. KD-28DL11 / KD-28DX51U / KD-32DC11U / KD-32DX51U

Serial No. ______________

Please note: The information in this manual was correct at the time of going to print. However,

some minor changes may have been made late in the product’s development. All illustrations in

this manual have been created during the product’s development and may differ slightly to the

finished product.

CAUTION- TO PREVENT ELECTRIC SHOCK,

DON'T REMOVE COVER. FOR QUALIFIED

SERVICE PERSONNEL ONLY.

MODEL NO.

KD-28DL11U

TRINITRON DIGITAL TV

220-240V 50Hz

SER.NO.

MADE IN U.K.

BEAB

Approved

6000001

Serial No.

(KD-28DL11U shown for illustration purposes.)

DX51 DL11U.book Page 2 Tuesday, May 24, 2005 9:44 AM

Table of Contents

Table of Contents 3

Table of Contents

Safety Information

Notice for customers in the United Kingdom . . . . . . . . . . . . . . . . . . . . 4

Disposal of the TV set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Safety information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Getting Started

Checking the accessories supplied . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Inserting batteries into the remote control . . . . . . . . . . . . . . . . . . . . . . 6

Connecting an aerial and VCR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Switching on the TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Automatically tuning the TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Switching between digital and analogue mode . . . . . . . . . . . . . . . . . . 9

Basic Operation

Overview of the remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Overview of the TV buttons (KD-28DL11U) . . . . . . . . . . . . . . . . . . . . . 11

Overview of the TV buttons (KD-32DC11U). . . . . . . . . . . . . . . . . . . . . 12

Overview of the TV buttons (KD-28DX51U / KD-32DX51U) . . . . . . . . 13

Everyday use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Screen Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Digital Text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Analogue Text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Advanced Operation

The Digital Electronic Programme Guide (EPG) . . . . . . . . . . . . . . . . . 19

The Favourite list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Using the TV menu system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Picture Adjustment menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Sound Adjustment menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Detail Adjustment menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Timer menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Set Up menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Manual Programme Preset menu . . . . . . . . . . . . . . . . . . . . . . . . . 25

Detail Set Up menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Digital Set-up menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Technical Set-up menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Digital Tuning menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Connecting Other Equipment

Overview of the rear sockets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Overview of the front sockets (KD-28DL11U) . . . . . . . . . . . . . . . . . . . 30

Overview of the front sockets (KD-32DC11U) . . . . . . . . . . . . . . . . . . . 31

Overview of the front sockets (KD-28DX51U / KD-32DX51U) . . . . . . . 32

Connecting other equipment to the TV. . . . . . . . . . . . . . . . . . . . . . . . . 33

Viewing pictures from a connected VCR . . . . . . . . . . . . . . . . . . . . . . . 33

Viewing pictures from equipment connected to the rear sockets . . . . . 33

Viewing pictures from equipment connected to the front sockets . . . . 33

Additional Information

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Index. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

How to lift the TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back cover

DX51 DL11U.book Page 3 Tuesday, May 24, 2005 9:44 AM

Safety Information

4Safety Information

NOTICE FOR CUSTOMERS IN THE UNITED KINGDOM

A moulded plug complying with BS1363 is fitted to this equipment for your safety and convenience.

Should the fuse in the plug supplied need to be replaced, a 5 AMP fuse approved by ASTA or BSI

to BS 1362 (i.e. marked with or ) must be used. When an alternative type of plug is used it

should be fitted with a 5 AMP fuse, otherwise the circuit should be protected by a 5 AMP fuse at

the distribution board. If the plug supplied with this equipment has a detachable fuse cover, be sure

to attach the fuse cover after you change the fuse. Never use the plug without the fuse cover. If you

should lose the fuse cover, please contact your nearest Sony service centre.

How to replace the Fuse

Open the fuse compartment with a flat blade screwdriver, and replace the fuse.

IMPORTANT

If the plug supplied is not suitable for the socket outlet in your home, it should be cut off and an

appropriate plug fitted in accordance with the following instructions:

The wires in this mains lead are coloured in accordance with the following code:

Blue Neutral

Brown Live

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured

markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured blue must be connected to the terminal which is marked with the letter

N or coloured black. The wire which is coloured brown must be connected to the terminal which is

marked with the letter L or coloured red. Do not connect either wire to the earth terminal in the plug

which is marked by the letter E or by the safety earth symbol Ior coloured green or green and

yellow.

WARNING

• To prevent shock hazard, do not insert the plug cut off from the mains lead into a socket outlet.

This plug cannot be used and should be destroyed.

• To prevent fire or shock hazard, do not expose the unit to rain or moisture.

• Dangerously high voltages are present inside the set. Do not open the cabinet. Refer servicing

to qualified personnel only.

ASA

FUSE

Disposal of the TV set

Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and

other European countries with separate collection systems)

This symbol on the product or on its packaging indicates that this product shall not be

treated as household waste. Instead it shall be handed over to the applicable collection

point for the recycling of electrical and electronic equipment. By ensuring this product is

disposed of correctly, you will help prevent potential negative consequences for the

environment and human health, which could otherwise be caused by inappropriate waste

handling of this product. The recycling of materials will help to conserve natural resources.

For more detailed information about recycling of this product, please contact your local city

office, your household waste disposal service or the shop where you purchased the

product.

DX51 DL11U.book Page 4 Tuesday, May 24, 2005 9:44 AM

Safety Information

Safety Information 5

This set is to operate on a 220-240V AC

supply only. Take care not to connect too

many appliances to the same power socket

as this could result in fire or electric shock.

For environmental and safety reasons, it is

recommended that the TV is not left if

standby when unused. Disconnect from the

mains. However, some TVs may have

features which need the TV to be left in

standby to work correctly. The instructions

in this manual will inform you if this applies.

Never push objects of any kind into the set

as this could result in a fire or electric shock.

Never spill liquid of any kind on the set. If

any liquid or solid object does fall through,

do not operate the TV. Have it checked

immediately by qualified personnel.

Do not open the cabinet and the rear cover

of the TV. Refer to qualified service

personnel only.

To prevent fire or shock hazard, do not

expose the TV to rain or moisture.

For your own safety, do not touch any part

of the TV, power lead or aerial lead during

lightning storms.

Do not cover the ventilation openings of the

TV. For ventilation, leave a space of at least

10cm all around the set.

Never place the TV in hot, humid or

excessively dusty places. Do not install the

TV where it may be exposed to mechanical

vibrations.

Clean the screen and cabinet with a soft,

lightly dampened cloth. Do not use any type

of abrasive pad, alkaline cleaner, scouring

powder or solvent, such as alcohol or

benzine, or antistatic spray. As a safety

precaution, unplug the TV before cleaning it.

Pull out the power lead by the plug. Do not

pull on the power lead itself.

Take care not to place heavy objects on the

power lead as this could result in damage.

We recommend you wind any excess lead

around the holders provided on the rear of

the TV.

Unplug the power lead before moving the

TV. Avoid uneven surfaces, quick steps or

excessive force. If the set has been dropped

or damaged, have it checked immediately

by qualified service personnel.

Do not cover the ventilation openings of the

TV with items such as curtains or

newspapers etc.

Do not place any objects on the TV. To

prevent fire, keep inflammable objects or

naked lights (e.g. candles) away from the TV.

Place the TV on a secure stable stand. Never

attempt to move the TV and stand together -

always move the TV and stand separately.

Do not place the TV on its side or face up. Do

not allow children to climb on to it.

Due to the unique design of this TV, highly recommend you use their designated stand

SU-CL2 for KD-28DL11U, SU-28XL1 for KD-28DX51U, SU-32CS1 for KD-32DC11U or SU-32XL1 for KD-32DX51U.

DX51 DL11U.book Page 5 Tuesday, May 24, 2005 9:44 AM

Getting Started

6Getting Started

Follow steps 1- 6to install the TV and view programmes

Check that you have the following items:

Always remember to:

• observe the correct polarity when inserting batteries,

• dispose of batteries in an environmentally friendly way.

Checking the supplied accessories

Inserting batteries into the remote control

Remote control

SONY CORPORATION JAPAN/4

SONYCORPORATIONJAPAN/4

SONY CORPORATION JAPAN/4

DRY BATTERY R6/3(NS) SIZE"AA" 1.5v

Batteries

RF lead

DX51 DL11U.book Page 6 Tuesday, May 24, 2005 9:44 AM

Basic Operation

Basic Operation 7

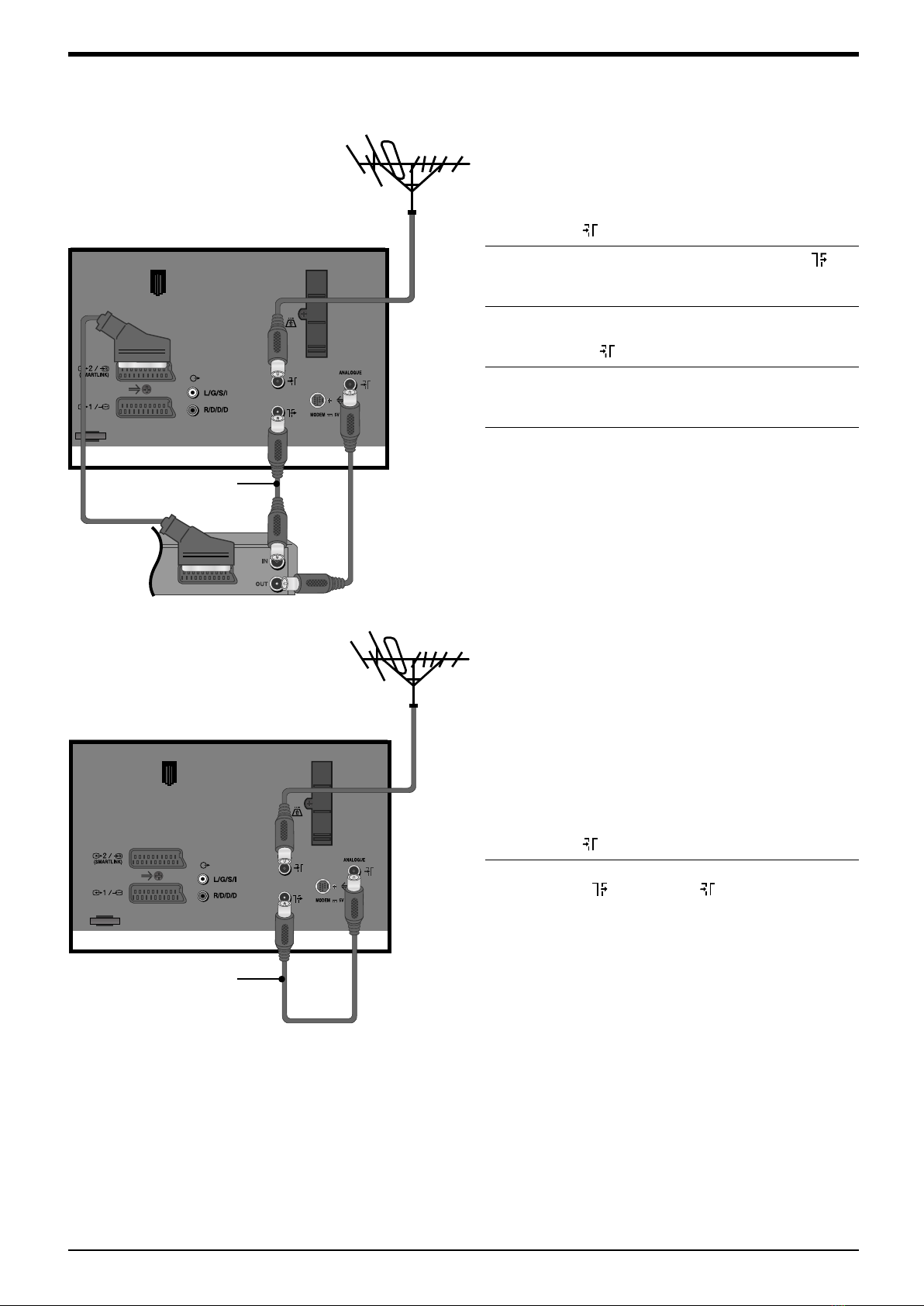

Connecting a VCR

Connecting an aerial only

1. Connect your aerial lead to the socket labelled

DIGITAL on the rear of the TV.

2. Connect an RF lead from the socket labelled on

the rear of the TV to the socket labelled IN* on your

VCR.

3. Connect the supplied RF lead from the socket

labelled OUT* on your VCR to the socket labelled

ANALOGUE on the rear of the TV.

4. Connect a fully wired 21-pin scart lead from the

socket labelled i2/ron the rear of the TV to

socket labelled TV on your VCR**.

5. Insert a pre-recorded tape into the VCR and press

the ‘PLAY’ button. This enables the TV to locate

and store the video channel during the

‘Automatically tuning the TV’ procedure.

z*Socket names may vary depending on make and model

of VCR. Refer to your VCR instruction manual for details.

**If your VCR does not have a scart socket, follow the

connecting instructions above ignoring the scart lead

connection.

1. Connect your aerial lead to the socket labelled

DIGITAL on the rear of the TV.

2. Connect the supplied RF lead from the sockets

labelled and

ANALOGUE on the rear of the TV.

Rear of TV.

Rear of VCR

Supplied RF Lead

Connecting an aerial and VCR

Supplied RF Lead

DX51 DL11U.book Page 7 Tuesday, May 24, 2005 9:44 AM

Getting Started

8Getting Started

1. Connect the TV plug to your mains socket (220 - 240V AV, 50Hz)

2. Push in the On/Off button (labelled !) on the front of the TV.

z If the red standby mode indicator on the front of the TV is lit, press the TV I/1

button on the remote control to switch on the set. Please be patient as the picture

may take a few moments to appear on the TV screen.

1. When you switch on the TV for the first time a language menu appear on

screen with the word ‘English’ highlighted. Press the Vor vbutton to

highlight the language you require. Press the OK button to confirm. From

now on all menus will appear in your chosen language.

2. The ‘Picture Rotation’ menu appears on the screen asking you to check

if the picture is slanted. (Sometimes the Earth’s natural magnetism can

cause the screen to look slanted.)

a) If no correction is required, press the Vor vbutton to highlight ‘Not

necessary’. Press the OK button to continue.

b) If some correction is required, press the Vor vbutton to highlight

‘Adjust now’. Press the OK button to continue. Press the Vor vbutton

to correct the slant. Press the OK button to store.

3. The autotune prompt appears. Press the OK button to select ‘Yes’. The

autotune procedure begins.

4. The digital autotune display appears on screen and the TV starts to

search for all the available digital channels. This may take some time,

please be patient and do not press any buttons on the TV or remote

control.

If no digital or analogue channels are found, a message appears asking

you to confirm that the aerial is connected correctly. Check all the aerial

connections and press the OK button to start the autotune procedure

again.

When the digital autotune is complete, the analogue autotune starts to

search for all the available analogue channels.

Once all available digital and analogue channels have been stored, the

TV returns to normal operation, displaying the digital channel stored on

channel number 1. If no digital channels are found, the analogue channel

stored on channel 1 is displayed.

The TV has now tuned

in all the available channels

Automatically tuning the TV

The ‘Picture Rotation’ menu.

The ‘Autotune’ prompt.

Switching on the TV

Do you want to start

automatic tuning?

Ye s

If picture slants, please

adjust picture rotation

Not necessary

Adjust now

KD-28DL11U KD-28DX51U / KD-32DX51U

On/Off button

KD-32DC11U

On/Off button

DX51 DL11U.book Page 8 Tuesday, May 24, 2005 9:44 AM

Getting Started

Getting Started 9

1. Press the abutton to switch to analogue mode.

In analogue mode, the channel number appears in green lettering when

the channel is changed.

2. Press the DIGITAL button to switch to digital mode.

In digital mode, an information banner appears briefly on screen when

the channel is changed.

The banner may contain some of the following icons to provide

information on the current programme*.

Interactive service is available (MHEG or MHP Digital Text).

Interactive service is currently disabled (MHEG or MHP Digital

Text).

Radio Service.

Scrambled/Subscription service.

Multiple audio languages available.

Subtitles available.

Hard of Hearing subtitles available.

Recommended minimum age for current programme (from 4 to 18

years).

Parental Lock.

Current programme is being recorded.

Switching between digital and analogue mode

The digital mode banner.

Information icons

DX51 DL11U.book Page 9 Tuesday, May 24, 2005 9:44 AM

Basic Operation

10 Basic Operation

Overview of the remote control

1DIGITAL - Digital mode button

In analogue mode: Press to switch to digital mode.

In digital mode: Press to remove any interactive prompts from the TV screen.

2TV I/1- TV Standby button

Press to switch off the TV temporarily. The red standby indicator on the front of

the TV is lit. Press again to return to normal operation.

3- Screen Mode button

Press to change the screen mode. Refer to page 15.

4a- Analogue mode

In digital mode: Press to switch to analogue mode.

5/ -Input Select/Text Hold button

In TV mode: Press to view signals from equipment connected to the TV sockets.

Refer to page 33.

In analogue text mode: Press to hold the current page. Refer to page 18.

6Numbered buttons

In TV mode: Press to select the required channel number. For channel numbers

10 and above, enter the second digit within two seconds.

In analogue text mode: Press to enter the three digital page number. Refer to

page 18.

7/ -INFO/Text Reveal button

In digital TV mode: Press to display brief details for the programme currently

being viewed.

In analogue TV mode: Press to display information such as current channel

number and screen mode. Press again to cancel.

In analogue text mode: Press to reveal concealed information (e.g. answers to a

quiz). Refer to page 18.

8- Previous channel button

In TV mode: Press to return to the previous channel watched (provided that the

channel was watched for more than five seconds).

9Coloured buttons

In digital menu systems: Press to select the options at the bottom of the screen

in the Favourite and EPG digital menus.

In analogue text mode: Press to use Fastext. Refer to page 18.

q; - EPG button

In digital TV mode: Press to access the Digital Electronic Programme Guide

(EPG). Refer to page 19.

qa /- Text button

In analogue TV mode and digital TV mode: Press to access analogue/digital text.

Refer to pages 17 and 18.

qs V, v, Band bbuttons

In TV menu system: Press to move through the options. Refer to page 22.

qd OK button

In TV menu system: Press to confirm a selection. Refer to page 22.

In analogue TV mode: Press to access the Programme Index table. Press the V

or vbutton to highlight an analogue channel. Press the bbutton to display the

chosen channel.

qf / INTERACTIVE BACK button

In digital mode: Press to exit digital text/digital interactive services.

qg button

Press to access the Favourite list. Refer to page 21.

qh MENU button

Press to access the TV menu system. Refer to page 22.

qj 2+/- Volume buttons

Press to increase (+) or decrease (-) the TV volume.

qk PROG +/- buttons

In TV mode: Press to view the next (+) or previous (-) channel.

In analogue text mode: Press to view the next (+) or previous (-) page. Refer to

page 18.

ql % - Mute button

Press to mute the TV sound. Press again to restore.

q; qa

qf qg

qj qk

DX51 DL11U.book Page 10 Tuesday, May 24, 2005 9:44 AM

Andere Handbücher für KD-28DL11U

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Sony Fernseher Handbücher

Sony

Sony KD-27FS170, KD-32FS170, KD-36F Bedienungsanleitung

Sony

Sony Trinitron KV-H29TF Bedienungsanleitung

Sony

Sony Trinitron WEGA KV-HP213 Bedienungsanleitung

Sony

Sony KV-29X5A Bedienungsanleitung

Sony

Sony KD-28DL11U Bedienungsanleitung

Sony

Sony Trinitron PVM-1341 Bedienungsanleitung

Sony

Sony Trinitron KV-27V20 Bedienungsanleitung

Sony

Sony Trinitron KV-37XBR48M Bedienungsanleitung

Sony

Sony KDL-32BX305 Bedienungsanleitung

Sony

Sony BRAVIA 65X8 L Series Bedienungsanleitung

Sony

Sony BRAVIA XR-55A95L Bedienungsanleitung

Sony

Sony KZ-32TS1E Bedienungsanleitung

Sony

Sony Trinitron KV-2170M3 Bedienungsanleitung

Sony

Sony KV-27S26 - 27" Trinitron Color Television Bedienungsanleitung

Sony

Sony TRINITRON VG6071 Bedienungsanleitung

Sony

Sony KD-55X8 G Series Bedienungsanleitung

Sony

Sony BRAVIA KDL-40NX725 Bedienungsanleitung

Sony

Sony KD-55S8500D Bedienungsanleitung

Sony

Sony BRAVIA KDL-40XBR4 Bedienungsanleitung

Sony

Sony BRAVIA XR 55A7 K Series Bedienungsanleitung

Sony

Sony BRAVIA XR XR-85X9 L Series Bedienungsanleitung

Sony

Sony Trinitron KV-13VM30 Bedienungsanleitung

Sony

Sony KDL-32BX400 Bedienungsanleitung

Sony

Sony BRAVIA KD-85X8 TJ Series Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung

Sylvania

Sylvania 6427FB Bedienungsanleitung
