SONY

Trinitron _Color TV

Operating Instructions

KV-32XBR48

KV-34XBR48C

KV-35XBR48

KV-35XBR88

KV-37XBR48M

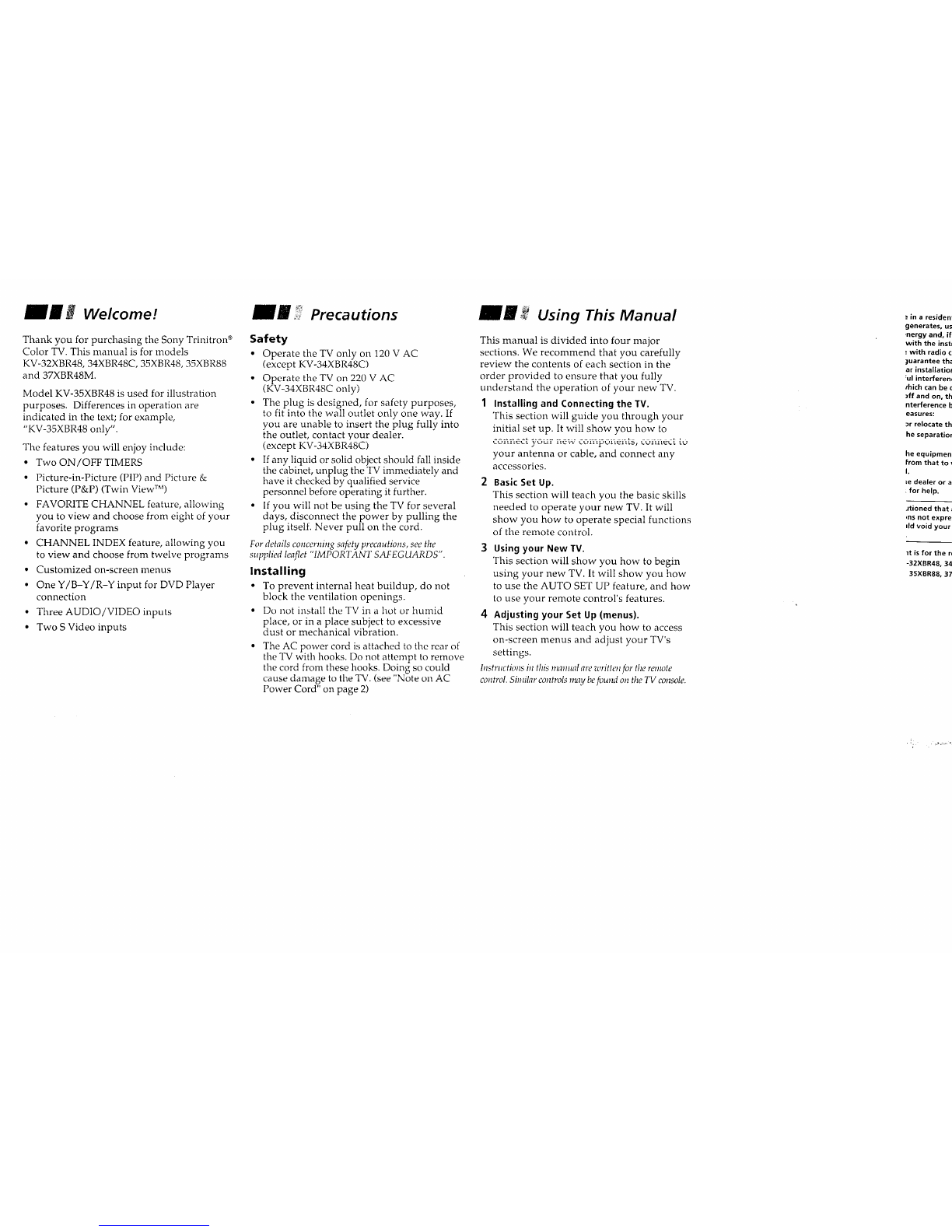

Welcome!

Thank you for purchasing the Sony Trinitron ®

Color TV. This manual is for models

KV-32XBR48, 34XBR48C, 35XBR48, 35XBR88

and 37XBR48M.

Model KV-35XBR48 is used for illustration

purposes. Differences in operation are

indicated in the text; for example,

"KV-35XBR48 only".

The features you will enjoy include:

• Two ON/OFF TIMERS

• Picture-in-Picture (PIP) and Picture &

Picture (P&P) (Twin View TM)

• FAVORITE CHANNEL feature, allowing

you to view and choose from eight of your

favorite programs

• CHANNEL INDEX feature, allowing you

to view and choose from twelve programs

• Customized on-screen menus

• One Y/B-Y/R-Y input for DVD Player

connection

• Three AUDIO/VIDEO inputs

• Two S Video inputs

Precautions

Safety

• Operate the TV only on 120 V AC

(except KV-34XBR48C)

• Operate the TV on 220 V AC

(KV-34XBR48C only)

• The plug is designed, for safety purposes,

to fit into the wall outlet only one way. If

you are unable to insert the plug fully into

the outlet, contact your dealer.

(except KV-34XBR48C)

• If any liquid or solid object should fall inside

the cabinet, unplug the TV immediately and

have it checked by qualified service

personnel before operating it further.

• If you will not be using the TV for several

days, disconnect the power by pulling the

plug itself. Never pull on the cord.

For details concerning safety precautions, see the

supplied leaflet "IMPORTANT SAFEGUARDS".

Installing

• To prevent internal heat buildup, do not

block the ventilation openings.

• Do not install the TV in a hot or humid

place, or in a place subject to excessive

dust or mechanical vibration.

The AC power cord is attached to the rear of

the TV with hooks. Do not attempt to remove

the cord from these hooks. Doing so could

cause damage to the TV. (see "Note on AC

Power Cord" on page 2)

Using This Manual

This manual is divided into four major

sections. We recommend that you carefully

review the contents of each section in the

order provided to ensure that you fully

understand the operation of your new TV.

1Installing and Connecting the TV.

This section will guide you through your

initial set up. It -will show you how to

your antenna or cable, and connect any

accessories.

Basic Set Up.

This section will teach you the basic skills

needed to operate your new TV. It will

show you how to operate special functions

of the remote control.

3 Using your New TV.

This section will show you how to begin

using your new TV. It will show you how

to use the AUTO SET UP feature, and how

to use your remote control's features.

4 Adjusting your Set Up (menus).

This section will teach you how to access

on-screen menus and adjust your TV's

settings.

Instructions in this ,_mual atvwritten jor the remote

control.Sbnilarcontrols trulybefound on theTV console.

.=in a residenl

generates, us

=nergy and, if

with the instf

: with radio o

_uarantee tha

ar installatior

:ul interferenc

thich can be c

_ff and on, th

nterference b

easures:

_r relocate th,

he separatior

he equipmenl

from that to \

=e dealer or a_

for help.

Jtioned that

_ns not expre_

dd void your

ltisforthe r¢

-32XBR48,34

35XBR88,37

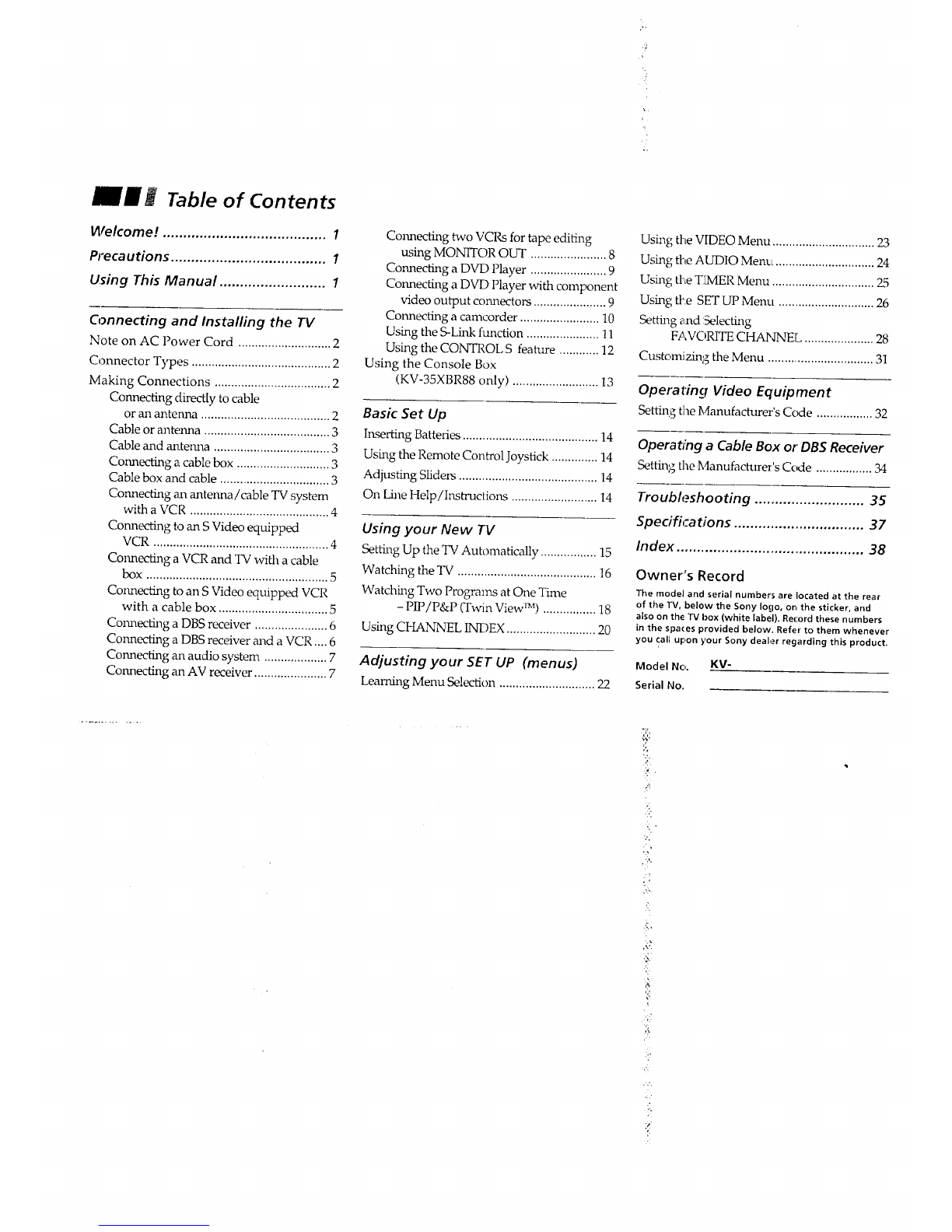

Table of Contents

Welcome! ........................................ 1

Precautions ...................................... 1

Using This Manual .......................... 1

Connecting and Installing the TV

Note on AC Power Cord ............................ 2

Connector Types .......................................... 2

Making Connections ................................... 2

Connecfialg directly to cable

or an antenna ....................................... 2

Cable or m_telma ...................................... 3

Cable and anteima .................................... 3

Connecting a. cable box ............................ 3

Cable box and cable .................................. 3

Connecting an antelma/cable TV system

with a VCR .......................................... 4

Connecting to an S Video equipped

VCR ..................................................... 4

Connecting a VCR and TV with a cable

box ....................................................... 5

Connecting to an S Video equipped VCR

with a cable box ................................. 5

Connecting a DBS receiver ...................... 6

Connecting a DBS receiver and a VCR .... 6

Connecting an audio system ................... 7

Connecting an AV receiver ...................... 7

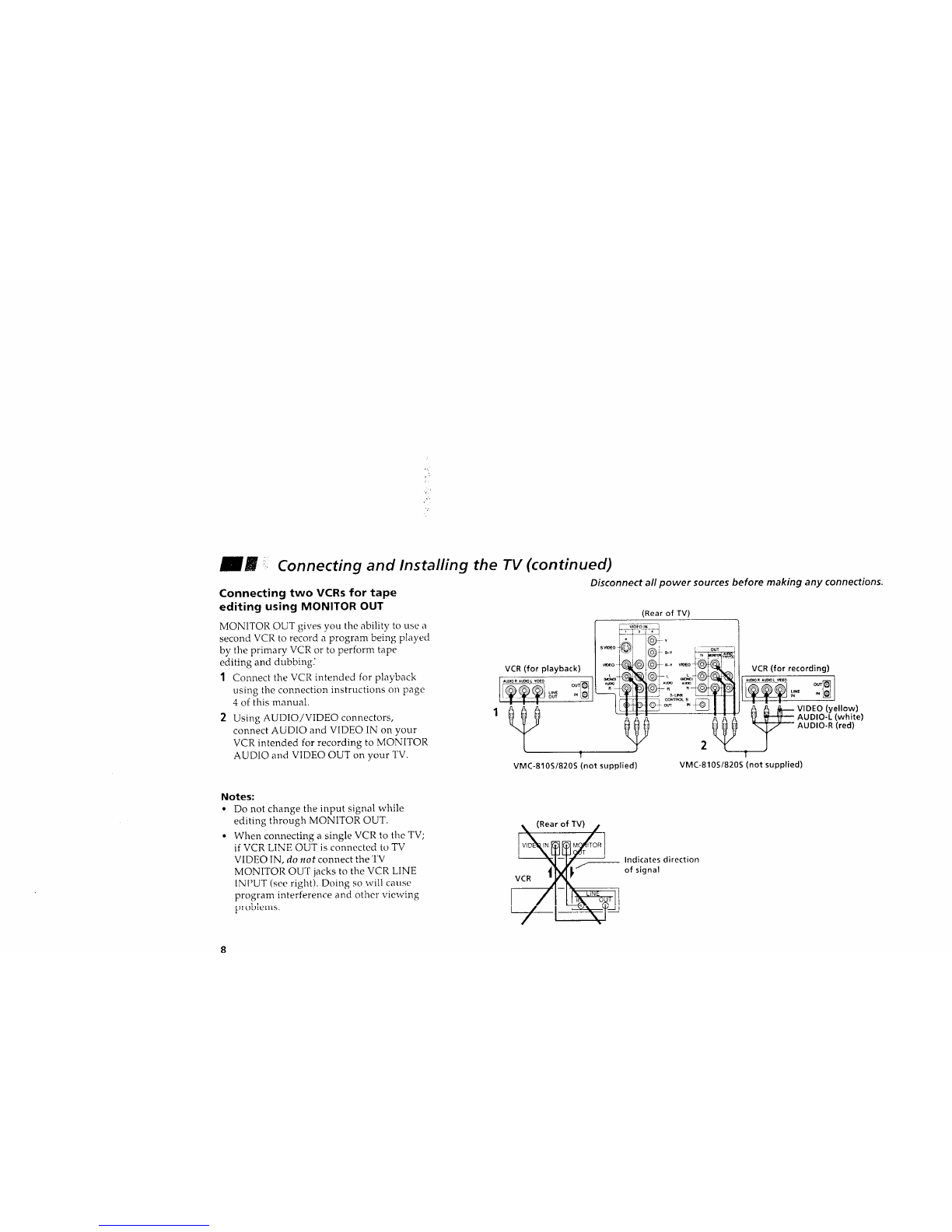

Connecting two VCRs for tape editing

using MONITOR OUT ....................... 8

Connecting a DVD Player ....................... 9

Connecting a DVD Player with component

video output connectors ...................... 9

Connecting a camcorder ........................ 10

Using the S-Link function ...................... !1

Using the CONTROL S feature ............ 12

Using the Console Box

(KV-35XBR88 only) .......................... 13

Basic Set Up

h_serting Batteries......................................... 14

Using the Remote Control Joystick .............. 14

Adjusting Sliders .......................................... 14

On Line Help/Instructions .......................... 14

Using your New TV

Setting Up the TV Automatically ................. 15

Watching the TV .......................................... 16

Watching Two Programs at One Time

- PIP/P&P (Twin ViewS9 ................ 18

Using CHANNEL INDEX ........................... 20

Adjusting your SET UP (menus)

Leamhlg Menu Selection ............................. 22

Using the VIDEO Menu ............................... 23

Using the AUDIO Men_L.............................. 24

Using the TIMER Menu ............................... 25

Using tee SET UP Menu ............................. 26

Setting and Selecting

FAVORITE CHANNEL ..................... 28

Custon_zing the Menu ................................ 31

Operating Video Equipment

Setting the Manufacturer's CcKte ................. 32

Operating a Cable Box or DB5 Receiver

Settin,gthe Manufacturet's Code ................. 34

Troubleshooting ........................... 35

Specifications ................................ 37

Index .............................................. 38

Owner's Record

The model and serial numbers are located at the rear

of the I"V, below the Sony logo, ore, the sticker, and

also on the TV box (white label). Record these numbers

in the spaces provided below. Refer to them whenever

you call upon your Sony dealer regarding this product•

Model No. KV-

Serial No.

i:):

,:2

7""

i'!

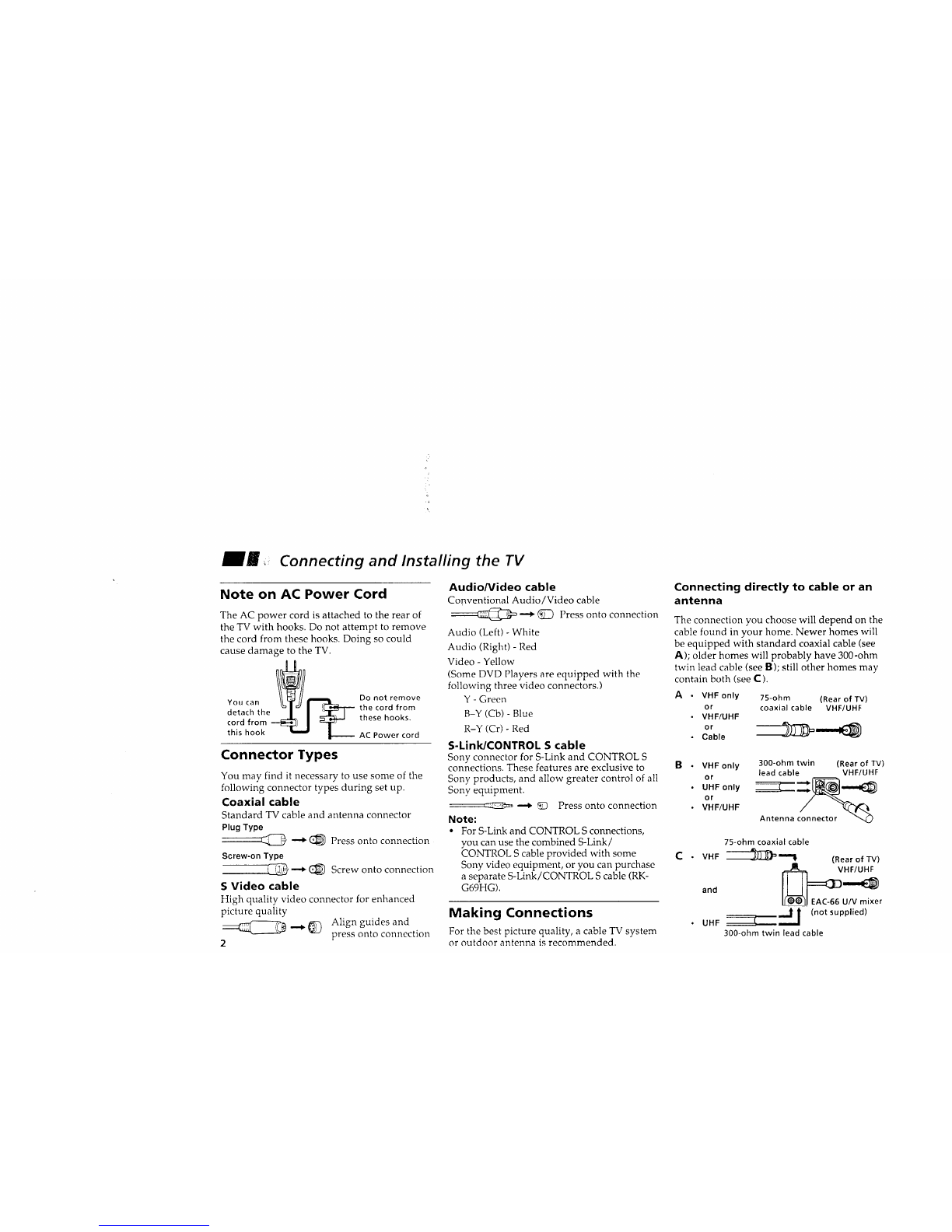

_ _ Connecting and Installing the TV

Note on AC Power Cord

The AC power cord is attached to the rear of

the TV with hooks. Do not attempt to remove

the cord from these hooks. Doing so could

cause damage to the TV.

YOU can _=_l_

detachtheI I _ 1

cordfrom--_ I

this hook _ _.

Do not remove

the cord from

these hooks.

-- AC Power cord

Connector Types

You may find it necessary to use some of the

following connector types during set up.

Coaxial cable

Standard TV cable and antenna connector

PlugType

__ -'_ (_ Press onto connection

Screw-on Type

_ _ Screw onto connection

S Video cable

High quality video connector for enhanced

picture quality

_ _) Align guides and

press onto connection

Audio/Video cable

Conventional Audio/Video cable

_Z_ _ (_ Press onto connection

Audio (Left) - White

Audio (Right) - Red

Video - Yellow

(Some DVD Players are equipped with the

following three video connectors.)

Y - Green

B-Y (Cb) - Blue

R-Y (Cr) - Red

S-Link/CONTROL S cable

Sony connector for S-Link and CONTROL S

connections. These features are exclusive to B

Sony products, and allow greater control of all

Sony equipment.

--_::E23_ _ _ Press onto connection

Note:

• For S-Link and CONTROL S connections,

vou can use the combined S-Link!

CONTROL S cable provided with some C

Sony video equipment, or you can purchase

a separate S-Link/CONTROL S cable (RK-

G69HG).

Making Connections

For the best picture quality, a cable TV system

or outdoor antenna is recommended.

Connecting directly to cable or an

antenna

The connection you choose will depend on the

cable found in your home. Newer homes will

be equipped with standard coaxial cable (see

A); older homes will probably have 300-ohm

twin lead cable (see B); still other homes may

contain both (see C).

A ° VHF only 75-ohm (Rear of TV)

or coaxial cable VHF/UHF

VHF/UHF

Cable

VHF only 300-ohm twin (Rear of TV)

lead cable VHF/UHF

or c_

UHF only _:_ _,._

VHF/UHF Antenna

75-ohm coaxial cable

VHF __"! (Rear of TV)

and __

EAC-66 U/V mixer

(not supplied)

UHF I

300-ohm twin lead cable

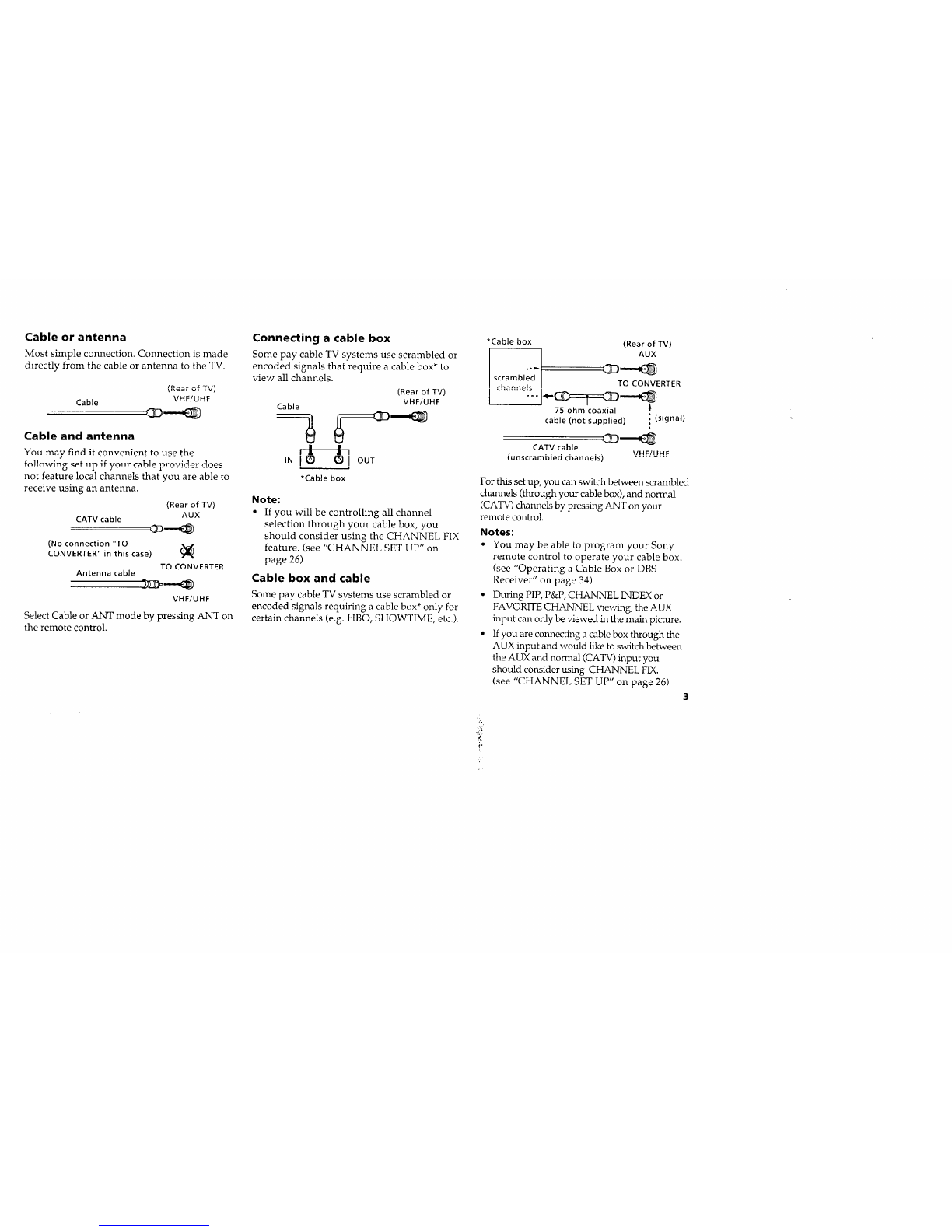

Cable or antenna

Most simple connection. Connection is made

directly from the cable or antenna to the TV.

Cable v,=,=, of TV)

VHFIUHF

Cable and antenna

Ynu may find it convenient to use the

following set up if your cable provider does

not feature local channels that you are able to

receive using an antenna.

CATV cable

(Rear of TV)

AUX

cD---._

(No connection "TO

CONVERTER" in this case)

TO CONVERTER

Antenna cable

VHF/UHF

Select Cable or ANT mode by pressing ANT on

the remote control.

Connecting a cable box

Some pay cable TV systems use scrambled or

encnded signal_ that requiro a cahlo hnw* ta

view all channels.

(Rear of TV)

VHF/UHF

Cable

| |

I• t I

,N I OUT

*Cable box

Note:

• If you will be controlling all channel

selection through your cable box, you

should consider using the CHANNEL FIX

feature. (see "CHANNEL SET UP" on

page 26)

Cable box and cable

Some pay cable TV systems use scrambled or

encoded signals requiring a cable box* only for

certain channels (e.g. HBO, SHOWTIME, etc.).

*Cable box (Rear of TV)

... AUX

Iscrambled __s_

r_ .... io TO CONVERTER

I.........':" 75-ohm coaxial {

cable (not supplied) i (signal)

CATV cable

(unscrambled channels) VHF!UHF

Forthis set up, you canswitch between scrambled

channels (through your cable box),and normal

(CAT_,Od_nnels by pressing ANT on your

remote control.

Notes:

• You may be able to program your Sony

remote control to operate your cable box.

(see "Operating a Cable Box or DBS

Receiver" on page 34)

• During PIP, P&P, CHANNEL INDEX or

FAVORITE CHANNEL viewing, the AUX

input can only be viewed in the main picture.

• If you are com_ecting a cable box through the

AUX input and would like to switch between

the AUX and normal (CATV) input you

should consider using CHANNEL FIX.

(see "CHANNEL SET UP" on page 26)

.:(

_m Connecting and Installing the TV (continued)

Connecting an antenna/cable TV

system with a VCR

1Attach the coaxial connector from your

cable or antenna to IN on your VCR.

2Using AUDIO/VIDEO connectors, connect

AUDIO and VIDEO OUT on your VCR to

AUDIO and VIDEO IN on your TV

(Yellow-VIDEO, White-AUDIO Left, Red-

AUDIO Right).

3Using a coaxial connector, connect OUT on

your VCR to VHF/UHF on your TV.

Connecting to an S Video equipped

VCR

Disconnect all power sources before making any connections.

Coaxial cable

VCR

(Rear of TV)

ff woc_3

Cable I_ °"T

1,,,-..,.-=¢..f._,.

CONinT{B

...............

OUT (Q/

AUDIO-L (white)

VIDEO (yellow)

2VMC-810S/820S (not supplied)

1Attach the coaxial connector from your

cable or antenna to IN on your VCR.

2Using AUDIO connectors, connect AUDIO

OUT on your VCR to AUDIO IN on your TV

(White-AUDIO Left, Red-AUDIO Right).

3Using a coaxial connector, connect OUT on

,yu_l v_,-l\ t',_ vla, l /,,_.,1_1 ,JJl ),_pul • v.

4Using an S VIDEO connector, connect

S VIDEO on your VCR to S VIDEO on

your TV.

Note:

• if you are connecting a monaural VCR,

connect only the single audio output to the

left (MONO) input on your TV.

(Rear of TV)

TO " _ V

Coaxial cable ,,_o

VCR _ I_

AUO_ORAUOK_t_vEo svloEo

U ,v,o o

YC-15V/30V AUDIO-R (red)

4 (not supplied) AUDIO-L (white)

2 T

RK-74A (not supplied)

Connecting a VCR and TV with a

cable box

1ColtllecL " - , ,: _ ,_ :___. _c,,__

UI LILt2

)clL_I_the _m_le _,Ht_pUt/

Splitter to your incoming cable connection,

and connect the other two (output) jacks

(using coaxial cable) to IN on your cable

box and VHF/UHF on your TV.

2Using a coaxial connector, connect OUT

on your cable box to IN on your VCR.

'_ It_:__ _ ATTT_,Tn IlylT_.r.'_x, ......... _ ....

J UDIJ. L_ .z_Xt-JJ-."J._.,"/ VJ.LJJ£,'.,...,' L.UILIL_'_LUID,

.... ATT • anu vIDL,,aOu_ onyour

COItlteCt ./-kLJalo _. a,t 7 e¢'_ • TT

VCR to AUDIO and VIDEO IN on your

TV (Yellow-VIDEO, White-AUDIO Left,

Red-AUDIO Right).

Connecting to an S Video equipped

VCR with a cable box

1-2 Perform as described above.

3Using AUDIO connectors, connect AUDIO

OUT on your VCR to AUDIO IN on your TV

(White-AUDIO Left, Red-AUDIO Right).

4Using an S VIDEO connector, connect S

VIDEO on your VCR to S VIDEO on your TV.

Note:

• To view scrambled channels through your

cable box, select the video input which

your cable box is connected to by pressing

TV/VIDEO.

Cable -- i ,11,, i

Splitter Cable box

Disconnect all power sources before making any connections.

(Rear of TV)

To _ v

r .... :_l --LI-

OUT IUDIO R AUtO L VLD[O S VI_O S._

....®®®

In OUT

.... t_ _

_ _ _ _ AUDIO-R (red)

_ _ _ _ _ AUDIO-L (white)

2_f_ VIDEO(yeiiow)

3VMfi-810S/820S (not supplied)

(Rear of TV)

(not supplied)

Splitter Cable box

(not supplied)

i 'l/

CONVERTER sv_el

Coaxial cable 0 V_EC

VCR 1L .....u._ _

Q_ _ YC-15V/30V

24(notsupplied)

3RK-74A (not supplied)

®:®

S VIDEO

AUDIO-R (red)

AUDIO-L (white)

mm ,_

Connecting a DBS (Direct Broadcast

Satellite) receiver

1Connect the cable from your satellite antenna

to your DBS receiver.

2Attach the coaxial connector from your cable or

antenna to VHF/UHF on your TV.

3Using AUDIO/VIDEO connectors, connect

AUDIO and VIDEO OUT on your DBS receiver

to AUDIO and VIDEO IN on your TV.

Connecting and Installing the TV (continued)

Disconnect all power sources before making any connections.

(Rear of TV)

Connecting a DBS (Direct Broadcast

Satellite) receiver and a VCR

1Connect the cable from your satellite antenna

to your DBS receiver.

2Attach the coaxial connector from your cable or

antenna to VHFiUHF IN on your VCR.

3Using a coaxial connector, connect VHF/UHF

OUT on your VCR to VHF/UHF on your TV.

4Using AUDIO/VIDEO connectors, coru-Lect

AUDIO and VIDEO OUT on your DBS receiver to

AUDIO and VIDEO IN on your VCR.

5Using AUDIO/VIDEO connectors, connect

AUDIO and VIDEO OUT on your VCR to

AUDIO and VIDEO IN on your TV.

Note:

DBS receiver

Satellite I.....I © © © ©q L_o_

antenna _--'_

cable IO-R (red)

l_ I_ AUDIO-L (white)

- VIDEO (yellow)

VMC-810S1820S (not supplied)

VMC-810S/820S (not supplied)

, ........ '_]o":::,oo

', .... [DBfre_ce,v_er_l L_ 1

To view input from the DBS or VCR, select the video

input which your DBS receiver or VCR is connected

to by pressing TV/VIDEO on the remote control.

(Rear of TV)

VCR

I .LLL ..... I t

II _K-K _t ......I/1 ..... [!

VIDEO (yellow)

AUD!_O-L(white,! _ _ 3

5VMC-810S/820S (not supplied)

Connecting an audio system

For more dynamic sound, connect your audio

system to your TV.

1Using ATJDTOconnect_rs, connect AUDIO

OUT on your TV to one of the unused Line

inputs (e.g. Tape-2, AUX1, etc.) on your stereo

(White-AUDIO Left, Red-AUDIO Right).

2Set },our stereo to the chosen Line input

and use the AUDIO menu to set your

audio cmtput. (see "SPEAKER" and

"AUDIO OUT" on page 24)

Connecting an AV receiver

For greater control of all audio and video

equipment, connect your AV receiver.

1Using AUDIO/VIDEO connectors, connect

VIDEO 1 IN on your TV to Monitor AUDIO

and VIDEO OUT on your AV receiver.

2Using AUDIO/VIDEO connectors, connect

TV OUT on your TV to TV AUDIO and

VIDEO IN on your AV receiver.

Note:

° You may want to use CHANNEL FIX to

fix your TV's input to the AV receiver

(VIDEO 1). (see "CHANNEL SET UP" on

page 26)

Disconnect all power sources before making any connections.

(Rear of TV)

I_-oq_@)_lC_- .... -_o@_1 I I AUDIO-L (white) "noisu "lied"

input _ I

I i,o " CLHI i

VIDEO (yellow)

AUDIO-L (white)

AUDIO-R (red)

VIDEO (yellow)

AUDIO-L (white)

AUDIO-R (red)

']VMC-810S/820S (not supplied) 1

(Rear of TV) _AV outputs

000

AV receiver

2 _V inputs

VMC-810S/820S (not supplied)

mJ iilConnecting and Installing the TV (continued)Disconnect all power sources before making any connections.

Connecting two VCRs for tape

editing using MONITOR OUT

MONITOR OUT gives you the ability to use a

second VCR to record a program being played

by the primary VCR or to perform tape

editing and dubbing."

1Connect the VCR intended for playback

using the connection instructions on page

4 of this manual.

Using AUDIO/VIDEO connectors,

connect AUDIO and VIDEO IN on your

VCR intended for recording to MONITOR

AUDIO and VIDEO OUT on your TV.

VCR (for playback)

AU_ORAU_0L_O

LrNC

OUT IN

VMC-810S/820S (not supplied)

(Rear of TV)

_o _@1_ ..... ¢@_@1i

_ _ VIDEO (yellow)

_._ AUDIO-L (white)

,_ AUDIO-R (red)

VMC-810S1820S (not supplied)

Notes:

•Do not change the input signal while

editing through MONITOR OUT.

• When connecting a single VCR to the TV;

if VCR LiNE OUT is connected to TV

VIDEO IN, do not connect the TV

MONITOR OUT jacks to the VCR LINE

INPUT (see right). Doing so will cause

program interference and other viewing

11.

(Rear of TV)/

__ Indicates direction

of signal

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Sony Fernseher Handbücher

Sony

Sony Trinitron WEGA KV-DA322 Bedienungsanleitung

Sony

Sony FD Trinitron KV-29LS60B Bedienungsanleitung

Sony

Sony Trinitron KV-28DX30U Bedienungsanleitung

Sony

Sony KDL-32NL140 - Bravia Nl Series Lcd... Bedienungsanleitung

Sony

Sony Bravia KDL-32EX729 Bedienungsanleitung

Sony

Sony Bravia KD-75X8500C Benutzerhandbuch

Sony

Sony Trinitron KV-TG21M61 Bedienungsanleitung

Sony

Sony KDF-E60A20PKG - 60" Lcd Projection Hd-tv Grand... Bedienungsanleitung

Sony

Sony Bravia KDL-50WF665 Bedienungsanleitung

Sony

Sony Bravia KLV-37U300A Bedienungsanleitung

Sony

Sony BRAVIA KD-55XF80 Series Bedienungsanleitung

Sony

Sony KV-27S40 Trinitron Bedienungsanleitung

Sony

Sony Bravia KDL-40HX75A Bedienungsanleitung

Sony

Sony KE-42XBR900 - 42" Xbr Plasma Wega™ Integrated... Bedienungsanleitung

Sony

Sony KV-27FA210 - 27" Tv With Subwoofer Bedienungsanleitung

Sony

Sony Trinitron KV-32XBR25 Bedienungsanleitung

Sony

Sony Bravia KDL-19M4000 Bedienungsanleitung

Sony

Sony TRINITRON KV-J14P2S Bedienungsanleitung

Sony

Sony KV-28DS65U Bedienungsanleitung

Sony

Sony BRAVIA KDL-32R300D Bedienungsanleitung

Sony

Sony Bravia XR-77A80K Bedienungsanleitung

Sony

Sony Bravia KLV-S23A10E Bedienungsanleitung

Sony

Sony bravia KD-65S9000B Bedienungsanleitung

Sony

Sony BRAVIA KDL-49W757D Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung

Sylvania

Sylvania 6427FB Bedienungsanleitung
