• Before operating the unit, please read this manual thoroughly and

retain it for future reference.

KV-SR29

2-547-872-11(2)

N63K

Do not place any objects on the TV. The apparatus

shall not be exposed to dripping or splashing and

that no objects filled with liquids, such as vases,

shall be placed on the apparatus.

WARNING

• Dangerously high voltages are present inside the TV.

• TV operating voltage: 110 - 240V AC.

• Do not plug in the power cord until you have completed making all other

connections; otherwise a minimum leakage current might flow through the antenna

and other terminals to ground.

• To avoid battery leakage and damage to the remote, remove the batteries from the

remote if you are not going to use it for several days. If any liquid leaks from the

batteries and touches your skin, immediately wash it away with water.

Do not open the cabinet and the rear cover of the

TV as high voltages and other hazards are present

inside the TV. Refer servicing and disposal of the

TV to qualified personnel.

Your TV is recommended for home use only.

Do not use the TV in any vehicle or where it may be

subject to excessive dust, heat, moisture or

vibrations.

Do not operate the TV if any liquid or solid object

falls into it. Have it checked immediately by

qualified personnel only.

Do not block the ventilation openings of the TV.

Do not install the TV in a confined space, such as a

bookcase or built-in cabinet.

For children’s safety, do not leave children alone

with the TV. Do not allow children to climb onto it.

Clean the TV with a dry and soft cloth.

Do not use benzine, thinner, or any other chemicals to

clean the TV. Do not attach anything (e.g., adhesive

tape, cellophane tape, glue) on the painted cabinet of

the TV. Do not scratch the picture tube.

For your own safety, do not touch any part of the

TV, the power cord and the antenna cable during

lightning storms.

Install the TV on a stable TV stand and floor which

can support the TV set weight. Ensure that the TV

stand surface is flat and its area is larger than the

bottom area of the TV.

Do not plug in too many appliances to the same

power socket. Do not damage the power cord.

Pull the power cord out by the plug. Do not pull

the power cord itself. Even if your TV is turned off,

it is still connected to the AC power source (mains)

as long as the power cord is plugged in. Unplug

the TV before moving it or if you are not going to

use it for several days.

To prevent fire or shock hazard, do not expose the

TV to rain or moisture.

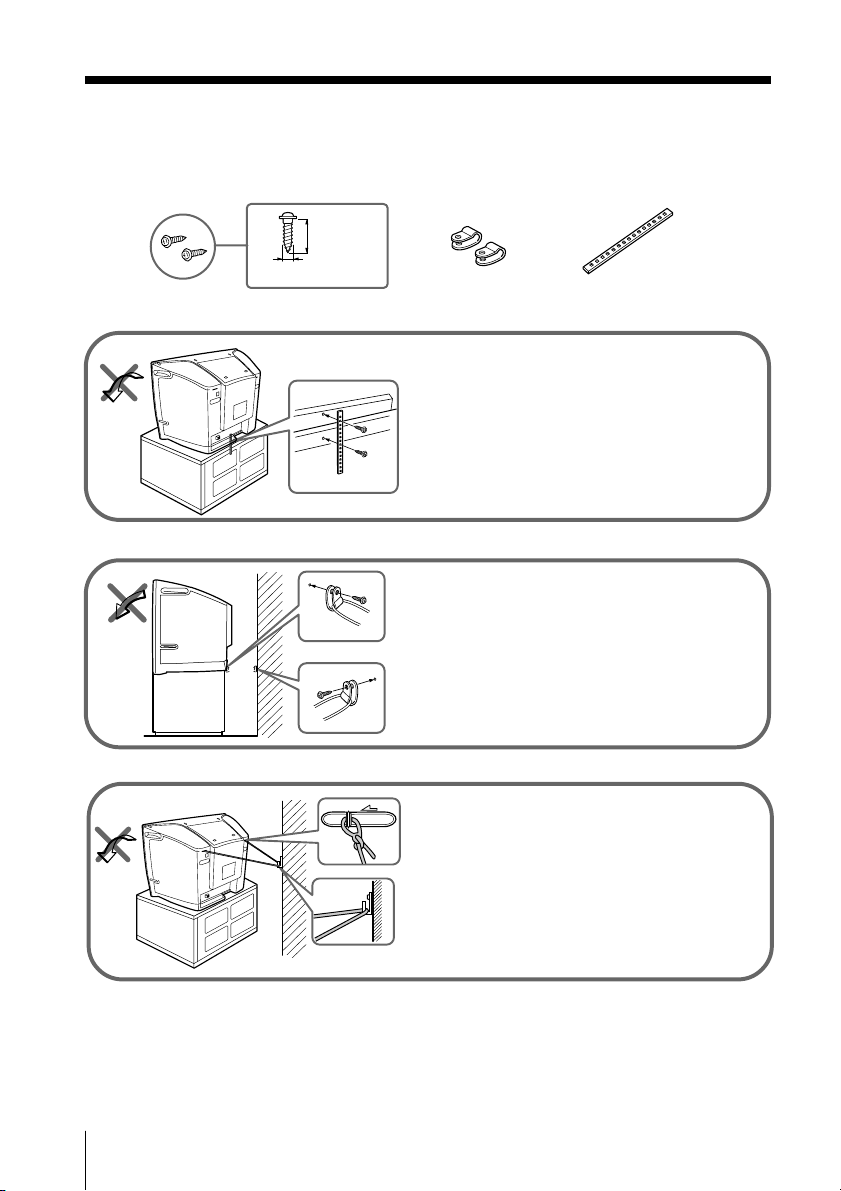

xSecuring the TV

To prevent the TV from falling, use the supplied screws, clamps and band to

secure the TV.

20 mm

3.8 mm

screws clamps band

Screw the band to the TV stand and to the

provided hole at the rear of your TV.

(1) Put a cord or chain through the clamps.

(2) Screw one clamp to a wall or pillar and

the other clamp to the provided hole at

the rear of your TV.

(1) Attach each end of a cord or chain to

the provided holders at the rear of your

TV.

(2) Securely fix the attached cord or chain

to a wall or pillar using an attachment

which can support the TV set weight.

Note

• Use only the supplied screws. Use of other screws may damage the TV.

Menu Adjustment

Introducing the menu system .......... 16

Changing the “Video” setting .......... 19

Changing the “Audio” setting ......... 21

Changing the “Channel Setup”

setting .................................................. 23

Changing the “Timer” setting .......... 25

Changing the “Setup” setting .......... 26

Additional Information

Connecting the 3D WOOFER .......... 28

Connecting optional components ... 28

Troubleshooting ................................. 31

Specifications ...................... Back cover

Table of Contents

Installation

Getting Started ..................................... 6

Setting up your TV

(“Initial Setup”) .................................... 7

Overview of Controls

TV front and rear panels ..................... 9

Using the remote control and

basic functions .................................... 10

Advanced Operations

Selecting the picture and sound

modes .................................................. 12

Enjoying the Party Mode .................. 13

Enjoying stereo or bilingual

programs ............................................. 14

Operating optional components ...... 15

6Installation

Installation

xGetting Started

Initial Setup

Language:

Move

English

Select

[TV/VIDEO]

End

[MENU]

Step 1

Insert the batteries (supplied) into the remote.

Note

• Do not use old or different types of batteries together.

Step 2

Step 3

Step 4

Set up the TV by following the instructions of the

“Initial Setup” menu (see page 7).

Plug in the power cord, then press !on the TV to

turn it on.

Note

• The STANDBY indicator flashes green for a few seconds

when turning on the TV. This does not indicate a

malfunction.

Connect the antenna cable (not supplied) to 8

(antenna input) at the rear of the TV.

Tip

• You can also connect your TV to other optional components

(see page 28).

Installation

When you turn on your TV for the first time, the “Initial Setup” menu will appear.

You may change the menu language, preset the TV channels automatically and adjust

the picture position using the buttons on the TV front panel.

Tip

• The MENU, and V/v/B/b buttons on the remote control can also be used for the

operations below.

1Press VOLUME +/– to select the desired

menu language, then press TV/VIDEO.

The selected menu language appears.

2Press VOLUME +/– to select “Yes”, then

press TV/VIDEO to preset the channels

automatically or select “No” to skip

automatic channel presetting.

Once you select “Yes”, your TV will start

searching for all the available channels.

If the message “No channel found. Please

connect cable/antenna” appears, check your

TV connections, then press TV/VIDEO.

3Press VOLUME +/– to adjust the bars on

the top and bottom of the menu if they

are slanted, then press TV/VIDEO.

“Picture V-Position” menu appears.

4If the upper and lower bars are not

equally positioned to the top and

bottom of the screen, press VOLUME +/–

to adjust them, then press TV/VIDEO.

If no adjustment is necessary, then press

TV/VIDEO.

Initial Setup

Language:

Move

English

Select

[TV/VIDEO] End

[MENU]

Initial Setup

First please connect cable/

antenna

Start Auto Program now?

Yes

Move Select

[TV/VIDEO]

End

[MENU]

Picture Rotation

[ — VOL ] [ VOL + ]

Move [— VOL +]

Select [TV/VIDEO] End [MENU]

Picture V-Position

Move [—VOL +]

Select [TV/VIDEO] End [MENU]

[ —VOL ]

[ VOL + ]

Setting up your TV

(“Initial Setup”)

continue

8Installation

5Press VOLUME +/– to select “No”, then

press TV/VIDEO. This menu will not

appear again the next time you turn on

the TV by pressing !.

To allow this menu to appear again, select

“Yes”, then press TV/VIDEO.

Tips

• You can immediately go to the end of the ”Initial Setup” menu by pressing MENU.

• You can also set up your TV by using the menu system (see page 16) or by pressing the MENU

button on the TV front panel for about five seconds to reset your TV to the factory setting.

continued

Initial Setup

Display this menu next time?

Yes

Move

Select

[TV/VIDEO]

Overview of Controls

CHANNEL

SOUND

MODE VOLUME

TV/VIDEO

876321

VIDEO 4 INPUT

STANDBY/

WAKE UP

VIDEO L

(

MONO

)

AUDIO

123

RLY

CBCR

qf qd

S VIDEO

MIC

COMPONENT VIDEO(DVD) IN

VIDEO

AUDIO

S VIDEO

MONITOR

OUT

Overview of Controls

TV front panel

TV rear panel

xTV front and rear panels

Button/Terminal Function Page

1!Turn off or turn on the TV. 6

2STANDBY Standby indicator. 6

2WAKE UP Wake Up indicator. 25

3Remote control sensor. –

4CHANNEL +/– Select channel number. –

5VOLUME +/– Adjust volume. –

6TV/VIDEO Select TV or video input. 28

Menu operations

5VOLUME +/– Select and adjust items. –

6TV/VIDEO Confirm selected items. –

7MENU Display or cancel the menu. –

8SOUND MODE Select sound mode options. 12

5-Band Graphic Equalizer display will appear.

9VIDEO 4 INPUT Video input terminal 4. 28

0iHeadphone jack. –

qa MIC Microphone input terminal 13

qs COMPONENT VIDEO Component video input terminal. 30

(DVD) IN

qd MONITOR OUT Monitor output terminal. 29

qf VIDEO IN 1, 2, 3 Video input terminal 1, 2, 3. 29

qg 8Antenna input terminal. 29

qh WOOFER 3D WOOFER terminal. 28

10 Overview of Controls

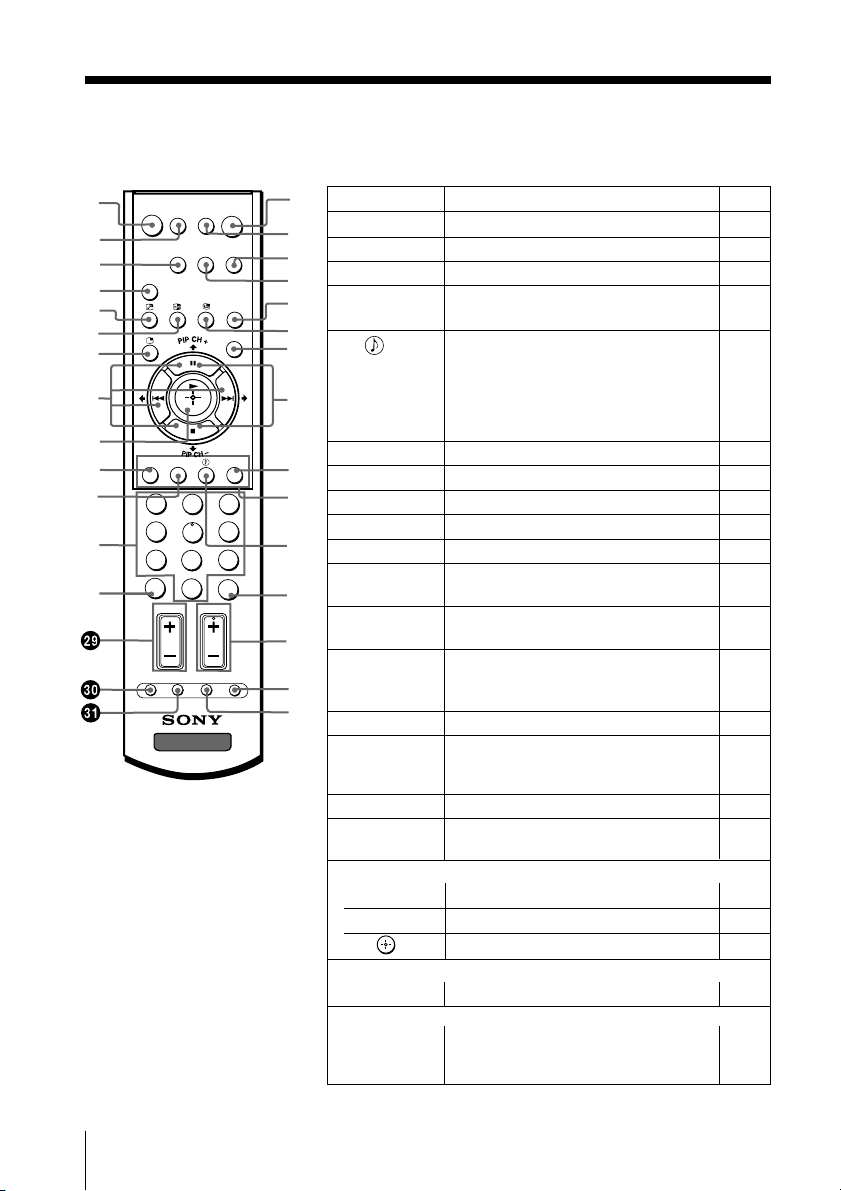

xUsing the remote control and basic

functions

123

789

DVD TVVIDEO

MTS/SAP

VOL

VIDEO

POWER

DISPLAYMUTING

POWER

OPTION RESET WAKE UP SLEEP

PA RT Y

MODE


MODE

SOUND

MODE

WIDE

MODE

ENT

JUMP

Button Description Page

1POWER Turn off temporarily or turn on the TV. –

3TV Display the TV channel. –

4VIDEO Select video input. 28

9WIDE Change the picture size: –

MODE “On” (16:9 wide-mode), “Off”.

qa Select audio effect mode options: –

“Effect Off”, “Simulated” (stereo-like

monaural sound), “WOW” (full,

deep bass sound), “TruSurround”

(surround sound that spreads out

to the rear of a room).

qs ENT Confirm input numbers. –

qd CH +/– Select channel number. –

qh MUTING Mute the sound. –

qj DISPLAY

Display on-screen information. –

qk DVD

Select component video input. 30

ql PARTY

Adjust your TV for Party Mode. 13

MODE

wg PICTURE

Select picture mode options. 12

MODE

wh SOUND Select sound mode options. 12

MODE 5-Band Graphic Equalizer display

will appear.

wj 0 – 9, -Input numbers. –

wk JUMP Jump to last channel number that –

has been watched for at least five

seconds.

wl VOL +/– Adjust volume. –

ea RESET Set TV to factory setting while –

adjusting items in an on-screen menu.

Menu operations

7MENU Display or cancel the menu. 18

wd V, v, B, b Select and adjust items. 18

wf Confirm selected items. 18

Stereo/bilingual operations

5MTS/SAP Select stereo/bilingual mode 14

Timer operations

qf SLEEP Set TV to turn off automatically

–

according to the desired period of

time.

Andere Handbücher für KV-SR29

Inhaltsverzeichnis

Andere Sony Fernseher Handbücher

Sony

Sony KDL-22CX520 Bedienungsanleitung

Sony

Sony KDE-P61MRX1D Bedienungsanleitung

Sony

Sony KV-EH36M31 Bedienungsanleitung

Sony

Sony Trinitron KV-HW212 Bedienungsanleitung

Sony

Sony KV-32HS500 Instructions: TV stand (primary... Bedienungsanleitung

Sony

Sony KE-42TS2U - 42" Flat Panel Color Tv Bedienungsanleitung

Sony

Sony BRAVIA KD-85X80CK Bedienungsanleitung

Sony

Sony FD Trinitron WEGA KV-XJ29 Bedienungsanleitung

Sony

Sony KV-ES29N90 Bedienungsanleitung

Sony

Sony BRAVIA KD43XG7077SAEP Bedienungsanleitung

Sony

Sony Trinitron Bedienungsanleitung

Sony

Sony TRINITRON KV-29FV16 Bedienungsanleitung

Sony

Sony Trinitron KD-32NX200U Bedienungsanleitung

Sony

Sony Trinittron KV-27XBR51 Bedienungsanleitung

Sony

Sony Bravia XR-85Z9J Bedienungsanleitung

Sony

Sony KE-MR50M2 Bedienungsanleitung

Sony

Sony Bravia KDS-55A3000, KDS-50A3000, KDS-60A3000 Benutzerhandbuch

Sony

Sony BRAVIA XBR-65X900E Bedienungsanleitung

Sony

Sony KDS-50A2000 - 50" Rear Projection TV Bedienungsanleitung

Sony

Sony KV-2119M5J Bedienungsanleitung

Sony

Sony KDL-32EX407 Bedienungsanleitung

Sony

Sony KV-SW21M80 Bedienungsanleitung

Sony

Sony KDL-40EX400 - Bravia Ex Series Lcd... Installations- und Betriebshandbuch

Sony

Sony Trinitron KV-XA21 Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung

Sylvania

Sylvania 6427FB Bedienungsanleitung
