MODEL COMMANDER DEST. CHASSIS NO.

CHASSIS

BG-2S

SERVICE MANUAL

TRINITRON

COLOR TV

MODEL COMMANDER DEST. CHASSIS NO.

KV-2199M5T

RM-869 ME SCC-U07Q-A

– 16 –

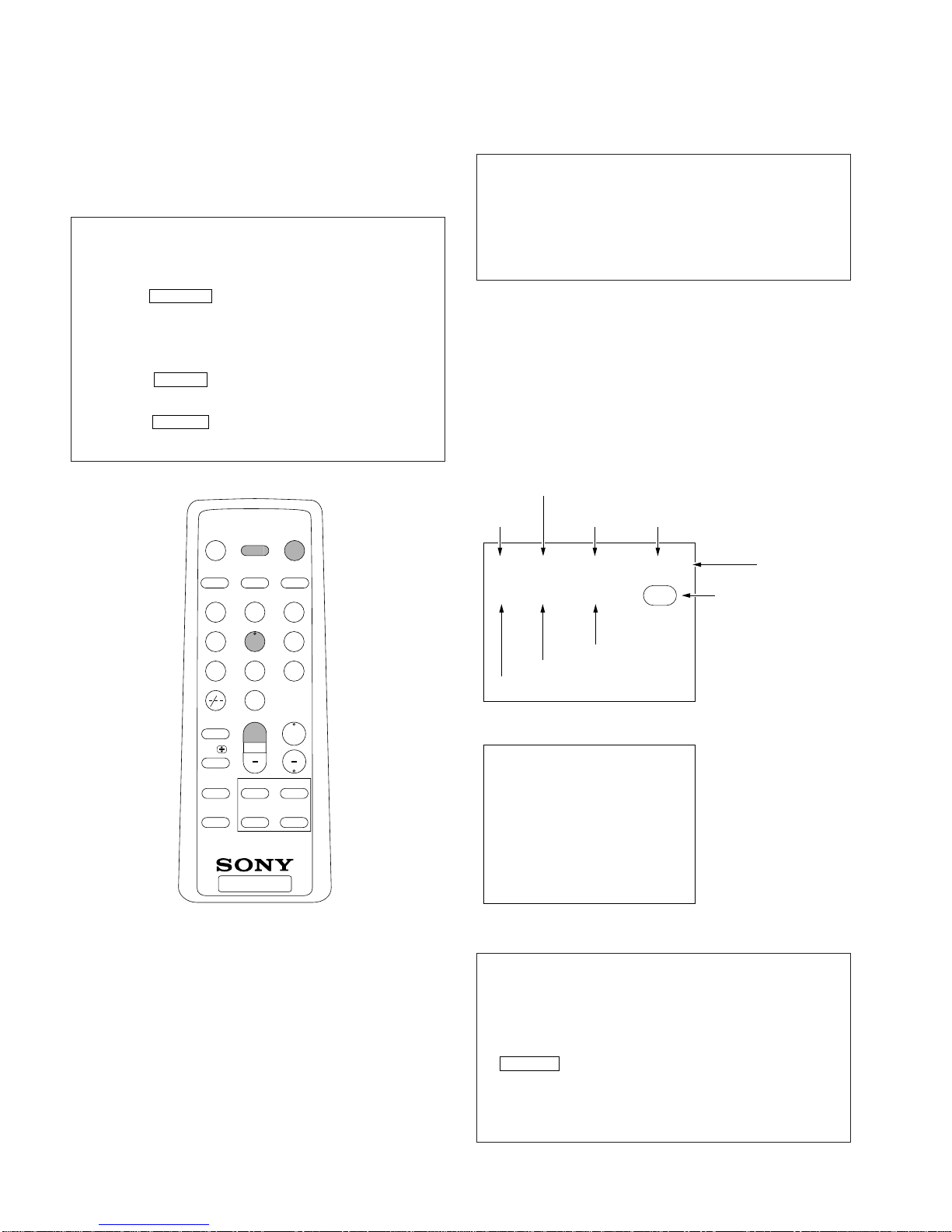

Entering service mode

With the unit on standby

↓

DISPLAY

↓

VOL

(

)

↓

POWER

The operation sequence puts the unit into service mode.

SECTION 5

CIRCUIT ADJUSTMENTS

5-1. ADJUSTMENTS WITH COMMANDER

Service adjustments are made with the RM-869 that comes with

this unit.

RM-869

1, 4Raise/lower the service item number

3, 6Raise/lower the data

[MUTING] Writes

-Executes the writing

7, -All data becomes the values in memory

8, -All user control goes to the standard state

5, -Service data initialization (Be sure not to use

usually.)

2, -Write 50Hz adjustment data to 60Hz, or

viceversa.

The screen display is :

1, 4Select the adjustment item.

↓

3, 6Raise/lower the data.

↓

MUTING

Writes

↓

-Executes the writing.

SERVICE Mode08

Data

HSF

50 Depends on the signals

PAL, SECAM : 50

NTSC : 60

Adjustment item

ModeItem #

00V3.2C052S

OEM CODE

German A2 Stereo

Software Version #

SERVICE00OP0

0000000000

(Bit options adjustable)

¤ EG u

V…F;

B©

SELECT

PIC MODE

SOUND

MODE

PROGR

123

789

–

A/B

– 17 –

Use the same method for Items Number 00-41. Use 1and 4to

select the adjustment item, use 3and 6to adjust, write with

MUTING

, then execute the write with -.

WRITE

GREEN0CVSF08

SERVICE

GREEN0CVSF08

Adjusted with

and

buttons

Written with MUTING

Write executed with 0

GREEN

The WRITE display

will change back to

SERVICE.

(2nd line disappear

when written)

0CVSF08

00V3.2C052S

Blank

5-2. ADJUSTMENT METHOD

Item Number 08

This explanation uses V-SHIFT as an example.

1. Select 08 V-SHIFT with the 1and 4buttons.

2. Raise/lower the data with the 3and 6buttons.

3. Select the optimum state. (The standard is 0F for PAL

reception.)

4. Write with the

MUTING

button.

5. Execute the writing with the -button. (The WRITE

display returns to green SERVICE.)

– 18 –

Item Adj Initial Note for Different Data Standard Data Function Device

No. Item Data

00 HSF 24 50/60Hz/RGB 50/RGB 60 2C/33/31/38 H Shift

01 HSZ 23 50/60Hz/RGB 50/RGB 60 35/35/35/35 H Size

02 PAP 21 50/60Hz 25/25 Pin Amplitude

03 CNP 29 50/60Hz 10/0C Corner Pin

04 TLT 20 50/60Hz 20/2D Tilt

05 VSL 20 50/60Hz 1F/1F V Slope

06 VAP ID 50/60Hz 1C/1B V Amplitude

07 SCR 20 50/60Hz 16/16 S Correction

08 VSF 20 50/60Hz 10/10 V Shift

09 RDR 25 28 R Drive

0A GDR 20 G Drive

0B BDR 20 B Drive

0C F0 00 TV/Video/Teletext 00/00/00 ø1 Time Constant

0D AGC 06 TV/Video/Teletext 28/28/28 AGC Take Over

0E VSW 0 TV/Video/Teletext 0/1/0 Video Mute Switch

0F FOR 00 03 Forced Field Frequency

10 DL 0 De-interlace

11 POC 0 Fixed ø1 Synchro. mode

12 COR 0 TV/Video/Teletext 01/00/00 Noise Coring

13 VPX 00 Extra Bits (see below)

14 PMX 27 TV/Video/Teletext 2B/2B/2B Picture Maximum Data

15 PMI 05 04 Picture Minimum Data

16 SBR 4B Sub Brightness

17 SHU 07 Sub Hue

18 SSH 01 TV/Video 01/03 Sub Sharpness

19 SC1 1F 50/60Hz 26/29 Sub Color Lower

1A SC2 0B 50/60Hz 0C/0D Sub Color Higher

1B AIP 40 3F Adjustment IF-PLL

1C VZM 20 19 Vertical Zoom

1D WST 15 W/G Stereo Threshold

1E WBT EA W/G Bilingual Threshold

1F WLL 05 W/G Monaural Threshold

20 ACG 1 AGC Switch auto/constant

21 CDB 28 AGC Gain at Constant Mode

22 FGP 1B FM Prescale for B/G.I.D/K

23 FMP 32 FM Prescale for M

24 FMH 36 FM Prescale for HDEV Mode

25 FMM 65 FM Prescale for HDEV Mode

26 WGP 2A W/G Prescale

27 NIP 6D NICAM Prescale

28 SCP 3B SCART Input Prescale

29 SCV 2A SCART Output Prescale

2A CRM 0 Carrier Muting on/off

2B ACO 1 Audio Clock-out on/off

2C WAC 00 W/G Agreement Count

2D NFT 50 Auto FM Switch Threshold

2E DLG 30 W/G Search Delay

2F DLN 20 NICAM Search Delay

30 DLS 10 Stereo Status Read Delay

31 SMX 73 DFP Volume Maximum

32 ING 00 M System/non-M/Video Input Gain

33 VOM 01 M System only Volume Output Gain

34 TXH 01 Teletext Horizontal Position

35 BKP 00 Picture Data at Blanking OFF

36 ODL 10 Power ON Delay

37 OFR 00 RGB Output Time (STBY OFF)

38 OFM 00 RGB Output Time (AC OFF)

AdjustmentItemTable

– 19 –

NOTE

• Note for Different Data Those are the standard data values written on the microprocessor. Therefore, the data values of

the modes are stored respectively in the memory.

In case of a device replacement, adjustment by rewriting the data value is necessary for some

items.

• 50..............50 Hz data

• 60..............60 Hz data

• Note for Different Data listed on the adjustment item table are reference values, therefore it is different for every model.

Item Adj Initial Note for Different Standard Data Function Device

No. Item Data Data

39 OSH 0A OSD H Position

3A DKS 1 0 D/K Stereo enable/disable

3B MUT 0 Muting on/off at No Sync

3C ABL 0 Bright ABL Switch

3D SCM 0 SECAM Trap active/inactive

3E FBT 1 FBT L/S C/M strict/plain

3F OP0 2F 28 (2199) 2F (J21) Optional Flags 0 (see below)

40 OP1 0F Optional Flags 1 (see below)

41 OP2 00 24 (2199) 04 (J21) Optional Flags 2 (see below)
