Sony Trinitron KV-EF29 Bedienungsanleitung

Trinitron Color TV

KV-EF29

3-861-921-13 (1)

Operating Instructions

####

M80

M90

M61

M91

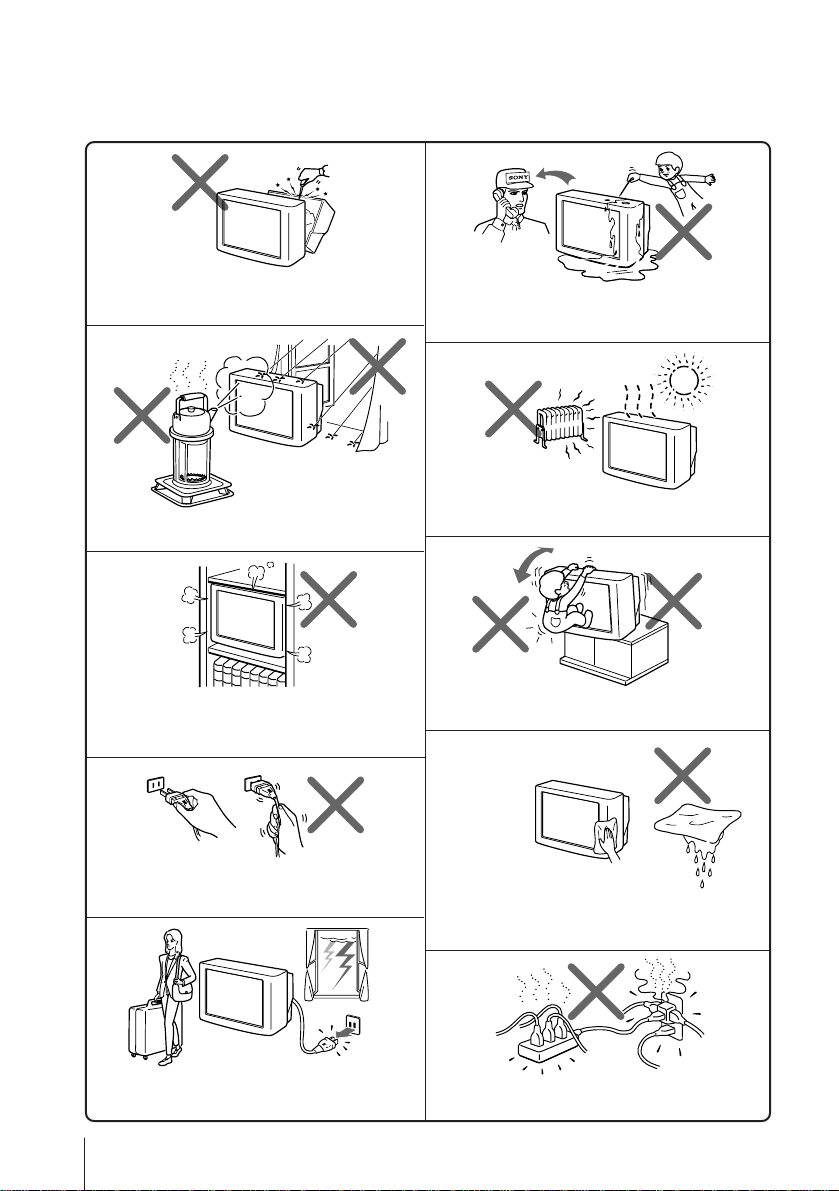

WARNING

• Dangerously high voltages are present inside the TV.

• Operate the TV only between 110 – 240 V AC.

To prevent fire or shock hazard, do not expose

the TV to rain or moisture.

Do not operate the TV if any liquid or solid object

falls into it. Have it checked immediately by

qualified personnel only.

Do not open the cabinet and the rear cover of the

TV. Refer servicing to qualified personnel.

Do not install the TV in hot, humid or excessively

dusty places.

Do not install the TV in a confined space, such

as a bookcase or built-in cabinet.

Do not block the ventilation openings of the TV.

Do not pull the power cord to disconnect the TV.

Pull it out by the plug.

Disconnect the power cord during lightning

storms or if you are not going to use the TV for

several days.

Install the TV in a stable position. Do not allow

children to climb onto it.

Do not plug in too many appliances to the same

power socket. Do not damage the power cord.

Clean the TV with a dry and soft cloth.

Do not use benzine, thinner, or any other chemicals

to clean the TV. Do not scratch the picture tube.

Using Your New TV

Table of Contents

WARNING

Using Your New TV

Getting Started ............................................................................................. 4

Step 1: Connect the antenna .................................................................. 4

Step 2: Insert the batteries into the remote.......................................... 5

Step 3: Preset the channels..................................................................... 5

Connecting optional components ............................................................. 6

Securing the TV ............................................................................................ 8

Watching the TV .......................................................................................... 9

Advanced Operations

Listening with dynamic sound

—DYNAMIC POWER BASSO ........ 12

Listening with Virtual Dolby

Surround sound .................................13

Watching two programs at the same

time—PIP ............................................ 14

Viewing multiple programs at the

same time—PROGRAM INDEX .....16

Selecting a stereo or bilingual

program (KV-EF29M61/EF29M91/

EF29M90 only) ...................................18

Viewing Teletext (KV-EF29M61/

EF29M91 only) ...................................20

Displaying Teletext on the PIP

screen—PIP TEXT (KV-EF29M61/

EF29M91 only) ...................................22

Viewing a video game screen

—GAME MODE ................................ 23

Operating optional components......24

Adjusting Your Setup (MENU)

Introducing the menu system ..........26

Changing the menu language ..........27

Adjusting the A/V CONTROL

setting ............................................ 28

Adjusting the PIP setting ..........30

Adjusting the FEATURES

setting ...........................................32

Adjusting the PRESET

setting ...........................................34

Additional Information

Troubleshooting ................................. 37

Identifying parts and controls ......... 39

Specifications ...................... Back cover

Here are some fun features of your TV:

• VIRTUAL DOLBY SURROUND

(page 13)

• DYNAMIC POWER BASSO (page 12)

• HYPER SURROUND (page 32)

• PROGRAM INDEX (page 16)

• STROBE (page 31)

• PIP (page 14)

• PIPTEXT (page 22)

(KV-EF29M61/EF29M91 only)

• GAME MODE (page 23)

• Menu language–English/Chinese (page 27)

4Using Your New TV

Getting Started

Step 1

Connect the antenna

If you wish to connect a VCR, see the “Connecting a VCR” diagram below.

Connecting a VCR

Using Your New TV

IEC connector

(not supplied)

To video and

audio outputs

VCR

(yellow)

-L (MONO) (white)

-R (red)

To S video

output

Antenna cable (not supplied)

To …1, 2, or 3

(video input)

Audio/Video cable

(not supplied)

S video cable

(not supplied)

: Signal flow

(S video input)

To antenna

output To ˘

(antenna)

: Signal flow

VIDEO

VIDEO IN

VIDEO OUT

AUDIO

Antenna cable (not supplied)

Antenna cable

(not supplied)

5Using Your New TV

Using Your New TV

Notes

• If you connect a monaural VCR, connect the yellow plug to (the

yellow jack) and the black plug to -L (MONO) (the white jack).

• If you connect a VCR to the ˘(antenna) terminal, preset the signal

output from the VCR to the program position 0 on the TV.

• Do not simultaneously connect video equipment to the …3 (video input)

jacks at the front and the …3 (video input) jacks at the rear of your TV.

• If both (S video input) and …1 (video input) are input

simultaneously, the ␣ (S video input) is automatically selected. To view

the video input to …1 (video input), disconnect the S video cable.

• When no signal is input to the connected VCR (or video equipment), the

screen becomes blue.

Step 2

Insert the batteries

into the remote

Note

• Do not use old batteries nor use different types of batteries together.

Step 3

Preset the channels

Now You Are Ready. . .

The channels are now automatically preset

in your TV. To preset the channels manually,

see page 34.

AUTO

PROGR

TV SYS: B/G

AUTO PROGRAM

VHF LOW

PR: 01

123

456

789

ONE-PUSH AUTOMATIC PROGRAMING

6Using Your New TV

(MONO)

Connecting optional components

You can connect optional audio/video components, such as a VCR, multi disc player,

camcorder, video game or stereo system.

Connecting a camcorder/video game equipment

using the …(video input) jacks

Notes

• You can also connect video equipment to the …3 (video input) jacks at

the rear of your TV.

• Do not simultaneously connect video equipment to the …3 (video input)

jacks at the front and the …3 (video input) jacks at the rear of your TV;

otherwise, the picture will not be displayed properly on the screen.

Connecting audio/video equipment using the Ú

(monitor/TV output) jacks

Note

• When connecting a monaural VCR, connect the yellow plug to (the

yellow jack) and the black plug to -L (MONO) (the white jack).

To S video output

Front of TV

Camcorder

Video game

equipment

To video and

audio outputs

(yellow)

-L (MONO)

(white)

-R (red)

Rear of TV

antenna

output

To video and

audio inputs

Audio system

audio

inputs

VCR

:Signal flow

(S video

input)

To…3

(video input)

To Ú

(monitor/

output)

Audio/Video cable (not supplied)

S video cable (not supplied)

Antenna cable (not supplied)

Audio/Video cable

(not supplied)

7Using Your New TV

Using Your New TV

VIDEO

R-AUDIO-L

LINE OUT

COMPONENT VIDEO OUT

S VIDEO OUT

B-YR-Y

Y B-Y R-YLR

Connecting a DVD player

Using /(audio/video) connectors, connect …1 (video input) on your TV to

LINE OUT on your DVD player.

Connecting a DVD player with component video output

connectors

1 Using audio connectors, connect L and R of (component video input) on your

TV to the AUDIO L and R output connectors on your DVD player.

2 Using three yellow video cables, connect Y, B-Y, and R-Y of (component video

input) on your TV to Y, B-Y, and R-Y output on your DVD player.

Notes

• Some DVD player terminals may be labeled Y, Cb, and Cr. If so, connect Y

(green) to Y, B-Y (blue) to Cb, and R-Y (red) to Cr.

• Since the high quality pictures on a DVD disc contain a lot of information,

picture noise may appear. In this case, adjust the sharpness (“SHARP”) in

the VIDEO ADJUST menu. (see page 28.)

• Connect your DVD player directly to your TV. Connecting the DVD

player through other video equipment will cause unwanted picture noise.

DVD player

Audio/Video cable

(not supplied)

DVD player

L (white)

R (red)

Audio cable

(not supplied)

To component

video output

Video cable (not supplied)

(yellow)

-L (MONO) (white)

-R (red)

To …1, 2, or 3

(video input)

: Signal flow

To audio

output

:Signal flow

VIDEO

R-AUDIO-L

LINE OUT

(component

video input)

8Using Your New TV

Securing the TV

To prevent the TV from falling, secure the TV using one of the following methods:

AWith the supplied screws, attach the band to the TV stand and to the rear of

the TV using the provided hole.

BPut the cord or chain through the clamps to secure the TV against a wall or

pillar.

Note

• Use only the supplied screws. Use of other screws may damage the TV.

3.8mm

9Using Your New TV

Using Your New TV

Watching the TV

This section explains functions used

while watching TV. Most operations can

be done using the remote.

1Press Uto turn on the TV.

When the TV is in the

standby mode (the u

indicator on the TV is lit),

press uon the remote or

on the TV.

The PROGR +/–, .+/–,

and …indicators on the

TV light up.

2Press PROGR +/– or

number buttons to select

the TV program.

For double digit numbers,

press ÷, then the number

(e.g., for 25, press ÷, then

2 and 5).

…

;

Number buttons

JUMP

.+/–

PROGR +/–

continued

123

456

-/--

123

456

-/--

10 Using Your New TV

Turn off temporarily

Turn off completely

Adjust the volume

Mute the sound

Watch the video input

Jump back to the previous channel

Display the on-screen information*

Change the on-screen language

Do this

Press u.

The uindicator on the TV lights up.

Press Uon the TV.

Press .+/–.

Press ¤.

Press …(or …on the TV) to select “VIDEO 1,”

“VIDEO 2”, “VIDEO 3” or “DVD.”

To go back to the TV program, press ;(or …on the

TV.)

Press JUMP.

Press .

See page 27.

* The picture, sound, and either the program position or video mode are

displayed. The on-screen display for the picture and sound information

disappears after about 3 seconds.

Notes

• When you turn on the TV, you may hear a “boon” sound that is caused by

the demagnetization of the TV. This does not indicate a malfunction.

• The picture color may become abnormal if you change the direction of

your TV. To obtain the normal picture color, press Uon the TV to turn off

the TV for five minutes and then turn it on again.

Additional tasks

Watching the TV (continued)

Andere Handbücher für Trinitron KV-EF29

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Sony Fernseher Handbücher

Sony

Sony Trinitron KV-20M42 Bedienungsanleitung

Sony

Sony KV-HR36M61 Bedienungsanleitung

Sony

Sony BRAVIA OLED KD-65AG8 Bedienungsanleitung

Sony

Sony KV-21XE40B Bedienungsanleitung

Sony

Sony KV-27S10 Bedienungsanleitung

Sony

Sony FD Trinitron WEGA KV-28CS70K Bedienungsanleitung

Sony

Sony Trinitron KV-27S35 Bedienungsanleitung

Sony

Sony KDL-52W4000 Bedienungsanleitung

Sony

Sony Bravia XBR-75X910C Bedienungsanleitung

Sony

Sony KV-32XBR200 - 32" Fd Trinitron Wega Xbr Bedienungsanleitung

Sony

Sony WEGA KV-SP29 Bedienungsanleitung

Sony

Sony KDL-70R550A Guide Bedienungsanleitung

Sony

Sony BRAVIA KDL-60EX701 Bedienungsanleitung

Sony

Sony BRAVIA KD-55XD700 Series Bedienungsanleitung

Sony

Sony Bravia KDL-65W950B Bedienungsanleitung

Sony

Sony Trinitron KV-PF14K70 Bedienungsanleitung

Sony

Sony Bravia KLV-S23A10E Bedienungsanleitung

Sony

Sony GRAND WEGA KDS-R60XBR2 Bedienungsanleitung

Sony

Sony KD-32NX100AEP Bedienungsanleitung

Sony

Sony BRAVIA XH9096 Bedienungsanleitung

Sony

Sony Trinitron GDM-F400T9 Bedienungsanleitung

Sony

Sony KV-9PT50 - 9" Trinitron Color Tv Bedienungsanleitung

Sony

Sony TRINITRON KV-29FX11A Bedienungsanleitung

Sony

Sony Bravia XR XR-55X9 K Series Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung

Sylvania

Sylvania 6427FB Bedienungsanleitung
