Sony Trinitron KV-J25 Bedienungsanleitung

3-858-501-11 (1)

Trinitron Color TV

Operating Instructions

####

1996 by Sony Corporation



KV-J25

KV-J29

MF, MH,MN

20 mm

3.8 mm

pKV-J25MH2/J29MH2/J25MN21/J29MN21

ENTER

VIDEO

S VIDEO (MONO)

L–AUDIO–R MENU AUTO

PROGR

AUTO

PROGR

TV SYS: B/G

AUTO PROGRAM

VHF LOW

PR: 01

VIDEO 3 INPUT

Getting Started -EN

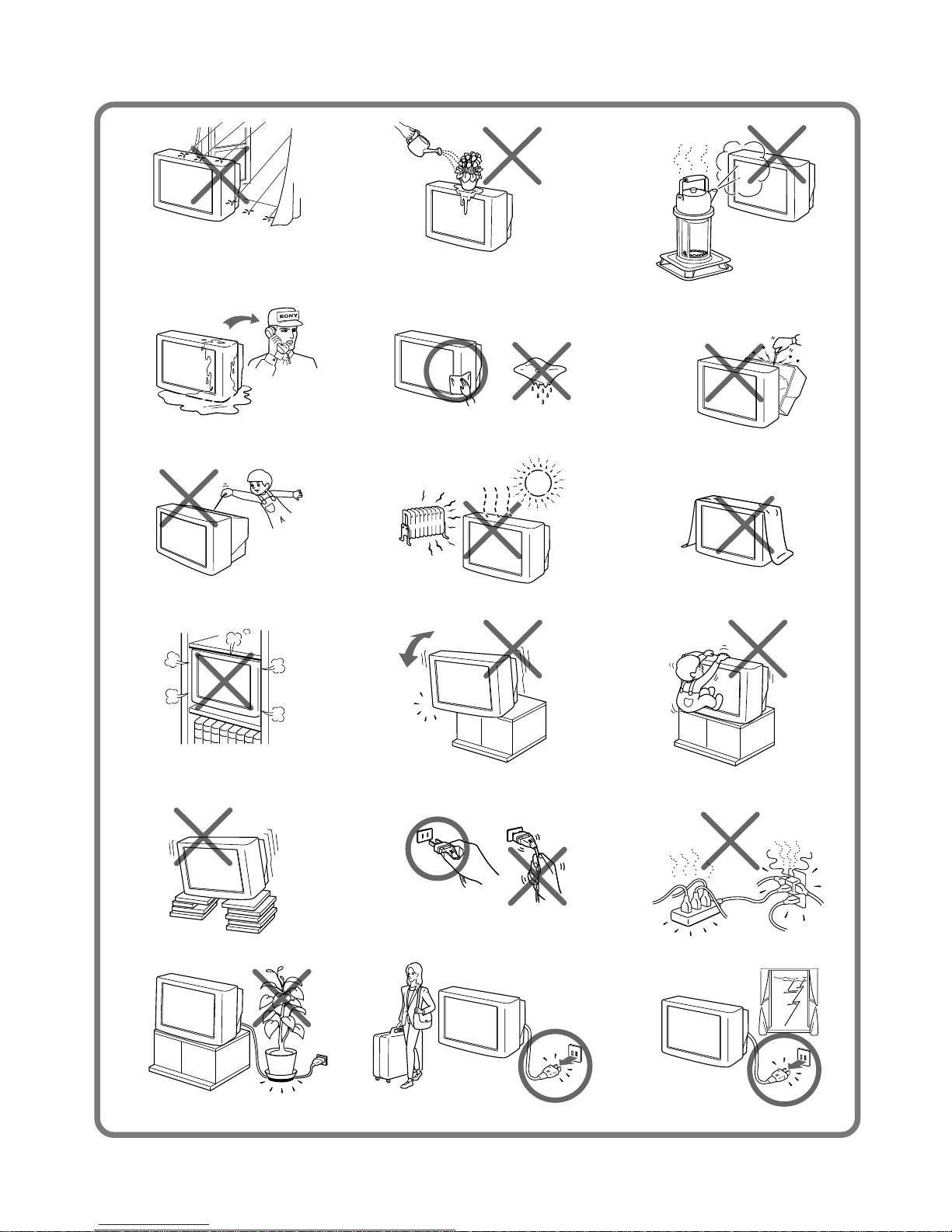

WARNING Table of contents

• Dangerously high voltages are present inside the TV.

• Operate the TV only at 110-240 V AC.

• Do not open the cabinet and the rear cover of the TV.

Refer servicing to qualified personnel.

• To prevent fire or shock hazard, do not expose the TV

to rain or moisture.

• Do not operate the TV if any liquid or solid object

falls into it. Have it checked immediately by qualified

personnel only.

• Do not block the ventilation openings.

• Do not install the appliance in a confined space, such

as a bookcase or built-in cabinet.

• Do not install the TV in hot, humid or excessively

dusty places.

• Do not install the TV where it may be exposed to

mechanical vibrations.

• Do not keep the TV plugged in if you are not going to

use it for several days.

• Do not pull the power cord to disconnect the TV. Pull

it out by the plug.

• Use only the supplied screws (as shown on page 2) to

fasten the TV to the TV stand or to stabilize the TV

against a wall or a pillar. Use of other screws may

damage the TV.

Note on the TV Illustrations

• The TV illustrations of the KV-J25MF1/J29MF1 models have

been used for the illustration purposes in this manual. Any

difference in operations between models is clearly indicated in

the text for example, “KV-J25MH2/J29MH2/J25MN21/

J29MN21 only.”

Note on the remote commander

• The supplied remote commander is used on several models of

the TV. If you do not find instructions for some controls that

are on the remote commander, that means your TV does not

employ the features of those controls, e.g. TEXT.

Notes

• When you turn on the TV, you may hear the “boon” sound

that is caused by the demagnetization of the TV. This does not

indicate a malfunction.

• The picture color may become abnormal if you change the

direction of your TV. To obtain the normal picture color, press

POWER on the TV to turn off the TV for five minutes and then

turn it on again.

Getting Started

6Connections

8Introducing the menus

9Changing the menu language

10 Presetting channels

Operations

12 Watching the TV

15 Adjusting the picture and sound

17 Listening to the woofer sound (3D WOOFER)

18 Listening to the surround sound (SURROUND)

19 Selecting a stereo or bilingual program

20 Viewing Teletext

22 Customizing the TV

Additional Information

23 Troubleshooting

Back Specifications

cover

All contents are subject to change without notice.

Design and specificafions are subject to change without

notice.

Getting Started

6-EN

Connections

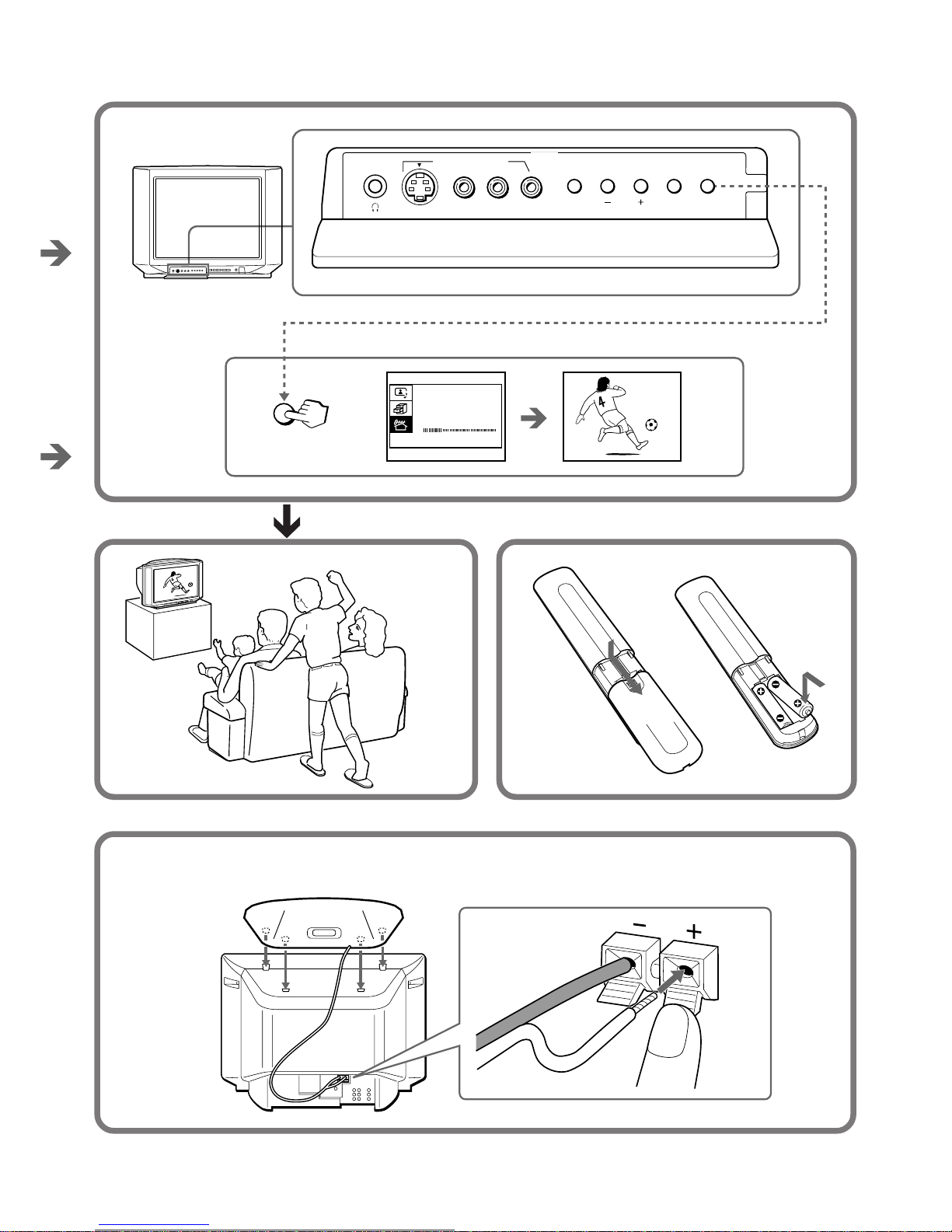

Connecting the 3D WOOFER

pKV-J25MH2/J29MH2/J25MN21/J29MN21 only

1Attach the 3D WOOFER into the footholds on the top of the TV.

2Connect the wires to the 3D WOOFER (8Ω) terminals at the rear of the TV.

The red wire should be connected to the ‘red terminal and the black wire to the ’black terminal.

Notes

• Connect only the supplied 3D WOOFER; otherwise the TV may malfunction.

• Unplug the TV from the wall outlet when connecting the 3D WOOFER.

• Make sure that none of the 3D WOOFER wire strands stick out, making contact with the neighbouring speaker terminal, to prevent a

malfunction caused by a short circuit of the terminals.

Connecting a VHF antenna or a combination VHF/UHF antenna

— 75-ohm coaxial cable (round)

Attach an optional IEC antenna connector to the 75-ohm coaxial cable.

Plug the connector into the (antenna) socket at the rear of the TV.

Red wire

Black wire

Rear of TVRear of TV

3D WOOFER

On a wall

Getting Started

Getting Started -EN

VIDEO IN MON/TV

OUT

VIDEO

AUDIO

(MONO)

Connecting optional equipment

You can connect optional audio/video equipment to your TV such as a VCR, multi disc player, camcorder, video

game, or stereo system.

Connecting video equipment using video input jacks

VIDEO (yellow)

AUDIO-L (white)

AUDIO-R (red)

to video and

audio inputs

: Signal flow

VCR

antenna

output

Audio system

antenna

socket

Rear of TV

to audio

inputs

When connecting a monaural VCR

Connect the yellow plug to VIDEO and the black plug to AUDIO-L (MONO).

When connecting a VCR to the (antenna) terminal

Preset the signal output from the VCR to the program position 0.

If both S Video and video signals are input simultaneously

The S Video input signal is selected. To view a video input signal, disconnect the S Video connection.

Note on the video input

When no signal is input, the screen becomes blue.

Connecting audio/video equipment using MON/TV OUT jacks

VIDEO

S VIDEO

(MONO)

L–AUDIO–R

VIDEO 3 INPUT

VIDEO IN MON/TV

OUT

(MONO)

VIDEO

AUDIO

Front of TV

Rear of TV

antenna

socket

VIDEO (yellow)

AUDIO-L (white)

AUDIO-R (red) : Signal flow

VCR

antenna

output

to video and

audio outputs

Camcorder

to video and

audio outputs

to S video output

: Signal flow

Getting Started

8-EN

Introducing the

menus

A/V CONTROL

You can preset TV channels, adjust the picture and sound qualities, and select some settings using the on-screen

menus. You can use the buttons on both the remote commander and the TV to operate the menus.

Notes (except for AUTO PROGRAM)

• When a menu is selected after pressing ENTER, the color of

both the menu and the menu symbol change and the cursor

(z) appears beside the first item of the menu.

• When an item on the menu is selected after pressing ENTER,

the color of the item changes.

• You can refer to the guide ( ) at the bottom of the

menus (except for the A/V CONTROL and PRESET menus)

for the basic operations of the menu.

• If more than approximately 60 seconds elapse after you press a

button, the menu screen disappears automatically.

PRESET

BASS 80

TREBLE

BALANCE

AUDIO ADJUST

3D WOOFER : ON

∗

∗∗

∗

TV SYS: B/G

AUTO PROGRAM

VHF LOW

PR: 01

TV SYS: B/G

VHF LOW

PR: 01

MANUAL PROGRAM

A / V CONTROL

DYNAMIC

SOFT

STANDARD

PERSONAL

V I DEO ADJUST

AUDIO ADJUST

T I LT CORRECT:

PRESET

SKIP:

PR02 OFF

TV SYS: B/G

COL

SYS : AUTO

ENGL I SH

AUTO PROGRAM

MANUAL PROGRAM

LANGUAGE/ :

P I CTURE

100

V I DEO ADJUST

COLOR

BR I GHT

HUE

SHARP

VM: HIGH

FEATURES

(∗KV-J29MF1/J29MF1S/J29MH2/J29MN21 only)

(∗∗KV-J25MH2/J29MH2/J25MN21/J29MN21 only)

Getting back to the previous menu

(except for AUTO PROGRAM)

Press + or – to move the cursor (z) to the first

line (N) of each menu, and press ENTER.

Cancelling the menu screen

Press MENU.

SURROUND:

OFF

MONITOR

AV OUT :

FEATURES

Getting Started -EN

Changing the menu

language

4Make sure the cursor (z) appears beside

LANGUAGE/ ###, and press ENTER.

5Press + or – to select ###, and press ENTER.

All of the menus change to Chinese.

6Press MENU to return to the normal screen.

ENTER

–

POWER

A / V CONTROL

DYNAMIC

SOFT

STANDARD

PERSONAL

V I DEO ADJ UST

AUDIO ADJUST

If you prefer Chinese to English, you can change the

menu language. You can use buttons on the remote

commander or the TV.

1Press POWER to turn on the TV.

2Press MENU.

3Press + or – to move the cursor (z) to the

PRESET menu ( ), and press ENTER.

ENTER MENU

POWER

ENTER

–

PRESET

SKIP: PR02 OFF

TV SYS: B/G

COL SYS : AUTO

ENGL I SH

AUTO PROGRAM

MANUAL PROGRAM

LANGUAGE / :

ENTER

–

PRESET

SKIP: PR02 OFF

TV SYS: B/G

COL SYS : AUTO

CH NESE

AUTO PROGRAM

MANUAL PROGRAM

LANGUAGE / :

Getting Started

10-EN

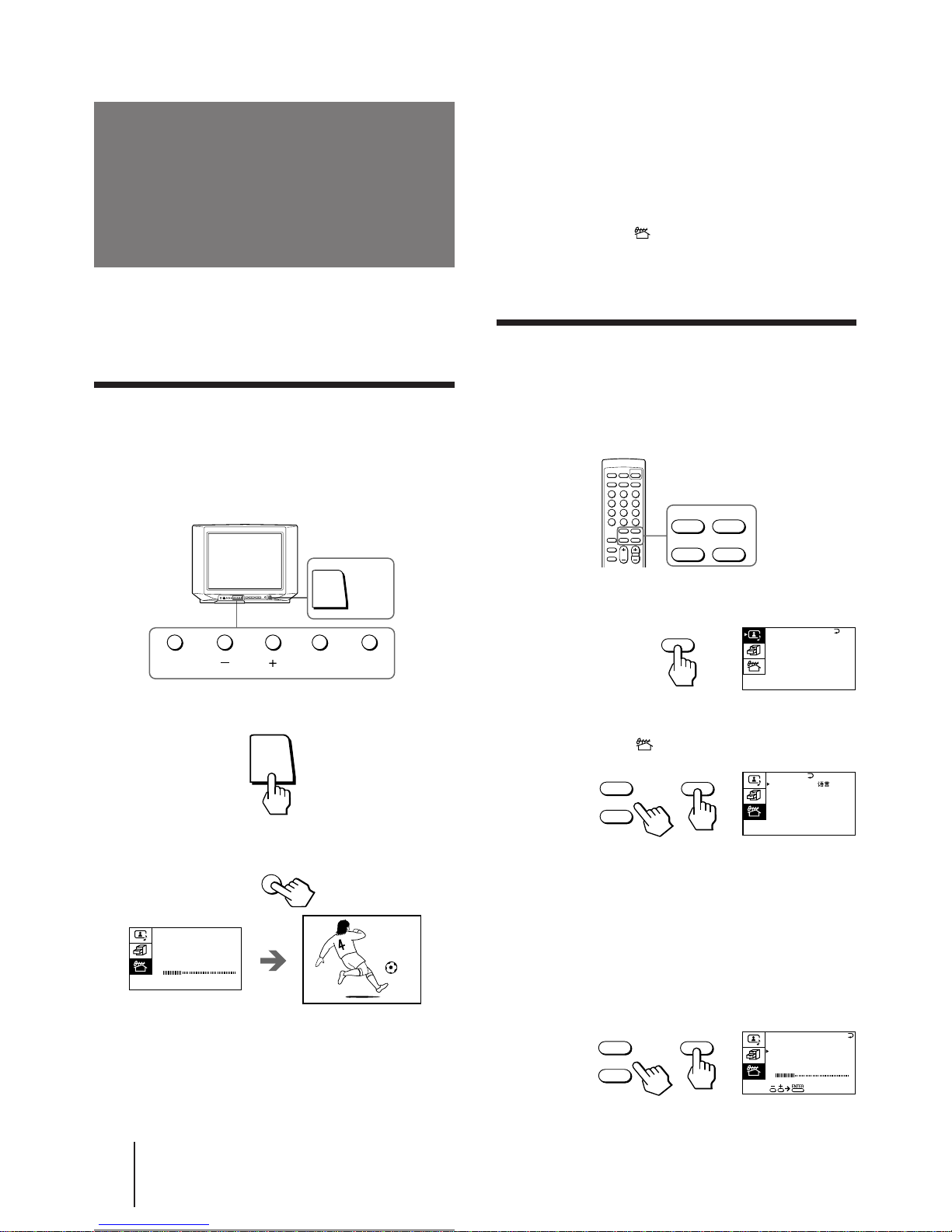

You can preset TV channels easily by storing all the

receivable channels automatically. You can also preset

channels manually or disable program positions (see

page 11 ).

Presetting channels automatically

You can preset up to 100 TV channels in numerical

sequence from the program position 1. You can preset

channels automatically using the button on the TV or

the menu.

1Press POWER to turn on the TV.

2Press AUTO PROGR.

The TV starts scanning and presetting channels

automatically. When all of the receivable channels

are stored, the first preset TV program appears on

the screen.

Presetting channels To preset channels automatically using

the menu

1 Press MENU.

2 Press + or – to move the cursor (z) to the

PRESET menu ( ), and press ENTER.

3 Press + or – to move the cursor (z) to AUTO

PROGRAM, and press ENTER.

Presetting channels manually

To change the program position for a channel or to

receive a channel with a weak signal which you cannot

receive by automatic presetting, preset the channel

manually.

1Press MENU.

2Press + or – to move the cursor (z) to the

PRESET menu ( ), and press ENTER.

3Select your local TV system.

(1) Press + or – to move the cursor (z) to TV SYS, and

press ENTER.

(2) Press + or – until your local TV system appears on

the menu, and press ENTER.

4Press + or – to move the cursor (z) to

MANUAL PROGRAM, and press ENTER.

ENTER

–

A / V CONTROL

DYNAMIC

SOFT

STANDARD

PERSONAL

V I DEO ADJ UST

AUDIO ADJUST

POWER

ENTER MENU

POWER

AUTO

PROGR

TV SYS:B/G

AUTO PROGRAM

VHF LOW

PR: 01

AUTO

PROGR

ENTER

–

PRESET

SKIP: PR02 OFF

TV SYS: B/G

COL SYS : AUTO

ENGL I SH

AUTO PROGRAM

MANUAL PROGRAM

LANGUAGE / :

TV SYS:B/G

VHF LOW

PR: 01

MANUAL PROGRAM

ENTER

–

Andere Handbücher für Trinitron KV-J25

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Sony Fernseher Handbücher

Sony

Sony KDL-32S20L1 - 32" Bravia Lcd Digital Color... Bedienungsanleitung

Sony

Sony Trinitron KV-13VM30 Bedienungsanleitung

Sony

Sony Bravia KD-55X8000C Benutzerhandbuch

Sony

Sony FD Triniton KV-28FQ75A Bedienungsanleitung

Sony

Sony TRINITRON KV-XA25M60 Bedienungsanleitung

Sony

Sony BRAVIA KD-85X8007H Bedienungsanleitung

Sony

Sony KV-28FQ75U Bedienungsanleitung

Sony

Sony Trinitron KV-29F3A Bedienungsanleitung

Sony

Sony WEGA KV-27FS100L Bedienungsanleitung

Sony

Sony TRINITRON KV-XA25M60 Bedienungsanleitung

Sony

Sony Trinitron CPD-E400 Bedienungsanleitung

Sony

Sony Trinitron KV-29FC20A Bedienungsanleitung

Sony

Sony Trinitron Wega KV-HW213 Bedienungsanleitung

Sony

Sony BRAVIA KD-65A8H Bedienungsanleitung

Sony

Sony TRINITRON KV-T21MN8 Bedienungsanleitung

Sony

Sony KDL-32S2400 - 32" Bravia Lcd Hdtv Bedienungsanleitung

Sony

Sony Wega KV-BZ14 Bedienungsanleitung

Sony

Sony KV-32FS120 - FD Trinitron WEGA Flat-Screen CRT... Bedienungsanleitung

Sony

Sony Bravia KDL-55W950B Bedienungsanleitung

Sony

Sony KV-25TH Trinitron Bedienungsanleitung

Sony

Sony Trinitron KV-TF21M80 Bedienungsanleitung

Sony

Sony BRAVIA RMF-TX600C Bedienungsanleitung

Sony

Sony KV-XG29M80 Bedienungsanleitung

Sony

Sony KV-32XBR200 - 32" Fd Trinitron Wega Xbr Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung

Sylvania

Sylvania 6427FB Bedienungsanleitung
