Operating Instructions

•Before operating the unit, please read this manual thoroughly and retain

it for future reference.

M91A

M80A

110-240 V AC, 50/60 Hz

Indicated on the rear of the TV

B/G, I, D/K, M KV-AW21M91A only

B/G, I, D/K KV-AW21M80A only

PAL, PAL 60, SECAM, NTSC3.58, NTSC4.43 KV-AW21M91A only

PAL, PAL 60, SECAM, NTSC3.58 (AV IN), NTSC4.43 KV-AW21M80A only

NICAM Stereo/Bilingual B/G, I, D/K; KV-AW21M91A only

A2 Stereo/Bilingual B/G

English, Russian KV-AW21M91A only

VHF : E2 to E12 /UHF : E21 to E69 /

CATV : S01 to S03, S1 to S41

UHF : B21 to B68 /CATV : S01 to S03, S1 to S41

VHF : C1 to C12, R1 to R12 /

UHF : C13 to C57, R21 to R60 /

CATV : S01 to S03, S1 to S41, Z1 to Z39

VHF : A2 to A13 /UHF : A14 to A79 / KV-AW21M91A only

CATV : A-8 to A-2, A to W+4, W+6 to W+84

75-ohm external terminal

3 W + 3 W

Input: 2 Phono jacks; 1 Vp-p, 75 ohms

Input: 2 Phono jacks; 500 mVrms

21 in.

Measured diagonally

600 ×465 ×481

ASpecifications

Note

KV-AW21M91A

KV-AW21M80A

Design and specifications are subject to change without notice.

Power requirements

Power consumption (W)

Television system

Color system

Stereo/Bilingual system

Teletext language

Channel coverage

B/G

D/K

8 (Antenna)

Audio output (Speaker)

Number of terminal

(Video)

(Audio)

Picture tube

Tube size (cm)

Screen size (cm)

Dimensions (w/h/d, mm)

Mass (kg)

Clean the TV with a dry and soft

cloth. Do not use benzine, thinner,

or any other chemicals to clean the

TV. Do not attach anything (e.g.,

adhesive tape, cellophane tape,

glue) on the painted cabinet of the

TV. Do not scratch the picture

tube.

BWARNING

• Dangerously high voltages are present inside the TV.

• TV operating voltage: 110 – 240 V AC.

•Do not plug in the power cord until you have completed making all other

connections; otherwise a minimum leakage current might flow through the antenna

and other terminals to ground.

•To avoid battery leakage and damage to the remote, remove the batteries from the

remote if you are not going to use it for several days. If any liquid leaks from the

batteries and touches your skin, immediately wash it away with water.

Install the TV on a stable TV stand

and floor which can support the

TV set weight. Ensure that the TV

stand surface is flat and its area is

larger than the bottom area of the

TV.

Do not plug in too many

appliances to the same power

socket. Do not damage the power

cord.

For children’s safety, do not leave

children alone with the TV. Do not

allow children to climb onto it.

For your own safety, do not touch

any part of the TV, the power cord

and the antenna cable during

lightning storms.

Do not place any objects on the TV.

The apparatus shall not be

exposed to dripping or splashing

and that no objects filled with

liquids, such as vases, shall be

placed on the apparatus.

Do not operate the TV if any liquid

or solid object falls into it. Have it

checked immediately by qualified

personnel only.

Do not block the ventilation

openings of the TV. Do not install

the TV in a confined space, such

as a bookcase or built-in cabinet.

Do not open the cabinet and the

rear cover of the TV as high

voltages and other hazards are

present inside the TV. Refer

servicing and disposal of the TV

to qualified personnel.

Pull the power cord out by the

plug. Do not pull the power cord

itself. Even if your TV is turned

off, it is still connected to the AC

power source (mains) as long as

the power cord is plugged in.

Unplug the TV before moving it

or if you are not going to use it for

several days.

To prevent fire or shock hazard, do

not expose the TV to rain or

moisture.

Your TV is recommended for

home use only. Do not use the TV

in any vehicle or where it may be

subject to excessive dust, heat,

moisture or vibrations.

CGetting Started

Step 2

Step 1

Step 3

Step 4

Insert the batteries (supplied) into the remote.

• Do not use old or different types of batteries together.

Connect the antenna cable (not supplied) to 8

(antenna input) at the rear of the TV.

• You can also connect your TV to other optional

components (see E).

Plug in the power cord, then press 1on the TV to turn

it on.

• The 1(standby) indicator flashes green for a few seconds

when turning on the TV. This does not indicate a

malfunction.

Set up the TV by following the instructions of the

“Начальная настройкa” (“Initial Setup”) menu

(see D).

Setting up your TV (“Initial Setup”)

When you turn on your TV for the first time, the “Начальная настройкa”

(“Initial Setup”) menu will appear. You can adjust settings below using the

buttons on the remote control or TV front panel. Press V, v , B or b to select or

adjust items, then press .

1Select the desired menu language.

2Select “Yes” to preset the channels automatically.

To skip automatic channel presetting, select “No”.

3The “Program Sorting/Edit” menu enables

you to sort and edit the channels (see K).

4Adjust the bars on the top and bottom of the menu

if they are slanted (KV-AW21M91A only).

5To prevent this “Initial Setup” menu from appearing

again when you turn on the TV by pressing 1,

select “No”.

To allow this menu to appear again, select “Yes”.

•You can immediately go to the end of the “Initial Setup” menu by pressing WEGA

GATE.

Program Sorting/Edit

Off

Sorting: Edit:

PROG

SkipLabel

Exit

Select Confirm

End

Select Confirm

Initial Setup

Language:

English

Start Auto Program now?

Yes

First please connect

cable/ antenna

Initial Setup

End

Select Confirm

Initial Setup

Display this menu next time?

Yes

End

Select Confirm

(MONO)

WEGA

PROG

GATE

(MONO)

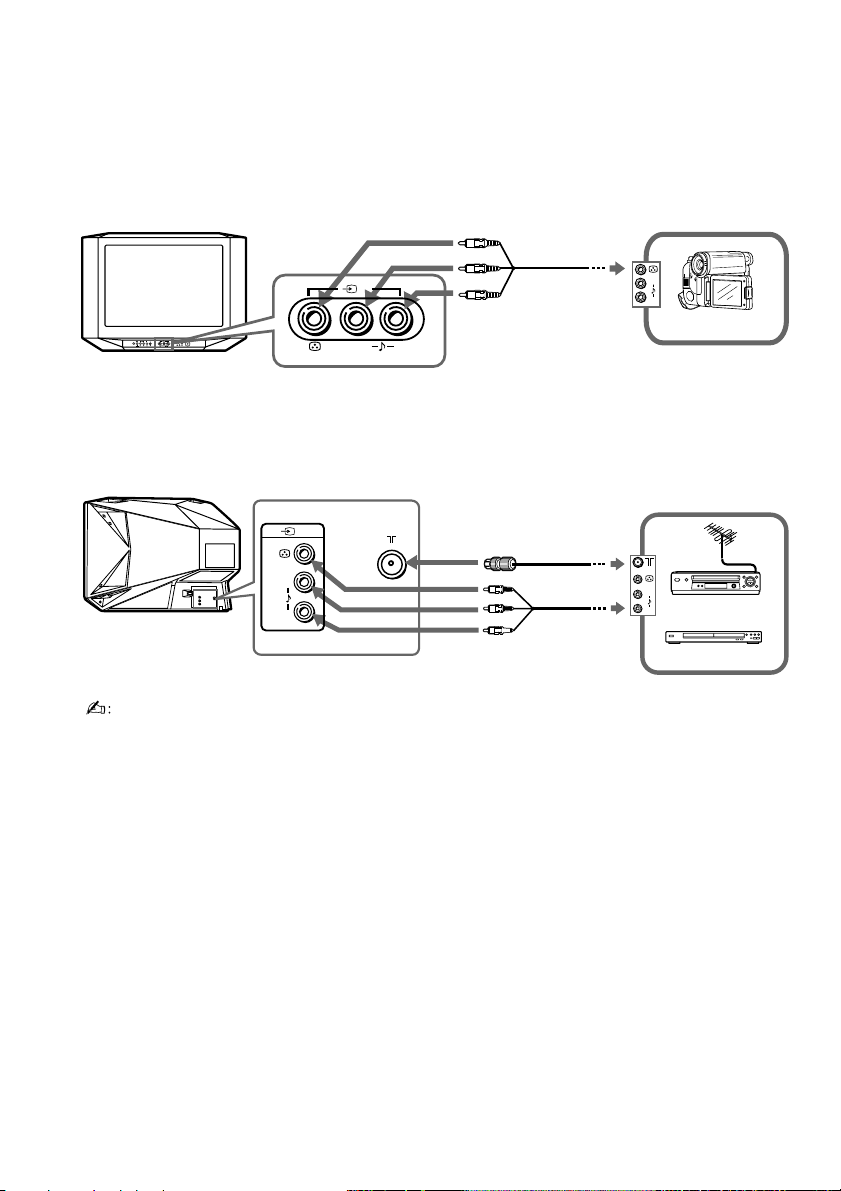

EConnecting optional components

You can connect a wide range of optional components to your TV. Connecting

cables are not supplied.

Connecting to the TV (front)

Connecting to the TV (rear)

• If you connect a VCR to 8(antenna input), preset the signal output from the VCR to the

program number 0 on the TV (see K).

Camcorder

VCR

DVD Player

Antenna

cable

Audio/Video

cable

Audio/Video

cable

(MONO)

WEGA

PROG

GATE

PROG

WEGA

GATE

432

567

123

789

PROG

A/B

RETURN

WEGA

GATE

FTV buttons and remote control

11Turn off or turn on the TV.

2Remote control sensor.

3Wake Up indicator.

31Standby indicator.

4PROG +/– Select program number.

52+/– Adjust volume.

6tSelect TV or video input.

WEGA GATE menu operations (see H)

4,5V,v,B,bSelect or adjust items.

6Confirm selected items.

7WEGA GATE Display or cancel WEGA GATE menu.

1?/1Turn off temporarily or turn on the

TV.

2aDisplay the TV program.

3Jump to last program number that

has been watched for at least five

seconds.

4PROG +/– Select program number. To select

quickly, press and hold until the

desired program number appears.

52+/– Adjust volume.

8Not function for your TV.

9Select surround mode options

(KV-AW21M91A only) (see J).

0Display on-screen information.

qa Mute the sound.

qs A/B Select stereo/bilingual mode:

(KV-AW21M91A only)

Broadcasting Display (selected sound)

NICAM stereo NICAM (stereo), Mono (regular)

NICAM bilingual NICAM Main (main), NICAM

Sub (sub), Mono (regular)

NICAM monaural NICAM Main (main), Mono

(regular)

A2 stereo

Stereo (stereo), Mono (regular)

A2 bilingual Main (main), Sub (sub)

•If the stereo sound is noisy when receiving a

stereo program, select “Mono”. The sound

becomes monaural, but the noise is reduced.

qd tSelect TV or video input.

qf 0-9 Input numbers. For program numbers 10 and above, enter the second

digit within two seconds.

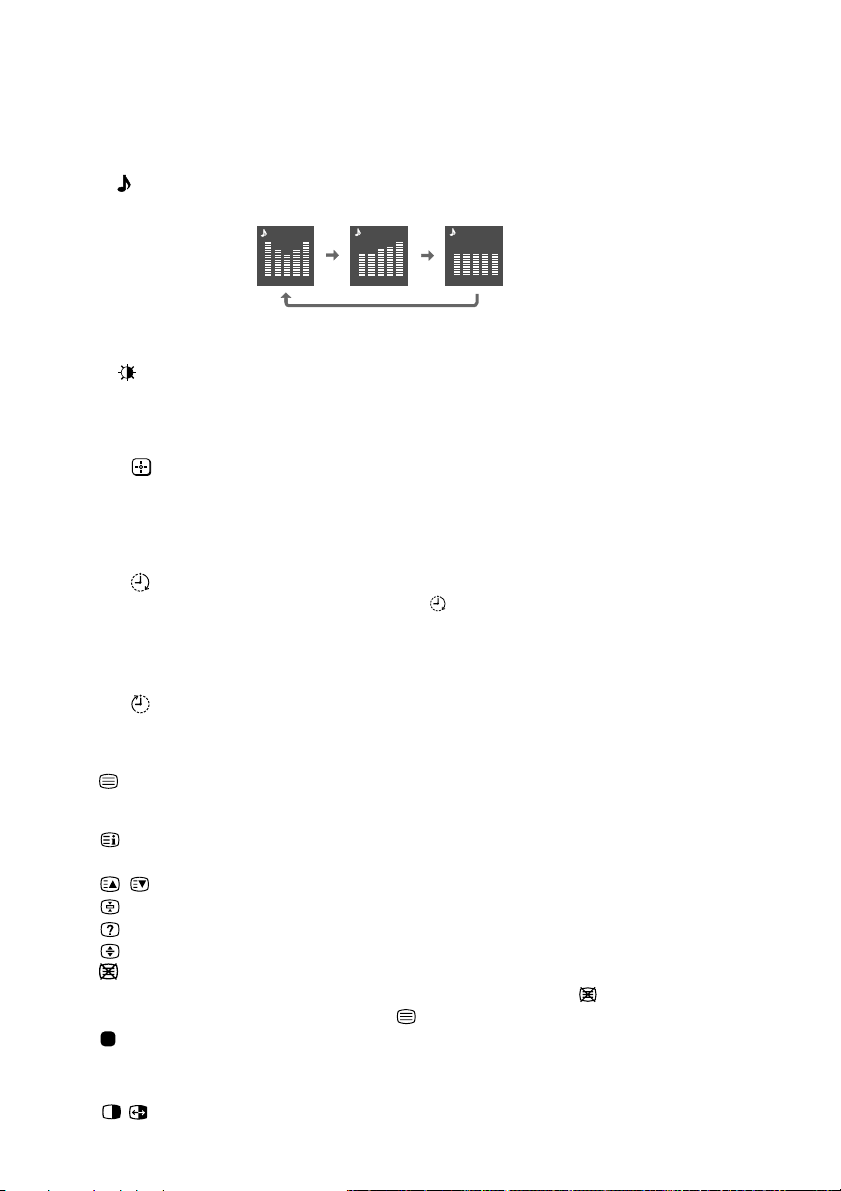

ql Select sound mode options with a 5-Band Graphic Equalizer display:

(KV-AW21M91A only) “Dynamic”, “Standard”, “Custom”* (see J).

Dynamic

100 300 1k 3k 8k 100 300 1k 3k 8k

Custom

100 300 1k 3k 8k

Standard

* When the “Custom” mode is selected, you can receive the last adjusted

sound settings from the “Sound Adjustment” option in the menu.

w; Select picture mode options: “Vivid”, “Standard”, “Custom”* (see I).

* When the “Custom” mode is selected, you can receive the last adjusted

picture settings from the “Picture Adjustment” option in the menu.

WEGA GATE menu operations (see H)

6Confirm selected items.

7WEGA GATE Display or cancel WEGA GATE menu.

qj V, v,B,b Select or adjust items.

qk RETURN Return to the previous level.

Timer operations

qg Set TV to turn on automatically according to the desired period of time

(Wake Up Timer) (max. of 12 hours). The indicator on TV lights up amber once you set

the wake up timer. If no buttons or controls are pressed for more than

one hour after the TV is turned on using the wake up timer, the TV

automatically goes into standby mode.

qh Set TV to turn off automatically according to the desired period of time

(Sleep Timer) (max. of one hour and 30 min.).

Teletext operations (green icon) (KV-AW21M91A only)

Display Teletext broadcast: Teletext

Teletext and TV

TV. If there is

no Teletext broadcast, only “100” is displayed at the top left corner of

the screen.

Display Teletext service contents.

0-9

Input three digits Teletext page number.

Display the next or previous page.

Stop Teletext display from scrolling.

Reveal concealed information.

Enlarge the Teletext display.

Show TV screen while waiting for Teletext page. Enter the Teletext page

number that you want to refer to, then press

When the page number

is displayed, press

to show the text.

(red, green, Access the corresponding colored FASTEXT menu. The FASTEXT

yellow, blue) feature can be used only when the FASTEXT broadcast is available.

PIP operations

, , V, v,B, bNot function for your TV.

TV buttons and remote control (continued)

GTroubleshooting

If you find any problem while viewing your TV, you can either use the

“Factory Settings” function (see L) or check the Troubleshooting guide below.

If the problem persists, contact your Sony dealer.

Snowy picture, noisy sound

•Check the antenna setup and other connections.

•Preset the channel manually again (see K).

•Set the “Signal Booster” to “Auto” (see K) or try using an external booster.

Distorted picture, noisy sound

•Set the “Signal Booster” to “Off” (see K), or turn off or disconnect any external booster in

use.

Good picture, noisy sound

•Select the appropriate “TV System” (see K).

No picture, no sound

•Check the power cord, antenna setup and other connections.

•Press 4/1 (power) to turn on the TV.

•Press 1 (main power) on the TV to turn off the TV for about five seconds, then turn it on

again.

Good picture, no sound

•Press 2 + to increase the volume level or press to cancel the muting.

Dotted lines or stripes

• Do not use a hair dryer or other equipment near the TV.

•Check the antenna setup.

Double images or “ghosts”

•Use the fine tuning (“Fine”) function (see K).

•Check the antenna setup or use a highly directional antenna.

•Turn off or disconnect any external booster in use.

No color

•Adjust the “Color” level from “Picture Adjustment” (see I).

•Select the appropriate “Color System” (see L).

•Check the antenna setup.

Picture slant

•Keep external speakers or other electrical equipment away from the TV.

•Adjust the “Picture Rotation” (KV-AW21M91A only) (see L).

Abnormal color patches

•Keep external speakers or other equipment away from the TV. Do not move the TV while

the TV is turned on. Press 1 (main power) on the TV to turn off the TV for about 15

minutes, then turn it on again to demagnetize the TV.

Teletext display is incomplete (snowy picture or double images) (KV-AW21M91A only).

•Check the antenna setup and other connections.

•Set the “Signal Booster” to “Auto” (see K) or try using an external booster.

•Use the fine tuning (“Fine”) function (see K).

TV cannot receive stereo broadcast sound or stereo broadcast sound switches on and off or is distorted

(KV-AW21M91A only).

•Check the antenna setup and other connections.

The 1 (standby) indicator on your TV flashes red several times after every three seconds.

•Count the number of times the 1 (standby) indicator flashes. Press 1 on the TV to turn it

off, disconnect the AC power cord and inform your dealer or Sony service center of how

the indicator flashes (duration and interval).

The TV screen sometimes goes blank for slightly longer than usual during channel change.

• The “Signal Booster” is functioning to detect a weak signal. This does not indicate a

malfunction.

TV cabinet creaks.

•Changes in room temperature sometimes make the TV cabinet expand or contract, causing

a noise. This does not indicate a malfunction.

A small “boom” sound is heard when the TV is turned on.

•The TV’s demagnetizing function is working. This does not indicate a malfunction.

Troubleshooting (continued)

Andere Handbücher für Trinitron WEGA KV-AW21

Inhaltsverzeichnis

Sprachen:

Andere Sony Fernseher Handbücher

Sony

Sony BRAVIA KD-75X9400E Bedienungsanleitung

Sony

Sony KV-32HQ100B Bedienungsanleitung

Sony

Sony KDL-40V3000, KDL-46V3000 Bedienungsanleitung

Sony

Sony TRINITRON KV-VF21M77 Bedienungsanleitung

Sony

Sony Trinitron Wega KV-HW2180 Bedienungsanleitung

Sony

Sony Trinitron KV-27TS20 Bedienungsanleitung

Sony

Sony TRINITRON KV-HF51P50 Bedienungsanleitung

Sony

Sony FD Trinitron WEGA KV-32FV16 Bedienungsanleitung

Sony

Sony KDL-40V2500 - Bravia V-series Lcd Hdtv Bedienungsanleitung

Sony

Sony KDL-26U4000 Bedienungsanleitung

Sony

Sony KD-30XS955 Instructions: TV stand Bedienungsanleitung

Sony

Sony Trinitron KV-13VM30 Bedienungsanleitung

Sony

Sony BRAVIA KD-55XF80 Series Bedienungsanleitung

Sony

Sony KV-20FS100 - 20" Fd Trinitron Wega Bedienungsanleitung

Sony

Sony BRAVIA Bedienungsanleitung

Sony

Sony Bravia XR-77A8 K Series Bedienungsanleitung

Sony

Sony FD Trinitron Wega KV-AR34 Bedienungsanleitung

Sony

Sony Trinitron KV-XG29M21 Bedienungsanleitung

Sony

Sony KV-32FS320 - 32" Fd Trinitron Wega Bedienungsanleitung

Sony

Sony TRINITRON KV-J25MF8J Bedienungsanleitung

Sony

Sony BRAVIA KDL-49W750D Bedienungsanleitung

Sony

Sony Bravia KLV-V40A10E Bedienungsanleitung

Sony

Sony KV-32FX66U Bedienungsanleitung

Sony

Sony BRAVIA KD-65X8577G Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung

Sylvania

Sylvania 6427FB Bedienungsanleitung
