Operating Instructions

• Before operating the unit, please read this manual thoroughly and retain

it for future reference.

Инструкция по эксплуатации

•Перед работой с устройством внимательно прочтайте инструкцию

и сохраните её для дальнейшего использования.

Trinitron Color TV

01GB01COV-SOEMRus.p65 9/9/05, 5:26 PM1

Black

Sony KV-SR292M99K GRP R9 (GB, RU)_2-663-700-11 (1)

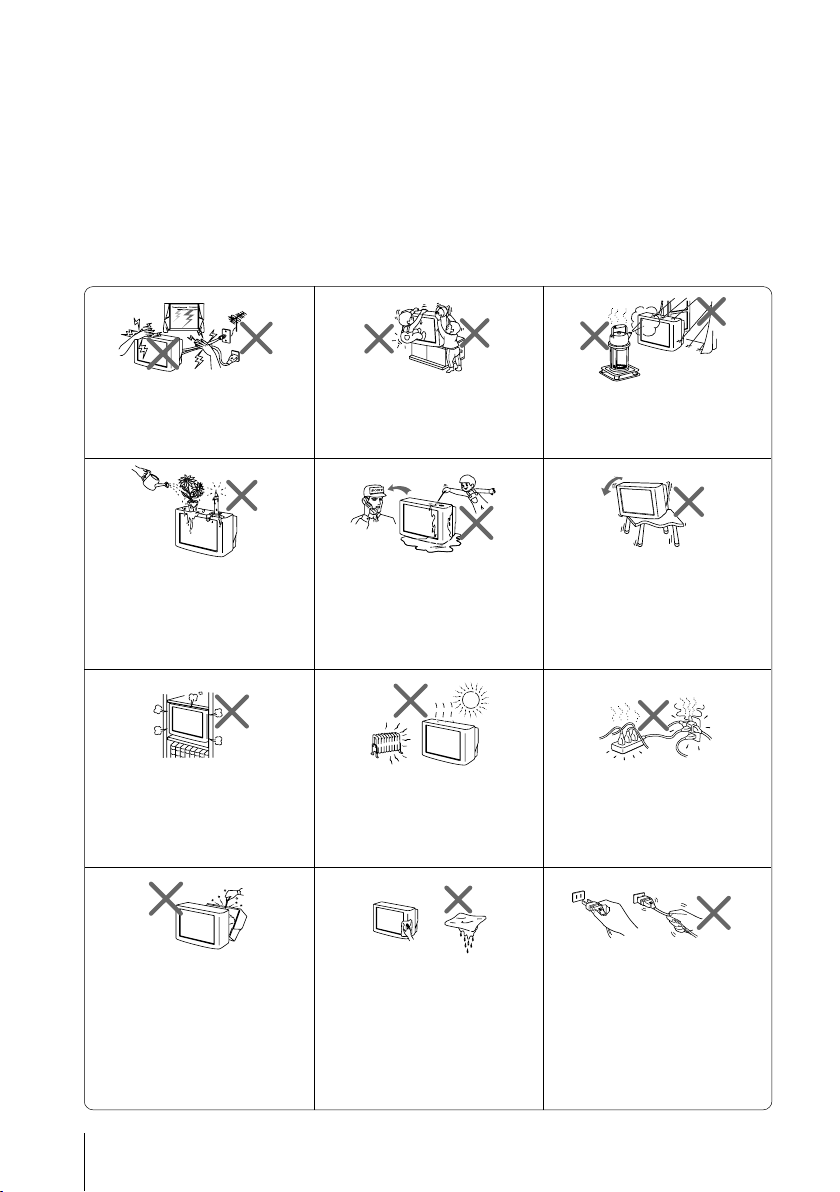

Clean the TV with a dry and soft

cloth. Do not use benzine, thinner,

or any other chemicals to clean the

TV. Do not attach anything (e.g.,

adhesive tape, cellophane tape,

glue) on the painted cabinet of the

TV. Do not scratch the picture

tube.

WARNING

• Dangerously high voltages are present inside the TV.

• TV operating voltage: 220 – 240 V AC.

• Do not plug in the power cord until you have completed making all other

connections; otherwise a minimum leakage current might flow through the antenna

and other terminals to ground.

• To avoid battery leakage and damage to the remote, remove the batteries from the

remote if you are not going to use it for several days. If any liquid leaks from the

batteries and touches your skin, immediately wash it away with water.

Install the TV on a stable TV stand

and floor which can support the

TV set weight. Ensure that the TV

stand surface is flat and its area is

larger than the bottom area of the

TV.

Do not plug in too many

appliances to the same power

socket. Do not damage the power

cord.

For children’s safety, do not leave

children alone with the TV. Do not

allow children to climb onto it.

For your own safety, do not touch

any part of the TV, the power cord

and the antenna cable during

lightning storms.

Do not place any objects on the TV.

The apparatus shall not be

exposed to dripping or splashing

and that no objects filled with

liquids, such as vases, shall be

placed on the apparatus.

Do not operate the TV if any liquid

or solid object falls into it. Have it

checked immediately by qualified

personnel only.

Do not block the ventilation

openings of the TV. Do not install

the TV in a confined space, such

as a bookcase or built-in cabinet.

Do not open the cabinet and the

rear cover of the TV as high

voltages and other hazards are

present inside the TV. Refer

servicing and disposal of the TV

to qualified personnel.

Pull the power cord out by the

plug. Do not pull the power cord

itself. Even if your TV is turned

off, it is still connected to the AC

power source (mains) as long as

the power cord is plugged in.

Unplug the TV before moving it

or if you are not going to use it for

several days.

To prevent fire or shock hazard, do

not expose the TV to rain or

moisture.

Your TV is recommended for

home use only. Do not use the TV

in any vehicle or where it may be

subject to excessive dust, heat,

moisture or vibrations.

01GB02WAR-SOEMRus.p65 9/9/05, 5:27 PM2

Black

Sony KV-SR292M99K GRP R9 (GB, RU)_2-663-700-11 (1)

Table of Contents

Installation

Securing the TV .................................... 4

Getting Started ..................................... 5

Setting up your TV

(“Initial Setup”) .................................... 6

Overview of Controls

TV front and rear panels ..................... 8

Using the remote control and basic

functions................................................ 9

Advanced Operations

Selecting the picture and sound

modes .................................................. 11

Watching Picture-in-Picture (PIP) ... 12

Enjoying the Party Mode .................. 13

Listening to the FM Radio ................ 14

Enjoying stereo or bilingual

programs ............................................. 15

Viewing Teletext................................. 16

Menu Adjustment

Introducing the WEGA GATE

navigator ............................................. 17

“Settings” Adjustment ...................... 18

Changing the “Picture” setting........ 19

Changing the “Sound” setting ......... 20

Changing the Picture-in-Picture

(“PIP”) setting .................................... 21

Changing the “Channel Setup”

setting .................................................. 22

Changing the “Setup” setting .......... 24

Additional Information

Connecting the 3D WOOFER .......... 25

Connecting optional components ... 25

Troubleshooting ................................. 28

Specifications ...................................... 30

Made in Malaysia.

Sony Corporation

6-7-35 Kitashinagawa,

Shinagawa-ku, Tokyo, 141-0001 Japan.

01GB03TOC-SOEMRus.p65 9/9/05, 5:27 PM3

Black

4Installation

Sony KV-SR292M99K GRP R9 (GB, RU)_2-663-700-11 (1)

Installation

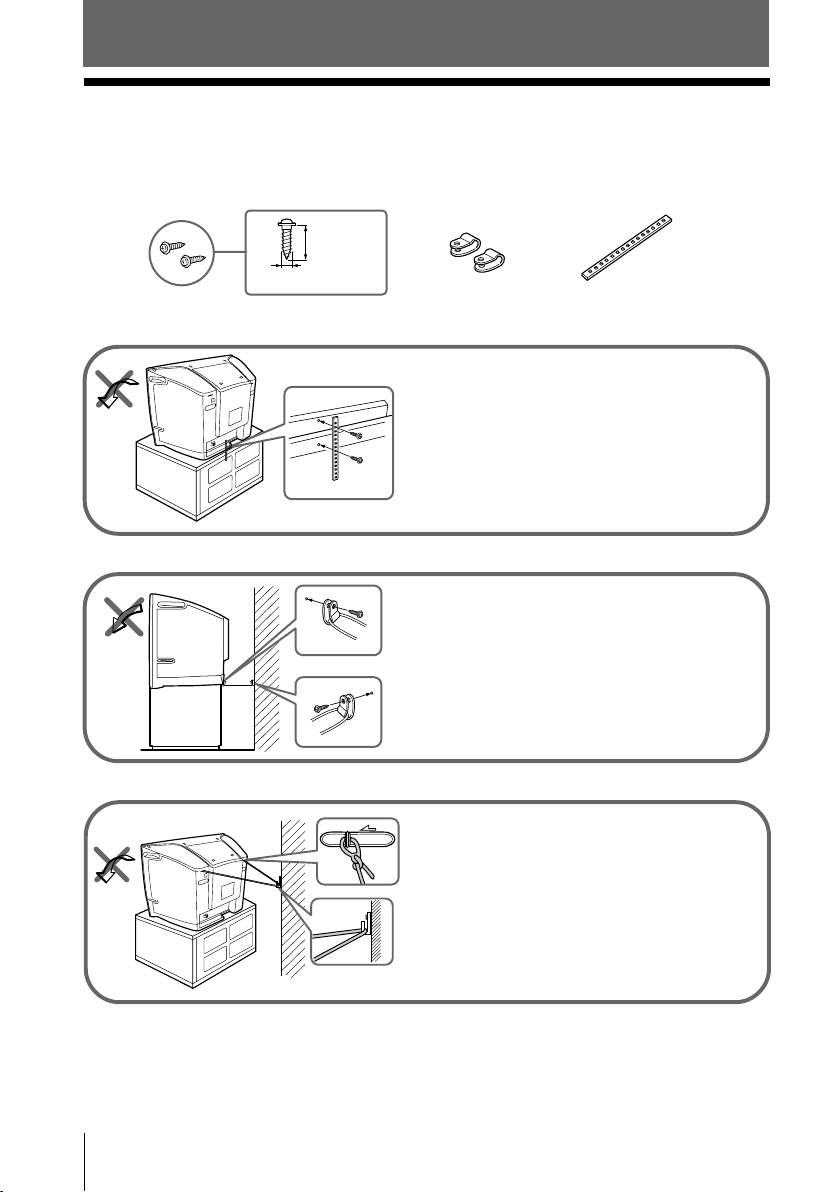

xSecuring the TV

To prevent the TV from falling, use the supplied screws, clamps and band to

secure the TV.

Screw the band to the TV stand and to the

provided hole at the rear of your TV.

(1) Put a cord or chain through the clamps.

(2) Screw one clamp to a wall or pillar and

the other clamp to the provided hole at

the rear of your TV.

(1) Attach each end of a cord or chain to

the provided holders at the rear of

your TV.

(2) Securely fix the attached cord or chain

to a wall or pillar using an attachment

which can support the TV set weight.

Note

• Use only the supplied screws. Use of other screws may damage the TV.

20 mm

3.8 mm

screws clamps band

01GB04INS-SOEMRus.p65 9/9/05, 5:28 PM4

Black

Installation

Sony KV-SR292M99K GRP R9 (GB, RU)_2-663-700-11 (1)

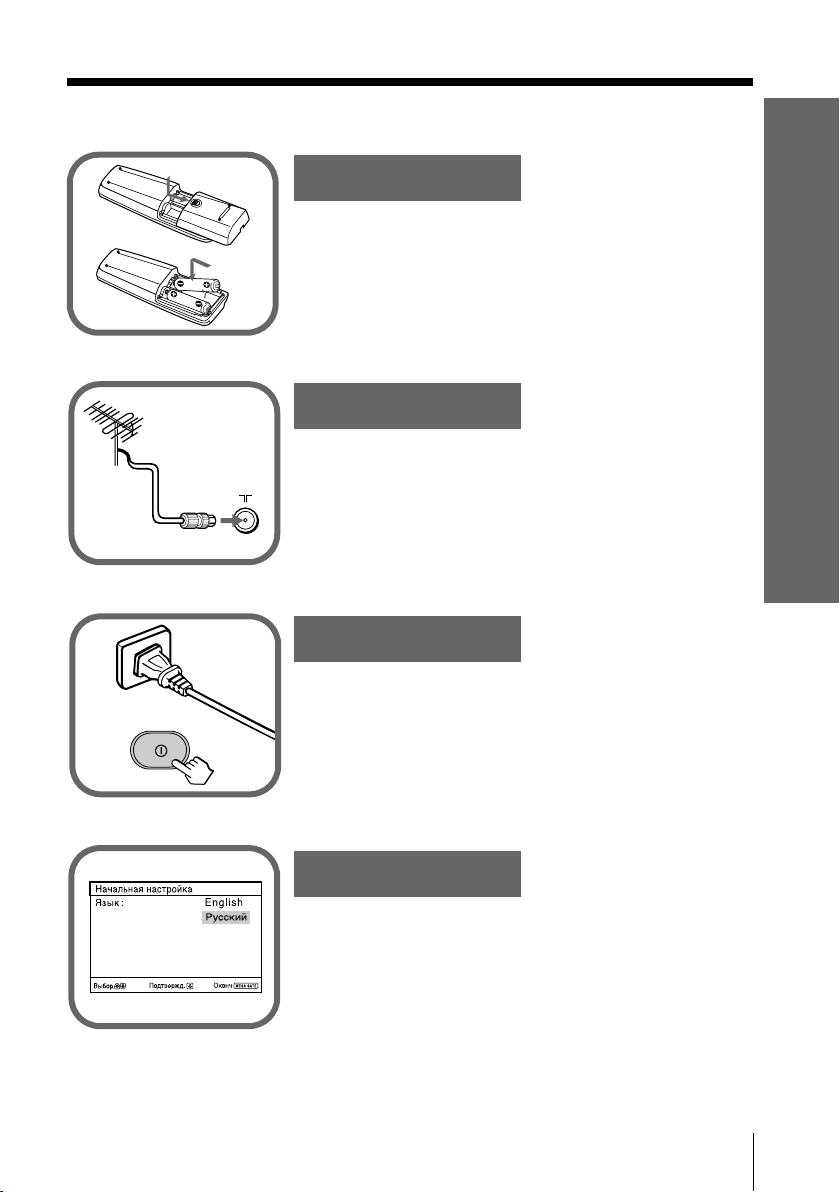

xGetting Started

Step 1

Insert the batteries (supplied) into the remote.

Note

• Do not use old or different types of batteries together.

Step 2

Step 3

Step 4

Set up the TV by following the instructions of the

“Начальная настройкa” (“Initial Setup”) menu (see

page 6).

Plug in the power cord, then press !on the TV to

turn it on.

Note

• The 1(standby) indicator flashes green for a few seconds

when turning on the TV. This does not indicate a

malfunction.

Connect the antenna cable (not supplied) to 8

(antenna input) at the rear of the TV.

Tips

• Your TV can receive both TV and FM radio signal from

appropriate connections through the 8(antenna input)

terminal (see page 26).

• You can also connect your TV to other optional components

(see page 25).

01GB04INS-SOEMRus.p65 9/9/05, 5:28 PM5

Black

6Installation

Sony KV-SR292M99K GRP R9 (GB, RU)_2-663-700-11 (1)

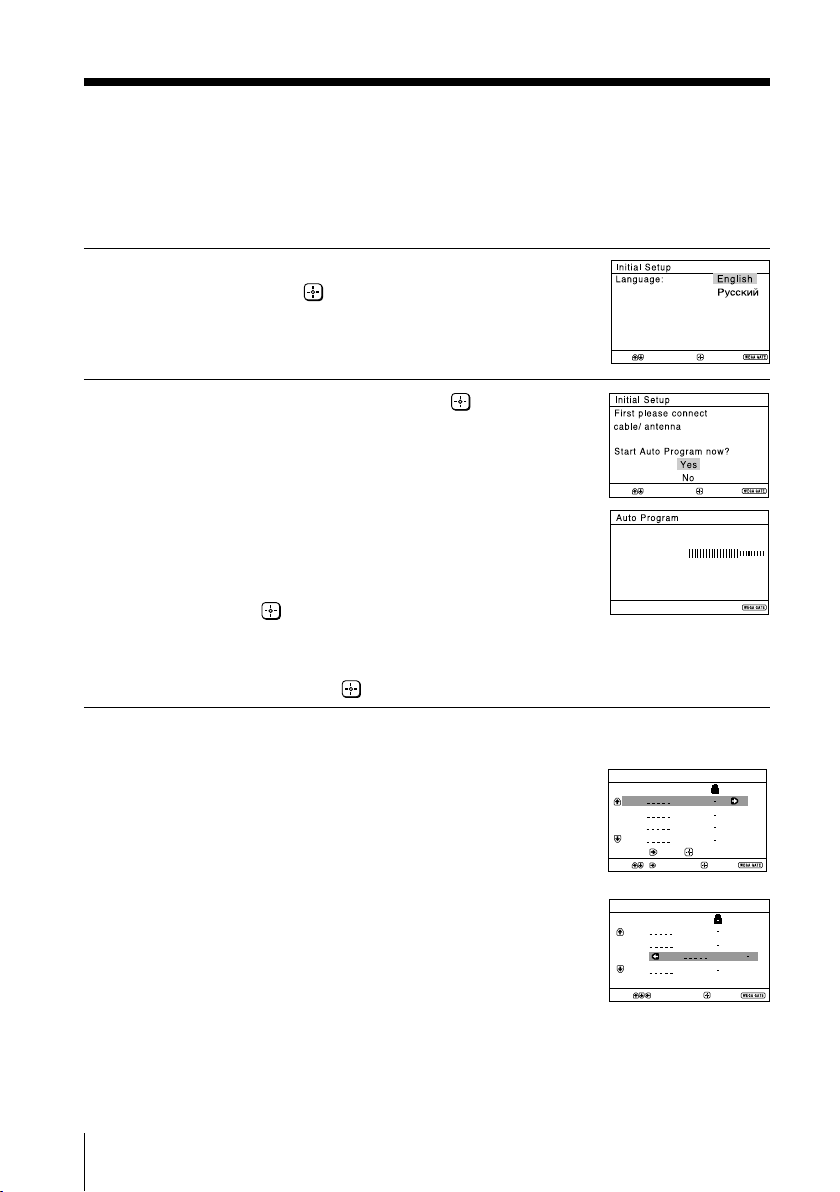

Setting up your TV (“Initial Setup”)

When you turn on your TV for the first time, the “Начальная настройкa”

(“Initial Setup”) menu will appear. You may change the menu language, preset

the TV channels automatically, sort or edit the channels and adjust the picture

position using the buttons on the remote control or TV front panel.

1Press V or vto select the desired menu

language, then press .

The selected menu language appears.

2Press V or vto select “Yes”, then press to

preset the channels automatically.

The screen will indicate automatic

presetting is in progress.

After all available channels have been tuned

and stored, the “Program Sorting/Edit”

menu appears automatically on the screen.

To skip automatic channel presetting, select

“No”, then press .

If the message “No channel found. Please

connect cable/antenna” appears, check your

TV connections, then press .

3The “Program Sorting/Edit” menu enables

you to sort and edit the channels.

a) If you wish to keep the channels in the current

condition, press WEGA GATE to exit.

b) Press Vor vto select the program

number with the channel you wish to

change. The selected channel will appear

on the screen.

c) If you wish to store the channels in a

different order:

1) Press bto enter sorting mode.

2) Press Vor vto select the new program

number position for your selected

channel, then press B.

End

Select Confirm

Program:

TV System: Auto

VHF Low

End

Program Sorting/Edit

Off

Sorting mode

PROG

SkipLabel

Off01

Exit

Select Confirm

Program Sorting/Edit

Off

Sorting: Edit:

PROG

SkipLabel

Exit

Select Confirm

End

Select Confirm

01GB04INS-SOEMRus.p65 9/9/05, 5:28 PM6

Black

Installation

Sony KV-SR292M99K GRP R9 (GB, RU)_2-663-700-11 (1)

Select Confirm

End

Select Confirm

Exit

Select Confirm

Exit

Select Confirm

Exit

Select Confirm

End

Select Confirm

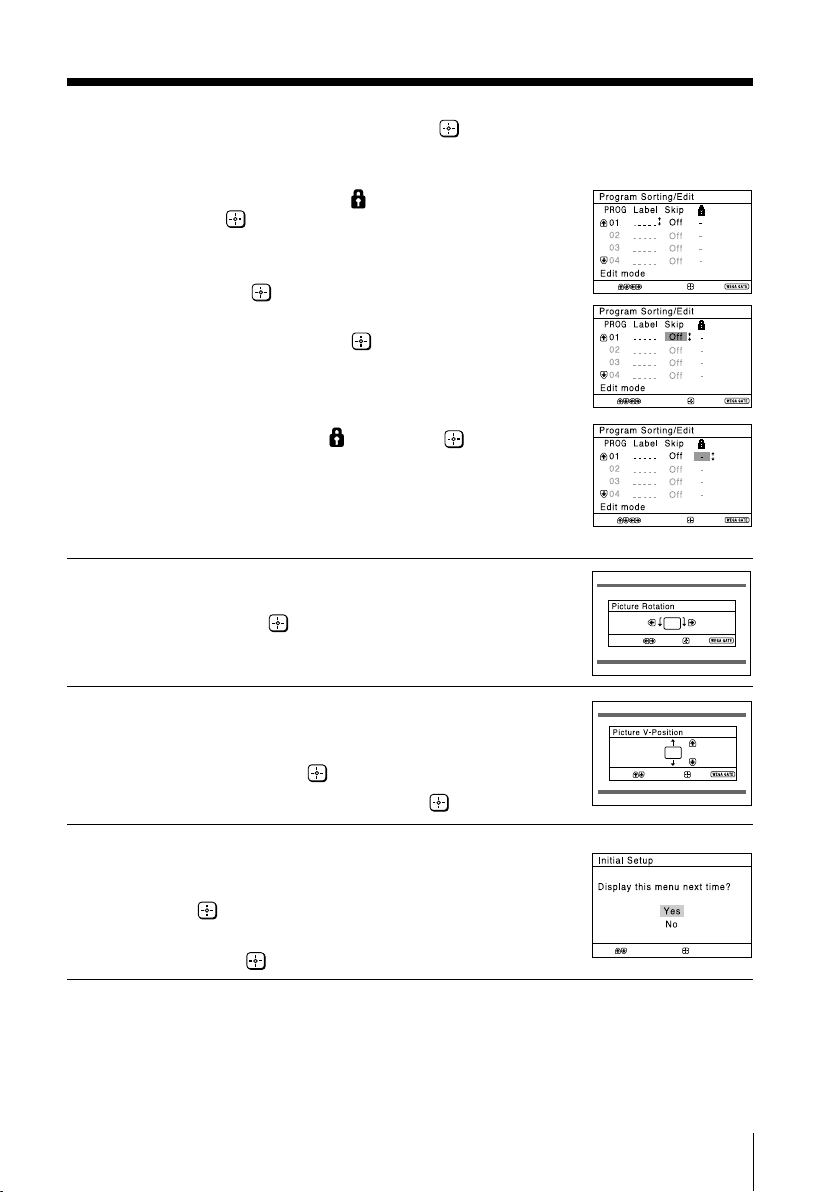

d) If you wish to edit the channels, press

to change to edit mode.

Press buntil the mode that you wish to edit

is highlighted: Label, Skip, (block symbol).

Then press .

1) To label, press Vor vto select the

alphanumeric characters for the label.

Then press .

2) To skip the program number, press Vor vto

select “On”. Then press .

You can skip this program number when

using PROG +/-.

3) To block unwanted program number,

press Vor vto select . Then press .

e) Repeat step b) to d) if you wish to change other

channels.

Press WEGA GATE to go to the next menu.

4Press B or bto adjust the bars on the top

and bottom of the menu if they are

slanted, then press .

“Picture V-Position” menu appears.

5If the upper and lower bars are not

equally positioned to the top and

bottom of the screen, press V or vto

adjust them, then press .

If no adjustment is necessary, then press .

6To prevent this “Initial Setup” menu from

appearing again when you turn on the TV

by pressing !, press V or vto select “No”,

then press .

To allow this menu to appear again, select

“Yes”, then press .

Tip

• You can immediately go to the end of the ”Initial Setup” menu by pressing WEGA GATE.

01GB04INS-SOEMRus.p65 9/9/05, 5:28 PM7

Black

8Overview of Controls

Sony KV-SR292M99K GRP R9 (GB, RU)_2-663-700-11 (1)

Overview of Controls

321

134

RLY

qf qd

PROG

678

WEGA GATE

PROG

MIC1 MIC2

L(MONO) R

WEGAGATE

MIC 1 MIC 2

L(MONO) R

TV front panel

TV rear panel

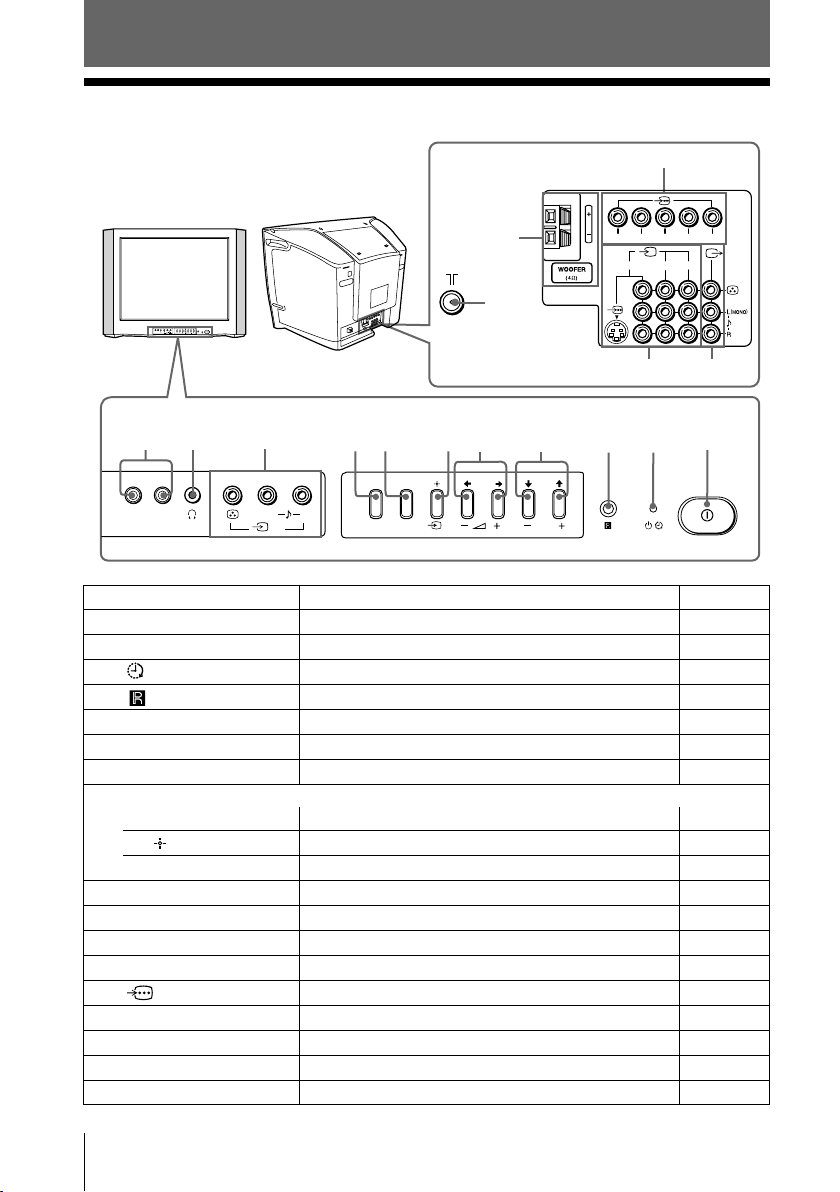

xTV front and rear panels

Button/Terminal Function Page

1!Turn off or turn on the TV. 5

21Standby indicator. 5

2Wake Up indicator. 10

3Remote control sensor. –

4PROG +/– Select program number. –

52+/– Adjust volume. –

6tSelect TV or video input. 25

WEGA GATE menu operations

4,5 V,v,B,bSelect and adjust items. 17

6 Confirm selected items. 17

7WEGA GATE Display or cancel WEGA GATE menu. 17

8FM Listen to FM radio. 14

9t2 Video input terminal 2. 25

0iHeadphone jack. –

qa MIC 1, MIC 2 Microphone input terminal 1, 2. 13

qs Component video input terminal. 27

qd TMonitor output terminal. 26

qf t1, t3, t4 Video input terminal 1, 3, 4. 26

qg 8Antenna input terminal. 26

qh WOOFER 3D WOOFER terminal. 25

01GB04INS-SOEMRus.p65 9/9/05, 5:28 PM8

Black

Overview of Controls

Sony KV-SR292M99K GRP R9 (GB, RU)_2-663-700-11 (1)

continue

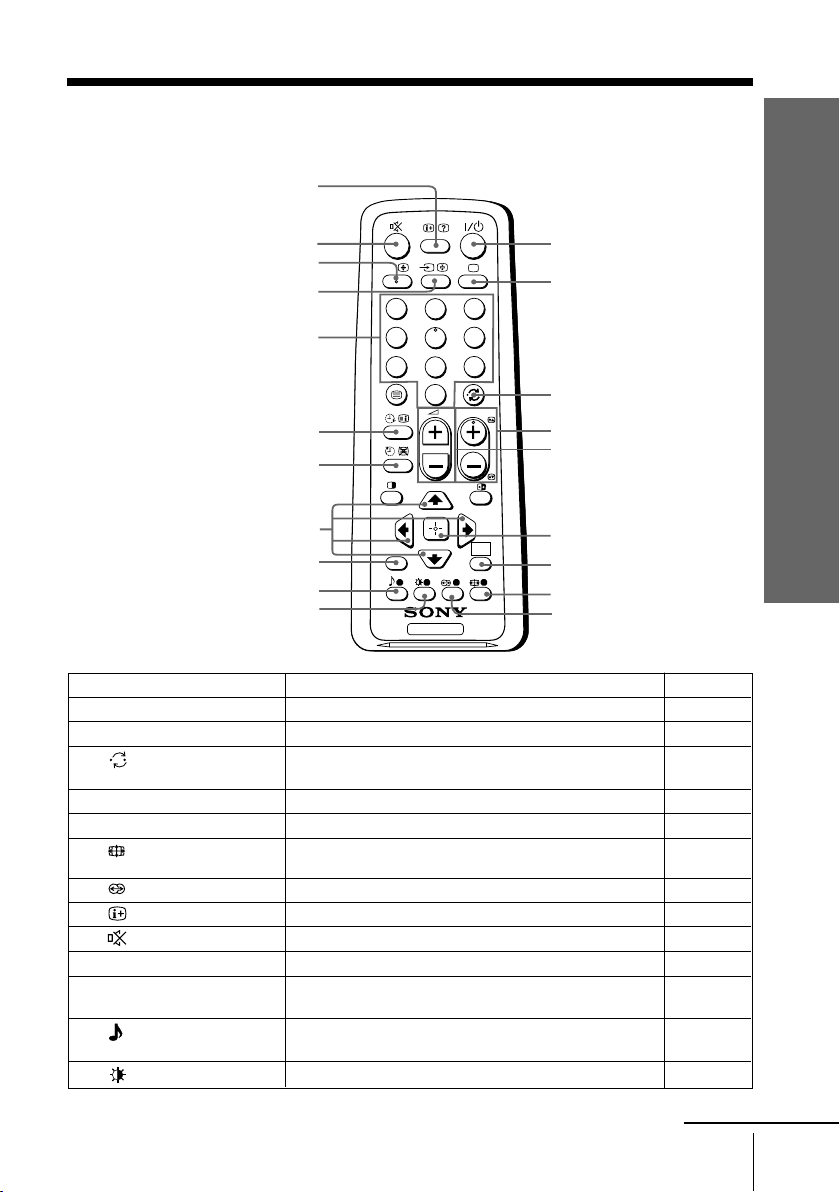

xUsing the remote control and basic

functions

RETURN WEGA

GATE

123

789

PROG

A/B

RETURN WEGA

GATE

Button Description Page

1?/1 Turn off temporarily or turn on the TV. –

2aDisplay the TV program. –

3Jump to last program number that has been –

watched for at least five seconds.

4PROG +/– Select program number. –

52+/– Adjust volume. –

8Change the picture size: –

“On” (16:9 wide mode), “Off”.

9Select surround mode options. 20

Display on-screen information. –

qa Mute the sound.

–

qd tSelect TV or video input. 25

qf 0 – 9 Input numbers. For program number 10 and above, –

enter the second digit within two seconds.

ql Select sound mode options with a 5-Band 11

Graphic Equalizer display.

w; Select picture mode options. 11

01GB04INS-SOEMRus.p65 9/9/05, 5:28 PM9

Black

10 Overview of Controls

Sony KV-SR292M99K GRP R9 (GB, RU)_2-663-700-11 (1)

continued

WOW, TruSurround, SRS and symbol are trademarks of SRS Labs, Inc.

WOW and TruSurround technologies are incorporated under license from SRS Labs,

Inc.

Licensed by BBE Sound, Inc. under USP4638258, 4482866.

“BBE” and BBE symbol are trademarks of BBE Sound, Inc.

Button Description Page

WEGA GATE menu operations

6Confirm selected items. 17

7WEGA GATE Display or cancel the WEGA GATE menu.

qj V, v, B, b Select and adjust items.

qk RETURN Return to the previous level.

Timer operations

qg Set TV to turn on automatically according to the –

desired period of time (max. of 12 hours).

The indicator on TV lights up amber once

you set the wake up timer.

If no buttons or controls are pressed for more than

one hour after the TV is turned on using the

wake up timer, the TV automatically goes into

standby mode.

qh Set TV to turn off automatically according to the –

desired period of time (max. of one hour and

30 min.).

Teletext operations (green label)

, , , ,

All buttons are used for Teletext operations. 16

, , , ,

(red, green,

yellow, blue)

PIP operations

, , V, v, B, bAll buttons are used for PIP operations. 12

Stereo/bilingual operations

qs A/B Select stereo/bilingual mode. 15

(Wake up timer)

(Sleep timer)

01GB04INS-SOEMRus.p65 9/9/05, 5:28 PM10

Black

Andere Handbücher für Trinitron WEGA KV-SR292

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Sony Fernseher Handbücher

Sony

Sony TRINITRON KV-SZ25M61 Bedienungsanleitung

Sony

Sony A90J Bedienungsanleitung

Sony

Sony KV-36XBR800 - 36" Trinitron Color Flat Tv Wega... Bedienungsanleitung

Sony

Sony BRAVIA KD-77A1 Bedienungsanleitung

Sony

Sony KDL-32EX305 Bedienungsanleitung

Sony

Sony FD Trinitron WEGA KV-DR34 Bedienungsanleitung

Sony

Sony Bravia KD-75X75CH Bedienungsanleitung

Sony

Sony FD Trinitron WEGA KV-27FS200 Bedienungsanleitung

Sony

Sony TRINITRON KV-T25SZ8 Bedienungsanleitung

Sony

Sony BRAVIA KDL-60W855B Bedienungs- und Wartungsanleitung

Sony

Sony KDL-40WL135 - 40" Bravia Wl-series Lcd... Bedienungsanleitung

Sony

Sony KV-29X5A Bedienungsanleitung

Sony

Sony TV & Home A/V Bedienungsanleitung

Sony

Sony Trinitron KV-20FV10 Bedienungsanleitung

Sony

Sony FD Trinitron WEGA KV-27FV16 Bedienungsanleitung

Sony

Sony KV-40XBR700 - 40" Fd Trinitron Wega Xbr Bedienungsanleitung

Sony

Sony BRAVIA KLV-40S550AE Bedienungsanleitung

Sony

Sony FD TRINITON VEGA KV-20FS120 Bedienungsanleitung

Sony

Sony Trinitron KV-27TS29 Bedienungsanleitung

Sony

Sony BRAVIA KLV-32S550AE Bedienungsanleitung

Sony

Sony Bravia KD-55X8000C Benutzerhandbuch

Sony

Sony KE-42XBR900 - 42" Xbr Plasma Wega™ Integrated... Bedienungsanleitung

Sony

Sony KV-32FV1 - 32" Fd Trinitron Wega Bedienungsanleitung

Sony

Sony Bravia KDL-48R470B Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung

Sylvania

Sylvania 6427FB Bedienungsanleitung
