Sony WEGA KV-AR29 Bedienungsanleitung

Sony KV-AR29M31 Group R9 (GB) 4-090-530-11 (1)

Trinitron Color TV

Operating Instructions

• Before operating the unit, please read this manual thoroughly and retain it for

future reference.

KV-AR29

KV-AR25

4-090-530-11 (1)

M31

01GB01COV-OCE.p65 27/1/03, 9:34 AM1

Sony KV-AR29M31 Group R9 (GB)_4-090-530-11 (1)

WARNING

• Dangerously high voltages are present inside the TV.

•

TV operating voltage: 220-240 V AC.

• Do not plug in the power cord until you have completed making all other

connections; otherwise a minimum leakage current might flow through the antenna

and other terminals to ground.

• To avoid battery leakage and damage to the remote, remove the batteries from the

remote if you are not going to use it for several days. If any liquid leaks from the

batteries and touches your skin, immediately wash it away with water.

Do not open the cabinet and the rear cover of the

TV as high voltages and other hazards are present

inside the TV. Refer servicing and disposal of the

TV to qualified personnel.

Your TV is recommended for home use only.

Do not use the TV in any vehicle or where it may

be subject to excessive dust, heat, moisture or

vibrations.

To prevent fire or shock hazard, do not expose the

TV to rain or moisture.

Do not operate the TV if any liquid or solid object

falls into it. Have it checked immediately by

qualified personnel only.

Do not block the ventilation openings of the TV.

Do not install the TV in a confined space, such as a

bookcase or built-in cabinet.

For children’s safety, do not leave children

alone with the TV. Do not allow children to

climb onto it.

Clean the TV with a dry and soft cloth.

Do not use benzine, thinner, or any other chemicals to

clean the TV. Do not attach anything (e. g., adhesive

tape, cellophane tape, glue) on the painted cabinet of

the TV. Do not scratch the picture tube.

For your own safety, do not touch any part of the

TV, the power cord and the antenna cable during

lightning storms.

01GB02WAR-OCE.p65 27/1/03, 9:34 AM2

Sony KV-AR29M31 Group R9 (GB)_4-090-530-11 (1)

Install the TV on a stable TV stand and floor which

can support the TV set weight. Ensure that the TV

stand surface is flat and its area is larger than the

bottom area of the TV.

Do not place any objects on the TV.

Do not plug in too many appliances to the same

power socket. Do not damage the power cord.

Pull the power cord out by the plug. Do not pull

the power cord itself. Even if your TV is turned

off, it is still connected to the AC power source

(mains) as long as the power cord is plugged in.

Unplug the TV before moving it or if you are not

going to use it for several days.

01GB02WAR-OCE.p65 27/1/03, 9:34 AM3

Sony KV-AR29M31 Group R9 (GB)_4-090-530-11 (1)

xSecuring the TV

To prevent the TV from falling, use the supplied screws, clamps and band to

secure the TV.

20 mm

3.8 mm

screws clamps band

Screw the band to the TV stand and to the

provided hole at the rear of your TV.

(1) Put a cord or chain through the clamps.

(2) Screw one clamp to a wall or pillar and

the other clamp to the provided hole at

the rear of your TV.

(1) Attach each end of a cord or chain to

the provided holders at the rear of

your TV.

(2) Securely fix the attached cord or chain

to a wall or pillar using an attachment

which can support the TV set weight.

Note

• Use only the supplied screws. Use of other screws may damage the TV.

01GB02WAR-OCE.p65 27/1/03, 9:34 AM4

Sony KV-AR29M31 Group R9 (GB)_4-090-530-11 (1)

Table of Contents

Installation

Getting Started ..................................... 6

Setting up your TV

(“INITIAL SETUP”) ............................. 7

Overview of Controls

TV front and rear panels ..................... 8

Remote control ..................................... 9

Advanced Operations

Selecting the picture and sound

modes .................................................. 11

Viewing the picture in wide mode .. 12

Listening with surround sound ....... 12

Setting the timers ............................... 13

Enjoying stereo or bilingual

programs ............................................. 14

Viewing Teletext ................................. 15

Menu Adjustment

Introducing the menu system .......... 16

Changing the “PICTURE” setting ... 19

Changing the “SOUND” setting ..... 21

Changing the “SETUP” setting ........ 23

Changing the Channel Preset

(“CH PRESET”) setting ..................... 25

Additional Information

Connecting optional components ... 28

Troubleshooting ................................. 30

Specifications .................... Back cover

01GB03TOC-OCE.p65 27/1/03, 9:35 AM5

Sony KV-AR29M31 Group R9 (GB)_4-090-530-11 (1)

Installation

xGetting Started

INITIAL SET

ENG ILSHLAN UGAGE

Step 1

Insert the batteries (supplied) into the remote.

Note

• Do not use old or different types of batteries together.

Step 2

Step 3

Step 4

Connect the antenna cable (not supplied) to 8

(antenna input) at the rear of the TV.

Tip

• You can also connect your TV to other optional components

(see page 28).

Set up the TV by following the instructions of the

“INITIAL SETUP”menu (see page 7).

Plug in the power cord, then press !on the TV to

turn it on.

01GB04INS-OCE.p65 27/1/03, 9:35 AM6

Installation

Sony KV-AR29M31 Group R9 (GB)_4-090-530-11 (1)

Installation

Setting up your TV

(“INITIAL SETUP”)

When you turn on your TV for the first time,

the “INITIAL SETUP” menu will appear.

This menu allows you to change the menu

language, adjust the picture position and

preset the TV channels automatically.

1Press Vor vto select the desired menu

language (e.g.,”ENGLISH”), then press

ENTER.

The selected menu language appears.

2If the “PIC ROTATION” bar is

slanted, press Vor vto adjust it,

then press ENTER.

If no adjustment is necessary,

then press ENTER.

The or icon on the screen

flashes while adjusting.

3Press Vor vto select “YES”, then press

ENTER to preset the channels

automatically (see page 25).

The screen will indicate automatic presetting

is in progress.

To skip automatic channel presetting, select

“NO”, then press ENTER.

4Press Vor vto select “NO”, then press

ENTER. The “INITIAL SETUP” menu will

not appear again the next time you turn

on the TV by pressing !.

To allow this menu to appear again, select

“YES”, then press ENTER.

Tips

• You can immediately go to the end of the ”INITIAL SETUP” menu by pressing MENU.

• You can also set up your TV using the menu system (see page 16).

INITIAL SET

ENG ILSHLAN UGAGE

INITIAL SET

START

NOW?

AUTO PROGRAM

INITIAL SET

DISPAL

NEX TTIME?

Y T EN

INITIAL SET

PR : 09

TV AUTOS

LOWV

PIC

MODE

SOUND

PIP PROGR

ENTER

DTE

V/v/ENTER

INITIAL SET

PIC ROTATI ON

Rotate anti-

clockwise

Rotate

clockwise

Refer to this bar when

adjusting.

01GB04INS-OCE.p65 27/1/03, 9:35 AM7

8Overview of Controls

Sony KV-AR29M31 Group R9 (GB)_4-090-530-11 (1)

Overview of Controls

xTV front and rear panels

L(MONO) R

PROGRMENU AUTO

PROGR

ENTER SELECT

PROGRMENU AUTO

PROGR

ENTER SELECT

8756

123

RLY

qf qd

L(MONO) R

Button/Terminal Function Page

1!Turn off or turn on the TV. 6

21Standby indicator. –

2Wake Up indicator. 13

2Stereo/bilingual indicator. 14

3Remote control sensor. –

4PROGR +/– Select program number. –

52+/– Adjust volume. –

6tSelect TV or video input. –

7AUTO PROGR Preset channels automatically. –

Menu operations

5SELECT V/v Select and adjust items. 18

6ENTER Confirm selected items. 18

8MENU Display or cancel the menu. 18

9t3 Video input terminal 3. 28

0iHeadphone jack. –

qa Component video input terminal. 29

qs 8Antenna input terminal. 28

qd TMonitor output terminal. 28

qf t1, t2, t3 Video input terminal 1, 2, 3. 28

TV front panel

TV rear panel

01GB04INS-OCE.p65 27/1/03, 9:35 AM8

Overview of Controls

Sony KV-AR29M31 Group R9 (GB)_4-090-530-11 (1)

Overview of Controls

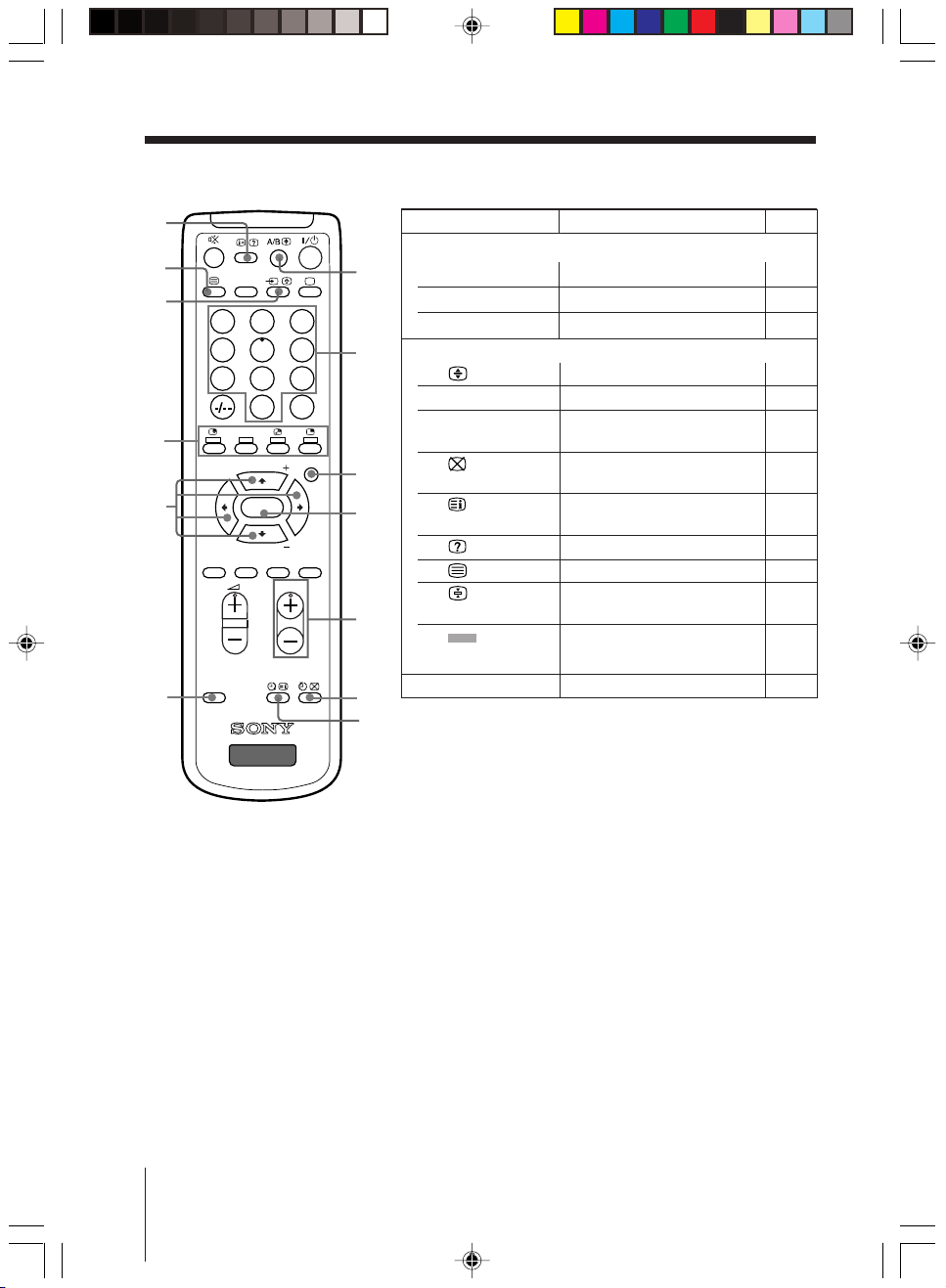

xRemote control

231

564

897

JUMP

PROGR

PIC

MODE

SOUND

MODE

WIDE

MODE

SURROUND

RESET

SOUND

PIP PROGR

ENTER

DVD

DTE

continue

Button Function Page

1?/1Turn off temporarily or –

turn on the TV.

3aDisplay the TV input. –

40 – 9, -Input numbers. –

5JUMP Jump to previous program –

number.

9SURROUND Select surround mode. 12

0WIDE MODE Select wide-mode (16:9). 12

qa PROGR +/– Select program number. –

Display on-screen information

.–

qg %Mute the sound. –

qh DVD Select DVD input. 29

qj t

Select TV or video input.

wa SOUND MODE Select sound mode. 11

ws PIC MODE Select picture mode. 11

wd 2+/– Adjust volume. –

Timer operations

qs Set TV to turn off 13

automatically.

qd Set TV to turn on 13

automatically.

PIP operations (yellow label)

8PIP PROGR +/

PIP PROGR – Not function for your TV. –

ql SOUND

w; ENTER

Stereo/bilingual operations

2A/B

Select stereo/bilingual mode.

01GB04INS-OCE.p65 27/1/03, 9:35 AM9

10 Overview of Controls

Sony KV-AR29M31 Group R9 (GB)_4-090-530-11 (1)

231

564

897

JUMP

PROGR

PIC

MODE

SOUND

MODE

WIDE

MODE

SURROUND

RESET

SOUND

PIP PROGR

ENTER

DVD

DTE

eh wl

continued

Button Function Page

Menu operations

wh MENU

Display or cancel the menu.

wj ENTER Confirm selected items. 18

eg V, v, B , b Select and adjust items. 18

Teletext operations (green label)

wf Enlarge the Teletext display. 15

wg 0 – 9 Input Teletext page number. 15

wk PROGR +/–

Display the next or previous

page.

wl Show TV screen while 15

waiting for Teletext page.

e; Display Teletext service 15

contents.

Reveal concealed information.

es Display Teletext broadcast. 15

ed Stop Teletext display from 15

scrolling.

ef (red, green, Access a FASTEXT menu. 15

yellow, blue)

eh RESET Set TV to factory setting. 30

01GB04INS-OCE.p65 27/1/03, 9:35 AM10

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Sony Fernseher Handbücher

Sony

Sony XBR-46HX909 - Lcd Panel For Kdl-42xbr950 Tv Handbuch

Sony

Sony KV-AR252M61 Trinitron Bedienungsanleitung

Sony

Sony Trinitron KV-21V4A Bedienungsanleitung

Sony

Sony KDL-24R400A Bravia Betriebsanleitung

Sony

Sony KV-EX29M61 Bedienungsanleitung

Sony

Sony Trinitron KV-XA34M30A Bedienungsanleitung

Sony

Sony BRAVIA FW-49BZ35F Bedienungsanleitung

Sony

Sony BRAVIA KD-55X70 Series Bedienungsanleitung

Sony

Sony XR-85X95L Bedienungsanleitung

Sony

Sony TRINITRON KV-27FV15 Bedienungsanleitung

Sony

Sony Wega KD-32DX51 AUS Bedienungsanleitung

Sony

Sony KD-85X80L Bedienungsanleitung

Sony

Sony FD Trinitron WEGA KV-32HS510 Bedienungsanleitung

Sony

Sony BRAVIA KD-85ZH8 Bedienungsanleitung

Sony

Sony KV-29LS30E Bedienungsanleitung

Sony

Sony TRINITRON KV-VF14M70 Bedienungsanleitung

Sony

Sony KV-C2161D Bedienungsanleitung

Sony

Sony BRAVIA KD-50X80L Bedienungsanleitung

Sony

Sony WEGA KV-FA29 Bedienungsanleitung

Sony

Sony BRAVIA KD-85X85K Bedienungsanleitung

Sony

Sony KDL-40VL130 - 40" Bravia Vl-series Lcd... Bedienungsanleitung

Sony

Sony Bravia KD-65X9000C Benutzerhandbuch

Sony

Sony FD TRINITRON WEGA KV-20FS12 Bedienungsanleitung

Sony

Sony Trinitron KV-20XBR Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung

Sylvania

Sylvania 6427FB Bedienungsanleitung
