Sony XTL-750W Bedienungsanleitung
Operating Instructions
###
XTL-750W
GB
CT
1999 by Sony Corporation
Mobile Color TV
For installation and connections, see the supplied installation/connections
manual.
###
###
Owner’s Record
The model and serial numbers are located on the bottom of the unit.
Record the serial number in the space provided below.
Refer to these numbers whenever you call upon your Sony dealer regarding this
product.
Model No. XTL-750W Serial No.
2
GB
Warning
To prevent fire or shock hazard,
do not expose the unit to rain or
moisture.
WARNING
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable
protection against harmful interference
in a residential installation. This
equipment generates, uses, and can
radiate radio frequency energy and, if
not installed and used in accordance
with the instructions, may cause
harmful interference to radio
communications. However, there is no
guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful
interference to radio or television
reception, which can be determined by
turning the equipment off and on, the
user is encouraged to try to correct the
interference by one or more of the
following measures:
— Reorient or relocate the receiving
antenna.
— Increase the separation between the
equipment and receiver.
— Connect the equipment into an
outlet on a circuit different from
that to which the receiver is
connected.
— Consult the dealer or an
experienced radio/TV technician
for help.
You are cautioned that any changes or
modifications not expressly approved
in this manual could void your
authority to operate this equipment.
This symbol is intended
to alert the user to the
presence of uninsulated
“dangerous voltage”
within the product’s
enclosure that may be of
sufficient magnitude to
constitute a risk of
electric shock to persons.
This symbol is intended
to alert the user to the
presence of important
operating and
maintenance (servicing)
instructions in the
literature accompanying
the appliance.
3
GB
Thank you for purchasing the Sony Mobile Color TV.
• This unit can receive the TV broadcasts in the USA, China or Hong Kong, the
country depending on the model.
• You can connect both PAL and NTSC video playback units (China only).
• The low reflection liquid crystal panel reduces the glare from outside
lighting sources.
• The visual off function turns the picture off so you can listen to the TV or
video sound only.
• The automatic memory function can store up to 12 stations.
• This unit has several input/output terminals for connecting a video
player, navigation system, and rear monitor.
• In addition to normal screen mode, full screen, zoom screen, and wide-
zoom screen modes are also available.
• The backlighting control (DIMMER) produces sharp contrast images free
from reversed or blurred colors. Furthermore, the Auto bright control
feature continuously makes automatic adjustments to screen brightness in
response to the surrounding light conditions. Manual brightness
adjustment is also available for two set levels, high and low.
Welcome!
4
GB
Table of Contents
Warning and Precautions ..................................................................................... 5
Getting Started
Selecting a TV system (China only) ........................................................... 6
Storing TV stations automatically (Automatic memory function) ....... 7
Watching a TV Program ....................................................................................... 8
Viewing the Wide Screen...................................................................................... 9
Watching a Video................................................................................................. 11
Listening to the TV/video Sound with the Picture Off
(Visual off function) ......................................................................................... 12
Adjusting the Picture .......................................................................................... 13
Adjusting the Screen Brightness (Auto bright control)................................. 15
Using the Navigation System ............................................................................ 16
Listening to the TV/video Sound while Using the Navigation System
(Simultaneous play function) ......................................................................... 17
Additional Information ...................................................................................... 18
Location of Controls............................................................................................ 20
Specifications........................................................................................................ 22
Troubleshooting Guide ....................................................................................... 23
5
GB
Warning and Precautions
Warning
Never use a fuse with an amperage rating exceeding the one supplied
with the unit as this could damage the unit.
Fuse replacement
When replacing the fuse, be sure to use one that matches the
amperage described on the original fuse. If the fuse blows, check the
power connection and replace the fuse. If the fuse blows again after
replacement, there may be an internal malfunction. In such a case,
consult your nearest Sony dealer.
Precautions
• Do not mount the monitor where it will obstruct the driver’s view.
• Do not touch the TV antenna and monitor at the same time during
storms to avoid electric shock.
• If your car was parked in direct sunlight resulting in a considerable
rise in temperature inside the car, allow the unit to cool off before
operating.
If you have any questions or problems concerning your unit that are
not covered in this manual, please consult your nearest Sony dealer.
Preventing accidents
The TV/video pictures appear only after you park the car and set the
parking brake.
When the car starts moving, the TV/video pictures automatically
disappear for safety reasons,
and the following caution is displayed
for 5 seconds.
Do not operate equipment connected to the TV tuner unit or watch
the monitor while driving. You may cause a traffic accident if your
attention is distracted by the monitor.

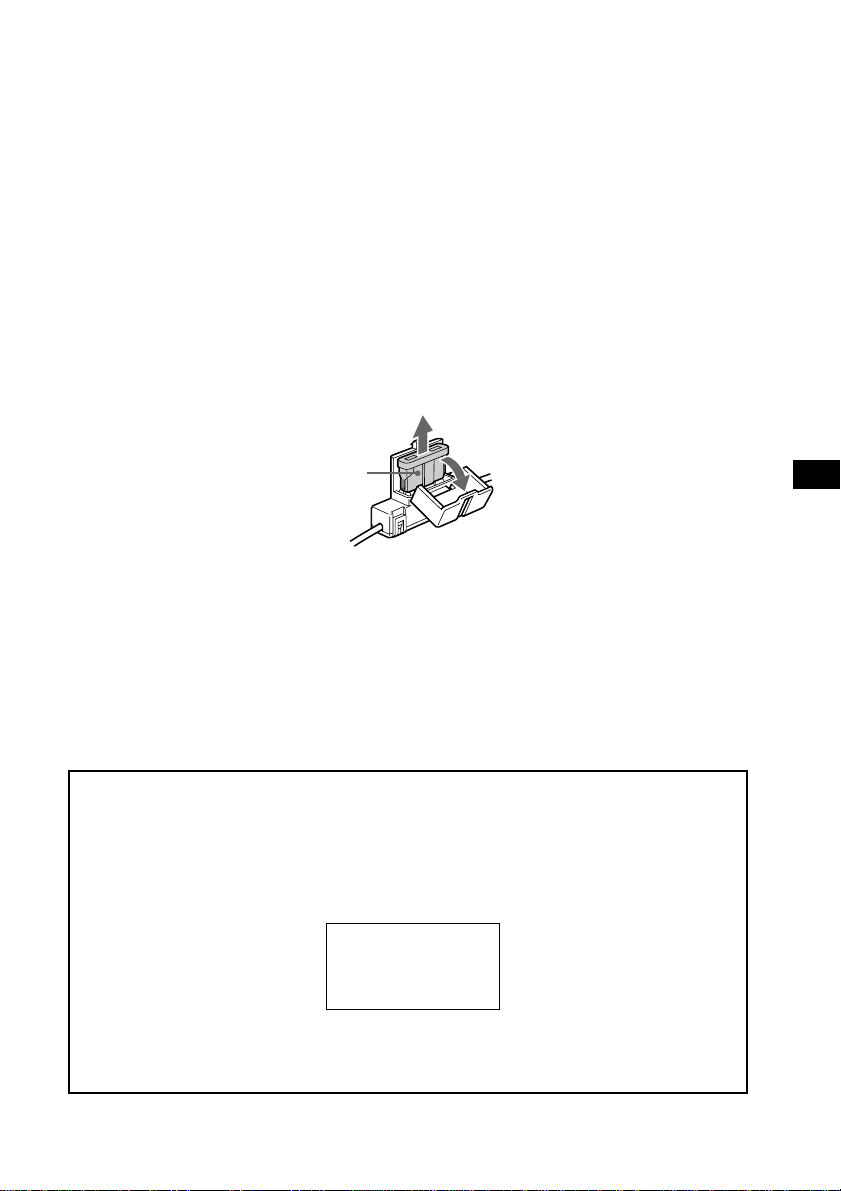

Fuse
PICTURE OFF
FOR
YOUR SAFETY
Comply with the Road Traffic Laws in your country.
6
GB
Getting Started
Selecting a TV system (China only)
If you select the TV system, press (CHN/HKG) on the wireless
remote. If there is no sound, press (CHN/HKG) again. When you
select the TV system, the TV program numbers appear as follows.
China Hong Kong
CHN/HKG
button CHN
12 HKG
32
NAVI
TV/VIDEO
SEL
A.MEMV OFF DSPL
2SEC
789
123
456
10 11 12
SEEKVOL
CHN/HKG
7
GB
Storing TV stations automatically
(Automatic memory function)
You can store up to 12 VHF/UHF stations.
VHF stations on program numbers 1 through 12 are stored on the
program number buttons. UHF stations on program numbers 21
through 69 (13 through 57 for China, 14 through 69 for USA) are
stored in order after the stored VHF stations.
1Press (POWER) on the TV.
The power indicator lights up.
2Press (TV/VIDEO) repeatedly until a TV program
appears on the display.
3Press (A.MEM) on the wireless remote for two
seconds.
The wireless remote stores VHF stations on the program
number buttons corresponding to the VHF station numbers.
UHF stations are stored on the remaining program number
buttons in order.
12
3
Program number
buttons
NAVI
TV/VIDEO
SEL
A.MEMV OFF DSPL
2SEC
789
123
456
10 11 12
SEEKVOL
CHN/HKG
POWER indicator
Program number button
VHF station
UHF station
1
13*
21
3
-
24
2
2
-
4
4
-
5
-
27
6
6
-
7
-
32
8
8
-
9
-
34
10
10
-
11
-
48
12
12
-
Example
*USA only
8
GB
Note
The TV picture does not appear while the car is moving for safety reasons.
1Press (POWER).
The POWER indicator lights up.
2Press the program number buttons (1 through 12)
to select the desired TV station.
The TV program number appears for five seconds in the
upper right corner of the display each time you select a
station.
3Adjust the volume.
Press the VOL button on the monitor, or press (VOL) on
the wireless remote.
Turning on the on-screen display
Press (DSPL).
To turn off the display, press it again.
Turning off the TV
Press (POWER).
If you cannot receive the stored stations while traveling
Press (SEEK) momentarily to search for the station automatically.
When the unit receives a station, it stops scanning. Press the button
repeatedly until the desired station is received.
Watching a TV Program
3
SEEK button
DSPL button
2
NAVI
TV/VIDEO
SEL
A.MEMV OFF DSPL
2SEC
789
123
456
10 11 12
SEEKVOL
CHN/HKG
1
3
POWER indicator
9
GB

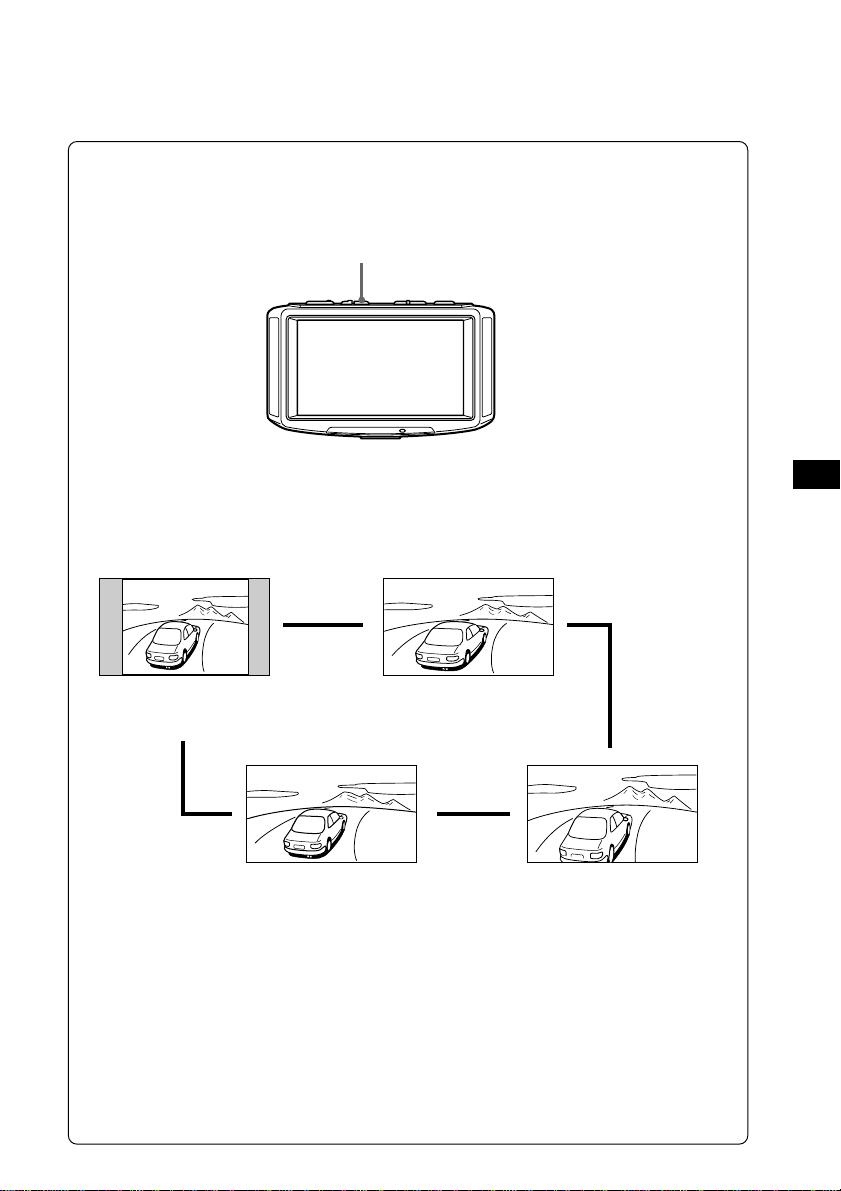

In addition to normal screen mode, full screen, zoom screen, and
wide-zoom screen modes are also available.
Press the SELECT button.
Pressing the SEL button switches the screen mode in the
following sequence:
Tips
• With this operation:
— The wireless remote does not work.
— Beeps are deactivated.
— The screen size type is not displayed.
• When you turn on the unit again, the screen mode is reset to
full screen.
Viewing the Wide Screen
SELECT button
Full screen
An image with an aspect ratio
of 4 to 3 enlarged to the left
and right edges of the screen.
m
M
Normal (regular) screen
An image with an aspect ratio
of 4 to 3 (regular image).
Wide-zoom screen
An image with an aspect ratio
of 4 to 3, with only the left and
right sides of the image being
enlarged to fill the screen.
Zoom screen
An image with an aspect ratio
of 4 to 3 enlarged to the left
and right edges of the screen,
with the overflowing parts of
the top and bottom cut off to
fill the screen.
µ
10
GB
• Images may appear coarse-grained when viewed in the zoom
screen mode.
• This unit is manufactured according to wide-zoom specifications
for typical home-use wide TV sets.
• Changing the screen mode will also change the scale of the map
screen on your navigation system.
(Continued)
Andere Handbücher für XTL-750W
4
Inhaltsverzeichnis
Andere Sony Fernseher Handbücher
Sony
Sony KV-9PT50 - 9" Trinitron Color Tv Bedienungsanleitung
Sony
Sony Bravia KDL-32EX605 Bedienungsanleitung
Sony
Sony Trinitron KD-32NX200AUS Bedienungsanleitung
Sony
Sony WEGA KLV-S26A10 Benutzerhandbuch
Sony
Sony Trinitron PVM-1341 Bedienungsanleitung
Sony
Sony KV-27XBR25 - 27" Xbr Monitor/receiver Bedienungsanleitung
Sony
Sony KV-28FX68B Bedienungsanleitung
Sony
Sony BRAVIA KD-75X850 C Series Bedienungsanleitung
Sony
Sony TV & Home A/V Bedienungsanleitung
Sony
Sony FD Trinitron KV-32FX65 B Bedienungsanleitung
Sony
Sony BRAVIA KDL-32R300D Bedienungsanleitung
Sony
Sony Bravia KDL-60W630B Bedienungsanleitung
Sony
Sony SXRD KDS-60A2020 Bedienungsanleitung
Sony
Sony Trinitron WEGA KV-SR292 Bedienungsanleitung
Sony
Sony KV-27FA210 - 27" Tv With Subwoofer Bedienungsanleitung
Sony
Sony Trinitron KV-13M31 Bedienungsanleitung
Sony
Sony BRAVIA A90K Bedienungsanleitung
Sony
Sony BRAVIA KDL-S23A11E Bedienungsanleitung
Sony
Sony BRAVIA KDL-40XBR4 Bedienungsanleitung
Sony
Sony BRAVIA KD-55X70 Series Bedienungsanleitung
Beliebte Fernseher Handbücher anderer Marken
Philips
Philips Colour Television Bedienungsanleitung
Toshiba
Toshiba 27A10 Bedienungsanleitung
Philips
Philips 42PF9630A/37 Bedienungsanleitung
Hitachi
Hitachi 32FX48B Bedienungsanleitung
DAEWOO ELECTRONICS
DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung
Changhong Electric
Changhong Electric uhd55b6000is Bedienungsanleitung
