Soundigital EVOX2 5000.1 Bedienungsanleitung

OWNER´S MANUAL

5000.1

Introduction

Package contents ......................................................................................................

Safety instructions ......................................................................................................

Technologies

Dynemic Thermal Management (DTM)...................................

Vibration Absorption Device..........................................................

Reduceds Size......................................................................................

Full Range .............................................................................................

Assembling and Disassembling the plastic cover...................................

Panels description

Audio inputs and controls...........................................................

Power inputs and audio autputs..............................................

Installation sequence...............................................................................................

Electrical Dimensioning..........................................................................................

RCA input and High Signal input......................................................................

SD RLC and Gain Setting.......................................................................................

Bass Boost set up......................................................................................................

Crossovers set up.......................................................................................................

Wiring Diagram..............................................................................................................

Technical specs

Parameters.........................................................................................

Dimensional data............................................................................

...................................................................................................................

DEAR CUSTOMER,

To better understand and take advantage of all the functions of the product

and use it safely, read this manual carefully and if you have any questions,

consult our support by email info@soundigitalusa.com.

CONGRATULATIONS ON ACQUIRING A PRODUCT WITH THE HIGHEST

QUALITY AND TECHNOLOGY!

PACKAGE CONTENTS

- 1 Allen wrench 2.5 mm

You have just purchased a SounDigital product of the highest technology

and quality, so we thank you for your confidence.

SounDigital products are made with raw materials of the highest quality

standards, and the most modern processes, equipment and technology are

used in their production.

On this manual you will learn about the product, its features and

characteristics, in order to obtain the best result and to be able to enjoy your

music with SounDigital quality and power.

- 1 Installation quick guide with warranty card

- 1 EVOX2 Amplifier

- 1 Allen wrench 4 mm

- 1 Promotional sticker

- 4 Screws 3/16" x 1" to fix the amp.

INTRODUCTION

SAFETY INSTRUCTIONS

THIS "WARNING" SIGN ALERTS THE USER OF IMPORTANT INFO. NOT FOLLOWING

THIS INSTRUCTIONS MAY CAUSE INJURIES TO THE USER OR DAMAGE TO THE

EQUIPMENT.

Warning!

Be careful when making holes in the vehicle. Make sure you are not making

holes in the fuel tank, brake lines or electrical cables of the vehicle

Make sure the cables are properly secured throughout the installation;

Wear gloves, safety glasses and and all necessary PPE during the installation

To prevent injuries to the user or damage to the amplifier, read all safety

instructions written on this manual;

If you are insecure about the installation of this equipment, get in touch with

our tech support or with a professional specialized in car audio installation;

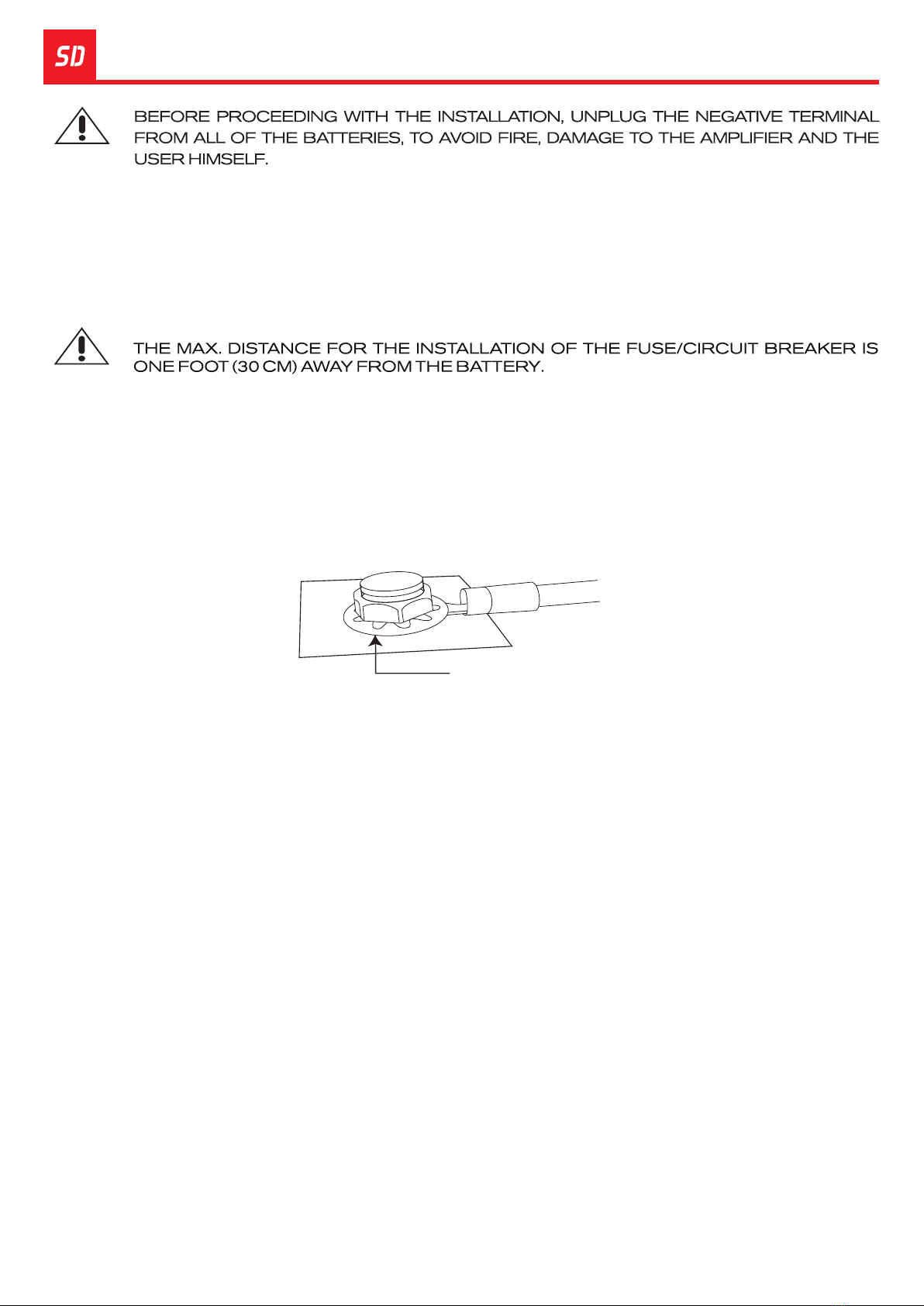

Before proceeding with the installation of any electric equipment on your

vehicle, unplug the negative (-) terminal of the battery to avoid fires, injuries or

damages;

This equipment is for use in automotive DC voltage batteries between 12.6

and 14.4 volts. Before installing the equipment, check voltage of the batteries;

Do not install the amplifier in places exposed to water, dirt or humidity;

Use your sound system safely. The continuous exposure to sound pressures

over 85dB may cause irreversible hearing damage;

Mount the amplifier in a secure way. Avoid mounting it on metallic parts of the

vehicle, because it may cause ground looping (noise);

Choose a ventilated place to install the amplifier and avoid blocking the side

ventilation windows;

Make sure that the location chosen for the amplifier installation does not effect

the operation of the vehicle;

When passing cables through metallic walls, use rubber O-rings to avoid

cable cutting and short-circuits.

Clean the amplifier periodically with brush or dry cloth to assure the thermal

efficiency of the heatsink.

This product may reach temperatures over 60°C/140°F. Make sure it is cold

before touching it;

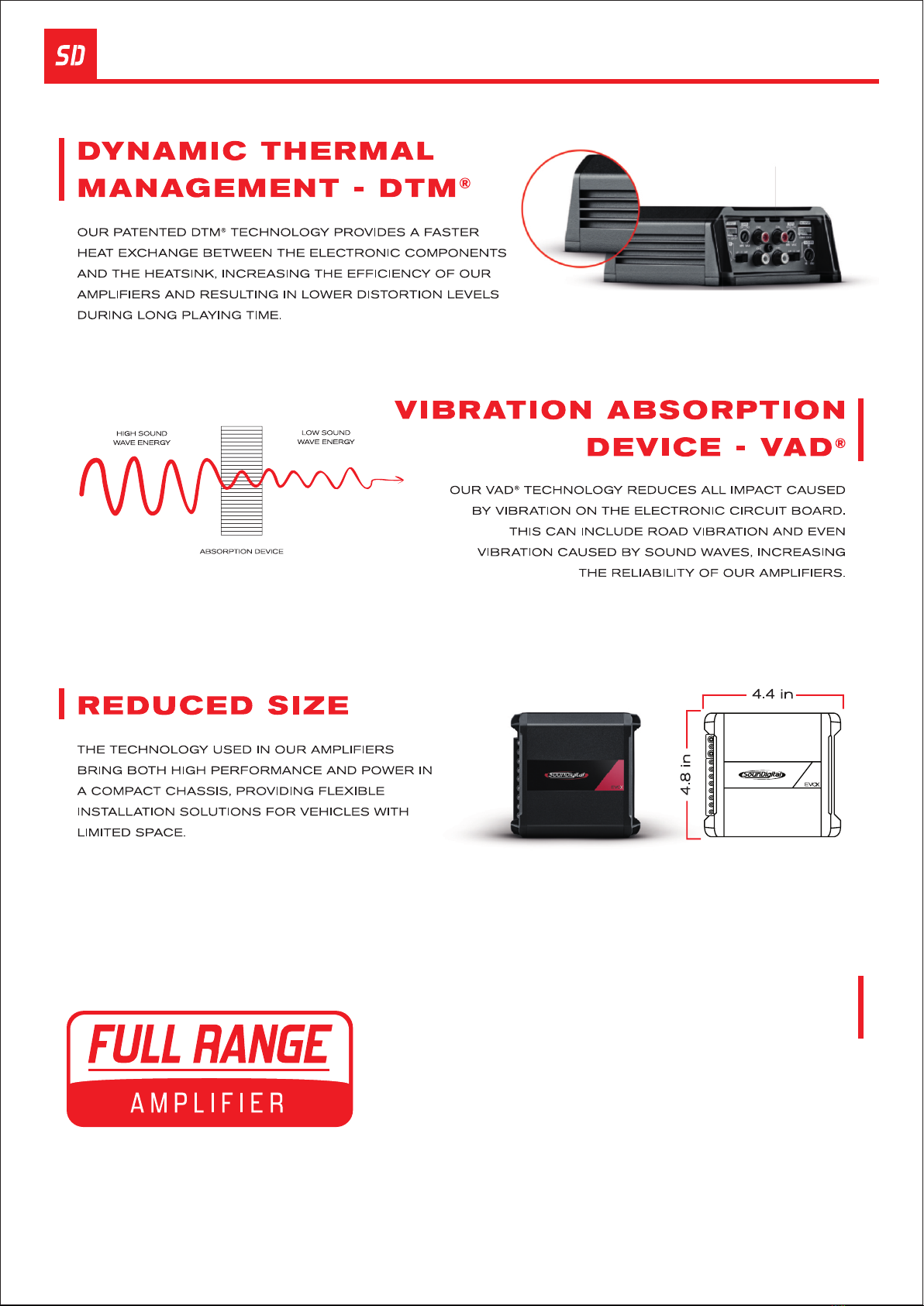

TECHNOLOGIES

VERSATILE PRODUCTS THAT COVER THE ENTIRE AUDIBLE

FREQUENCY RANGE, ANY TYPE OF LOUDSPEAKER OR MUSIC

PROGRAM.

FULL

RANGE

1 2

DISASSEMBLING OF THE PLASTIC COVER

ASSEMBLING THE PLASTIC COVER

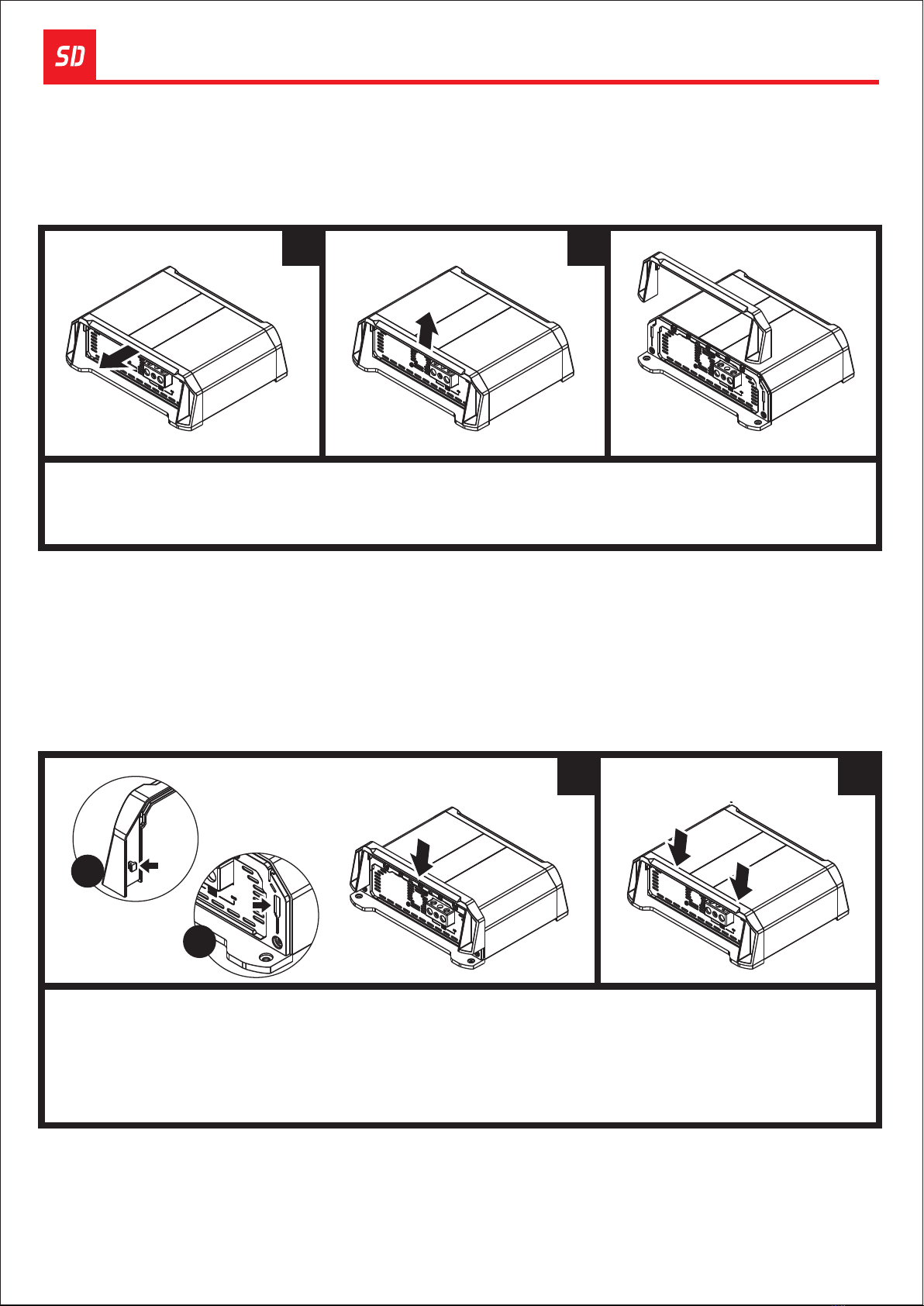

The plastic covers have the function of finishing and hiding the amplifier fixing

screws. To disassembling and assembling them, follow the instructions

1. Carefully pull out the top of plastic cover to release the upside latches, as shown in the picture 1.

2. Slide up the plastic cover in a continuous movement to remove it.

1. To fit the plastic cover back, carefully insert the point A of the plastic cover into point B of the

amplifier, slowly sliding it down.

2. Gently press the sides of the top of the plastic cover towards the bottom of the amplifier until

you hear a clicking noise.

ASSEMBLING AND DISASSEMBLING THE PLASTIC COVER

PANELS DESCRIPTION

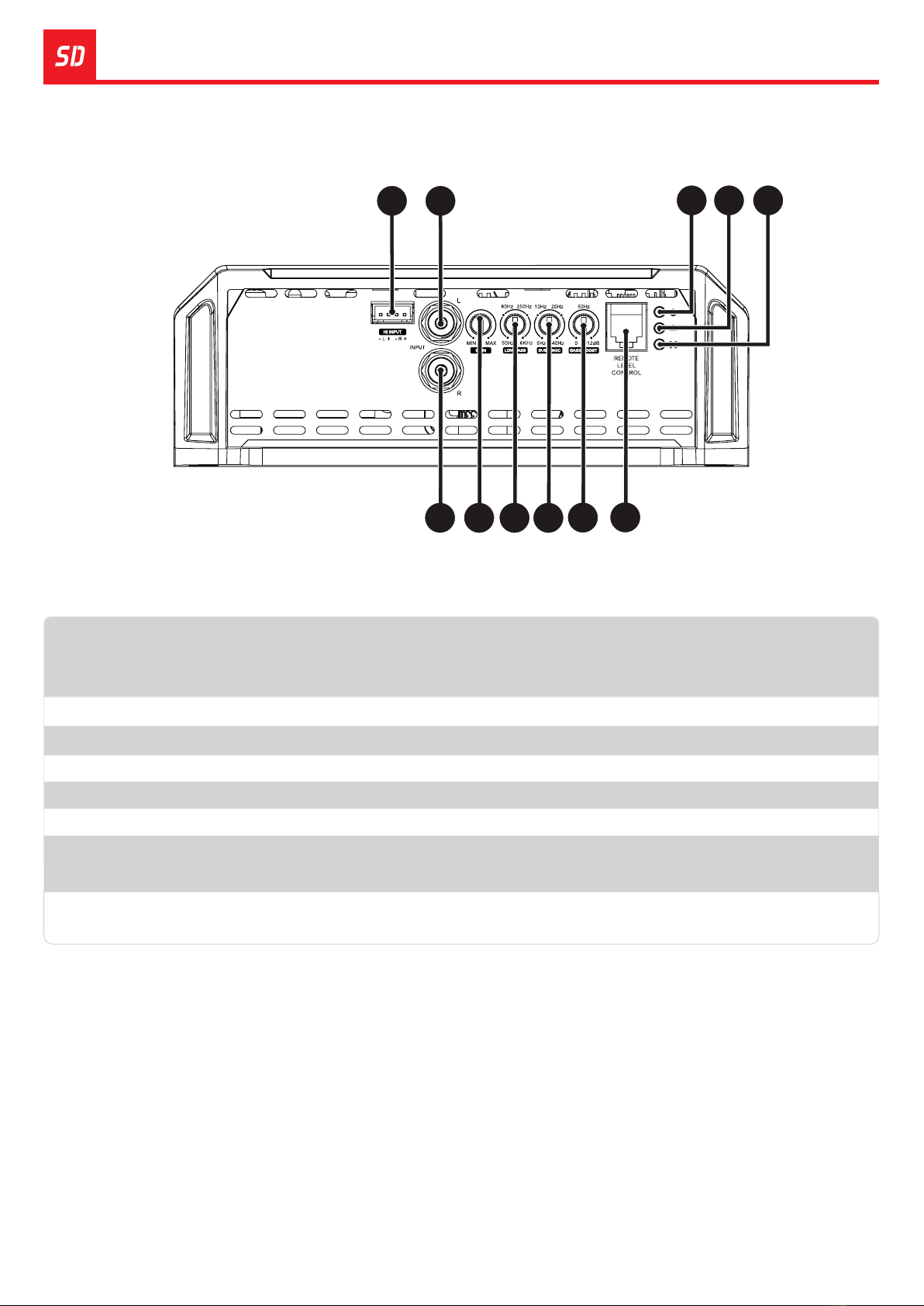

"Power ON" LED indicator

"Clip" LED indicator

"Protection" LED indicator

Variable Bass Boost Control 50Hz (0dB ~ +12dB)

Variable Low Pass filter control (50Hz ~ 500Hz)

Variable Subsonic filter control (5Hz ~ 40Hz)

Variable Gain control

Audio input - RCA connector

Red

Blue

Left Channel

Right Channel

Yellow

-Remote level control connector

11 10 1 2 3

89 4

7 6 5

High Level audio input

(To connect to the speaker output of the headunit)

PANELS DESCRIPTION

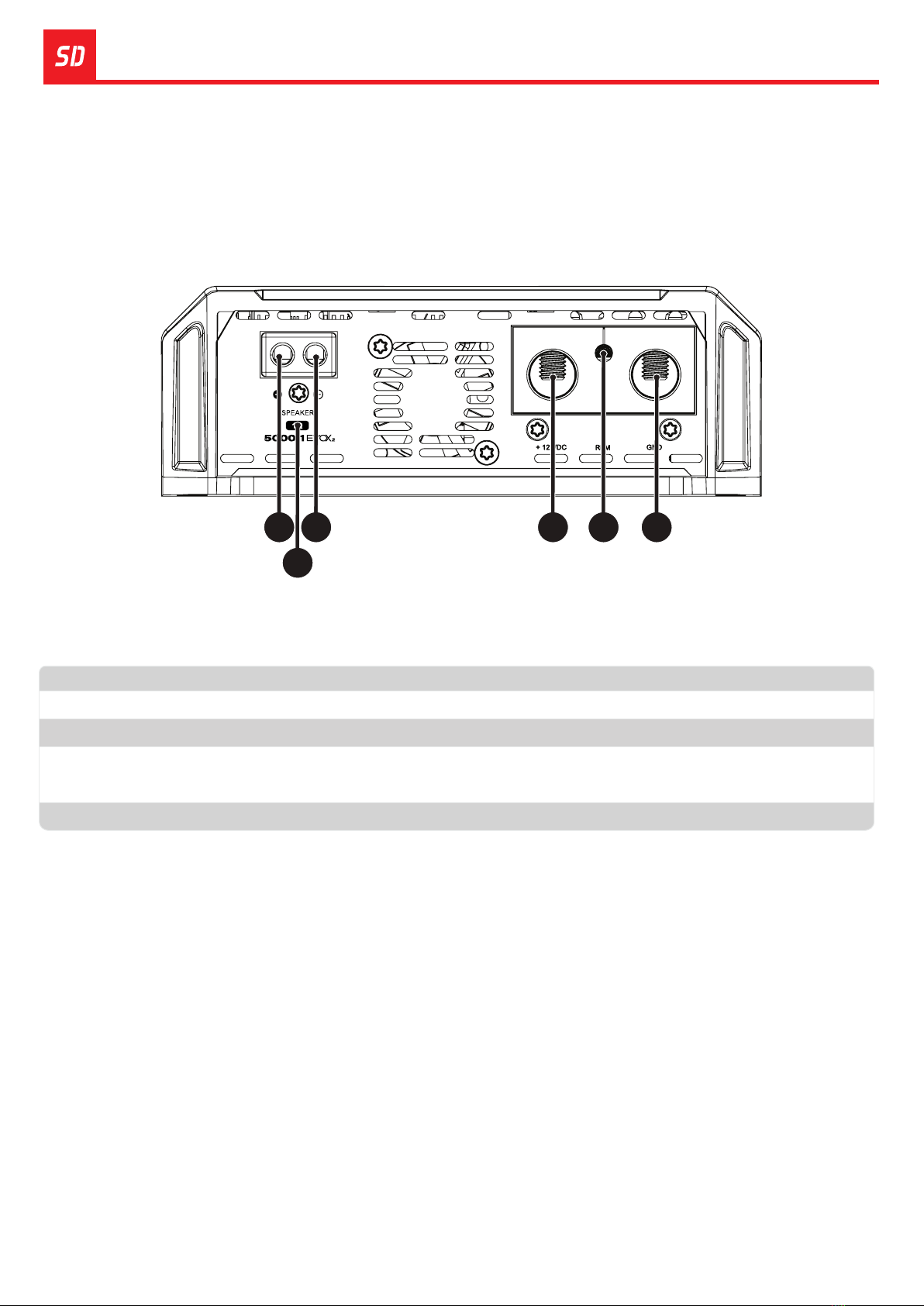

Negative power supply connector (GND)

Remote power supply connector (REM)

Positive power supply connector (+12VDC)

Positive speaker connector

Negative speaker connector

Minimum speaker load allowed (impedance)

12 -

12131416 15

Speaker Output

Connector

ØMount the amplifier in such a way you have access to the connectors;

ØInstall the power cables in the vehicle properly, starting from the battery to the fuse

holder or circuit breaker, use the cable with the appropriate size. Make all

connections, install fuse holders or circuit breakers, but without placing the fuses

or with the circuit breakers in the "Off" position.

ØConnect the power cables in to the amplifier, observing the polarity. Connect all the

positive cables from the fuse holder or circuit breaker to the positive conector of

the amplifier and all the negative power cables from the batteries to the negative

connector of the amplifier;

ØThe ground cable must be as short as possible and must be connected to the

vehicle chassis and the battery negative;

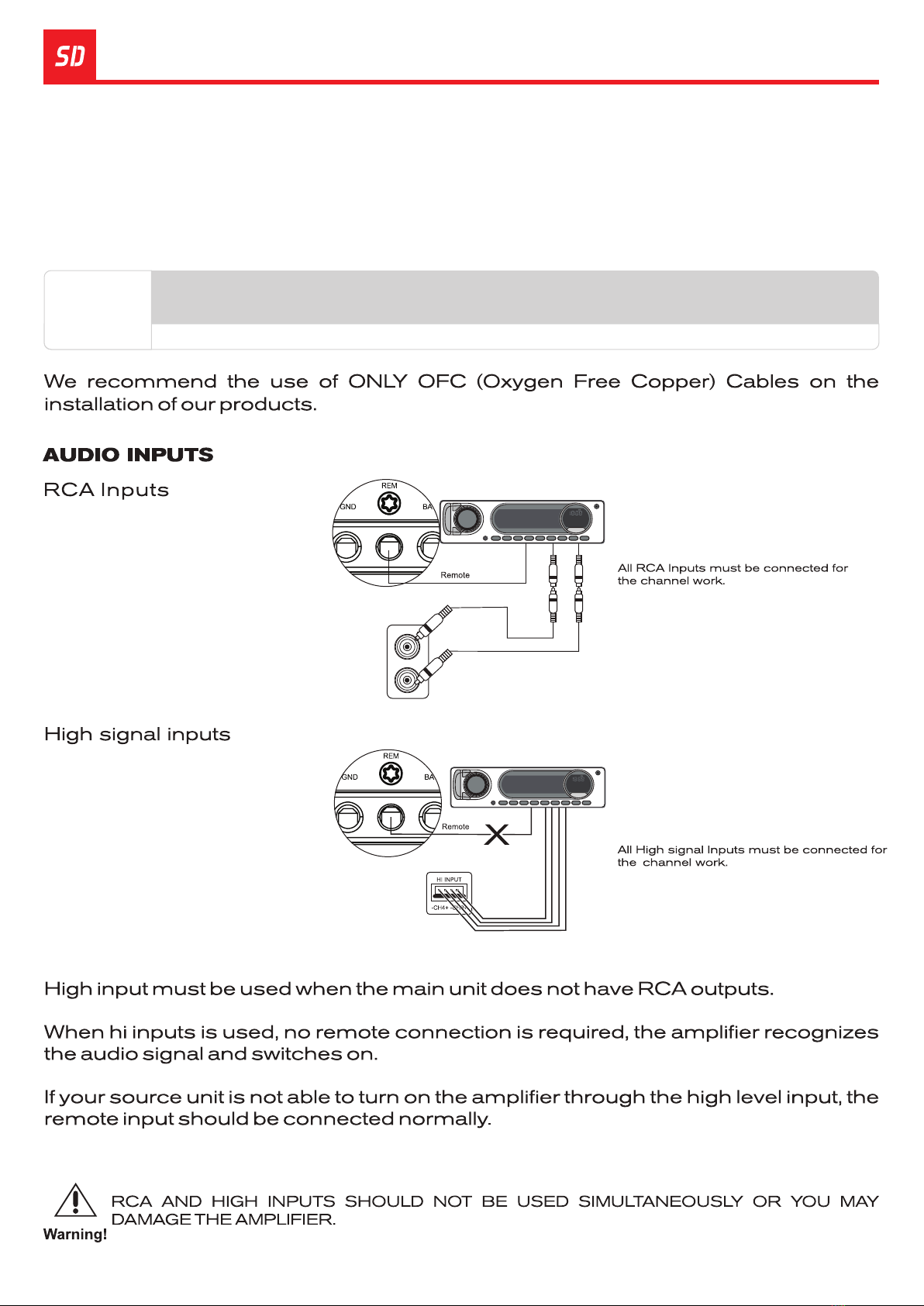

ØInstall the signal input cables in a proper way, distant from the power cables;

ØConnect the RCA or the high signal input cables to the head unit and amplifiers;

ØInstall the audio output cables with the appropriate section , distant from the power

and audio input cables;

ØInstall the remote cable with the power cables, using 1.5mm² (15 AWG) cable or

thicker;

ØConnect the audio output cables to the amplifier and speakers respecting the

positive (+) and negative (-) polarities;

ØConnect the remote power cable to the amplifier's "REM" terminal at the main unit's

remote power output (when not using the high level signal inputs);

Ø;Reconnect the ground of the batteries

ØCheck if the headunit is turned off and then place the fuses in the fuse holders or

switch the circuit breakers on;

ØBefore powering the system, verify all the connections and make sure there are no

mistakes or short-circuits on the power and ground cables;

ØTurn on the main unit and the amplifier will turn on the "On" LED indicating that it is

in operation.

INSTALLATION SEQUENCE

Warning!

Remove the paint between

the terminal and chassis

ELECTRICAL DIMENSIONING AND AUDIO INPUTS

ELECTRICAL DIMENSIONING

The table below shows the minimum section of GND cables, +12VDC cables

and speaker output cables according to the power generated by the amplifier.

For proper operation of your SounDigital amplifier, you need the proper

dimensioning of the electrical system and the cables used.

POWER CABLE

GROUND CABLE

SPEAKER CABLE

5000

WRMS

50mm² - 0 AWG

2 x 2.5mm² - 13 AWG
