Soundmask SM-TC-1265 Bedienungsanleitung
www.soundmask.com.au
MODEL SM-TC-1265
OPERATING MANUAL
CUT IN TRANSDUCER
01 www.soundmask.com.au
The information furnished in this manual does not
include all of the details of design and engineering
of this particular product; nor does it cover every
possible application or situation concerning its
usage, which may occur during the installation,
operation or maintenance of the product.
TO PREVENT ELECTRIC SHOCK, DO
NOT TAMPER WITH THE DEVICE. NO
USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
PERSONNEL.
TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT EXPOSE THIS
EQUIPMENT TO RAIN OR MOISTURE!
Safety Instructions
1. Read, follow and retain these instructions.
2. Read all warnings.
3. The apparatus must not be exposed to dripping or
splashing and no objects filled with liquids, such as
vases, may be placed on the apparatus. Do not use
this apparatus near water. Clean only with a damp
cloth.
4. The appliance coupler must remain readily
operable for disconnection from the mains.
5. Do not block any of the ventilation openings.
Install in accordance with the manufacturer’s
instructions.
6. Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
that produce heat.
7. Protect the power cord from being walked on or
pinched, particularly at plugs, convenience at plugs,
convenience receptacles, and the point where they
exit from the apparatus.
8. Only use power cord from attachments/
accessories specified by the manufacturer.
9. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, or does not
operate normally.
Please follow the instructions in this manual to
obtain the optimum results from this unit. We also
recommend that you keep this manual handy for
future reference.
IMPORTANT SAFETY INFORMATION
02
Copyright © 2015 Soundmask Australia Pty Ltd. All Rights Reserved.

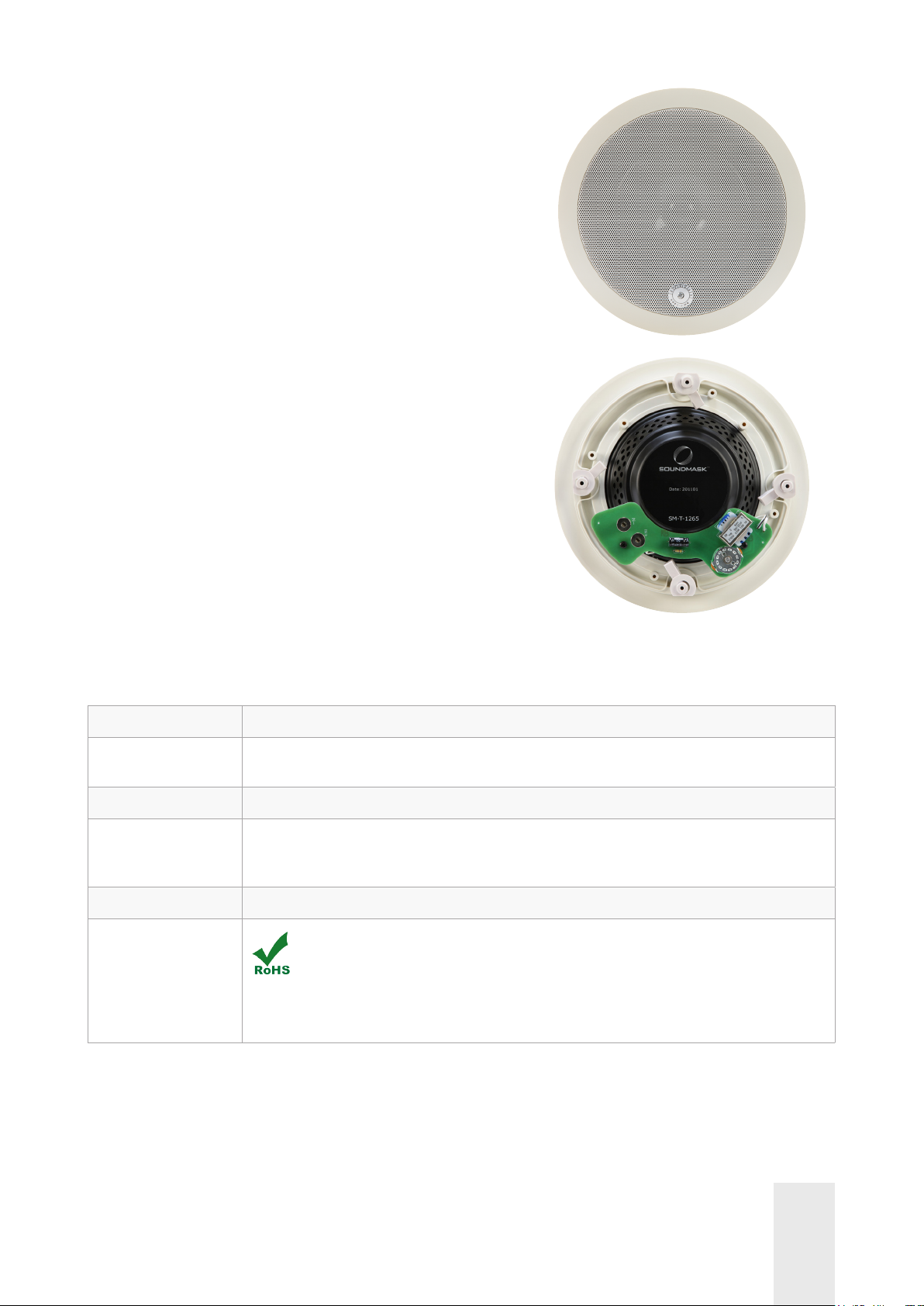

GENERAL DESCRIPTION
SPECIFICATIONS
Soundmask’s SM-TC-1265 transducer is purpose
designed and manufactured for continuous sound
masking service. The transducer is surface mounted,
cut into plasterboard or other hard ceiling surfaces.
With inlet and outlet connections and ABS plastic
sliders for ease of installation. Manufactured with
halogen-free wiring to conform with Soundmask’s
Environmental Sustainability policy.
Model SM-TC-1265
Inclusions › Transformer
› Heat proof enclosure
Colours White only
Speaker › 6.5” driver with neodymium magnet 7.2 Ω impedance ± 10%
› Frequency response fo ~ 11 K Hz 85 db sensitivity ± 2dB
› 40W RMS, 80W MAX
Dimensions & Weight 240 x 150 mm, 1.02 kg
Compliance
UL94.V-0.
Manufactured to ISO 9001:2000
Halogen-free wiring
03 www.soundmask.com.au

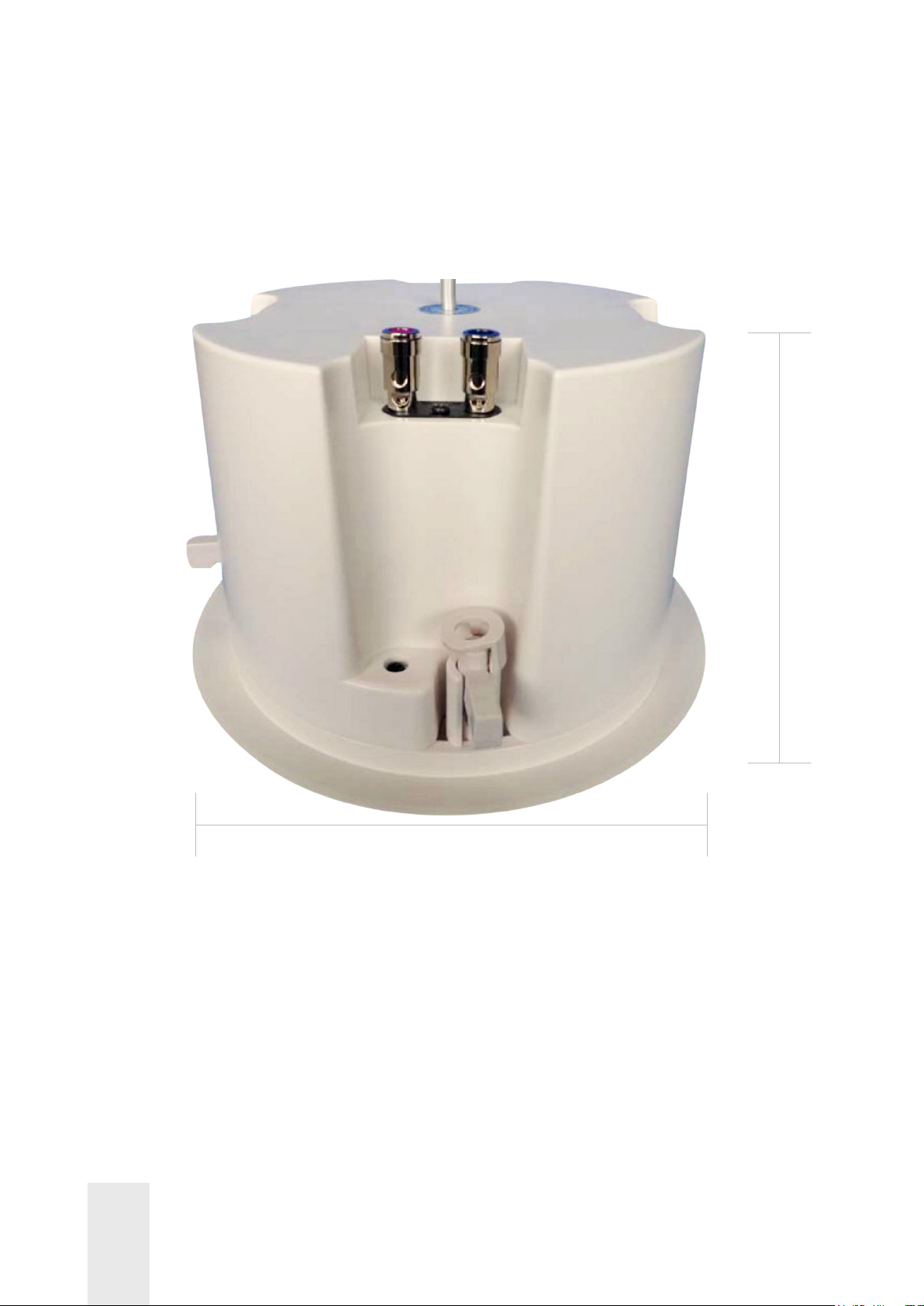

DIMENSIONAL DIAGRAM
240 mm
150 mm
04
Copyright © 2015 Soundmask Australia Pty Ltd. All Rights Reserved.

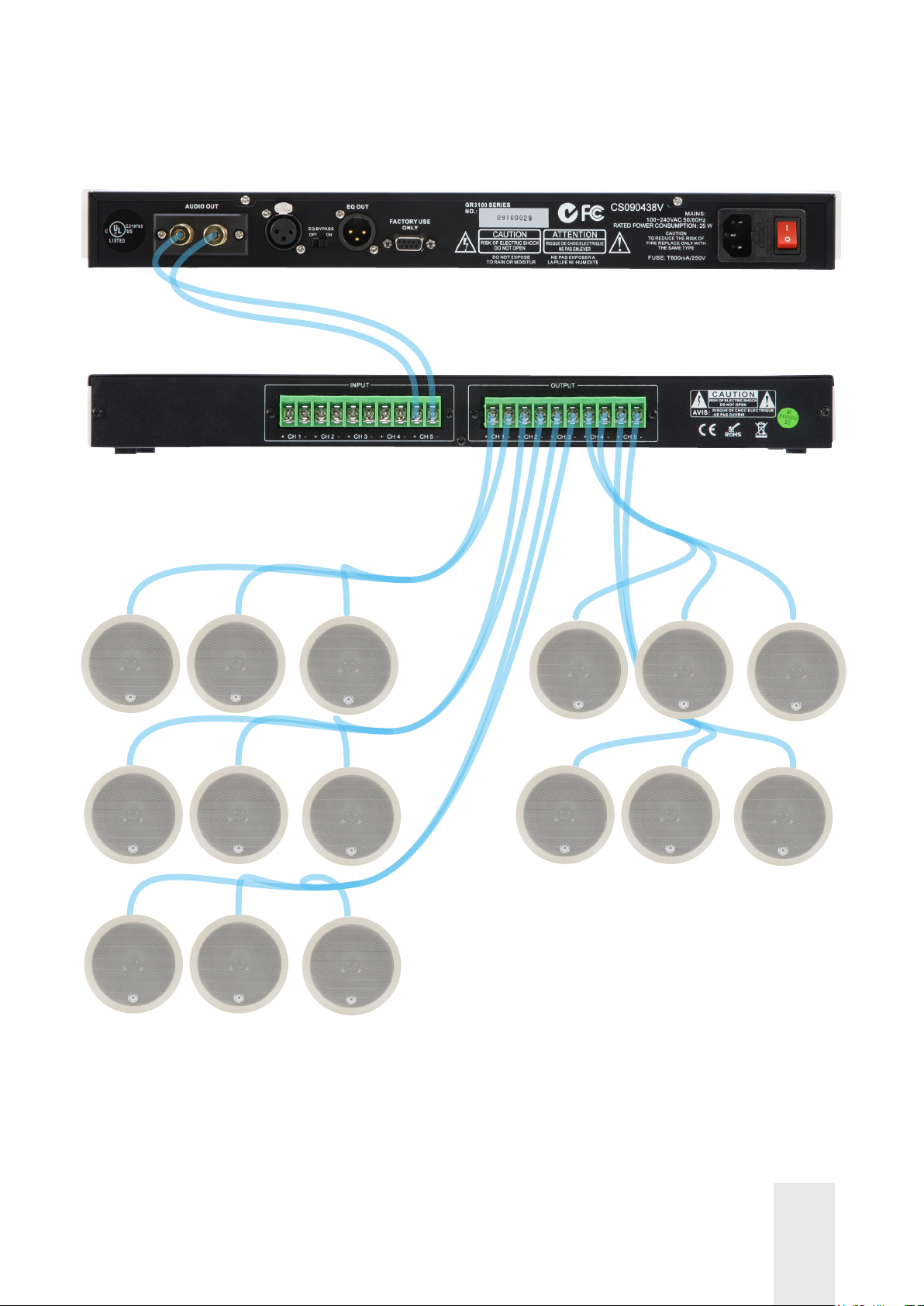

EXAMPLE LAYOUT
› The SM-DR-5000 is capable of servicing up to 100 transducers for each generator.
› Diagram not to scale.
NOTES
RANDOM DIGITAL NOISE GENERATOR SM-GR-3100
ZONE DISTRIBUTOR SM-DR-5000
CUT IN TRANSDUCER SM-TC-1265
Copyright © 2015 Soundmask Australia Pty Ltd. All Rights Reserved.
To the best of our knowledge, the material contained within this document was accurate at the time of printing.
No liability or otherwise is assumed for the accuracy of this document.
No warranty is given or implied as to the accuracy of any part of the document.
CONTACT
NOTES
1300 734 168 (within Australia)
+61 3 9879 5355
Soundmask Australia Pty Ltd
Soundmask Australia Pty Ltd
PO Box 4068
Balwyn VIC 3103
AUSTRALIA
www.soundmask.com.au
