Speco HT-7246IHR Bedienungsanleitung

HT7246iHR (2.8~12mm)

HT7247iHR (9.0~22mm)

HT7250iHR (5.0~50mm)

580 Line Color Dome Camera

Intensifier 2 Series

Wall & Ceiling Mountable

Please read this manual thoroughly before operation and keep

it handy for further reference.

WARNING & CAUTION

DO NOT use power sources other than that specified.______

The lighting flash with an arrowhead symbol, within an equilateral triangle is

Intended to alert the user to the presence of un-insulated “dangerous voltage”

within the product’s enclosure that may be of sufficient magnitude to constitute

a risk of electric shock to persons____________________________________

The exclamation point within an equilateral triangle is intended to alert the user

to the presence of important operating and maintenance (serving) instructions

in the literature accompanying the appliance__________________

INFORMATION -This equipment has been tested and found to company with

limits for a class a digital device Pursuant to part 15 of the FCC rules.

These limits are designed to provide reasonable protection against harmful

Interference When the equipments operated in a commercial environment.

This equipment generates, uses, and Can Radiate radio frequency energy and

if not installed and used in accordance with the instruction manual, may Cause

Harmful interference to radio communications. Operation of this equipment in a

residential area is likely to cause harmful interference in which

Case the user will be required to correct the interference at his own expense.

WARNING – Change or modification not expressly approved by the manufacturer could void

the user’s authority to operate the equipment__________________________________

CAUTION : To prevent electric shock and risk of fire hazards.

DO NOT expose this appliance to rain or moisture.000

This installation should be made by a qualified service person and should conform to all local codes.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK

DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE

REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL._______________

CAUTION

CONTENTS

Package Contents 4

Precautions 5

OSD Menu Tree

Camera Installation 6-9

Features 10-11

OSD Menu Details 13-16

Troubleshooting 17-18

Specifications 19

Dimensions 20

Warranty 21

PACKAGE CONTENTS

Please make sure that the following items are included

in the package:

1 HT7246IHR, HT7247IHR or HT7250IHR Camera

2 Mounting Screws

1 Chameleon Dome Cover

1 Video Test Connector

Please leave this manual with the end-user for future

reference.

PRECAUTIONS

•THIS CAMERA SHOULD BE ONLY INSTALLED BY QUALIFIED

PERSONNEL

•TO PREVENT A FIRE OR ELECTRICAL HAZARD PLEASE USE

PROPER POWER CABLE

•DO NOT CLEAN THE DOME COVER WITH AN ABRAISIVE

CLEANING MATERIAL - PLEASE USE A SOFT CLOTH OR

TISSUE TO CLEAN THE DOME COVER

•THERE ARE NO USER-SERVICEABLE PARTS INSIDE.

PLEASE DO NOT DISASSEMBLE THIS CAMERA OTHER THAN

TO MAKE INITIAL ADJUSTMENTS

•PLEASE USE A UL APPROVED REGULATED 24 VOLT AC OR

12 VOLT DC POWER SUPPLY

•PLEASE USE APPROPRIATE LOW VOLTAGE POWER CABLE

TO PREVENT FIRE OR ELECTRICAL SHOCK

•PLEASE INSURE THAT YOUR INSTALLATION AREA CAN

SUPPORT THE WEIGHT OF THE CAMERA

•PLEASE HANDLE THIS CAMERA CAREFULLY:

- DON’T USE A STRONG OR ABRASIVE DETERGENT WHEN

CLEANING THE CAMERA.

- DON’T EXPOSE THE CAMERA TO DIRECT SUN

CAMERA INSTALLATION

CONNECT POWER CABLE

1. WHEN USING 12 VOLTS DC (constant voltage 500 mA)

2. WHEN USING 24 VOLTS AC (40 Volt Amps)

3. CONNECT VIDEO CABLE

-CONNECT BNC CABLE TO THE BNC JACK.

4. CONNECT Alarm output (Relay output)

-Connect (+ , COM) for Positive activation and (-. COM) for

Negative activation of External Alarm Device when Motion

Detection is ‘ON’ in the camera.

DC 12V Power Supply

Power Input :RED

Center : (+)

+ RED

-WHITE

COM (GREY)

Alarm Output

Positive Alarm Device (NO)

Negative Alarm Device(NC)

Power Supply

AC 24V

Power Input :RED

Center : (+)

CAMERA INSTALLATION

COMPATIBILITY

CVCTPEXT 7246WMT * DFM2 BCP(Using 7246WMT)

HT7246(7)IHR

HT7250IHR

CVCTPEXT 7246WMT * DFM3 BCP(Using 7246WMT)

CAMERA INSTALLATION

* Spray the color of your choice onto the Chameleon cover

* If necessary, apply a second coat

* Painting method for the Chameleon Dome

Place the Chameleon Dome over the HT7246(7)iHR or HT7250iHR

and push until it snaps into position.

●Notes : Optional painting before installation

CHAMELEON COVER

If you wish to change the color of the HT7246(7)iHR or

HT7250iHR place the Chameleon Dome over the camera

CAMERA INSTALLATION

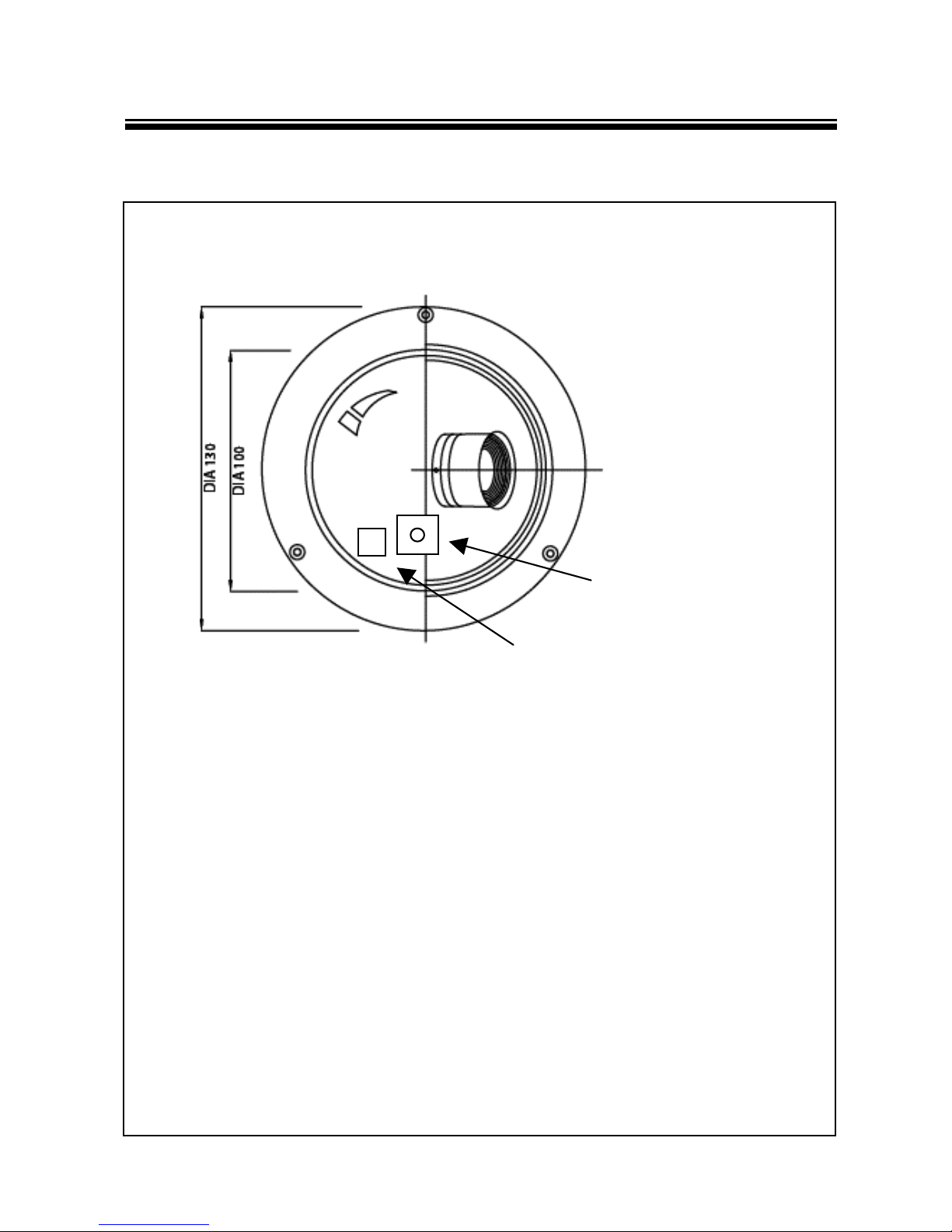

MECHANICAL

(1) DC AUTO-IRIS LENS

Adjust between TÅÆW (TELE ÅÆ WIDE) to set the

angle (focal length) Set the focus by adjusting ∞ÅÆN

NOTE: BOTH OF THE ABOVE ADJUSTMENTS GET LOCKED

INTO POSITION THROUGH THE USE OF "LOCKING HANDLES".

(2) OSD (On screen Display) JOY STICK

Press the Joy stick for one second and set as described in the manual

(3) VIDEO TEST TERMINAL

(1) DC Auto iris

Lens

(2) JOY STICK

(3) Video Test Terminal

FEATURES

High Resolution

Horizontal resolution of 580 TV lines is achieved by using a

SONY Super-HAD CCD with 410,000 pixels, and a custom DSP

yielding pictures with a high S/N ratio..

INTENSIFIER

1/3inch High-inch density CCD and digital processor permit high

quality Pictures to be captured in very low light condition.

SPECO DNR

The Intensifier camera has a DSP chip that can remove image

noise efficiently showing clean images in low light conditions.

Motion Detection with Alarm Output

Built in motion detector with adjustable areas of coverage will

Send a signal to an external alarm device when motion is detected.

DAY/NIGHT

The Intensifier camera can show color pictures in all lighting

conditions, or you can have it automatically switch to a B/W

picture in low light conditions
