Intensifier Series
Camera
HT-INTD3
HT-INTD4
Please read this manual thoroughly before operation and keep
it handy for further reference.
1 2
Contents
Package Contents Operating Your Camera
Troubleshooting
3
35~36
* SET UP --------------------------------------------------------------11~12
* SET UP LENS-------------------------------------------------------13~14
* SHUTTER SPEED CONTROL ----------------------------------15~18
* BACK LIGHT--------------------------------------------------------------19
* AUTO GAIN (AGC) -----------------------------------------------------20
* WHITE BALANCE --------------------------------------------------21~22
* REDUCE NOISE---------------------------------------------------------23
* INTENSIFIER-------------------------------------------------------------24
* CAMERA TITLE-------------------------------------------------------25~26
* DAY/NIGHT/SYNC---------------------------------------------------27~28
* MOTION DETECTION-----------------------------------------------29~30
* PRIVACY-------------------------------------------------------------------31
* REVERSE------------------------------------------------------------------32
* DETAIL----------------------------------------------------------------------33
* DEFAULT/RETURN-----------------------------------------------------34
Precautions 4
Camera Installation 5
Internal Components 6
Features 7~8
----------------------9~10
Specifications / Dimensions 37~38
Warranty 39
3 4
PRECAUTIONS
PACKAGE CONTENTS
Please make sure that the following items are included
in the package:
1 HT-INTD Camera
1 Remote Controller
1 IR Receiver
4 Mounting Screws
1 Allen Wrench
1 Allen Bit
1 Power Cable Adaptor (for optional use)
Please leave this manual with the end-user for future
reference.

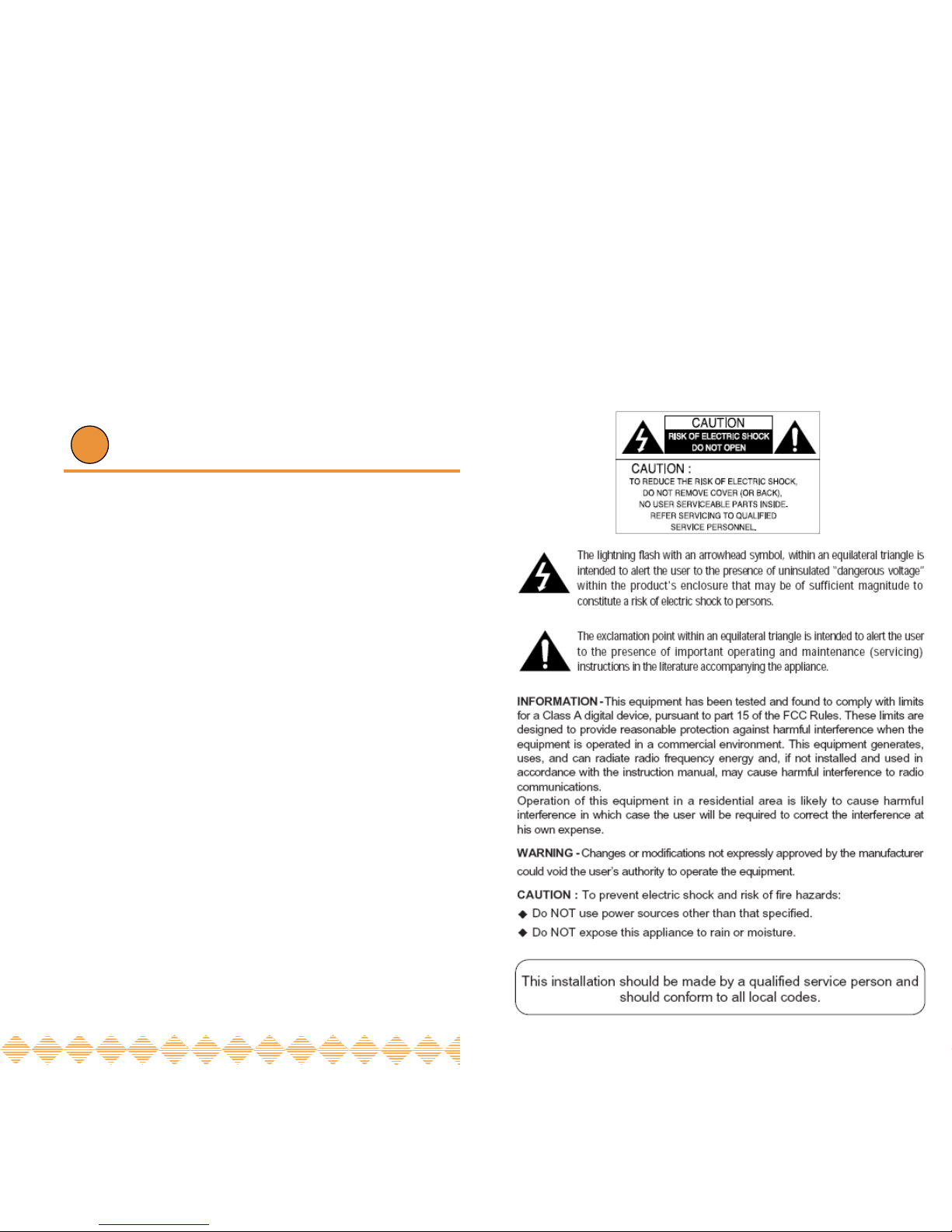

HT-INTD CAMERAS SHOULD BE ONLY INSTALLED BY
QUALIFIED PERSONNEL
TO PREVENT A FIRE OR ELECTRICAL HAZARD PLEASE
USE PROER POWER CABLE.
DO NOT CELAN THE COVER WITH AN ABRAISIVE
CLEANING MATERIAL - PLEASE USE A SOFT CLOTH OR
TISSUE TO CLEAN THE DOME COVER
THERE ARE NO USER-SERVIEABLE PARTS INSIDE.
PLEASE DO DISASSEMBLE THIS CAMERA OTHER THAN
TO MAKE INITIAL ADJUSTMENTS.
PLEASE USE A UL APPROVED REGULATED 24 VOLT AC
OR 12 VOLT DC POWER SUPPLY
PLEASE USE APPROPRIATE LOW VOLTAGE POWER
CABLE TO PREVENT FIRE OR ELECTRICAL SHOCK.
PLEASE INSURE THAT YOUR INSTALLATION AREA CAN
SUPPORT THE WEIGHT OF THE CAMERA.
PLEASE HANDLE THIS CAMERA CAREFULLY:
- DON’T EXPOSE THE CAMERA TO DIRECT SUN
5 6
Connections:
1. When using 12-Volts DC (constant voltage 600mA)
-CONNECT POWER TO THE POWER JACK.
2. When using 24-Volts AC (40 VA)
-CONNECT ACCESSORY CABLE TO THE POWER JACK AND
CONNECT AC 24V TO THE LEAD.
3. CONNECT VIDEO CABLE
-CONNECT BNC CABLE TO THE BNC JACK.
Note: All connections can be made directly to the PCB if desired
CAMERA INSTALLATION
connect
CENTER:(+)
POWER INPUT:RED
AC 24V
connect
CENTER:(+)
POWER INPUT:RED
YELLO W: VIDEO O UT
INTERNAL COMPONENTS
1. Structure
(1) DC AUTO-IRIS LENS
Adjust between TÅÆW (TELE ÅÆ WIDE) to set the angle (focal
length)
Set the focus by adjusting 쏒N
NOTE: BOTH OF THE ABOVE ADJUSTMENTS GET LOCKED
INTO POSITION THROUGH THE USE OF "LOCKING HANDLES".
DC Auto lris
4~9m or 5~50mm
Features
♣SLC
When the image is in front of strong background lighting,
your camera allows you to get the best image.
♣INTENSIFIER
1/3 inch high density CCD and digital processor permit
high quality pictures to be captured in very low light
conditions.
♣High Resolution
Horizontal resolution of 530TV lines is
achieved by using a SONY Double Speed CCD with
410,000 pixels, yielding pictures with a high S/N ratio.
♣Motion Detection
Built in motion detector with adjustable areas of coverage will
flash a warning on the screen when motion is detected.
♣Dynamic Noise Reduction
The Intensifier camera has a DSP chip that can
remove image noise, showing clean images in
low light conditions.
♣ELECTRONIC DAY / NIGHT
The Intensifier camera can show color pictures in all lighting
conditions, or you can have it automatically switch to a B/W
picture in low light conditions
♣MANUAL / AUTO IRIS LENS
The Intensifier camera will work with auto iris,manual iris and
fixed iris lenses.
♣OSD
All camera functions are menu driven for easy use.
7 8
◈Functions
9
Operating your camera
SET UP MENU LENS OPTION
●DC ●MANUAL
SHUTTER
●OFF ●F/L ●MANUAL
WHITE BALANCE
●ATW ●AWC MANUAL●
SLC – ( Speco Light Compensation )
●OFF ●LOW ●MIDDLE ●HIGH
Auto Gain
●OFF ●LOW ●MIDDLE ●HIGH
REDUCE NOISE
●OFF ●LOW ●MIDDLE ●HIGH
INTENSIFIER
●AUTO ●OFF
NEXT PAGE
●CAMERA TITLE ●DAY/NIGHT ●SYNC
●MOTION ●PRIVACY ●REVERSE
●DETAIL ●DEFAULT ●PAGE 1
EXIT
◈OSD Menu Setting
SETUP DOWN
LEFT
LEFT
DOWN
UP
RIGHT
SET
10
Operating your camera
11 12
When you call Camera Address
01
->Push 0 Button
->Push 1 Button
->Push CAM Button
Power Connector
(DC12V in)
485(+),(-)
Baud Rate Setting
Buzzer On/Off
1. When controledl by RS-485, Pelco-D protocol (Option), refer to the following.
A. DIP Switch Setting on the Camera
(Factory default : Camera Address = 01, Baud Rate = 2400bps)
B. Receiver Setting to use with IR Remote Controller
(Factory default : Baud Rate = 2400bps, Chart is same as
above)
C. System Integration
D. IR Remote Controller
-Can call and control each camera on the monitor by the following.
•Up to 15 Cameras can be
controlled by 1 IR Remote
Controller & 1 Receiver. You
must set up each camera’s
address by DIP Switches for
proper addressing.
Multiflexer
CCD Camera
Monitor
SET / Menu buttonUP button
DOWN
button
RIGHT button
LEFT button
Receiver
IR Remote
Controller
485(+)
485(-)
①②
RS485 Address Set
①
RS485 Baud rate Set
②
•Please Observe Polarity!
Operating your camera Operating your camera - LENS
1. Press the SET button to access the SETUP mode.
●SETUP menu is displayed on the monitor screen.
2. Select the desired feature using the UP or DOWN button.
●Each time you press the UP or DOWN button, the arrow
indicator moves up or down.
●Move the arrow indicator to the desired feature item.
3. Change the status of the selected feature using the LEFT
or RIGHT button.
4. When completed, move the arrow indicator to ‘EXIT’ and press
the SET button.
•●You can access the submenu by using SET button.
•●For the mode with ’---’, you may not access submenu.
13 14
Notes
1) Setting up the LENS
Select the lens by pressing the RIGHT button.
①On the SETUP menu screen, move the arrow indicator to the lens
using the UP or DOWN button.
②Select the desired feature using the LEFT or RIGHT button.

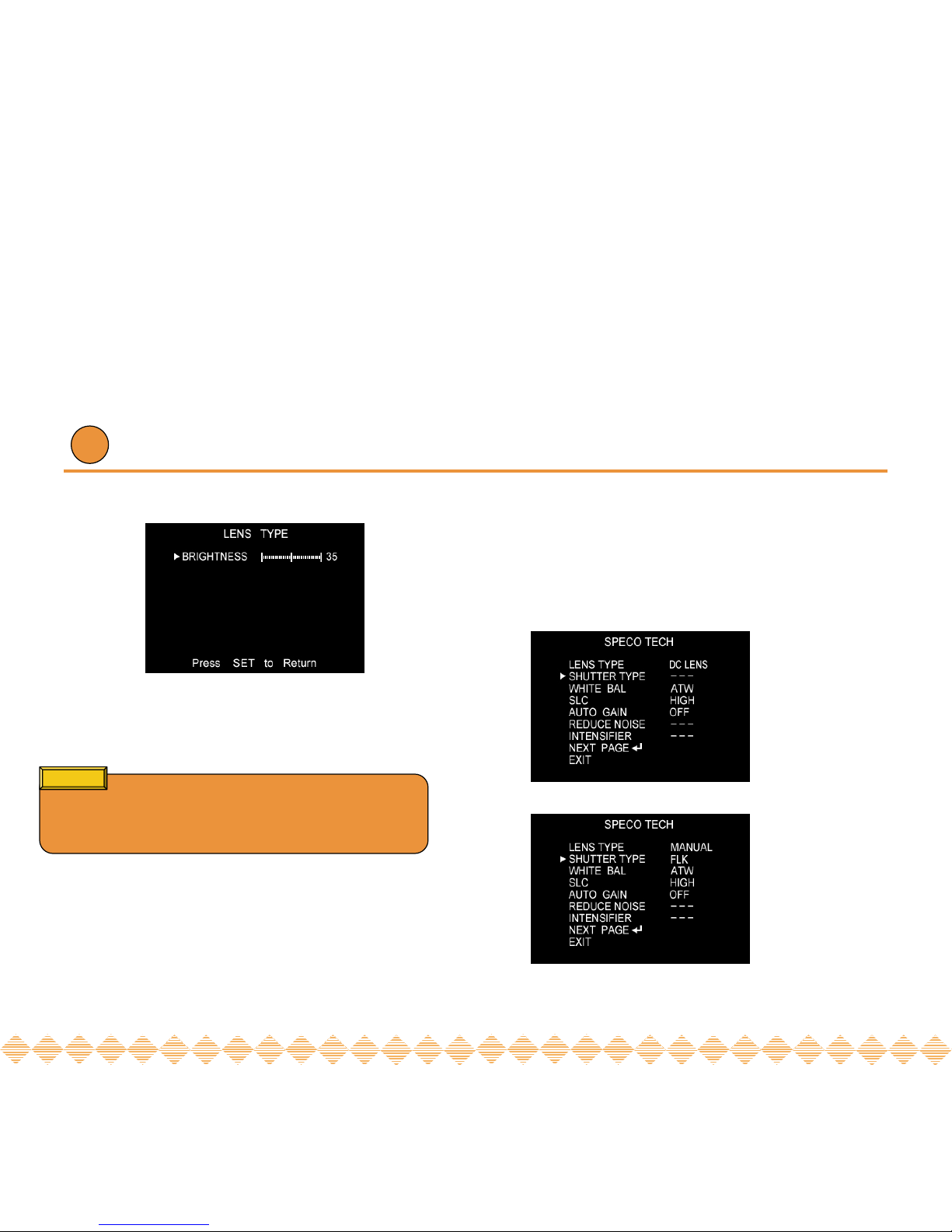

Operating your camera – SHUTTER SPEED CONTROL①
▶When the DC LENS is selected, press the SET button
to control the BRIGHTNESS.
●AUOT IRIS LENS (DC TYPE) is recommended
Notes
15 16
2) Shutter status and speed control
You can control brightness of the screen by the shutter speed.
①Press the SET button to display the setup menu and move the arrow
indicator to ‘SHUTTER’ using the UP or DOWN button.
②Set ‘SHUTTER’ to the desired mode using the LEFT or RIGHT
button.
▶OFF : Deactivation
▶FLK (1/100) : Flicker mode
