Spectra Logic 2007 Bedienungsanleitung
Spectra Logic is the leading innovator in data archive and backup.
We help customers all over the world protect data with power-
efficient products that let users reduce risk, lower cost and save
time. Spectra Logic’s archive and backup products are designed
specifically for secondary storage needs and are compatible with
every major operating system, backup application, tape and disk
format. Spectra products provide integrated library encryption
and key management options through the intuitive BlueScale 10
interface. Spectra’s energy efficient tape libraries and disk products
use far less power than other comparable products. The company’s
tape, disk and encryption solutions are designed to evolve over
time. Spectra products are an excellent investment for IT managers
who project growth and plan for years into the future. Since Spectra
Logic was founded in 1979, the company has introduced innovative,
industry-leading products including: Archive and Backup Servers
(nTier-2007); hardware-based, VTL encryption with compression
(RXT-2006); hardware-based, library-enabled encryption with
compression (BlueScale Encryption-2005); and integrated tape and
disk in a single library (Spectra T950 with RXT-2004). Spectra Logic
is changing the world of storage.
Products
Products by Capacity
Enterprise Storage / Large Organizations
T950 with optional RXT VTL, 64K, nTier900
Medium-Large Organizations
T680, T380, T120, RXT350, 20K, nTier700
Small-Medium Organizations
T200, T120, T50, 20K, 2K, RXT150, RXT350, nTier500
Small Organizations
T50, T24, 2K, iSCSItape, DAStape, RXT150, RXT350, nTier500
Products for All Organizations
Certified Media, SpectraGuard Support
BlueScale Encryption, library-based: T950, T680, T380, T200, T120
BlueScale Encryption and Key Management , LTO-4 based:
T950, T680, T380, T200, T120, T50
Products by Drive Type
LTO: T950, T680, T380, T200, T120, T50, T24, iSCSItape, DAStape
SAIT: T950, T680, T380, T200, T120, iSCSItape, DAStape
SDLT: T950, T680, T380, T200, iSCSItape, DAStape
AIT: 64K, 20K, 2K, iSCSItape, DAStape
RXT Virtual Tape Library: T950, T680, T380, T200, RXT150, RXT350
SATA Disk: nTier500, nTier700, nTier900
1
2
Table of Contents
T-Series Libraries
Spectra® T950 Page 3-4
Spectra T200, T380, T680 Page 5-6
Spectra T120 Page 7
Spectra T50 Page 8
Spectra T24 Page 9
RXT Mobile Disk
Spectra RXT®Page 11
Stand-Alone Tape Drive
iSCSItape, DAStape Page 12
nTier RAID DISK
nTier500, nTier700, nTier900 Page 13-14
K-Series Libraries
Spectra 64K, 20K Page 15
Spectra 2K Page 16
BlueScale®Platform
BlueScale Environment Page 17
BlueScale Encryption Page 18
Awards–Support–Media
Awards Page 19
Support Page 20
T-Series Libraries
Enterprise Storage Without Compromise: The Spectra T950 Library
For enterprise organizations, the award-winning Spectra T950 library is the best
tape and VTL backup platform on the market. It offers the most features, highest
reliability, the most storage and is the only data protection platform offering the
options of integrated tape, VTL and AES-256 bit encryption with complete key
management. Spectra Logic BlueScale Encryption provides key management
through the standard library interfaces for both library-based encryption and
LTO-4 drive-based encryption.
Scale the Spectra T950 Library As Needed: Investment Protection
The Spectra T950 library grows along with your data. You can expand the
Spectra T950 library in large or small increments, adding capacity, drives and
VTL storage as you go. You can expand beyond one frame to as many as eight
frames, up to 120 drives, and as many as 10,050 cartridges.
3
Single-Frame Spectra T950
By adding an RXT drive, you
instantly add VTL capabilities to
your library.
Multi-Frame Spectra T950
4
H x W x D: 78.77 x 30.63 x 43.21 in /200 x 77.8 x 109.8 cm
Weight (loaded): 1850 lb (LTO) /839.2 kg
Connectivity: Fibre Channel, iSCSI
Min/Max Slots: 100/10,050
Single-Frame Spectra T950
Max. Capacity
Single-Frame T950
Max. Performance
Single-Frame T950
Max. Capacity
Eight-Frame T950
Max. Performance
Eight-Frame T950
Quantity Max.
Capacity
Max.
Throughput
Drive
Media
LTO-4
SDLT 600
SAIT-1
RXT VTL
950 tapes
855 tapes
950 tapes
95 packs
1520 TB*
513 TB*
1235 TB*
114 TB
LT
O
-4
9
50 tapes 1520 TB*
S
AIT-
1
9
50 tapes 1235 TB*
LTO-4
SDLT 600
SAIT-1
RXT VTL
LT
O
-4
S
AIT-
1
24
24
24
22
20.7 TB/hr*
6.2 TB/hr*
6.7 TB/hr*
7.9 TB/hr
10,050 tapes
9,045 tape
10,050 tapes
1,005 packs
LTO-4
SDLT 600
SAIT-1
RXT VTL
16.08 PB*
5.43 PB*
13.07 PB*
1.2 PB native
LTO-4
SDLT 600
SAIT-1
RXT VTL
120
120
120
110
103.68 TB/hr*
31.1 TB/hr*
33.7 TB/hr*
39.6 TB/hr native
Quantity
* Capacity and throughput values calculated using compression unless otherwise noted
Drives Supported:
LTO-2, LTO-3, LTO-4, SAIT-1, SDLT
Support planned for future drive generations
T-Series Mid-Range Libraries
Designed for mid-range growth and scalability:
The Spectra®T200, T380 and T680 Libraries
The Spectra mid-range T-Series libraries are engineered, from the ground up,
to preserve your initial investment in storage. Investment protection is realized
by utilizing components which are interchangeable between the T200, T380 and
T680 libraries, allowing you to seamlessly scale (TranScale™) between libraries
as your organization grows. Integrating both tape and disk, Spectra’s industry-first
TranScalable™architecture is designed with your growth in mind and will meet your
future capacity and feature needs.
Spectra T200
Spectra T380
Spectra 680
5
Drives Supported:
LTO-2, LTO-3, LTO-4, SAIT-1, SDLT
Support planned for future drive generations
Physical Characteristics:
T200 H: 35” W: 17.5” D: 40.5” 20U•
T380 H: 49” W: 17.5” D: 40.5” 28U•
T6801H: 73.5” W: 17.5” D: 40.5” 42U•
Interfaces for the T200, T380, T680
Native SCSI
Native Fibre Channel (4Gb)
FC I/O Blade
•2Gb,dualport
•4Gb,dualport
iSCSI I/O Blade
•1Gb,dualport
•iSCSITCP/IPOffloadEngine(TOE)
Weights:
T200 Base Frame (No Drives or Media): 185lbs•
T380 Base Frame (No Drives or Media): 250lbs•
T680 Base Frame (No Drives or Media): 375lbs•
All Drive/Sled: 12lbs•
TeraPack Case (with Media): 6lbs•
Drive Model Maximum Drives Maximum Throughput*
LTO-4
240 MB/sec
Compressed
T200 8 Full Height 6.9 TB/Hour Compressed
16 Half Height 13.8 TB/Hour Compressed
T380 12 Full Height 10.4 TB/Hour Compressed
24 Half Height 20.8 TB/Hour Compressed
T680 12 Full Height 10.4 TB/Hour Compressed
24 Half Height 20.8 TB/Hour Compressed
6
* Maximum capacity and throughput may change according to configuration.
Model Media
Maximum
Capacity*
T200 200 LTO-4 1.6 TB Compressed 320 TB
RXT VTL 2.0 TB Native 40 TB
T380 380 LTO-4 1.6 TB Compressed 608 TB
RXT VTL 2.0 TB Native 76 TB
T680 680 LTO-4 1.6 TB Compressed 1.1 PB
RXT VTL 2.0 TB Native 136 TB
Maximum
Slots
1. Ships with a standard 19” rack.
7
T-Series Libraries
Affordable Storage Without Compromise: The Spectra T120 Library
The Spectra T120 library is a rack mountable solution that installs easily while
still offering enterprise-class feature options, such as BlueScale Encryption
with an integrated key management suite. The T120 saves you time—up to
80%—through ease of use, lowers costs by up to 40% through long life-span and
energy efficiency, and reduces risk of exposure through tape loss by 100% using
optional BlueScale Encryption. The high-density Spectra T120 library supports up
to 6 drives, and starts with 30 slots. Expand to 120 slots quickly and easily using
CoD (Capacity on Demand). The Spectra T120 library simultaneously supports
multiple generations of LTO and SAIT.
Spectra T120 Capacity*
Media Quantity Maximum Capacity
LTO-4 120 192 TB
LTO-3 120 96 TB
SAIT-1 120 156 TB
Spectra T120 Throughput*
Drive Quantity Maximum Capacity
LTO-4 6 5.2 TB/hr
LTO-3 6 3.5 TB/hr
SAIT-1 6 1.7 TB/hr
* Capacity and throughput values calculated using compression
H x W x D: 24.5 x 17.5 x 36.5 in / 62 x 44 x 93 cm
Rack height: 14U
Weight (loaded): 305 lb / 138.3 kg
Connectivity: Fibre Channel, SCSI, iSCSI
Min/Max Slots: 30 / 120
Drives Supported:
LTO-2, LTO-3, LTO-4, SAIT-1
Support planned for future drive generations
Spectra T120
8

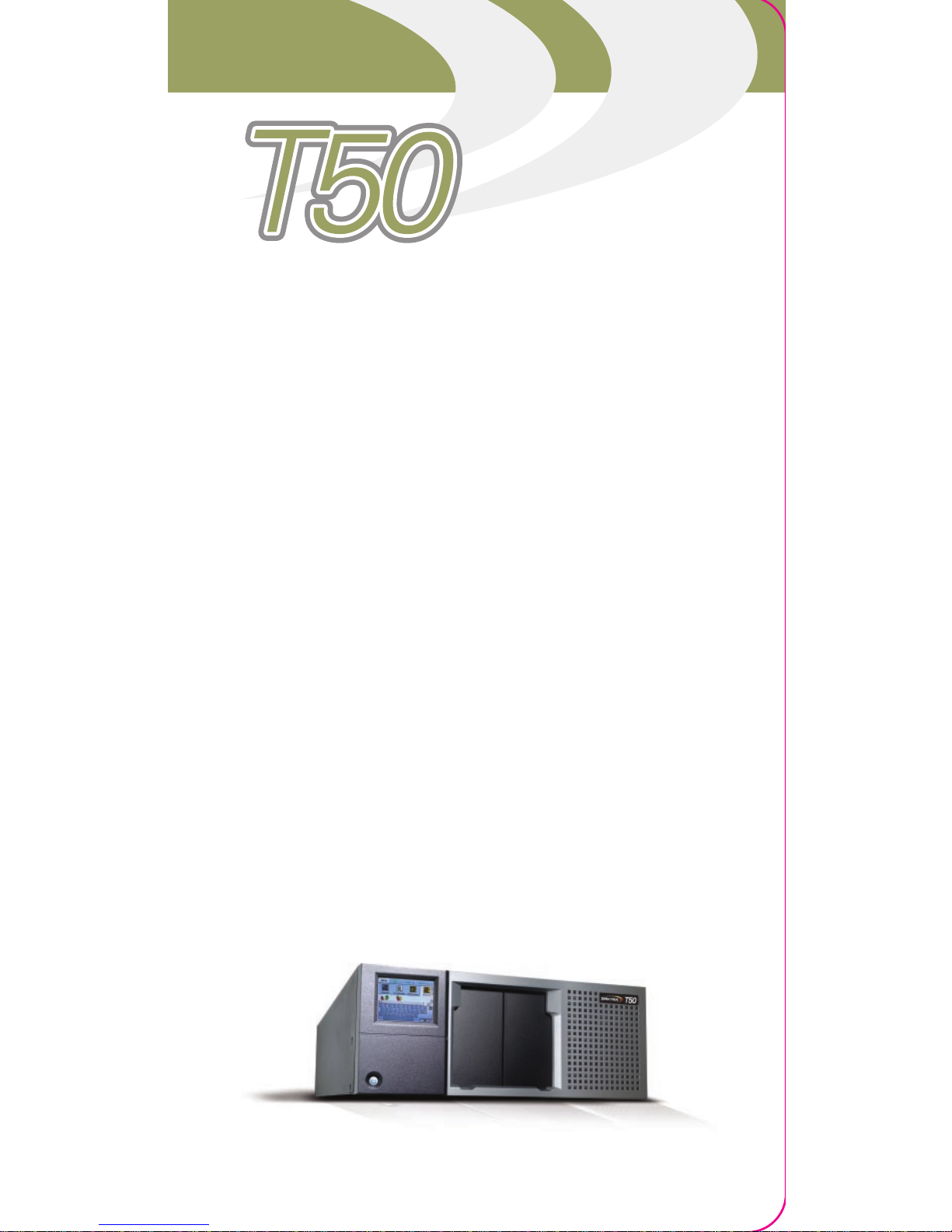

Agile, Advanced, and Affordable: The Spectra T50 Library
The Spectra T50 is an easy-to-use library that includes BlueScale Encryption,
so you can encrypt and backup data in a single step. The Spectra T50 library
scales easily, growing with your data. Add drives to increase throughput, and add
slots in just minutes to increase capacity. The library is easy to manage using the
BlueScale 10 library interface, available either through the library’s touch-screen
front panel or through a Web browser from anywhere. Manage encryption through
the same interface, using BlueScale key management features that let you
create, protect, and encrypt copies of keys for safekeeping. The Spectra T50
library provides features and an ease-of-use that are unmatched.
Spectra T50 Library*
Maximum Capacity: 50 tapes, 80 TB LTO-4
Maximum Throughput: 2 LTO-4; 1.7 TB/hr
Connectivity: SCSI, iSCSI, Fibre Channel
H x W x D: 7 x 17.5 x 29 in / 18 x 44.5 x 73.7 cm
Reliability: MCBF greater than 500,000/hrs
Increase capacity: 5 slot increments
Min/Max slots: 10/50
* Capacity and throughput values calculated using compression
Drives Supported:
Full-height: LTO-3, LTO-4,
Half-height: LTO-2
Support planned for future drive generations
Spectra T50
