Spectra 20K Library
Unpacking and Installation Guide
Spectra 20K Library Unpacking and Installation Guide
2
Notices
Spectra Logic Corporation provides the unit “as is” without warranty of any kind, either
expressed or implied, including but not limited to the implied warranties of merchantability or
fitness for a particular purpose. In no event shall Spectra Logic be liable for any loss of profits,
loss of business, loss of use or data, interruption of business, or for indirect, special, incidental,
or consequential damages of any kind, even if Spectra Logic has been advised of the possibility of
such damages arising from any defect or error.
Information furnished in this manual is believed to be accurate and reliable. However, no responsibility
is assumed by Spectra Logic for its use. Due to continuing research and development, Spectra Logic may
revise this publication from time to time without notice, and reserves the right to change any product
specification at any time without notice.
Spectra 20K Library Unpacking and Installation Guide
Copyright © 2004 Spectra Logic Corporation. All rights reserved.
Spectra Logic Contact Information
United States Office European Office
Mailing
Address
Spectra Logic Corporation
1700 N 55th Street
Boulder CO 80301
USA
Mailing
Address
Spectra Logic Europe Limited
Hampden House
Monument Business Park
Warpsgrove Lane
Chalgrove Oxon
UK-OX44 7RW
Phone
Fax
(800) 833-1132 or (303) 449-6400
(303) 939-8844
Phone
Fax
+44 (0) 870 112 2150
+44 (0) 870 112 2175
Web Site http://www.spectralogic.com
Spectra 20K Library Unpacking and Installation Guide
3
Contents
Introduction ................................................................................................ 4
Prepare the Unpacking Location................................................................ 5
Unpack the Library .....................................................................................6
Remove the Internal Packaging ................................................................. 9
Check the Transport Tray and Picker Motion.......................................... 14
Replace the Robotic Rack Assembly ........................................................ 16
Install Components................................................................................... 19
Install QIPs ............................................................................................... 20
Install Drives ............................................................................................. 21
Power On .................................................................................................. 22
Initialization .............................................................................................. 23
Verify Drive Installation............................................................................ 24
System Setup............................................................................................. 27
Partitioning the Library ............................................................................ 30
Install New Picker..................................................................................... 31
Load Media................................................................................................ 32
Finish......................................................................................................... 33
Spectra 20K Library Unpacking and Installation Guide
4
Introduction
About This Guide
This document describes the steps needed to unpack and install the Spectra 20K
library. If you have questions about any of the procedures you can access more
detailed documentation on the Spectra Logic Web site at: www.spectralogic.com.
Estimated Time Required
Unpacking the Spectra 20K library will take less than half an hour.
Installing the library will take about two hours.
The rack mounting process will take less than an hour, if you choose to rack mount the
library.
Materials and Tools Required
You will need:
• A small flat head screwdriver
• A large flat head screwdriver
• A #2 Phillips screwdriver
• A pair of scissors
Spectra 20K Library Unpacking and Installation Guide
5
Prepare the Unpacking Location
You will need 10 feet of access at the front and back of the crate to safely unpack the
library. Once the library is out of the crate, you will need to move the library to a work
space where you have access to all four sides. Make sure that you have this area
prepared before you remove the library from the crate.
Spectra 20K Library Unpacking and Installation Guide
6
Unpack the Library
1. Use the scissors to cut away the plastic wrap surrounding the library and its crate.
2. Check Tip n Tell to ensure that the crate has not been improperly handled, before
proceeding (Figure 1).
The Tip n Tell is located on the side of the library.
Caution: Do not unpack the library if Tip N Tell or Shockwatch has been
tripped. Contact both the shipping company and Spectra Logic.

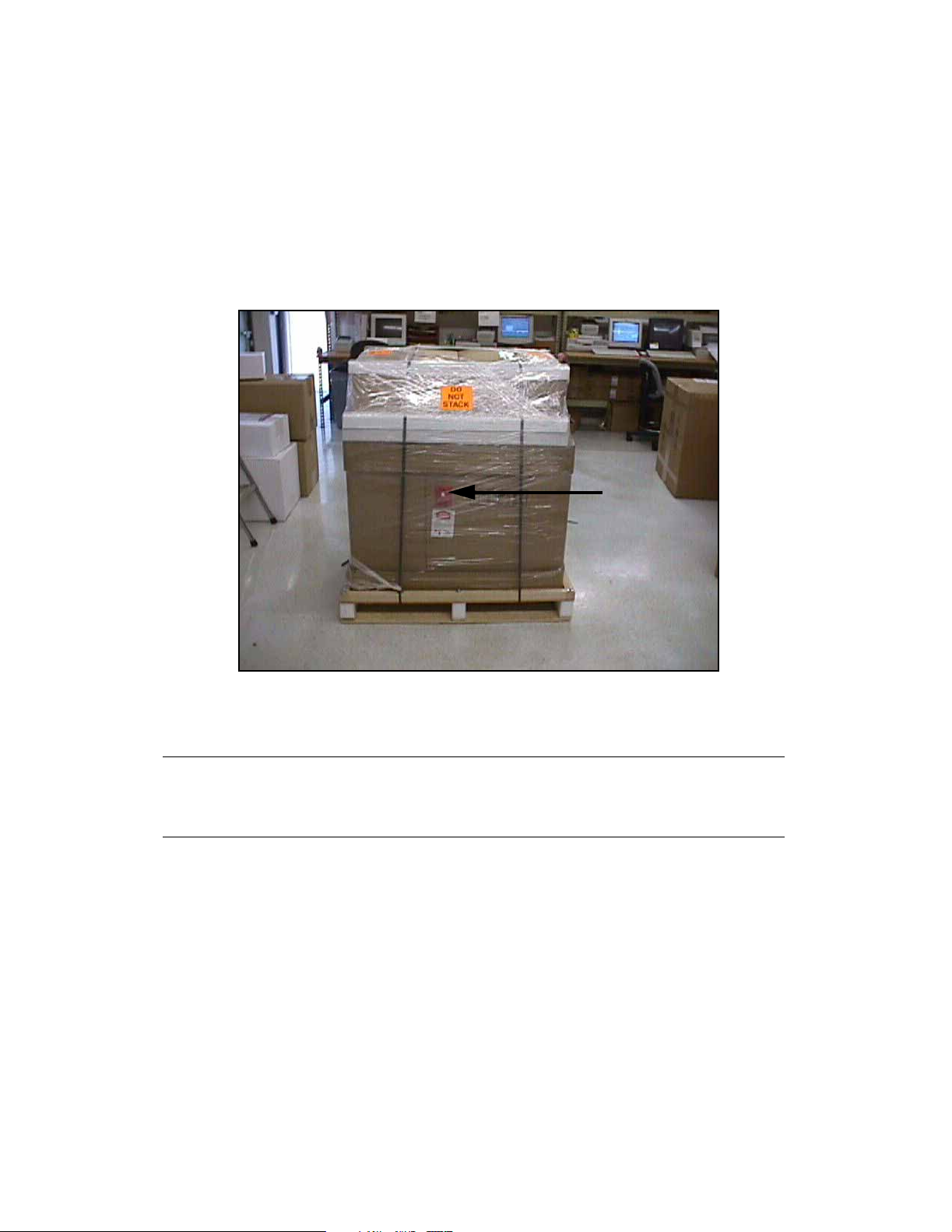

Figure 1 Check Tip n Tell and Shockwatch.
Tip n Tell
Spectra 20K Library Unpacking and Installation Guide
7
3. Use the scissors to cut the plastic bands holding the library and its boxes to the
crate (Figure 2).
4. Remove the protective cardboard corners, and set aside the drive box(es) and rail
kit (Figure 3).

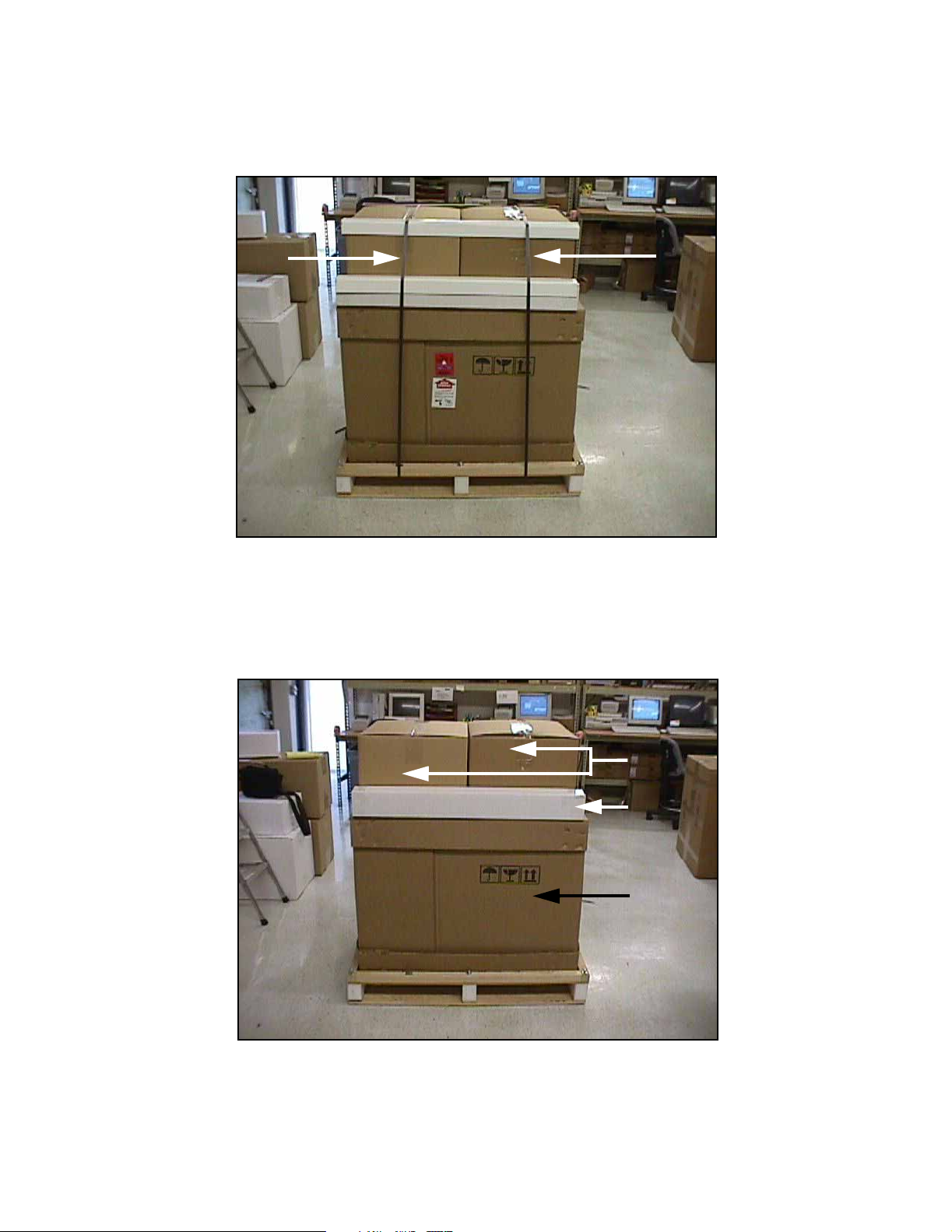

Figure 2 Cut the plastic bands.
Figure 3 The library with the drive boxes and rail kit identified.
Drive Boxes
Rail Kit
Library
Spectra 20K Library Unpacking and Installation Guide
8
5. Remove the top and sides of the box used to enclose the library.
6. Remove the protective foam corners.
7. Lift the plastic cover off of the library.
8. Lift the library out of the crate and move the library to a work space where there is
access to all sides of the library.
9. Inside the crate, check the Shockwatch®to ensure that the crate has not been
improperly handled, before proceeding (Figure 4).
The Shockwatch is located at the bottom of the crate directly under where the
library sits.
Caution: Do not unpack the library Shockwatch has been tripped.
Contact both the shipping company and Spectra Logic.
Warning: The library is heavy, about 267 lbs (121 kg). Use three or four
people to help move the library.

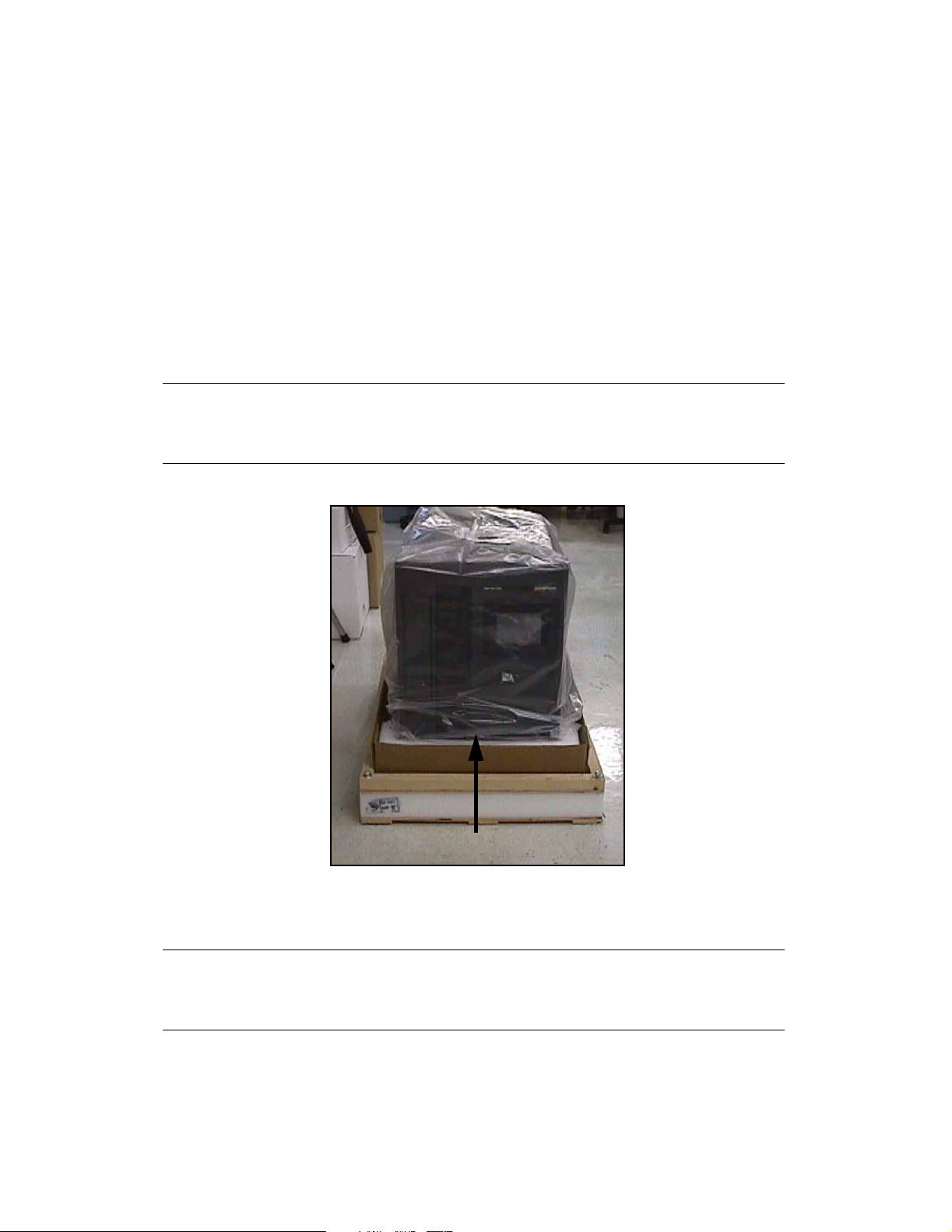

Figure 4 Remove the plastic cover.
Shockwatch
Spectra 20K Library Unpacking and Installation Guide
9
Remove the Internal Packaging
1. Locate the library key. (It will be in a condiment bag attached to the top of the
library.)
2. Use the key to unlock and open the front door of the library.

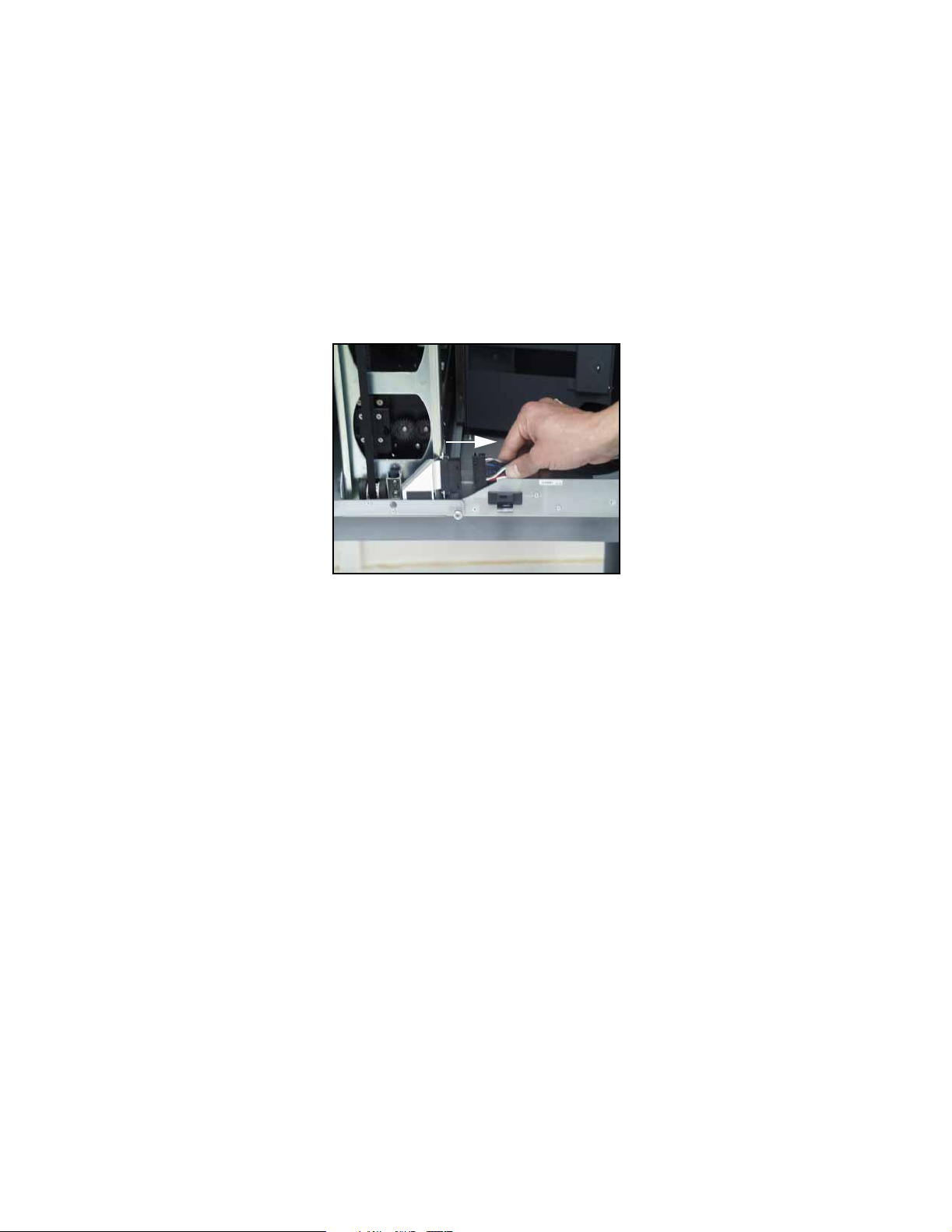

3. With the door opened, locate the robotic rack assembly and the 25-wire black
connector at the bottom front of the library (Figure 5).
4. Unplug the 25-wire black connector at the bottom front of the robotic rack
assembly, if necessary (Figure 5).
Figure 5 The robotic rack and the connector at the
bottom front of the library.
Spectra 20K Library Unpacking and Installation Guide
10

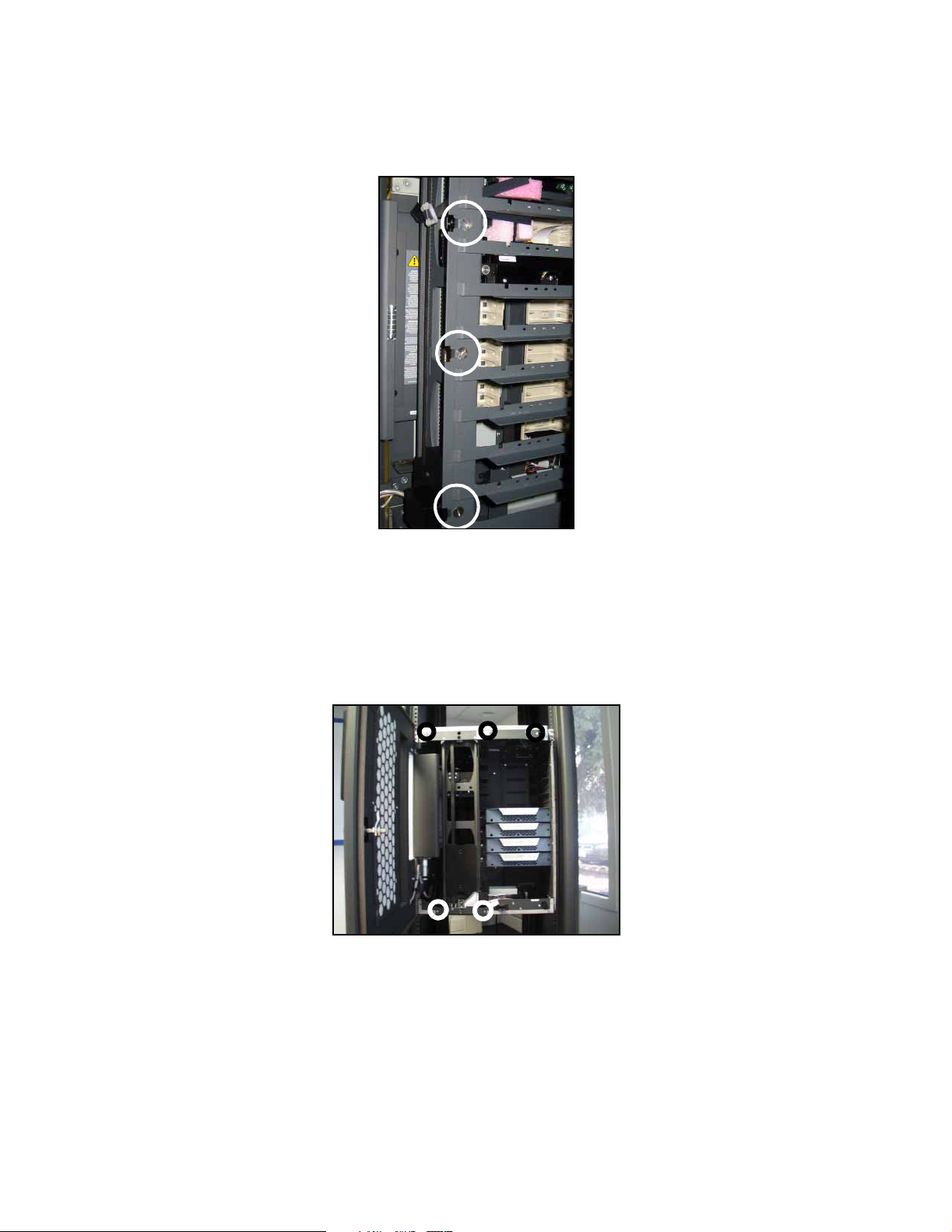

5. Remove the three screws holding the robotic rack assembly to the drive bay
(Figure 6).
6. Remove the five screws holding the robotic rack assembly in the chassis (Figure 7).
Figure 6 The three screws
holding therobotic rackassemblyto
the drive bay.
Figure 7 Location of the five screws in the chassis.
