Spectra Precision LL300S Installationsanleitung

LL300S Hands-On Training

January 2015

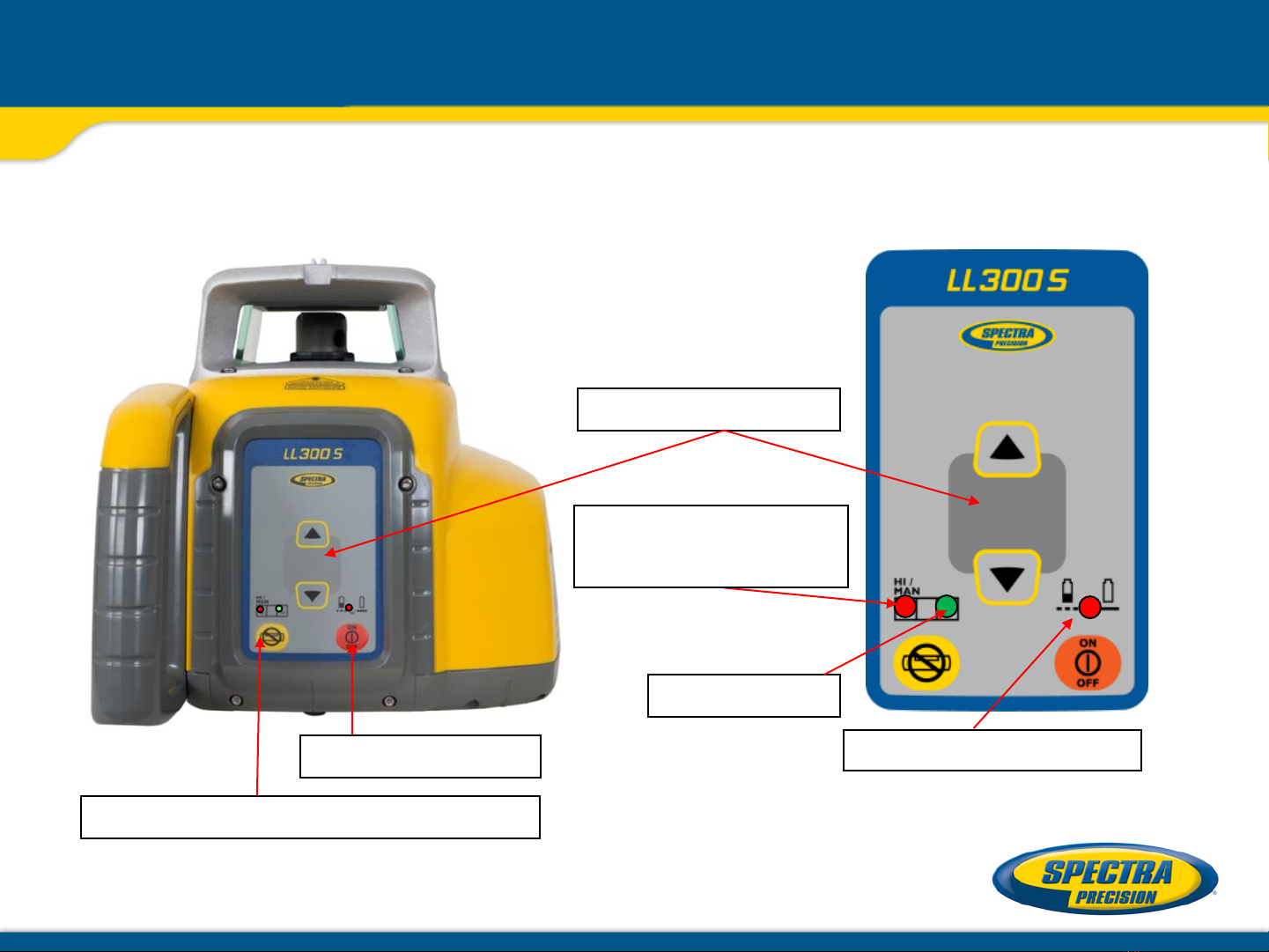

LL300S Controls

Battery Status LED

Level-LED

Manual Mode/Standby Button

Power Button

HI-/Manual-

Standby -LED

Slope Buttons

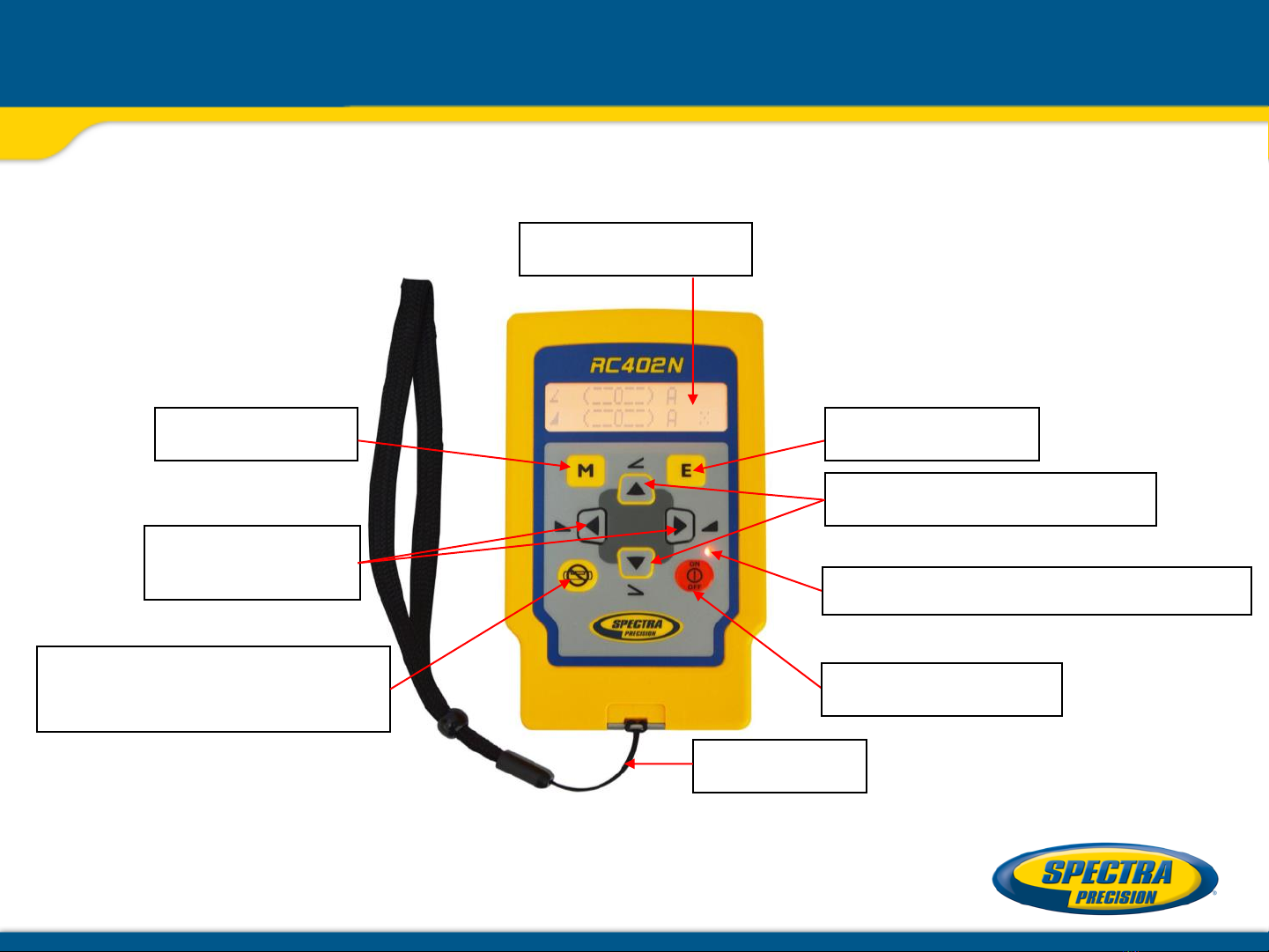

RC402N Radio Remote Control

Left & Right

Buttons

Menu button

Manual Mode/Standby

Button

Up & Down Buttons

LCD -Display

On/Off Button

RC402N-Battery status LED

Enter button

Hand loop

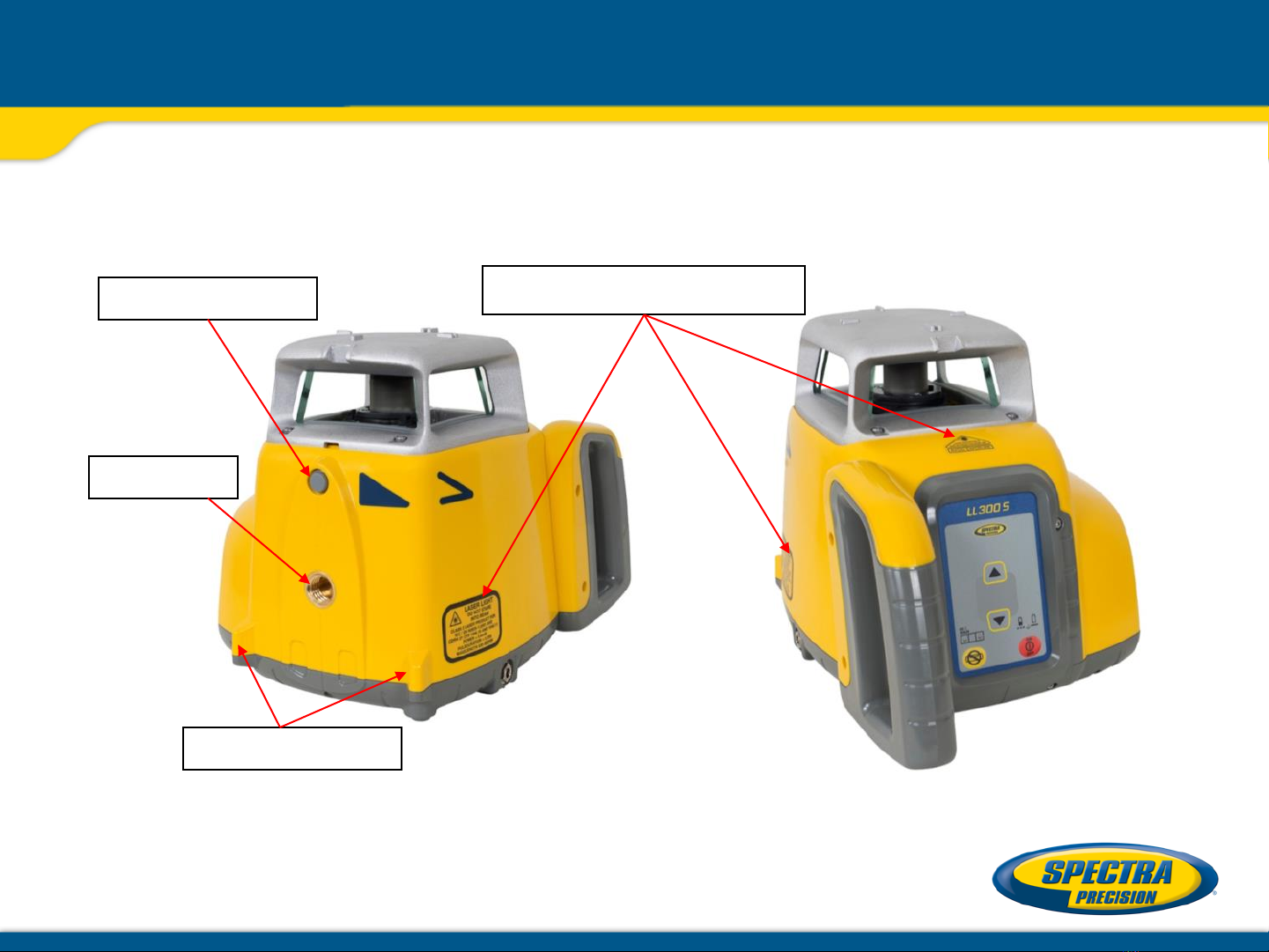

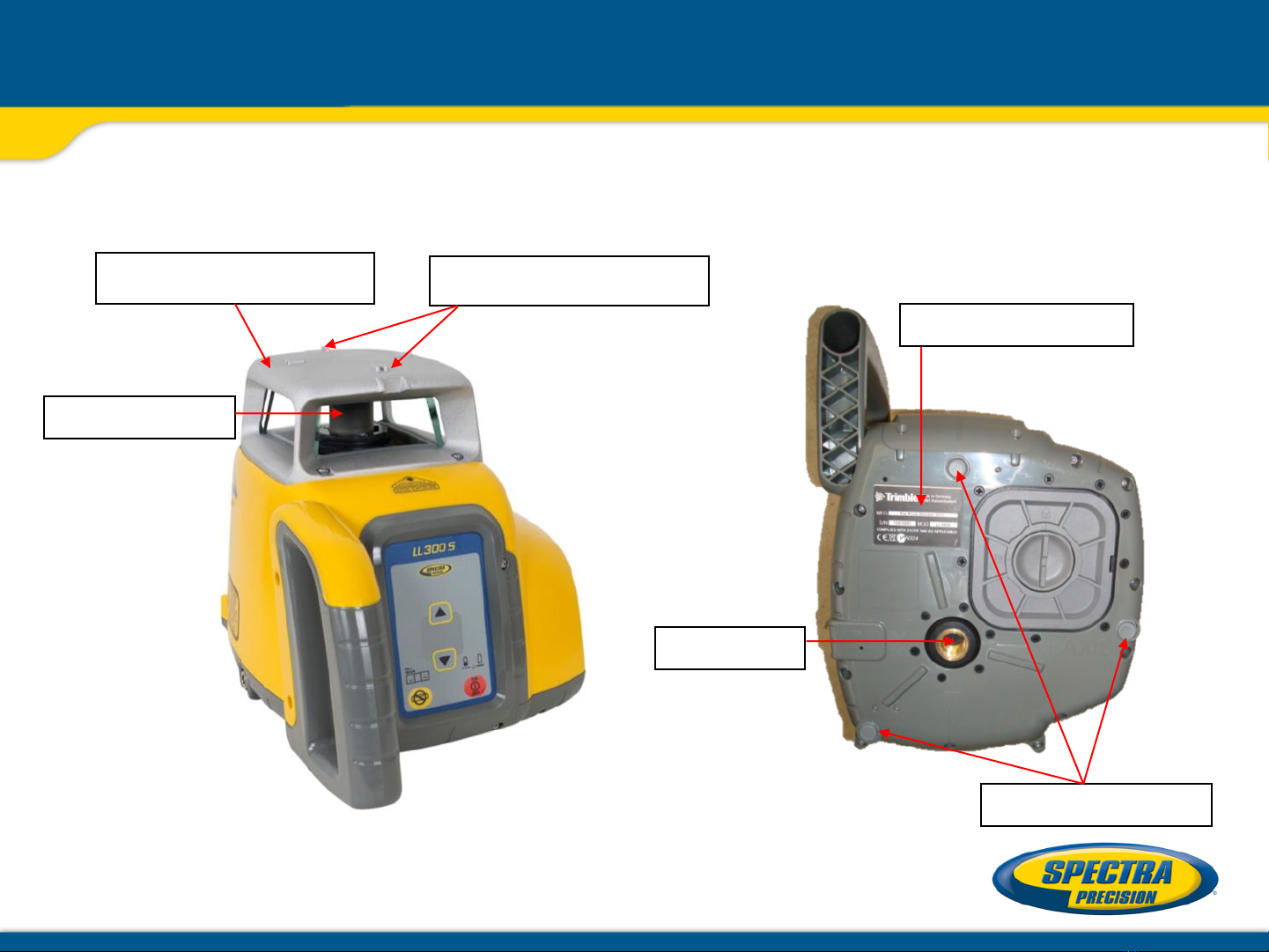

LL300S Peripherals

Rubber Feet

Serial Number

5/8” x 11

Beam Exit

Metal Sunshade Sighting Guides

LL300S Peripherals

Plastic Feet

Rubber Foot Laser Safety Labels

5/8” x 11

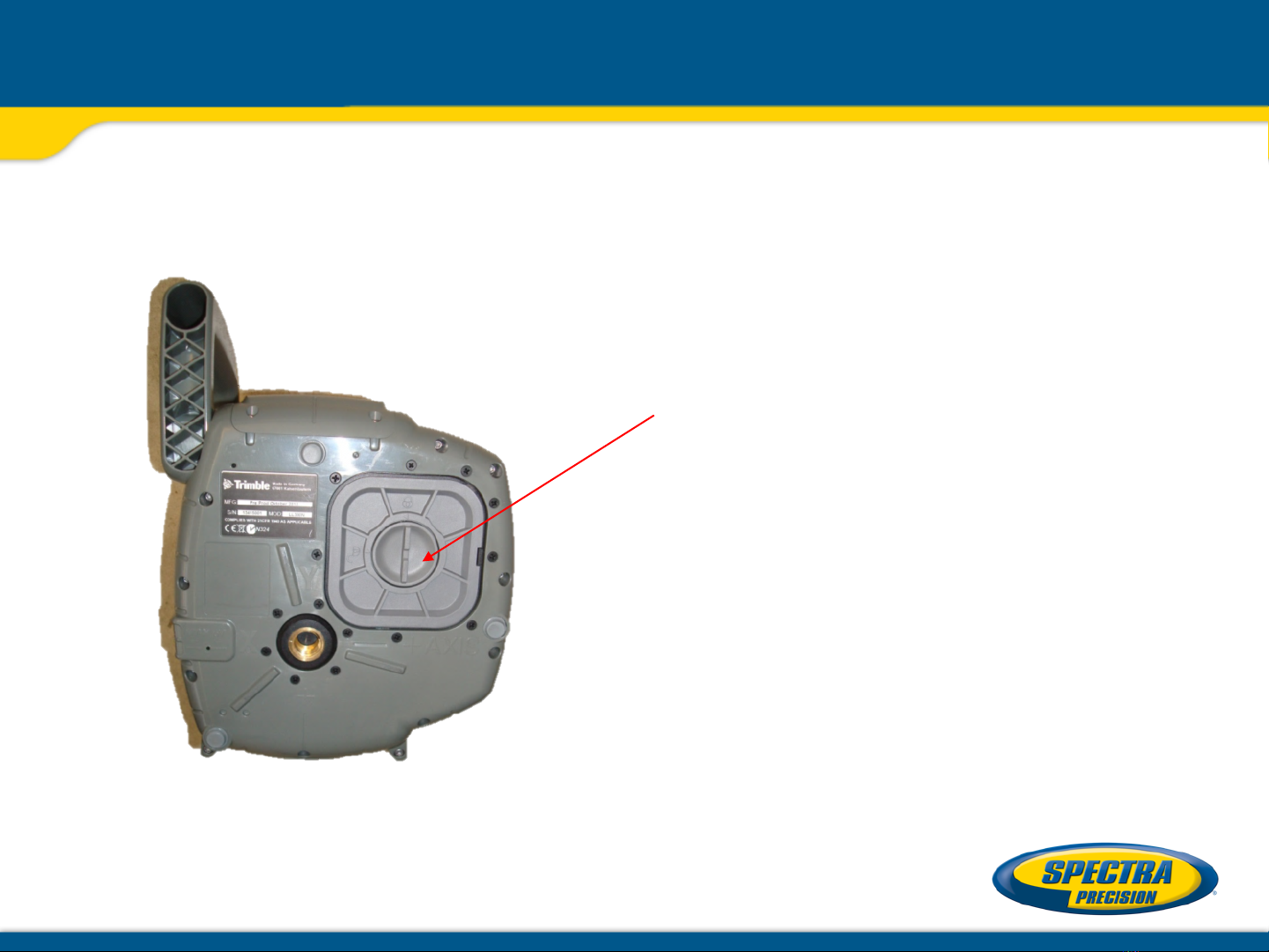

Installing The Batteries

§Enter the battery housing,

by turning the battery-

door knob

counterclockwise

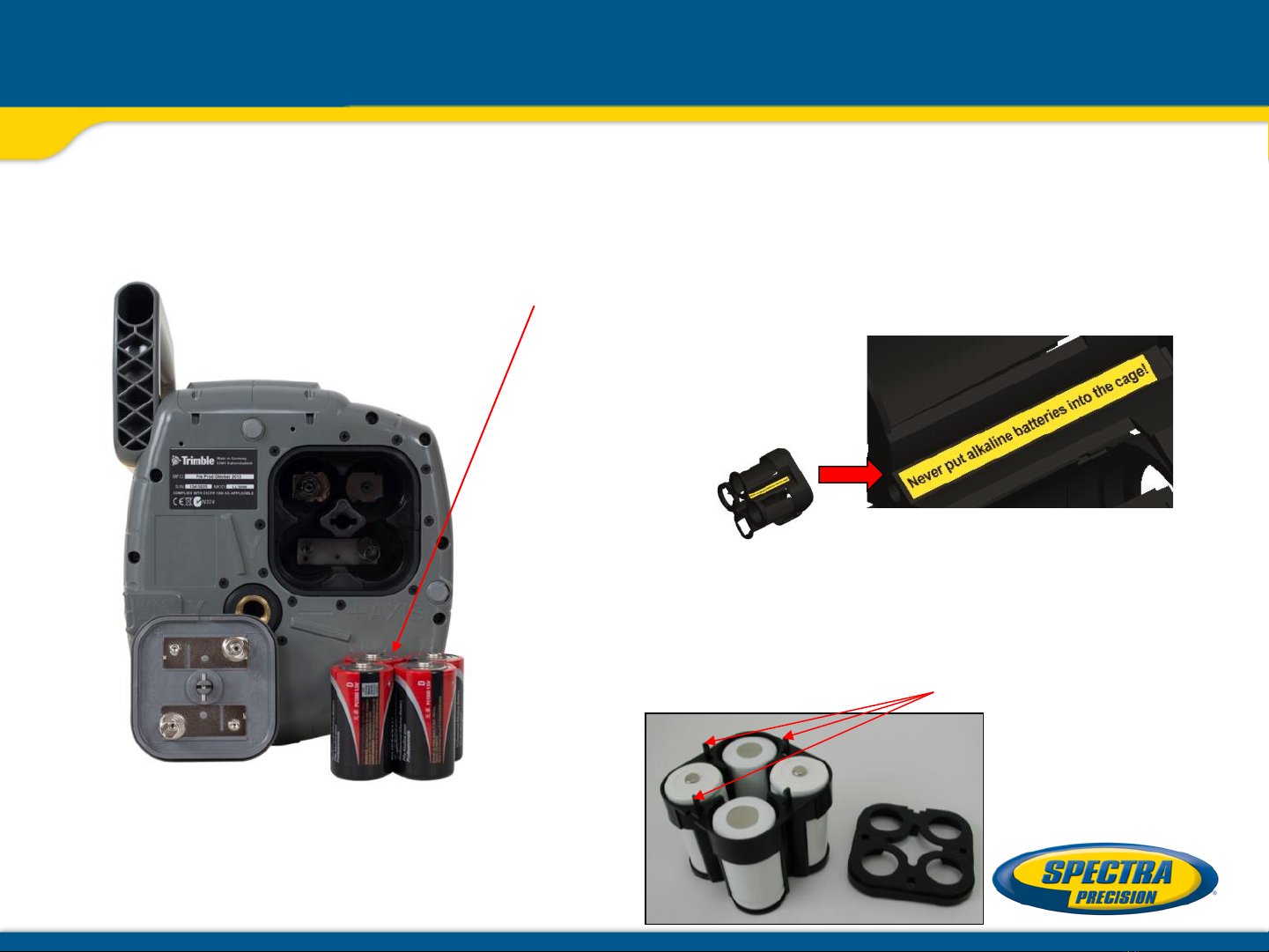

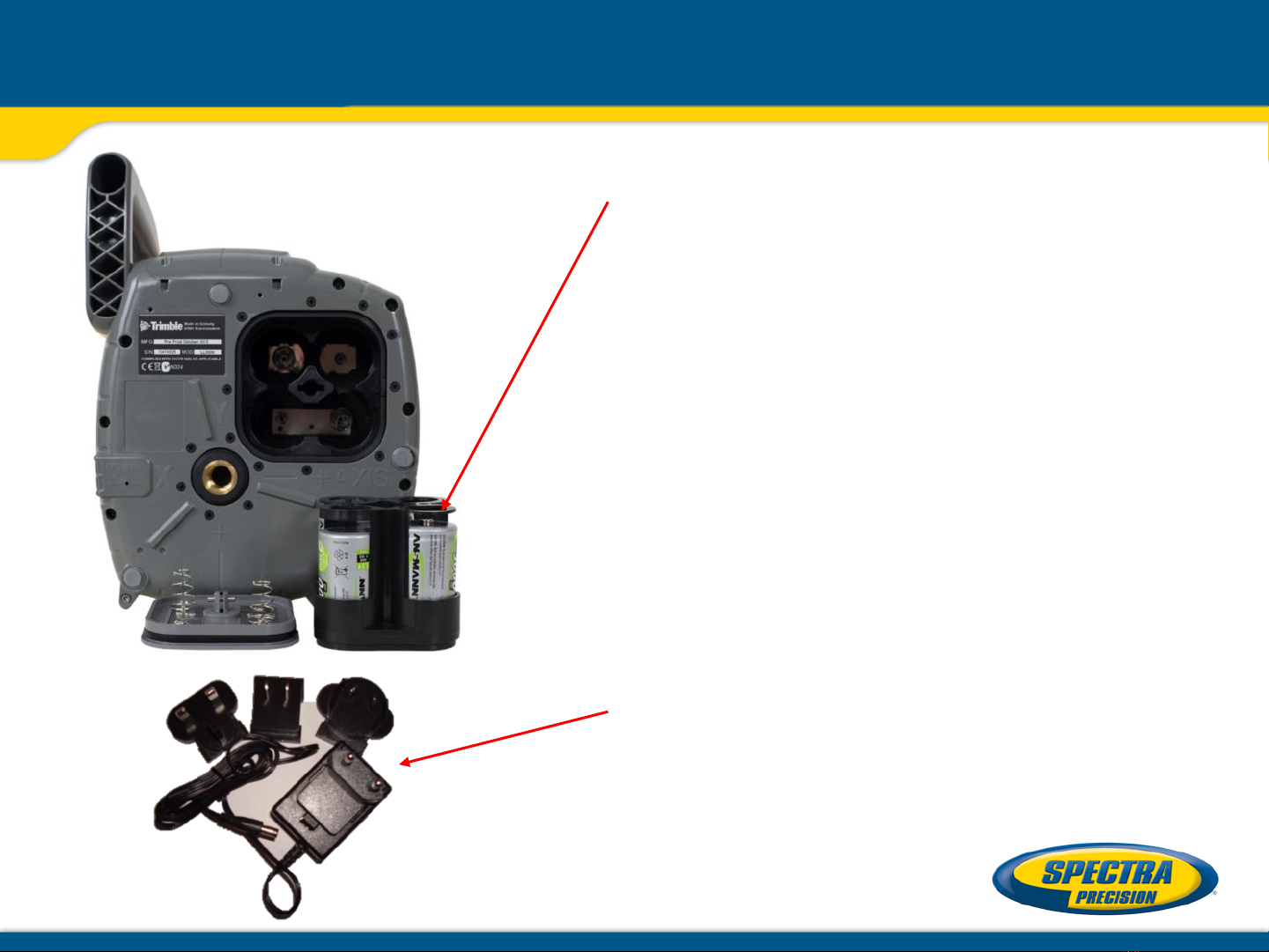

Installing The Batteries

§Install/remove the rechargeable

battery Pack. It is keyed to

prevent mis-insertion. The cage

prevents accidental charging of

Alkaline batteries

§Do not try to open the cage for

exchanging the rechargeable

batteries

§Worldwide charger has plugs for

US, EU, AU and GB

§Recharge time is about 10 hours

Installing The Batteries

§If using 4 x D-cell Alkaline's, note the

plus (+) and minus(-) diagram on the

battery door. Do NOT try to install

Alkaline batteries in the rechargeable

battery Pack!

§Special screws are used to ensure only

autorized service centers can replace the

batteries. Trying to open the cage will

destroy the cage lid holders.

New warning label

at the battery cage

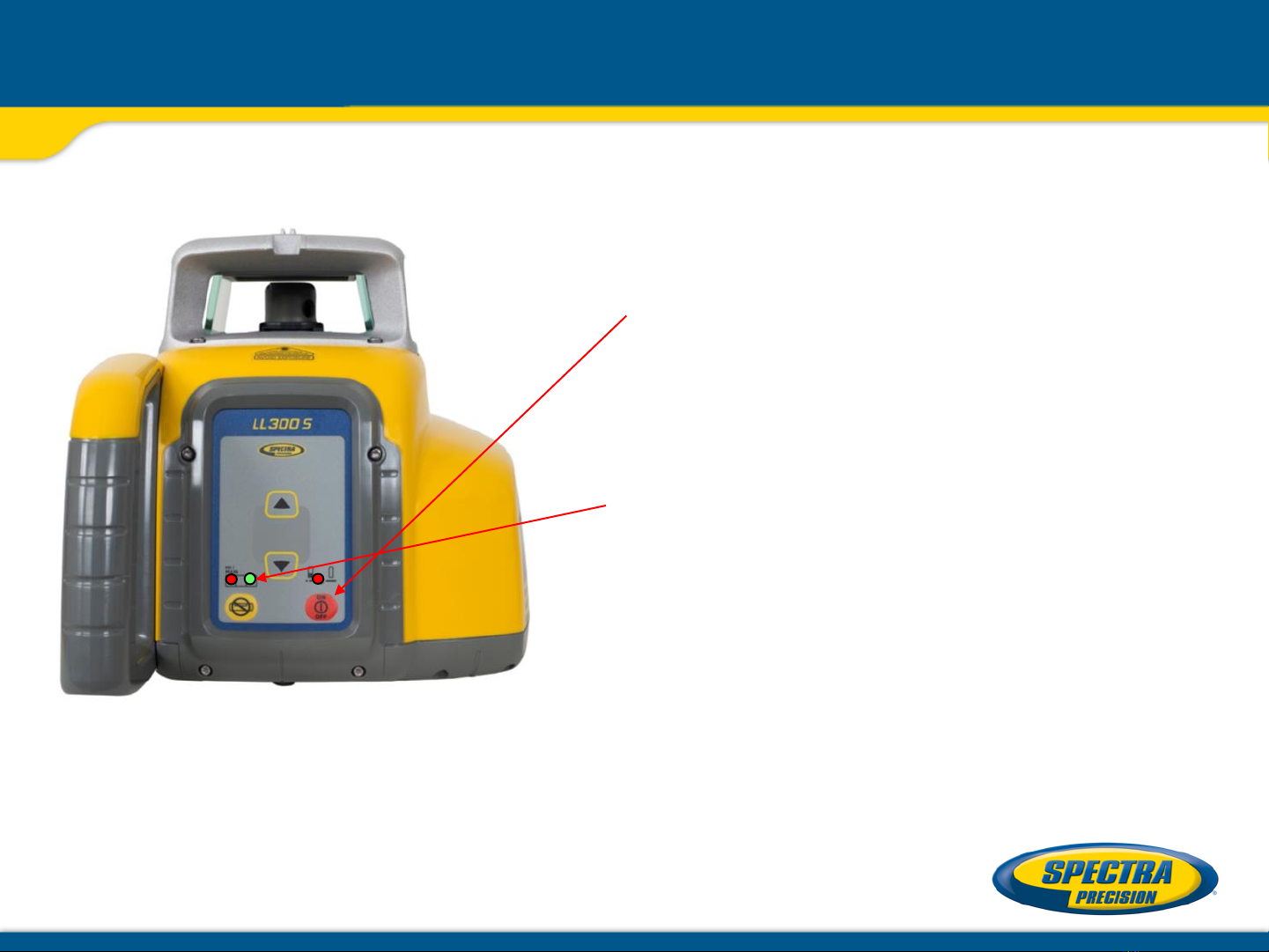

Turning On/Off

§To turn the unit on, press and

release the power button

–The unit always powers up in

automatic self-leveling mode

–All LEDs are turned on for 3

seconds (diagnostic mode).

–Green LED flashes during self-

leveling

–When leveled, the green LED

lights solid for the first five

minutes, then flashes every 4

seconds indicating the laser

remains level and the HI-alert has

been activated

To turn the unit off, press and hold the power

button for 2 seconds!

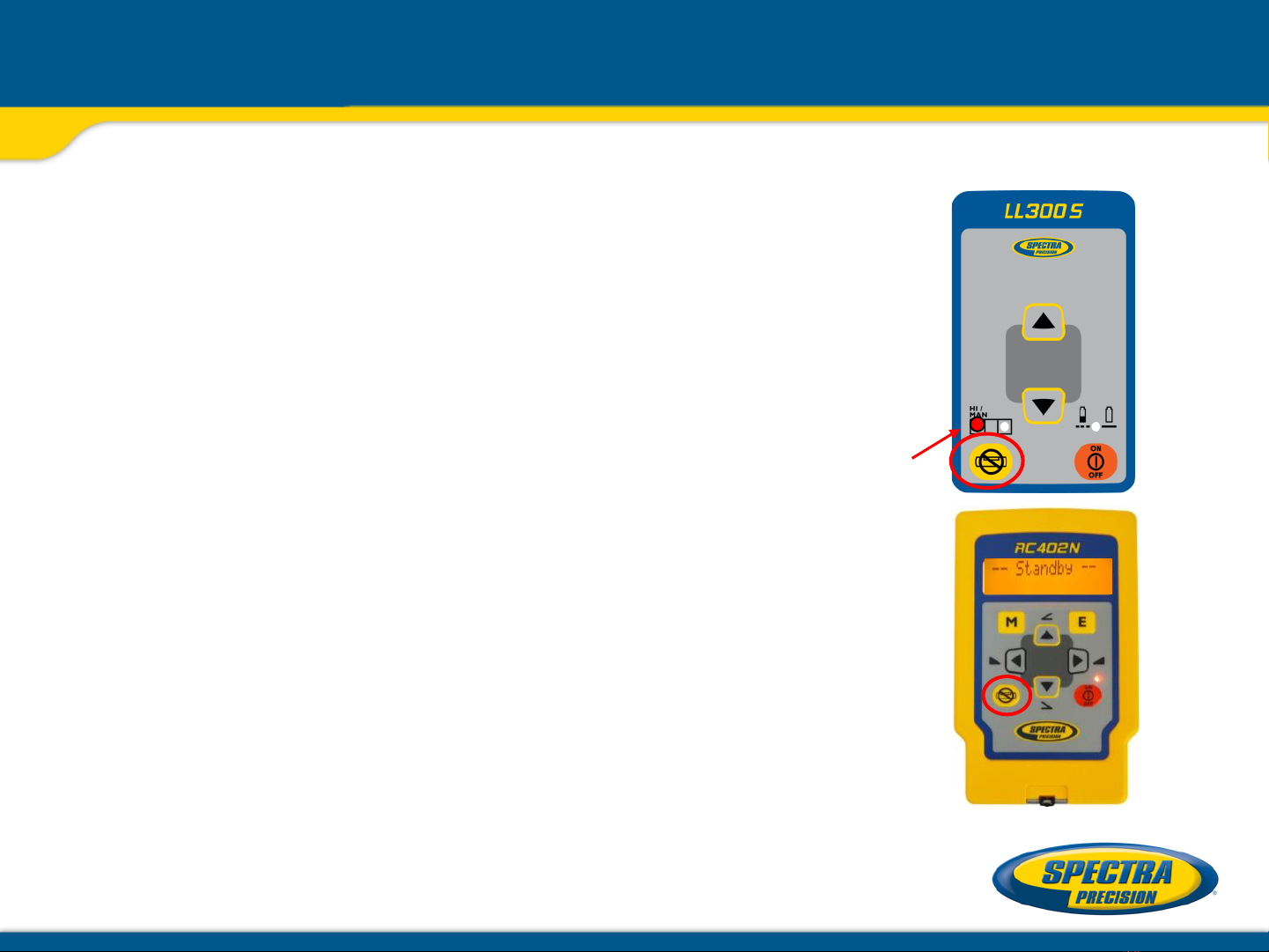

Activating/Deactivating Standby mode

Standby mode helps to increase the battery life

and controls the laser setup during breaks. The

self-leveling and rotation will be stopped and the

beam will be turned off while the HI alert is still

active.

§Press and hold the Manual button at the laser or

remote control for 3 seconds activates the

Standby mode.

–The HI/MAN LED at the laser flashes red every 5

seconds while the RC402N display shows

Standby.

To deactivate Standby mode and restore full

operation of the laser, press and hold the

Manual button at the laser or remote control again

for 3 seconds.
