Spectrum Industries 95513 Bedienungsanleitung

Adjustable CPU Sling

#95513

Assembly Instructions:

Tools Required:

Phillips screwdriver

Drill with an 1/8" drill bit

(for desks without threaded inserts)

Before you begin, please make sure all parts and proper quantities are

included. Any parts damaged during shipment must be reported within

15 days of receipt. To report information regarding damages or if you

have any questions, please call 1-800-235-1262.

To purchase parts or accessories, please contact us at

www.spectrumfurniture.com

1-800-235-1262

Thank you for choosing Spectrum products!

(2) 026547

1/4-20 x 1-1/2 (2) 026017

1/4-20 x 1/2

PHMS

(1) 0100193

2" x 2" x 1" Shim (1) 042019

Leg Bracket

(1) 042139

Drill Template

(2) 034195

1/4-20 Wing Nut

(2) 021605

#10 x 1-3/4

PHSM

(2) 026057

#10 x 3/4

PHSM

(1) 044890

1" Nylon Spacer

(1) 042025

1/4-20 x 3/8

THMS

(2) 056703

Strap/Buckle

Assembly

Sling Assembly

0100192R3 Page 1 of 3

A. Assemble the sling side and base using (2) 1/4-20 wing nuts as shown in Figure 1A.

B. Thread the straps through the slots in sling side and base as shown in Figure 1B

with the tails hanging down. (The center slot can be used for smaller CPU's.)

C. Thread each strap through the buckles as shown.

Wing Nut

(2) Req'd

Strap/Buckle

Assembly

Sling Side

Sling Base

Figure 1A Figure 1B

Strap/Buckle

Assembly

Center slot used

for smaller CPU's

1. Sling Assembly

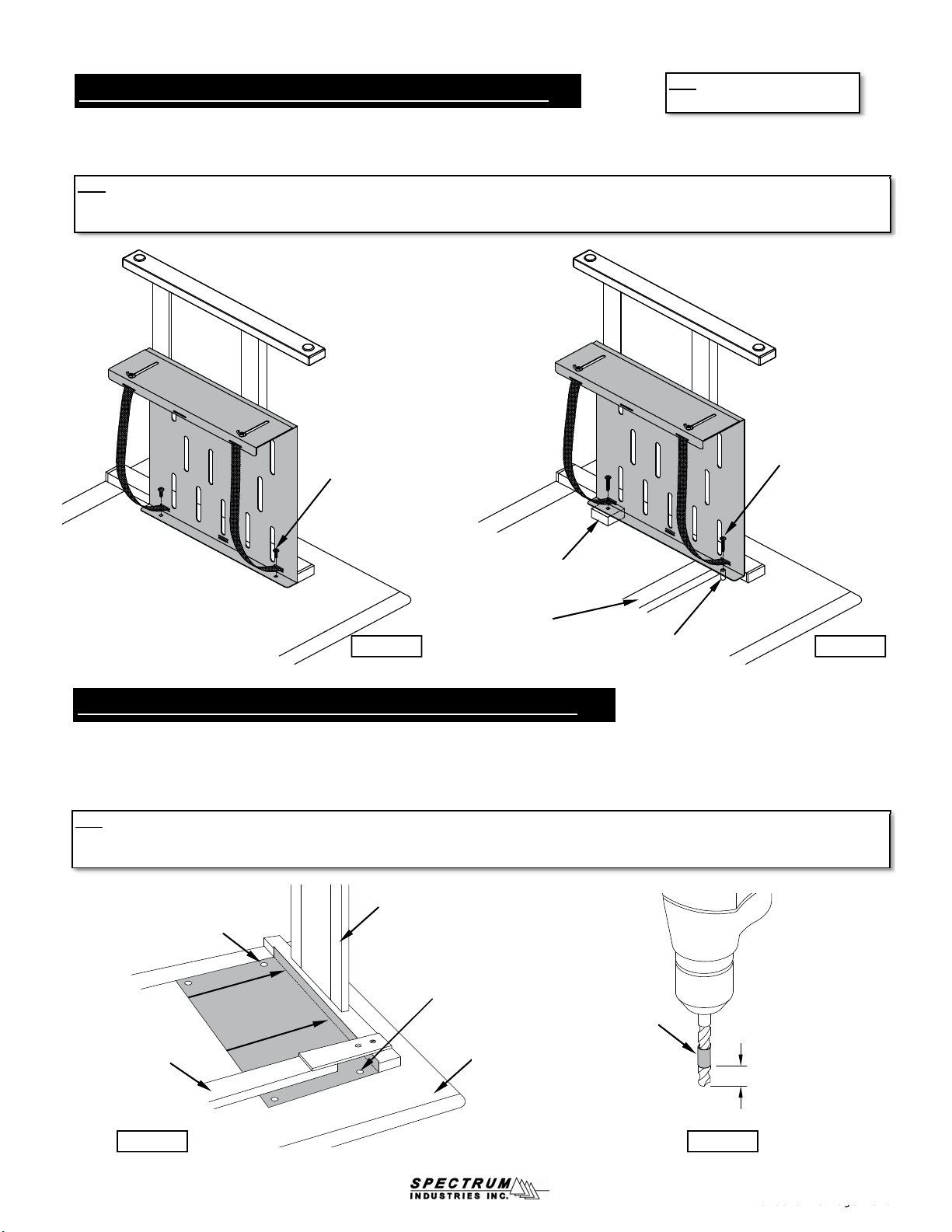

A. Determine whether the CPU Sling will mount on the right or left side of the desk and align the top sling holes with the appropriate set of

inserts. Figure 2A shows a sling being mounted on the left side of a desk.

B. Attach the Sling to the worksurface using two 1/4-20 PHM Screws and tighten.

1/4-20 x 1-1/2"

PHM Screw

2" x 2" x 1" Shim

Note: If desk does not have

threaded inserts, skip to step 3.

Support Brace

(dk)

1/4-20 x 1/2"

PHM Screw

2. Attaching Sling to desks with threaded inserts

Note: Desks without support brace (Figure 2A) use two 1/4-20 x 1/2" PHM Screws (026017.) For desks with Support Brace (Figure 2B), use one

Nylon Spacer (044890) in the front hole, and one 2" x 2" x 1" Shim (010093) in the back hole with the longer 1/4-20 x 1-1/2" PHM Screws (026547.)

The front of the sling will extend past the Support Brace.

0100192R3 Pa

e 2 of 3

1" x .275 ID x .5 OD

Nylon Spacer

(

on some

)

Figure 2B

Drill Template

042139

Leg

Worksurface

Support Brace

(on some desks)

Drill here

3/4" Deep

1/8" Drill Bit

Figure 3A

Figure 2A

A. Determine whether the CPU Sling will mount on the right or left side of the desk.

B. Fold and tape the enclosed Drill Template (042139) to the underside of the worksurface in the position shown in Figure 3A.

Wrap a piece of tape around a 1/8" drill bit to mark 3/4" from the end of the bit-Figure 3B. Drill through the Template on the two marked

holes closest to the Leg, 3/4" deep. Figure 3A.

C. Attach CPU sling to worksurface using (2) #10 Sheet Metal Screws.

Figure 3B

Note: Desks without inserts or Support Brace use two #10 x 3/4" PHSM Screws (026057.) Desks without inserts that include a Support Brace as

in Figure 3A, use one Nylon Spacer (044890) in the front hole, and one 2" x 2" x 1" Shim (010093) in the rear hole using the longer #10 x 1-3/4"

PHSM Screws (021605.) The front of the CPU Sling will extend past the Support Brace (See Figure 2B for reference.)

3. Attaching Sling to desks without threaded inserts

0100192R3

Page

A. Line up the leg bracket with the front slot of the CPU sling as

shown and attach to the sling with a 1/4-20 x 3/8" THM Screw.

Figure 4.

B. Adjust the leg bracket until it is snug against the leg and tighten

screw.

1/4-20 x 3/8"

THM Screw

Leg Bracket

Note: If the CPU Sling is being used on a CLASS™ or Evolution™ desk, the included

(042019) Leg Bracket should be attached to the Sling and Front Leg.

4. Attaching Leg Bracket

Installing CPU

0100192R3 Page 3 of 3

Figure 4

A. Slide the base to the widest position and carefully place the CPU unit into the sling.

B. Slide the base tight against the CPU and tighten the two wing nuts underneath.

C. Make sure the CPU will be supported by both straps. Tighten the straps around the CPU while keeping the buckles

positioned as high as possible to avoid interference. Figure 5A. The center slot can be used with smaller CPU's. Figure 5B.

Figure 5A

Standard

CPU Small

CPU

Figure 5B

5. Installing CPU
