Spirit CT850 Bedienungsanleitung

CT850 Treadmill

OWNER’S MANUAL

TABLE OF CONTENTS

3 IMPORTANT SAFETY INSTRUCTIONS

3 IMPORTANT ELECTRICAL INSTRUCTIONS

5 IMPORTANT OPERATION INSTRUCTIONS

5 PRODUCT REGISTRATION

6 CT850 ASSEMBLY INSTRUCTIONS

12 CONSOLE OPERATION

17 PROGRAMMABLE FEATURES

30 USING HEART RATE TRANSMITTER

40 GENERAL MAINTENANCE

42 MANUFACTURER’S LIMITED WARRANTY

Thank you for purchasing our product, please save these instructions. Please do not perform or attempt any

customizing, adjustments, repair or maintenance that is not described in this manual.

Congratulations on your new Treadmill and welcome to the Spirit Fitness family!

Thank you for your purchase of this quality Treadmill from Spirit Fitness.Your new Treadmill was manufactured by one

of the leading tness manufacturers in the world and is backed by one of the most comprehensive warranties available.

Through your dealer, Spirit Fitness will do all we can to make your ownership experience as pleasant as possible for many

years to come. If not purchased direct from Spirit Fitness, the local dealership where you purchased this Treadmill is your

administrator for all Spirit Fitness warranty and service needs. Their responsibility is to provide you with the technical

knowledge and service personnel to make your experience more informed and any difculties easier to remedy.

Please take a moment at this time to record the name of the dealer, their telephone number, and the date of purchase

below to make any future, needed contact easy. We appreciate your support and we will always remember that you are

the reason that we are in business.

Yours in Health,

Spirit Fitness

NAME OF DEALER _____________________________________

DEALER PHONE # _____________________________________

PURCHASE DATE _____________________________________

Important Safety Instructions

WARNING

When using an electrical appliance, basic precautions should

always be followed, including the following:

Read all instructions before using this appliance.

DANGER -To reduce the risk of electric shock:

Always unplug this appliance from the electrical outlet

immediately after using and before cleaning.

WARNING - To reduce the risk of burns, re electric shock,

or injury to persons:

• An appliance should never be left unattended when

plugged in. Unplug from outlet when not in use, and

before putting on or taking off parts.

• Do not operate under blanket or pillow. Excessive heat-

ing can occur and cause re, electric shock, or injury to

persons.

• Close supervision is necessary when this appliance

is used by, on, or near children, invalids, or disabled

persons.

• Use this appliance only for its intended use as described

in this manual. Do not use attachments not recom-

mended by the manufacturer.

• Never operate this appliance if it has a damaged

cord or plug, if it is not working properly, if it as been

dropped or damaged, or dropped into water. Return

the appliance to a service center for examination and

repair.

• Do not carry this appliance by supply cord or use cord

as a handle.

• Keep the cord away from heated surfaces.

• Never operate the appliance with the air openings

blocked. Keep the air openings free of lint, hair, and the

like.

• Never drop or insert any object into any opening.

• Do not use outdoors.

• Do not operate where aerosol (spray) products are

being use or where oxygen is being administered.

• Connect this appliance to a properly grounded outlet

only. See Grounding Instructions.

• The appliance is intended for household use.

• Maximum User Weight: 450 lbs

• This appliance is not intended for use by persons with

reduced physical, sensory or metal capabilities, or lack

of experience and knowledge, unless they have been

given supervision or instruction concerning use of the

appliance by a person responsible for their safety.

• Keep children under the age of 13 away from this

machine.

• ASTM F2115-05 Specications

6.1.2.11 The recommended minimum clearance

required around each treadmill for access to, passage

around, and emergency dismount shall be stated.The

minimum dimensions are to be: 0.5 m (19.7 in.) on

each side of the treadmill, and 1 m (39 in.) behind the

machine.

SAVE THESE INSTRUCTIONS - THINK SAFETY!

Important Electrical Instructions

WARNING

NEVER use a ground fault circuit interrupt (GFCI) wall outlet with

this treadmill. As with any appliance with a large motor, the GFCI

will trip often. Route the power cord away from any moving part

of the treadmill including the elevation mechanism and transport

wheels.

NEVER remove any cover without rst disconnecting AC power.

If voltage varies by ten percent (10%) or more, the performance

of your treadmill may be affected. Such conditions are not covered

under your warranty. If you suspect the voltage is low, contact your

local power company or a licensed electrician for proper testing.

NEVER expose this treadmill to rain or moisture.This product

is NOT designed for use outdoors, near a pool or spa, or in any

other high humidity environment.The operating temperature

specication is 40 to 120 degrees Fahrenheit, and humidity is 95%

non-condensing (no water drops forming on surfaces).

Circuit Breakers: Some circuit breakers used in homes are not

rated for high inrush currents that can occur when a treadmill

is rst turned on or even during use. If your treadmill is tripping

the house circuit breaker (even though it is the proper current

rating) but the circuit breaker on the treadmill itself does not trip,

you will need to replace the home breaker with a high inrush

type.This is not a warranty defect. This is a condition we as a

manufacture have no ability to control.This part is available through

most electrical supply stores. Examples: Grainger part # 1D237, or

available online at www.squared.com part #QO120HM.The electrical

outlet used should have a dedicated 15 amp circuit breaker.

Grounding Instructions

This product must be grounded. If the treadmill should

malfunction or breakdown, grounding provides a path of least

resistance for electric current, reducing the risk of electric shock.

This product is equipped with a cord having an equipment-

grounding plug.The plug must be plugged into an appropriate

outlet that is properly installed and grounded in accordance with

all local codes and ordinances.

DANGER - Improper connection of the equipment-

grounding conductor can result in a risk of electric shock.

Check with a qualied electrician or serviceman if you are

in doubt as to whether the product is properly grounded.

Do not modify the plug provided with the product if it will

not t the outlet; have a proper outlet installed by a qualied

electrician.

This product is for use on a nominal 110-volt/15 amp

dedicated circuit, and has a grounding plug that looks like the

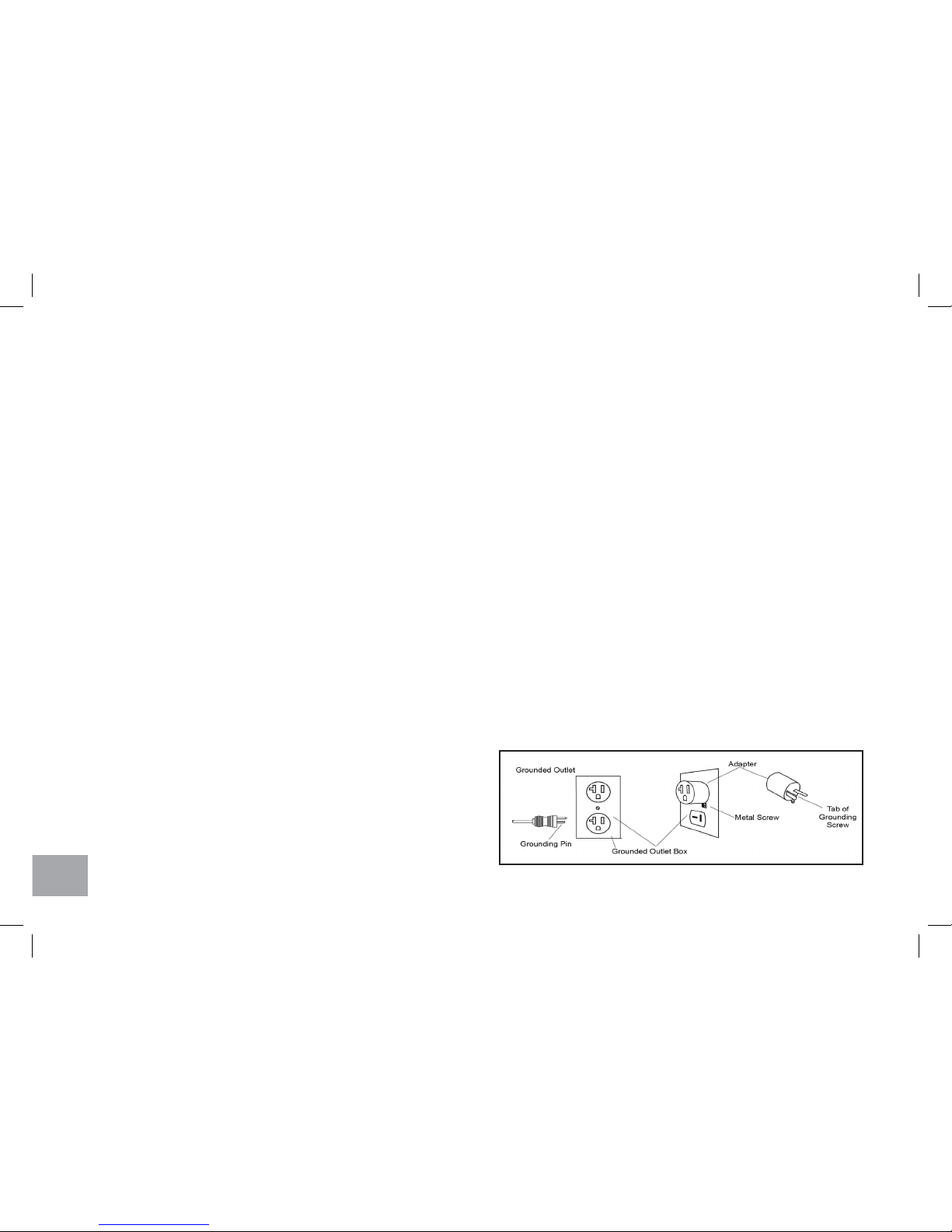

plug illustrated below. A temporary adapter that looks like

the adapter illustrated below may be used to connect this

plug to a 2-pole receptacle as shown below if a properly

grounded outlet is not available.The temporary adapter should be used only until a properly grounded outlet, (shown pg

4) can be installed by a qualied electrician. The green colored rigid ear-lug, or the like, extending from the adapter, must be

connected to a permanent ground such as a properly grounded outlet box cover.Whenever the adapter is used, it must be

held in place by a metal screw.

Important Operation Instructions

• NEVER operate this Treadmill without reading and completely understanding the results of any operational change you

request from the computer.

• Understand that changes in resistance do not occur immediately. Set your desired resistance level on the computer

console and release the adjustment key.The computer will obey the command gradually.

• Use caution while participating in other activities while pedaling on your Treadmill; such as watching television, reading,

etc.These distractions may cause you to lose balance which may result in serious injury.

• Do not use excessive pressure on console control keys.They are precision set to

function properly with little nger pressure.

Record Your Serial Number

Please record the serial number of this tness product in the space

provided below.

Serial Number:

The self-addressed product registration card must be completed in full and returned to Spirit Fitness.

You can also go to http://www.spirittness.com/commercialwarrantyregistration.html under the Support

tab to register online.

Serial Number Location

CT850 PRE ASSEMBLY

UNPACKING

1. Cut the straps, then along the dotted line on the bottom of the box; lift the box over

the unit and unpack.

2. Locate the hardware package.The hardware is separated into four steps. Remove

the tools rst. Remove the hardware for each step as needed to avoid confusion. The

numbers in the instructions that are in parenthesis (#) are the item number from the

assembly drawing for reference.

TOOLS INCLUDED:

3/8”Allen Wrench

10mm Allen Wrench

Phillips Screwdriver

PARTS INCLUDED:

2 Console Masts

2 Side Covers

1 Base Frame

1 Console Support

1 Console

1 Safety Key

1 Power Cord

1 Tube of Lubricant (1 application)

1 Hardware Kit

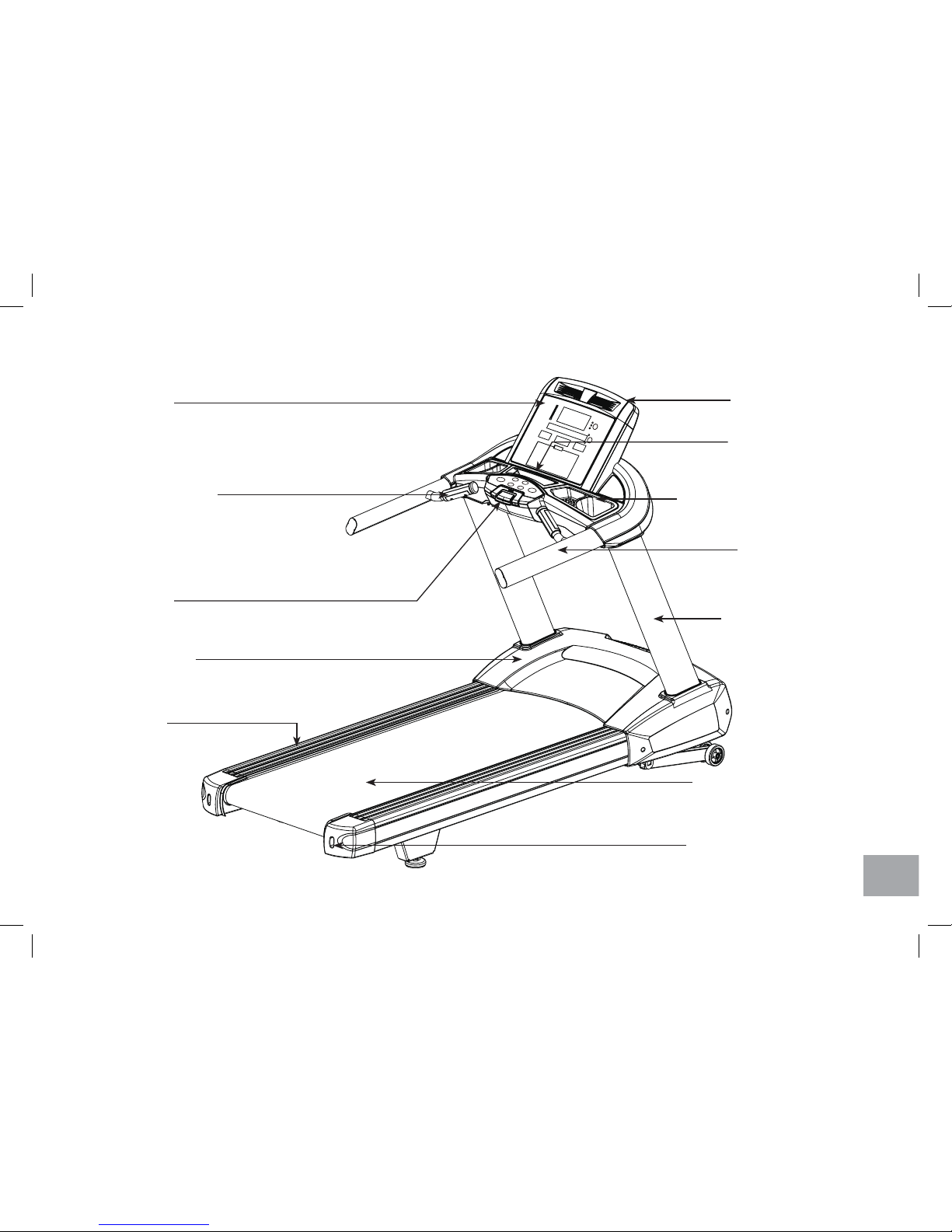

CONSOLE

HEART RATE GRIPS

SAFETY KEY

MOTOR COVER

SIDE RAILS

RUNNING BELT/DECK

TREAD-BELT TRACKING

CONSOLE MAST

HANDLEBARS

CONSOLE FAN

DRINK BOTTLE HOLDER

READING RACK

CT850 STEP ONE

27 134

116

117

144

HARDWARE FOR STEP 1

PART TYPE DESCRIPTION QTY

116 FLAT WASHER 3/8”X35X2T 10

117 SPLIT WASHER 3/8”X16.5X2.0T 10

134 SCREW M5X12MM 4

144 BOLT 3/8”X3” 10

1. Gather HARDWARE FOR STEP 1.

2. The RIGHT UPRIGHT (34) has a preinstalled

Lower COMPUTER CABLE A (42).To install the

uprights on the base frame, special care must be

taken not to pinch the computer cable between

the upright and frame base. Slide the SPLIT

WASHER (117) and FLAT WASHER (116) on

the BUTTON HEAD SOCKET BOLT (144).

Slide the BOLT through the top hole in the

RETAINING PLATE (98), and corresponding

top hole in the upright tube, and screw into the

base frame. Now install the other 4 BUTTON

HEAD SOCKET BOLTS (144) together with

SPLIT WASHERS (117), and FLAT WASHERS

(116) and tighten all 5 bolts up.

3. Repeat this step to install the LEFT UPRIGHT

(33).

4. Attach the LEFT and RIGHT PLASTIC

COVERS (26-L, 27-R) with 4 PHILLIPS HEAD

SCREWS (134).
