Pulsa Operator Guide

Safety instructions

Not following the safety precautions may cause

injury to yourself or others. Strictly follow the

safety precautions.

Wear ear defenders.

Wear safety glasses.

Only use the tool for its intended use.

This is not a toy. Never point it at people.

Always assume that the tool is loaded.

Never transport the tool with your finger on the trigger.

Never place your hand over the nosepiece.

When servicing, remove the fuel cell, battery and nails from the magazine.

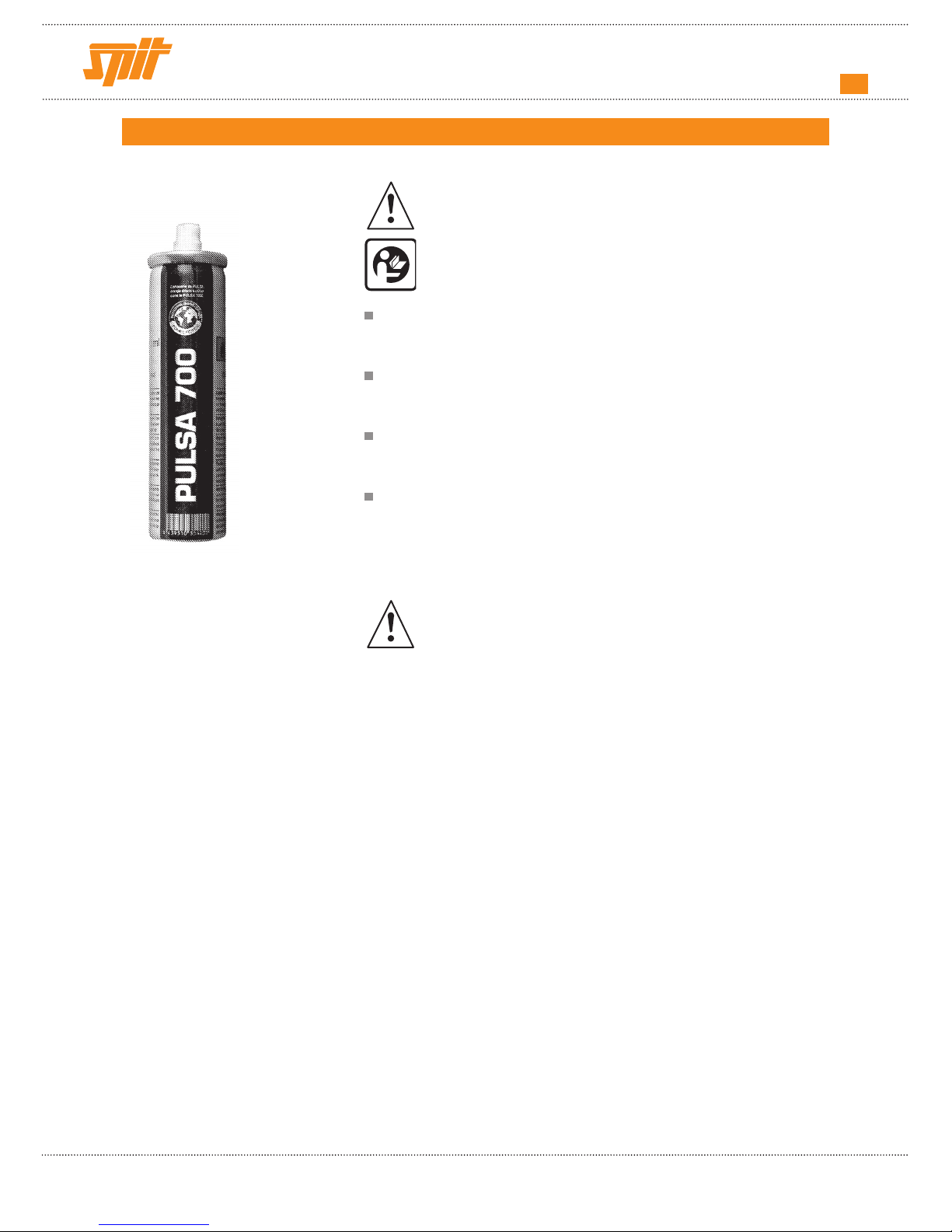

Warning: the contents of the fuel cell are flammable.

The fuel cell is under pressure. Protect it from temperatures above 50°C

(sunlight).

Do not open, puncture or burn the fuel cell.

Keep the fuel cell away from flames, sparks and heat. Do not spray near flames

or incandescent objects.

The fuel cell cannot be recharged. Do not attempt to fill or recycle it.

Place empty fuel cells in the bio-bag and send to SPIT After-Sales Service.

Keep tool, fuel cells and battery away from children.

Only use the tool in well-ventilated areas. Store the fuel cells in a well-ventilated

place.

For reasons of safety and operation, it is imperative that only SPIT-compatible

fuel cells and nails be used. SPIT does not license any other company to

manufacture fuel cells and nails and can only guarantee the quality and

performance of its own, genuine products. SPIT cannot accept responsibility for

damage or injury caused by the use of third party fuel cells and nails which are

not SPIT-compatible. In particular, your product warranty will not cover damage

to the Pulsa 700 caused by non-compatible parts.

Do not use the PULSA 700 in rainy or excessively humid conditions.

IMPORTANT INFORMATION ABOUT SAFETY REQUIREMENTS

The European Standard EN 792-13 has established certain safety requirements

for hand-help non-electric fastener driving tools and it requires the respective

instructions to be part of the tool operating manual. In your own interest, we urge

you to follow such safety requirements without exception.

SPIT Fastener driving tools operated by internal combustion shall only be used

with dispensers for combustible gas which are listed in the SPIT operating

instruction (Item 7.2.5a). For the SPIT Pulsa tool, this means the use of SPIT

specified Pulsa Fuel Cells.

Only those fasteners listed in the SPIT operating instruction may be used in the SPIT

fastener driving tool (Item 7.2.1a). The fastener driving tool and the fastener listed

in the operating instruction must be seen as one unit system in terms of safety.

Only the fuel cells and lubricants listed in the SPIT operating instruction may be

may be used (Item 7.2.1b).

For the maintenance of SPIT fastener driving tools, only spare parts specified by

the manufacturer or his authorized representative shall be used (Item 7.2.1e).

Safety instructions

Not following the safety precautions may cause

injury to yourself or others. Strictly follow the

safety precautions.

Wear ear defenders.

Wear safety glasses.

Only use the tool for its intended use.

This is not a toy. Never point it at people.

Always assume that the tool is loaded.

Never transport the tool with your finger on the trigger.

Never place your hand over the nosepiece.

When servicing, remove the fuel cell, battery and nails from the magazine.

Warning: the contents of the fuel cell are flammable.

The fuel cell is under pressure. Protect it from temperatures above 50°C

(sunlight).

Do not open, puncture or burn the fuel cell.

Keep the fuel cell away from flames, sparks and heat. Do not spray near flames

or incandescent objects.

The fuel cell cannot be recharged. Do not attempt to fill or recycle it.

Place empty fuel cells in the bio-bag and send to SPIT After-Sales Service.

Keep tool, fuel cells and battery away from children.

Only use the tool in well-ventilated areas. Store the fuel cells in a well-ventilated

place.

For reasons of safety and operation, it is imperative that only SPIT-compatible

fuel cells and nails be used. SPIT does not license any other company to

manufacture fuel cells and nails and can only guarantee the quality and

performance of its own, genuine products. SPIT cannot accept responsibility for

damage or injury caused by the use of third party fuel cells and nails which are

not SPIT-compatible. In particular, your product warranty will not cover damage

to the Pulsa 700 caused by non-compatible parts.

Do not use the PULSA 700 in rainy or excessively humid conditions.

IMPORTANT INFORMATION ABOUT SAFETY REQUIREMENTS

The European Standard EN 792-13 has established certain safety requirements

for hand-help non-electric fastener driving tools and it requires the respective

instructions to be part of the tool operating manual. In your own interest, we urge

you to follow such safety requirements without exception.

SPIT Fastener driving tools operated by internal combustion shall only be used

with dispensers for combustible gas which are listed in the SPIT operating

instruction (Item 7.2.5a). For the SPIT Pulsa tool, this means the use of SPIT

specified Pulsa Fuel Cells.

Only those fasteners listed in the SPIT operating instruction may be used in the SPIT

fastener driving tool (Item 7.2.1a). The fastener driving tool and the fastener listed

in the operating instruction must be seen as one unit system in terms of safety.

Only the fuel cells and lubricants listed in the SPIT operating instruction may be

may be used (Item 7.2.1b).

For the maintenance of SPIT fastener driving tools, only spare parts specified by

the manufacturer or his authorized representative shall be used (Item 7.2.1e).

Safety instructions

Not following the safety precautions may cause

injury to yourself or others. Strictly follow the

safety precautions.

Wear ear defenders.

Wear safety glasses.

Only use the tool for its intended use.

This is not a toy. Never point it at people.

Always assume that the tool is loaded.

Never transport the tool with your finger on the trigger.

Never place your hand over the nosepiece.

When servicing, remove the fuel cell, battery and nails from the magazine.

Warning: the contents of the fuel cell are flammable.

The fuel cell is under pressure. Protect it from temperatures above 50°C

(sunlight).

Do not open, puncture or burn the fuel cell.

Keep the fuel cell away from flames, sparks and heat. Do not spray near flames

or incandescent objects.

The fuel cell cannot be recharged. Do not attempt to fill or recycle it.

Place empty fuel cells in the bio-bag and send to SPIT After-Sales Service.

Keep tool, fuel cells and battery away from children.

Only use the tool in well-ventilated areas. Store the fuel cells in a well-ventilated

place.

For reasons of safety and operation, it is imperative that only SPIT-compatible

fuel cells and nails be used. SPIT does not license any other company to

manufacture fuel cells and nails and can only guarantee the quality and

performance of its own, genuine products. SPIT cannot accept responsibility for

damage or injury caused by the use of third party fuel cells and nails which are

not SPIT-compatible. In particular, your product warranty will not cover damage

to the Pulsa 700 caused by non-compatible parts.

Do not use the PULSA 700 in rainy or excessively humid conditions.

IMPORTANT INFORMATION ABOUT SAFETY REQUIREMENTS

The European Standard EN 792-13 has established certain safety requirements

for hand-help non-electric fastener driving tools and it requires the respective

instructions to be part of the tool operating manual. In your own interest, we urge

you to follow such safety requirements without exception.

SPIT Fastener driving tools operated by internal combustion shall only be used

with dispensers for combustible gas which are listed in the SPIT operating

instruction (Item 7.2.5a). For the SPIT Pulsa tool, this means the use of SPIT

specified Pulsa Fuel Cells.

Only those fasteners listed in the SPIT operating instruction may be used in the SPIT

fastener driving tool (Item 7.2.1a). The fastener driving tool and the fastener listed

in the operating instruction must be seen as one unit system in terms of safety.

Only the fuel cells and lubricants listed in the SPIT operating instruction may be

may be used (Item 7.2.1b).

For the maintenance of SPIT fastener driving tools, only spare parts specified by

the manufacturer or his authorized representative shall be used (Item 7.2.1e).

Safety instructions

Not following the safety precautions may cause

injury to yourself or others. Strictly follow the

safety precautions.

Wear ear defenders.

Wear safety glasses.

Only use the tool for its intended use.

This is not a toy. Never point it at people.

Always assume that the tool is loaded.

Never transport the tool with your finger on the trigger.

Never place your hand over the nosepiece.

When servicing, remove the fuel cell, battery and nails from the magazine.

Warning: the contents of the fuel cell are flammable.

The fuel cell is under pressure. Protect it from temperatures above 50°C

(sunlight).

Do not open, puncture or burn the fuel cell.

Keep the fuel cell away from flames, sparks and heat. Do not spray near flames

or incandescent objects.

The fuel cell cannot be recharged. Do not attempt to fill or recycle it.

Place empty fuel cells in the bio-bag and send to SPIT After-Sales Service.

Keep tool, fuel cells and battery away from children.

Only use the tool in well-ventilated areas. Store the fuel cells in a well-ventilated

place.

For reasons of safety and operation, it is imperative that only SPIT-compatible

fuel cells and nails be used. SPIT does not license any other company to

manufacture fuel cells and nails and can only guarantee the quality and

performance of its own, genuine products. SPIT cannot accept responsibility for

damage or injury caused by the use of third party fuel cells and nails which are

not SPIT-compatible. In particular, your product warranty will not cover damage

to the Pulsa 700 caused by non-compatible parts.

Do not use the PULSA 700 in rainy or excessively humid conditions.

IMPORTANT INFORMATION ABOUT SAFETY REQUIREMENTS

The European Standard EN 792-13 has established certain safety requirements

for hand-help non-electric fastener driving tools and it requires the respective

instructions to be part of the tool operating manual. In your own interest, we urge

you to follow such safety requirements without exception.

SPIT Fastener driving tools operated by internal combustion shall only be used

with dispensers for combustible gas which are listed in the SPIT operating

instruction (Item 7.2.5a). For the SPIT Pulsa tool, this means the use of SPIT

specified Pulsa Fuel Cells.

Only those fasteners listed in the SPIT operating instruction may be used in the SPIT

fastener driving tool (Item 7.2.1a). The fastener driving tool and the fastener listed

in the operating instruction must be seen as one unit system in terms of safety.

Only the fuel cells and lubricants listed in the SPIT operating instruction may be

may be used (Item 7.2.1b).

For the maintenance of SPIT fastener driving tools, only spare parts specified by

the manufacturer or his authorized representative shall be used (Item 7.2.1e).

Safety instructions

Not following the safety precautions may cause

injury to yourself or others. Strictly follow the

safety precautions.

Wear ear defenders.

Wear safety glasses.

Only use the tool for its intended use.

This is not a toy. Never point it at people.

Always assume that the tool is loaded.

Never transport the tool with your finger on the trigger.

Never place your hand over the nosepiece.

When servicing, remove the fuel cell, battery and nails from the magazine.

Warning: the contents of the fuel cell are flammable.

The fuel cell is under pressure. Protect it from temperatures above 50°C

(sunlight).

Do not open, puncture or burn the fuel cell.

Keep the fuel cell away from flames, sparks and heat. Do not spray near flames

or incandescent objects.

The fuel cell cannot be recharged. Do not attempt to fill or recycle it.

Place empty fuel cells in the bio-bag and send to SPIT After-Sales Service.

Keep tool, fuel cells and battery away from children.

Only use the tool in well-ventilated areas. Store the fuel cells in a well-ventilated

place.

For reasons of safety and operation, it is imperative that only SPIT-compatible

fuel cells and nails be used. SPIT does not license any other company to

manufacture fuel cells and nails and can only guarantee the quality and

performance of its own, genuine products. SPIT cannot accept responsibility for

damage or injury caused by the use of third party fuel cells and nails which are

not SPIT-compatible. In particular, your product warranty will not cover damage

to the Pulsa 700 caused by non-compatible parts.

Do not use the PULSA 700 in rainy or excessively humid conditions.

IMPORTANT INFORMATION ABOUT SAFETY REQUIREMENTS

The European Standard EN 792-13 has established certain safety requirements

for hand-help non-electric fastener driving tools and it requires the respective

instructions to be part of the tool operating manual. In your own interest, we urge

you to follow such safety requirements without exception.

SPIT Fastener driving tools operated by internal combustion shall only be used

with dispensers for combustible gas which are listed in the SPIT operating

instruction (Item 7.2.5a). For the SPIT Pulsa tool, this means the use of SPIT

specified Pulsa Fuel Cells.

Only those fasteners listed in the SPIT operating instruction may be used in the SPIT

fastener driving tool (Item 7.2.1a). The fastener driving tool and the fastener listed

in the operating instruction must be seen as one unit system in terms of safety.

Only the fuel cells and lubricants listed in the SPIT operating instruction may be

may be used (Item 7.2.1b).

For the maintenance of SPIT fastener driving tools, only spare parts specified by

the manufacturer or his authorized representative shall be used (Item 7.2.1e).

Safety instructions

Not following the safety precautions may cause

injury to yourself or others. Strictly follow the

safety precautions.

Wear ear defenders.

Wear safety glasses.

Only use the tool for its intended use.

This is not a toy. Never point it at people.

Always assume that the tool is loaded.

Never transport the tool with your finger on the trigger.

Never place your hand over the nosepiece.

When servicing, remove the fuel cell, battery and nails from the magazine.

Warning: the contents of the fuel cell are flammable.

The fuel cell is under pressure. Protect it from temperatures above 50°C

(sunlight).

Do not open, puncture or burn the fuel cell.

Keep the fuel cell away from flames, sparks and heat. Do not spray near flames

or incandescent objects.

The fuel cell cannot be recharged. Do not attempt to fill or recycle it.

Place empty fuel cells in the bio-bag and send to SPIT After-Sales Service.

Keep tool, fuel cells and battery away from children.

Only use the tool in well-ventilated areas. Store the fuel cells in a well-ventilated

place.

For reasons of safety and operation, it is imperative that only SPIT-compatible

fuel cells and nails be used. SPIT does not license any other company to

manufacture fuel cells and nails and can only guarantee the quality and

performance of its own, genuine products. SPIT cannot accept responsibility for

damage or injury caused by the use of third party fuel cells and nails which are

not SPIT-compatible. In particular, your product warranty will not cover damage

to the Pulsa 700 caused by non-compatible parts.

Do not use the PULSA 700 in rainy or excessively humid conditions.

IMPORTANT INFORMATION ABOUT SAFETY REQUIREMENTS

The European Standard EN 792-13 has established certain safety requirements

for hand-help non-electric fastener driving tools and it requires the respective

instructions to be part of the tool operating manual. In your own interest, we urge

you to follow such safety requirements without exception.

SPIT Fastener driving tools operated by internal combustion shall only be used

with dispensers for combustible gas which are listed in the SPIT operating

instruction (Item 7.2.5a). For the SPIT Pulsa tool, this means the use of SPIT

specified Pulsa Fuel Cells.

Only those fasteners listed in the SPIT operating instruction may be used in the SPIT

fastener driving tool (Item 7.2.1a). The fastener driving tool and the fastener listed

in the operating instruction must be seen as one unit system in terms of safety.

Only the fuel cells and lubricants listed in the SPIT operating instruction may be

may be used (Item 7.2.1b).

For the maintenance of SPIT fastener driving tools, only spare parts specified by

the manufacturer or his authorized representative shall be used (Item 7.2.1e).

Safety instructions

Not following the safety precautions may cause

injury to yourself or others. Strictly follow the

safety precautions.

Wear ear defenders.

Wear safety glasses.

Only use the tool for its intended use.

This is not a toy. Never point it at people.

Always assume that the tool is loaded.

Never transport the tool with your finger on the trigger.

Never place your hand over the nosepiece.

When servicing, remove the fuel cell, battery and nails from the magazine.

Warning: the contents of the fuel cell are flammable.

The fuel cell is under pressure. Protect it from temperatures above 50°C

(sunlight).

Do not open, puncture or burn the fuel cell.

Keep the fuel cell away from flames, sparks and heat. Do not spray near flames

or incandescent objects.

The fuel cell cannot be recharged. Do not attempt to fill or recycle it.

Place empty fuel cells in the bio-bag and send to SPIT After-Sales Service.

Keep tool, fuel cells and battery away from children.

Only use the tool in well-ventilated areas. Store the fuel cells in a well-ventilated

place.

For reasons of safety and operation, it is imperative that only SPIT-compatible

fuel cells and nails be used. SPIT does not license any other company to

manufacture fuel cells and nails and can only guarantee the quality and

performance of its own, genuine products. SPIT cannot accept responsibility for

damage or injury caused by the use of third party fuel cells and nails which are

not SPIT-compatible. In particular, your product warranty will not cover damage

to the Pulsa 700 caused by non-compatible parts.

Do not use the PULSA 700 in rainy or excessively humid conditions.

IMPORTANT INFORMATION ABOUT SAFETY REQUIREMENTS

The European Standard EN 792-13 has established certain safety requirements

for hand-help non-electric fastener driving tools and it requires the respective

instructions to be part of the tool operating manual. In your own interest, we urge

you to follow such safety requirements without exception.

SPIT Fastener driving tools operated by internal combustion shall only be used

with dispensers for combustible gas which are listed in the SPIT operating

instruction (Item 7.2.5a). For the SPIT Pulsa tool, this means the use of SPIT

specified Pulsa Fuel Cells.

Only those fasteners listed in the SPIT operating instruction may be used in the SPIT

fastener driving tool (Item 7.2.1a). The fastener driving tool and the fastener listed

in the operating instruction must be seen as one unit system in terms of safety.

Only the fuel cells and lubricants listed in the SPIT operating instruction may be

may be used (Item 7.2.1b).

For the maintenance of SPIT fastener driving tools, only spare parts specified by

the manufacturer or his authorized representative shall be used (Item 7.2.1e).

T[email protected]

www.itwcp.co.uk

Technical Helpline UK: 0800 731 4924

Technical Helpline ROI: 1 800 882 388

Pulsa Operator Guide

PULSA consumables

Fuel cell The fuel cell must be used at temperatures

between -5° and +49°C. At the beginning of each

cycle, a dose of gas is injected into the combustion

chamber.

The fuel cell has an internal reservoir and an external

housing.

In the internal reservoir, the fuel is kept under pressure by a

propellant.

When the fuel cell is empty, a small amount of propellant

remains in the external chamber.

For reasons of safety and operation of the unit, it is

imperative that only genuine SPIT fuel cells and nails be

used.

SPIT nails Only use SPIT nails with this tool

T[email protected]

www.itwcp.co.uk

Technical Helpline UK: 0800 731 4924

Technical Helpline ROI: 1 800 882 388

Pulsa Operator Guide

Consumables

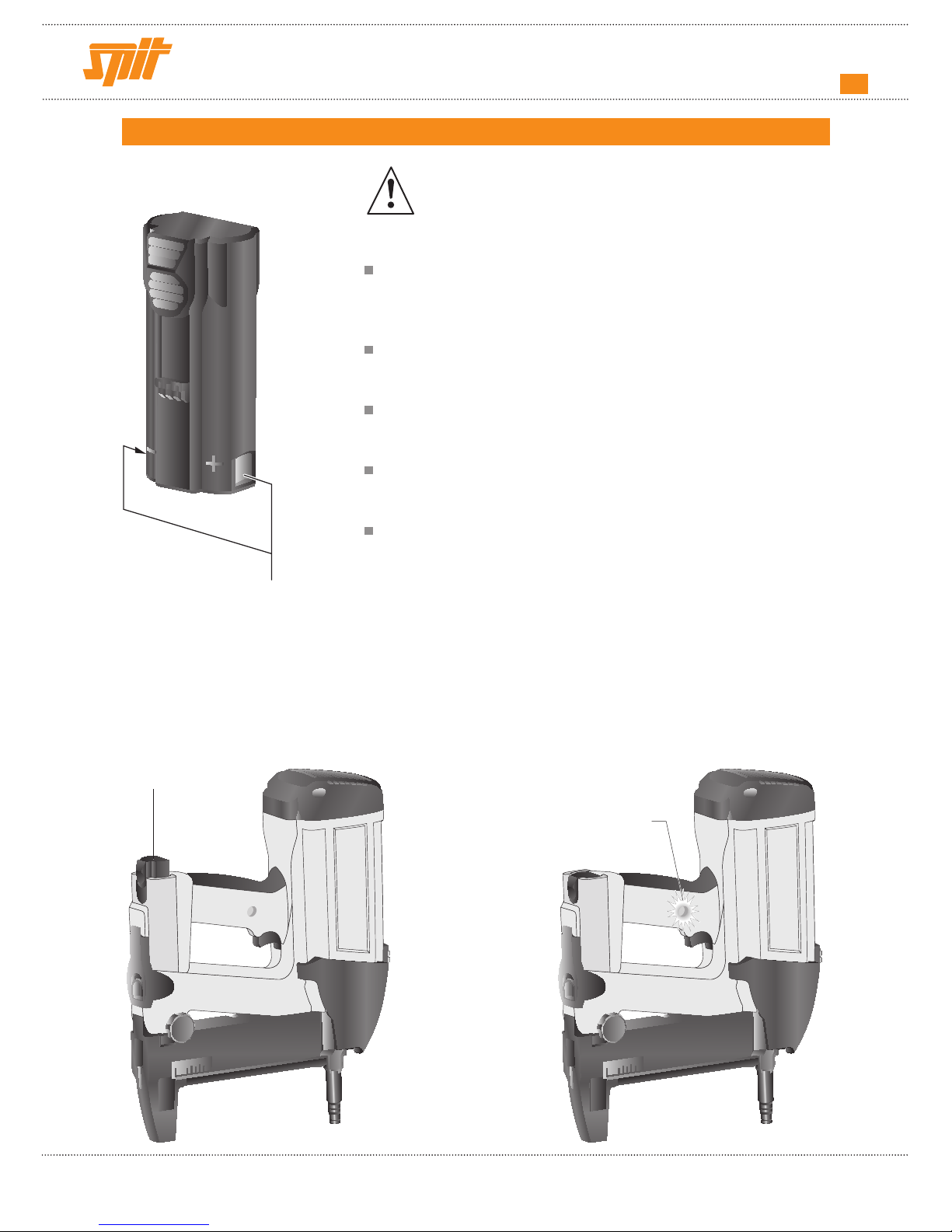

Battery The battery will discharge itself even if the tool is

not being used. Remove the battery when not in

use or put in safe position. Recharge the battery if

it has not been used for a long period of time.

Batteries are supplied uncharged. Fully charge them before

using them for the first time. Only use SPIT batteries and

battery chargers.

Wait until the battery has completely drained before

recharging it.

When the battery has been charged (approx. 1 hour),

insert it into the tool (contacts toward front).

After use, remove the battery or place it in safe position

(see drawing below).

An LED control light is located on the right-hand side of the

handle. After installing the battery: :

• the indicator flashes green: the tool is powered by the

battery

• the indicator flashes red: recharge the battery.

• the indicator is green the roller is pushed in, the

fan is

turning, the tool is

ready to fire.

• the indicator is red: the roller is pushed in, the

fan is not turning, recharge

the battery.

LED

Battery in safe

position

Contacts

Consumables

Battery The battery will discharge itself even if the tool is

not being used. Remove the battery when not in

use or put in safe position. Recharge the battery if

it has not been used for a long period of time.

Batteries are supplied uncharged. Fully charge them before

using them for the first time. Only use SPIT batteries and

battery chargers.

Wait until the battery has completely drained before

recharging it.

When the battery has been charged (approx. 1 hour),

insert it into the tool (contacts toward front).

After use, remove the battery or place it in safe position

(see drawing below).

An LED control light is located on the right-hand side of the

handle. After installing the battery: :

• the indicator flashes green: the tool is powered by the

battery

• the indicator flashes red: recharge the battery.

• the indicator is green the roller is pushed in, the

fan is

turning, the tool is

ready to fire.

• the indicator is red: the roller is pushed in, the

fan is not turning, recharge

the battery.

LED

Battery in safe

position

Contacts

T[email protected]

www.itwcp.co.uk

Technical Helpline UK: 0800 731 4924

Technical Helpline ROI: 1 800 882 388

Pulsa Operator Guide

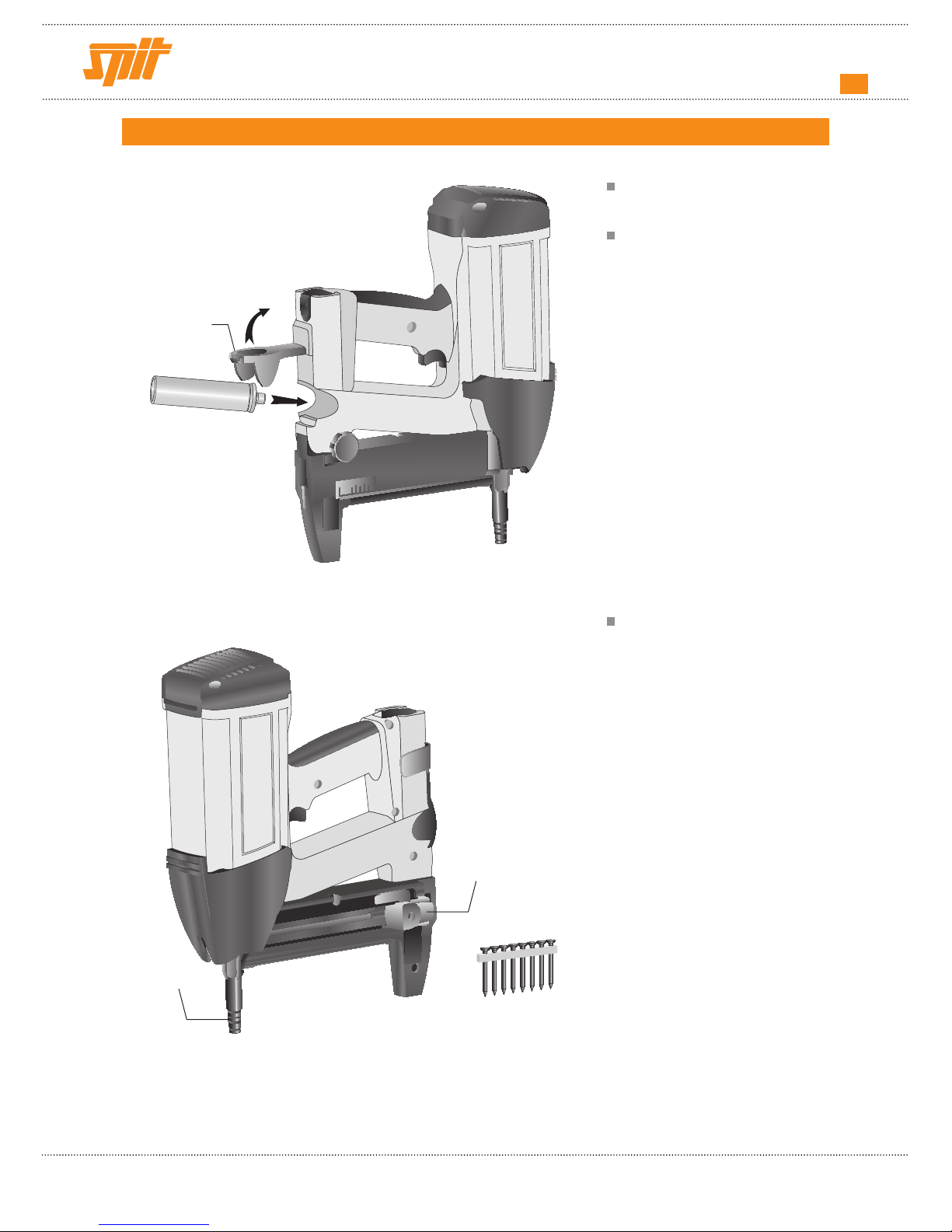

Installing the fuel cell and nails

Lift up the cover on the

fuel cell slot.

Insert the fuel cell and

close the cover.

Pull the button (12) back.

Insert the nail strips into

the back of the magazine.

Release the button (12),

Warning

Do not press on the pin

guide (12) while loading

nails. The ejector push

button (12) prevents you

from using the tool when

only three nails are left in

the magazine.

Fuel cell

SPIT nails

Cover

T[email protected]

www.itwcp.co.uk

Technical Helpline UK: 0800 731 4924

Technical Helpline ROI: 1 800 882 388

Pulsa Operator Guide

Use

The PULSA 700 can be used in all positions:

Wall CeilingFloor

Carefully read the safety precautions on page 11

before use.

Place the pin guide against the base material

•the fan is on,

•the green light is not flashing,

•the gas is injected into the combustion chamber then

mixed with air by the fan.

Pull the trigger

•the gas / air mixture burns,

•the fan keeps operating for approx 10 seconds

To avoid overheating, do not hold the device by the

upper hood during use. This obstructs the ﬁlters.

When the cycle is over, the tool is ready for another

sequence. When finished, remove the battery or place it in

safe position.

Suitable base materials:

Concrete / Pre-

cast concrete

Rendered hollow

block;

Hollow floor block

Solid / rendered

brick

Steel

Use

The PULSA 700 can be used in all positions:

Wall CeilingFloor

Carefully read the safety precautions on page 11

before use.

Place the pin guide against the base material

•the fan is on,

•the green light is not flashing,

•the gas is injected into the combustion chamber then

mixed with air by the fan.

Pull the trigger

•the gas / air mixture burns,

•the fan keeps operating for approx 10 seconds

To avoid overheating, do not hold the device by the

upper hood during use. This obstructs the ﬁlters.

When the cycle is over, the tool is ready for another

sequence. When finished, remove the battery or place it in

safe position.

Suitable base materials:

Concrete / Pre-

cast concrete

Rendered hollow

block;

Hollow floor block

Solid / rendered

brick

Steel

T[email protected]

www.itwcp.co.uk

Technical Helpline UK: 0800 731 4924

Technical Helpline ROI: 1 800 882 388

Pulsa Operator Guide

Use (cont.)

Using the PULSA 700E or 700P without the nail magazine.

The nail magazine has to be removed for certain fastening

operations.

To do so, unscrew the knurled nut.

Using the cover

The tool is fitted with a cover which protects the tool and

the magazine from dust and debris, in particular for overhead

fixing.

To fit or remove the cover, please comply with the following

instructions:

Remove the battery before handling the tool.

Proceed as indicated (Fig. 1 to 3).

Never place your hand over the nosepiece (Fig. 4).

Except in special cases, we recommend that you do not remove

the dust cover.

(Fig. 3)(Fig. 2)(Fig. 1)

(Fig. 4)

Use (cont.)

Using the PULSA 700E or 700P without the nail magazine.

The nail magazine has to be removed for certain fastening

operations.

To do so, unscrew the knurled nut.

Using the cover

The tool is fitted with a cover which protects the tool and

the magazine from dust and debris, in particular for overhead

fixing.

To fit or remove the cover, please comply with the following

instructions:

Remove the battery before handling the tool.

Proceed as indicated (Fig. 1 to 3).

Never place your hand over the nosepiece (Fig. 4).

Except in special cases, we recommend that you do not remove

the dust cover.

(Fig. 3)(Fig. 2)(Fig. 1)

(Fig. 4)

T[email protected]

www.itwcp.co.uk

Technical Helpline UK: 0800 731 4924

Technical Helpline ROI: 1 800 882 388

Pulsa Operator Guide

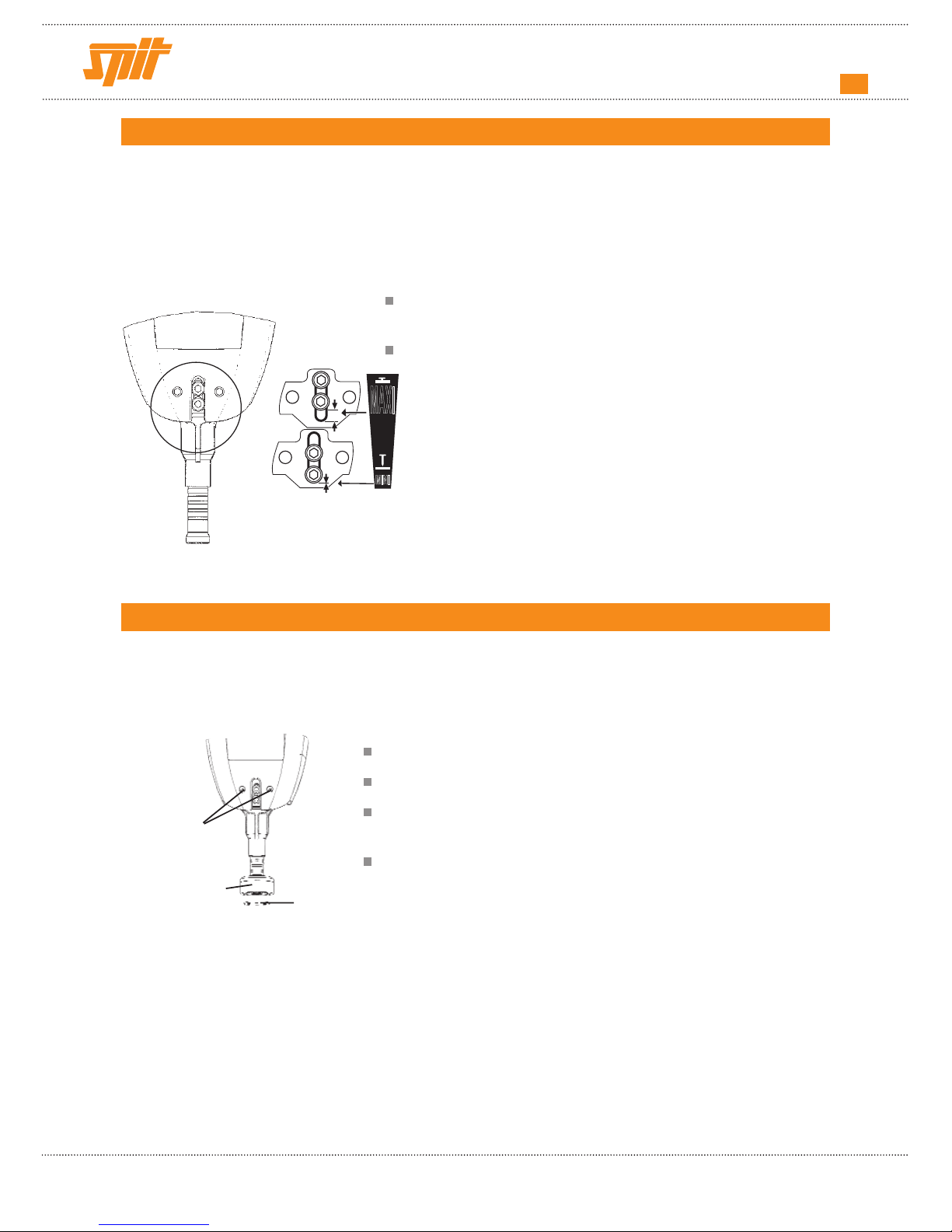

Adjusting the nail insertion depth

Using the metal washer holder (700P)

Certain applications may require use of the metal washer holder (this

accessory is not supplied with the unit).

This washer is mounted instead of the standard pin guide.

Remove the nail magazine (see drawing above).

Unloosen the 2 screws by 3 to 4 turns.

Replace the standard pin guide with the metal washer

holder pin guide.

Retighten the 2 screws.

The tool automatically adjusts its power to suit the base material.

However, certain applications may require a special setting for the tool pin guide.

Setting the pin guide :

Loosen the screw using the hexagonal wrench supplied with

the unit.

W ith the wrench mounted onto the screws, slide :

• to the up position for maximum nail insertion (Fig. 1).

•

to the down position for minimum nail insertion

(Fig. 2)

(Fig. 1)

(Fig. 2)

screws

nosepiece metal washer

MINI

MAXI

Adjusting the nail insertion depth

Using the metal washer holder (700P)

Certain applications may require use of the metal washer holder (this

accessory is not supplied with the unit).

This washer is mounted instead of the standard pin guide.

Remove the nail magazine (see drawing above).

Unloosen the 2 screws by 3 to 4 turns.

Replace the standard pin guide with the metal washer

holder pin guide.

Retighten the 2 screws.

The tool automatically adjusts its power to suit the base material.

However, certain applications may require a special setting for the tool pin guide.

Setting the pin guide :

Loosen the screw using the hexagonal wrench supplied with

the unit.

W ith the wrench mounted onto the screws, slide :

• to the up position for maximum nail insertion (Fig. 1).

•

to the down position for minimum nail insertion

(Fig. 2)

(Fig. 1)

(Fig. 2)

screws

nosepiece metal washer

MINI

MAXI

Adjusting the nail insertion depth

Using the metal washer holder (700P)

Certain applications may require use of the metal washer holder (this

accessory is not supplied with the unit).

This washer is mounted instead of the standard pin guide.

Remove the nail magazine (see drawing above).

Unloosen the 2 screws by 3 to 4 turns.

Replace the standard pin guide with the metal washer

holder pin guide.

Retighten the 2 screws.

The tool automatically adjusts its power to suit the base material.

However, certain applications may require a special setting for the tool pin guide.

Setting the pin guide :

Loosen the screw using the hexagonal wrench supplied with

the unit.

W ith the wrench mounted onto the screws, slide :

• to the up position for maximum nail insertion (Fig. 1).

•

to the down position for minimum nail insertion

(Fig. 2)

(Fig. 1)

(Fig. 2)

screws

nosepiece metal washer

MINI

MAXI

T[email protected]

www.itwcp.co.uk

Technical Helpline UK: 0800 731 4924

Technical Helpline ROI: 1 800 882 388

Pulsa Operator Guide

Servicing / Troubleshooting

Troubleshooting

The tool does not work

• the light is off

• the light flashes red

• the light flashes green

The fan is on but the tool

does not discharge

• the light is red

• the light is green

The fan stops after pulling the

trigger

• the light is green

The tool discharges with

interruptions

• the light is green

Insufﬁcient nail penetration

• the light is green

The tool makes a mufﬂed sound.

The piston does not drive the

nails

• the light is green

The tool works slowly and

heats over

• the light is green

Use in cold weather below–5°C

Causes / Solutions

- Battery not in nailer. Dirty battery contacts. Clean.

- Battery completely discharged. Recharge battery.

- Check that there are more than three nails in the magazine.

- Battery power too low. Recharge the battery.

- Change the fuel cell.

- Contact SPIT After-Sales Service.

- Change the fuel cell.

- Change the fuel cell. Clean filters.

- Contact SPIT After-Sales Service.

- Check and clean the filter.

- Place the tool, fuel cells and battery in a warm place.

Servicing For operations not included in this manual, consult the SPIT

After-Sales Service.

Servicing that can be performed by the user:

• Cleaning of filters

• Inspection of fuel cell

• Inspection of battery charger contacts

Cleaning of filters:

• Remove the cover, remove the filters and lightly tap them to

remove any dust.

• After cleaning, replace them and close the cover.

Cleaning of battery contacts:

• Periodically clean these contacts with a dry cloth.

Malfunctions If the recommendations do not solve the problem, contact

the nearest SPIT After-Sales Service.
