Form No. 101703

Rev 11 Date: June 2019

MODEL B (Model C for PE102A-GRC)

ELECTRIC HYDRAULIC PUMP

Max. Capacity: 10,000 PSI

Parts List for:

PE10 Series

PR10 Series

Form No. 101703

8, 9

12 13 14, 15 16

26,

See Detail V

For manifold or

valve options, see

"PARTS INCLUDED

BUT NOT SHOWN"

section of list.

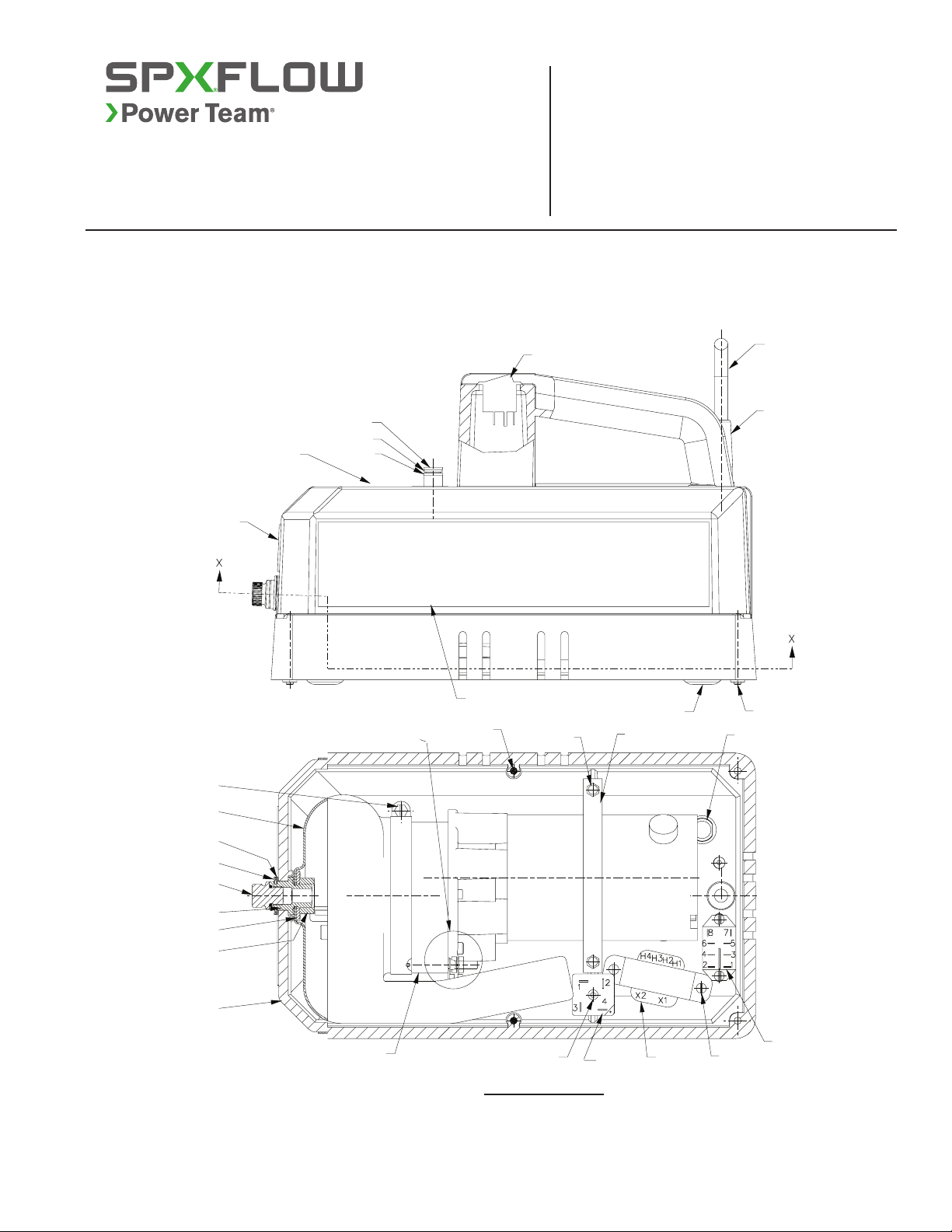

Basic Pump Assembly

See sheet 6

SECTION X-X

Basic Pump Assembly

See sheet 6

See Detail V

For manifold or

valve options, see

"PARTS INCLUDED

BUT NOT SHOWN"

section of list.

Form No. 101703

Rev 11 Date: June 2019

Parts List

ITEM

PART

NO.

QTY DESCRIPTION

251072

Warning & Fill Instructions Decal

2 *11863 2 Backup Washer (1/2 X 3/8 X 1/16)

3 *10268 2

O-ring (1/2 X 3/8 X 1/16; For PE102, PE102-220, PE104,

PE104-220, PR102, & PR104)

† 17716 2

O-ring (1/2 X 3/8 X 1/16; For PE102, PE102-220, PE104,

PE104-220, PR102, & PR104)

*10268

O-ring (1/2 X 3/8 X 1/16; For PE102A, PE102A-220, & PR102A)

† 17716 3 O-ring (1/2 X 3/8 X 1/16; For PE102A, PE102A-220, & PR102A)

4 202505 1

Bushing (For PE102, PE102A, PE102-220, PE102A-220,

PR102, & PR104)

5 251051 1 Rocker Switch

6 24733 1 Cord Set (For PE Series only)

250894

Electrical Plug (For PR Series only)

12293 1.5 ft. Electrical Cable (For PR Series only)

251048

Bushing

8 12515 4 Machine Screw (10-24 UNC X 1 3/4 Lg.)

9 207405 4 Locknut (10-24 UNC)

420607

Base Plate

11 350672 2 Trade Name Decal (For PR Series)

351035

Trade Name Decal (For PE Series)

252102 2 Trade Name Decal (For LUKAS)

12 14456 2

Screw (#10-24 X 1/2 Lg.; Place ground wire terminal between

cover & housing)

211060

Screw (#9-15 X 1” Lg.)

14 251039 .5 ft. Motor Mounting Strap

251041

3”

Channel Rubber

16 251045 1 “D” Bushing Plug

17 251046 1 Relay (For PE Series only)

15468

Screw (#6-32 X 3/8 Lg.)

19 251049 1 Transformer (For PE Series only)

251050

Rectifier (For PE Series only)

21 251073 1 Screw (6-32 X 3/4 Lg.; For PE Series only)

22 64363 1 Plastic Housing

64616

Plastic Housing (For PE102AR & PE102AR-220)

23 10394 1 Hex Nut (5/8-18 UNF)

Form No. 101703

Rev 11 Date: June 2019

Parts List continued

ITEM

PART NO.

QTY

DESCRIPTION

24 13324 1 Washer (For 5/8 Bolt)

25 350583 1 Filler Adapter

*13755

O-ring (.558 X .414 X .072)

† 250135 1 O-ring (.558 X .414 X .072)

251280

O-ring Boss Plug

28 251043 1 Retaining Ring

29 201373 1 Retainer Washer

420643

Bladder

† 420736 1 Bladder

2001397

Bladder Spacer

PARTS INCLUDED BUT NOT SHOWN

PART NO.

QTY

DESCRIPTION

† 250238 1 Decal (EPR Seals)

350646

Cord Set (For PR Series only)

10855 2

Screw (Torque to 160/180 in. lbs. Tighten the screw on the right-hand

side facing the pump first.)

*10268

O-ring (1/2 X 3/8 X 1/16; For PE102A, PE102A-220, & PR102A)

† 17716 1 O-ring (1/2 X 3/8 X 1/16; For PE102A, PE102A-220, & PR102A)

251253

Remote Switch (For PR102A-DEUT)

251635 1 Remote Switch (For PE102A-EMP)

251048 1 Bushing (For units equipped with a remote switch)

250176

Fuse (For PE102, PE102A, & PE102A-220)

206962 1 Fuse (For PE102-220, PE102A-220, & PE104-220)

251561

Receptacle (For PE102AR & PE102AR-220)

14456 2 Screws (#10-24 X 1/2 Lg.; For PE102AR & PE102AR-220)

Form No. 101703

Rev 11 Date: June 2019

OTHER OPTIONS AND ACCESSORIES

PART NO.

QTY

DESCRIPTION

9562 1

Manifold (For PE102A, PE102A-220, PR102A, PE102A-EMP, &

PR102A-DEUT; See Form No. 101344)

9561 1 2 Position, 2-Way Valve (For PE102, PE102-220, PE102A-EMP,

PR102A-DEUT, & PR102; See Form No. 101327)

9563 1

3 Position, 4-Way Valve (For PE104, PE104-220, & PR104; See Form

No. 101326)

9560 1 Pressure Regulator (For PE102-ANCHOR; See Form No. 101328)

10461 1 Foot Switch Assembly

25017

Hand Switch Assembly

9625 1 Pressure Switch (See Form No. 100589)

BP12V 1

12 Volt Battery Pack (Includes sealed lead acid battery, 115V charger,

battery-to-pump 4 ft. cord set, carrying case and shoulder strap.

VC220 1

Voltage Converter w/ Plug Adapters (Converts 220V 50/60 cycle to 110V

50/60 cycle)

RB12V

Replacement Battery only

RC12V 1 Replacement Battery 4 Ft. Cord Set (For BP12V)

351240 1 Manifold (For PE102-28-DC & PE102-28-220DC)

351845

Electrical Plug (For LUKAS)

Parts List continued

Part numbers marked with an asterisk (*) are contained in Repair Kit No. 300651.

Part numbers marked with a dagger (†) are contained in EPR Seal Kit No. 3000008.

NOTE: For LUKAS brand pumps, if additional parts (that are not shown here) need replacing, contact your nearest

LUKAS service center.

Form No. 101703

Rev 11 Date: June 2019

Parts List

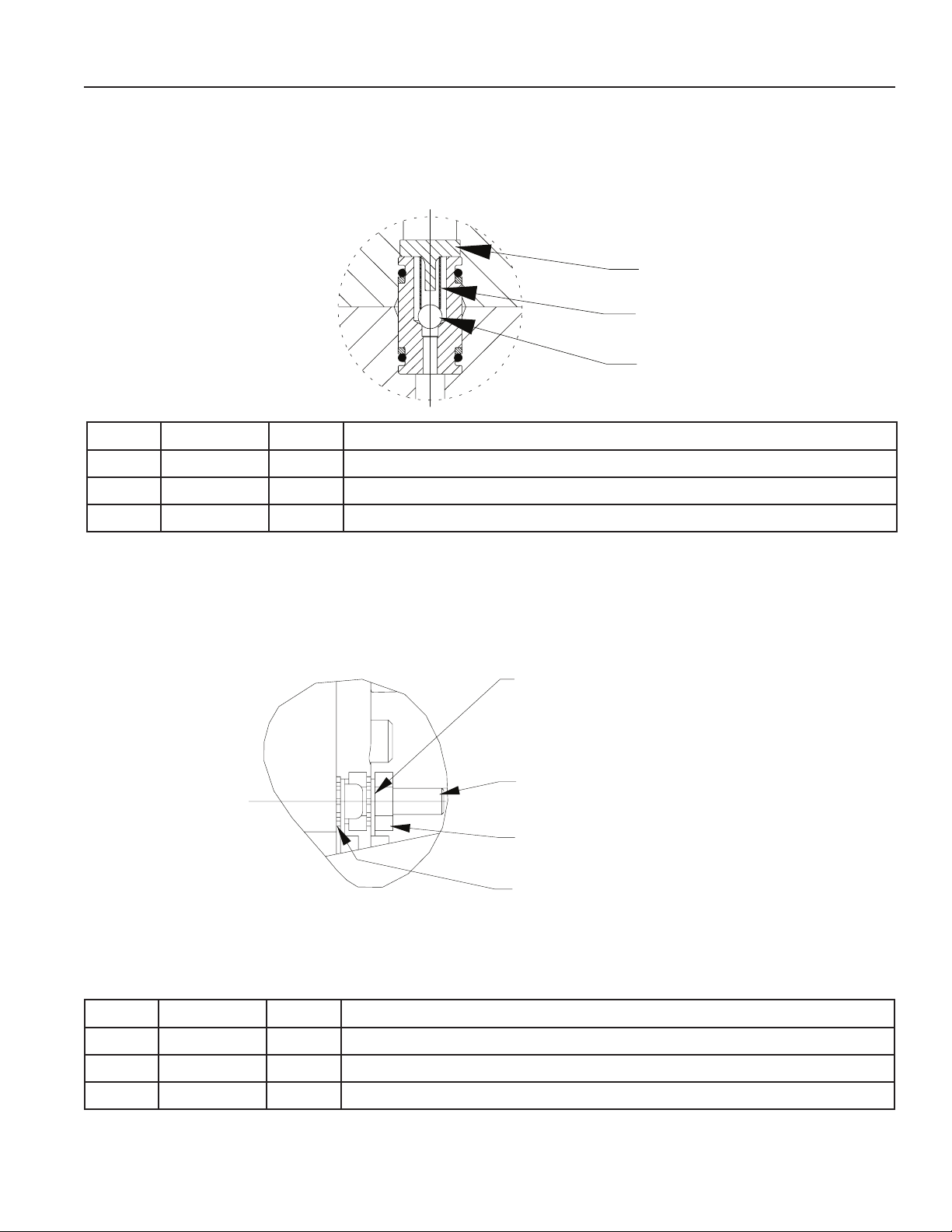

DETAIL FOR 4-WAY VALVE OUTLET CHECK

(FOR PE104, PE104-110-3000, PE104-110-5000, PE104-220, &PR104)

ITEM

PART NO.

QTY

DESCRIPTION

1 209795 1 Outlet Ball Stop

*10445

Compression Spring (5/32 O.D. X 3/4 Lg.)

3 *12223 1 Ball (3/16 Dia.)

Part numbers marked with an asterisk (*) are contained in Repair Kit No. 3000008.

DETAIL V

ITEM

PART NO.

QTY

DESCRIPTION

12515

Machine Screw (#10-24 UNC X 3/4 Lg.)

2 10197 2 Nut (#10-24 UNC)

3 11108 2 Lockwasher (#10 External Tooth)

Power Cord Ground

(Must be isolated between

nuts and can be at top

or bottom of stack.)

Grd

Note: Serrated lockwasher must

be adjacent to pump body.

Form No. 101703

Rev 11 Date: June 2019

Parts List

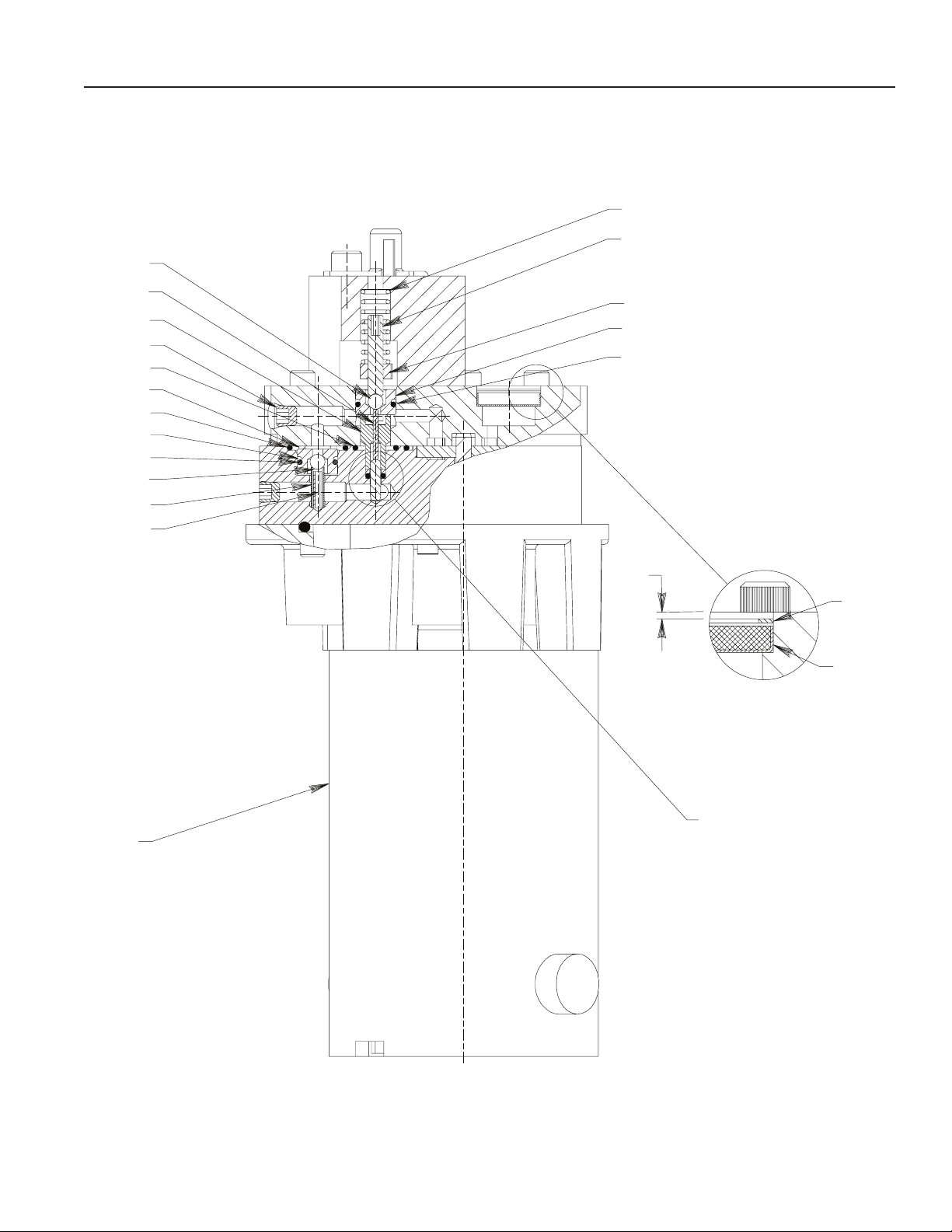

BASIC PUMP ASSEMBLY

ITEM

PART NO.

QTY

DESCRIPTION

1 10002 1 Screw (1/4-20 UNC X 3/8 Lg.; Torque to 80/100 in. lbs.)

2 14423 3 Screw (#10-24 X 2” Lg.; Torque to 60/80 in. lbs.)

14426

Screw (#10-24 UNC X 1” Lg.; Torque to 60/80 in. lbs.)

12 3

Form No. 101703

Rev 11 Date: June 2019

Parts List

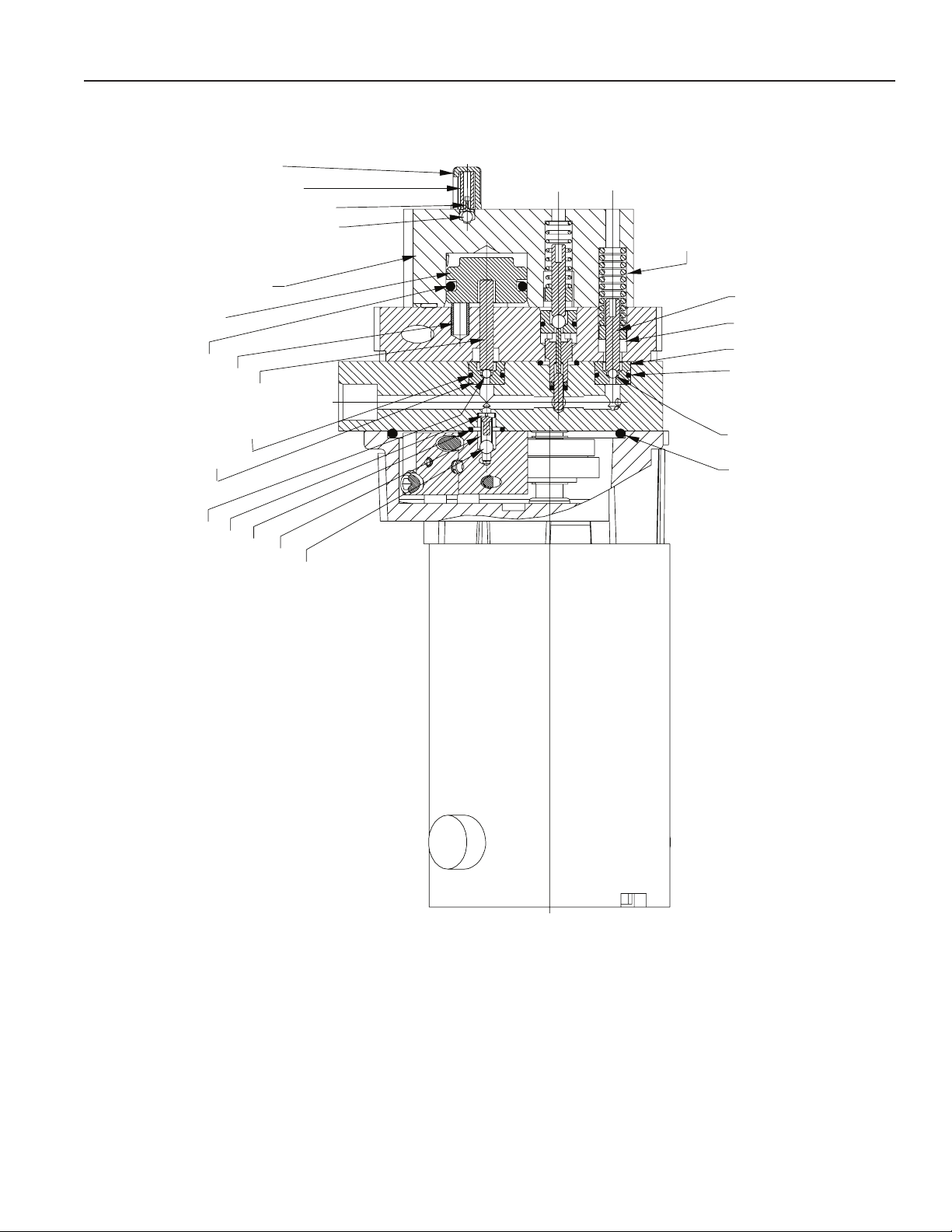

SECTION X-X

.030

.090

See

Detail

See

Detail

Form No. 101703

Rev 11 Date: June 2019

ITEM

PART NO.

QTY

DESCRIPTION

*14484

Compression Spring (3/8 O.D. X 1” Lg.)

2 *251067 1

Set Screw (#10-24 UNC X 1” Lg. Set unloading valve to

400/500 PSI)

*207405

Locknut (10-24 UNC)

4 *251065 1 Replaceable Seat

5 *10268 1 O-ring (1/2 X 3/8 X 1/16)

† 17716

O-ring (1/2 X 3/8 X 1/16)

7 *214578 1 Filter

8421297-110-G 1

Motor (For PE102, PE102A, & PE104; For replacement

brush assembly, order [2] #251114-110)

421297-220-G 1

Motor (For PE102-220, PE102A-220, & PE104-220; For

replacement brush assembly, order [2] #251114-220)

421297-12-G 1

Motor (For PR102, PR102A, & PR104; For replacement

brush assembly, order [2] #251114-220)

9 11512 1 Roll Pin

10 *15141 1 Compression Spring (3/16 O.D. X 5/8 Lg.)

*12223

Ball (3/16 Dia.)

12 *13943 1 O-ring (1/2 X 3/8 X 1/16)

† 17716

O-ring (1/2 X 3/8 X 1/16)

13 *10302 1 O-ring (3/4 X 5/8 X 1/16)

† 12400 1 O-ring (3/4 X 5/8 X 1/16)

*11031

Copper Washer (15/32 X 5/16 X 1/32)

15 *12098 1 O-ring (9/16 X 7/16 X 1/16)

† 250136

O-ring (9/16 X 7/16 X 1/16)

16 15130 3 Plug (1/16 NPTF)

17 251068 1 Guide

13937

Dowel Pin

Parts List

Part numbers marked with an asterisk (*) are contained in Repair Kit No. 300651.

Part numbers marked with a dagger (†) are contained in EPR Seal Kit No. 3000008.

Form No. 101703

Rev 11 Date: June 2019

ITEM

PART NO.

QTY

DESCRIPTION

1 10796 1 Dowel Pin

2 *214992 1 Backup Washer (15/64 X 1/8 X 3/64)

*17797

O-ring (1/4 X 1/8 X 3/64)

† 17713 1 O-ring (1/4 X 1/8 X 3/64)

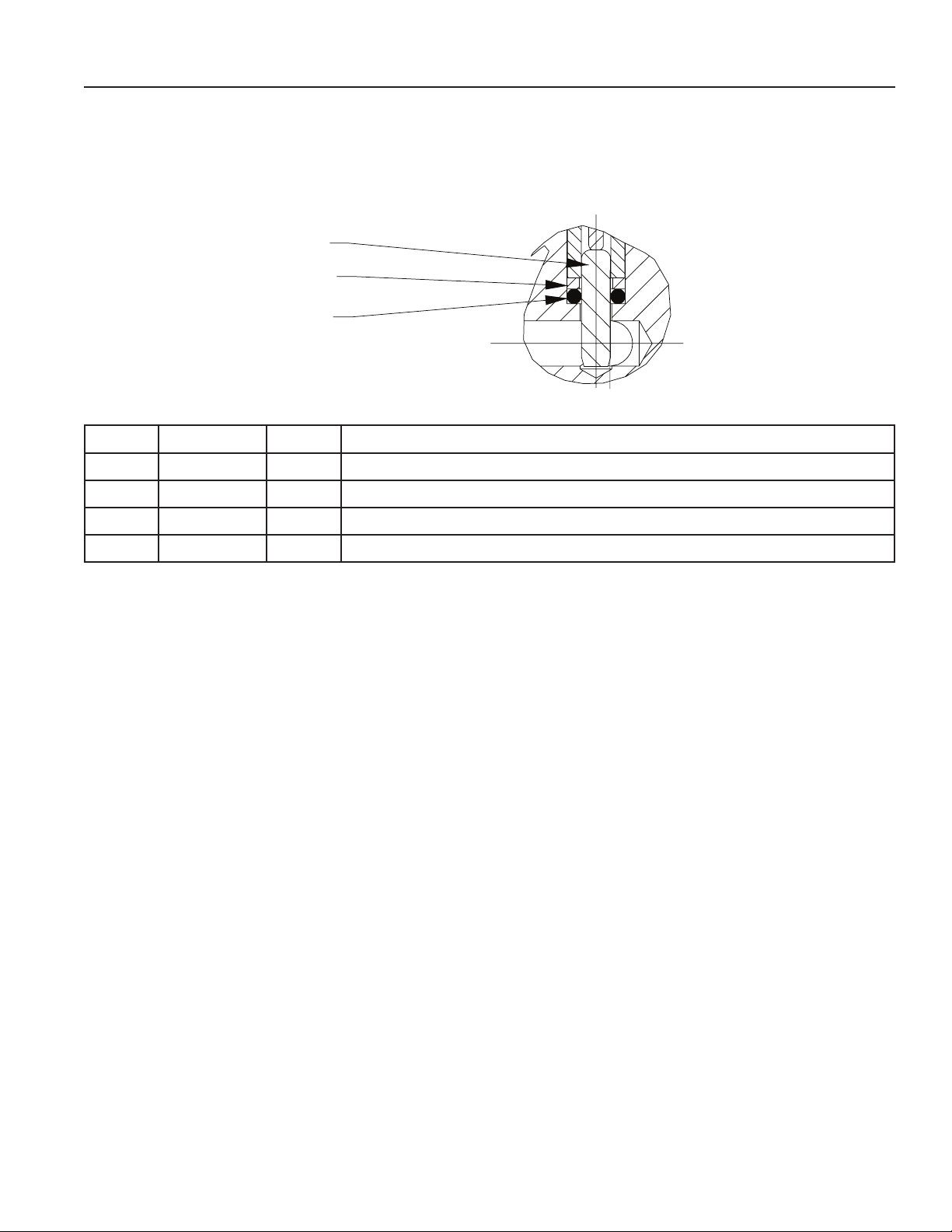

DETAIL T

Part numbers marked with an asterisk (*) are contained in Repair Kit No. 300651.

Part numbers marked with a dagger (†) are contained in EPR Seal Kit No. 3000008.

Parts List

DETAIL T

Form No. 101703

Rev 11 Date: June 2019

Parts List

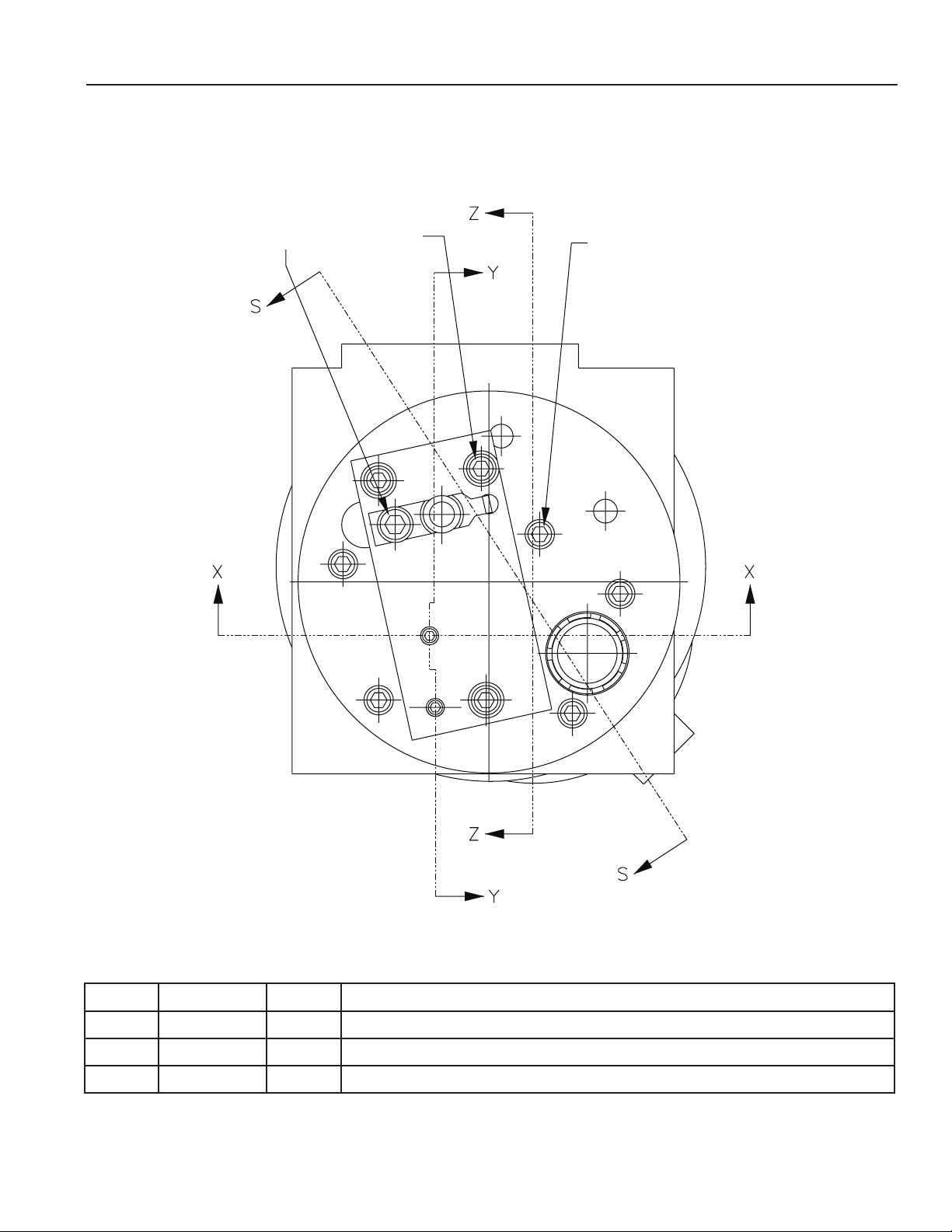

SECTION Y-Y
