LINK-S-DARK PRESENTATION

The LINK-S-DARK is a one-of-a-kind hunting camera, since many of its features

are only oﬀered by SPYPOINT.

• Its built-in solar panel and lithium battery technology oﬀer you an incredible

battery life

• Its shutter speed is the fastest oﬀered on the hunting camera market

• Its hybrid lighting technology for night photos lets you customize your ﬂash

and easily choose between OPTIMAL (normal), IR-BOOST (lights up power-

fully to produce clear photos), NO GLOW (although active, the ﬂash is imper-

ceptible), and BLUR REDUCTION (eliminates the motion blur that a moving

subject produces on a photo) modes.

THANK YOU FOR CHOOSING A SPYPOINT PRODUCT

This User Manual will introduce you to the features of your new LINK-S-DARK

and will guide you through the acquisition of its functionalities so that you

can use it to its full potential.

Our priority is to oﬀer outstanding service to our customers. If you need

technical support for your camera, here is how to contact us:

Contact our chat service Monday to Friday, from 8:30 a.m. to 4:30 p.m.,

directly on the SPYPOINT site (in the lower right-hand corner of the Support

section, by clicking on the “Chatwithanexpert”window, www.spypoint.com).

Go to www.spypoint.com/en/support for more information

about our devices.

introduction

ABOUT US

SPYPOINT’s mission is to oﬀer you products that are easy to use, innovative,

aﬀordable, and of exceptional quality. Our products are mainly used in the

hunting ﬁeld and residential and commercial safety ﬁelds. They are distributed

and appreciated on all continents and are continuously growing. Prosperous

and respected, SPYPOINT is a company that is constantly developing new

technologies and that remains attentive to its customer’s needs to oﬀer

cutting-edge products with concrete solutions to improve hunting and

outdoor activities.

JOIN THE SPYPOINT COMMUNITY

www.facebook.com/SPYPOINT

www.twitter.com/SPYPOINTcamera

www.youtube.com/SPYPOINTtrailcam

www.instagram.com/spypointcamera

LINK-S-DARKSPYPOINT

Components..........................................................................................4

Features...................................................................................................6

Power........................................................................................................7

Memory Card ..................................................................................... 10

Preparation......................................................................................... 11

Activation............................................................................................ 12

Starting your camera..................................................................... 13

Conﬁguration..................................................................................... 15

Installation.......................................................................................... 21

Veriﬁcation.......................................................................................... 22

Tool – Accessories – Options....................................................... 23

Transferring Files to a Computer.............................................. 24

Oﬀered Accessories........................................................................ 25

Troubleshooting............................................................................... 26

Warranty and Preparation........................................................... 31

Regulation........................................................................................... 32

Frequency............................................................................................ 33

Table Of Content

LINK-S-DARKSPYPOINT

qAntenna

wSolar panel

eLEDs

rPhoto lens

tLight sensor

yViewing screen

uDetection lens

iSD card slot

oDelay light

aNavigation buttons

sON/OFF switch

dSlot for installation strap

fLocking latch

gCable lock hole

hMounting bracket

jBattery compartment door

k“BUSY” light

lBattery compartment

;SIM card slot

 Microphone

Screw-thread for standard ¼"-20

12 V jack

Battery compartment

opening button

Components

LINK-S-DARKSPYPOINT

ANTENNA

Captures the cellular signal.

SOLAR PANEL

Solar energy sensor for charging the internal battery.

LED

Night lighting to obtain black-and-white photos and videos.

PHOTO LENS

Image sensor and infrared ﬁlter.

LIGHT SENSOR

Detects ambient lighting conditions for taking photographs. Photos will

be shot in color during the day and black and white during the night.

VIEWING SCREEN

Allows you to access the camera menu and view photos/videos.

DETECTION LENS

Expands the detection area of the camera’s motion sensor.

SD CARD SLOT

Space to insert the SD card (not included) needed to save photos

and videos.

DELAY LIGHT

During installation, once the signal is found, this light ﬂashes

for 30 seconds to allow the user to walk away without being

photographed or ﬁlmed.

NAVIGATION BUTTONS

Buttons to navigate the camera’s menus and set the camera.

ON/OFF SWITCH

Allows the user to turn the camera OFF/ON.

SLOT FOR INSTALLATION STRAP

Allows the camera to be installed using the included installation strap.

LOCKING LATCH

Allows you to lock and open the door.

CABLE LOCK HOLE

Allows you to install a #CLM-6FT padlock cable

to secure the unit (sold separately).

MOUNTING BRACKET

Support suitable for setting up the camera.

BATTERY COMPARTMENT DOOR

Provides access to the battery compartment.

BUSY LIGHT

Indicator light that lets you know that the camera is performing a task.

BATTERY COMPARTMENT

Space to insert 8 AA batteries or a rechargeable lithium battery pack

(#LIT-09, sold separately).

SIM CARD SLOT

Space to insert a SIM card. It is necessary to activate cellular

functions. The SIM card, pre-installed and pre-activated, is

included with the camera. It is important to use a SPYPOINT SIM

card (supplied by SPYPOINT), otherwise the cellular functions

of the camera will be inoperative.

MICROPHONE

Records sound in video mode.

SCREW-THREAD FOR STANDARD ¼"-20TRIPOD MOUNT

Allows you to attach a standard tripod from ¼"-20.

12V JACK

Allows you to insert a power cord connected to an external 12 V source.

BATTERY COMPARTMENT OPENING BUTTON

Allows you to lock and open the battery compartment door.

Components

LINK-S-DARKSPYPOINT

CELLULAR TRANSMISSION

Frequency LTE

Photo transmission

Transmission of your photos to your

SPYPOINT application by cellular network.

Visit www.spypoint.com/plans to choose

a plan that suits you.

Camera conﬁguration Fully conﬁgurable remotely with the free

SPYPOINT app or the camera screen.

PHOTO RECORDING

Photo resolution 2 MP or 12 MP

Photo ﬁle format JPG

Time-lapse mode All intervals between 1 min and 24 h

Multi-shot mode Up to 6 photos per detection

Stamp on picture

(only on the picture)

Date, time, temperature (°C/°F), moon

phase, SPYPOINT logo, and camera model

Capture mode Colors by day, black and white by night

VIDEO RECORDING

Video resolution 1 920 X 1 080 (FHD 1080p)

Video ﬁle format AVI

Sequence length Adjustable from 10 to 90 seconds

Capture mode Colors by day, black and white by night

AUDIO

Sound recording Yes

MEMORY

Internal memory None

External memory

SD/SDHC card up to 32 GB (not included)

VIEWING

Built-in screen 2" ACL

On the SPYPOINT app or on the website www.spypoint.com/en/manage

POWER SOURCES

Alkaline or lithium AA batteries 8 x AA

(not included)

Rechargeable lithium

battery pack

Optional accessories available at SPYPOINT:

#LIT-C-8, #LIT-09

External 12 V battery

Optional accessories available at SPYPOINT:

#KIT6V-12V, #KIT-12V, #BATT-12V)

DETECTION SYSTEM

Movement detector Infrared captor

Detection angle 40 °

Detection range Up to 30 meters/100 feet

Trigger speed 0.07 seconds

Delay between each detection Adjustable from Instant to 30 minutes

NIGHT LIGHTING SYSTEM

LED 42 LEDs

Night light range Up to 30 meters/100 feet

Exposure Automatic adjustment of the infrared

illumination (blur reduction, no glow)

PHYSICAL DIMENSIONS OF THE CAMERA

17.5 cm (H) x 9.6cm (L) x 9.9 cm (P) 3.8 " (H) x 6.9 " (L) x 3.9 " (P)

RECOMMANDATIONS

Operating temperature

-30 °C to 50 °C (-22 °F to 122 °F)

Storage temperature -40 °C to 60 °C (-40 °F to 140 °F)

Features

LINK-S-DARKSPYPOINT

CHOOSING A POWER SOURCE

4 options are available to you:

• Internal lithium battery (included)

• Alkaline or lithium AA batteries

• Rechargeable lithium battery pack (#LIT-09 sold separately)

• Rechargeable battery 12 V (#KIT-12V sold separately)

INTERNAL LITHIUM BATTERY (MAIN POWER SOURCE)

Before your ﬁrst use, charge the internal lithium battery.

• Turn the camera OFF.

• Turn the solar panel downwards so that it does not interfere with the

charging process.

• Plug the 12V-USB cable (included) into

the 12 V jack on the bottom of the unit,

then connect the other end to a 5 V

wall outlet charger (not included).

• Once the camera is plugged in, its

screen will light up and the battery

charge level will be displayed for

10 seconds.

• Charge the camera for 24 to 48 hours

before use.

• You can press the OK button at any

time during the charging process to

display the battery charge level.

OPERATION

• The solar panel's function is to recharge the internal battery. This is the

default power supply system. The camera will be energetically self-suﬃcient

under ideal conditions (a low energy conﬁguration and a sunny environ-

ment).

• Make sure there are not objects obstructing the reception of light or

covering the solar panel.

• When the charge level of the internal battery is low, you will receive

a notiﬁcation in your application.

• If the internal battery charge level becomes insuﬃcient, the camera will shut

down or switch to an auxiliary power source, if you provided one.

• If the camera shuts down, the solar panel will recharge the internal battery

and the camera will restart by itself once it is suﬃciently charged, and it will

retain the settings you previously selected.

ADDITIONAL POWER SOURCES

ALKALINE OR LITHIUM AA BATTERIES

To add batteries, press the battery compartment release button under the

camera and open the door.

Power

LINK-S-DARKSPYPOINT

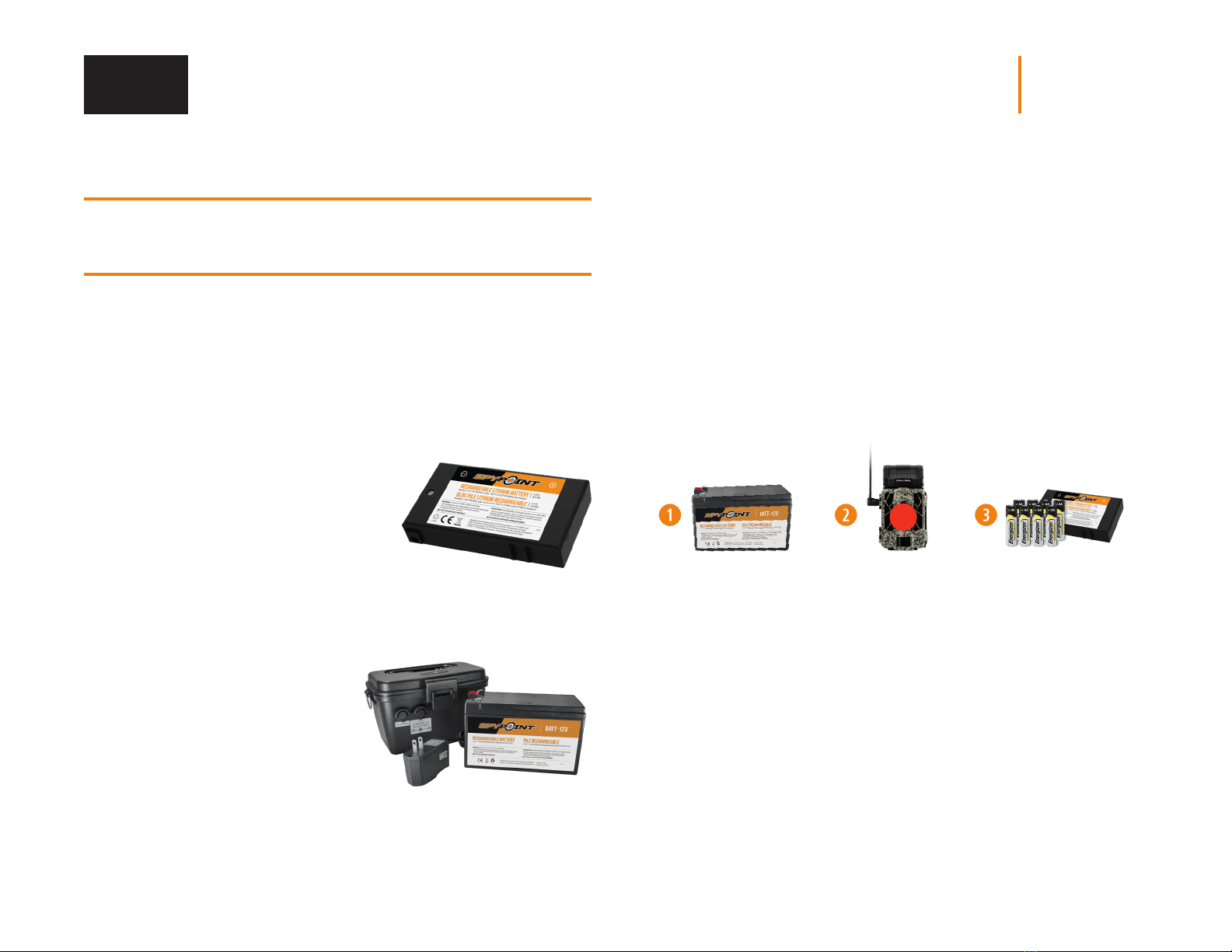

MANAGING VARIOUS CAMERA POWER SUPPLY

1. As soon as you connect an external 12 V battery to your camera via the

12 V socket, it becomes its main power supply source. The 12 V battery will

power the camera when it is turned on. If you turn oﬀ the camera, the 12 V

battery will recharge the internal lithium battery.

2. The internal lithium battery will only be used when the 12 V battery is drained.

3. When the internal lithium battery is drained, the camera will switch

automatically, without turning oﬀ, to the energy supplied by the AA

batteries or the battery pack.

4. When the AA batteries (or battery pack) are drained, the camera will turn oﬀ.

External 12 V

battery (#KIT-12V)

Internal lithium

battery

AA batteries or lithium

battery pack (#LIT-09)

Make sure to insert the AA batteries according to their polarity

(+) and (-) as shown in the battery compartment.

For best results and no leakage:

• Use only new alkaline or lithium batteries.

• Do not mix new and old batteries.

• Do not use rechargeable AA batteries

(their lower voltage can generate operational issues).

LITHIUM BATTERY PACK

The camera can be powered by a rechargeable

lithium battery pack LIT-09 (sold separately).

You can insert it in the battery compartment.

This kind of battery is less aﬀected by the cold

and oﬀers up to 2 times the performance of

alkaline batteries.

EXTERNAL 12 V BATTERY

• As soon as it is plugged in, this

battery will become the main power

source. The internal battery will only

be used once the 12 V battery is

drained.

• You can purchase a 12 V battery

and cable kit (such as #KIT-12V, sold

separately). To connect it to the

camera, plug the 12 V cable into

the 12 V socket on the camera and

connect the other end of the cable

to the 12 V battery.



Power

LINK-S-DARKSPYPOINT

NOTE

• Using an external 12 V battery source does not recharge the lithium battery

pack.

• The camera’s integrated solar panel will not recharge the external 12 V battery.

• When the charge level of the internal battery is low, you will receive

a notiﬁcation in your application.

• If the internal battery charge level becomes insuﬃcient, the camera will shut

down or switch to an auxiliary power source, if you provided one.

• If the camera shuts down, the solar panel will recharge the internal battery

and the camera will restart by itself once it is suﬃciently charged, and it will

retain the settings you previously selected.

BATTERY LEVEL VERIFICATION

You can verify the battery charge level in 3 ways:

1. By referring to the icon in the lower right corner of your camera's home

screen. This icon indicates, alternately, the charge level of the camera's

diﬀerent power sources.

HOME

Start camera

Detection test

View

Settings

Please note that the charge level of the internal battery is always indicated

ﬁrst (yellow icon). Then, the charge level of the secondary source is displayed

according to the battery type chosen in the settings: 12V, LIT-09, AA, or

AA-LIT (green icon).

2. In the SPYPOINT application: on the home page, you will see the battery

charge level for each of your devices. You can access more details on the

status of your battery by going to the STATUS page. When the battery logo

turns red, we suggest that you recharge the battery pack before it is com-

pletely drained.

3. Using your account on the www.spypoint.com site, in the “Camera status”

section.

For an accurate reading, it is important to select the correct

battery type in the application settings.

INT 12V LIT-09 AA AA-LIT

Power

LINK-S-DARKSPYPOINT

INSTALLING A SD CARD (NOT INCLUDED)

The use of a memory card is necessary for the operation of the camera. It is used to save pictures, videos

and other camera status ﬁles. Note that photos in their original format are kept on the memory card. The

photos sent to your application are lighter versions. You can retrieve your photos at any time by removing

the card from the device and transferring the contents to another device (e.g.: computer).

Your camera requires a memory card type SD/SDHC class 10, with a maximum capacity of 32 GB, sold

separately. Here is a table showing the approximate quantity of photos and video length that can be

recorded on the card, according to diﬀerent memory card capacities.

INSERTING YOUR SD CARD

Before inserting the SD card into your camera, it must be formatted via a computer to ensure proper

operations. Visit www.spypoint.com/en/support if you need help formatting your SD card.

• Make sure the camera is turned OFF.

• Locate the SD card slot. It is located on the lower right side (see diagram).

• Insert an SD card (up to 32 GB) into the SD card slot with the metal contacts facing the back.

• The card is correctly inserted when you hear a click.



NOTE

The LINK-S-DARK is equipped with continuous ﬁle

recording. This means that when the memory card

is full, the camera continues to save your pictures

by erasing the ﬁrst recorded ﬁles.

Memory Card

MEMORY 4 GB 8 GB 16 GB 32 GB

12 MP PHOTOS 1 600 3 200 6 300 12 600

1 920 X 1 080 VIDEOS 12 minutes 25 minutes 50 minutes 100 minutes

Andere Handbücher für LINK-S-DARK

Inhaltsverzeichnis

Andere Spypoint Scouting-Kamera Handbücher

Spypoint

Spypoint SOLAR Bedienungsanleitung

Spypoint

Spypoint SDB-85 Bedienungsanleitung

Spypoint

Spypoint Force-Dark Bedienungsanleitung

Spypoint

Spypoint LINK-MICRO-LTE Bedienungsanleitung

Spypoint

Spypoint LINK-S-DARK Bedienungsanleitung

Spypoint

Spypoint LINK-MICRO-S-LTE Bedienungsanleitung

Spypoint

Spypoint LINK-MICRO-S-LTE Bedienungsanleitung

Spypoint

Spypoint CELL-LINK Bedienungsanleitung

Spypoint

Spypoint LINK-MICRO-LTE Bedienungsanleitung

Spypoint

Spypoint LINK-EVO Leitfaden

Spypoint

Spypoint FORCE-20 Bedienungsanleitung

Spypoint

Spypoint FORCE-20 Bedienungsanleitung

Spypoint

Spypoint LINK-MICRO-LTE Bedienungsanleitung

Spypoint

Spypoint FLEX Bedienungsanleitung

Spypoint

Spypoint FORCE-PRO Bedienungsanleitung

Spypoint

Spypoint Force-Dark Bedienungsanleitung

Spypoint

Spypoint LIVE-3G Bedienungsanleitung

Spypoint

Spypoint FORCE-PRO Bedienungsanleitung

Spypoint

Spypoint FLEX-S Bedienungsanleitung

Spypoint

Spypoint IRON-9 Bedienungsanleitung

Spypoint

Spypoint FORCE-10 Bedienungsanleitung

Spypoint

Spypoint mini-LIVE Bedienungsanleitung

Spypoint

Spypoint XCEL 720W Bedienungsanleitung

Spypoint

Spypoint LINK-EVO Leitfaden

Beliebte Scouting-Kamera Handbücher anderer Marken

Nestbox

Nestbox C13 Bedienungsanleitung

Wildview

Wildview STC-TGL1 Bedienungsanleitung

Stealth Cam

Stealth Cam CORE STC-Z3IRTL Bedienungsanleitung

Suntek

Suntek HC-800M Bedienungsanleitung

Duramaxx

Duramaxx 10029765 Bedienungsanleitung

Brecom

Brecom C2400 Bedienungsanleitung

BlazeVideo

BlazeVideo A280W Bedienungsanleitung

Bestok

Bestok 5210GM Bedienungsanleitung

GardePro

GardePro X60P Bedienungsanleitung

Delta-Opti

Delta-Opti HC-SG880MK-18MHD Bedienungsanleitung

PNI

PNI HUNTING 280C Bedienungsanleitung

Muddy

Muddy Pro-Cam 14 Bedienungsanleitung

Bresser

Bresser 3310006 Bedienungsanleitung

Recon Outdoors

Recon Outdoors HS410 Bedienungsanleitung

Braun

Braun 57660 Bedienungsanleitung

Wildgame

Wildgame Shadow Bedienungsanleitung

Hieha

Hieha WiFi900Pro Montageanleitung

Bushnell

Bushnell 119437 Bedienungsanleitung
