Stagg HYPERNOVA SDJ-HYPERNOV1 Bedienungsanleitung
!
User Manual
HYPERNOVA
SDJ-HYPERNOV1
!
Unpacking: Thank you for purchasing this product. Every model has been
thoroughly tested and has been shipped in perfect operating condition.
Carefully check the shipping carton for damage that may have occurred during
shipping. If the packaging appears to be damaged, carefully inspect your product
for any damage and be sure all equipment necessary to operate the unit has
arrived intact.
Introduction: This product has six DMX channels. It can operate in three
different modes: DMX control, sound-active, or in a master/slave configuration.
This product comes with several built-in programs that can be used, while
operating as a dimmer unit or when used in multiples linked in a master/slave
configuration. For best results, use in conjunction with fog or special effects
machines to enhance the beam projections.
Warning! To prevent or reduce the risk of electrical shock or fire, do not expose
this unit to rain or moisture.
Warning! Avoid looking directly into the light source at all times! This may
cause severe eye damage.
Features
• Motor rotation
• RGB colour Mixing
• Colour Strobe Effect
• LED Chases (Adjustable Speeds)
• Built-in Microphone
• DMX-512 Protocol Compatible (Uses 6 DMX channels)
• 3 Operating Modes -Master/Slave; DMX control; Sound Active
• Digital Display for Address and Function Setting
!
On-board System Menu. This product comes with an easy-to-navigate system
menu. This section will detail the functions of each command in the system
menu. Please read this section thoroughly. To access the main menu, press the
MODE button. Tap it until you reach the mode you wish to change. When you
reach the mode function you wish to change, press the UP or DOWN button.
Tap the FUNC until you reach the function you wish to change. And press the
UP or Down button to change it.
AXXX -DMX mode and Address Setting
Tap the MODE button until “AXXX” is displayed; “x” represents the displayed
address. Press the UP or DOWN buttons to find your desired address.
G--X -auto mode and mode setting
Tap the MODE button until “G--X” is displayed; “X” represents the auto mode.
When “X” = “1”: sound mode; when “X” = “2” auto mode; when “X” = “3”: reset
mode.
S---slave mode
Tap the MODE button until “S---” is displayed. It is now in “slave” mode.
Pi X-function motor
Tap the FUNC button until “Pi X” is displayed, set the motor rotation, tap UP or
DOWN to change it.
Universal DMX Control: This function allows you to use a universal DMX-512
controller such as the Stagg Commandor to control the fixture. A DMX controller
allows you to create unique programs tailored to your individual needs.
1. This product uses 6 DMX channels. See below for detailed description of the
DMX traits.
2. This will allow you to create your own programs
3. Follow the instruction to set the DMX address.
!
DMX512 Control Specification:
DMX
Channels
DMX
Value
Function
CH1
Motor
control
0--100
Motor (0˚ ~ 360˚)
101--255
Motor rotation slow--fast
CH2
LED All
function
0--35
Dimmer
36--70
strobe
71--105
shadow
106--140
Colour-over
141--175
Colour-over + strobe
176--210
Glide
211--255
Glide + strobe
CH3
Timing
0--255
Slow-Fast
(strobe Colour-over Glide)
CH4
Dimmer
0--255
R 0%~100%
Strobe
0--255
R 0%~100%
CH5
Dimmer
0--255
G 0%~100%
Strobe
0--255
G 0%~100%
CH6
Dimmer
0--255
B 0%~100%
Strobe
0--255
B 0%~100%
!
Model: SDJ HYPERNOVA1
Voltage: 230V/50Hz
LEDs: 3 Pcs 3w LEDs (1Red, 1Green, 1Blue)
Power Consumption: 25W
Fuse: 1Amp
Weight: 4.7kg
Dimensions: 25 x 22 x 25cm
Colours: RGB colour mixing.
DMX Channels: 6 DMX Channel Modes
!
!
!
!
IMPORTANT SAFETY INSTRUCTIONS
READ AND KEEP THESE INSTRUCTIONS. HEED ALL WARNINGS.
• If, after you have followed the instructions outlined above, this device fails to function, please
contact your dealer. Under no circumstances should this device be opened. Leave all servicing to
qualified personnel.
•Electrical appliances must never be used in conditions of high humidity or heat. To prevent any risk
of fire or electric shock, never spill or splash liquids on this device. Should this happen, unplug the
power cable from the mains outlet and switch off the mixer immediately.
MARKING & CONFORMITY
1. The CE mark on this product means it conforms to the EMC Directive (2004/108/CE), CE marking
Directive (93/68/EEC) and Low Voltage Directive (2006/95/EC).
2. The «Crossed-out Wheeled Bin» is to draw your attention to the WEEE (Waste Electric &
Electronic Equipment) Directive (2002/96/EC). It means this apparatus must be collected separately
for recycling.
3. «RoHS compliant» means this device conforms to the Directive (2002/95EC) on the restriction of
the use of certain hazardous substances in electrical and electronic equipments, such as: Mercury,
Lead, Cadmium, Hexavalent Chromium, Polybrominated Buphenyl (PBB) and Polybrominated
Diphenyl Ethers (PBDE).
Inhaltsverzeichnis
Andere Stagg Beleuchtungsausrüstung Handbücher
Stagg
Stagg Hyperion 5R Bedienungsanleitung
Stagg
Stagg HEADBANGERXT SLI MHW HBXT Bedienungsanleitung
Stagg

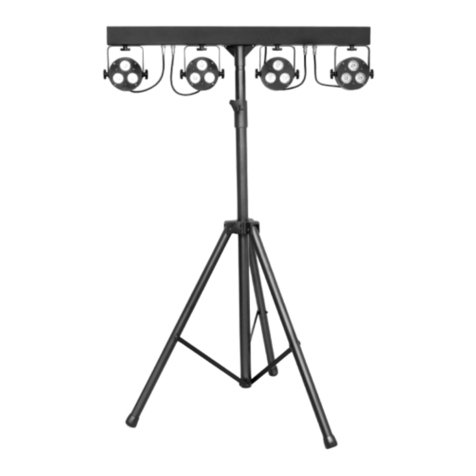

Stagg FlatPar 4 Bedienungsanleitung
