Starbridge Lynx 524 Wireless ADSL Router

User Manual

Wireless ADSL Router USER MANUAL

NOTICE

This document contains proprietary information protected by copyright, and this Manual

and all the accompanying hardware, software, and documentation are copyrighted. All

rights are reserved. No part of this document may be photocopied or reproduced by

mechanical, electronic, or other means in any form.

The manufacturer does not warrant that the hardware will work properly in all

environments and applications, and makes no warranty or representation, either

expressed or implied, with respect to the quality, performance, merchantability, or

fitness for a particular purpose of the software or documentation. The manufacturer

reserves the right to make changes to the hardware, software, and documentation

without obligation to notify any person or organization of the revision or change.

All brand and product names are the trademarks of their respective owners.

Content

1 OVERVIEW........................................................................................................................1

1.1 FEATURES ........................................................................................................................... 1

1.2 PACKET CONTENTS............................................................................................................ 3

1.3 SYSTEM REQUIREMENTS .................................................................................................... 3

1.4 FACTORY DEFAULTS........................................................................................................... 4

1.5 WARNINGS AND CAUTIONS ................................................................................................. 4

2 HARDWARE DESCRIPTION.............................................................................................5

3HARDWARE INSTALLATION...........................................................................................7

4 PC CONFIGURATION GUIDE...........................................................................................8

4.1 LOCAL PC CONFIGURATION IN WINDOWS 95, 98, ME, XP................................................. 8

4.2 LOCAL PC CONFIGURATION IN WINDOWS 2000................................................................. 8

5 WEB-BASED MANAGEMENT GUIDE..............................................................................9

5.1 LAN SETTING PAGE............................................................................................................ 9

5.2 INTERNET ACCESS CONFIGURATION ................................................................................... 9

QUICK SETUP............................................................................................................................. 9

5.3 WIRELESS SETTING .......................................................................................................... 20

APPENDIX: FREQUENT ASKED QUESTIONS.................................................................24

Wireless ADSL Router USER MANUAL

1 Overview

Thank you for choosing our product. The Starbridge Lynx 524 Wireless ADSL

Router uses Broadcom’s CPE solution that fully complies withADSL,ADSL2，

ADSL2+ and IEEE802.11b/g standards. It will provide your SOHO with

convenient Internet access.

1.1 Features

1.1.1 Data Rate

zDownstream data rate up to 24 Mbps

zUpstream data rate up to 1Mbps

1.1.2 ADSL Compliance

zITU G.992.1 (G.DMT)

zITU G.992.2 (G.Lite)

zITU G.992.3 (G.DMT.BIS)

zITU G.992.4 (G.lite.bis)

zITU G.992.5

zITU G.994.1 (G.hs)

zCompatible with all T1.413 issue 2 (full rate DMT over analog

POTS), and CO DSLAM equipment

zTR-069 compliant with ACS

1.1.3 Wireless

zFully IEEE 802.11b & IEEE 802.11g compatible

zWireless data rate up to 54 Mbps

zOperating in the unlicensed 2.4 GHz ISM band

zSupports 64/128 bits WEP security and user authentication

1.1.4 Network Protocol & Features

zEthernet to ADSL Self-Learning Transparent Bridging

zInternet Control Message Protocol (ICMP)

zIP Static Routing

Wireless ADSL Router USER MANUAL

zRouting Information Protocol (RIP, RIPv2)

zNetwork Address Translation (NAT)

zVirtual Server, Port Forwarding

zDynamic Host Configuration Protocol (DHCP)

zDNS Relay, DDNS

zIGMP Proxy

zSimple Network Time Protocol (SNTP)

zVPN pass-through (IPSec/PPTP/L2TP)

zParent control

1.1.5 ATM Capabilities

zRFC 1483 Multi-protocol over ATM “Bridged Ethernet” compliant

zRFC 2364 PPP over ATM compliant

zRFC 2516 PPP over Ethernet compliant

zATM Forum UNI3.1/4.0 PVC - Up to 8 PVCs

zVPI Range: 0-255

zVCI Range: 32-65535

zUNI 3.0 & 3.1 Signaling

zATM AAL5 (Adaption Layer type 5)

zOAM F4/F5

1.1.6 FIREWALL

zBuilt-in NAT

zMAC Filtering

zPacket Filtering

zStateful Packet Inspection (SPI)

zDenial of Service Prevention (DoS)

zDMZ

Wireless ADSL Router USER MANUAL

1.1.7 Management Support

zWeb Based GUI

zUpgrade or update via FTP/HTTP

zCommand Line Interface via Telnet

zDiagnostic Test

zFirmware upgrade-able for future feature enhancement

1.1.8 Operating System Support

zWINDOWS 98/SE/ME/2000/XP/VISTA

zMacintosh

zLINUX

1.1.9 Environmental

zOperating humidity: 10%-90% non-condensing

zNon-operating storage humidity: 5%-95% non-condensing

1.2 Packet Contents

The packet contents are as the following:

zADSL ROUTER x 1

zExternal Splitter x 1

zPowerAdapter x1

zTelephone Line x 1

zEthernet Cable x 1

zUser Manual(CD) x 1

1.3 System Requirements

Before using this ROUTER, verify that you meet the following requirements:

zSubscription for ADSL service. Your ADSL service provider should

provide you with at least one valid IP address (static assignment or

dynamic assignment via dial-up connection).

zOne or more computers, each contains an Ethernet 10/100M Base-T

network interface card (NIC).

Wireless ADSL Router USER MANUAL

zA hub or switch, if you are connecting the device to more than one

computer.

zFor system configuration using the supplied web-based program: A web

browser such as Internet Explorer v5.0 or later, or Netscape v4.7 or

later.

1.4 Factory Defaults

The device is configured with the following factory defaults:

zIP Address: 192.168.1.1

zSubnet Mask: 255.255.255.0

zSSID: Lynx524

zEncapsulation: RFC 2516 LLC

zVPI/VCI: According to local information

1.5 Warnings and Cautions

zNever install telephone wiring during storm. Avoid using a telephone

during an electrical storm. There might be a risk of electric shock from

lightening.

zDo not install telephone jacks in wet locations and never use the product

near water.

zTo prevent dangerous overloading of the power circuit, be careful about

the designed maximum power load ratings. Not to follow the rating

guideline could result in a dangerous situation.

zPlease note that telephone line on modem must adopt the primary line

that directly outputs from junction box. Do not connect Router to

extension phone. In addition, if your house developer divides a

telephone line to multi sockets inside the wall of house, please only use

the telephone that has connected with the splitter of ADSL Router when

you access the Internet. Under the above condition, if you also install

telephone with anti-cheat-dial device, please pull out this kind of

telephone, otherwise ADSL Router may occur frequently off-line.

Wireless ADSL Router USER MANUAL

2 Hardware Description

Front Panel

LED Color Function

PWR Green

On: Power

Off: No power

ETH1-4 Green

On: LAN link established and active via LAN port

Blinking: ADSL data activity occurs

Off: No LAN link via LAN port

WLAN Green

On: The wireless module is ready and idle

Blinking: Data transmitting or receiving over WLAN

Off :The wireless module is not installed

DSL Green

On: ADSL link established and active

Quick blinking: ADSL is trying to establish a connection

Slow blinking: No ADSL link

INET Green

Blinking: ADSL data activity occurs.

Off: No ADSL data is being sent or received

Wireless ADSL Router USER MANUAL

Rear panel

Port Function

DSL Connect the device to an ADSL telephone jack or splitter

using a RJ-11 telephone cable

RESET System reset or reset to factory defaults.

LAN Connect the device to user’s PC's Ethernet port, or to the

uplink port on user’s hub/switch, using a RJ-45 cable

POWER Connect to the supplied power adapter

ON/OFF Switch it on or off

ANT Antenna interface

Wireless ADSL Router USER MANUAL

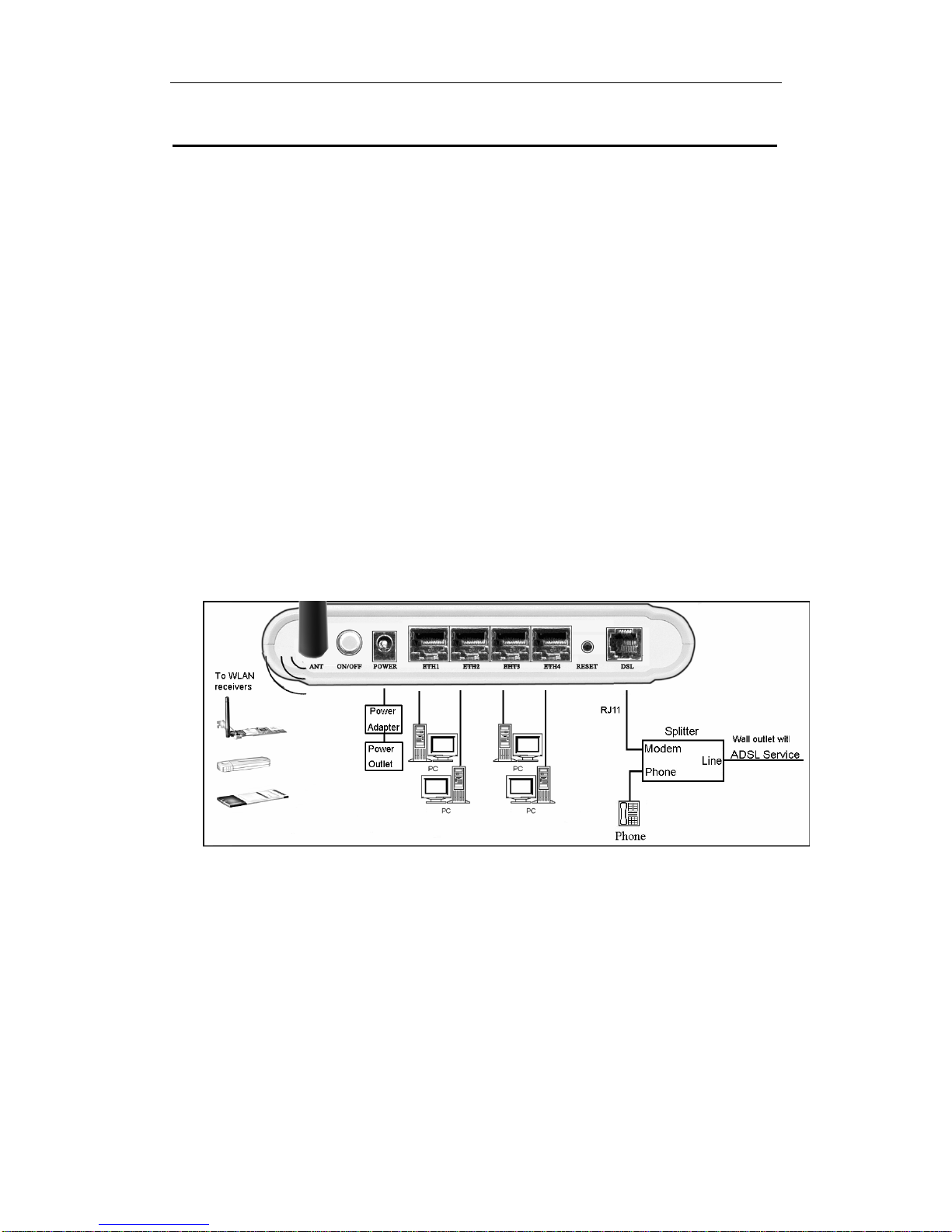

3 Hardware Installation

This chapter shows user how to connect Router. Meanwhile, it introduces the

appropriate environment for the Router and installation instructions.

1. Using a telephone line to connect the DSL port of ROUTER to the Modem

port of the splitter, and using a other telephone line connect user’s

telephone to the PHONE port of the splitter, then connect the wall phone

jack to the LINE port of the splitter.

The splitter comes with three connectors as below:

LINE: Connects to a wall phone jack (RJ-11 jack)

ROUTER: Connects to the DSL jack of ROUTER

PHONE: Connects to a telephone set

2. Using an Ethernet Cable to connect the LAN port of the ROUTER to user’s

LAN or a PC with network card installed. Or using an USB cables to connect

the USB port of the ROUTER to user’s PC.

3. Connect the power cable to the PWR connector on ROUTER, then plug in

the AC power adapter to the AC power outlet, and then press the on-off

button.

Notes: Without the splitter and certain situation, transient noise from

telephone can interfere with the operation of the Router, and the

Router may introduce noise to the telephone line. To prevent this

from happening, a small external splitter must be connected to

each telephone.
