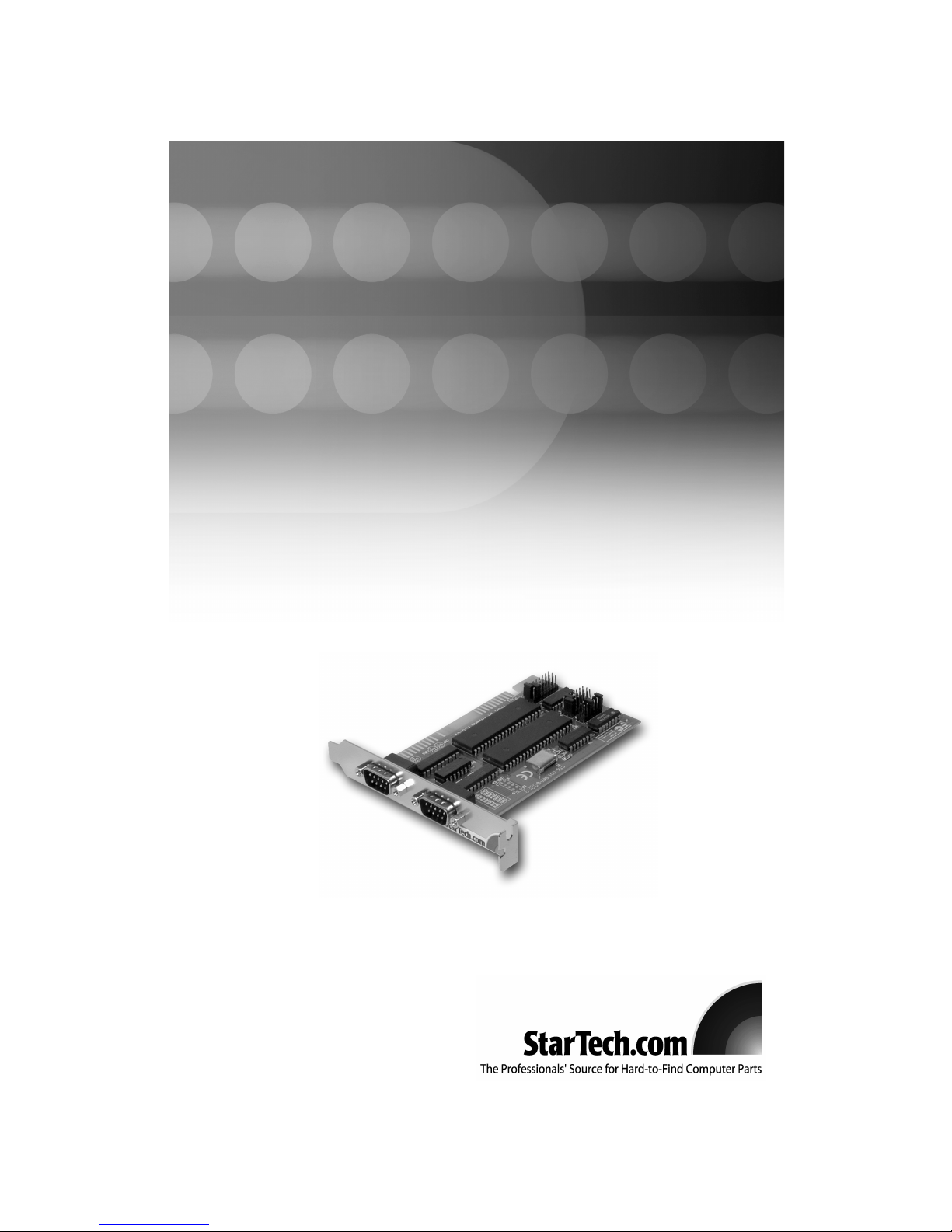

StarTech.com ISA1S550 Bedienungsanleitung

ISA Serial Card

ISA1S550

ISA2S550

Instruction Manual

Actual product may vary from photo

1 Port RS-232 Serial ISA Card

2 Port RS-232 Serial ISA Card

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other

Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and

do not represent an endorsement of a product or service by StarTech.com, or an

endorsement of the product(s) to which this manual applies by the third-party company in

question. Regardless of any direct acknowledgement elsewhere in the body of this

document, StarTech.com hereby acknowledges that all trademarks, registered

trademarks, service marks, and other protected names and/or symbols contained in this

manual and related documents are the property of their respective holders.

Table of Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Setting the Jumpers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Accessory Products from StarTech.com . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Instruction Manual

Introduction

Thank you for purchasing a StarTech.com RS-232 ISA serial card. This product allows

you to add between one or two serial ports to your computer (varies by model), using an

easy jumper-driven configuration. An excellent choice to maximize your investment in

existing serial-based technology or integrated custom solutions.

Features

•Fast data transfer rates: up to 460 Kbits/sec.

•Easy installation using a fully Plug and Play configuration

•Backed by StarTech.com’s lifetime warranty and free technical support

Before You Begin

To ensure a quick and easy card installation, please read through this section carefully

before attempting to install the card.

WARNING! ISA cards, like all computer equipment, can be severely damaged by static

electricity. Be sure that you are properly grounded before opening your computer case or

touching your ISA card. StarTech.com recommends that you wear an anti-static strap

when installing any computer component. If an anti-static strap is unavailable, discharge

yourself of any static electricity build-up by touching a large grounded metal surface

(such as the computer case) for several seconds. Also be careful to handle the ISA card

by its edges and not the gold connectors.

System Requirements

•An IBM compatible computer with an available ISA slot

Contents

This package should contain:

•1x ISA serial card

•1x Instruction Manual

Instruction Manual

Installation

This section will guide you through the installation of your ISA card and the related

software. Please read through the instructions carefully and complete each step in the

order listed.

Installing the Card

1. Make sure that your system is unplugged and you are grounded.

2. Remove the cover of your system (see your computer's user manual for details, if

necessary) and gently turn your computer onto its side.

3. Locate an empty ISA slot and remove the metal plate that covers the rear bracket.

You may need a Phillips screwdriver to perform this step. Retain the screw! You will

need it to secure the card later.

4. Gently insert the card into the empty slot, making sure it is firmly seated.

5. Secure the card in place using the screw you removed in Step 3.

6. Put the computer case back on.

Setting the Jumpers

There are three sets of jumpers that can be configured on your card: reference transfer

rate, COM address, and IRQ address.

Reference Transfer Rate

There are three possible transfer rate settings (labeled 1, 2, and 4) for the COM port(s).

The phrase “reference” refers to the maximum possible transfer rate between the port

and your device, and my not be the actual transfer speed under operational conditions.

Each pin corresponds to the following transfer rate:

Instruction Manual

Set the transfer rate for each port by setting the jumpers according to the following

example:

In the example above, Port A has been set to 460.8 Kbits/sec and Port B has been set to

230.4 Kbits/sec. For the single port model, you will only have the pins and jumpers

to configure Port A.

COM Address

There are seven possible COM address settings (labeled 1 through 7). For the single

port model, you will have a jumper to configure port A only.

1. Find an available COM Address on your system. Consult the user manual that came

with your OS for instructions, if necessary. This card supports COM Addresses

1 through 7.

2. Set the COM Address for each port by placing the jumpers according to the following

example:

In the example above, Port A is set to COM 1 and Port B is set to COM 2.

The base addresses are as follows:

Instruction Manual

Pin Rate

1115.2 Kbits/sec (default)

2230.4 Kbits/sec

4460.8 Kbits/sec

IRQ Address

There are eight possible IRQ address settings (labeled 3, 4, 5, 9, 10, 11, 12, 15) for each

port (2 port version). For the single port model, you will have a jumper to configure

port A only.

1. Find an available IRQ on your system. Consult the user manual that came with your

OS for instructions, if necessary.

2. Set the IRQ line for each port by placing the jumpers according to the following

example:

In the example above, Port A is set to IRQ 4 and Port B is set to IRQ 3.

Specifications

Instruction Manual

COM 1 3F8-3FF Hex

COM 2 2F8-2FF Hex

COM 3 3E8-3EF Hex

COM 4 2E8-2EF Hex

COM 5 2F0 Hex

COM 6 3E0 Hex

COM 7 2E0 Hex

Interface ISA, 8-bit

Ports 1 x DB-9 male (ISA1S550)

2 x DB-9 male (ISA2S550)

Maxmium Data Transfer Rate 460 Kbits/sec.

Configurable IRQs 3/4/5/9/10/11/12/15

Configurable COM Port Number Settings 1 through 7

Chipset Hynix GM16C550

Accessory Products from StarTech.com

Contact your local StarTech.com dealer or visit www.startech.com for cables or other

accessories that will help you get the best performance out of your new product.

6 ft. Straight Through Serial/Parallel Cable DB25 M/F

SC6MF

6 ft. Straight Through Serial/Parallel Cable DB25 M/M

SC6MM

10 ft. Straight Through Serial/Parallel Cable DB25 M/F

SC10MF

10 ft. Straight Through Serial/Parallel Cable DB25 F/F

SC10FF

10 ft. Straight Through Serial/Parallel Cable DB25 M/F

SC10MF

20 ft. Straight Through Serial/Parallel Cable DB25 M/F

SC20MF

20 ft. Straight Through Serial/Parallel Cable DB25 M/M

SC20MM

50 ft. Straight Through Serial/Parallel Cable DB25 M/M

SC50MM

6 ft. Parallel Printer Cable

PB6_

10 ft. Parallel Printer Cable

PB10

20 ft. Parallel Printer Cable

PC20

30 ft. Parallel Printer Cable

PC30

50 ft. Parallel Printer Cable

PC50

6 ft. Parallel File Transfer Cable

PTXFER6

15 ft. Parallel File Transfer Cable

PTXFER15

Instruction Manual

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to provide

industry-leading solutions. If you ever need help with your product, visit

www.startech.com/support and access our comprehensive selection of online tools,

documentation, and downloads.

Warranty Information

This product is backed by a lifetime warranty. In addition, StarTech.com warrants its

products against defects in materials and workmanship for the periods noted, following

the initial date of purchase. During this period, the products may be returned for repair, or

replacement with equivalent products at our discretion. The warranty covers parts and

labor costs only. StarTech.com does not warrant its products from defects or damages

arising from misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their

officers, directors, employees or agents) for any damages (whether direct or indirect,

special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business,

or any pecuniary loss, arising out of or related to the use of the product exceed the

actual price paid for the product.

Some states do not allow the exclusion or limitation of incidental or consequential

damages. If such laws apply, the limitations or exclusions contained in this statement

may not apply to you.

Instruction Manual

Revised: 23 November 2004 (Rev. B)

About StarTech.com

StarTech.com is “The Professionals’ Source for Hard-to-Find Computer

Parts”. Since 1985, we have been providing IT professionals with the

quality products they need to complete their solutions. We offer an

unmatched selection of computer parts, cables, server management

solutions and A/V products and serve a worldwide market through our

locations in the United States, Canada, the United Kingdom and Taiwan.
