StarTech.com SATADOCKU2E Bedienungsanleitung

Manual Revision: 03/28/2012

For the most up-to-date information, please visit: www.startech.com

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

SATADOCKU2E

SATDOCKU2EGB

SATDOCKU2EEU

USB 2.0/eSATA to 2.5”/3.5” SATA HDD Dock

*actual product may vary from photos

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use ofTrademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of Contents

Introduction ...........................................................................................1

Features ........................................................................................................................................................ 1

Package Contents ..................................................................................................................................... 1

Disk Installation......................................................................................2

SATA Drive Removal...............................................................................2

Preparing the Hard Drives for Use.......................................................3

Specications..........................................................................................6

Technical Support ..................................................................................7

Warranty Information............................................................................7

Instruction Manual

Introduction

This eSATA/USB to SATA External HDD Dock Adapter provides immediate, swappable

access to any 2.5in or 3.5in SATA (SATA, SATA II, SATA III) hard drive (HDD) or solid state

drive (SSD) - without having to mount the hard drive, or install it in an enclosure!

Simply connect this docking station to a computer using either eSATA or USB 2.0, and it’s

as simple as inserting your 2.5in or 3.5in SATA hard drive into the dock whenever needed.

A perfect solution for data recovery, drive imaging, and testing centers, or any

environment that requires fast access to uninstalled/archived drives, the SATA HDD Dock

supports plug and play installation on most operating systems. Plus, the HDD docking

station supports data transfer speeds of up to 1.5 Gbps (using eSATA) and 480Mbps

(using USB 2.0) between host and dock - ensuring eortless data dumps, backups and

hassle-free le transfers. Double the value of this hard drive docking station, using a

SATA to IDE hard drive adapter (SAT2IDEADP), which enables you to use any 2.5 or 3.5in

IDE hard drive in a SATA hard drive dock slot.

Features

• Hot Swap Compatible

• Plug and Play support for most operating systems

• Supports both SATA 2.5” and SATA 3.5” hard drives without any adapters

• Supports SATA I/II/III (SATA 150/300/600)

Package Contents

• 1x SATA hard drive docking station

• 1x USB Cable

• 1x eSATA Cable

• 1x Power Adapter

• 1x Instruction Manual

Instruction Manual

Rear View

DC Power

Adapter

eSATA

Port

On/O

Switch

USB

Port

Disk Installation

1. Connect the Dock to an available power outlet, using the provided power adapter.

Connect the Dock to the (powered) Host Computer, using the provided USB/eSATA cables.

3. Insert the 2.5” or 3.5” SATA/SATA II drive(s) you wish to install, such that the SATA

power and data connectors at the back of the drive are properly aligned with the

corresponding connectors inside the Dock.

4. Switch the power switch to “ON” position.

5. Once the drive has been inserted, the operating system will detect that it has been

connected and automatically update the drivers for proper operation.

SATA Drive Removal

You can remove SATA drives from the docking station by gently pulling them out from

the top of the dock.

Instruction Manual

Preparing the Hard Drives for Use

1. With the hard drives inserted and the dock powered on, right click on the My

Computer icon and select Manage. In the left pane of the Computer Management

window, click Disk Management.

2. In the bottom right pane of the Computer Management window, you should see

your drives listed as unallocated. Click on the unallocated drive and select New

Partition. The New Partition Wizard will launch.

3. When the New Partition Wizard appears, click Next to continue

Instruction Manual

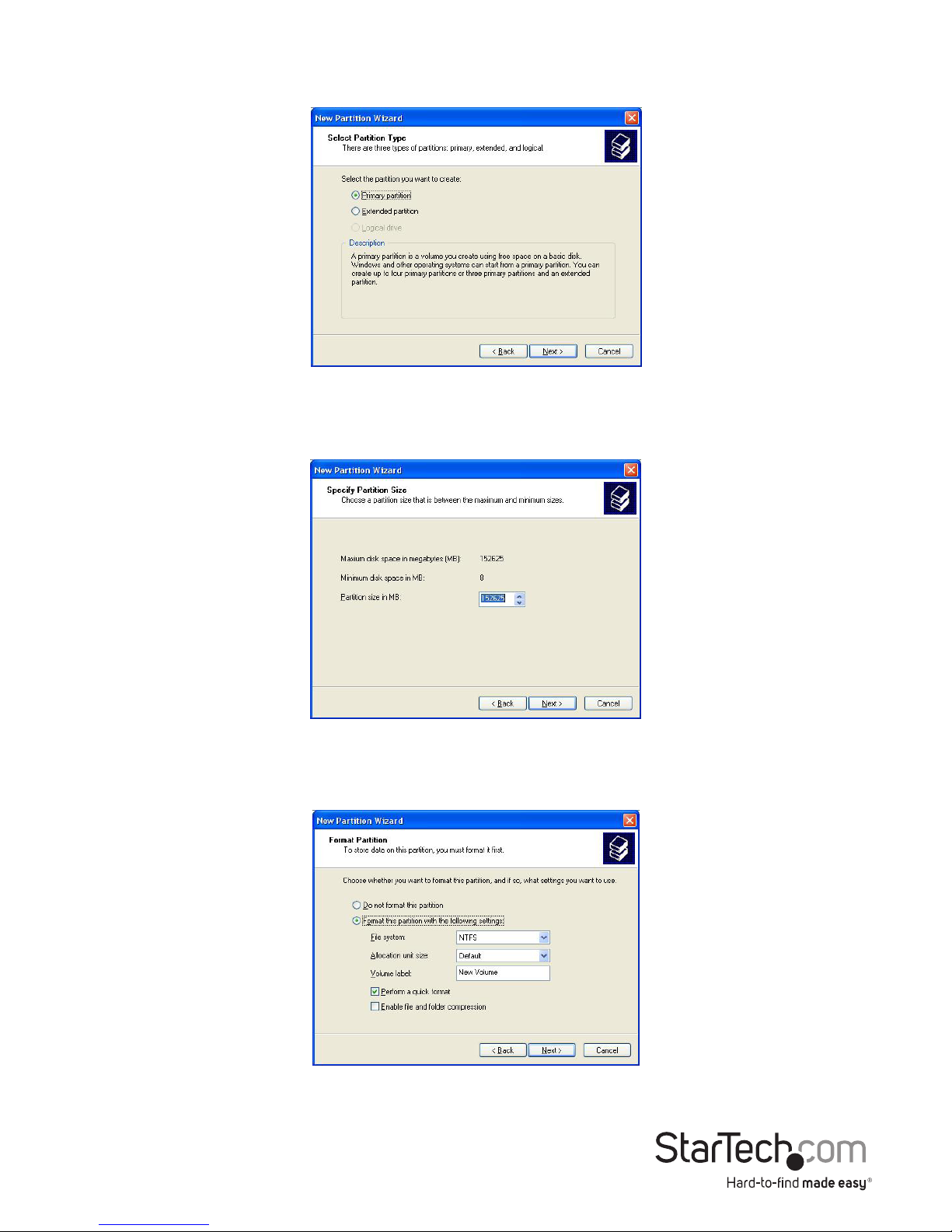

4. Select the partition type you wish to create by clicking on Primary or Extended, as

appropriate. When you have made your selection, click Next to continue.

5. Specify the size of the partition you wish to create. You must select a partition size

that is between the maximum and minimum sizes (typically the maximum disk

space available). Once you have done so, click Next to continue.

6. Select Format this partition with the following settings. Using the drop down

buttons, select the le system, allocation unit size, and volume label you wish to use.

Select Perform a Quick Format and click Next to continue.

Instruction Manual

7. A notication window will appear indicating that you have successfully completed

the New Partition Wizard. Click Finish to commence the formatting of the drive.

8. The status of the drive, as shown in the Computer Management window, will be

updated to reect the selections you have made. Please wait while the drive is being

formatted.

9. Once the drive has been successfully partitioned and formatted, it will display as

Healthy.

Instruction Manual

10. To access your newly partitioned drive(s), open My Computer. Your drive(s) should

be displayed below the heading Hard Disk Drives.

Specications

Specication SATADOCKU2E/SATDOCKU2EEU/SATDOCKU2EGB

Internal

Connectors

1 x SATA Power 15-Pin Female

1 x SATA Data 7-Pin Female

External

Connectors

1 x USB B Female

1 x eSATA Plug Female

1 x DC Power Adapter

Drive

Compatibility 2.5/3.5” SATA Hard Drives

OS Support

Windows 98SE/ME/2000/2003/XP/Vista™/7 (32 and 64

bit) x64/x86, Mac OS 10.0 and up, Linux RedHat 9 &

Fedora FC4/FC5

Power Adapter 12V 2.0A

Instruction Manual

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to

provide industry-leading solutions. If you ever need help with your product, visit

www.startech.com/support and access our comprehensive selection of online tools,

documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two year warranty.

In addition, StarTech.com warrants its products against defects in materials

and workmanship for the periods noted, following the initial date of purchase.

During this period, the products may be returned for repair, or replacement with

equivalent products at our discretion. The warranty covers parts and labor costs only.

StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their

ocers, directors, employees or agents) for any damages (whether direct or indirect,

special, punitive, incidental, consequential, or otherwise), loss of prots, loss of business,

or any pecuniary loss, arising out of or related to the use of the product exceed the

actual price paid for the product. Some states do not allow the exclusion or limitation

of incidental or consequential damages. If such laws apply, the limitations or exclusions

contained in this statement may not apply to you.
