StarTech.com DVI2VGA Bedienungsanleitung

Video Scaler/Converter

DVI2VGA Instruction Manual

DVI to VGA Video Scaler Converter

FFCCCCCCoommpplliiaanncceeSSttaatteemmeenntt

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

UUsseeooffTTrraaddeemmaarrkkss,,RReeggiisstteerreeddTTrraaddeemmaarrkkss,,aanndd

ootthheerrPPrrootteecctteeddNNaammeessaannddSSyymmbboollss

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and

do not represent an endorsement of a product or service by StarTech.com, or an

endorsement of the product(s) to which this manual applies by the third-party company in

question. Regardless of any direct acknowledgement elsewhere in the body of this

document, StarTech.com hereby acknowledges that all trademarks, registered

trademarks, service marks, and other protected names and/or symbols contained in this

manual and related documents are the property of their respective holders.

TTaabblleeooffCCoonntteennttss

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Connecting Devices to the Scaler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Using the Video Scaler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Accessory Products from StarTech.com . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Instruction Manual

IInnttrroodduuccttiioonn

Thank you for purchasing a StarTech.com video scaler. This product allows you to

convert between DVI and VGA video formats and resolutions. The input resolution is

automatically detected while the output resolution and refresh rate can be selected

through an on-screen menu with the buttons located on the front of the panel.

FFeeaattuurreess

• Converts DVI-D video input to Analog RGBHV or YPbPr output. A DVI source can be

displayed onto a VGA or HDTV display using a VGA connector or component RCA

connectors

• 48MB frame memory for frame rate conversion

• On-screen display allowing adjustments to brightness, contrast, color and

Horizontal/Vertical positioning

BBeeffoorreeYYoouuBBeeggiinn

System Requirements

• A DVI video source

• A display capable of using a RGBHV or YPbPr signal (15-pin connector)

• Cables necessary to make connections between input, scaler and VGA/HD display

Contents

• 1 x DVI Cable

• 1 x 5V DC 2Amp Power Adapter

• 1 x User Manual

Instruction Manual

IInnssttaallllaattiioonn

These instructions assume that the display has at least one available input that uses

either VGA Video or YPbPr, and that all the devices have their cables attached. You may

need to disconnect an existing device from the display to make an input available and re-

connect that device using the video scaler.

Connecting Devices to the Scaler

1. Place the scaler near the display and the devices you wish to use with the scaler.

2. Using the PC/HD Output port on the front of the scaler, onnect the input device (i.e. a

DVD player, satellite receiver) to the connector labeled DVI Input on the back of the

video scaler.

3. Connect the scaler to the display device. If you require a VGA resolution output, use a

15-pin D-Sub VGA cable to connect the VGA input on the display to the PC/HD output

on the scaler. If you require an HDTV resolution output, use a 15-pin D-sub to YPbPr/

RCA adaptor cable to connect the PC/HDTV output to the YPbPr input of an HDTV

device.

4. Connect the power adapter (provided) to the port marked DC 5V on the back of the

video scaler. Connect the opposite end to a wall outlet or other suitable power source.

The light on the back of the scaler will illuminate, once the unit is powered.

The DVI to VGA scaler is now ready to use.

Instruction Manual

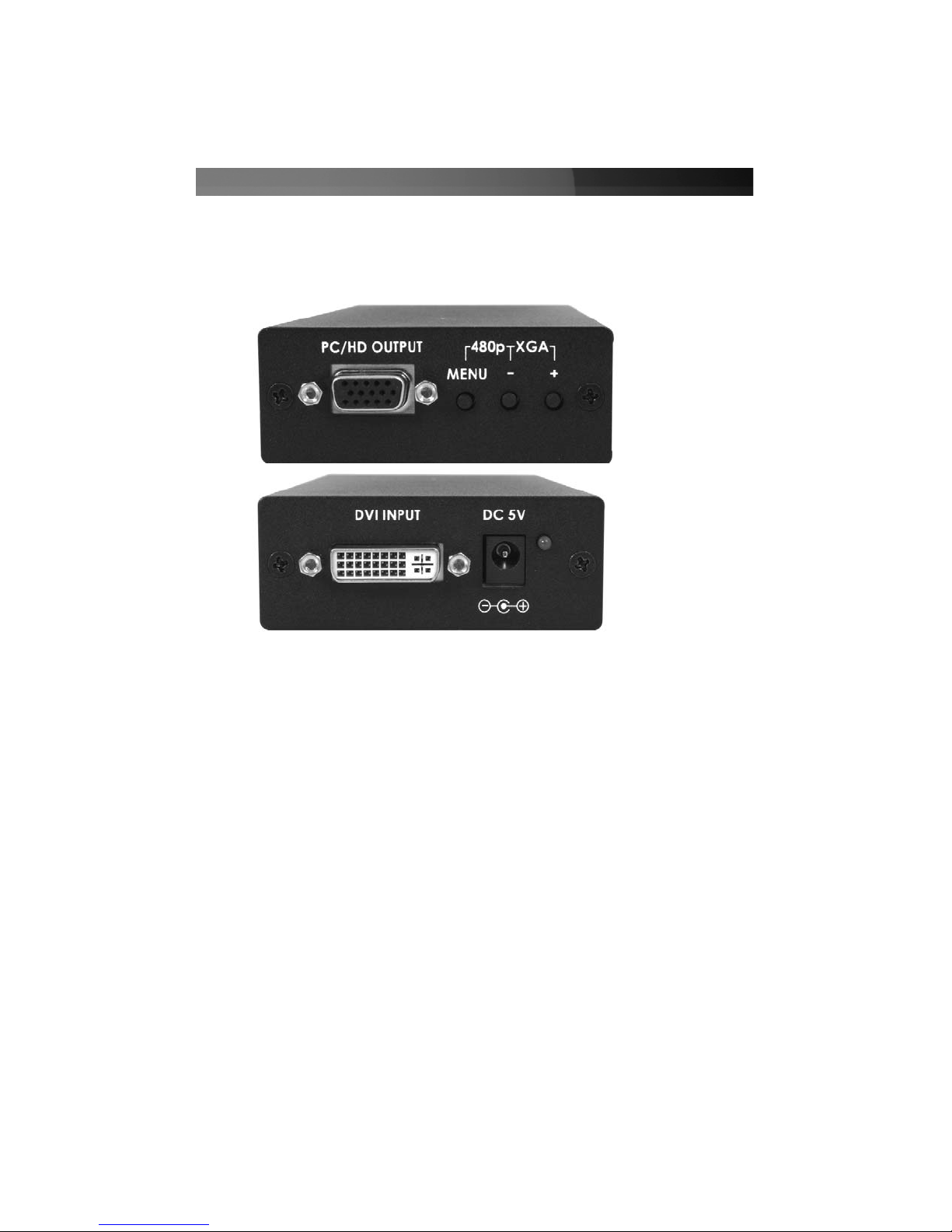

Front

Back

UUssiinnggtthheeVViiddeeooSSccaalleerr

Once you have connected the desired input and output devices to the video scaler, you

can proceed to test the connection to the television or other display. Turn on the display,

and select the input to which you connected the video switch. Consult the

documentation for your display if you are unsure on how to select A/V inputs. Usually,

there will be a button on the display’s remote or front panel labeled INPUT or A/V. If the

display has multiple inputs, you will need to ensure the input you have selected

corresponds to the connectors on the television you used for the scaler. Power on the

devices you connected to the video scaler. Pressing the MENU button will bring up the

on-screen display controls on the screen as follows:

Using the +or - buttons, move the cursor to your desired selection, then press Menu to

confirm your selection and enter the corresponding sub-menu.

Input set up

When selected, a sub-menu for choosing either YPbPr or RGB as your input signal will

appear. Using the + or -buttons on the front of the scaler, select the signal format that

matches the format of your input. Pressing Menu will save your selection and exit this

sub-menu.

Output set up

When selected, a sub-menu will appear giving you options as to the desired refresh rate

and resolution. Use the + or - buttons to choose the correct resolution/refresh rate.

Pressing Menu will save your selection and return you to the main menu.

Picture Adjust

This sub-menu allows you to adjust the contrast, brightness and color of the displayed

image. Using the + and - buttons, select the attribute you wish to change, and use the

Menu button to confirm your selection. Use the + or -buttons to increase or decrease

the amount of the element you are modifying, followed by the Menu button to save.

Repeat this procedure for each element as desired. Once you have made the necessary

adjustments, use the + or -button to navigate to the Exit, which will take you back to the

main menu. NOTE: using the Reset feature will return all adjustments back to the factory

reset values.

HV Adjust

When chosen, a sub-menu will appear, allowing you to adjust the best horizontal and

vertical position of the picture, using the + or -buttons.

OSD Adjust

Allows you to adjust the horizontal and vertical position of the on-screen menu.

Instruction Manual

Input Setup

Output Setup

Picture Adjust

HV Adjust

OSD Adjust

System Information

Auto Adjust

Exit

Instruction Manual

System Information

Displays the current software version as well as the input and output resolutions and the

corresponding refresh rates.

Auto Adjust

When chosen, the scaler will automatically adjust all parameters to the factory preset

values.

Exit

When selected, exits the on-screen display

SSppeecciiffiiccaattiioonnss

Input Resolutions:

Output Resolutions:

Input Format: Digital RGBHV, YPbPr or YCbCr

Input Signal: Digital RGB data bitstream

Input Connector: 24-pin DVI-D connector

Output Format: Analog RGBHV, YPbPr

Output Signal: RGB: 0.7Vp-p, 75 ohm H/V: 3 to 5 Vp-p TTL

Output Connector: HD 15-pin female

Power: 5V 2A center-positive

Instruction Manual

Digital PC (RGBHV) HDTV (YCbCr, YPbPr, RGBHV)

VGA

VESA85

VGA70

SVGA

XGA

Mac

WXGA

1280A

SXGA

640x480@85Hz

640x400@85Hz

720x400@70Hz

800x600@60/72/75/85Hz

1024x768@60/70/75/85Hz

1152x864@70/75Hz

1280x768@60Hz

1280x960@60Hz

1280x1024@60Hz

1080i

720p

576p

480p

576i

480i

1920x1080@60Hz

1280x720@60Hz

720x576@50Hz

720x480@60Hz

720x576@50Hz

720x480@60Hz

VGA

VESA85

VGA70

SVGA

XGA

Mac

WXGA

1280A

SXGA

640x480@60/72/75/85Hz

640x400@85Hz

720x400@70Hz

800x600@60/72/75/85Hz

1024x768@60/70/75/85Hz

1152x864@70/75Hz

1280x768@60Hz

1280x960@60Hz

1280x1024@60/75Hz

1080i

720p

576p

480p

1920x1080@60Hz

1280x720@60Hz

720x576@50Hz

720x480@60Hz

Analog PC (RGBHV) HDTV (YCbCr, YPbPr, RGBHV)

TTrroouubblleesshhoooottiinngg

If you’re having difficulty using the video scaler, try the following solutions based on the

nature of the problem.

No image is being shown on the display.

1) Ensure the video scaler is plugged in and receiving power. One LED indicator on the

front panel will be lit when the switch is receiving power.

2) Try selecting another input on the display and verify which input the scaler is

connected to. Most displays will have their A/V inputs marked with a number, so

ensure the input selected on the screen matches the physical connection between the

scaler and the display.

3) Verify cable connections between the input device, video scaler and display are snug.

Video quality is poor.

1) Verify cable connections between the input device, video scaler and display are snug.

2) Using lengthy cables may cause signal degradation. Try to locate the scaler as close

to the input device and display, as possible.

3) Enter the Picture Adjust sub-menu, ensure that Contrast, Brightness and Color are

set appropriately.

Instruction Manual

AAcccceessssoorryyPPrroodduuccttssffrroommSSttaarrTTeecchh..ccoomm

Contact your local StarTech.com dealer or visit www.startech.com for cables or other

accessories that will help you get the best performance out of your new product.

MXT101

6 ft. VGA Monitor Extension Cable

MXT105

15 ft. VGA Monitor Extension Cable

ZENDVI1

Cable ZEN 3.3 ft (1m) DVI Digital Video Cable

ZENDVI2

Cable ZEN 6.6 ft (2m) DVI Digital Video Cable

ZENDVI4

Cable ZEN 13.1 ft (4m) DVI Digital Video Cable

Instruction Manual

Andere StarTech.com Medienkonverter Handbücher

StarTech.com

StarTech.com CONVERGEAV CPNTA2HDMI Bedienungsanleitung

StarTech.com

StarTech.com MCS110SC20 Bedienungsanleitung

StarTech.com

StarTech.com DVI2HDMIA Bedienungsanleitung

StarTech.com

StarTech.com AA2SPDIF Bedienungsanleitung

StarTech.com

StarTech.com VGA2HDMIPRO Bedienungsanleitung

StarTech.com

StarTech.com VGA2HDMIPRO Bedienungsanleitung

StarTech.com

StarTech.com ICUSBAUDIO Systemhandbuch

StarTech.com

StarTech.com ST122HD202 Bedienungsanleitung

StarTech.com

StarTech.com ET90110WDM Systemhandbuch

StarTech.com

StarTech.com ET91000SFP2 Bedienungsanleitung

StarTech.com

StarTech.com 25SAT35HDD Bedienungsanleitung

StarTech.com

StarTech.com 35SAT225S3R Bedienungsanleitung

StarTech.com

StarTech.com ET91000SM40 Bedienungsanleitung

StarTech.com

StarTech.com VGA2VID Bedienungsanleitung

StarTech.com

StarTech.com ET91000LCOAM Bedienungsanleitung

StarTech.com

StarTech.com VID2HDCON2 Bedienungsanleitung

StarTech.com

StarTech.com IPUSB2VGA Bedienungsanleitung

StarTech.com

StarTech.com MDP2DVID Bedienungsanleitung

StarTech.com

StarTech.com MCM1110SFP Bedienungsanleitung

StarTech.com

StarTech.com SLMPT2HD Bedienungsanleitung

StarTech.com

StarTech.com IC485S Bedienungsanleitung

StarTech.com

StarTech.com DVI2HDMI Bedienungsanleitung

StarTech.com

StarTech.com VGA2NTSC Bedienungsanleitung

StarTech.com

StarTech.com ET1000S40LC2 Systemhandbuch

Beliebte Medienkonverter Handbücher anderer Marken

SoundTraxx

SoundTraxx Blunami BLU-2200 Bedienungsanleitung

SPROLINK

SPROLINK VA1 Bedienungsanleitung

Acclaim Lighting

Acclaim Lighting DDC-1-AC Bedienungsanleitung

Nikon

Nikon AF-S TC-20E III Bedienungsanleitung

Axis

Axis AXIS Q7406 Bedienungsanleitung

Omega

Omega TAC80B-J Bedienungsanleitung

Zoom

Zoom Thunderbolt TAC-2R Bedienungsanleitung

OST

OST iConverter 10/100M Bedienungsanleitung

Vertiv

Vertiv Netsure Bedienungsanleitung

birddog

birddog MINI Bedienungsanleitung

Roland

Roland GI-10 Bedienungsanleitung

Wallenstein

Wallenstein WX310 Bedienungsanleitung

Pace

Pace MSS 200-1 Bedienungsanleitung

Solar Converters

Solar Converters EQ 12/24-50 Bedienungsanleitung

CYP

CYP EL-7400V Bedienungsanleitung

TIE

TIE MIDI 1i1o Bedienungsanleitung

DCS

DCS Vivaldi Upsampler Bedienungsanleitung

Westermo

Westermo MCW-211 SERIES Bedienungsanleitung
