StarTech.com WALLMOUNT4 Bedienungsanleitung

Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Manual Revision: January 19, 2022 4:39 PM

Product Diagram (WALLMOUNT4)

Component Function

1Stabilizer Bar • Stabilize the Wall-Mount Bracket when equipment is

loaded

2Grounding Stud

• Attach a Grounding Wire (sold separately) to the

Wall-Mount Bracket and to an Earth Ground

Connection

3Installation Holes (x 4)

• Wall mount the Wall-Mount Bracket

Note: Product mounting should be completed by a

certied professional as per the local safety and building

code guidelines.

4Cable Management

Slots (x 2)

• (Optional) Route the equipment Cables

Notes: An appropriate size hole in the wall will be

necessary, behind the Wall-Mount Bracket, to route the

Cables.

The Cables can be routed out of the bottom of the Wall-

Mount Bracket

5Cage Nut Holes • Use Cage Nuts to mount equipment into the Wall-

Mount Bracket

Wall-Mount Bracket for Shallow Rack-Mount Equipment - 4U

Package Contents

• Wall-Mount Bracket x 1

• M6 Screws x 16

• M6 Cage Nuts x 16

• Plastic Washers x 16

• M5-25 Flat-head Screws x 4

• Concrete Wall Anchors x 4

• Quick-Start Guide x 1

Requirements

For the latest requirements, please visit www.startech.com/WALLMOUNT4

• Grounding Wire x 1

• Earth Ground Connection x 1

• Phillips Head Screwdriver

• 10mm Wrench x 1

• (Optional) Cage Nut Tool x 1

Grounding the Wall-Mount Bracket

1. Remove the M6 Nut on the Grounding Stud with a 10mm Wrench.

2. Slide the Grounding Lug from the Grounding Wire over the Grounding Stud.

3. Thread the M6 Nut onto the Grounding Stud and tighten with a 10mm Wrench.

4. Attach the other end of the Grounding Wire to an Earth Ground Connection.

Adding Equipment to the Wall-Mount Bracket

Use the included M6 Cage Nuts, Screws, and Plastic Washers to install equipment

into the Wall-Mount Bracket.

1. Insert the Wing (side) of an M6 Cage Nut into the back of the desired Cage Nut

Hole.

2. Apply pressure by hand, or with the Cage Nut Tool, to insert the second Wing of the

M6 Cage Nut into the desired Cage Nut Hole.

3. Repeat steps 1 and 2 to insert the desired number of Cage Nuts for the application.

4. Thread a Plastic Washer over an M6 Screw. Repeat until the desired number of M6

Screws have been prepared.

1 4

5. Align the Mounting Holes in the Equipment with the M6 Cage Nuts installed in

steps 1-3.

6. Insert the assembled Screws through the Mounting Holes in the Equipment and

into the M6 Cage Nuts.

7. Tighten the Screws, using a Phillips Head Screwdriver.

Warnings

Ensure the weight of the equipment does not exceed the weight capacity of this product. If the weight capacity is exceeded,

you may experience personal injury or damage to the equipment. This product can support the following weight: up to 20 kg

(44 lb.).

Wall structures vary. Ensure the type of wall structure and mounting hardware will properly support the mounted equipment.

Failure to do so might result in personal injury and/or equipment damage. The wall structure should be capable of supporting

at least four times the weight of the mounted equipment

This product requires an earth ground connection. Do not use this product without an earth ground connection

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-

party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only

and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which

this manual applies by the third-party company in question. StarTech.com hereby acknowledges that all trademarks, registered

trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the

property of their respective holders.

PHILLIPS® is a registered trademark of Phillips Screw Company in the United States or other countries.

Warranty Information

This product is backed by a lifetime warranty.

For further information on product warranty terms and conditions, please refer to www.startech.com/warranty.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents)

for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of prots, loss of

business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.

Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations

or exclusions contained in this statement may not apply to you.

FR: startech.com/fr

DE: startech.com/de

ES: startech.com/es

NL: startech.com/nl

IT: startech.com/it

JP: startech.com/jp

StarTech.com Ltd.

45 Artisans Crescent

London, Ontario

N5V 5E9

Canada

StarTech.com Ltd.

Unit B, Pinnacle 15

Gowerton Road

Brackmills,

Northampton

NN4 7BW

United Kingdom

StarTech.com LLP

4490 South Hamilton

Road

Groveport, Ohio

43125

U.S.A.

StarTech.com Ltd.

Siriusdreef 17-27

2132 WT Hoofddorp

The Netherlands

Andere StarTech.com Rack & Stand Handbücher

StarTech.com

StarTech.com FPWARTB1M Bedienungsanleitung

StarTech.com

StarTech.com ARMSLMBARDUO Bedienungsanleitung

StarTech.com

StarTech.com GNDBAR1U Bedienungsanleitung

StarTech.com

StarTech.com 2PASTSC-WALL-MOUNT Bedienungsanleitung

StarTech.com

StarTech.com RK12WALLOA Bedienungsanleitung

StarTech.com

StarTech.com ARMBARTRIO2 Bedienungsanleitung

StarTech.com

StarTech.com HSB43SATSASB Bedienungsanleitung

StarTech.com

StarTech.com RK619WALL Bedienungsanleitung

StarTech.com

StarTech.com DURARAK 4POSTRACK12A Bedienungsanleitung

StarTech.com

StarTech.com LAPTOP-ARM-TRAY Bedienungsanleitung

StarTech.com

StarTech.com ARMSLIMDUAL2USB3 Bedienungsanleitung

StarTech.com

StarTech.com 8STHSB2535SATBK Bedienungsanleitung

StarTech.com

StarTech.com RK12OD2 Bedienungsanleitung

StarTech.com

StarTech.com FPWARTB2 Bedienungsanleitung

StarTech.com

StarTech.com BRACKET25SAT Bedienungsanleitung

StarTech.com

StarTech.com STNDTBLT1FS Bedienungsanleitung

StarTech.com

StarTech.com 4POSTRACK12U Bedienungsanleitung

StarTech.com

StarTech.com APLVESAMNTP Bedienungsanleitung

StarTech.com

StarTech.com CPUWALLMNT Bedienungsanleitung

StarTech.com

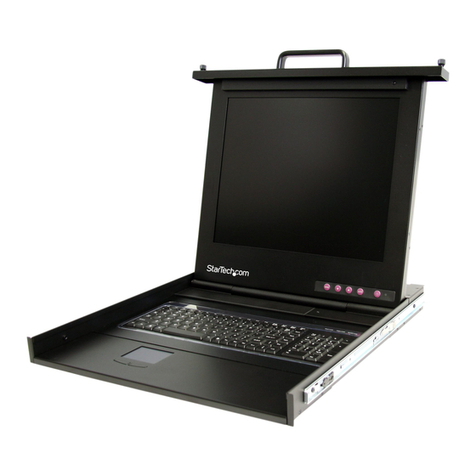

StarTech.com RACKCONV1701 Bedienungsanleitung
