2 Port USB HDMI®/DisplayPort® Cable KVM Switch

with Audio and Remote Switch – USB Powered

*actual product may vary from photos

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation.This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use ofTrademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of Contents

Introduction............................................................................................2

Packaging Contents ................................................................................................................................. 2

System Requirements.............................................................................................................................. 2

Installation ..............................................................................................2

Operation ................................................................................................5

Hotkey Quick Reference Guide ............................................................................................................ 6

Specications..........................................................................................8

Technical Support ..................................................................................9

Warranty Information............................................................................9

Instruction Manual

Introduction

Packaging Contents

• 1 x KVM Switch

• 1 x Software CD

• 1 x Instruction Manual

System Requirements

• Available video output - HDMI (SV211HDUA) or DisplayPort (SV211DPUA),

USB and 3.5mm Audio/Microphone connections (if HDMI/DisplayPort audio is not

being used)

• Monitor, speaker/microphone and USB keyboard/mouse peripheral set

Installation

1. Before connecting the KVM Switch, insert the included installation CD into each

computer’s CD/DVD drive.

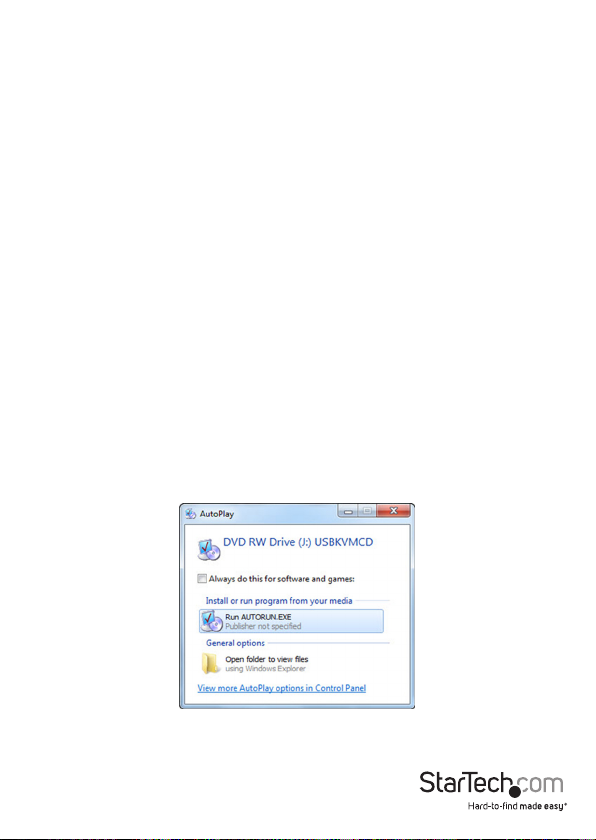

2. If AutoPlay runs, choose the option to browse/open the folder. Otherwise you can

access the les on the CD by going into My Computer, double-click the CD/DVD

drive and run Autorun.exe.

Instruction Manual

3. Click the appropriate software installation option for your system, and available

ports (“2-Port KVM”- Mac or Windows), and you will be prompted to click Next

several times to complete the installation.

4. Once the installation is complete, a new system tray icon will display (Windows),

or a new Application (Mac OS) with the following indicators.

Instruction Manual

5. Connect your HDMI / DisplayPort Monitor, keyboard, mouse and speakers to

the available ports on the KVM Switch.

6. Connect the attached KVM and audio cables to Computer 1.

7. Perform the same connections to Computer 2.

SV211HDUA

SV211DPUA

HDMI

USB

3.5 mm Mini-Jack

HDMI USBUSB

USBUSB DisplayPort USB

DisplayPort

3.5 mm

Mini-Jack

Instruction Manual

Operation

There are three methods to control your KVM Switch for computer and Audio/Mic

port selection:

1. QuickSwitch Button - A wired remote control for direct switching control. Simply

press the button to toggle between the two computers.

2. KVM Switching Software (Windows & Mac platform) – See “Quick Reference Sheet”

below for details.

3. Keyboard hotkeys – For Windows, the computer toggle key combination is “Scroll

Lock + Scroll Lock”. For Mac, please refer to Dene Hotkey Preceding Sequence in

the Quick Reference Sheet.

Note: Each keystroke hotkey sequence should be pressed within two seconds,

otherwise, the hotkey sequence may not be validated.

Windows Mac

Operation Menu Settings Page Operation Menu Preferences Page

Instruction Manual

Command Switcher Software Description

Select PC Port

Right-click the KVM Switching icon

to evoke the operation menu, then

select whichever computer that is

available for switching.

Select the active PC port

Previous PC

port

Right-click the KVM Switching icon

to evoke the operation menu, then

select whichever computer that is

available for switching.

Select the previous

connected PC port

Next PC port

Right-click the KVM Switching icon

to evoke the operation menu, then

select whichever computer that is

available for switching.

Select the next

connected PC port

Dene Hotkey

Preceding

Sequence

Right-click the KVM Switching

icon to evoke the operation menu,

then select Settings (Windows) /

Conguration Dialog Box (Mac OS).

User–denable hotkeys

sequence for computer

selection is “Ctrl +Alt+

[command key]”.

For Mac, instead of Scroll

Lock key, you may use

User-denable hotkey

sequence to switch.

Autoscan

Right-click the KVM Switching icon

to evoke the operation menu, then

select Start Auto-Scan to activate

autoscanning.

Autoscan through every

connected port for quick

screen browsing of each

port (default scan delay

time = 10 second)

Autoscan with

Programmable

Delay Time

Right-click the KVM Switching icon

to evoke the operation menu, then

select a range of Auto-Scan Period.

Autoscan with a user-

dened delay time

within a range of 10 ~ 60

seconds

Stop Autoscan

While autoscanning, right-click the

KVM Switching icon to evoke the

operation menu, and then select

Stop Auto-Scan to de-activate

autoscanning.

Terminate Autoscan

activity

Hotkey Quick Reference Guide

Instruction Manual

Beeper

Right-click the KVM Switching icon

to evoke the operation menu, then

check the box “Turn on Buzzer”.

Beeper will be functional

between operations of

KVM switch

Keep in Dock

(Mac only)

Right-click the KVM Switching icon

to evoke the operation menu, and

then select “Keep in Dock”.

KVM switching icon will

be on the system tray of

your desktop

Open at Login

(Mac only)

Right-click the KVM Switching icon

to evoke the operation menu, then

select “Open at login”.

Operate Switcher

Software and login

Fix Audio Port

Right-click the KVM Switching icon

to evoke the operation menu, then

check the box “Fix Audio Port at

PC” and select the desired PC port.

Check this option and

then select the computer

to x the audio/mic port

to the selected computer.

Once this option is

checked, the audio/mic

port will be xed and

become non-switchable.

Instruction Manual

Specications

SV211DPUA SV211HDUA

Console Connectors

1 x DisplayPort (20 pin)

Female

2 x USB A (4 pin) Female

2 x 3.5mm Mini-Jack (3

Position) Female

1 x HDMI (19 pin) Female

2 x USB A (4 pin) Female

2 x 3.5mm Mini-Jack (3

Position) Female

Computer

Connectors

(per port)

1 x DisplayPort (20 pin)

Male

1 x USB 2.0 A (4 pin) Male

2 x 3.5mm Mini-Jack (3

Position) Male

1 x HDMI (19 pin) Male

1 x USB 2.0 A (4 pin) Male

2 x 3.5mm Mini-Jack (3

Position) Male

LEDs 2 x PC Selection Indicator

Switching Modes Pushbutton, Hot-key, Software

Maximum Resolution 2560 x 1600 1080p (1920x1200)

Audio Support 3.5mm and HDMI audio 3.5mm and DisplayPort audio

On Screen Display No

Cascadable No

Rack-Mountable No

Enclosure Type Plastic

Operating

Temperature 0°C to 40°C (32°F to 104°F)

Storage Temperature -20°C to 60°C (4°F to 140°F)

Humidity 0~90% RH Non-Condensing

Cable Length 0.85 m (Attached KVM Cable) / 1.4 m (Remote Switch)

Dimensions (LxWxH) 88 x 60 x 25mm

Weight 400g
