StarTech.com VS410RVGAA Bedienungsanleitung

A/V Four Port VGA Switch with Audio and RS-232

VS410RVGAA Instruction Manual

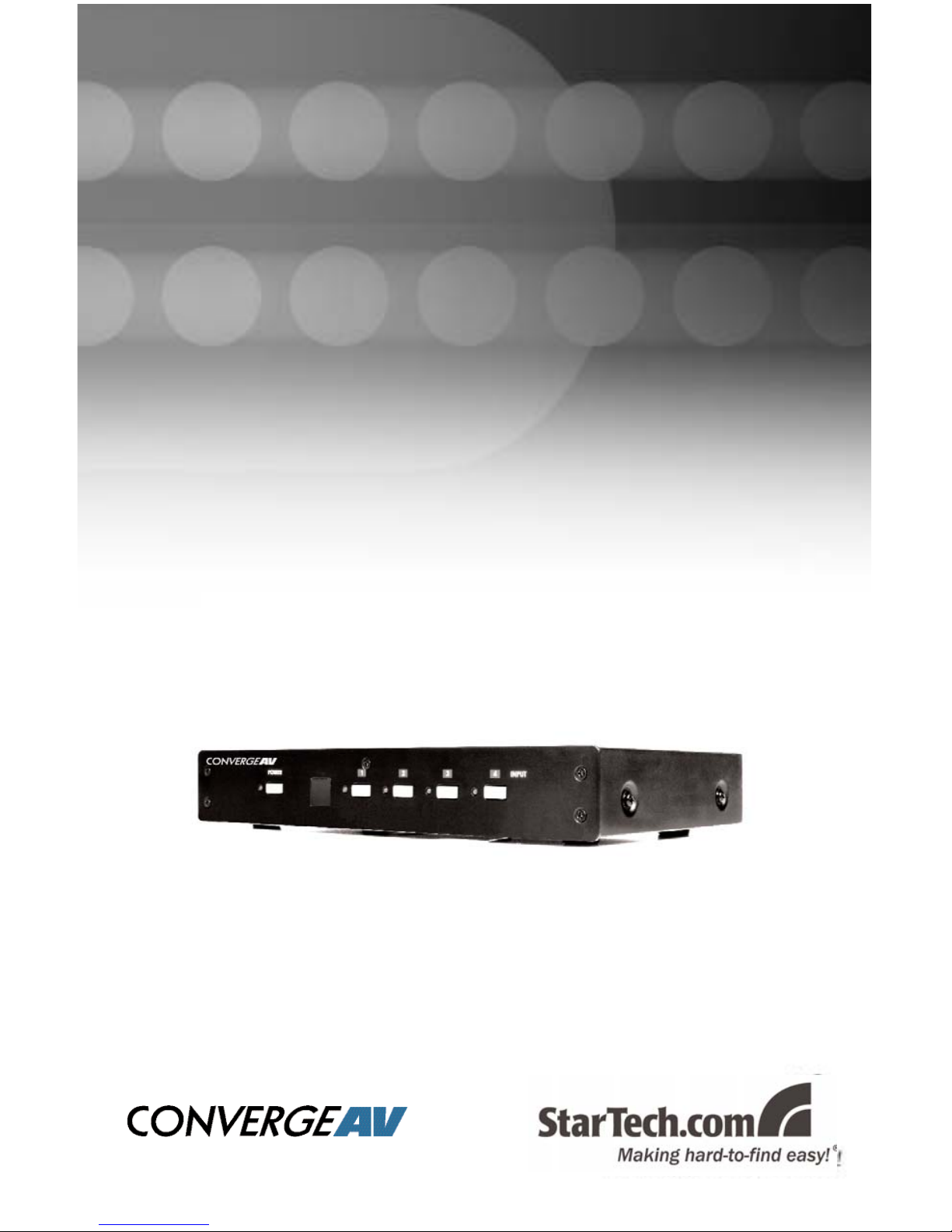

Actual product may vary from photo

FCC

Compliance

Statement

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

• Consult the dealer or an experienced radio/TV technician for help.

UUssee

ooff

TTrraaddeemmaarrkkss,,

RReeggiisstteerreedd

TTrraaddeemmaarrkkss,,

aanndd

ootthheerr

PPrrootteecctteedd

NNaammeess

aanndd

SSyymmbboollss

This manual may make reference to trademarks, registered trademarks, and other protected names

and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur

these references are for illustrative purposes only and do not represent an endorsement of a product

or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the

third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of

this document, StarTech.com hereby acknowledges that all trademarks, registered trademarks,

service marks, and other protected names and/or symbols contained in this manual and related

documents are the property of their respective holders.

Instruction Manual

Table

Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Operating Controls and Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Installation and Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

4 x PC Input, 1x PC Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

4 x HD Input, 1x HD Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Serial Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

RS-232 Transmission Format . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Instruction Manual

Thank you for purchasing a StarTech.com 4 Port VGA Switcher with Audio and RS-232 control.

Allowing switching between up to four separate VGA and audio signals, for output to a single monitor

or projector, making this the perfect solution for situations where VGA and audio input ports are at a

premium.

Introduction

•Remote control provides easy switching between devices

Features

System

requirements:

•Up to four VGA Video signal sources

Package

contents:

•1 x 3’ DB15 VGA Cable

This package should contain:

•RS232 interface provides remote/off-site control

•Supports resolutions up to 1920 x 1200 (1080p) and bandwidth of 650 MHz

•Advanced circuitry simplifies switching between PC/HD sources

•A display with a VGA port or Component YPbPr connection.

•1 x 4x1 VGA Video and Audio Switcher

•1 x IR Remote Control

•1 x Power Adapter

•Converter required: VGA2TV2WAY VGA2CPNT (Please see Accessories)

Instruction Manual

Operating

Controls

and

Functions

Front Panel

1Power indicator LED

2Power switch (ON/OFF)

3Infrared remote control sensor

4Input 1 indicator LED

5Input 1 switch button

6Input 2 indicator LED

7Input 2 switch button

8Input 3 indicator LED

9Input 3 switch button

10 Input 4 indicator

11 Input 4 switch button

Rear Panel

1DC 5V input, (5W center +)

2PC 1/YPbPr 1 Input

3PC 1/YPbPr 2 Input

4PC 1/YPbPr 3 Input

5PC 1/YPbPr 4 Input

6PC/YPbPr Output

7Audio input 1

8Audio input 2

9Audio input 3

10 Audio input 4

11 Audio output connector

12 RS-232 interface

1 2 3 4 5 6 7 8 9 1110

7 - 10

11 123456

Instruction Manual

Remote Control

Remove plastic

tab prior to use

Input

Selection

Buttons

Installation

and

Connection

4 x PC input, 1x PC output

Cont’d on next page

PC Display

PC Input 4 PC Input 3 PC Input 2 PC Input 1 Power

Adapter

Instruction Manual

Input #1

Input #2

Input #3

Input #4

Display

(YPbPr Input)

Power Adapter

4 x HD input, 1x HD Output

Serial Remote Control

(connection between VS410RVGAA and remote controller with RS-232 modem cable)

VS410RVGAA Remote Control Device

PIN Definition PIN Definition

1NC 1NC

2TxD 2RxD

3RxD 3TxD

4NC 4NC

5GND 5GND

6NC 6NC

7NC 7NC

8NC 8NC

9NC 9NC

RS-232 Transmission Format:

Baud Rate : 9600 bps

Data Bit : 8 Bits

Parity: None

Stop Bit: 1 bit

Command Code Result

"I" + "1" PORT 1 ON

"I" + "2" PORT 1 ON

"I" + "3" PORT 1 ON

"I" + "4" PORT 1 ON

"P" + "1" POWER ON

"P" + "0" POWER OFF

Commands:

Instruction Manual

Technical

Support

StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-leading solutions.

If you ever need help with your product, visit www.startech.com/support and access our comprehensive selection

of online tools, documentation, and downloads.

Warranty

Information

This product is backed by a one-year warranty. In addition, StarTech.com warrants its products against defects in

materials and workmanship for the periods noted, following the initial date of purchase. During this period, the

products may be returned for repair, or replacement with equivalent products at our discretion. The warranty covers

parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from misuse,

abuse, alteration, or normal wear and tear.

Limitation

Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees

or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss

of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual

price paid for the product. Some states do not allow the exclusion or limitation of incidental or consequential

damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.

Specifications

Input PC/YPbPr:4 RGB: 0.7Vp-p or 1 Vp-p with sync75 ohm

/HD(TTL): 5Vp-p 10 K ohm

Analog Audio: 4 (L/R) 2Vrms max 47 k ohm

Output PC/YPbPr:1 RGB: 0.7Vp-p or 1 Vp-p with sync 75 ohm

/HD(TTL): 5Vp-p 10k ohm

Analog Audio: 1 (L/R) 2 Vrms max 47 k ohm

PC / YPbPr

Bandwidth 650 MHz (-3db)

Differential gain 0.05%

Differential phase 0.05 degree

Power consumption 5 Watts (max.)

Power 5V 1A AC adapter

Dimensions 292(W)x 73(D) x 44(H)mm

Accessories

VGA2TV2WAY

2-Way VGA to HDTV/HDTV to VGA Scaler/Converter

VGA2CPNT

VGA to Component (YPbPr) Video Converter

30 July 2008 (Rev. D)

About

StarTech.com

StarTech.com is “The Professionals’ Source for Hard-to-Find Computer Parts”.

Since 1985, we have been providing IT professionals with the quality products

they need to complete their solutions. We offer an unmatched selection of

computer parts, cables, server management solutions and A/V products and

serve a worldwide market through our locations in the United States, Canada, the

United Kingdom and Taiwan.

Visit www.startech.com for complete information about all our products and to

access exclusive interactive tools such as the Parts Finder and the KVM

Reference Guide. StarTech.com makes it easy to complete almost any IT

solution. Find out for yourself why our products lead the industry in performance,

support, and value.
