OVERVIEW

The SC-2K is an all-in-one controller that integrates sending card functions with video processing.

Designed with powerful video processing capability, it supports 7 video inputs and 6 Gigabit Ether-

net outputs.

Based on the powerful FPGA processing platform, the SC-2K supports multiple transition effects,

such as quick seamless switching and fade, providing ﬂexible display controlling and outstanding

video presentations.

FEATURES

STARVIEW SC-2K VIDEO PROCESSOR

- 2x 3G-SDI

- 2x HDMI 1.3

- 1x DVI

- 1x DVI (IN+LOOP)

- 1x USB

7x inputs

- Quick screen conﬁguration

- Advanced screen conﬁguration

2x screen conﬁguration methods

Screen brightness adjustment

Multi SC-2K units can be cascaded

16x user presets saved as templates and

conveniently recalled by pressing the number

buttons on the front panel

Lock to the HDMI, SDI or DVI input source to

achieve vertical synchronization between

outputs of multiple SC-2K units.

- Direct mode

Support display content monitoring.

- Switcher mode

Switch the PVW to PGM by pressing only the

TAKE button.

2x system modes

- 6x Gigabit Ethernet ports

Video output capacity up to 3,900,000 pixels,

with the width or height up to 4096 pixels

- 1x DVI for monitoring

Support PVW or PGM monitoring, and the moni-

toring resolution is adjustable.

2x types of output connectors

- Adjustable window position and size

- Z-order sorting

- 3 scaling modes for window output:

Full screen (Auto ﬁt)

Pixel to pixel

Custom

3x windows

STARVIEW SIP-FASTARVIEW SC-2K VIDEO PROCESSOR

APPEARANCE

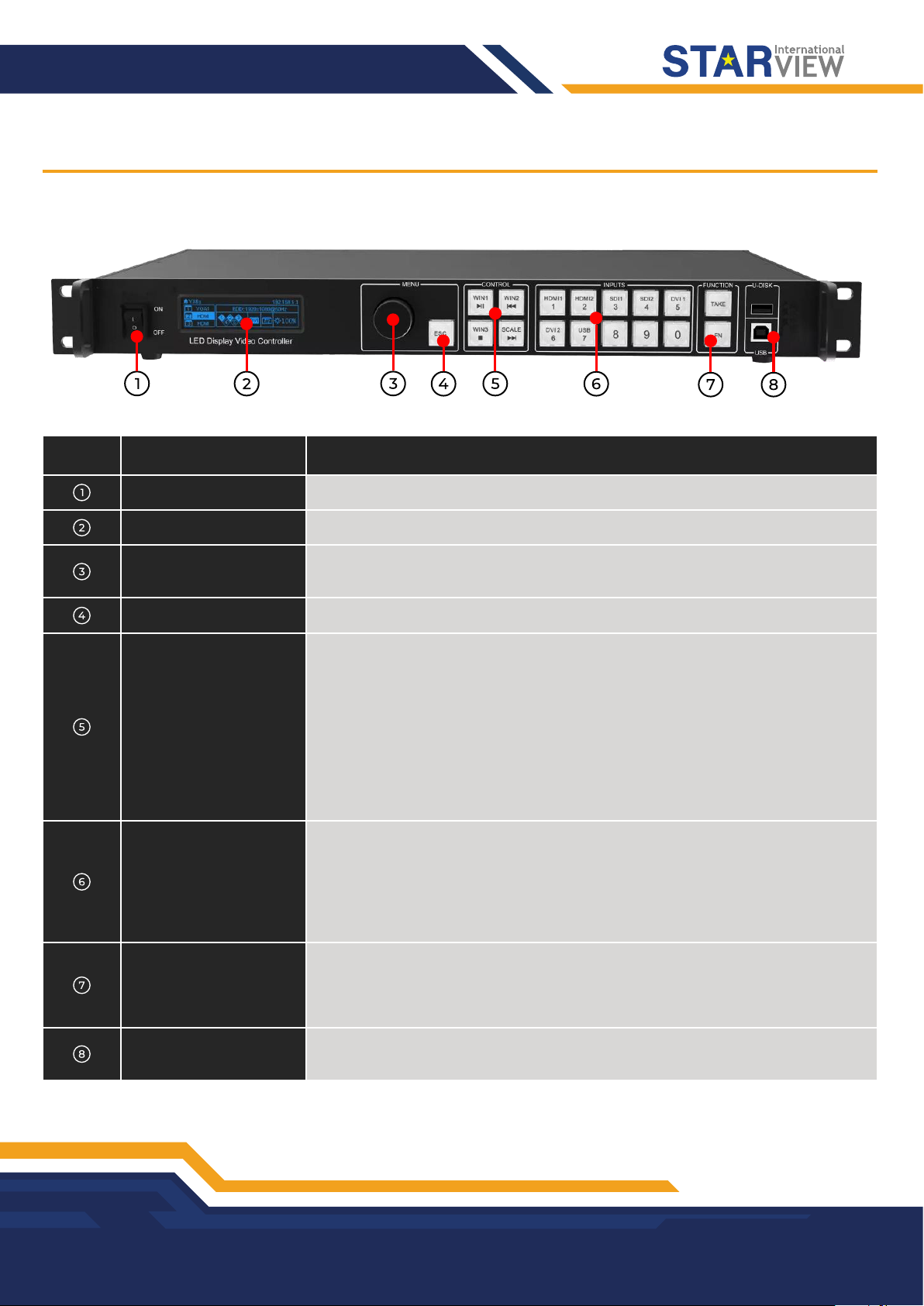

Front Panel

ON/OFF button Power button

OLED screen Displays the current status and setting menu of the device

Singapore Headquarters: 60 Kaki Bukit Place, #05-19 Eunos Techpark, Singapore 415979

Website: www.starviewint.com | Email: [email protected] | Tell: +65 31575338

No. Button Function

ESC button Pressing the button exits the current menu or operation.

- Rotate the knob to scroll through the menu items, or adjust aparameter value.

- Press the knob to conﬁrm the selection or settings.

Knob

Pressing a button enters the corresponding window property menu.

Statuses of button indicators:

- On: The window is open.

- Off: The window is closed.

- Flashing: The window is being edited.

- When a window is open, holding down the window button can close the window.

In the USB playback mode, you can play, pause, play previous, play next orstop current

playback.

- SCALE: This is a shortcut button for auto ﬁt function. You can press this button to make

the window of the lowest priority ﬁt the screen.

Window control buttons

Pressing the button switches the input source for the window. The button indicators

indicate the statuses of the input source.

Button indicator descriptions:

- Always on: The signal source is accessed.

- Flashing: The input source is in use, but no signal source is accessed.

- Off: The input source is not in use and no signal source is accessed.

Input source buttons

- TAKE: In the switcher mode, pressing the TAKE button can switch the PVW to PGM

seamlessly with the transition effect set previously.

- FN: A custom menu button. In USB playback mode, press the button to play the media

ﬁles in USB drive.

Function buttons

- USB (Type-B): Connects to the upper computer.

- USB (Type-A): A reserved port

USB

STARVIEW SIP-FASTARVIEW SC-2K VIDEO PROCESSOR

Singapore Headquarters: 60 Kaki Bukit Place, #05-19 Eunos Techpark, Singapore 415979

Website: www.starviewint.com | Email: [email protected] | Tell: +65 31575338

Rear Panel

- Supports input resolutions up to 1920 x 1080@60Hz and downward compatibility.

- Supports both progressive and interlaced signals.

- SDI1 supports de-interlacing.

Note:

SDI does not support input resolution and bit depth settings.

Connector Quantity

3G-SDI 2

DVI loop output connector

DVI LOOP 1

Connects to a mouse/ keyboard, or connects to a USB drive to play media ﬁles stored in the

drive. The supported USB drives and the formats of the media ﬁles in it are described as follows.

- USB drive: FAT/ FAT32

The USB drive cannot be a partitioned one or used as the system startup disk.

- Picture ﬁle format: JPG, JPEG, BMP, PNG and WEBP

- Video ﬁle format: MP4, AVI, MKV, MOV, 3GP, FLV and MPG

Video coding: MPEG-1/2, MPEG-4, H.264/ AVC, MVC, H.265/ HEVC, H.263, GOOGLE VP8, VC-1 and

MOTION JPEG

- Audio ﬁle format: MP3, WMA, WAV and 3GP

Audio coding:

+ MPEG Audio: MPEG1/ 2/ 2.5 Audio Layer 1/ 2/ 3

+ Windows Media Audio: WMA Version4/ 4.1/ 7/ 8/ 9, wmapro

+ WAV Audio: MS-ADPCM, IMA-ADPCM, PCM

+ FLAC Audio: Compress Level 0-8

+ AAC Audio: ADIF, ATDS Header AAC-LC and AAC-HE, AAC-ELD

+ AMR Audio: AMR-NB,AMR-WB

USB 2.0 2

VESA standard, input resolutions up to 1920 x 1200@60Hz

- Support for custom resolutions:

+ Direct mode: Width up to 3,840 pixels (3840 x 648@60Hz)

+ Switcher mode: Width up to 2,048 pixels (2048 x 1200@60Hz)

+ Height up to 1,600 pixels (1510 x 1600@60Hz)

- HDCP 1.4 compliant

- DOES NOT support interlaced signal input.

The frame rate of the DVI connector is 60 Hz by default and the supported frequently

used standard resolutions are as follows:

+ 800 x 600

+ 1024 x 768

+ 1280 x 720

+ 1280 x 768

+ 1280 x 800

+ 1280 x 1024

+ 1366 x 768

+ 1440 x 900

+ 1600 x 1200

+ 1680 x 1050

+ 1920 x 1080

+ 1920 x 1200

DVI 2

Description

Input

STARVIEW SIP-FASTARVIEW SC-2K VIDEO PROCESSOR

Singapore Headquarters: 60 Kaki Bukit Place, #05-19 Eunos Techpark, Singapore 415979

Website: www.starviewint.com | Email: [email protected] | Tell: +65 31575338

- VESA standard, input resolutions up to 1920 x 1200@60Hz

- Support for custom resolutions:

+ Direct mode: Width up to 3,840 pixels (3840 x 648@60Hz)

+ Switcher mode: Width up to 2,048 pixels (2048 x 1200@60Hz)

+ Height up to 1,600 pixels (1510 x 1600@60Hz)

- HDCP 1.4 compliant

- DOES NOT support interlaced signal input.

The frame rate of the DVI connector is 60 Hz by default and the supported frequently used

standard resolutions are as follows:

+ 800 x 600

+ 1024 x 768

+ 1280 x 720

+ 1280 x 768

+ 1280 x 800

+ 1280 x 1024

+ 1366 x 768

+ 1440 x 900

+ 1600 x 1200

+ 1680 x 1050

+ 1920 x 1080

+ 1920 x 1200

HDMI 2

A monitoring connector, which can be set to preview the editing image or monitor the PGM

The frame rate of the monitor output is 60 Hz and the supported standard resolutions are as

follows:

+ 800 x 600

+ 1024 x 768

+ 1280 x 720

+ 1280 x 768

+ 1280 x 800

+ 1280 x 1024

+ 1366 x 768

+ 1440 x 900

+ 1600 x 1200

+ 1680 x 1050

+ 1920 x 1080

+ 1920 x 1200

DVI 1

6 Ethernet outputs

Ethernet 6

Connector Quantity Description

Output

-1 x USB (Type-B)

+ Connects to the PC for device control.

+ Used as the input connector for cascading devices

-1 x USB (Type-A)

+ Used as the output connector for cascading devices

USB 1

Connects to the PC for communication, or to the network

Ethernet 1

Connector Quantity Description

Control

65 W

Power Consumption

Electrical

Parameters AC 100V-240V ~ 50/60Hz

Power Supply

0°C to +45°C

Temperature

Operating

Environment 20% RH to 90% RH non-condensing

Humidity

Overall Speciﬁcations

SPECIFICATIONS

STARVIEW SIP-FASTARVIEW SC-2K VIDEO PROCESSOR

Singapore Headquarters: 60 Kaki Bukit Place, #05-19 Eunos Techpark, Singapore 415979

Website: www.starviewint.com | Email: [email protected] | Tell: +65 31575338

Video Source Features

10% RH to 95% RH non-condensing

Humidity

Storage

Environment

483.6 mm x 276.4 mm x 51.4 mm

Dimensions

Physical

Speciﬁcations 2.71 kg

Net Weight

5.9 kg

Total Weight

540 mm x 370 mm x 140 mm

Carrying Case

Packing

Information

1 x power cable

1 x USB cable

1 x DVI cable

1 x HDMI cable

1 x Ethernet cable

1 x Quick Start Guide

1 x Certiﬁcate of Approval

Accessory Box

555 mm x 405 mm x 180 mm

Packing Box

CE, RoHS, FCC, IC, RCM, CB, KC, UL, EAC

Certiﬁcations

40 dB(A)

8 bit

RGB 4:4:4

YCbCr 4:4:4

YCbCr 4:2:2

YCbCr 4:2:0

1920 x 1200@60Hz (Standard)

2046 x 1600@60Hz (Custom)

Not supported

10 bit

RGB 4:4:4

YCbCr 4:4:4

YCbCr 4:2:2

YCbCr 4:2:0

1920 x 1200@60Hz (Standard)

2046 x 1600@60Hz (Custom)

Not supported

12 bit _ Not supported

8 bit

RGB 4:4:4 1920 x 1200@60Hz (Standard)

2046 x 1600@60Hz (Custom)

Noise Level (Typical 25ºC/77ºF)

Max. Input ResolutionColor DepthInput Connector

HDMI 1.3

SL-DVI

- Max. input resolution: 1920 x 1080@60Hz

- DOES NOT support input resolution and bit depth settings.

- Support ST-424 (3G) and ST-292 (HD) standard video inputs.

3G-SDI

STARVIEW SIP-FASTARVIEW SC-2K VIDEO PROCESSOR

For the most current speciﬁcation information, please visit http://www.starviewint.com

are trademarks, registered trademarks or tradenames of their respective holders. STARVIEW INTERNATIONAL

PTE LTD management system is registered to ISO 9001 and ISO 45001. Performance speciﬁcations are typical.

Due to constant research, speciﬁcations are subject to change without notice.
