Stealth Cam STC-DVIR5 PROWLER Bedienungsanleitung

STC-DVIR5 PROWLER

User’s Manual

Toll Free Customer Support 1-877-269-8490

www.stealth am.net

Version 1.0 07/07

STC-DVIR5 PROWLER

www.stealth am.net Toll Free 877-269-8490 2

For Customer Servi e or Warranty Information Call Toll Free

877-269-8490

Stealth Cam, LLC

P.O. Box 539504

Grand Prairie, TX 75053-9504

www.steatlh am.net

Stealth Cam Limited Warranty

Your Stealth Cam s outing amera is overed by a 90 days Limited Warranty

on parts and labor from the date of original pur hase, and pur hases must be

made through an authorized dealer. The warranty overs defe ts in

workmanship and materials. The warranty does not apply to units, whi h have

been damaged or abused intentionally or unintentionally. A pur hase from

individuals or unauthorized internet sites voids the warranty.

Tampering with or altering the unit will void the warranty. Any unauthorized

servi e will void warranty. Original sales re eipt must be produ ed for any

warranty servi e and a Return Authorization (RA) number must be obtained

from ustomer servi e at 877-269-8490 prior to returning produ t.

STC-DVIR5 PROWLER

www.stealth am.net Toll Free 877-269-8490 3

Manual Contents

Camera overview 4

Camera kit ontents 8

Battery and memory Installation 9

Set up and programming 12

Camera use 20

Mounting the amera 21

Viewing & Deleting images 27

Memory ompatibility hart 36

Te hni al Spe s 37

General Information 41

Moon phase hart 43

STC-DVIR5 PROWLER

www.stealth am.net Toll Free 877-269-8490 4

Camera overview

Front housing image with major parts indi ation.

STC-DVIR5 PROWLER

www.stealth am.net Toll Free 877-269-8490 5

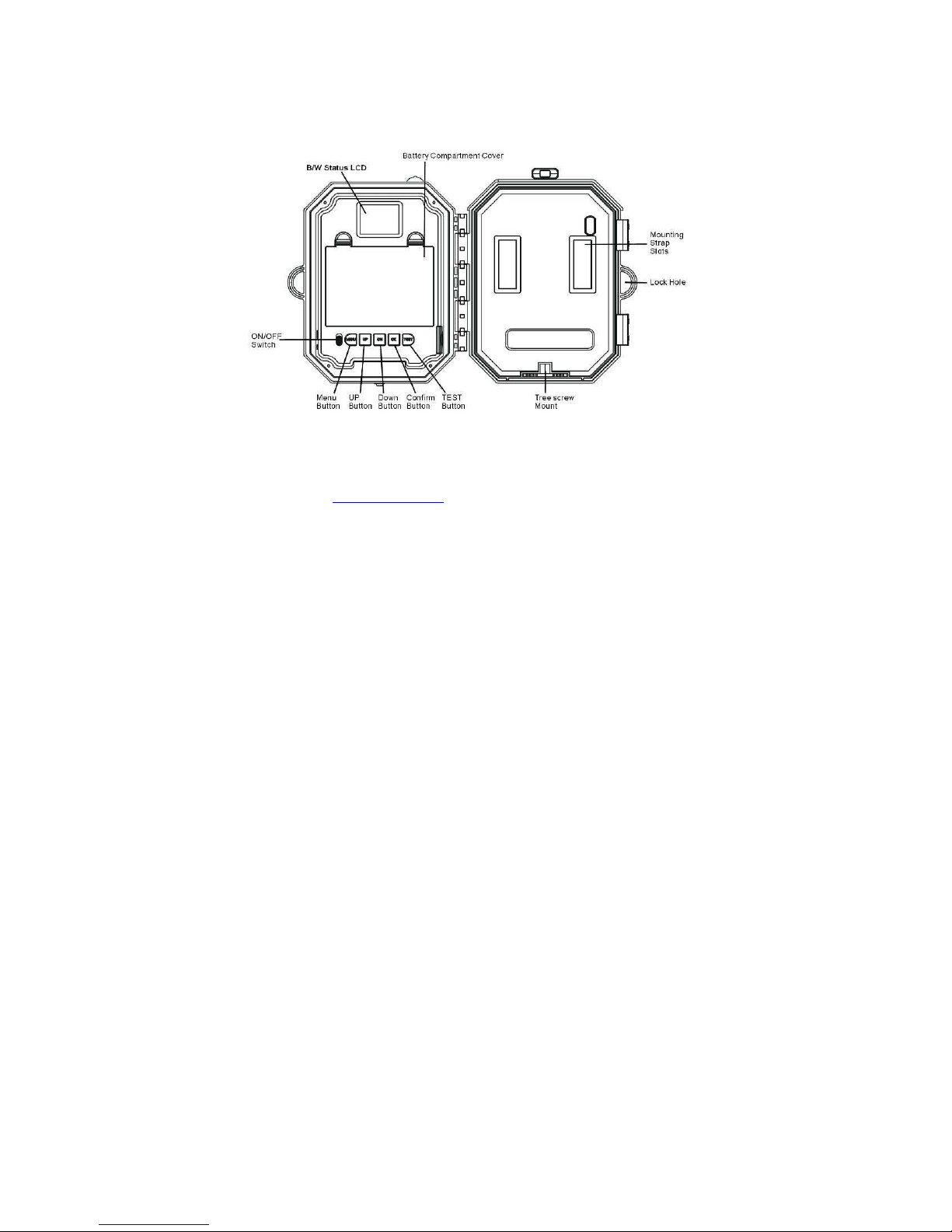

Open view image with major parts indi ation

STC-DVIR5 PROWLER

www.stealth am.net Toll Free 877-269-8490 6

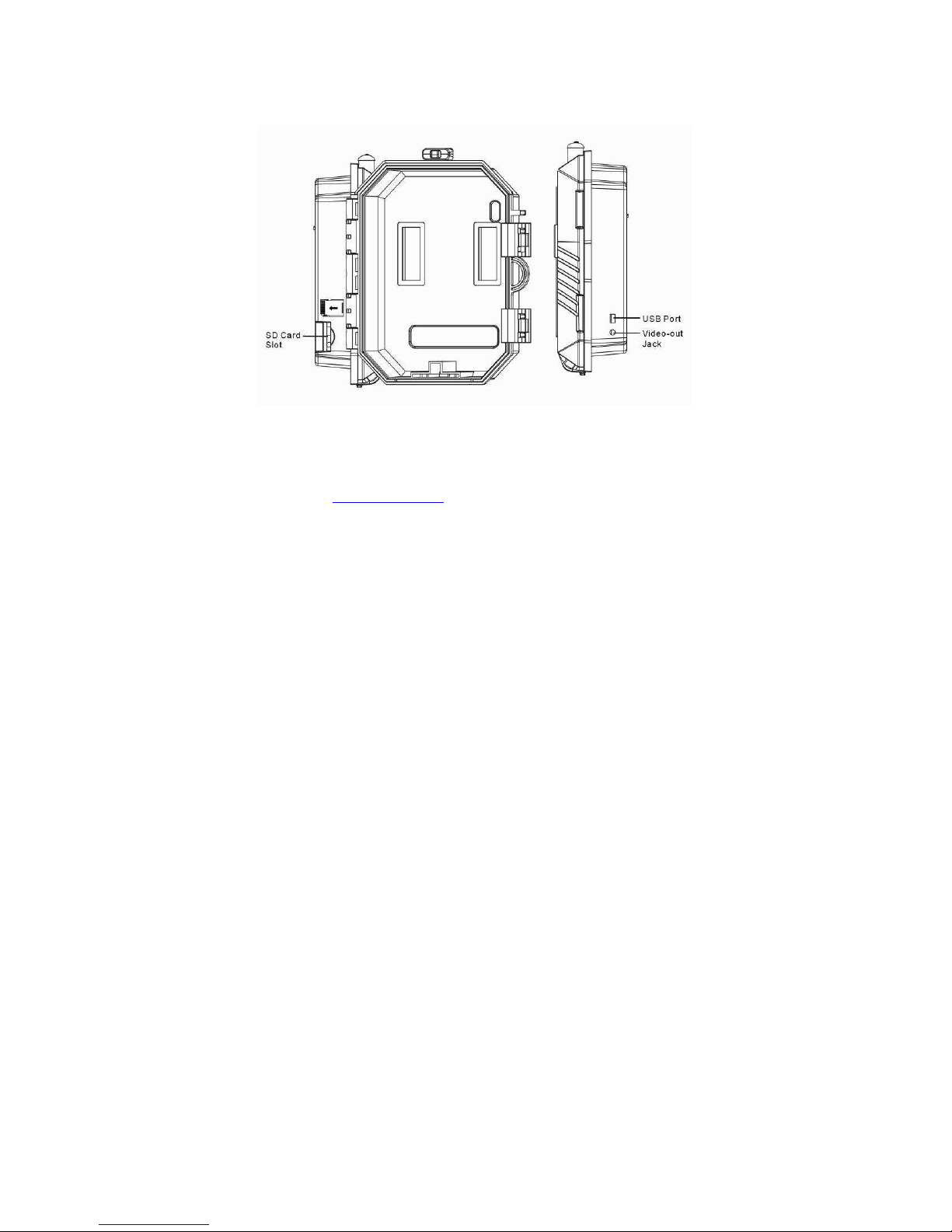

Side view with major parts indi ation

STC-DVIR5 PROWLER

www.stealth am.net Toll Free 877-269-8490 7

Pi ture / Image Capa ity

High Low Base AVI

(in se onds)

SD ard

Color B&W Color B&W Color B&W Color B&W

16MB

16 53 32 80 80 160 40s 45s

32MB

32 106 64 160 160 320 80s 90s

64MB

64 212 128 320 320 640 160s 180s

128MB

128 424 256 640 640 1280 320s 360s

256MB

256 848 512 1280 1280 2560 640s 720s

512MB

512 1696 1024 2560 2560 5120 1024s 1440s

1 GB

1024 3392 2048 5120 5120 10240 2048s 2880s

2 GB

2048 6784 4096 10240 10240 20480 4096s 5760s

NOTE: Pi ture / Image Capa ity Chart provides approximate number of

images or AVI movies based on resolution setting and the size of

memory ard. These figures may vary depending on the amount of

detail in the image.

STC-DVIR5 PROWLER

www.stealth am.net Toll Free 877-269-8490 8

Camera kit ontents

• Model STC-DVIR5 PROWLER Digital S outing Camera

• CDROM (Contains Ulead Photo Explorer 8.0 and amera

driver)

• User Manual.

• USB able.

• TV out able for TV (RCA Ja k).

• TV out able for handheld TV (Mini Ja k).

• Strap.

STC-DVIR5 PROWLER

www.stealth am.net Toll Free 877-269-8490 9

Battery & memory installation

The Stealth Cam STC-DVIR5 PROWLER Advan ed Digital

S outing Camera is designed to operate using two different types

of battery power options.

NOTE: Always have amera in the OFF position when installing or

removing batteries.

Batteries “C” ell

The internal battery ompartment a epts 6 “C” ell batteries. Be

sure to use high quality brand name alkaline batteries. Install

batteries with orre t polarity (+/-) as noted inside the battery

ompartment.

Warning:

Do not use different Voltage lead

a id battery other than the one spe ified in

this se tion. Doing so will damage the amera

and will void the warranty.

STC-DVIR5 PROWLER

www.stealth am.net Toll Free 877-269-8490 10

12V Lead A id external battery

The STC-DVIR5 PROWLER is equipped with an external power

ja k designed to a ept a barrel plug able to atta h to a sealed

lead a id battery. (sold separately). Battery able and omplete

12V Lead A id battery kits are available wherever Stealth Cam

s outing ameras are sold or all toll free 877-269-8490. Only

Stealth Cam external battery a essories are re ommended.

• Insert the external battery barrel plug into the DC 12V ja k on

the bottom of amera housing

• Turn the amera power on.

 Please make sure the voltage and polar ty (+/-) are correct

before connect on. Incorrect voltage or polar ty (+/-) w ll

damage the camera.

Memory Options

Your STC-DVIR5 PROWLER amera is equipped with 32MB built

in flash memory. The amera is also equipped with an

expandable media ard slot apable of a epting up to 2GB SD

ard (sold separately). With no memory ard inserted into the slot,
