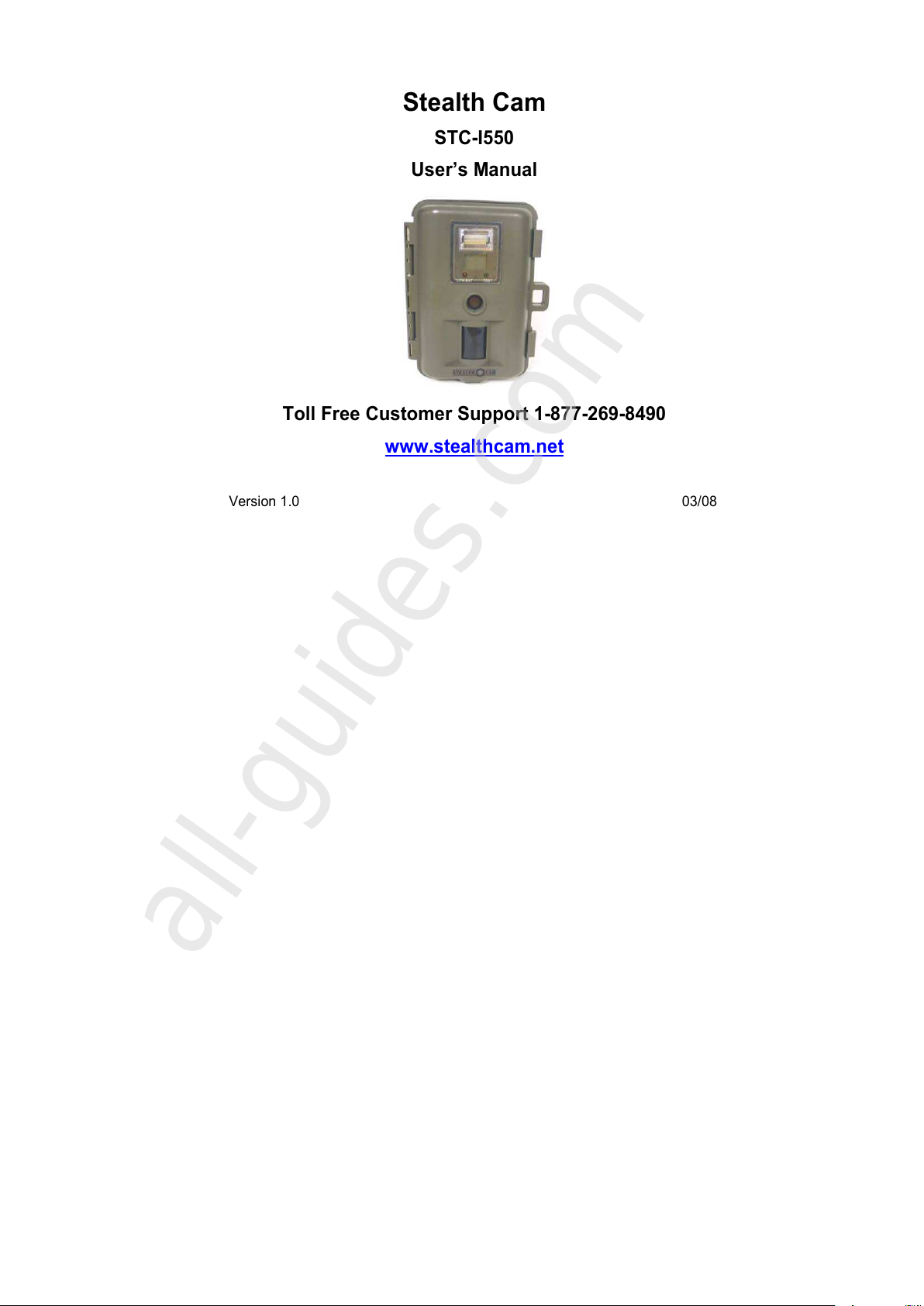

Stealth Cam STS-I550 Bedienungsanleitung

Stealth Cam

STC-I550

User’s Manual

Toll Free Customer Support 1-877-269-8490

.stealthcam.net

Version 1.0 03/08

All manuals and user guides at all-guides.com

all-guides.com

STC-I550

www.stealthcam.net Toll Free 877-26 -84 0 2

For Customer Service or Warranty Information Call Toll Free

877-269-8490

Stealth Cam, LLC

P.O. Box 53 504

Grand Prairie, TX 75053- 504

www.steatlhcam.net

Stealth Cam Limited Warranty

Your Stealth Cam scouting camera is covered by a 0 days Limited Warranty

on parts and labor from the date of original purchase, and purchases must be

made through an authorized dealer. The warranty covers defects in

workmanship and materials. The warranty does not apply to units, which have

been damaged or abused intentionally or unintentionally. A purchase from

individuals or unauthorized internet sites voids the warranty.

Tampering with or altering the unit will void the warranty. Any unauthorized

service will void warranty. Original sales receipt must be produced for any

warranty service and a Return Authorization (RA) number must be obtained

from customer service at 877-26 -84 0 prior to returning product.

All manuals and user guides at all-guides.com

STC-I550

www.stealthcam.net Toll Free 877-26 -84 0 3

Manual Contents

Camera overview 4

Camera kit contents 8

Battery and memory Installation

Definitions 13

Set up and programming 15

Camera use 20

Mounting the camera 21

Viewing & Deleting images 26

Memory compatibility chart 33

Technical Specs 34

General Information 37

Moon Phase Chart 3

All manuals and user guides at all-guides.com

STC-I550

www.stealthcam.net Toll Free 877-26 -84 0 4

Camera overvie

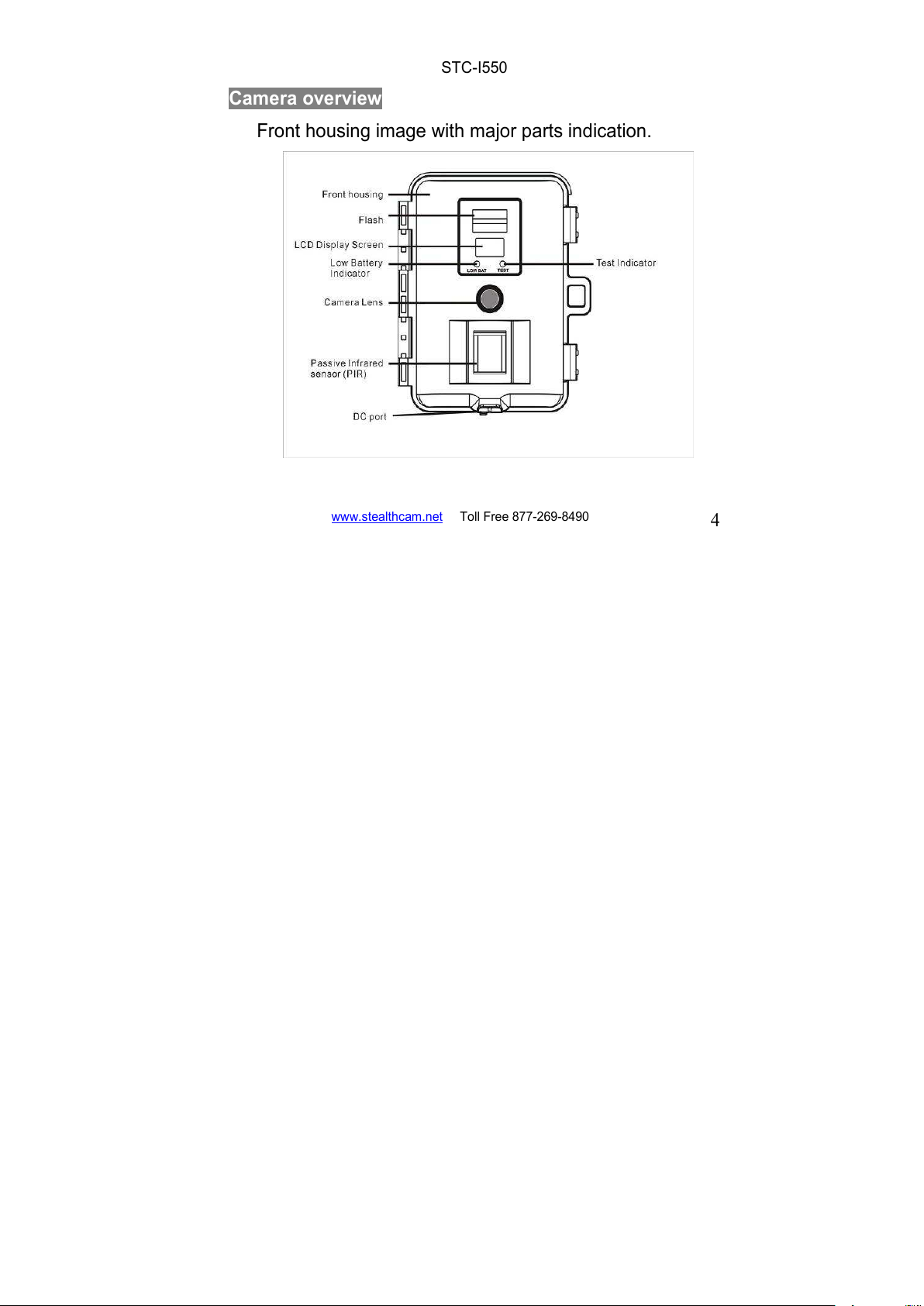

Front housing image with major parts indication.

All manuals and user guides at all-guides.com

STC-I550

www.stealthcam.net Toll Free 877-26 -84 0 5

Open view image with major parts indication

For use with Stealth Cam cable

only. (sold separately)

All manuals and user guides at all-guides.com

STC-I550

www.stealthcam.net Toll Free 877-26 -84 0 6

Side view with major parts indication

All manuals and user guides at all-guides.com

all-guides.com

STC-I550

www.stealthcam.net Toll Free 877-26 -84 0 7

Picture / Image Capacity

SD card High Low Base AVI

16MB 13 17 32 8

32MB 26 34 64 16

64MB 52 68 128 32

128MB 104 136 256 64

256MB 208 272 512 128

512MB 416 544 1024 256

1 GB 832 1088 2048 512

2 GB 1664 2176 40 6 1024

NOTE: Picture / Image Capacity Chart provides approximate number of

images or AVI movies based on resolution setting and the size of

memory card. These figures may vary depending on the amount of

detail in the image.

All manuals and user guides at all-guides.com

STC-I550

www.stealthcam.net Toll Free 877-26 -84 0 8

Camera kit contents

• Model STC-I550 Digital Scouting Camera

• User Manual.

• USB cable.

• Strap.

All manuals and user guides at all-guides.com

STC-I550

www.stealthcam.net Toll Free 877-26 -84 0 9

Battery & memory installation

The Stealth Cam STC-I550 Advanced Digital Scouting Camera is

designed to operate using two different types of battery power options.

NOTE: Always have camera in the OFF position when installing or

removing batteries. Removing battery while the camera is in operation

may damage the camera.

Batteries “C” cell:

The internal battery compartment accepts 6 x “C” cell batteries. Be

sure to use high quality brand name alkaline batteries. Install batteries

with correct polarity (+/-) as noted inside the battery compartment.

Warn

ing:

Do not use different Voltage lead

acid battery other than the one specified in

this section. Doing so will damage the camera

and will void the warranty.

All manuals and user guides at all-guides.com

STC-I550

www.stealthcam.net Toll Free 877-26 -84 0 10

12V Lead Acid external battery

The STC-I550 is equipped with an external power jack designed to

accept a barrel plug cable to attach to a sealed lead acid battery. (sold

separately). This will enhance the camera’s field life. Battery cable and

complete 12V Lead Acid battery kits are available wherever Stealth

Cam scouting cameras are sold or call toll free 877-26 -84 0. Only

Stealth Cam external battery accessories are recommended.

• Insert the external battery barrel plug into the DC 12V jack on

the bottom of camera housing

• Turn the camera power on.

 Please make sure the voltage and polarity (+/-) are correct

before connection. Incorrect voltage or polarity (+/-) will

damage the camera.

Please note: When both internal and external batteries are connected,

the camera will draw power from the higher voltage

source first.

All manuals and user guides at all-guides.com
