Steelcase Migration LTD Bedienungsanleitung

Rev. BNOV.23

Migration LTD

Desk

EN Quick Guide 3

DE Kurzanleitung 33

FR Guide succinct 65

ES Guía rápida 99

166066

EN User Guide, Assembly Direction and Quick Guide in other languages available at:

DE Bedienungsanleitung, Montageanleitung und Kurzanleitung in weiteren Sprachen unter:

FR Guide de l'utilisateur, Instructions de montage et Guide rapide dans d'autres langues sous :

ES Guía del usuario, instrucciones de montaje y guía rápida en otros idiomas en:

https://www.steelcase.com/eu-en/resources/documents/migration-ltd-desk-quick-guide/

Migration LTD

Scan

Read the detailed user guide on our landing page by scanning the QR-Code!

Lesen Siedie detailierte Bedienungsanleitung auf unserer Landing Page in

dem sie den QR-Code scannen!

Lisez le guide d'utilisation détaillé sur notre page d'accueil en scannant le QR-

Code !

Lea el manual de usuario detallado en nuestra página de inicio escaneando el

código QR.

Table of contents

1 About this product 5

1.1 Intended use 5

1.1.1 Foreseeable misuse 5

1.1.2 Users with limitations 6

2 Product description 7

2.1 Technical data 7

3 Transport and assembly 10

3.1 Safety instructions 10

3.2 Assembly 11

3.3 Electrical connection 11

4 Operating and adjusting 12

4.1 Safety regulations 12

4.2 Height adjustment of the product 14

4.2.1 Up/Down control panel 14

4.2.2 Memory control panel 16

5 Errors and faults 22

5.1 Safety regulations 22

5.2 Error messages on the display of the

Up/Down or Memory control panel. 22

5.3 Error messages 23

5.3.1 Fault rectification 23

5.3.2 Table of control panel error messages - Click

codes of the controller 24

5.3.3 Table of error messages with the Memory

control panel 25

6 Maintenance 26

6.1 Safety regulations 26

6.2 Maintenance work 26

6.2.1 Functional check 26

6.3 Cleaning and care 28

7 Service 30

1 About this product

The Migration LTD office furniture line by Steelcase is

subject to continuous quality control during manufacture and

distribution. This ensures error-free functionality.

Steelcase applies a quality management system that meets

the requirements of DIN EN ISO 9001.

The Migration LTD system with Up/Down and

Memory control panel is GS-qualified and has the CE

marking.

The type plate for the desk (electric height

adjustment unit) is located under the desktop near

the control panel.

Further information can be found on the controller

housing and columns.

1.1 Intended use

The Migration LTD product is exclusively designed for use as

office furniture. Any other use, or use beyond the specified

intended use is considered to be improper.

Intended use also includes following all instructions

in the Quick Reference Guide.

1.1.1 Foreseeable misuse

Improper use of the product can result in dangers to life and

limb as well as property damage. For this reason, improper use

is prohibited. In the event of improper use, Steelcase assumes

no liability for any damage that could occur and does not

guarantee that the components will function properly.

1 About this product

Possible improper use includes:

■Lifting loads.

■Use as a climbing aid.

■Use for permanent storage of objects with a total

weight exceeding 75 kg.

■Outdoor use.

■Use in damp rooms.

This list does not claim to be exhaustive.

1.1.2 Users with limitations

WARNING

Risk of injury to persons or damage to the

desk!

}This desk can be used by children 8 years of age and

older, as well as by persons with reduced physical,

sensory, or mental capabilities, or lack of experience

and knowledge, if they are supervised, or have been

instructed in the safe use of the desk, and

understand the dangers associated with using the

desk.

}Children are not allowed to play with the device.

}Children may not carry out cleaning and maintenance

work.

2 Product description

Dimensions and weight specifications of your product are

provided on the delivery note.

2.1 Technical data

Migration LTD

Dimensions and weight See delivery note

Temperature range at the place of

installation

+5°Cto+40°C

Relative humidity 10 % to 85 % (non-condensing)

Input voltage range 100-240 V ˜

Frequency range 50-60 Hz

Maximum desk load capacity 75kg

Maximum duty cycle 2 min ON / 18 min OFF

Maximum adjustment range:

Double telescope (Lift 2) 650 mm to 1250 mm

Maximum power during the lifting

process

370W

Up/Down control panel standard

Memory control panel Optional

The type plate for the desk (electric height adjustment unit) is

located under the desktop near the control panel.

Further information can be found on the controller housing

and columns.

Type plate: symbols – explanation

2 Product description

Protective insulation. Appliances marked

with this symbol are insulated with additional

insulation and may be operated with a two-

pole connection cable without a protective

earth conductor (earthing).

For indoor use. Indicates that setting up

the product outdoors is not allowed.

Read the user guide. Indicates that the

operating instructions or the operating card

should be read before continuing using the

product.

Nominal duty cycle. Maximum activation

time (switch-on time) followed by a minimum

deactivation time (switch-off time) required

for safe operation of the product.

CE marking. Used to symbolise the

conformity of the product with the applicable

requirements imposed on the manufacturer

by the European Community.

UKCA marking. Used to symbolise the

conformity of the product with the applicable

requirements imposed on the manufacturer

by the United Kingdom.

Recycling symbol. Used to indicate

conformity with the regulations for Waste

Electric and Electronic Equipment (WEEE)

and the Electrical and Electronic Equipment

Act (ElektroG). Electrical and electronic

products must be disposed of separately

from household waste at the end of their

service life.

2 Product description

The CE and UKCA markings are located on the

underside of the desktop and can be viewed at

any time.

3 Transport and assembly

3.1 Safety instructions

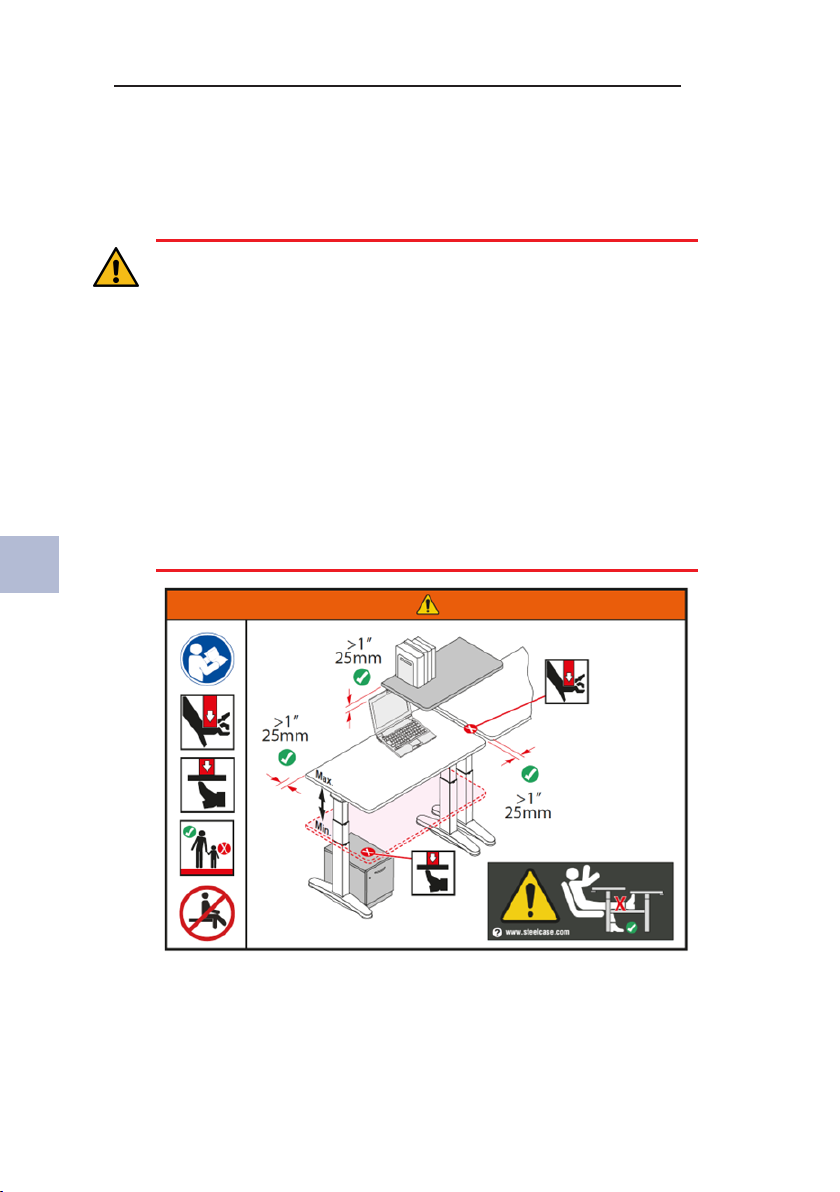

DANGER

Danger of crushing and shearing!

Body parts or objects could be crushed or sheared off as a

result of the electrical height adjustment process.

}Maintain sufficient lateral clearance (at least 25 mm)

to all surrounding objects, walls, etc. throughout the

lifting range.

}Set up the desk in such a manner that there is suf-

ficient space for lift movements and for the per-

formance of maintenance tasks.
