LEET™ User Manual

May 24, 2013

Revision 1.7

(Latest revision of this manual is available for download on our website a

www.steigerdynamics.com/support-downloads.aspx

)

LEET™UserManual

–

Revision1.7

Welcome

Dear Customer:

Thank you for purchasing a handcrafted, custom Home Theater PC from

STEIGER DYNAMICS. It is our pleasure to welcome you to our community of

customers, and we look forward to you enjoying years of high-performance

computing with our products.

Eachoneofoursystemsismanufactured in the United States (Los Angeles,

California) and supported in-house by the very engineers who built yours.

That means you can speak directly to your builder should a problem arise.

Your system was built to your specifications with your needs in mind, and

we are confident that you are going to love it as much as we did building it!

We know you are extremely excited to get started your LEET™ right

away, but it is very important that you read the following “Quick-Start-

Guide” to assure a hassle-free setup and an ideal user experience.

Please pay special attention to the items that are marked with this icon:

Best,

Martin Hehensteiger

CEO & Co-Founder

LEET™UserManual

–

Revision1.7

Table of Content

I. Quick-Start-Guide 4

Step 1 – Unpacking & Hardware Check 4

Step 2 – Intro to System Buttons & Connectors 5

Step 3 – System Placement Considerations 6

Step 4 – Connecting the System 7

Step 5 – Connecting the Peripherals 9

Step 6 – Ready to Roll 9

IV. Manufacturing Log 17

1. BIOS, Drivers, and Windows Software & Settings 13

2. Software & Apps 14

3. Backup & Restore 15

4. Hardware 16

Phase 1 – Preparation 17

Phase 2 – Initial Software Installation 17

Phase 3 – Final Hardware Assembly & Software Installation 17

Phase 4 – Final Tests 18

Phase 5 – Finishing 18

III. Best Practices 13

II. DIY Builder Guide 10

1. Hardware Assembly 10

2. Software Setup 12

LEET™UserManual

–

Revision1.7

I. Quick-Start-Guide (1/6)

Please call us (1-855-915-9000) or email us (support@steigerdynamics.com), if anything is damaged or missing.

Please keep all original packaging material incl. interior Instapak foam for potential warranty shipment!

C. Check accessories

Power cable

DVI to HDMI Cable

Black STEIGER DYNAMICS Box with spare parts

Black STEIGER DYNAMICS Binder with disks

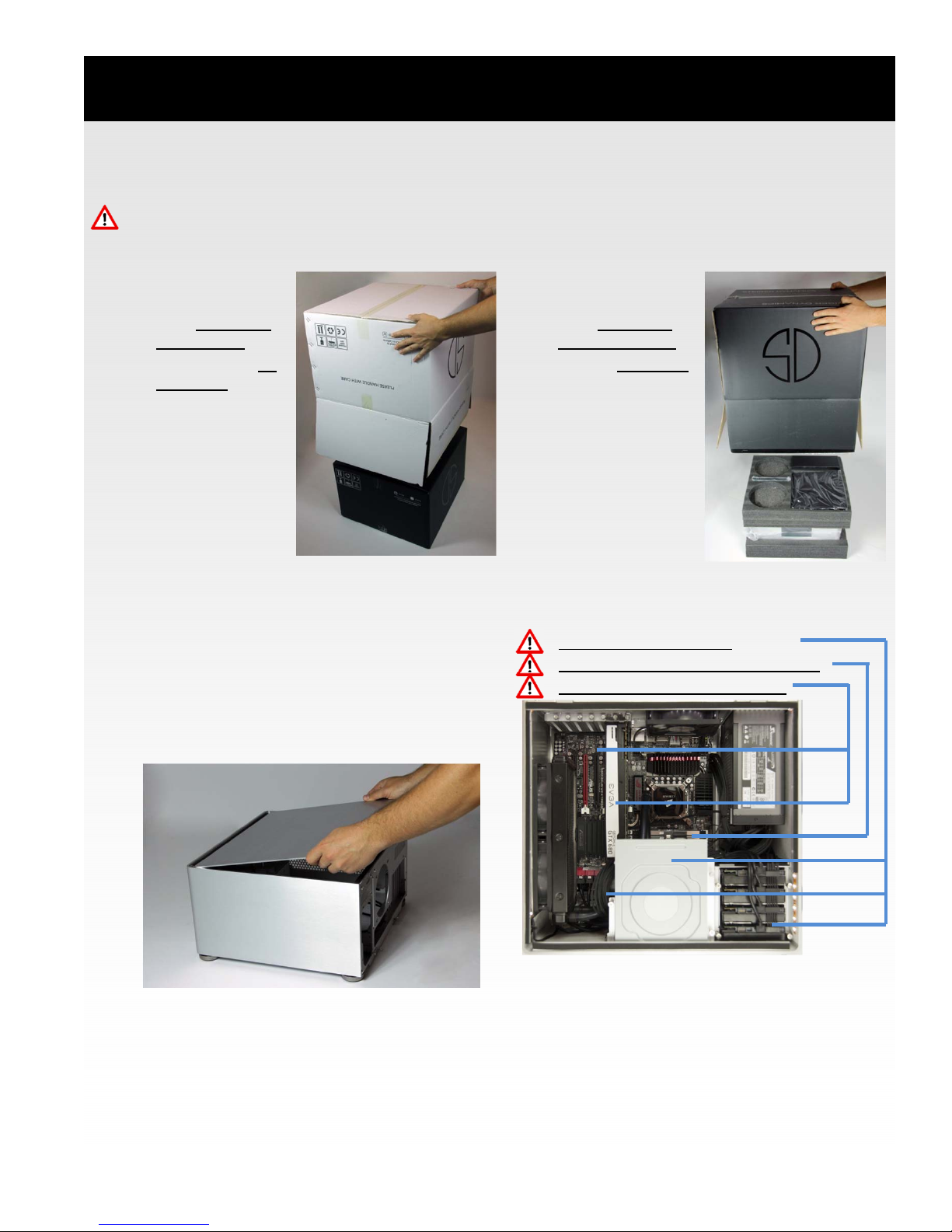

A. Unpack your system

Step 1 – Unpacking & Hardware Check

4. Reattach lid

5. Reattach lid screws

3. Remove foam and check connections

Check cable connections

Check that RAM modules are in place

Check that PCI cards are in place

1. Remove lid screws

The 2 thumb screws on rear side of chassis

are easily unfastened by hand

2. Remove Lid

Lift up back of lid by approx. 1 inch

Pull lid back and out of bracket

D. Check peripherals

STEIGER DYNAMICS Remote Control

Other peripherals you have ordered

Sometimes we drop ship peripherals from our

supplier, and they may arrive separately.

B. Inspect system for external internal damage/flaws

HDD cables

GPU cables

RAM

GPU

Other

PCI-E

1. Unpack white box

Cut white box

open on top and

unfold cover

Flip white box up

side down

Lift off white box

(black box will be

up side down)

2. Unpack black box

Cut black box

open on bottom

and unfold cover

Flip box up side up

Lift off black box

to reveal system

SSD cables

(NOTE: Your configuration may vary!)

LEET™UserManual

–

Revision1.7

I. Quick-Start-Guide (2/6)

Step 2 – System Buttons & Connectors

Blu-ray drive slot

Optical drive button

(push to open/close)

Front screen

Front panel connectors

(push door to access)

Audio

out

Mic

2x USB

3.0

SDHC

card

reader

Power

button

A. Front view

B. Rear view

receiver

Power

supply

switch

Power

cable

plug

Thun-

der-

bolt

USB 2.0 (black)

USB 3.0 (blue)

Onboard audio

incl. optical

digital in/out

Lid screws

Engineer Signature Badge

Primary dedicated DVI

(always connect your primary monitor/

TV to this port with the supplied HDMI

Cable and DVI-HDMI adaptor)

FYI: DVI and HDMI are 100% lossless

compatible without signal conversion.

Dedicated HDMI

Dedicated DisplayPort

Secondary dedicated DVI

Onboard HDMI and DisplayPort

(use only if you have no dedicated graphics card)

Gigabit Ethernet

(NOTE: Your configuration may vary!)

E. LED Light switch (optional)

LED light switch

(Behind left

front foot on

bottom left)

Wi-Fi / Bluetooth Antenna connectors

C. Power button light indicators

No light: System is off

Constant blue light: System is turned on

Blinking blue light: System is in sleep mode

D. Power button functionality

When off or in sleep mode: Press button to turn on.

When on: Press button to put system to sleep

When on: Press button for 4 seconds for hard system

shut down (same as if you unplug system while on)

LEET™UserManual

–

Revision1.7

I. Quick-Start-Guide (3/6)

High performance systems like the LEET™ require proper system placement to assure safe operating

temperatures and solid system stability even under hours of heavy load. Please follow the instructions below.

A. Optimize airflow

Ensure good air circulation and do not place into

closed furniture.

If you place your system in an AV-Rack or

under/in a desk, ensure proper air intake and

exhaust clearance for the fans and ventilation

holes on bottom, rear, and left side.

Do not put system on carpet or soft surfaces

since they block air intakes on the bottom.

B. Keep away from water, heat, and dust

Setup in dry area and avoid exposure to

water/rain and excessive humidity.

Do not use system as a drink holder or coaster.

Avoid hot/warm areas like proximity to heaters.

Dust decreases system cooling performance,

hence avoid dusty areas.

C. Keep accessible

Keep system accessible to do any of the following:

Gently clean system exterior and interior from

dust

Turn on light switch

Open/close optical drive

Access front panel connectors

Access connectors on the back

D. Place front screen and IR receiver in sight

Place system in a way so you can easily see the

front screen for system monitoring parameters

and entertainment information.

Also, the IR receiver on the front left needs to

be in line of sight to use the IR remote control.

E. Other considerations

Never push objects into the PC. This could cause

short circuits , liquid drain, shock and/or fire.

Keep juniors’ hands away.

Keep system away from strong magnetic fields.

The system weighs up to 70 pounds. To avoid

injury, it should only be moved by a person with

a respective fitness level.

Step 3 – System Placement Considerations

Keep

clean

Keep

dry

Keep

cool

Kids

magnets

Rear

air intakes

Rear

air outtakes

Left air

outtakes

Bottom air

intakes

Airflow of custom built liquid cooling configuration

NOTE: Your airflow may differ depending on specific

system configuration – especially pre-sealed liquid

cooling configurations feature a different airflow.

LEET™UserManual

–

Revision1.7

I. Quick-Start-Guide (4/6)

D. Connection chart with Audio/Video-Receiver (AVR)

Connect LEET™ to AVR with supplied DVI to HDMI cable.

Plug cable into “primary dedicated DVI port” of your graphics card as explained on page 5 (Step 2B).

Connect AVR to TV with HDMI cable.

Connect AVR to speakers with speaker cables.

A. Ensure sufficient power

Depending on system configuration, your LEET™ may draw up to 1250 Watts under full load. Hence,

please make sure, your power outlet is ready for this amount of power draw.

B. Connect to surge protector

Protect your investment by connecting the LEET’s power cable to a surge protector.

This surge protector should be directly connected to the power outlet in the wall.

C. Avoid cable traps

Route the power cable and all other cables in a way that they won’t be walked on or tripped over.

E. Connection chart without Audio/Video-Receiver (AVR)

Connect LEET™ to AVR with supplied HDMI cable and DVI/HDMI adaptor.

Plug cable into “primary dedicated DVI port” of your graphics card as explained on page 5 (Step 2 B)

Connect LEET™ to speaker with optical S/PDIF or analog audio cables

HDMI HDMI

Speaker Cables (Stereo/Surround)

HDMI

Optical S/PDIF or Analog Audio (Stereo/Surround)

Step 4 – Connecting the System

F. Important AVR and TV settings

Activate “HDMI pass-through” in your AVR settings

Activate “Game Mode” or “PC Mode” in your TV settings. If your TV does not have these settings, you

need to deactivate any picture processing options in your advanced TV settings (please see TV manual).

Failure to configure these settings will severely decrease your mouse responsiveness.

LEET™UserManual

–

Revision1.7

I. Quick-Start-Guide (5/6)

NOTE: When turning on your PC for the first time, it is recommended to connect the bare minimum

peripherals, such as keyboard, mouse, and TV/monitor before connecting other devices like gamepads, Wi-Fi

receivers, scanners, printers, headsets, external hard drives, etc. After initial setup, shut down your system and

then connect your remaining devices.

A. Mouse and keyboard

Connect mouse and keyboard (or their respective wireless receivers if you have wireless devices) to the

black USB 2.0 ports on the back of the system. Some of the motherboard i/o-shields have dedicated

mouse and keyboard USB connectors marked with a mouse and keyboard symbol. In this case, please

make sure that you use these connectors.

If you have a wireless mouse and keyboard:

Use the supplied extension cables and place the receivers some feet away from the system, since the

aluminum chassis may distort or weaken the wireless signal.

For Optimal performance, place the receivers in direct sight without any obstructions between the

receiver and your wireless mouse and keyboard.

B. Wi-Fi and Bluetooth antennas

Please connect the supplied antennas to their respective connectors on the back of the system

Place the antennas some feet away from the system, since the aluminum chassis may distort or weaken

the wireless signal.

Place the antennas away from other wireless receivers (e.g. wireless keyboard and mouse receivers) since

their wireless signals may interfere with each other and result in wireless lags, hangs, and/or disconnects.

Keep the receivers clear of obstructions to assure proper wireless performance

NOTE: We recommend to use a wired Ethernet connection rather than a Wi-Fi connection. Wired

connections are simply more reliable, faster, and have lower latency for lag free high-end gaming.

Step 5 – Connecting the Peripherals

Devices we offer and recommend:

Logitech Di Novo Edge Media Center Keyboard

Logitech K800 Wireless Illuminated Keyboard

Logitech G700 Wireless Gaming Mouse

Devices we had issues with and do not recommend:

Razer Naga Wireless Mouse

Razer Mamba Wireless Mouse

Cyborg R.A.T. 9 Wireless Mouse

Logitech MX5500 Wireless Mouse and Keyboard

Logitech MX Performance Mouse

Logitech K750 Wireless Keyboard

C. Wireless recommendations

We have tested and continuously test various leading wireless mice and keyboards in the market, and can

at this point only recommend and vouch for a few specific devices. Many devices we tested had issues

with long wireless distances (up to 15 feet), lags, disconnects, hangs, battery life, interferences , etc.

LEET™UserManual

–

Revision1.7

I. Quick-Start-Guide (6/6)

A. Firing up the LEET™

1. Switch the Power Supply switch to “on”.

2. Press the round Power Button on the front left of the system.

3. Your first boot may take a bit longer as usual and the system may turn on and off several times before

it boots into Windows. This is normal. Should you run into any problems or error messages, please refer

to the next section of this manual, “Best Practices”, and/or contact us for help.

B. Windows 8 key

Usually we pre-activate your Windows license during installation, so you do not have to active your

Windows license when you boot the system for the first time.

If Windows asks you ever for your Windows 8 key, you can find it on the sticker behind the front door.

C. Microsoft user account

When we install and configure your LEET™ we do so with a local account, without any password.

We recommend that you change your account type from a local account to a Microsoft account. This will

allow you to experience the full integration of Windows cloud services incl. Microsoft SkyDrive. To do so,

please follow the steps below:

1. Navigate to “Control Panel” >>> “User Accounts” .

2. Click on “Make changes to my account in PC settings”.

3. Click on “Switch to a Microsoft account” and follow the instructions.

D. Your binder

Your binder (which you have open right now) is a great place to keep important system software and

documentation – we have started you off by including:

Manual: Follow the “Quick-Start-Guide”, find out about “Best Practices”, and check out your individual

LEET’s “Manufacturing Log”.

Original Windows 8 Disc: For a any scenarios that require to boot from the Windows 8 DVD, like

Automatic Repair or restoring a restore point from boot.

System Image Disk: If you ever wish to reset your system to how it was when you received it from us.

Other software: Software that may have been provided by the manufacturers of your system’s

components.

Step 6 – Ready to Roll

LEET™UserManual

–

Revision1.7

II. DIY Builder Guide (1/3)

A. Remove slider from chassis

1. Unscrew 2 screws on the inside that attach

the slider’s left fan mount to the chassis

2. Unscrew 4 thumb screws on the back side

that attach the slider to the chassis

3. Carefully slide out the slider from the

chassis’ backside

1. Hardware Assembly

C. Detach front panel cables

Disconnect and remove the following cables

from the chassis’ interior:

1. USB 2.0 card reader

2. HD audio

3. USB 2.0 front display

4. Power SW and Power LED

The red-white IR cable can stay attached.

Please follow this section if you purchased the LEET chassis by itself, i.e. not a fully pre-assembled system. It

is important that you follow this guide step by step since the integration of high-end components may not

be as straight forward as with standard full tower desktop chassis.

B. Remove drive-cage from chassis

1. Unscrew 3 thumb screws that hold the drive-

cage in place

2. Unscrew 2 screws that attach the drive-cage

to the chassis’ front wall

3. Put aside the optical drive button and plate

4. Carefully lift the drive-cage out of the chassis

D. Install HDDs

1. Unscrew 4 thumb screws that fix HDDs

2. Attach rubber screws to HDDs

3. Slide HDDs with rubber screws into the bays

4. Reattach 4 thumb screws

Inhaltsverzeichnis

Beliebte Desktop Handbücher anderer Marken

HP m9060n - Pavilion - Elite Technisches Datenblatt

Asus

Asus E210 Series Bedienungsanleitung

Dell

Dell Inspiron 600m Bedienungsanleitung

Dell

Dell Inspiron 3662 Bedienungsanleitung

TotalFlow

TotalFlow uFLO Bedienungsanleitung

HP Presario SV7000 - Desktop PC Bedienungsanleitung

HP ProDesk 400 G5 Handbuch

Logitech

Logitech MK320 Bedienungsanleitung

Dell

Dell XPS 730 H2C Bedienungsanleitung

Sony

Sony Vaio Series Bedienungsanleitung

Sony

Sony VGC-LT32E - Vaio All-in-one Desktop Computer Bedienungsanleitung

Alto

Alto MD 250 Bedienungsanleitung

Lenovo

Lenovo ThinkCentre Edge 72 Handbuch

Lenovo

Lenovo ThinkStation D20 Handbuch

Arbor Technology

Arbor Technology FPC-7800 Series Bedienungsanleitung

Sony

Sony VAIO VGX-TP1 Series Bedienungsanleitung

Asus

Asus Eee Box B204 Bedienungsanleitung

Dell

Dell Optiplex 9010 All In One Bedienungsanleitung
