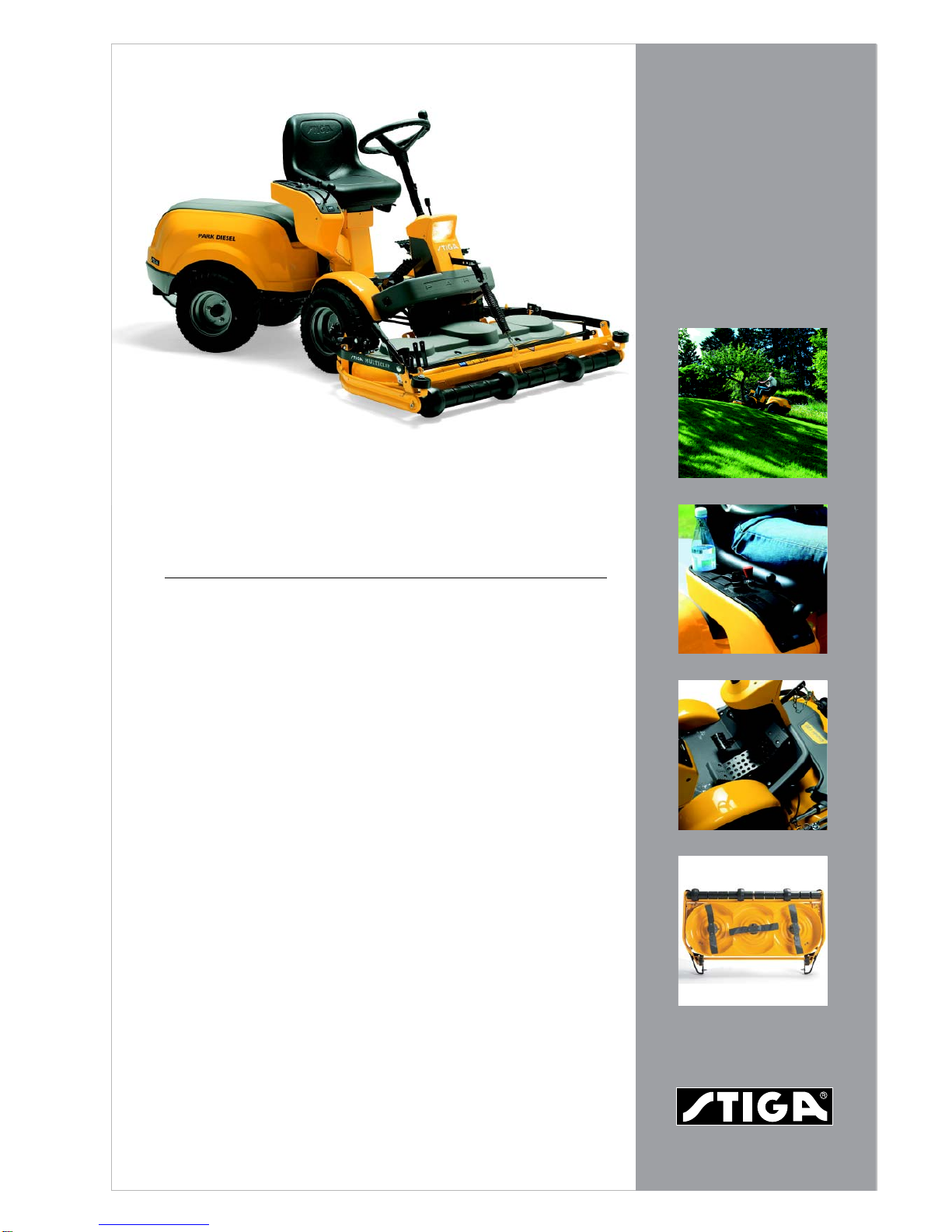

Stiga Park Diesel

13-6180-34

PARK

PARK DIESEL

A Stiga front mower with an ecofriendly and efficient Hatz diesel

engine that offers briliant economy per working hour.

The genuine articulated steering offers unsurpassed manoeuvrabil-

ity. The back wheels follow the track of those up front. You no

longer need to worry about the rear section bumping into obsta-

cles and you can fully concentrate on mowing.

The front mounted deck is easy to use, clean and maintain. A high

performance Combi Pro deck with a 125 cm cutting width gives a

choice of Multiclip and rear discharge.The Multiclip system cuts

and fertilises the lawn at the same time. No need for raking or

emptying a collector.

This front mower comes with a lot of features. Hydrostatic speed

control, adjustable foot pedal, high comfort seat adjustable with

one hand grip, adjustable steering wheel, hour meter, headlight

and mechanical servo steering.

The Park Diesel is an outstanding implement-carrier. You can eas-

ily change from a cutting deck, sweeper or edge cutter to a snow

blade or snow thrower. The list of implements is long. Equipped

with the patented quick connection for accessories.

Park Diesel (13-6180-34)

ENGINE

Brand Hatz 1B50 Diesel

Power 12 hp

Battery 12V / 24Ah

FUEL

Type of fuel Diesel

Tank volume 12 l

SPEED CONTROL

Type of transmission Hydrostatic K46

Number of gears Infinietely variable 0-10 km/h + R

STEERING

Type of steering Genuine articulated steering

Servo assisted steering Mechanical

Steering ball Yes

Adjustable steering wheel Yes

Articulated steering through chain/chain Yes

WHEELS

Type of wheels Stiga special lawn tyre tread

Wheel size Front and rear 16 inches, wide

Bearings Plain

Tyre pressure Front 0,6 bar. Rear 0,4 bar

Driving Rear wheel drive

CUTTING INFORMATION

Type of cutting system Front cutting Combi deck

Cutting heights 25-85 mm in 10 steps

Cutting width 125 cm

Cutting height adjustment Electric with 125 Combi Pro El.

VIBRATIONS & SOUND LEVELS

Free rotating blades Yes

CONTROLS

Deck connection Quick connection

Deck lift Foot controlled

Electric starter Yes

Head light Yes

Hour meter Yes

Gear lever Foot pedal

COLOUR & MATERIAL

Colour Yellow / Grey

Material of chassis Steel

MEASURES & WEIGHT

Weight 215 kg excl. cutting deck

Gross weight 255 kg excl. cutting deck

Package size WxHxL 92x101x202 cm

Largest measures WxHxL 133x124x244 cm with deck

SEAT

Type of seat Comfort seat with high back support

Seat adjustable horizontally One hand grip

OTHER FACTS

CE-mark Yes

Instructions for use 8211-0007-80

EAN bar code 7 313 321 304 515
