2008-03-18 Workshop Manual, Stiga Primo 1 General 1

1 General instructions

Contents in this chapter

General

This Workshop Manual is intended for Stiga Primo model 2008.

This Manual do not cover repair instructions for the motor. Regarding the motor, see the

motor manual.

This Manual and its specifications are valid for machines in their original design. In case of

modified or changed machine, i.e. the motor is replaced, the manual accordance is limited.

The manual is divided in the following chapters:

Chapter 1 is this chapter

Chapter 2 Chassis

Chapter 3 Steering

Chapter 4 Belts

Chapter 5 Electrical system

Chapter 5 Cutting deck

1.4 Unpacking and assembly......... 5

1.4.1 Unpacking.............................. 5

1.4.2 Battery ................................... 6

1.4.3 Assembly............................... 7

1.4.4 Final checks........................... 9

1.4.5 General tightening torque...... 10

1.5 Instructions for use .................. 10

1.6 Raising....................................... 11

1.6.1 Raising back.......................... 11

1.6.2 Raising front........................... 11

1.7 Turning upsidedown................. 12

1.7.1 Preparing............................... 12

1.7.2 Draining the petrol ................. 12

1.7.3 Seat with its plate................... 12

1.7.4 Motor hood............................. 13

1.7.5 Motor oil................................. 13

1.7.6 Petrol tank.............................. 13

1.7.7 Turning................................... 13

1.7.8 Restoring the machine on its

wheels.................................... 13

1.1 Introduction................................2

1.1.1 Responsibility declaration.......2

1.1.2 How this manual is used ........2

1.2 Safety Precautions ....................2

1.2.1 Before service or maintenance2

1.2.2 Symbols and general

warnings.................................3

1.2.3 Warm parts.............................3

1.2.4 Moving parts...........................3

1.2.5 Lifting and blocking up............3

1.2.6 Cleanliness.............................3

1.2.7 Tightening torque ...................3

1.2.8 Sharp edges...........................3

1.2.9 Replacement parts.................3

1.2.10 Inspection.............................3

1.3 Guarantee...................................4

1.3.1 Guarantee period ...................4

1.3.2 Exeptions................................4

1.3.3 Conditions for validity of the

warranties...............................4

Edition Manual Chapter Page

2008-03-18 Workshop Manual, Stiga Primo 1 General 2

1.1 Introduction

1.1.1 Responsibility declaration

In spite of the great care we have taken there may be errors in this publication.

The author cannot be made liable for incorrect or missing information.

GGP SE reserves the right to regularly change product specifications without prior notice.

All the information in this book is based on the information available at the time of

production. Illustrations and photographs may be arranged schematically, which implies

that one picture may cover several models and therefore not correspond exactly with all

models.

1.1.2 How this manual is used

To make this manual easy to understand we have divided the machine into its main

systems and components. These parts are now the different chapters in the book.

Each chapter is divided up into sections.

There is a quick-guide on the cover of this book, which refers to the different chapters. In

each chapter there is a detailed table of contents so that you can easily and quickly find

what you are looking for.

1.2 Safety Precautions

This manual has been written primarily for trained mechanics working in a well-equipped

workshop. Nevertheless, the manual contains such detailed information that it can also be

of use to owners who wish to carry out simple service and repairs on their machine.

A basic knowledge of repairs, tools and repair instructions is, however, always a

prerequisite for first-rate results.

A qualified mechanic should always be consulted if the owner does not have sufficient

knowledge to carry out repairs.

During the warranty period all service must be carried out by an Authorised Workshop for

the warranty to be valid.

The following basic points should be observed if the machine is to function perfectly:

• Follow the service schedule.

• Be on the alert for sudden vibrations or abnormal noise to avoid major breakdowns.

• Always use Genuine Spare Parts

• Follow the descriptions in this manual carefully. Do not take any short cuts.

1.2.1 Before service or maintenance

Before service or maintenance is carried out, the mesures below shall be performed:

• Prevent the machine from rolling by always applying the parking brake.

• Prevent unintentional starting of the engine by removing the ignition key.

• All service and all maintenance must be carried out on a stationary machine with the

engine switched off.

Edition Manual Chapter Page

2008-03-18 Workshop Manual, Stiga Primo 1 General 3

1.2.2 Symbols and general

warnings

Warning!

This symbol indicates a risk of

personal injury or damage if the

instructions are not followed.

Note!

Thistextindicates ariskofdamage to

the material or risk of unnecessarily

complicated work if the instructions

are not followed.

1.2.3 Warm parts

Please observe that engine and exhaust

system picks up a lot of heat during use.

Toavoidinjuries,allowthemachineto cool

before any kind of repairs are made to or

near parts of the engine or exhaust

system.

1.2.4 Moving parts

The machines are all equipped with v-belt

transmissions.Alwaysstoptheengineand

remove the starter key before inspections

or repairs are carried out.

Always use extreme caution when testing

systems with moving parts to avoid

injuries.

Always use Genuine Spare Parts during

service work.

1.2.5 Lifting and blocking up

Before work under the machine, always

make sure that lifting devices and jack-

stands are approved for the weight.

Work safe!

1.2.6 Cleanliness

Clean the machine before starting repairs.

Dirt that penetrates into sensitive

components can seriously influence the

service life of the machine.

1.2.7 Tightening torque

Unless otherwise stated the tightening

torque in the tables in the section

Technical specifications must be used for

thedifferentsizes of screws.This does not

refer to self-tapping screws, which are

mainly used for the assembly of body

parts.

1.2.8 Sharp edges

Watch out for sharp edges, especially

when working with the mower deck. The

blades can be very sharp. Always wear

gloves when working with the blades.

1.2.9 Replacement parts

Always use Genuine Spare Parts during

service work.

1.2.10 Inspection

Each part dismantled in conjunction with

service work must be inspected.

Examine for: wear, cracks, out of

roundness, straightness, dents,

discolouring, abnormal noise and

jamming.

Edition Manual Chapter Page

2008-03-18 Workshop Manual, Stiga Primo 1 General 4

1.3 Guarantee

1.3.1 Guarantee period

For consumer use: two years from date of

purchase.

1.3.2 Exeptions

The extended warranty does not cover

damage due to the following:

• Neglect by users to acquaint themselves

with accompanying documentation.

• Carelessness.

• Incorrect and non-permitted use or

assembly.

• The use of non-genuine spare parts.

• The use of accessories not supplied or

approved by the manufacturer.

Neither does the warranty cover:

• Wearing components such as blades,

belts, wheels,battery and cables.

• Normal wear.

• Engine and transmission. These are cov-

ered by the respective manufacturer’s

warranties, with separate terms and con-

ditions.

The purchaser is covered by the national

laws of each country. The rights to which

thepurchaserisentitledwiththesupport of

these laws are not restricted by this

warranty.

1.3.3 Conditions for validity of the

warranties

The fully completed warranty card must be

sent to Stiga´s subsidiary or distributor.

Edition Manual Chapter Page

2008-03-18 Workshop Manual, Stiga Primo 1 General 5

1.4 Unpacking and assembly

Every Stiga machine has undergone an

extensive control programme before delivery.

The machines are delivered as completely

assembled as possible.

Thankstothistheassemblyondeliveryisrapid

and easy.

The correct and careful assembly of the

machineondeliveryisasimplewayofensuring

satisfied customers!

Note!

The machine shall remain placed on the

pallet during the unpacking and

assembly.

1.4.1 Unpacking

Open up the crate and release the part as

follows:

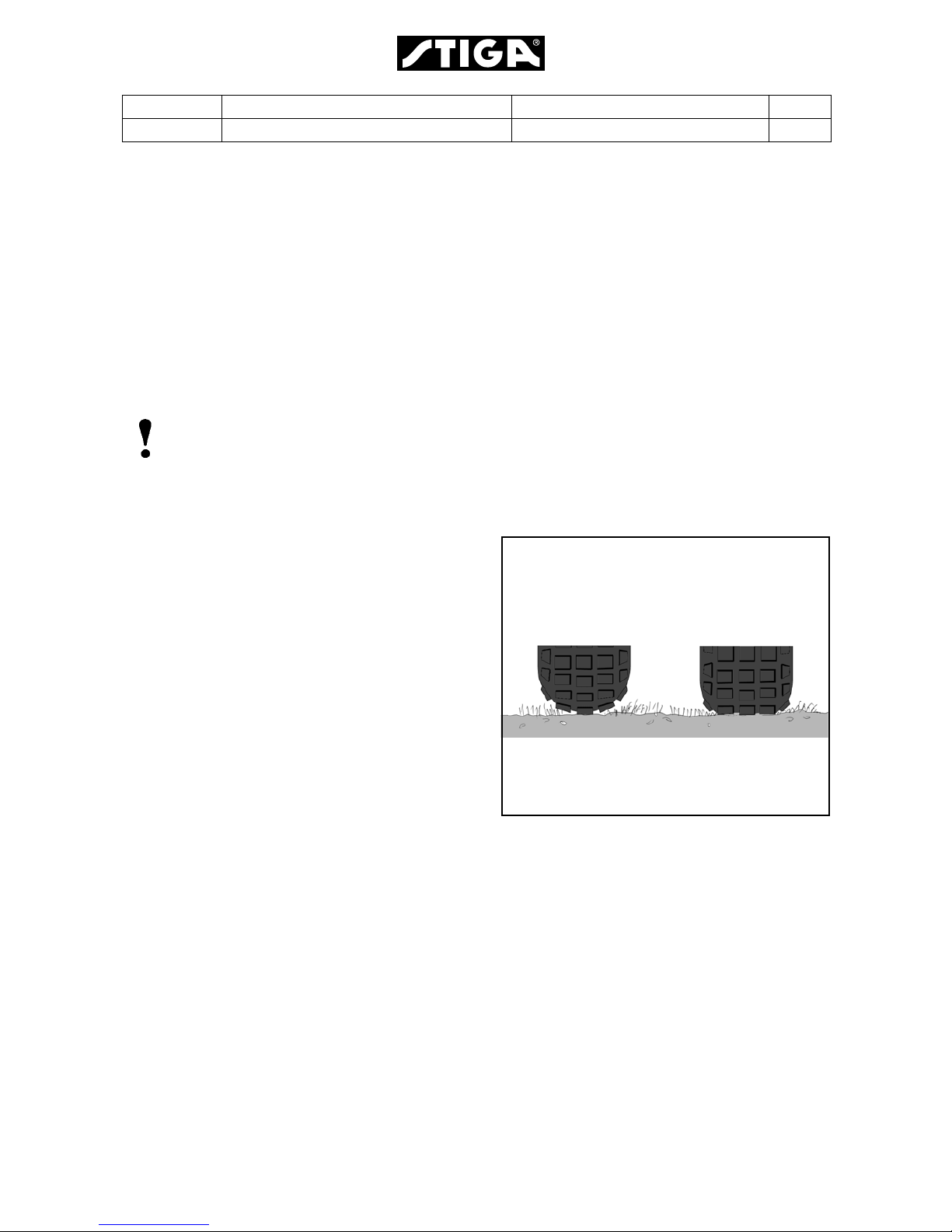

1. Check the air pressure in the tyres. The

pressure is designated on the floor mat.

The air pressure in the tyres is of critical

importance for the performance and

handling of the machine. The correct air

pressure for mowing is:

Front: 1,2 bar (17 psi)

Rear: 1,2 bar (17 psi)

Too high pressure in the tyres leads to that

the machine drives poor due to:

• A small surface in contact to the ground.

• Hard tyre = less flexibility = self cleaning char-

acteristic deteriorate.

2. Remove the following parts from the

package and put them on the floor.

• The steering wheel.

• The backrest.

• The plastic bag, containing owners manuals,

and assembly screws.

Too high pressure Correct pressure

Edition Manual Chapter Page

2008-03-18 Workshop Manual, Stiga Primo 1 General 6

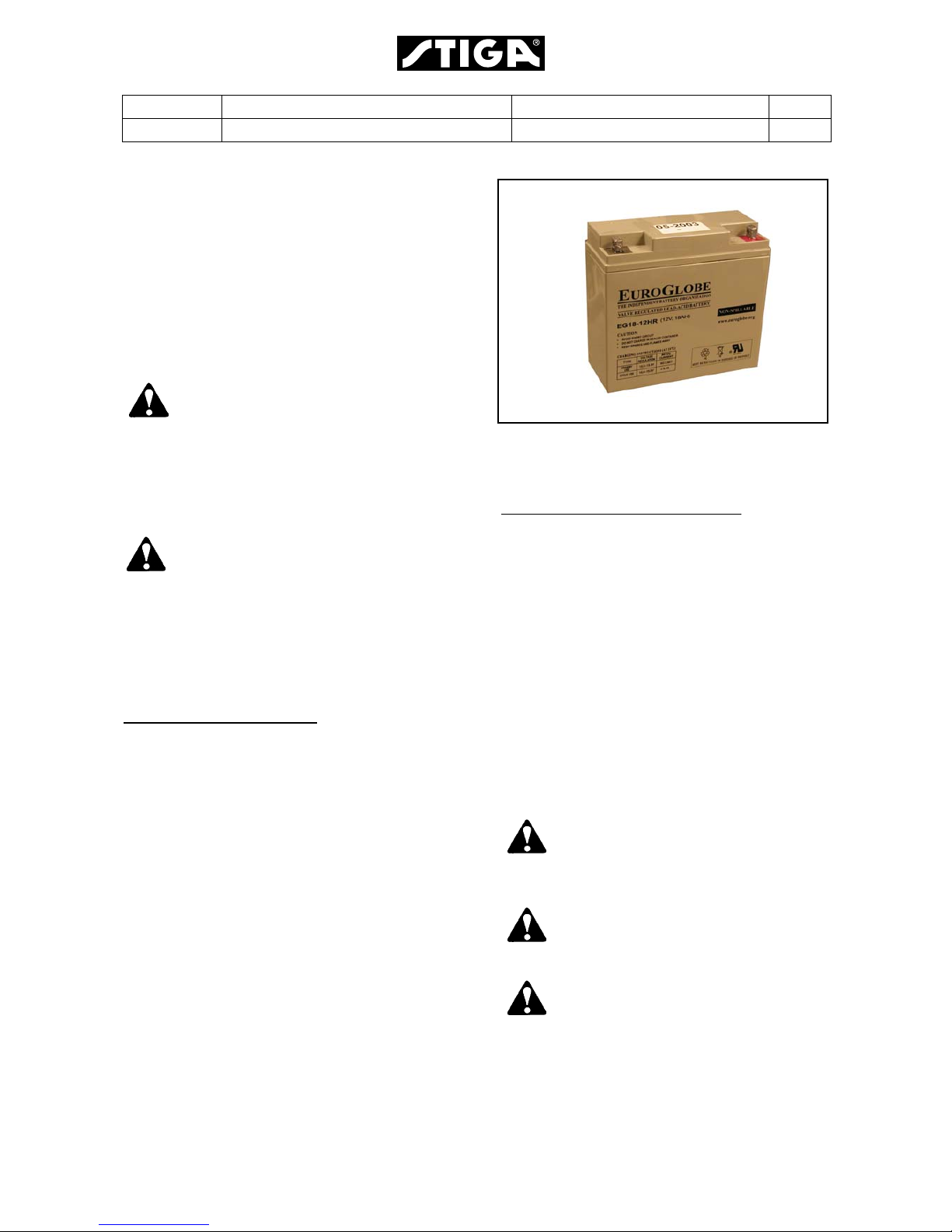

1.4.2 Battery

The battery is a valve regulated type.

Valve regulated battery

This battery needs limited maintenance. It has

no electrolyte levels or plugs.

Warning!

Do not wear rings, metallic bracelet,

chainroundtheneck or similar metal

objects when working with the

battery. It can cause short-circuit,

burns and fire.

Warning!

The battery must be fully charged

before being used for the first time.

The battery must always be stored

fully charged. If the battery is stored

while discharged, serious damage will

occur.

Charging with the engine

The battery can be charged using the engine’s

generator as follows:

1. Install the battery in the machine as shown

below.

2. Place the machine outdoors or install an

extraction device for the exhaust fumes.

3. Start the engine according to the

instructions in the user guide.

4. Allow the engine to run continuously for 45

minutes.

5. Stop the engine. The battery is now fully

charged.

Charging using battery charger

When charging using a battery charger, a

batterycharger with constant voltagemust

be used.

The battery can be damaged if a standard

type battery charger is used.

Installation of battery

Connect first the red cable to plus (+) and

then the black cable to minus (-).

If the cables are disconnected/

connected in the wrong order,

there is a risk of a short-circuit

and damage to the battery.

If the cables are interchanged,

the generator and the battery

will be damaged.

Theenginemustneverbedriven

with the battery disconnected.

There is a risk of serious

damagetothegenerator and the

electrical system.

Edition Manual Chapter Page

2008-03-18 Workshop Manual, Stiga Primo 1 General 7

1.4.3 Assembly

The assembly procedure shall take place in a

clean, well illuminated and dry place.

Assemble the machine as follows:

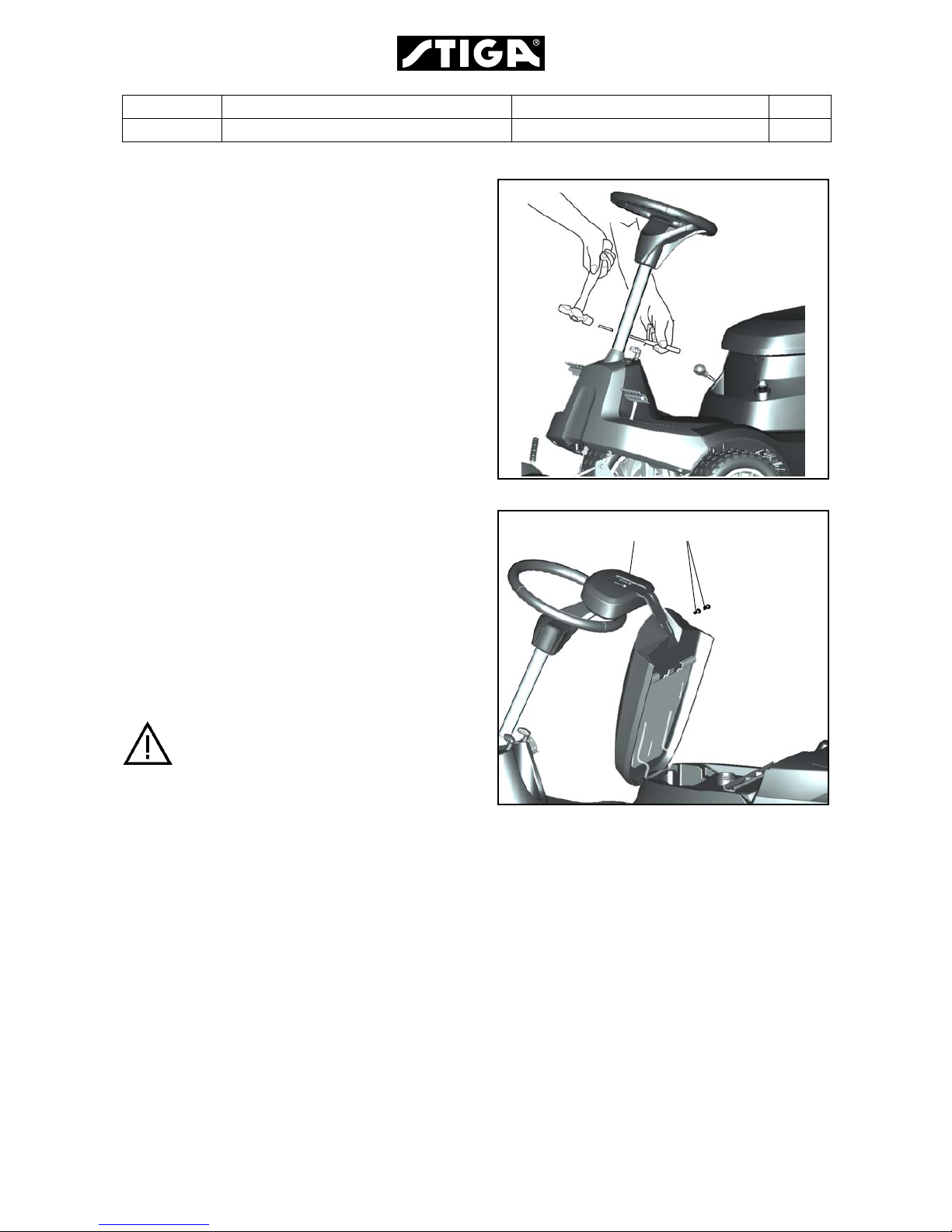

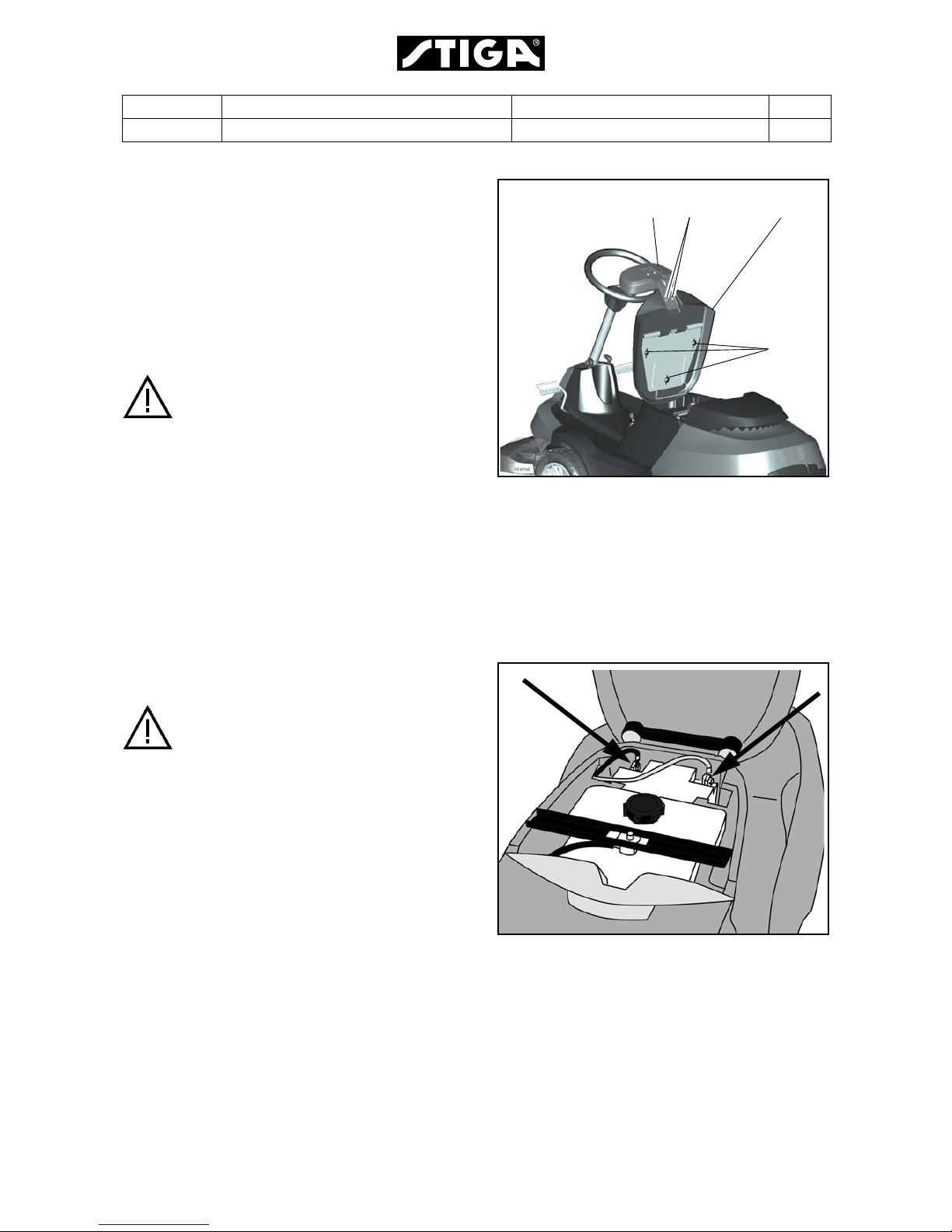

Steering wheel

Install the steering wheel as follows:

1. Install the steering column jacket on the

steering column using a drift or similar so

that the holes in the steering column jacket

and steering column align with each other.

2. Tap in the supplied tension pin from the

other side using a hammer.

Backrest

Install the backrest as follows:

1. Fold the seat up towards the steering wheel.

2. Install the backrest with the screws (O)

without tightening.

3. Set the backrest to the desired position.

4. Tighten the screws. Tightening torque: 20-

24 Nm.

If the screws are tightened more than

24 Nm, the seat will be damaged.

N O

Edition Manual Chapter Page

2008-03-18 Workshop Manual, Stiga Primo 1 General 8

Seat

Adjust the seat backwards/forwards to a

comfortable driving position.

The seat can be folded and adjusted front-rear.

To adjust the seat, slacken off the three screws

(P), set the seat to the desired position and

tighten the screws.

Tightening torque: 20-24 Nm.

If the screws are tightened more than

24 Nm, the seat will be damaged.

Theseatisequippedwith a safety switchthatis

connectedtothemachine’ssafetysystem.This

means that certain dangerous activities are not

possible when there is nobody sitting on the

seat.

Backrest

The backrest can be adjusted laterally and

vertically.Toadjustthebackrest,slackenoffthe

screws (O), set the backrest to the desired

position and tighten the screws. Tightening

torque: 20-24 Nm.

If the screws are tightened more than

24 Nm, the seat will be damaged.

Battery

Fold the seat up and install the battery leads.

Beliebte Rasenmäher Handbücher anderer Marken

RHINO

RHINO 1958 Bedienungsanleitung

Wolf Garten

Wolf Garten Compact plus 40 B Bedienungsanleitung

Cub Cadet

Cub Cadet LTX 1045 Bedienungsanleitung

Craftsman

Craftsman 917.378461 Bedienungsanleitung

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Bedienungsanleitung

Challenge

Challenge CH18V2 Betriebsanleitung

TALEN TOOLS

TALEN TOOLS AVR HGM30 Bedienungsanleitung

DEWEZE

DEWEZE ATM-725 Bedienungsanleitung

Weed Eater

Weed Eater 180083 Bedienungsanleitung

Husqvarna

Husqvarna Poulan Pro PP185A42 Bedienungsanleitung

Better Outdoor Products

Better Outdoor Products Quick Series Bedienungsanleitung

Cub Cadet

Cub Cadet 23HP Z-Force 60 Betriebsanleitung

MTD

MTD 795, 792, 791, 790 Bedienungsanleitung

Toro

Toro Groundsmaster 3505-D Bedienungsanleitung

Dennis

Dennis FT 610 Bedienungsanleitung

AIRFORCE

AIRFORCE F-15 Gen 3 Bedienungsanleitung

MTD

MTD 126-220-000 Bedienungsanleitung

Toro

Toro 74806 Bedienungsanleitung
