Stinger ELEV8 UN1880 Bedienungsanleitung

8" FLOATING MULTIMEDIA DISPLAY SYSTEM

MODEL NUMBER: UN1880

INSTALLATION GUIDE

StingerElectronics.com

Installation of this product requires technical skill

and experience. It is recommended to have it

professionally installed by a Stinger / Phoenix

Gold Dealer.

Read entire instructions thoroughly before

starting.

Disconnect the vehicle's negative battery cable

before making any wire connections.

Protect all vehicle surfaces with tape or plastic

Do not install components in any location that

will hinder vehicle operation, such as steering

wheel, gearshift, air bags, hazard switch.

All wiring should be secured away from sharp

edges and moving parts.

PRECAUTIONS

AGREEMENT: End user agrees to use this product

in compliance with the instructions and terms of

use and with all State and Federal laws. STINGER

provides instructions and safety warnings with

respect to this product and disclaims all liability for

any use not in conjunction with those instructions

or other misuse of its product. If you do not agree,

please discontinue use and contact STINGER. This

product is intended for off-road use and passenger

use only.

Visit StingerElectronics.com for updates and further detailed information.

CONTENTS

Precautions...........................................2

Parts List...............................................4

Assembly & Mounting...........................5

Wiring & Connections...........................8

TECHNICAL SUPPORT:

800-477-2267

[email protected]

CUSTOMER SOLUTIONS:

800-477-2267

[email protected]

MODEL NUMBER: UN1880

Stinger is a Power Brand of AAMP Global

15500 Lightwave Drive, Suite 202

Clearwater, Florida 33760

INSTALLATION GUIDE

PARTS LIST

OPTIONAL ACCESSORIES (SOLD SEPARATELY)

QTY DESCRIPTION PART NO

1Touch Panel Display UN1880-D

1 Radio Module UN1880-M

Mounting Brackets / Hardware

1 Plastic Dash Mounting Bracket

SE-1000

1 Display Mounting Clamp

1 Metal Mounting Bracket

1 Horizontal Display Angle Plate

1 Rubber Boot SE-1001

4 M4 X 6 Screw

4 M4 X 14 Screw

2 M4 x 18 Screw SE-1002

6 M5 x 10 Screw

4 #10 x 3/8 Screw

2 Backstrap SE-1003

Cables / Harnesses

1 8 Pin Display Power Harness SE-1100

1 LVDS Display Video Cable SE-1101

1 16 Pin Power / Speaker Harness SE-1102

1 24 Pin AV / Rear Camera Harness SE-1103

1 10 Pin Multi Camera Harness SE-1104

1 6 Pin SWI / IR Harness SE-1105

1 4 Pin Mic / Camera Audio Harness SE-1106

1 SiriusXM Cable SE-1107

1 External Microphone SE-1108

1 GPS Antenna & Mounting Plate SE-1109

DESCRIPTION PART NO

IR Remote Control SE-1500

8 Pin Display Power Harness - 5FT SE-1501

LVDS Display Video Harness - 5FT SE-1502

PAC Dash Mount HDMI & USB Extension - 3FT HDMI-USB-CBL

PAC Dash Mount USB Adaptor - 3FT/6FT USDMA3 / USBDMA6

iGO North American Map (Micro SD Card) SE-P14

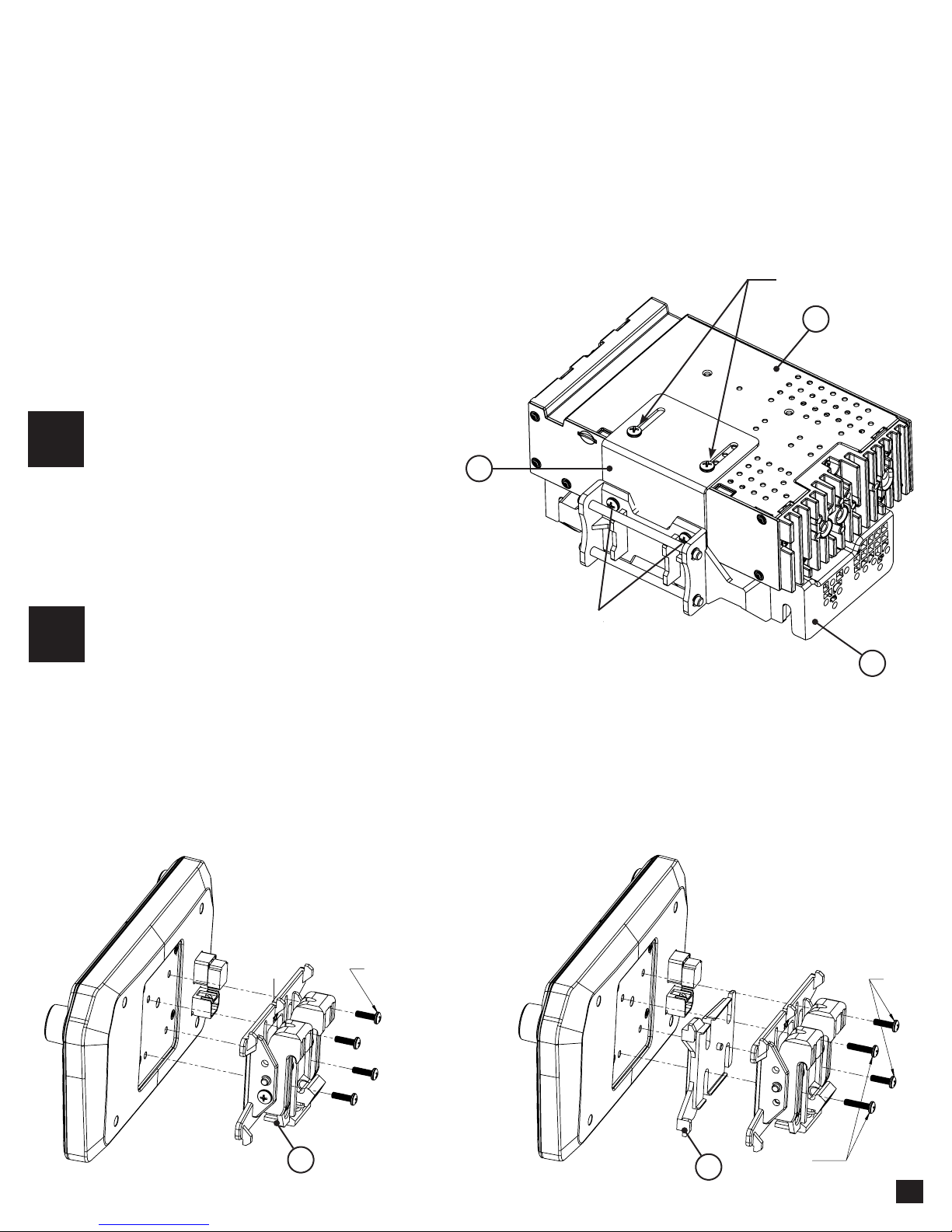

Attach metal bracket (1) to the plastic

dash mounting bracket (2) using M4 X 6

screws. Attach metal bracket and plastic

dash mounting bracket assembly to the

radio module (3) using M4 X 6 screws.

The display can be installed FLAT or ANGLED

towards the driver. For flat mounting, attach the

clamp assembly (6) to the display using M4 X 14

screws (FIG. A). If a horizontal angle is desired,

insert the angle plate (7) in between the clamp and

display and replace 2 of the M4 X 14 screws with

M4 X 18 screws on the thicker side of the angle

plate (FIG. B). Center the bracket on the back of the

display as a starting point, and if needed you can

adjust up or down.

ASSEMBLY AND MOUNTING

MULTIPLE MOUNTING OPTIONS...

ELEV8 can be configured for different mounting applications:

• Using a Double DIN Dash Kit

• Using Factory Radio Mounting Brackets

• Using a Single DIN Dash Kit

• Custom Mounting Applications

This installation guide will cover using a Double DIN Dash Kit

M4 X 18

(2X)

M4 X 14

(2X)

M4 X 14

(4X)

FIG. A FIG. B

Using Double DIN Dash Kit

M4 X 6

TOP

ASSEMBLY AND MOUNTING

Using Double DIN Dash Kit

Display Adjustment:

Loosely attach the radio module and

mounting bracket assembly to the

side brackets of an aftermarket dash

mounting kit using #10 X 3/8 screws

for the bottom locations and the M5 X

10 screws for the top locations (radio

chassis), do not tighten (FIG. A).

Temporarily attach the display to the

bracket assembly (FIG. B).

Using the main frame of the dash kit as

a guide, slide radio assembly forward

or backward to desired position. Tilt

the display vertically and determine if

the display should be flat or tilted up. If

display needs to move up or down,

refer to Step 2.

Once in the desired position, tighten

screws to the radio chassis (top) and

mounting bracket assembly (bottom).

Remove the display from the bracket

assembly by lifting upward and

unhooking.

Note: There are multiple mounting

holes on the mounting bracket to allow

adjusting the mounting depth.

Note: If you encounter a depth issue with

the radio module in the top position, you

may move it to the bottom location by

inverting the mounting bracket assembly.

(FIG. C)

Note: The boot is not required if display

sits very close to the dash/dash kit and

no large gap is seen.

HOOK BOTTOM

FIRST, THEN TOP

#10 X 3/8

M5 X 10

AFTERMARKET

DASH KIT

(NOT INCLUDED)

NOTE: BOOT AND DASH KIT (NOT SHOWN)

FIG. C

FIG. B

FIG. A

Insert a M5 X 10 on each side of the clamp

assembly. Use Hole A for no vertical tilt

or Hole B for 8 degrees of vertical tilt as

determined in Step 3.

If needed, attach the rubber boot to

the display clamp assembly by aligning

the notch on the top edge as shown,

and hook the boot to the clamp at 5

locations.

Note: The boot is not required if display

sits very close to the dash/dash kit and

no large gap is seen.

BOOT ASSEMBLY PLASTIC "TAB"

HAS TO GO INTO A NOTCH

(DISPLAY UNIT NOT SHOWN)

BOOT ASSEMBLY HOOKS

AT 5 SPOTS

(RUBBER BOOT NOT SHOWN)

BOOT ASSEMBLY PLASTIC "TAB"

HAS TO GO INTO A NOTCH

(DISPLAY UNIT NOT SHOWN)

BOOT ASSEMBLY HOOKS

AT 5 SPOTS

(RUBBER BOOT NOT SHOWN)

ASSEMBLY AND MOUNTING

Using Double DIN Dash Kit

After all wiring connections are made

in the next section, the dash kit with the

radio chassis and bracket assembly,

should be installed and any factory

panels reinstalled. Connect the 8 Pin

Display Power Harness and the LVDS

Video Cable to the back of the display

and attach display to mounting bracket.

Connect radio power and

speaker connections to a vehicle

specific harness (sold separately)

referencing diagram at right.

WIRING & CONNECTIONS

16 Pin Power / Speaker Harness

Display Cable

Multi Camera

USB1 CP/AA1

Power / Speaker

GPS Antenna2 LVDS Cable

HDMI Input

USB2

SWI

AV In/Out - Rear Camera Microphone SiriusXM Tuner

Radio Antenna

TOSLINK

Green/Black Rear Left Speaker -

Green Rear Left Speaker +

Purple/Black Rear Right Speaker -

Purple Rear Right Speaker +

White/Black Front Left Speaker -

White Front Left Speaker +

Grey/Black Front Right Speaker -

Grey Front Right Speaker +

Green/White Reverse Trigger +

Pink Parking Brake -

Orange Illumination3+

Yellow Battery 12V +

Blue Power Antenna +

Blue/White Amp Remote +

Red Accessory 12V +

Black Ground -

3Illumination wire must be connected for

Day/Night and Auto Dimming to work.

2GPS Antenna must be installed for accurate

operation of CarPlay, Android Auto & internal

Navigation.

1The top USB1 must be used for CarPlay

and Android Auto.

15 Amp Fuse

A1 Brown / Black SWC Key 2

A2 Brown SWC Key 1

A3 Black SWC Ground

A4 Yellow RCA Video Input

A5 White RCA Audio Input Left

A6 Red RCA Audio Input Right

A7 Yellow RCA Camera Input

A8 Yellow RCA Video Output 1

A9 Yellow RCA Video Output 2

A10 White RCA Zone 2 Left

A11 Red RCA Zone 2 Right

A12 Red RCA Right front

A13 White RCA Left Front

A14 Red RCA Right Rear

A15 White RCA Left Rear

A16 Brown RCA Left Subwoofer

A17 Blue RCA Right Subwoofer

Analog Steering

Wheel Control Input

Audio / Video Input

Video Output

Audio Output

24 Pin AV / Rear Camera Harness

Audio/Video Inputs & Outputs / Rear Camera Video Input /

Analog Steering Wheel Control Inputs.

SiriusXM®Harness

For connecting optional SiriusXM

SXV 300 satellite radio tuner.

WIRING & CONNECTIONS

6 Pin SWI / IR Harness

3.5mm Input for optional Steering Wheel Control Interface

(PAC Audio SWI-CP2 is recommended for full compatibility and advanced features. Visit PAC-Audio.com)

A1 Steering Wheel Control Input

A2 IR Input

4 Pin Microphone / Camera Audio Harness

Input for External Microphone (included) used for hands-free calling, CarPlay and Android Auto

Optional rear camera audio input

A1 Camera Audio Input

A2 Mic Input

10 Pin Multi Camera Harness

3 additional camera inputs and triggers / VSS / Expansion Port

Camera Triggers 2 & 3 will accept a pulsing + trigger (turn signal).

A1 Camera 2 Input

A2 Camera 3 Input

A3 Camera 4 Input

C1 Camera 3 Trigger

C2 Camera 4 Trigger

C3 Camera 2 Trigger

C4 Vehicle Speed input

D Expansion Port (PAC Interface)

WIRING & CONNECTIONS

- Not Used

Microphone Input

Camera #1 Audio Input

Video
