Strider ST4 Bedienungsanleitung
Quick-Clamp system for
fast, easy, no-tool assembly
and handlebar/seat
height adjustment.
Integrated Launch Pad™
footrest for advanced
riding skills!
Custom STRIDER™ Ultralight
wheels with our no-flat EVA
polymer tires that never need air.
Extremely Durable.
Lightweight.
Always ready to ride.
Owner’s Manual
PLEASE READ AND UNDERSTAND THIS ENTIRE MANUAL BEFORE ALLOWING CHILD TO USE THIS PRODUCT.
Fast, Easy,
No-Tool
Assembly

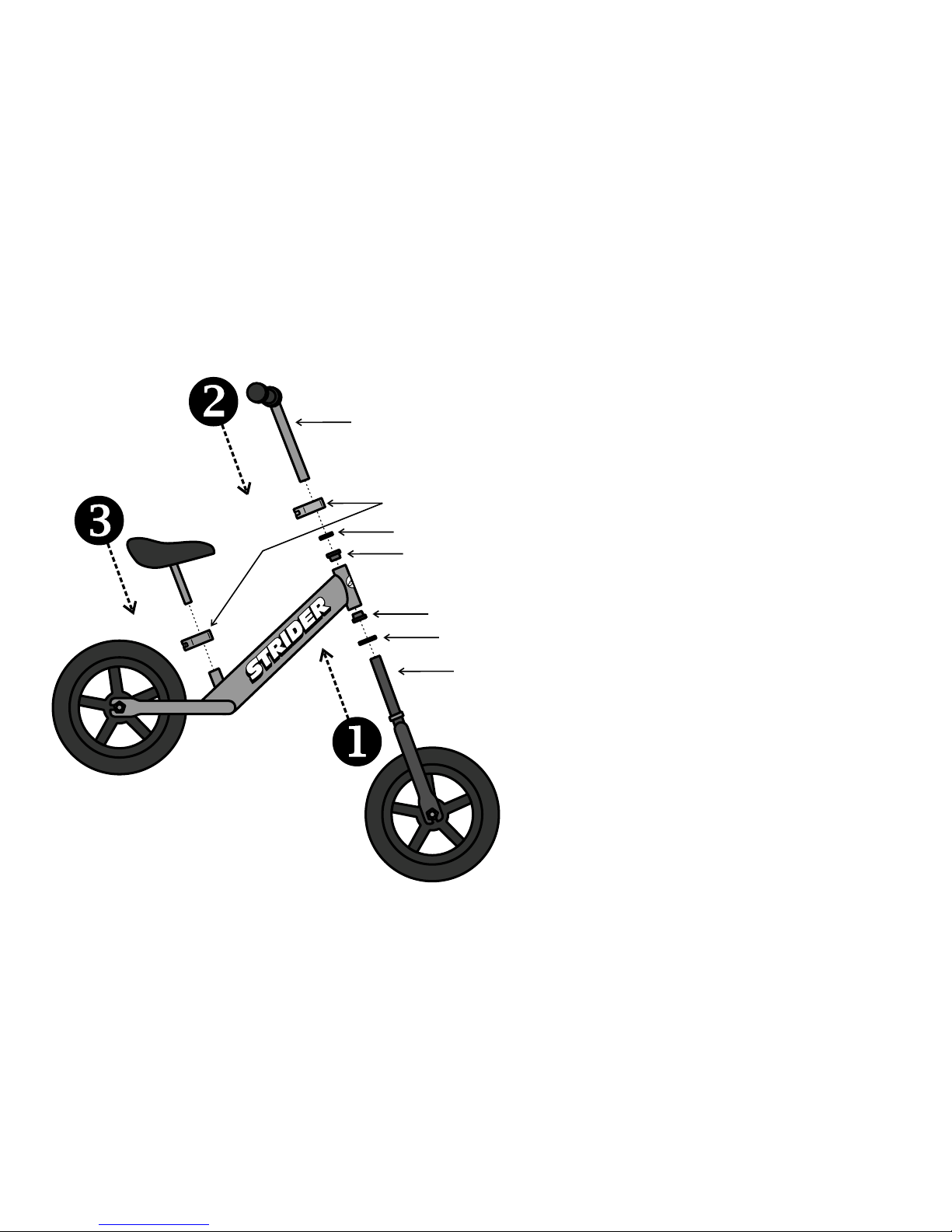

HANDLEBAR ASSEMBLY
QUICK CLAMP LEVERS
FLAT PLASTIC WASHER
TOP BUSHING (INSTALLED)
BOTTOM BUSHING (INSTALLED)
CUPPED PLASTIC WASHER
FORK/FRONT WHEEL ASSEMBLY
TM
TO AVOID SERIOUS INJURY: Continuous adult
supervision is required; never use near steps,
sloped driveways, motor vehicles, hills, alleys,
swimming pool areas, public roads; always wear
sturdy shoes and a properly adjusted helmet.
Gloves are also a good idea. Never allow more
than one rider. Riding is hard work and children
should be physically able to control the bike.
This is a partially assembled riding toy requiring
assembly by an adult according to this manual.
The un-assembled bike and shipping box
contain small parts that are a CHOKING
HAZARD to young children. Please take care to
keep these small parts away from young
children.
WELCOME to the awesome experience of mobilizing toddlers like never before! The STRIDER™ Balance Bike will
have your child enjoying the freedom of riding on two wheels earlier than you ever thought possible and make
family outings more fun and active. We'd like to thank you for your purchase and wish you and your child the best.
If you have any problems, questions, or comments, please contact us. We also encourage you to stay connected
with us on FACEBOOK at www.facebook.com/StriderPREbike. We'd love to see photos or videos of your child's
successes and accomplishments. Let us know how the STRIDER has changed your life!
Appropriate Age: 1½to 5 Yrs
Maximum rider weight: 27 kg / 60 lbs
Your STRIDER comes with a
60 Day Love It Or Return It Guarantee
If you have questions or concerns please contact us prior to return.
Two-year warranty against manufacturing defects.
For warranty information, go online to
www.StriderBikes.com/warranty
or e-mail warranty@striderbikes.com
Your STRIDER must be registered to activate warranty.
STRIDER®, Strider Cup®, Strider Racing®, StriderLife®, STRIDER®
Adventure Zone, Snow Strider®, and the Circle icon are trademarks of
Strider Sports International, Inc.
Register your STRIDER at www.striderbikes.com/register
You will need the serial number from your STRIDER.
It is located on the CE label underneath
the lower section of the main tube.
STRIDER SPORTS INT’L., INC. - U.S.A.
MADE IN CHINA, JUL, 2012 BATCH 200295
S01, JM SN: 12345678901
1. Remove and discard all protective wrapping and the 3 plastic
wheel nut covers used to protect the STRIDER during shipping
(shown at right). These are not usable parts.
2. After removing all packing materials, you should have the
items shown.
Please contact us if you have any questions:
E-mail: assembly@striderbikes.com
Phone: +1-605-342-0266
Assembly and other videos available at
Wheel nut covers
Fork/Front Wheel Assembly
Handlebar Assembly
Frame/Rear Wheel Assembly
Saddle/Seatpost Assembly
Flat Plastic Washer
Cupped Plastic Washer
Quick-Clamp Levers (X2)
Allen Wrench
Owner’s Manual
UNPACKING YOUR STRIDER
Small pieces can be a choking hazard.
Dispose of these pieces properly.
INSTALL FORK/FRONT WHEEL
1. Remove plastic wrap from head tube
bushings (bushings are wrapped to seal in
the grease and keep the bushings in place).
2. Place cupped fork washer on the base of
fork steer tube, cupped side down (Fig 1).
3. While holding top bushing in place with
thumb and forefinger (Fig 3) slide fork up
through the head tube on frame (Fig 2)
Take care not to push out the top bushing.
Make sure head tube sits tightly on cupped
washer (Fig 4).
4. Note the position of the STRIDER
stickers on fork. They should be positioned
right side up as shown (Fig 2).
Fig 3 Fig 4
Fig 2
NOTE: Hold top bushing
Fig 1
CUPPED FORK WASHER
(CUPPED SIDE DOWN)
INSTALL HANDLEBAR
Fig 5. Fig 6.
Fig 7.
Tip: Place front wheel between knees while kneeling on floor to steady the bike.
1. Install the flat plastic washer over fork steer
tube (Fig 5).
2. Install the Quick Clamp with lever open (Fig
6). Rib on clamp goes in slot on front of fork
steer tube (bolt should be towards back, lever
on right.).
3. Insert handlebar into steer tube at desired
height (Fig 7) For small child, put handlebar low;
older child, put handlebar higher. Note the
minimum insertion marking on handlebar. Always keep at
least 50mm inserted into fork steer tube.
4. Clamp the handlebar most of the way, making
sure it is aligned with the wheel, then close
clamp lever (Fig 8). Handlebar should be held
firmly in place.
Fig 8.
FLAT
PLASTIC
WASHER
FORK STEER TUBE
SLOT RIB
TIGHTEN
CLAMP
SEAT POST MINIMUM INSERTION MARK MUST BE INSIDE THE SEAT TUBE
ON THE BIKE FRAME FOR PROPER INSTALLATION AND USE.
INSTALL SADDLE/SEATPOST
MINIMUM
INSERTION
LINE
SEAT TUBE
ADJUST SADDLE/SEATPOST
Tip: Place rear wheel between knees while kneeling on floor to
steady the bike.
1. Loosen Quick Clamp, Set saddle at
proper height (child should be able to
sit on the bike with both feet flat on the
ground with just a slight bend in their
legs).
2. Tighten Quick Clamp. Seat should be
held firmly in place.
Note: After installation, if handlebar or seat are not
held firmly in place, and still move, please see Quick
Clamp adjustment procedures outlined below.
Quick Clamp Adjustment: If clamps are not tight enough to hold saddle or handlebars firmly in
place, open the lever, tighten the bolt slightly with your thumb and forefinger (or allen wrench),
then re-close the lever. Repeat until some effort is needed to close clamp all the way. If, after
adjustment, the clamp is too tight and lever won’t close, open lever and loosen the bolt slightly,
then re-close the lever. Repeat until clamp closes firmly. Allen wrench included if needed for initial
clamp adjustment (See Fig. 10).
LOOSEN BOLT
TIGHTEN BOLT
Fig 10
Fig 9
LOOSEN
CLAMP
TIGHTEN
CLAMP
Maintenance:
Your STRIDER will perform best when kept clean,
lubricated, and serviced regularly. How much of
your STRIDER's service and maintenance you can
do yourself depends on your level of skill and
experience.
Some bike service and repair tasks require special
knowledge and tools. Do not begin any
adjustments or service on your bike if you have
doubt about your ability. Unauthorized or incorrect
service and repairs may void product warranty.
Cleaning:
Mud and dust can be highly abrasive.
Regular cleaning will help keep your
STRIDER in good condition. After washing,
always dry your STRIDER to prevent rust.
Wipe off any excess lubricant.
Inspect / Tighten:
Ensure all bolts, nuts, and quick-clamps
are secure. Hand tighten Quick-Clamps.
Use 14 mm wrench for wheel nuts. Do not
over tighten!
Clean rims and check that they are not
cracked or broken.
Check frame alignment and inspect all the
tubes for dents or damage.
Inspect overall condition of bike and
replace worn components as necessary.
Lubrication:
Lubrication reduces friction and helps protect
against rust.
Use paste lubricant (or Vaseline) on the headset
bushings (A).
(Front and rear wheel bearings are sealed and do
not need lubricant. )
(A)
